USER MANUAL IB-DK4011-CPD Icy Box

Black USB drive with attached cable, showing ports and connectors (no text or symbols visible)

Manual IB-DK4011-CPD

Please read carefully the following information to prevent injuries, damage to material and device as well as data loss:

Warning levels

Signal words and safety codes indicate the warning level and provide immediate information in terms of the probability of occurrence as well as the type and severity of the consequences if the measures to prevent hazards are not complied with.

DANGER

Warns of a directly hazardous situation causing death or serious injury.

WARNING

Warns of a potentially hazardous situation that may cause death or serious injury.

CAUTION

Warns of a potentially hazardous situation that may cause minor injury.

IMPORTANT

Warns of a potential situation that may cause material or environmental damage and disrupt operative processes.

1. Risk of electrical shock

WARNING

Contact with parts conducting electricity

Risk of death by electrical shock

• Read the operating instructions prior to use
  • Make sure the device has been de-energised prior to working on it
• Do not remove contact protection panels
• Avoid contact with conducting parts
• Do not bring plug contacts in contact with pointed and metal objects
  • Use in intended environments only
• Operate the device using a power unit meeting the specifications of the type plate only!
• Keep the device/power unit away from humidity, liquid, vapour and dust
  • Do not modify the device
  • Do not connect the device during thunderstorms
• Approach specialist retailers if you require repairs

2. Hazards during assembly (if intended)

CAUTION

Sharp components

Potential injuries to fingers or hands during assembly (if intended)

• Read the operating instructions prior to assembly
• Avoid coming into contact with sharp edges or pointed components
  • Do not force components together
• Use suitable tools
  • Use potentially enclosed accessories and tools only

3. Hazards caused by a development of heat

IMPORTANT

Insufficient device/power unit ventilation

Overheating and failure of the device/power unit

• Prevent externally heating up components and ensure an exchange of air
• Do not cover the fan outlet and passive cooling elements

Manual IB-DK4011-CPD

• Avoid direct sunlight on the device/power unit
  • Guarantee sufficient ambient air for the device/power unit
• Do not place objects on the device/power unit

4. Hazards caused by very small parts and packaging

WARNING

Risk of suffocation

Risk of death by suffocation or swallowing

• Keep small parts and accessories away from children
• Store/dispose of plastic bags and packaging in an area that is inaccessible to children
  • Do not hand over small parts and packaging to children

5. Potential data loss

IMPORTANT

Data lost during commissioning

Potentially irreversible data loss

• Always comply with the information in the operating instructions/quick installation guide
• Exclusively use the product once the specifications have been met
• Back up data prior to commissioning
• Back up data prior to connecting new hardware
• Use accessories enclosed with the product

6. Cleaning the device

IMPORTANT

Harmful cleaning agents

Scratches, discolouration, damage caused by moisture or short circuit in the device

• Disconnect the device prior to cleaning
• Aggressive or intense cleaning agents and solvents are unsuitable
  • Make sure there is no residual moisture after cleaning
  • We recommend cleaning devices using a dry, anti-static cloth

7. Disposing of the device

IMPORTANT

Environmental pollution, unsuitable for recycling

Potential environmental pollution caused by components, recycling circle interrupted

This icon on product and packaging indicates that this product must not be disposed of as part of domestic waste. In compliance with the Waste Electrical and Electronic Equipment Directive (WEEE) this electrical device and potentially included batteries must not be disposed of in conventional, domestic waste or recycling waste. If you would like to dispose of this product and potentially included batteries, please return it to the retailer or your local waste disposal and recycling point.

If you have any questions, please do not hesitate to contact our support at [e-mail] or visit our website at www.icybox.de.

Handbuch IB-DK4011-CPD

1. 2x USB 2.0 Type-A interface, data transfer rates up to 480 Mbit/s and 5 V/0.5 A charging support

2. USB 3.2 Gen 1 Type-A interface, data transfer rates up to 5 Gbit/s and 5 V/0.9 A charging support

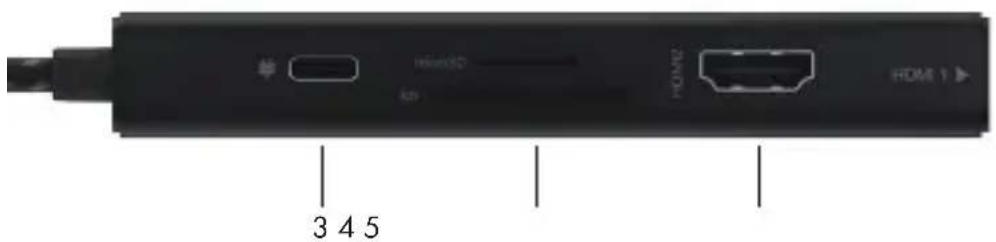

1. USB Type-C ^® PD 3.0 interface with Power Delivery support up to 100 watts (no data transfer)

2. SD 3.0 card reader, data transfer rates up to 100 MB/s microSD 3.0 card reader, data transfer rates up to 100 MB/s

3. HDMI ^® 2: HDMI ^® 1.4 interface with up to 3840x2160@30 Hz

Close-up of two Ethernet ports with port numbers 6 and 8 labeled (no additional text or symbols)

Close-up of a black cable with a white connector (no text or symbols visible)

1. HDMI ^® 1: HDMI ^® 2.0 interface with up to 3840x2160@60 Hz

2. DisplayPort 1.2 interface with up to 3840x2160@60 Hz

3. USB 3.2 Gen 1 Type-C ^® host computer interface

Manual IB-DK4011-CPD

USB version information
Legacy USB standards Current USB standards Data transfer rate
USB 3.0 = USB 3.1 (Gen 1) =	USB 3.2 Gen 1 = 5 Gbit/s
USB 3.1 = USB 3.1 (Gen 1) =	USB 3.2 Gen 1 = 5 Gbit/s
USB 3.2 (Gen 1x2) = USB 3.2	Gen 1x2 = 20 Gbit/s

Requirements

• USB Type-C ^ enabled Windows ^ / macOS ^ computer
  • Power Delivery and DP Alt Mode support
  • Maximum resolution of 4K@60 Hz only via Type-C ^® DP Alt Mode supported host computers with DP 1.4 (DSC)
• The device is compatible with Thunderbolt ^TM 3 / 4 equipped computers

USB Type-C®

Not all USB Type-C® host ports support the full functionality of the USB Type-C® standard. Some ports might only provide data transfer without supporting Power Delivery or DP Alt Mode over USB.

USB Type-C ^TM ≠ USB Type-C ^TM

Important!

This ICY BOX product requires the usage of DisplayPort™ Alt Mode technology over the USB Type-C™ connector. Not all computers, notebooks or tablets with a USB Type-C™ interface support the DisplayPort™ Alt Mode.

Please check the specifications of your computer system as well as its USB Type-CTM interface or use the ICY BOX product with a ThunderboltTM 3 connector.

To use this dock to its full potential, make sure that the host USB Type-C® port of your computer supports USB Power Delivery and DP Alt Mode or Thunderbolt™ 3 / 4. Please consult your host PC documentation or contact the PC manufacturer to confirm compatibility with these technologies. For safety, check whether the host PC Bios Version is the latest and confirm compatibility with USB Type-C® Power Delivery and/or DP Alt Mode before application.

Manual IB-DK4011-CPD

Starting up

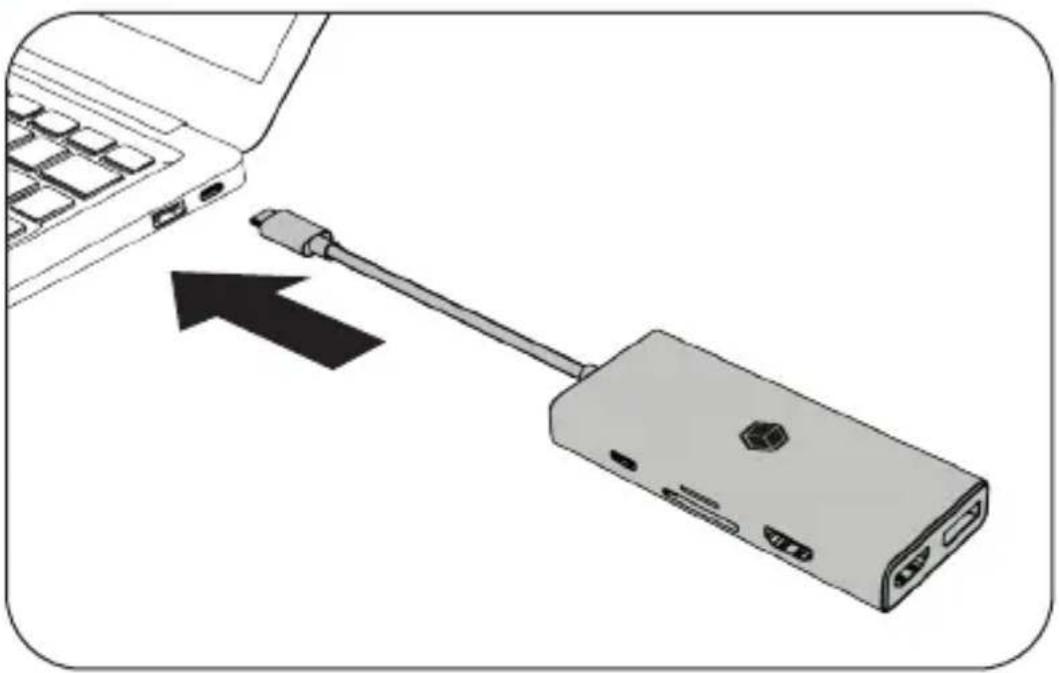

1. Connect the USB Type-C ^® cable to the supported USB Type-C ^® interface of your computer.

Diagram showing a laptop connected to a device via cable, with an arrow indicating the cable's direction (no text or symbols present)

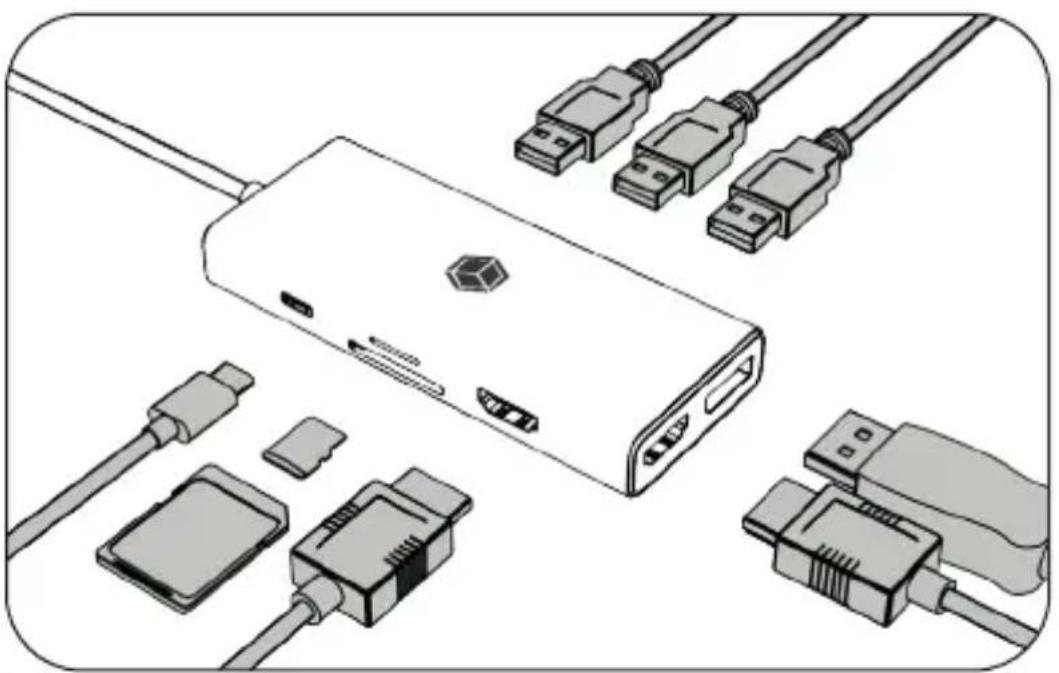

1. Connect your devices to the corresponding interfaces of the dock.

Illustration of connected USB connectors and a device (no text or symbols)

Manual IB-DK4011-CPD

Use of memory card slots

SD card

Insert the SD card into the SD card slot with the bevelled corner first. The golden PINs of the card must show upwards (logo at the top).

microSD card

Insert the microSD card into the microSD card slot with the bevelled corner first. The golden PINs of the card must show downwards (logo at the top).

Multi-LUN card readers allow the use of two cards simultaneously.

Manual IB-DK4011-CPD

Configure a display device

Please set up your display settings according to your operating system and requirements.

For detailed information refer to the corresponding operation manual and description of your operating system.

Note: Video output capabilities are dependent on the video graphics card and hardware specifications of your connected host computer. Certain video graphics cards and operating systems have limited MST and DisplayPort ^® support, while some monitors will also limit the available resolution.

Supported video resolutions

The IB-DK4011-CPD supports 4K (ultra HD) resolutions if the connected displays and the graphics unit support it.

Supported video resolutions

Video matrix design (USB Type-C DP Alt Mode, DP 1.2), maximum resolutions (Windows)
	Inputs (plug-in) Output
Number of displays	HDMI *1	HDMI *2	DP HDMI	^1 HDMI	^2 DP
Triple video output	√√√			1920x1080@60 Hz 19	20x1080@60 Hz 1600x900	@60 Hz
Dual video output	√	√		1920x1080@60 Hz 19	20x1080@60 Hz
		√	√		1920x1080@60 Hz 19	20x1080@60 Hz
	√		√	1920x1080@60 Hz 19	20x1080@60 Hz
Single video output	√			3840x2160@30 Hz
		√			3840x2160@30 Hz
			√			3840x2160@30 Hz

Video matrix design (USB Type-C* DP Alt Mode, DP 1.4), maximum resolutions (Windows)
	Inputs (plug-in) Output
Number of displays	HDMI *1	HDMI *2	DP HDMI	* 1 HDMI	* 2 DP
Triple video output	√√√			1920x1080@60 Hz 19	20x1080@60 Hz 1920x10	80@60 Hz
Dual video output	√	√		3840x2160@30 Hz 19	20x1080@60 Hz
		√	√		1920x1080@60 Hz 38	40x2160@30 Hz
	√		√	3840x2160@30 Hz 19	20x1080@60 Hz
Single video output	√			3840x2160@60 Hz
		√			3840x2160@30 Hz
			√			3840x2160@60 Hz

Video matrix design (USB Type-C* DP Alt Mode), maximum resolutions (macOS)
	Inputs (plug-in) Output
Number of displays	HDMI *1	HDMI *2	DP HDMI	* 1 HDMI	* 2 DP
1/2/3-fold video output	√√√			3840x2160@30 Hz only mirrored (SST)

*DSC (Display Stream Compression) support necessary

Manual IB-DK4011-CPD

Windows® display configuration

NOTE: The screenshots might vary slightly with the operating system.

Arrange your displays

Once the extra monitors are connected, they can be configured to either mirror mode, extended mode or be configured to the setting of the primary display.

e.g: extending your monitors

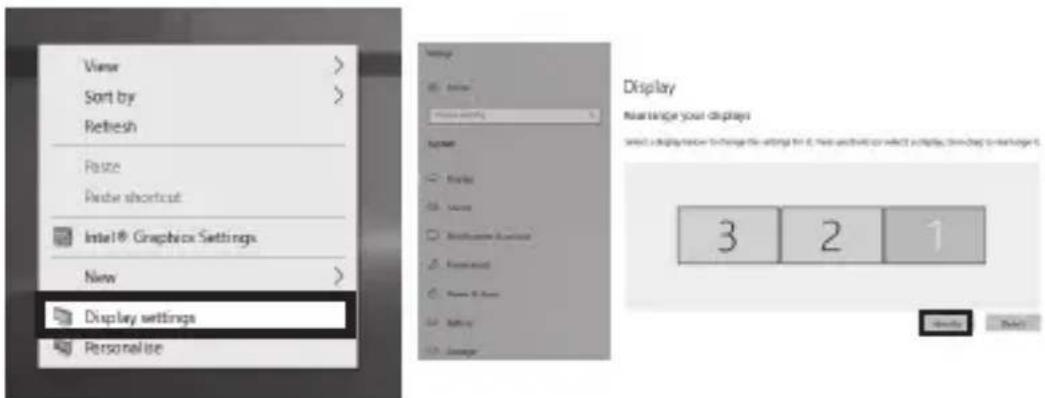

• Position the mouse anywhere on the Windows ^® desktop
• Right-click and select Display settings to bring up the configuration window.
• Refer to the Display configuration section

• Identify your monitors by clicking the Identify button.
• Select the relevant monitor for the following settings by clicking the identified monitor symbol

Manual IB-DK4011-CPD

- Select Multiple displays > Extend desktop to this display if you wish to extend a monitor.

Multiple displays

Display resolution

1920 × 1080

Display orientation

Landscape

2.

Duplicate desktop on 1 and 3

Duplicate desktop on 2 and 3

Extend desktop to this display

Disconnect this display

- Click Keep changes to confirm and exit.

- Once the setting is completed, simply drag and drop the application icons to arrange your monitors.

(However, some applications may not support the display on the extended desktop).

Display

Select a display below to change the settings for it. Press and hold (or select) a display, then drag to rearrange it.

Manual IB-DK4011-CPD

Setting the right resolution and frequency of your displays

There are two possibilities to choose the resolution of the selected monitor:

1. Standard

• Identify your monitors by clicking the Identify button.
• Select the relevant monitor by clicking the identified monitor symbol.
• Click on Display resolution

1.

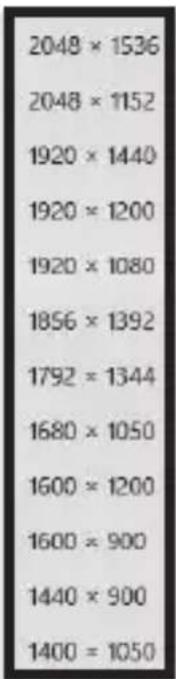

- Choose the right resolution from the drop-down menu. Refer to the video matrix table!

2.

- Click Keep changes to confirm and exit.

Manual IB-DK4011-CPD

2. Advanced display settings

• Identify your monitors by clicking the Identify button.
• Click on Advanced display settings

Multiple displays

Multiple displays

Extend desktop to this display

Make this my main display

1.

Connect to a wireless display.

Advanced display settings

Graphics settings

A new page opens up

• Select the relevant monitor by clicking Choose display

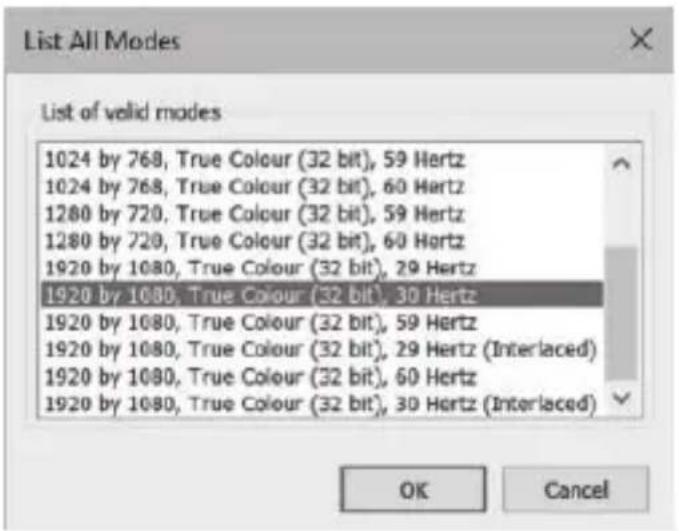

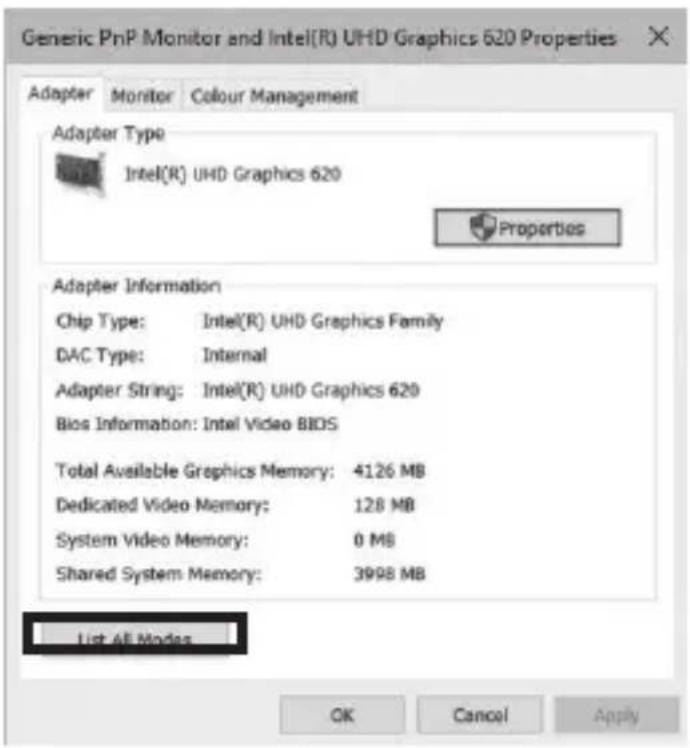

• Click on Display adaptor properties for Display X

2.

Choose display

Select a display to view or change the settings for it.

Display 2: LG Ultra HD

Display information

LG Ultra HD

Display 2: Connected to Intel(R) UHD Graphics 620

Desktop resolution

1920×1000

Active signal resolution

1920×1030

Refractive rate (Hz)

30 Hz

Bit depth

ふ-bit

Colour format

RGB

Colour space

Standard dynamic range (SDR)

Get help

Gree feedback

Manual IB-DK4011-CPD

A new window opens up

- Click on List All Modes

4.

A new window opens up

- Click on a valid mode according to your demands.

Repeat for each attached monitor if necessary.

Manual IB-DK4011-CPD

macOS® Display configuration

Once the extra monitors are connected, they can be configured to mirror mode or extend mode.

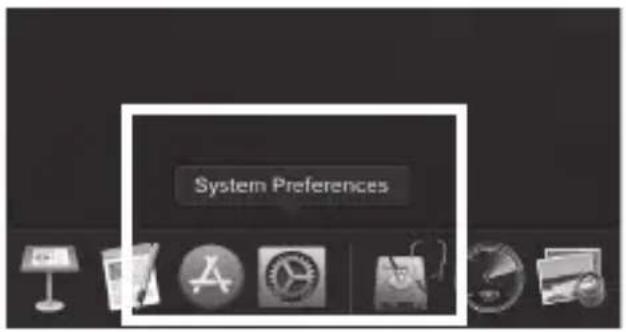

- Click on System Preferences

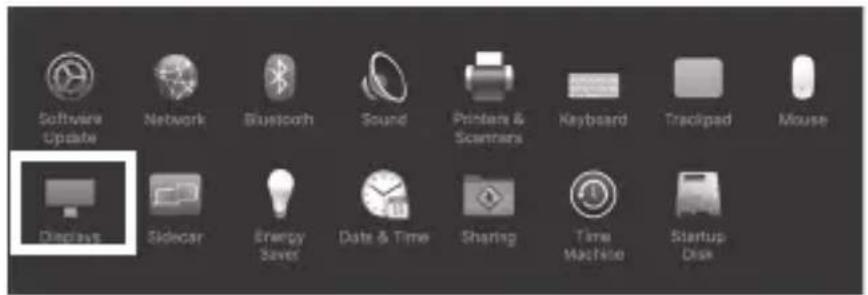

- Click on Displays

A new window opens up

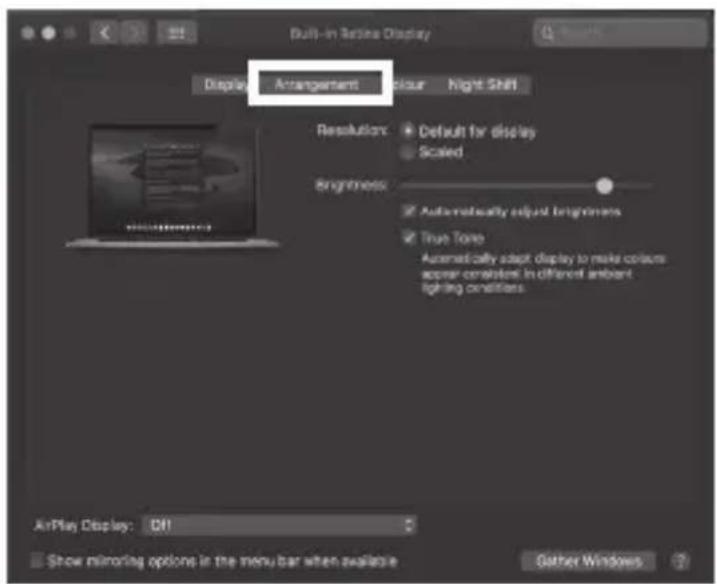

- Click Arrangement

Manual IB-DK4011-CPD

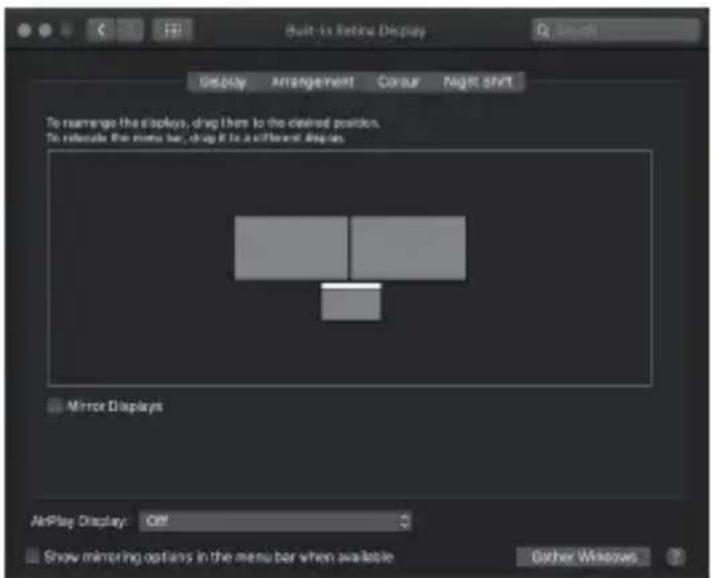

- Select the corresponding monitor symbol by clicking and holding the symbol of the monitor that shall be placed in order to do the positioning.

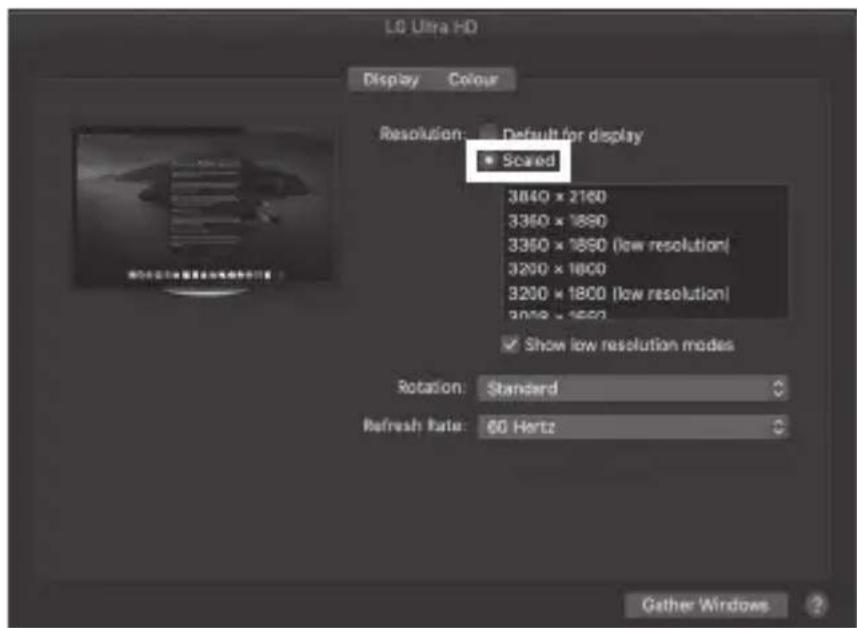

To set up scaled resolutions of the monitor displays, click the Display tab. In the window that now opens for the respective display, you can set your desired resolutions separately. Select the option Scaled and then select the appropriate size in the field below.

Manual IB-DK4011-CPD

Advanced display settings

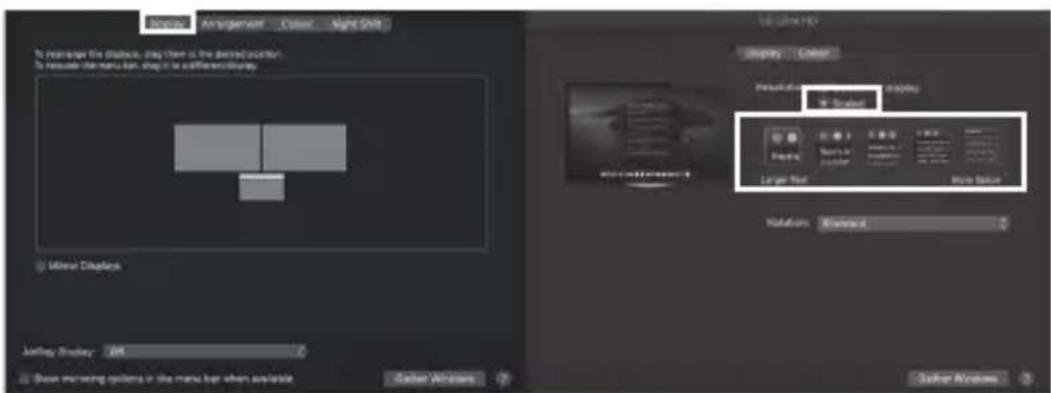

Hold down the option key and click on Scaled again and an advanced menu for setting resolution and repetition frequency opens.

Please select your preferred settings here.

Repeat for each attached monitor if necessary.

Handbuch IB-DK4011-CPD

Verpackungsinhalt

Close-up of two Ethernet ports with labeled port number 678 (no additional text or symbols)

Close-up of a black cable with a white connector (no text or symbols visible)

Diagram showing a laptop connected to a USB drive with an arrow indicating data transfer (no text or symbols present)

Illustration of connected USB connectors and a device (no text or symbols)

Handbuch IB-DK4011-CPD

© Copyright 2023 by RaidSonic Technology GmbH. All Rights Reserved. The information contained in this manual is believed to be accurate and reliable. RaidSonic Technology GmbH assumes no responsibility for any errors contained in this manual. RaidSonic Technology GmbH reserves the right to make changes in the specifications and/or design of the above-mentioned product without prior notice. The diagrams contained in this manual may also not fully represent the product that you are using and are there for illustration purposes only. RaidSonic Technology GmbH assumes no responsibility for any differences between the product mentioned in this manual and the product you may have. DisplayLink ^ is the registered trademark of DisplayLink Corp. in the EU, the US, and other countries DisplayPort ^ and the DisplayPort ^ logo are trademarks owned by the Video Electronics Standards Association (VESA ^ ) in the United States and other countries. The terms HDMI ^ and HDMI ^ High-Definition Multimedia Interface, and the HDMI ^ logo are trademarks or registered trademarks of HDMI ^ LA, Inc. in the United States and other countries. Apple and macOS are registered trademarks of Apple Computer Inc. Microsoft, Windows and the Windows logo are registered trademarks of Microsoft Corporation.
