Topaz B077 - Headphones Exibel - Free user manual and instructions

Product Type	Wireless On-Ear Headphones with Active Noise Cancellation
Brand	Exibel
Model	Topaz B077 (Art. No. 38-8930)
Form Factor	On-Ear, Adjustable Headband
Connectivity	Bluetooth 5.0, 3.5 mm Audio Cable
Bluetooth Range	Approx. 10 m (33 ft)
Bluetooth Frequency Range	2402–2480 MHz
Output Power	3.5 dB
Active Noise Cancellation	Yes, with dedicated button
Built-in Microphone	Yes, for calls and voice assistants (Siri/Google Assistant)
Controls	Power/Play/Pair button, Volume +/- (with track skip), ANC button
Battery Type	Lithium-Ion, 500 mAh
Charging Time	Approx. 1 hour
Listening Time (Bluetooth)	Approx. 20 hours
Listening Time (Bluetooth + ANC)	Approx. 15 hours
Standby Time	Approx. 168 hours (7 days)
Frequency Response	20–20000 Hz
Dimensions (W x D x H)	224 x 147 x 91 mm
Weight	541 g (1.19 lbs)
Charging Port	USB-C
Included Accessories	USB-C Charging Cable, 3.5 mm Audio Cable, User Manual
Color	Black
Care Instructions	Clean with a dry cloth; switch off when not in use
Safety Warnings	Do not use at high volume for prolonged periods; avoid using while driving or in dangerous environments
Compliance	CE, RED 2014/53/EU

Frequently Asked Questions - Topaz B077 Exibel

How do I pair the Topaz B077 headphones with my phone?

Ensure the headphones are turned off. Then press and hold the power button ([]) for about 5 seconds until the LED flashes red and blue. Activate Bluetooth on your phone and select Topaz from the list. Once connected, the LED will flash blue every 5 seconds.

How long does the battery last on a full charge?

With Bluetooth only, you get approximately 20 hours of listening time. With Bluetooth and Active Noise Cancellation (ANC) enabled, the battery lasts about 15 hours. Standby time is up to 168 hours (7 days).

How do I charge the headphones?

Connect the included USB-C charging cable to the headphones and a USB power source (charger or computer). The LED indicator shines red during charging and turns green when fully charged. Charging takes approximately 1 hour.

Can I use the headphones while they are charging?

Yes, you can use the headphones while charging, but it is recommended to stop charging during thunderstorms to avoid electrical hazards.

How do I activate Active Noise Cancellation (ANC)?

Make sure the headphones are turned on. Press the [ANC] button once to toggle ANC on or off. When ANC is active, the LED indicator will shine blue.

Are these headphones waterproof?

No, the Exibel Topaz B077 are not waterproof. Avoid exposing them to high humidity, moisture, or rain. Wipe clean with a dry cloth only.

How do I adjust the volume and skip tracks?

Press the [+] button to increase volume and the [-] button to decrease. To skip to the next track, press and hold [+]; to go to the previous track, press and hold [-].

Can I use the headphones with a non-Bluetooth device?

Yes, you can use the included 3.5 mm audio cable to connect the headphones to any device with a headphone jack. Note that when using the cable, Bluetooth turns off automatically, and you cannot control track skipping from the headset.

What should I do if the headphones won’t turn on?

First, ensure the battery is charged. Connect to a charger for at least 10 minutes before attempting to power on. If still not working, check the charging cable and power source. If the issue persists, contact customer support.

How do I clean the headphones?

Use only a dry cloth to wipe the headset. Do not use water, solvents, or abrasive cleaners. Always switch off the headphones before cleaning and store them in a dry place.

USER MANUAL Topaz B077 Exibel

Wireless on-ear headphones with ANC

Black multi-band headphones with earbuds and foam cover (no visible text or symbols)

Art.no. Model

38-8930 Topaz / B077

English 3

Svenska 10

Norsk 17

Suomi 24

Deutsch 31

Wireless on-ear headphones with ANC

Art. no 38-8930 Model Topaz / B077

Please read the entire instruction manual before using the product and then save it for future reference.

We reserve the right for any errors in text or images and any necessary changes made to technical data.

In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

• Protect your hearing. Do not listen with a high volume for prolonged periods as it can lead to permanent hearing loss.
• Care should be taken when the headphones are worn whilst walking or running. The volume should be kept at level which enables surrounding sounds to be heard.
• Do not use the product if doing so could pose a danger to yourself or others.
• Never use the product when driving a vehicle in traffic.
• Never subject the product to high temperatures, dust, heavy vibration, impacts, humidity or moisture.
• Do not place the product in continuous sunlight or near naked flames.
• Never attempt to tamper with or modify the product in any way.
• Discontinue charging during thunderstorms.
• Turn off both the product and mobile phone in areas where you are requested to do so, such as in hospitals, aircraft or areas where there is a risk of explosion.

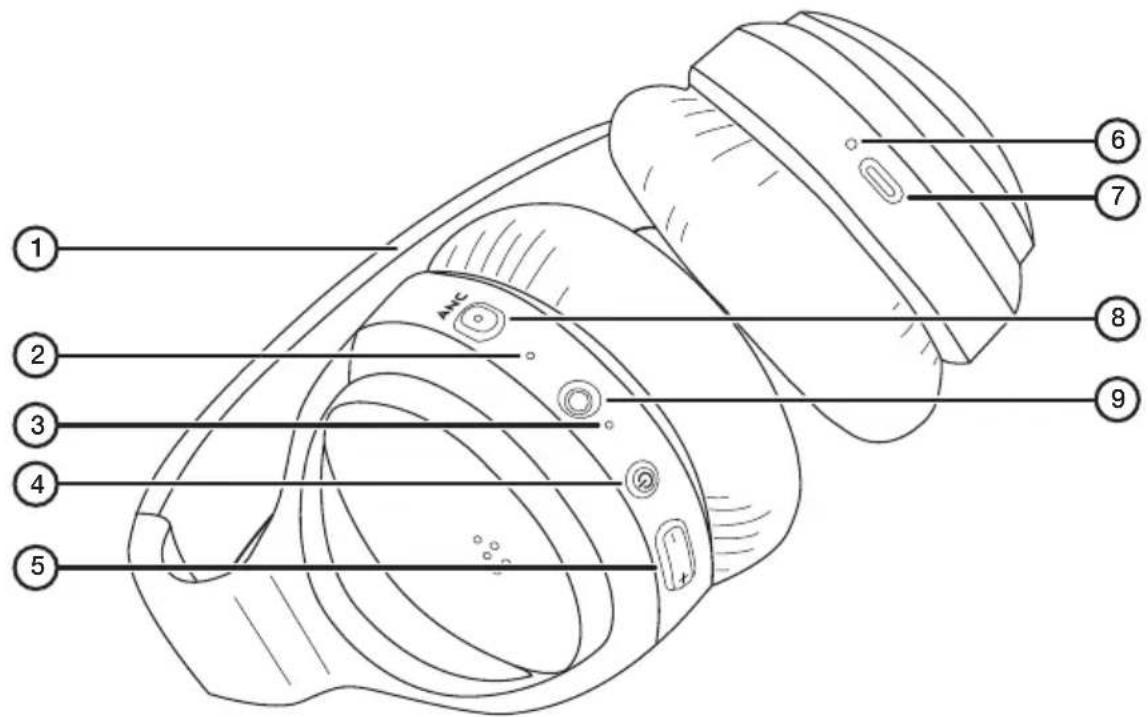

Buttons and functions

1. Adjustable headband
2. Microphone
3. Status indicator
4. [Hold in to turn it on/off or to pair the earphones. Press once for play/pause, answer/end a call. Press twice to activate Siri/Google Assistant.
5. [+] Press to raise the volume, hold in to change to the next track [-] Press to lower the volume, hold in to change to the previous track
6. Battery charge status indicator
7. USB-C port for the included charging cable
8. [ANC] Press to turn the active noise cancellation on/off
9. 3.5 mm connection for an external audio source

Instructions for use

Charging

1. Connect the included charging cable to the USB-C port and to a USB-charger or computer.
2. When the battery is charging the LED indicator will shine red. The indicator shines green once the battery is fully charged.

On/Off

Hold in [↓] for 3 seconds to turn the headphones on.

Hold in [💡] for 4 seconds to turn the headphones off.

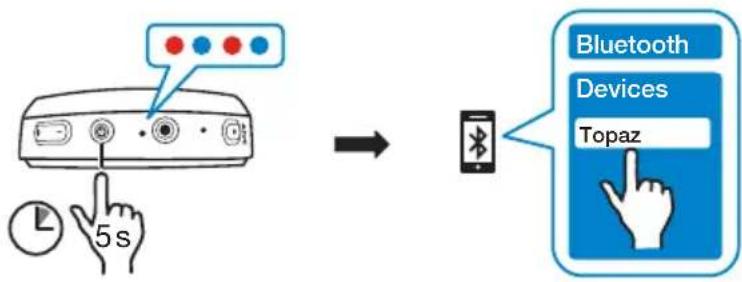

Connecting a Bluetooth device (pairing)

1. Make sure that the headphones are turned off.
2. Hold in [ 🔊 for 5 seconds approx. until the indicator LED flashes red/blue. The headphones are now detectable for other Bluetooth devices.
3. Activate Bluetooth on the device to be paired and begin scanning for the headphones. When the headphones have been found by the Bluetooth device they will appear as Topaz.
4. Select the headphones from the list. When contact has been established the LED indicator will indicate a successful connection by flashing blue every 5 seconds.
5. Start playback on your device. Adjust the volume and control playback on the Bluetooth device or directly on the headphones.

- The headphones will automatically connect to the device they were connected to last (provided that Bluetooth mode is activated on your device).

- If you want to connect another device, follow the same steps 1–5 above.

Media playback

• Press [ once to start and pause music playback.
• Press [+/-] repeatedly to raise/lower the volume.
• Hold in [+/-] to change to the next/previous track.

Call management

• Press [ ] once to answer an incoming phone call. Press once again to end the call.
• Hold in [+/-] to reject an incoming call.
• Press [ twice in quick succession to activate Siri/Google Assistant.

Connecting an external device via audio cable

1. Connect a 3.5 mm audio cable between the headphones and to your external device (Bluetooth turns off automatically).
2. Start playback and adjust the volume on the device.

• To use the active noise-cancelling (ANC) feature, the headphones must be turned on.
• You cannot change tracks on the headphones using the buttons when an external device is connected via the cable.

ANC (Active Noise Cancelling)

The ANC feature reduces noise with the help of microphones that actively catch and analyse noise and then dampen background noise before it reaches your ears.

Warning

Do not use this feature in situations where it poses a possible danger to yourself or others due to your inability to clearly hear your surroundings.

1. Make sure that the headphones are turned on.
2. Press [ANC] once to turn the active noise cancellation on/off. The LED indicator shines blue when the ANC feature is activated.

Care and maintenance

• Use a dry cloth to wipe the headphones clean when needed.
  • Always switch the headphones off when they are not in use.

Troubleshooting guide

The headphones will not switch on.	Make sure that the battery is charged. Refer to the Charging section above.
The battery does not charge.	If you are using a computer as a power source, check that it is on and not in standby mode.Check that the charging cable is correctly connected to both the earphones and the power source.
The headphones won't connect to (pair with) the external device.	Place the headphones next to the device that you are trying to connect them to.Make sure that:- Both devices are switched on.- The Bluetooth function is enabled on the device you are trying to connect to.
Poor or no sound.	Adjust the volume on both your telephone and the headphones.Make sure that the Bluetooth connection has been properly established.Test playback from your telephone without it being connected to the headphones to check that it works.Make sure that no other wireless devices are disrupting your Bluetooth connection.Make sure that your telephone is within the 10 m (max) reception range of the headphones.

Responsible disposal

This symbol indicates that the product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no visible text or labels

Specifications

Bluetooth Version 5.0

Output power 3.5 dB

Frequency range 2402–2480 MHz

Range approx. 10 m

Built-in battery Lithium-ion, 500 mAh

Charging time approx. 1 hour

Listening time Approx. 20 hours (Bluetooth), 15 hours (Bluetooth + ANC)

Standby time approx. 168 hours

Frequency range 20–20000 Hz

Dimensions 224 x 147 x 91 mm

Weight 541 g

ANC (Active Noise Canceling)

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Specifikationer

Bluetooth Version 5.0

Uteffekt 3,5 dB

Frekvensområde 2402 – 2480 MHz

Räckvidd Ca 10 m

Inbyggt batteri Lithium-ion, 500 mAh

Laddtid Ca 1 tim

Lyssningstid Ca 20 tim (Bluetooth), 15 tim (Bluetooth + ANC)

Standbytid Ca 168 tim

ANC (Active Noise Canceling)

Vedlikehold

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Spesifikasjoner

ANC (Active Noise Cancelling)

Symbol of a trash bin crossed with no text or labels, accompanied by a blank rectangular block below (no text or symbols present)

Tekniset tiedot

Bluetooth Versio 5.0

Lähtöteho 3,5 dB

Taajuusalue 2402–2480 MHz

Kantama Noin 10 m

ANC (Active Noise Canceling)

Pflege und Wartung

Symbol of a trash bin crossed with no visible text or labels

Technische Daten

Bluetooth Version 5.0

Declaration of Conformity

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Denna EU-försäkran om överensstämmelse utfärdas på tillverkarens eget ansvar. / Samsvarserklæringen er utstedt under produsentens eget ansvar. / Tämä EU-vaatimustenmukaisuusvakuutus on annettu valmistajan yksinomaisella vastuulla. / Die alleinige Verantwortung für die Ausstellung dieser Konformitätserklärung trägt der Hersteller:

Benämning

38-8930

Topaz / B077

has been manufactured in full compliance with the requirements of the Radio Equipment Directive (RED) 2014/53/EU and relevant harmonized standards

har tillverkats i full överensstämmelse med kraven i 2014/53/EU och relevanta harmoniserade standarder / har blitt produsert i full overensstemmelse med kravene i 2014/53/EU og relevante harmoniserte standarder / on valmistettu täysin direktiivin 2014/53/EU ja asiaankuuluvien yhdenmukaistettujen standardien vaatimusten mukaisesti / wurde in voller Übereinstimmung mit den Anforderungen von 2014/53/EU sowie relevanten harmonisierten Normen hergestellt.

Reference to harmonized standards used, or reference to the specifications in which declaration of conformity is declared:

Hänvisning till de harmoniserade standarder som använts eller hänvisningar till de specifikationer som försäkran om överensstämmelse deklareras: / Referere til harmoniserte standarder som brukes, eller henvisninger til spesifikasjonene der samsvarserklæring er erklärt: / Viittaus yhdenmukaistettuihin standardeihin, joita on käytetty, tai viittaus eritelmiin, joiden perusteella vaatimusten mukaisuusvakuutus on annettu: / Verweis zu den verwendeten harmonisierten Normen oder Verweise auf die Spezifikationen, die der Konformitätserklärung zugrunde liegen:

Article 3.1a (Safety): EN 60950-1

Article 3.1b (EMC): EN 301489-53

Article 3.2 (Radio): EN 300328

EN 300330

Signed for and on behalf of:

Henrik Alfredsson

Product Quality & Compliance Manager

Insjön, Sweden, 2020-10-09
