38-8834-1 - Headphones Exibel - Free user manual and instructions

Product Type	Wireless Headphones with Microphone
Model Number	FW-1915
Bluetooth Version	5.0
Wireless Range	10 m
Output Power (max)	10 mW
Frequency Range	2402–2480 MHz
Battery Capacity	300 mAh
Charging Time	Approx. 2.5 hours
Listening Time	Approx. 10 hours
Standby Time	Approx. 120 hours
Weight	150 g
Adjustable Headband	Yes
Built-in Microphone	Yes
Control Buttons	Play/Pause, Volume +/-, Track Skip, Call Answer/End
Voice Assistant Support	Siri/Google Assistant (double press [O])
LED Indicator	Yes, for pairing and status
Charging Port	Micro-USB
Included Accessories	Charging cable (USB)
Compatibility	Bluetooth devices
Care Instructions	Wipe with a dry cloth when needed
Safety Warnings	Do not use while driving; protect hearing; keep away from water

Frequently Asked Questions - 38-8834-1 Exibel

How do I pair the headphones with a Bluetooth device?

Ensure headphones are off. Hold [O] for about 4 seconds until the LED flashes red/blue. Activate Bluetooth on your device, search for 'Hyperite', and select connect. If prompted for a PIN, enter 0000.

How do I charge the headphones?

Connect the included Micro-USB cable to the headphones and a computer or USB charger. The LED shines red while charging and goes out when fully charged. A full charge takes approximately 2.5 hours.

What does the LED indicator mean?

When pairing, it flashes red/blue. When connected, it flashes blue every 5 seconds. While charging, it is solid red. When fully charged, the LED turns off.

The headphones won't connect to my device. What should I do?

Place the headphones close to the device. Ensure both are switched on, Bluetooth is enabled on the device, and no other wireless equipment is interfering. Reattempt pairing. If using a PIN, enter 0000.

Can I use the headphones while driving?

No, never use the product when driving a vehicle in traffic. It can pose a danger to yourself and others.

How do I activate Siri or Google Assistant?

Press the [O] button twice quickly to activate the voice assistant on your connected phone.

How do I reject an incoming call?

Hold in the [▲] or [▼] button for approximately 2 seconds to reject an incoming call.

What is the battery life of the headphones?

Listening time is approximately 10 hours, and standby time is approximately 120 hours. Charging time is about 2.5 hours.

What is the Bluetooth range?

The maximum effective range is 10 meters (33 feet) in open space. Obstacles like walls can reduce the range.

How do I adjust the volume?

Press the [▲] button repeatedly to increase volume, and [▼] to decrease. An audible signal sounds at min/max volume.

USER MANUAL 38-8834-1 Exibel

Wireless Headphones with Microphone

Art.no.

Model

Wireless Headphones with Microphone

Art.no 38-8834-1,-2,-3,-4 Model FW-1915

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Things to consider:

• Other wireless equipment using the same frequency band can reduce the range.
• The range of all wireless equipment depends on the type of obstacles located between the transmitter and the receiver (e.g. a concrete wall will interfere with the signal more than a plasterboard wall).

If you experience problems, try the following:

• Turn off any other existing wireless equipment to check whether this is the cause of the problem.
• Reposition the wireless equipment, shorten the distance between the transmitter and the receiver or reduce the number of obstacles (walls, furniture, etc.) between them.
• Reattempt to establish a connection between the headphones and your external device.

Safety

• Never subject the product to high temperatures, dust, heavy vibration, impacts, humidity or moisture.
• Protect your hearing. Do not listen at a high volume for prolonged periods as it can lead to permanent hearing loss.
• Care should be taken when the product is used whilst walking or running. The volume should be kept at level which enables surrounding sounds to be heard.
• Do not use the product if doing so could pose a danger to yourself or others.
• Never use the product when driving a vehicle in traffic.
• Keep the product away from water and other liquids.
• Do not place the product in continuous sunlight or near naked flames.
• Never attempt to tamper with or modify the product in any way.
• Discontinue charging during thunderstorms.
• Shut off both the product and mobile phone in areas where you are requested to do so, such as in hospitals, aircraft or areas where there is a risk of explosion.

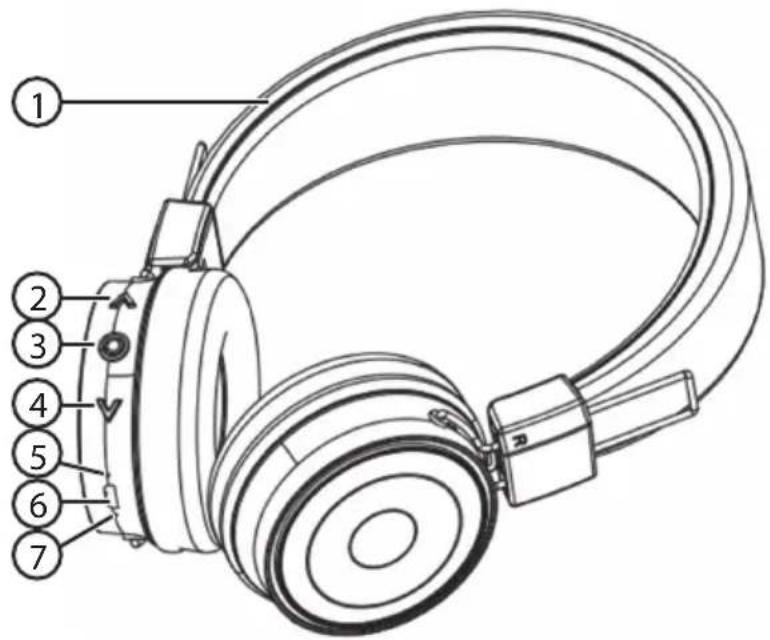

Buttons and functions

1. Adjustable headband

2. [▲] Press repeatedly to raise the volume. Hold in to select the next track, reject an incoming call.

3. [O] Press to play or pause a track or answer/end a telephone call. Hold in to switch the headphones off/on and for pairing.

4. [▼] Press repeatedly to lower the volume. Hold in to select the previous track, reject an incoming call.

5. LED indicator

6. Micro-USB port

7. Microphone

Instructions for use

Charging

Charge the battery completely before using the headphones for the first time. A completely discharged battery will take approximately 2.5 hours to charge.

1. Connect the included charger lead to the Micro-USB port on the headphones and to a computer or other USB charger.

2. The LED indicator (5) will shine red while the battery is charging and go out when the battery is fully charged.

Connecting a Bluetooth device (pairing)

Before the headphones can be used they must be paired with a Bluetooth device.

Each Bluetooth device only needs to be paired with the headphones once.

1. Make sure that the headphones are turned off by checking that the LED indicator is not flashing.

2. Hold in [O] for approx. 4 seconds until the LED indicator flashes red/blue.

3. Activate Bluetooth mode on the external device that you want to connect the headphones to. Search for the headphones on your Bluetooth device (refer to the manual for your device).

4. The headphones will appear on your device as Hyperite, select connect.

5. When contact has been established the LED indicator will indicate a successful connection by flashing blue every 5 seconds.

Information

• The headphones will automatically connect to the last connected device if they both are on and Bluetooth is activated on the device.
• If you are prompted to enter a PIN code on your device, you should enter 0000 (four zeroes). Certain devices may also require you to approve the connection.
• If you have connected a mobile phone to the headphones and receive a call whilst you are listening to music, the music will be switched off automatically. Once the call has ended, music playback will be resumed (if your phone settings enable this).

Switching on/off

On

Hold in [O] for approximately 2 seconds. Release the button when the LED indicator light flashes blue.

Off

Hold in [O] for 3 seconds. Release the button when the LED indicator flashes red.

Listening to audio

1. Start playback on your connected Bluetooth device.
2. Adjust the volume and manage playback using the controls on the external device or the buttons on the headphones.

Note: The following functions only work on certain phone models.

• Play/pause: Press once on [O].
• Advance to the next track: Hold in [▲].
• Go to the previous track: Hold in [▼].
• Increase the volume: Press repeatedly on [▲].
• Decrease the volume: Press repeatedly on [▼].

(An audible signal will sound in the headphones when the maximum or minimum volume level has been reached).

Call management

• To answer an incoming call: Press once on [O].
• To end a call: Press once on [O].
• To reject an incoming call: Hold in [▲] or [▼] for approximately 2 seconds.
• To activate Siri/Google Assistant: Press twice quickly on [O].

Care and maintenance

• Use a dry cloth to wipe the headphones clean when needed.
  • Always switch the headphones off when they are not in use.

Troubleshooting guide

The headphones will not switch on.	Make sure that the battery is charged. Refer to the Charging section above.
The battery does not charge.	·If you are using a computer as a power source, check that it is on and not in standby mode.·Check that the Micro-USB cable is correctly connected to both the headphones and the computer/adapter.
The headphones won’t connect to (pair with) the external device.	·Place the headphones next to the device that you are trying to connect them to.·Make sure that:- Both devices are switched on.- The Bluetooth function is enabled on the device you are trying to connect to.
Poor or no sound.	·Adjust the volume on both your telephone and the headphones.·Make sure that the Bluetooth connection has been properly established.·Test playback from your telephone without it being connected to the headphones to check that it works.·Try playback using another file or track, the one you are attempting to play may be corrupt.·Make sure that no other wireless devices are disrupting your Bluetooth connection.·Make sure that your telephone is within the 10 m reception range of the headphones.

Responsible disposal

This symbol indicates that the product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Specifications

Bluetooth

Version 5.0

Range 10 m

Out power (max) 10 mW

BT Frequency range 2402–2480 MHz

Battery capacity 300 mAh

Charging time Approx. 2.5 hours

Listening time Approx. 10 hours

Standby time Approx. 120 hours

Weight 150 g

Användning

Laddning

Bruk

Lading

Koble til en Bluetooth-enhet (parkoble)

Käyttö

Lataaminen

Gebrauch

Ladevorgang

Ein Bluetooth-Gerät verbinden (Pairing)

Technische Daten

Bluetooth

Version 5.0

Reichweite 10 m

Declaration of Conformity

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Denna EU-försäkran om överensstämmelse utfärdas på tillverkarens eget ansvar. / Samsvarserklæringen er utstedt under produsentens eget ansvar. / Tämä EU-vaatimustenmukaisuusvakuutus on annettu valmistajan yksinomaisella vastuulla. / Die alleinige Verantwortung für die Ausstellung dieser Konformitätserklärung trägt der Hersteller:

Wireless Headphones with Microphone

36-8834-1,-2,-3,-4

FW-1915

has been manufactured in full compliance with the requirements of the Radio Equipment Directive (RED) 2014/53/EU and relevant harmonized standards

har tillverkats i full överensstämmelse med kraven i 2014/53/EU och relevanta harmoniserade standarder / har blitt produsert i full overensstemmelse med kravene i 2014/53/EU og relevante harmoniserte standarder / on valmistettu täysin direktiivin 2014/53/EU ja asiaankuuluvien yhdenmukaistettujen standardien vaatimusten mukaisesti / wurde in voller Übereinstimmung mit den Anforderungen von 2014/53/EU sowie relevanten harmonisierten Normen hergestellt.

Reference to harmonized standards used, or reference to the specifications in which declaration of conformity is declared:

Hänvisning till de harmoniserade standarder som använts eller hänvisningar till de specifikationer som försäkran om överensstämmelse deklareras: / Referere til harmoniserte standarder som brukes, eller henvisninger til spesifikasjonene der samsvarserklæring er erklärt: / Viittaus yhdenmukaistettuihin standardeihin, joita on käytetty, tai viittaus eritelmiin, joiden perusteella vaatimusten mukaisuusvakuutus on annettu: / Verweis zu den verwendeten harmonisierten Normen oder Verweise auf die Spezifikationen, die der Konformitätserklärung zugrunde liegen:

Article 3.1a (Health): EN 62479:2010

Article 3.1a (Safety): EN 62368-1 EN 50332-1:2013

Article 3.1b (EMC): EN 301489-1 V2.2.0 EN 301489-17 V3.2.0

Article 3.2 (Radio): EN 300 328 v2.1.1

Signed for and on behalf of:

Chiner Widushim

Ellinor Wickström

Product Compliance Manager

Insjön, Sweden, 2019-08-01
