Brand	Exibel
Model	BIT100
Product Type	Wireless Earphones
Bluetooth Version	V4.2
Range	Up to 10 meters
Frequency Range (Earphones)	20–20,000 Hz
Frequency Range (Microphone)	50–8,000 Hz
Listening Time	2–3 hours
Standby Time	Approx. 80 hours
Earphone Battery	Lithium-ion, 55 mAh each
Charging Case Battery	Lithium-ion, 400 mAh
IP Rating	IPX3
Weight (per Earphone)	4.5 g
Weight (Charging Case)	51.8 g
Charging Port	Micro-USB
Earbud Sizes Included	3 pairs (different sizes)
Multifunction Button Controls	Power, Play/Pause, Track Skip, Call Answer/End/Reject
Voice Prompts	Power on/off, Pairing, Connected
Auto Reconnect	Yes, to last paired device
Compatible Devices	Bluetooth-enabled devices
Charging Case Capacity	Full charge for earphones 2 times
Earphone Charging Time	Charges when placed in charging case (lid closed)
Cleaning	Wipe with damp cloth, mild detergent
Safety Precautions	Protect hearing, avoid high volume, keep away from water, no modifications
Responsible Disposal	Recycle per EU directives

Frequently Asked Questions - BIT100 Exibel

How do I turn on the Exibel BIT100 earphones?

Press and hold the multifunction button on both earphones simultaneously for about 3 seconds. Release when the LED flashes blue or you hear 'Power on'.

How do I pair the earphones with my phone?

With earphones off, hold both buttons for 3 seconds until LED flashes blue (pairing mode). On your phone, search for 'Exibel BIT100' and select it. Both earphones will connect.

What is the battery life of the earphones?

The earphones provide 2-3 hours of listening time on a full charge. The charging case can recharge them up to 2 times.

How do I charge the earphones?

Place the earphones into the charging case, ensuring contacts align with the pins. Close the lid. The LED indicators on the earphones will glow red while charging and turn off when fully charged.

The earphones won't connect. What should I do?

Make sure the earphones and Bluetooth device are close together, both are on, and Bluetooth is enabled. You may need to re-pair by putting the earphones into pairing mode again.

Can I use the earphones for phone calls?

Yes, but only the right earphone will produce sound during calls. The left earphone is silent during calls. Use the multifunction button to answer, end, or reject calls.

How do I skip to the next track?

Double-press the multifunction button on the right earphone quickly to go to the next track. Double-press the left earphone button to return to the previous track.

What is the water resistance rating?

The earphones have an IPX3 rating, meaning they are protected against splashing water. Do not submerge or expose to heavy rain.

How do I change the earbuds?

Pull off the old earbuds. Choose a pair from the included extras, align the markings, and push them onto the earphones. Ensure correct orientation for charging to work.

What should I do if one earphone stops working?

Try resetting by placing both earphones in the charging case, closing the lid, then removing and turning them on again. Ensure they are both charged. If issues persist, contact customer support.

USER MANUAL BIT100 Exibel

Art.no.

Model

38-8649

BIT100

Ver. 20180607

English 2

Svenska 10

Norsk 18

Suomi 26

Deutsch 34

Wireless Earphones

Art.no 38-8649 Model BIT100

Please read the entire instruction manual before use and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

• Protect your hearing. Listening on high volume for prolonged periods can lead to permanent hearing loss. Set the volume to a low level before using the product.
• Be careful when using the product if it poses a possible danger to yourself or others due to your inability to clearly hear your surroundings.
• Never subject the product to high temperature, dust, heavy vibration, impacts, humidity or moisture.
• Keep the product away from water or other liquids.
• Do not place the product in continuous sunlight or near naked flames.
• Never attempt to tamper with or modify the product in any way.
• Only use the supplied charger cable.
• Never let the battery charge for extended periods when it is not in use. Discontinue charging during thunderstorms.
• Check your local regulations regarding mobile phone use in combination with driving.
• Shut off both the product and mobile phone in areas where you are requested to do so, such as in hospitals, aircraft or areas where there is a risk of explosion.
• Do not store the earphones or the charging case in a discharged state for an extended period of time. Charge the earphones at least every third month to prevent the deep discharge of the battery.

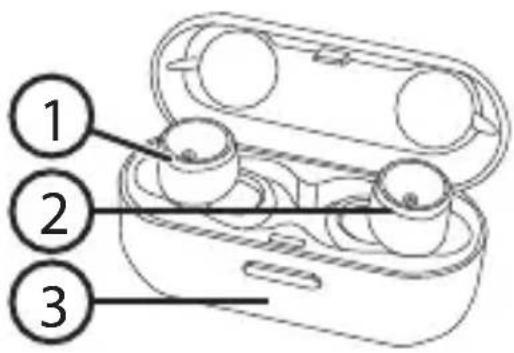

Contents

1. Earphone (L) for the left ear
2. Earphone (R) for the right ear
3. Charging case with built-in battery
4. Earbuds (2 extra pairs of different sizes)
5. Micro-USB port
6. USB charger cable

Instructions for use Multifunction button

LED indicator

Multifunction button

On - Hold the button in for 3 seconds on both earphones at the same time. Release the buttons when the LED indicators flash blue or when you hear the voice message "Power on".

Off - Hold in one of the multifunction buttons for 3 seconds. Release the button when the LED indicators flash red or when you hear the voice message "Power off". The earphones will also be switched off when they are placed into the charging case and the lid is closed.

Play - Press either of the multifunction buttons to play media. Use the paired Bluetooth device to adjust the volume in the earphones.

Pause - Press either of the multifunction buttons to pause media.

Return to the previous track - Press the multifunction button of the left earphone twice in quick succession.

Advance to the next track - Press the multifunction button of the right earphone twice in quick succession.

Answer a call - Press to answer the call.

End/Reject a call - Press once to end an ongoing call. Press twice in quick succession to reject an incoming call.

Connecting the earphones to a Bluetooth device (Pairing)

Before using the earphones they must be paired with a Bluetooth device. The two devices only need to be paired once.

1. With the earphones switched off, hold in both multifunction buttons simultaneously for approx. 3 seconds until the LED indicators start to flash blue or you hear the voice message "Power on, Pairing".
2. When the left earphone stops flashing blue and the right earphone starts to flash red/blue or when you hear the voice message "Connected right channel/Connected left channel", the two earphones have detected each other.
3. Activate Bluetooth mode on the external device that you want to connect the earphones to. Search for the earphones in your Bluetooth device (refer to the manual for your device).
4. The earphones will appear on your device as "Exibel BIT100". Select them to pair with the device.
5. When the pairing has been successful, the right earphone will stop flashing red/blue and the voice message “2nd device connected” will be heard.

Information

• For phone calls, only the right earphone is used. The left earphone is silent.
• The earphones will automatically re-connect with the last Bluetooth device they were paired to.
• If you have connected a mobile phone to the earphones and receive a call whilst you are listening to music, the music will be switched off automatically. Once the call has ended, music playback will be resumed (if your phone settings enable this).

Charging

Charging the charging case

1. Connect the included USB charger lead to the Micro-USB charging port (5) on the charging case and to a computer or other USB charger.
2. When charging is in progress the red LED indicator (12) will be lit.
3. When the battery is fully charged, the red indicator will go out and the blue LED indicator (11) will shine.

i Information

• The battery built into the charging case has the capacity to fully charge the earphones 2 times.
• If the earphones are in the charging case with the lid closed while it is being charged, they too will be charged.

Charging the earphones

1. Open the lid of the case by pressing the button (8).
2. Insert the earphones into the charging case making sure that their contacts (9) engage with the contact pins in the charging case.
3. Carefully close the lid. When the earphones are pushed down onto the contacts they will begin charging.
4. The LED indicators (10) on the earphones, which amongst other things indicate the charge status, can be seen through the windows (7) in the lid of the charging case.
5. The LEDs on the earphones shine red while charging is in progress and go out when the earphones are fully charged.

Changing the earbuds

1. Pull off the earbuds currently on the earphones.
2. Choose a pair of the included earbuds, line up the markings and push them onto the earphones.
3. Check the markings. If the earbuds are fitted incorrectly, the earphones will not be able to be charged.

Care and maintenance

Clean the product using a damp cloth. Use only mild cleaning agents, never solvents or corrosive chemicals.

Troubleshooting guide

The earphones will not switch on.	Make sure that the batteries are charged.See theChargingsection above.
The battery does not charge.	Charging caseMake sure that:The computer is switched on and not in standby mode, if you are using it as a power supply.The Micro-USB cable is properly connected to both the charging case and the computer/charger.EarphonesMake sure that:The charging case is charged.The earphones are positioned correctly in the charging case with their contacts mating with the charging pins in the case.The lid of the charging case is properly closed.
Won’t connect to (pair with) the external device.	Place the earphones next to the device that you are trying to connect them to.Make sure that:All devices are switched on.The Bluetooth function is enabled on the device you are trying to connect to.
Poor or no sound.	Check the volume on the connected Bluetooth device.Make sure that the Bluetooth connection has been properly established.Test playback from your telephone without it being connected to your earphones to check that it works.Try playback using another file or track, the one you are attempting to play may be corrupt.Make sure that no other wireless devices are disrupting your Bluetooth connection.Make sure that your telephone is within the 10 m reception range of the earphones.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling the product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Specifications

Earphones

Bluetooth V4.2

Range Up to 10 m

Frequency range Earphones: 20–20,000 Hz

Microphone: 50–8,000 Hz

Listening time 2–3 hours

Standby time Approx. 80 hours

Battery Lithium-ion, 55 mAh/earphone

IP rating IPX3

Weight 2 × 4.5 g

Charging case

Battery Lithium-ion, 400 mAh

Weight 51.8 g

Trådlösa hörlurar

Art.nr 38-8649 Modell BIT100

Specifikationer

Hörlurar

Bluetooth V4.2

Bruk

Multifunksjonsknapp

LED-indikator

Spesifikasjoner

Headset

Bluetooth V 4.2

Rekkevidde Opptil 10 m

Frekvensområde Hodetelefoner: 20–20 000 Hz

Mikrofon: 50–8 000 Hz

Lyttetid 2–3 timer

Standbytid Ca. 80 timer

Batteri Li-ion, 55 mAh/hodetelefon

Monitoimi-painike

Tekniset tiedot

Kuulokkeet

Bluetooth V4.2

Fehlersuche

Declaration of Conformity

This declaration of conformity is issued under the sole responsibility of the manufacturer.

has been manufactured in full compliance with the requirements of the RE-directive 2014/53/EU and relevant harmonized standards

har tillverkats i full överensstämmelse med kraven i 2014/53/EU och relevanta harmoniserade standarder / har blitt produsert i full overensstemmelse med kravene i 2014/53/EU og relevante harmoniserte standarder / on valmistettu noudattaen kokonaisuudessaan koskevan direktiivin 2014/53/EU ja asiaankuuluvat yhdenmukaistetut standardit / wurde in voller Übereinstimmung mit den Anforderungen von 2014/53/EU sowie relevanten harmonisierten Normen hergestellt.

Reference to harmonized standards used, or reference to the specifications in which declaration of conformity is declared:

Hänvisning till de harmoniserade standarder som använts eller hänvisningar till de specifikationer som försäkran om överensstämmelse deklareras: / Referere til harmoniserte standarder som brukes, eller henvisninger til spesifikasjonene der samsvarserklæring er erklärt: / Viittaus yhdenmukaistettuihin standardeihin tai viittaus eritelmiin, jossa vaatimusten-mukaisuusvakuutus on julistettu: / Verweis zu den verwendeten harmonisierten Normen oder Verweise auf die Spezifikationen, die der Konformitätserklärung zugrunde liegen:

Article 3.1a (Health): EN 62479:2010
Article 3.1a (Safety): EN 60950-1:2006 +A11:2009+A1:2010 +A12:2011+A2:2013
EN 50332-1:2013
Article 3.1b (EMC): Draft EN 301489-1 v2.2.0
Draft EN 301 489-17 v3.2.0
Article 3.2 (Radio): EN 300 328 v2.1.1

Signed for and on behalf of:

Henrik Alfredsson Technical Manager Insjön, Sweden, 2018-03-07
