HSS 3 6-LI - Drill Cocraft - Free user manual and instructions

Product Type	Cordless Screwdriver
Model / Article Number	HSS 3 6-LI / DPL 124B
Battery Type	Lithium-ion (Li-ion)
Battery Voltage	3.6 V
Battery Capacity	1.5 Ah
Charging Time	Approx. 4–6 hours
No-load Speed	200 rpm
Max Torque	4.5 Nm
Bit Holder Size	1/4" (6.35 mm) magnetic
Weight	0.38 kg
Sound Pressure Level	57.1 dB(A)
Sound Power Level	68.1 dB(A)
Vibration Emission	0.348 m/s² (K=1.5 m/s²)
Charger Input	100–240 V AC, 50/60 Hz
Charger Output	5 V DC, 300 mA
LED Work Light	2 forward-pointing LEDs (auto on/off)
Spindle Lock	Automatic, max 10 Nm for manual use
Forward/Reverse Selector	Slide switch
Charging Indicator	Light on while charging, off when charged
Overload Protection	Automatic shutoff when overloaded or overheated
Included Accessories	10 screwdriver bits, charging cradle, USB cable
Charging Methods	Charging cradle or Micro-USB port
Application	Screwdriving (light-duty)
Automatic Spindle Lock	Yes, allows manual screwdriving when battery is low

Frequently Asked Questions - HSS 3 6-LI Cocraft

How do I charge the Cocraft HSS 3 6-LI screwdriver?

You can charge it using the included charging cradle or via the Micro-USB port. Place the screwdriver in the cradle and plug it into a wall socket, or connect the USB cable to a computer or USB charger. Charging takes approximately 4–6 hours.

Can I use the screwdriver while it is charging?

No, the screwdriver cannot be used while charging. It is recommended to fully charge the battery before first use.

What do the indicator lights mean?

The indicator light (4) is on while the battery is charging and turns off when fully charged. The forward (clockwise) and reverse (anticlockwise) indicator lights (3, 5) show the current direction setting.

Why won't the screwdriver start?

Possible causes: the battery is discharged (charge it), the overload or overheating protection has triggered (let it cool for a few seconds), or a faulty power trigger (contact customer service).

Can I use it as a manual screwdriver?

Yes, the screwdriver has an automatic spindle lock that allows manual use when the battery is discharged or the tool is underpowered. Turn the chuck manually – the maximum manual torque is 10 Nm.

What bits are included?

The screwdriver comes with 10 screwdriver bits stored in the charging cradle. They are standard 1/4" (6.35 mm) hex bits.

How do I clean and maintain the screwdriver?

Clean with a lightly moistened cloth using only mild cleaning agents. Never use solvents or corrosive chemicals. Store in a dry place out of children's reach. For long-term storage, fully charge the battery first.

Is the screwdriver suitable for drilling?

The HSS 3 6-LI is designed primarily for screwdriving. It has a maximum torque of 4.5 Nm, so it is not intended for heavy drilling. For light drilling in soft materials, you may use appropriate bits, but it is not recommended for demanding tasks.

What safety precautions should I take?

Always wear eye protection. Keep the work area clean and well-lit. Do not use in explosive atmospheres. Hold the tool by insulated gripping surfaces if there is a risk of contacting hidden wiring. Disconnect the battery before adjusting or storing.

How do I dispose of the screwdriver at end of life?

Do not dispose of it with household waste. The crossed-out wheelie bin symbol indicates it must be recycled. Take it to a local collection facility or return it to the place of purchase for environmentally sound disposal.

USER MANUAL HSS 3 6-LI Cocraft

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Original instructions

Bruksanvisning i original

Originalbruksanvisning

3.6 V Cordless Screwdriver

Art.nr 18-3631 Modell DPL 124B

41-1451 DPL 124B

Please read the entire instruction manual before use and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

General safety instructions for power tools

Warning Read all safety warnings and all instructions. Failure to follow Warnings and instructions may result in electric shock, fire and/or us injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer.
A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs.
Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal
objects, like paper clips, coins, keys, nails, screws or other small
metal objects, that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery;
avoid contact. If contact accidentally occurs, flush with water.
If liquid contacts eyes, additionally seek medical help. Liquid ejected
from the battery may cause irritation or burns.

6) Service

a) Have your power tool serviced by a qualified repair person using only

identical replacement parts. This will ensure that the safety of the power tool is maintained.

Specific safety instructions for screwdrivers

Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring.

Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

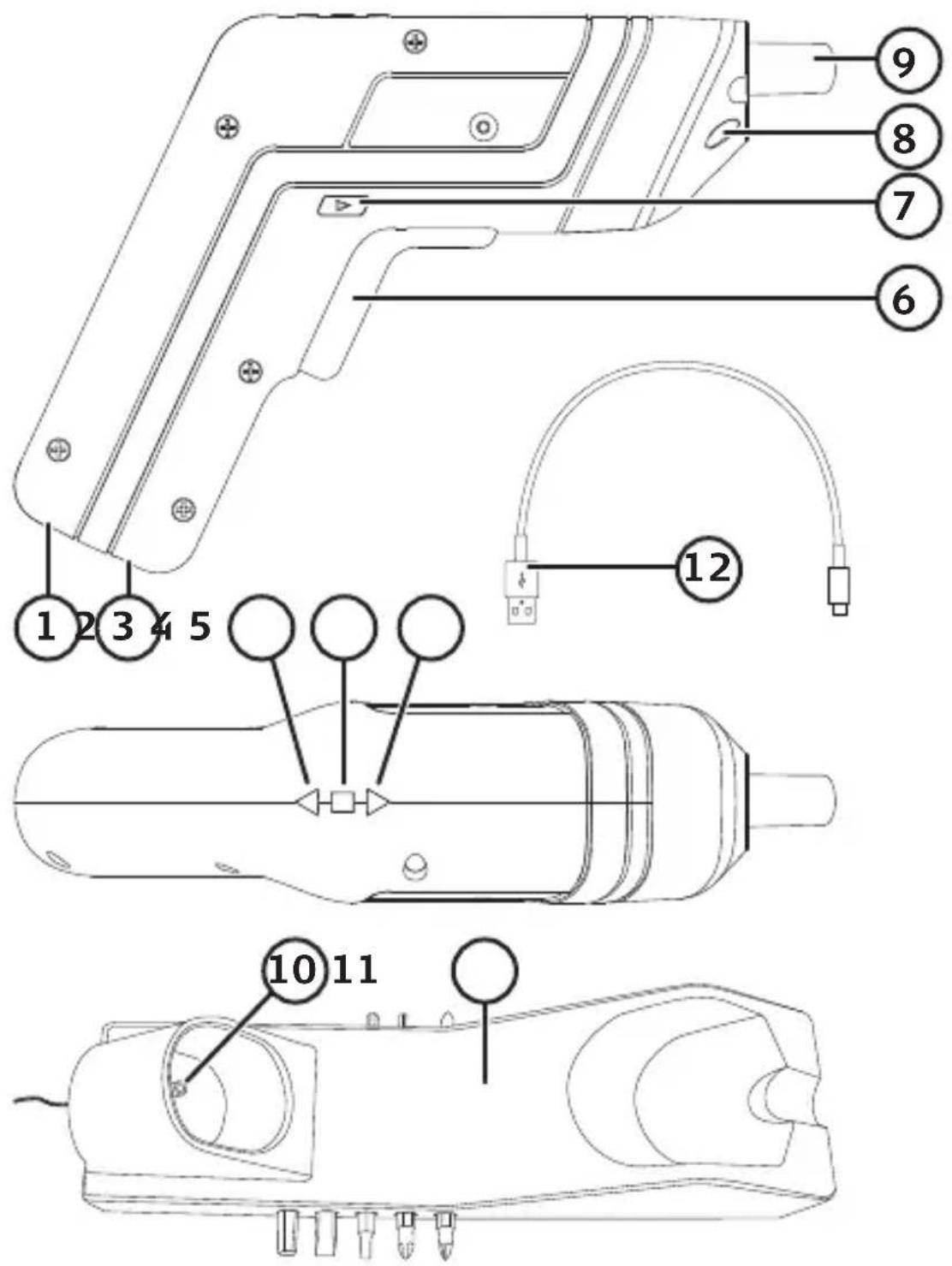

Product description

1. Socket for charging in the charging cradle
2. Micro-USB charging port
3. Indicator light for reverse (anticlockwise) rotation
4. Indicator light for charging in progress
5. Indicator light for forward (clockwise) rotation

6. Power trigger (on/off)

7. [▶] [◀] Forward/lock/reverse selector switch

8. LED work light

9. Magnetic screwdriver bits holder

10. Charging connector

11. Charging cradle with holes for storing the 10 included screwdriver bits

12. USB/Micro-USB charging cable

Charging

Information

When sold, the screwdriver battery is only partially charged and needs to be fully charged before initial use.

Charging in the charging cradle

1. Stand the charging cradle (11) on a flat surface or hang it on a wall using the two holes on the bottom.

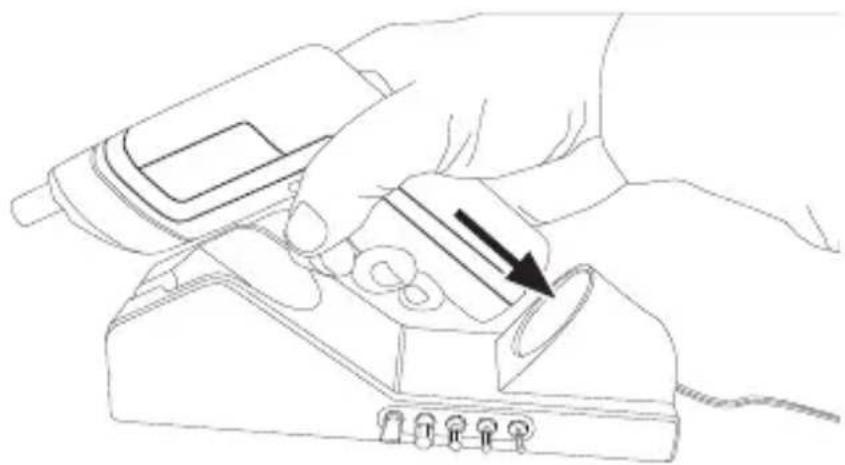

2. Line the base of the grip up with the socket in the charging cradle and insert it in the direction of the arrow.

Line drawing of a hand using a handheld device to press or install a component, with no visible text or symbols.

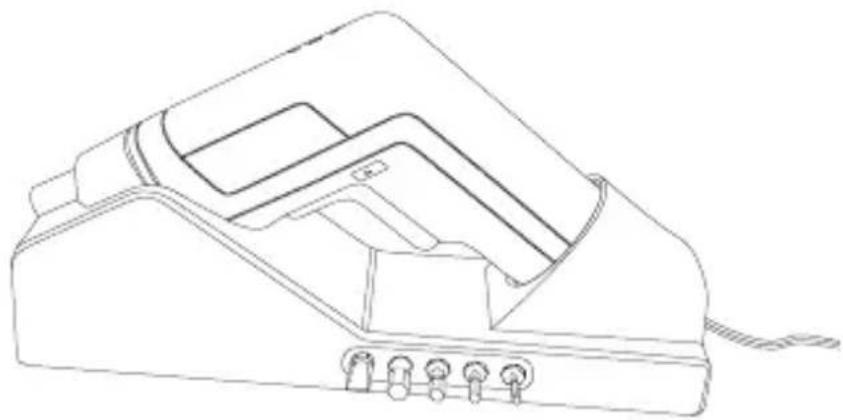

1. Plug the charging cradle into a wall socket. The indicator light (4) comes on when the battery is charging and goes off when the battery is charged (approximately 4–6 hours).

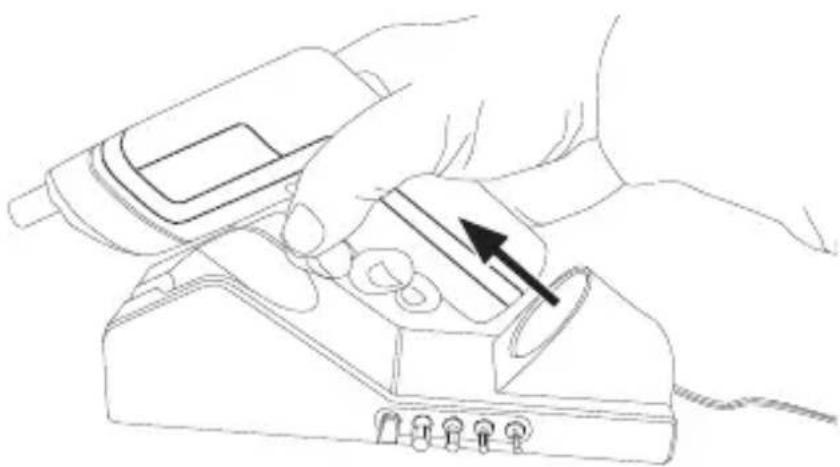

2. Remove the screw-driver from the cradle by lifting it in the direction of the arrow.

Line drawing of a mechanical device with ports and a curved internal component (no text or symbols)

Line drawing of hands using a handheld device to press or install a component, with an arrow indicating the process (no text or symbols present)

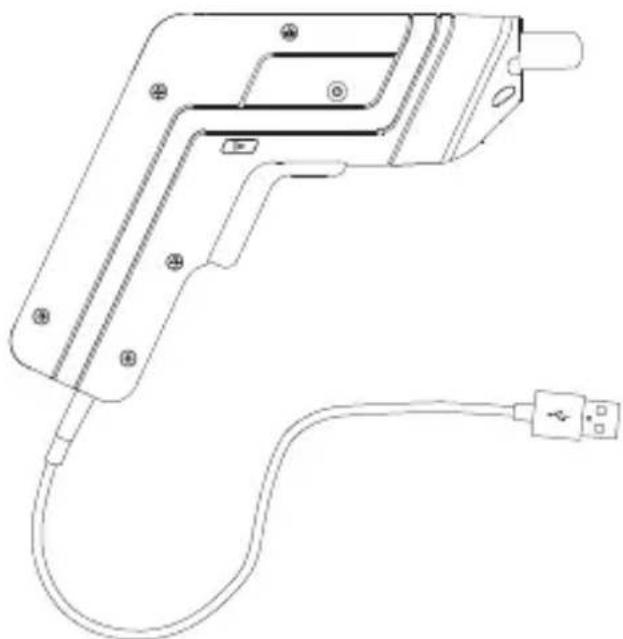

Charging using the USB port

Connect the included charger lead (12) to the Micro-USB port (2) on the base of the grip and to a computer or other USB charger.

Information

Charging via the USB cable takes 4–6 hours depending on the capacity of the USB port it is connected to.

Technical line drawing of a handheld device with attached cable (no text or symbols)

Instructions for use

1. Insert a suitable bit into the bit holder (9).

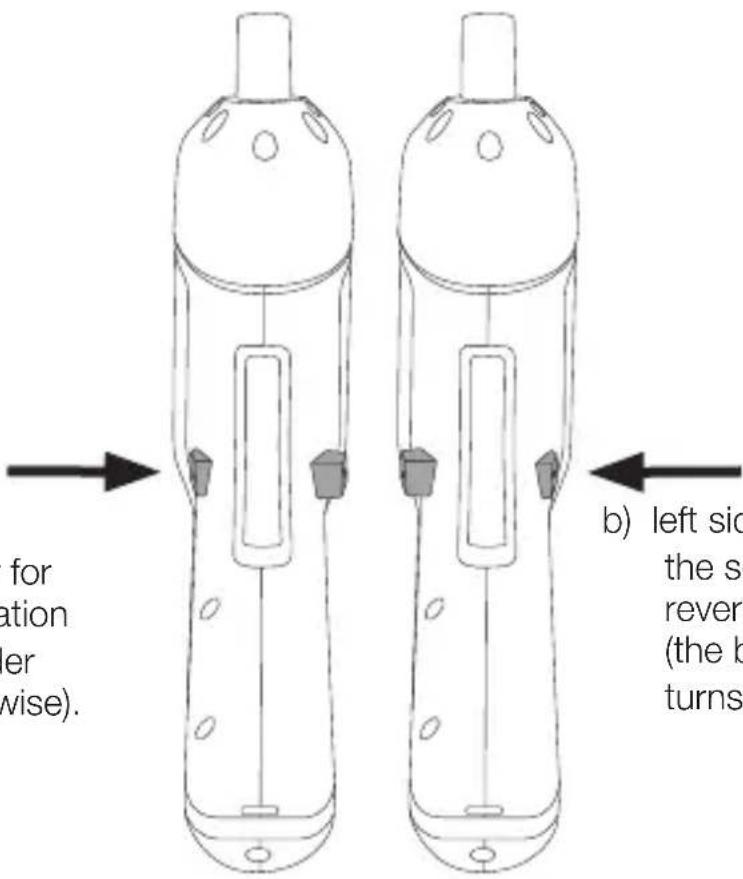

2. Press [▶] (7) in on the:

b) left side of the screwdriver for reverse rotation (the bit holder turns anticlockwise).

a) right side of screwdriver for forward rotation (the bit holder turns clockwise).

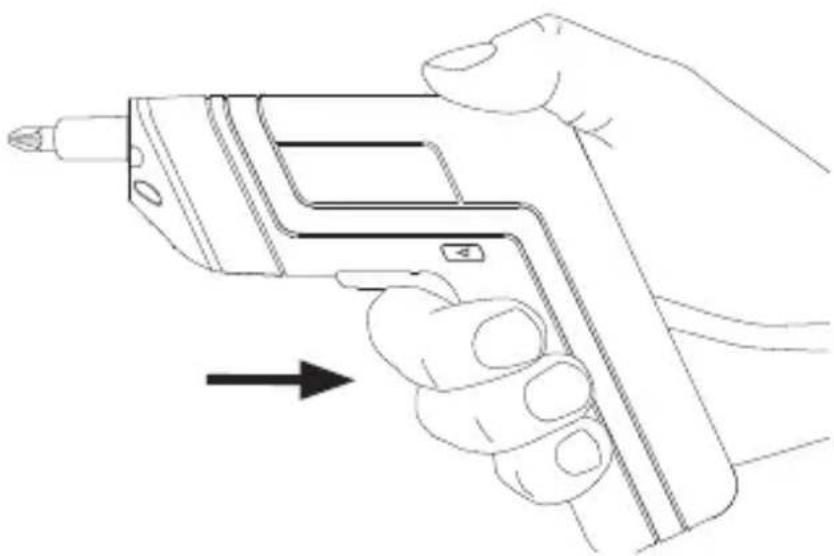

1. Start the screw-driver by pressing in the power trigger (6).
2. Release the power trigger to turn off the screwdriver.

Line drawing of a hand holding a handheld electronic device with an arrow indicating motion (no text or symbols)

Information

• The screwdriver has two forward-pointing LEDs (8) which function as work lights. The LED lights come on automatically when the trigger is pulled and go off 5–10 seconds after the trigger is released.
• The screwdriver has an automatic spindle lock, which allows you to use it as a manual screwdriver if the battery has been discharged or the screwdriver is too underpowered to complete the job.
• The spindle lock is activated as soon as you begin screwing the screwdriver manually. The maximum torque is 10 Nm.
• Do not overload the spindle lock.
• Do not pull the trigger when the spindle lock is on.

Care and maintenance

• Clean the product using a lightly moistened cloth. Use only mild cleaning agents, never solvents or corrosive chemicals.
• If the screwdriver is not to be used for a long time, the battery should be fully charged before the tool is stored away.
• Store the screwdriver in a dry place out of children's reach whenever it is not to be used for a long time.

Troubleshooting guide

The screw-driver doesn’t start.	· The battery is discharged. Charge the battery.· The overload or overheating protection has been triggered. Let the screw driver rest and cool for a few seconds before resuming work.· Faulty power trigger. Contact our customer services.
The screwdriver stops or is sluggish.	· The battery is discharged. Charge the battery.· The overload or overheating protection has been triggered. Let the screwdriver rest and cool for a few seconds before resuming work.· If the problem persists, make sure that the screw-driver is not overloaded. Reduce the load.· Is the task suitable for the screwdriver?
The battery does not charge.	· Is the charger properly connected to the wall socket?· Check that the wall socket is live.· Is the battery correctly connected to the charger?· Is the battery defective or too hot/cold?

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling the product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Specifications

Battery 3.6 V/1.5 Ah lithium-ion

Bit holder Magnetic 14 "

Charging time Approximately 4–6 hours

No-load speed 200 rpm

Torque Max 4.5 Nm

Sound power level LwA = 68.1 dB(A), uncertainty KwA = 3 dB(A)

Sound pressure level LpA = 57.1 dB(A), uncertainty KwA = 3 dB(A)

Vibration value Screw driving without impact

$$ a _ {h} = 0. 3 4 8 \mathrm{m} / \mathrm{s} ^ {2}, \text {uncertainty} K = 1. 5 \mathrm{m} / \mathrm{s} ^ {2} $$

Charger Input: 100–240 V AC 50/60 Hz

Output: 5 V DC, 300 mA

Weight 0.38 kg

Vibration

• The measurement of the vibration emission level (triaxial vector sum) and the noise level values declared in this instruction manual have been carried out in accordance with a standardised test method described in EN 60745 and can be used for comparing one power tool with another.
• The measurement method may also be used for a preliminary assessment of vibration exposure.
• The declared vibration emission level applies when the power tool is used in accordance with this instruction manual. If however, the power tool is used for other purposes and with other accessories or has not been properly maintained, the vibration emission level could increase significantly over the total working period.
• For an exact assessment of the vibration exposure, the times when the tool is switched off or running idle should also be taken into account. This significantly reduces the vibration exposure over the total working period. Decide upon safety measures to protect the operator from the effects of vibration during all types of use.

Skruvdragare 3,6 V

Art.nr 18-3631 Modell DPL 124B

41-1451 DPL 124B

Line drawing of a hand using a handheld device to press or install a small electronic component, with no visible text or symbols.

Line drawing of a mechanical device with ports and a curved internal component (no text or symbols)

Line drawing of hands using a handheld device to press or install a component, with no visible text or symbols.

Laddning via USB

Technical line drawing of a handheld device with attached cable (no text or symbols)

Användning

Line drawing of a hand holding a handheld electronic device with an arrow indicating motion (no text or symbols)

Information

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Specifikationer

Batteri 3,6 V/1,5 Ah, litiumjon

Line drawing of hands using a handheld device to press or install a component, with no visible text or symbols.

Line drawing of a mechanical device with no visible text or symbols

Line drawing of hands using a handheld device to interact with a tool, no text or symbols present

Lading via USB

Ladekabelen (12), som følger med, kobles til Micro-USB-inngangen (2) på skrutrekkeren og til et USB-uttak, f.eks. på en datamaskin eller en annen USB-lader.

Informasjon

Technical line drawing of a handheld device with attached cable (no text or symbols)

Bruk

1. Plasser en passende bits i bitsholderen (9).

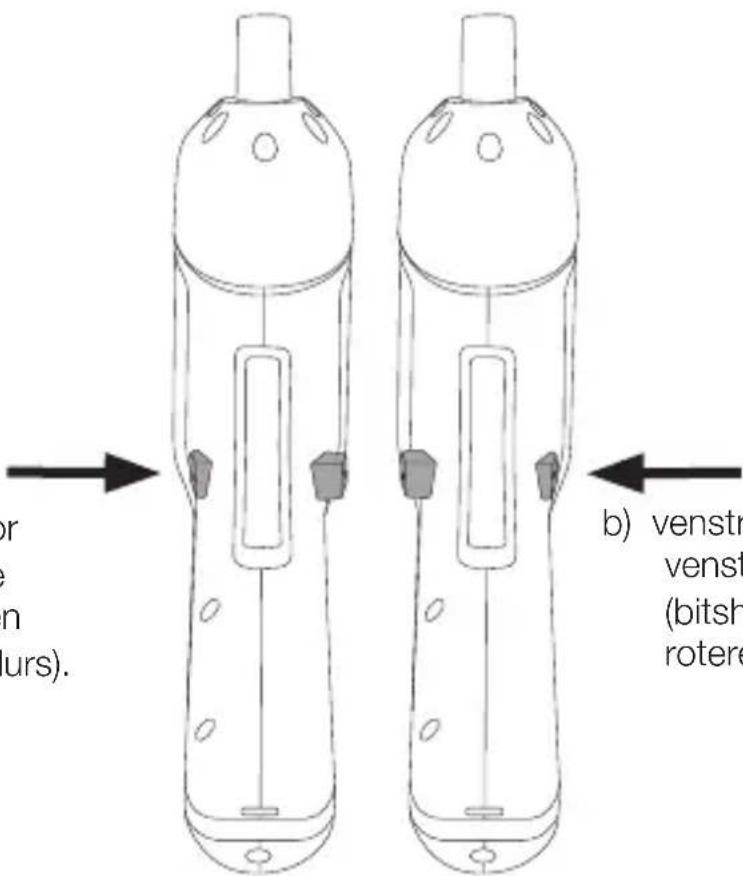

2. Trykk [▶] (7) til den stopper helt til:

Line drawing of a hand holding a handheld electronic device with an arrow indicating motion (no text or symbols)

Informasjon

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Spesifikasjoner

Batteri 3,6 V/1,5 Ah, li-ion

Line drawing of a hand using a handheld device to press or install a small electronic component, with no visible text or symbols.

Line drawing of a mechanical device with no visible text or symbols

Line drawing of hands using a handheld device to interact with a tool, no text or symbols present

Technical line drawing of a handheld device with attached cable (no text or symbols)

Käyttö

Line drawing of a hand holding a handheld electronic device with an arrow indicating motion (no text or symbols)

Tiedot

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Tekniset tiedot

Akku 3,6 V/1,5 Ah, litiumioni

Line drawing of a hand using a handheld device to press or install a component, with no visible text or symbols.

Line drawing of a mechanical device with ports and a curved internal component (no text or symbols)

Line drawing of hands using a handheld device to press or install a component, with no visible text or symbols.

Aufladen über USB

Technical line drawing of a handheld device with attached cable (no text or symbols)

Bedienung

Line drawing of a hand holding a handheld electronic device with an arrow indicating motion (no text or symbols)

Information

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Technische Daten

Declaration of Conformity

Declares that this product complies with the requirements of the following directives and standards

Product Compliance Manager

Insjön, Sweden, 2019-06-24

CLAS OHLSON AB, SE-793 85 INSJÖN, SWEDEN

Sverige

Postal 10 - 13 Market Place

Kingston upon Thames

Surrey

KT1 1JZ

Deutschland

Kundenservice Hotline: [phone]

E-Mail: [e-mail]

Homepage

www.clasohlson.de
