Type of Product	Kitchen Appliance (Multi-function)
Model	PP-106260
Brand	Emerio
Power Supply	220-240V ~ 50/60Hz
Power Consumption	600W
Dimensions (approx.)	20 x 20 x 30 cm
Weight	1.5 kg
Capacity	1.5 Liters
Material	Plastic housing, stainless steel blades
Functions	Blending, mixing, chopping, grinding
Speed Settings	2 speeds + pulse function
Cleaning	Detachable parts are dishwasher safe
Safety Features	Overheat protection, non-slip feet
Spare Parts Availability	Available through Emerio service centers
Repairability	Repairable by authorized technicians
Warranty	2 years
Included Accessories	Mixing bowl, lid, measuring cup

Frequently Asked Questions - PP-106260 Emerio

How do I assemble the Emerio PP-106260?

Place the bowl on the base, lock it in place, then attach the blade unit and lid. Ensure all parts click into position before use.

Can I blend hot liquids?

Do not blend hot liquids above 60°C as pressure buildup may cause the lid to blow off. Let liquids cool first.

How do I clean the appliance?

Unplug and disassemble. Wash removable parts in warm soapy water or dishwasher. Wipe the motor base with a damp cloth. Do not immerse the base.

What is the maximum operating time?

Do not use continuously for more than 1 minute. Let it cool for 2 minutes between cycles to prevent overheating.

Why is the appliance not starting?

Ensure the bowl and lid are correctly locked in place. Check that the power cord is plugged in and the outlet is working.

Can I crush ice with this model?

Yes, it can crush ice using the pulse function. Do not overload; add ice cubes gradually.

Is the blade removable for cleaning?

Yes, the blade unit is detachable. Handle with care as blades are sharp. Wash separately.

What should I do if the appliance smells like burning?

Immediately turn off and unplug. Let it cool completely. This may indicate overloading or motor blockage. Contact Emerio service if persists.

Where can I find spare parts?

Spare parts like bowls, lids, and blades are available from Emerio authorized dealers or online. Use only genuine parts.

Does the product have a warranty?

Yes, it comes with a 2-year warranty covering manufacturing defects. Retain the purchase receipt for service.

USER MANUAL PP-106260 Emerio

White ceramic kitchen appliance with a black clip and control panel (no visible text or symbols)

Potato peeler (EN)

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
2. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
3. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
4. Children shall not play with the appliance.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Warning: Potential risk of injuries from misuse.
7. Care shall be taken when handling the potato cutter, emptying the bowl and during cleaning.
8. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

9. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

10. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

11. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.
12. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
13. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
14. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
15. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
16. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.
17. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
18. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
19. Never leave the appliance unattended during use.
20. This appliance is not designed for commercial use.
21. Do not use the appliance for other than intended use.
22. Do not wind the cord around the appliance and do not bend it.
23. Before putting the potatoes in the appliance, make sure the power switch it off.
24. Do not put more than 1kg of potatoes into the peeler and do not let the machine work continuously for more than 4 minutes.
25. Make sure all the parts are in the correct position; otherwise the machine will not work.
26. The cutter dish is very sharp: take care when cleaning.
27. Never open the machine when it is in operation.
28. Regarding the instructions for cleaning, please refer to the below paragraph of the manual.

PARTS DESCRIPTION

Circular object with radial grooves and a central pin, labeled with number 7 (no text or symbols on the object itself)

Simple 3D rendering of a cylindrical container with two side handles and a labeled measurement line (8) on top, no text or symbols present.

1. Top lid

2. Lock

3. Bowl

4. Base station

5. On/off switch

6. Rubber foot

7. Cutter dish

8. The axis

BEFORE USE

• Before using the appliance for the first time, clean the bowl and the cutter dish with hot water.
- Before each use, make sure the potato peeler is positioned on a clean/dry surface and that the machine is stabilized on its rubber feet.
- Check that the power is switched off before you plug in the appliance.
- Place the bowl on the base station and the cutter dish on the axis. Check that both parts are correctly placed.

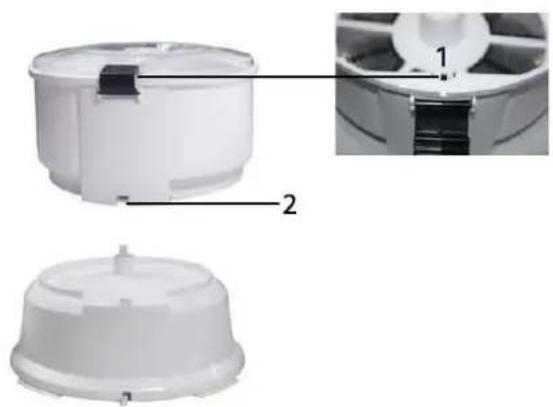

Note: there are two safety switches in this appliance as below pictures, please make sure both the bowl and the cover of bowl has been assembled correctly, otherwise this appliance will not work.

Close-up of a white plastic appliance with labeled parts, showing internal structure and top view (no text or symbols)

1. Make sure the power switch is in OFF position.

2. Place the cutter dish in the middle of the bowl and fill some cold water into the bowl. The water shall not cover the outer case of the cutter dish. Place the bowl on the motor unit and make sure that the cutter dish fits properly.

3. Rinse/scrub the potatoes to get rid of dirt. Place potatoes (up to 1kg each time) on the cutter dish in the bowl. Do only add one layer and make some space between the potatoes. Reduce the amount if the potatoes are big or irregular in size.

4. Put on the lid and switch the power on, the machine will start working. Please note that it will vibrate but the rubber feet will keep it in place during use.
5. The peeler will take about 2 minutes to peel potatoes, but keep an eye on the progress through the transparent lid. Potatoes irregular in shape may take up more space and need a bit longer to peel, but do not allow the potatoes peeler to run for more than 4 minutes. After the machine has finished peeling, switch off the power, unplug from mains, remove the top cover and take out the potatoes carefully.
6. Wash the potatoes with fresh water and remove any excess peeling with a small knife.

NOTE: Check that all parts are in the correct position before switched on, otherwise the machine will not function.

CARE AND CLEANING

1. After each use, wash the bowl and cutter with fresh water.
2. Before cleaning, always switch the appliance off and unplug the appliance from the mains power supply.
3. Do not immerse the power cable, plug and the peeler base in water or any other liquid.
4. Do not use anything other than fresh water to clean the cutter and top lid.
5. Never use sharp or abrasive cloths for cleaning.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50-60Hz

Power: 85W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge.

Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

SICHERHEITSHINWEISE

Circular mechanical component with textured surface and central hub, labeled with number 7 (no text or symbols on the object itself)

White cylindrical container with two side handles and a labeled measurement line (8) on top, no text or symbols present.

Diagram of a white plastic container with two labeled parts and an inset view showing internal components (no text or symbols present)

Circular mechanical component with radial grooves and a central pin, labeled with number 7 (no text or symbols on the component itself)

White cylindrical container with two side handles and a labeled measurement line (8) on top, no other text or symbols visible.

Diagram of a white plastic container with labeled parts, showing front and side views (no text or symbols present)

ANVÄNDNING AV POTATISSKALAREN:

SKÖ TSEL OCH RENGÖ RING

Circular mechanical component with radial grooves and a central hub, labeled with number 7 (no text or symbols on the object itself)

Simple 3D rendering of a cylindrical container with two side handles and a labeled measurement line (8) on the top surface.

Three views of a white plastic container with labeled parts, shown from top, side, and bottom (no text or symbols present)

Circular mechanical component with radial grooves and a central hub, labeled with number 7 (no text or symbols on the object itself)

White cylindrical container with two side handles and a labeled measurement line (8) on top, no other text or symbols visible.

Diagram of a white plastic container with labeled parts, showing front and side views (no text or symbols present)

PERUNANKUORIMAKONEEN KÄYTTÄMINEN

Circular object with radial grooves and a central conical feature, labeled with number 7 (no text or symbols on the object itself)

Simple 3D rendering of a cylindrical container with two side handles and a labeled measurement line (8) on top, no text or symbols present.

1. Topplokk

2. Lås

3. Bolle

4. Sokkel

5. På/avbryter

6. Gummifot

7. Kutteskiven

8. Aksen

F∅ R BRUK

Close-up of a white plastic appliance with labeled parts, showing front and side views (no text or symbols visible)

BETJENING AV POTETSKRELLER

Circular mechanical component with radial grooves and a central hub, labeled with number 7 (no text or symbols on the component itself)

Simple 3D rendering of a cylindrical container with two side handles and a labeled measurement line (8) on top, no text or symbols present.

Diagram of a white plastic container with labeled parts, showing front and side views (no text or symbols present)

SÅDAN BRUGES KARTOFFELSKRÆ LLEREN
