CHM-111701 - Uncategorized Emerio - Free user manual and instructions

Product Type	Churros Maker
Model	CHM-111701
Brand	Emerio
Power	700 W
Voltage	220-240 V ~ 50/60 Hz
Heating Plates Material	Non-stick coating
Number of Heating Plates	2 (upper and lower)
Lock Mechanism	Yes, for secure closing
Indicator Lights	Power light and Heating light
Preheating Indicator	Heating light turns off when ready
Baking Time	Approximately 3-5 minutes
Capacity per Batch	4-6 churros (estimate)
Housing Material	Plastic
Dimensions (Approx.)	25 x 20 x 10 cm
Weight (Approx.)	1.2 kg
Safety Features	Cool-touch housing (estimated)
Cleaning Method	Wipe with soft damp cloth, do not immerse
Intended Use	Household only
Warranty	2 years
Included Accessories	Instruction manual

Frequently Asked Questions - CHM-111701 Emerio

Why does the heating light turn off during cooking?

The heating light turns off when the appliance has reached the desired temperature. It will cycle on and off to maintain temperature during use.

Should I use butter or oil on the plates?

Adding some butter or oil is optional but recommended to prevent sticking and improve browning.

Can I use metal utensils to remove churros?

No, avoid metal utensils as they will scratch the non-stick coating. Use a plastic or silicone spatula.

How long should I bake churros?

Bake for approximately 3-5 minutes. Check the desired level of browning and continue if needed.

What should I do if churros stick to the plates?

Ensure the plates are preheated and lightly greased. Also, do not open the lid too early; wait at least 1.5 minutes to prevent splitting.

When can I open the lid during baking?

Do not open the lid less than 1.5 minutes after pouring the dough, as this can cause under-baked churros to split.

How do I clean the churros maker?

Unplug and let it cool completely. Wipe the outside and heating plates with a soft damp cloth. Never immerse in water.

What does the power light indicate?

The power light illuminates when the appliance is plugged in and the mains power is connected.

Can I use the appliance in a vertical position?

Yes, the appliance has feet on both sides, so you can turn it over to help spread the dough more evenly.

What is the warranty period?

The warranty period is 2 years from the date of purchase, covering manufacturing defects. It does not cover misuse or damage from improper handling.

USER MANUAL CHM-111701 Emerio

Illustration of a turquoise waffle grill with open lid and internal compartments (no text or symbols)

Churros maker (EN)

Churroseisen (DE)

Churrojärn (SE)

Churrosmaker (NL)

Churrorauta (FI)

Churros-jern (DK)

CE

Content – Inhalt – Innehåll – Inhoud – Pitoisuus – Indhold

Instruction manual – English ...... - 2 -

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

4. Keep the appliance and its cord out of reach of children less than 8 years.

5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

6. Regarding the instructions for cleaning the surfaces which come in contact with food, please refer to the paragraph "CLEANING AND MAINTENANCE" of the manual.

7. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

8. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

9. Always plug the appliance into an earthed plug socket.

10. Disconnect the mains plug from the socket when the

appliance is not in use and before cleaning.

1. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
2. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
3. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
4. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.
5. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
6. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
7. Never leave the appliance unattended during use.
8. This appliance is not designed for commercial use.
9. Do not use the appliance for other than intended use.
10. Do not wind the cord around the appliance and do not bend it.
11. Place the appliance on a stable, level surface from which it cannot fall off.
12. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.
13. WARNING!!

Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

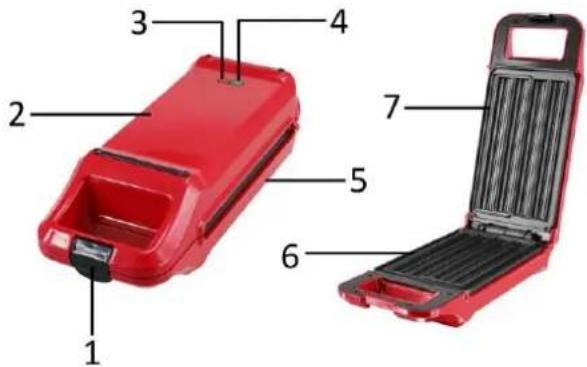

PARTS DESCRIPTION

1. Lock
2. Upper housing
3. Power light
4. Heating light
5. Bottom housing
6. Bottom heating plate
7. Upper heating plate

BEFORE FIRST USE

1. Remove all packaging material.
2. Clean the heating surfaces with a soft damp cloth then dry them.
3. Uncoil the mains cable completely.
4. When first use, the device may give off a slight odor. This is normal and will not last for long.

OPERATING INSTRUCTIONS

1. Put the appliance on a level and heat-resistant surface.
2. Plug the appliance to an appropriate socket. The power light illuminates to indicate power is connected. The heating light illuminates to indicate the appliance started preheating.
3. When the appliance has heated up, the heating light turns off.
4. Open the appliance at the handle by releasing the lock.
5. Add some butter onto the grill plates if you like.
6. Pour the prepared dough onto the bottom heating plate and distribute it evenly. You can use a decoration bag such as fabric piping bag to pour the dough, but pay attention not to use disposable plastic piping bags as they may melt if they come into contact with the hot plates.
7. Gently close the upper heating plate. Make sure the handle has been locked up.
8. Bake the churros for approximate 3-5 minutes. Check the status of the churros. You can close up the plates to continue baking until the desired level of browning required.
9. Remove the churros with a plastic spatula when the churros are ready. Do not use any metal objects (e.g. knife, fork etc.) as they will scratch the coating of the heating surface.
10. If you wish to bake more churros, pour in more dough immediately.
11. When you have finished baking, remove the mains plug from the power outlet.

Note!

• Do not open the appliance less than one and a half minutes after you put into the dough. Opening the lid too soon will cause the under-baked churros to split.
• The appliance has feet at both sides of housing, so it can be placed at either side. You can turn over the appliance to make the dough spread more evenly.

CLEANING AND MAINTENANCE

1. First of all remove the mains plug!
2. Do not commence cleaning until the device has cooled down completely.
3. Clean the outside surface and the heating surfaces with a brush or with a soft, damp cloth. Do not run the water directly onto the baking surfaces.
4. Never use abrasive cleaning agents or sharp objects (e.g. scrubbing brush, knife) for cleaning.
5. Caution: Do not immerse the device in water or other liquids. There is a danger to life from electric shock!

TECHNICAL DATA

Supply voltage: 220-240V \~ 50/60Hz

Power: 700W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use or if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.
