Product Type	Fan Heater (Space Heater)
Brand	Emerio
Model	FH-215052
Power Consumption	2000 W (max)
Voltage	220-240 V ~ 50 Hz
Heat Output (Nominal)	2.0 kW
Heat Output (Minimum)	1.4 kW
Heat Settings	Fan only (S), Low heat (1), High heat (2)
Thermostat Control	Mechanical thermostat (active only on high heat setting)
Swing Function	Yes, oscillation switch
Safety Features	Overheat protection (thermal cut-off), Tip-over switch
Usage	Indoor only, suitable for well-insulated spaces or occasional use
Placement	Not directly below socket outlet, keep 1.2 m from combustible materials
Cleaning	Wipe housing with damp cloth; vacuum air inlet/outlet grilles
Warranty	2 years
Compliance	EU Ecodesign Directive (2015/1188, 2016/2282)
Special Marking	Do not cover symbol

Frequently Asked Questions - FH-215052 Emerio

How do I use the thermostat on this heater?

Set the main switch to position 2 (high heat). Let the heater run until desired room temperature is reached, then slowly turn the thermostat knob anti-clockwise until you hear a 'click'. The heater will then maintain that temperature by switching on/off automatically. Note: thermostat works only on high heat setting.

How do I clean the Emerio FH-215052?

Turn off the heater, unplug it, and wait for it to cool completely. Wipe the housing with a damp cloth. Use a vacuum cleaner or dusting brush to clean the air inlet and outlet grilles. Do not use detergents, abrasive cleaners, alcohol, or gasoline.

What should I do if the heater shuts off unexpectedly?

The heater has a thermal cut-off that switches it off if it overheats (e.g., if covered). Turn off and unplug the heater, remove any obstructions, and let it cool down. The safety device will reset automatically. Check for damage before reusing.

Can I use this heater in a bathroom?

No, this heater is not designed for use in bathrooms, laundries, or near water. It is for indoor use only and should not be placed near baths, showers, or swimming pools.

Can I cover the heater to dry clothes?

No, never cover the heater. It is marked with a 'do not cover' symbol. Covering can cause overheating and fire. Keep combustible materials like clothes, curtains, and bedding at least 1.2 meters away.

How do I reset the tip-over safety switch?

If the heater is tilted or placed on an unstable surface, it will automatically shut off. Place the heater on a stable, level surface. The switch resets automatically once it is upright. Ensure there is no damage before using again.

What does the swing function do?

The swing function makes the heater oscillate from side to side to distribute heat more evenly across the room. Press the swing function switch to activate or deactivate it.

What are the heat settings available?

The control switch has four positions: '0' (off), 'S' (fan only, no heat), '1' (low heat output, approx. 1.4 kW), and '2' (high heat output, 2.0 kW). The thermostat control only works on setting '2'.

Is the Emerio FH-215052 energy efficient?

The heater complies with EU Ecodesign requirements. It has a nominal heat output of 2.0 kW and minimum 1.4 kW. It is suitable for well-insulated spaces and occasional use to optimize energy consumption.

How should I dispose of this heater when it is no longer usable?

Do not dispose of it with household waste. Follow the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). Return it to a collection point or contact your retailer for environmentally safe recycling.

USER MANUAL FH-215052 Emerio

White cylindrical smart Thermostat with a mesh grille and handle (no visible text or symbols)

Fan heater (EN)

Heizlüfter (DE)

Värmefläkt (SE)

Ventilatorkachel (NL)

Lämpöpuhallin (FI)

Vifteovn (NOR)

Varmeventilator (DK)

Content – Inhalt – Innehåll – Inhoud – Pitoisuus – Innhold – Indhold

Instruction manual – English ...... - 2 -

Thank you very much for purchasing our products. In order to ensure correct operation, please read this manual and instruction carefully before use.

This product is only suitable for well insulated spaces or occasional use.

IMPORTANT INSTRUCTIONS

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, burns and other injuries.

1. Read and save these instructions. Attention: pictures in the IM are for reference only.

2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

3. Children shall not play with the appliance.

4. Cleaning and user maintenance shall not be made by children without supervision.

5. Children of less than 3 years should be kept away unless continuously supervised.

6. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

7. CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

8. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

9. This appliance is intended to be used in household and similar applications.

10. WARNING: In order to avoid overheating, do not cover the heater.

11. The heater must not be located immediately below a socket outlet.

12. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

13. Make sure the appliance is in good condition after remove it from the package.

14. Check your mains voltage; it must match the specification of this heater.

15. Check the power cord and plug carefully before use to ensure that they are not damaged.

16. Be sure the power is turned off before unplugging the heater. Do not touch the plug with wet hands.

17. Don't allow moisture and dust to enter the appliance. Don't use this heater in bathrooms or laundries. Store it in dry areas.

18. Don't put the heater on soft surfaces such as beds or sofas.

19. Children must not play with or plug in the heater. Keep children away from the package. Polyethylene bags can be dangerous.

20. Avoid using extension cords, as they may cause a fire hazard due to overheating.

21. Indoor use only.

22. Do not allow the power cord to hang (e.g over the edge of a table or counter) or place/run the power cord under

rugs, carpeting, or in high-traffic areas where it may be tripped over or pulled.

1. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

2. Keep the power cord and product always away from heated surfaces.

3. Do not insert any other objects into the heater, as it may cause an electric shock, fire or damage to this appliance.

4. Do not use this appliance to dry or heat clothing, shoes, pipes or any other items.

5. Use the appliance in a well-ventilated area, this heater is hot when in use, to avoid burns, do not let bare skin touch a hot surface, if provided, use handle when moving this heater, keep combustible materials, such as furniture pillows, bedding, paper, clothes, and curtains at least 4 feet (1.2 meters) from all sides of the heater.

6. Use this heater only as described in the manual, any other use not recommended by the manufacturer may cause fire, electric shock or personal injury.

7. This appliance is not a toy.

8. Do not immerse the unit in water.

9. To avoid the risk of fire or electric shock do not remove the housing.

10. Any servicing other than cleaning and user maintenance should be performed by an authorized service representative only.

11. Means "DO NOT COVER".

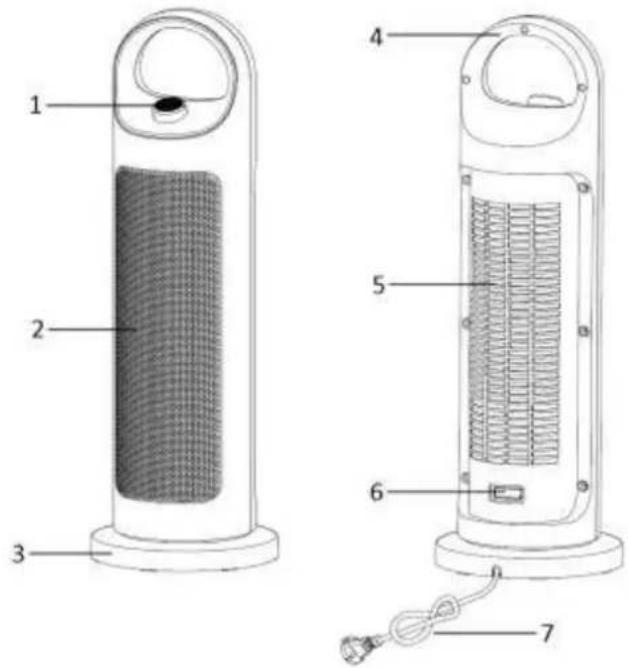

PARTS DESCRIPTION

1. Heat select switch / Thermostat control switch
2. Air outlet grille
3. Base
4. Handle
5. Air inlet grille
6. Swing function switch
7. Power cord and plug

Switch setting:

"0" position - OFF

- FAN

1 = WARM AIR (low heat output)
2 = WARM AIR (high heat output)

" - Thermostat control

USE

1. Rotate the switch to choose the suitable setting ("S" = fan only, no heat/ "1" = low heat output/ "2" = high heat output).
2. Under the setting "2", the thermostat is at the max level. Let the appliance operate until the desired room temperature is reached.
3. Turn the switch slowly in anti-clockwise direction until you hear a "click" sound; this is the set temperature.
4. The appliance will automatically maintain the setting temperature. It will switch on when the room temperature is below the setting, and switch off if it is above the setting.
5. The thermostat will only be working at the heat setting "2". If you choose the heat setting "1", the thermostat will not work.

Note: This appliance has a swing function switch. You can press it for oscillation.

SAFETY SYSTEM

• This appliance is protected with a thermal cut-off protection that switches off heating automatically in case of severe overheating. eg. something covering the appliance. In this case, wait until the appliance cool and remove the objects. The thermal cut-off will automatically reset, heating as normally. Check for damage to the appliance, the cord and the plug. If there is no damage, plug the unit back in and switch it on as described above.
• This heater is equipped with a tilt protection safety device. For safety reasons, the unit will automatically switch off the power if it is put on unstable or uneven surfaces or if it is tilted accidentally.

MAINTENANCE

- The fan heater only needs regular cleaning on the outside.

• Before you clean the unit, turn off the switch. Remove the plug from the socket and wait until the fan heater cools down completely.
• Use a damp cloth to wipe the heater housing and use a vacuum cleaner or a dusting brush to clean the air inlet grille and outlet grille.
• Do not use detergents, abrasive cleaning liquids or chemicals (alcohol, gasoline etc.) to clean the appliance.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50Hz

Power consumption: 2000W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used

device, please use the return and collection systems or contact the retailer where the product was purchased.

They can take this product for environmental safe recycling.

ERP information (EN)

Supplier: Emerio International AB

Smedjegatan 6

131 54 Nacka

Sweden

Declare that the product detailed below:

Information requirements for electric local space heaters

Model identifier(s):
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	2,0	kW	manual heat charge control, with integrated thermostat	[no]
Minimum heat output (indicative)	P_min	1,4	kW	manual heat charge control with room and/or outdoor temperature feedback	[no]
Maximum continuous heat output	P_max,c	2,0	kW	electronic heat charge control with room and/or outdoor temperature feedback	[no]
Auxiliary electricity consumption				fan assisted heat output	[no]
At nominal heat output	el_max	0,000	kW	Type of heat output/room temperature control (select one)
At minimum heat output	el_min	0,000	kW	single stage heat output and no room temperature control	[no]
In standby mode	els_B	0,000	kW	Two or more manual stages, no room temperature control	[no]
				with mechanic thermostat room temperature control	[yes]
				with electronic room temperature control	[no]
				electronic room temperature control plus day timer	[no]
				electronic room temperature control plus week timer	[no]
				Other control options (multiple selections possible)
				room temperature control, with presence detection	[no]
				room temperature control, with open window detection	[no]
				with distance control option	[no]
				with adaptive start control	[no]
				with working time limitation	[no]
				with black bulb sensor	[no]
Contact details	Emerio International ABSmedjegatan 6131 54 NackaSweden

Satisfies the requirement of the Council Directives:

COMMISSION REGULATION (EU) No 2015/1188 of 28 April 2015 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for local space heaters

Regarding information for consumers on how to install, use and maintain the product, WEEE information, please check the instruction manual provided with packaging.
