CH-121858 - Heating appliance Emerio - Free user manual and instructions

Product Type	Convector Heater
Brand	Emerio
Model	CH-121858
Power Supply	220-240V ~ 50-60Hz
Power Consumption	1800-2000W
Heat Output (Nominal)	1.8-2.0 kW
Power Settings	750W, 1250W, 2000W
Thermostat	Adjustable mechanical thermostat
Safety Features	Overheat protection (resettable and irreversible)
Suitable Spaces	Well-insulated spaces or occasional use
Assembly Required	Attach feet (included) before use
Care and Cleaning	Wipe with damp cloth; unplug before cleaning
Storage	Clean, dry place
Guarantee	2 years
Environmental Compliance	WEEE, ERP compliant

Frequently Asked Questions - CH-121858 Emerio

How do I attach the feet to the heater?

The feet are supplied separately in the box. Attach them to the base using the 4 self-tapping screws provided, ensuring they are correctly located in the bottom ends of the heater side moldings.

What power settings are available?

The heater has three power settings: 750W, 1250W, and 2000W, selectable via the power switch.

How do I set the thermostat?

Turn the thermostat knob clockwise to the max position. When the desired room temperature is reached, slowly turn it anticlockwise until you hear a 'click'. The heater will then maintain that temperature automatically.

What should I do if the heater turns off automatically?

This indicates overheating, often due to blocked vents. Turn off the heater, unplug it, and let it cool for about 30 minutes. Remove any obstructions, then plug in and switch on again.

Can I use this heater in a bathroom?

No, the heater is not intended for use in bathrooms, laundry areas, or near swimming pools. It must not be placed where it could fall into water.

How should I clean the heater?

Always unplug and let it cool completely. Wipe the exterior with a damp cloth, then dry. Do not use detergents or abrasives, and avoid getting water inside the heater.

What if the power cord is damaged?

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard. Do not use the heater.

What is the warranty period?

The device comes with a 2-year guarantee from the date of sale. Keep your receipt as proof of purchase.

Is it safe to cover the heater?

No, never cover the heater. It has a 'DO NOT COVER' warning. Covering can cause overheating and fire risk.

Why does the heater emit a smell when first used?

It is normal for the heater to emit some smell and fumes when turned on for the first time or after long storage. This will disappear after a short period of use.

USER MANUAL CH-121858 Emerio

White electric heater with black ventilation grilles and wheels (no visible text or symbols)

Convector heater (EN)

Konvektor (DE)

Konvektorelement (SE)

Convectorverwarming (NL)

Konvektor ( FI )

Konvektorvarmer (NOR)

Instruction manual – English ...... - 2 -

This product is only suitable for well insulated spaces or occasional use.

SAFETY INSTRUCTIONS

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children without supervision.

4. Children of less than 3 years should be kept away unless continuously supervised.

5. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

6. CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

7. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

8. WARNING: In order to avoid overheating, do not cover the heater.

9. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

10. The heating appliance must not be placed just below an electrical outlet.

1. Means "DO NOT COVER".

2. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

3. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

4. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

5. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

6. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

7. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

8. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

9. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

10. Never leave the appliance unattended during use.

11. This appliance is not designed for commercial use.
12. Do not use the appliance for other than intended use.
13. Do not wind the cord around the appliance and do not bend it.
14. The heater is not intended for use in bathrooms, laundry areas, near swimming pools or similar wet indoor locations. Never place the heater where it may fall into a bathtub or any other water container.
15. Do not use outdoors.
16. Do not cover or obstruct any of the heat outlet grilles or the air intake openings of the heater.
17. Do not place the heater on carpets with a very deep pile.
18. Do not insert any object through the heat outlet or air intake grilles of the heater.
19. Do not use the heater in areas where flammable liquids are stored or where flammable fumes may be present.
20. Particular care should be taken when the heater is situated in areas occupied by children or disabled persons.
21. Always unplug the heater when moving it from one location to another.
22. This heating device is not suitable for assembling in vehicles and machines.
23. Do not use the heater unless the feet are correctly attached.
24. Always ensure that the heater is placed on a firm level surface. Ensure that the heater is not positioned close to curtains or furniture as this could create a fire hazard.
25. Regarding the information pertaining to the installation, please refer to the below paragraph of the manual.

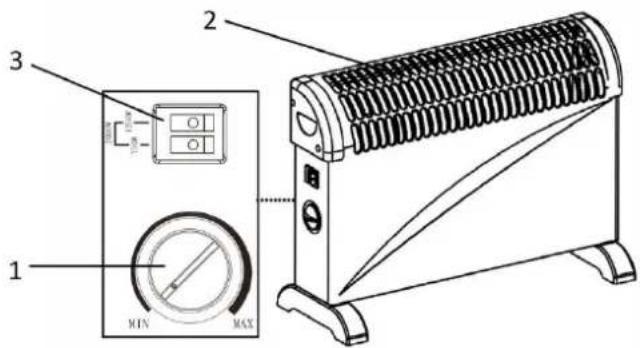

PARTS DESCRIPTION

1. Thermostat knob
2. Air outlet
3. Power switch (750W; 1250W; 2000W)

ASSEMBLY OF THE HEATER

Before using the heater, the feet (supplied

separately in the box) must be fitted to the unit.

These are to be attached to the base of the heater using the 4 self-tapping screws provided, taking care to ensure that they are located correctly in the bottom ends of the heater side moldings.

Technical line drawing of a screwdriver inserted into a slot with a ruler, no text or symbols present

Note: When the heater is turned on for the first time, or when it is turned on after a longer period of storage, it is normal that the heater may emit some smell and fumes. This will disappear when the heater has been on a short while.

• Set the thermostat to the minimal position and insert the plug to the power supply.
• Turn on the power switch: 750W, 1250W, 2000W.
  • Turn the thermostat knob in a clockwise direction to the max position.
• Once the room temperature has reached the desired value, turn the thermostat knob slowly in anti-clockwise direction until you hear a "click" sound; this is the setting temperature.
• The appliance will automatically maintain the setting temperature. It will switch on when the room temperature is below the setting, and switch off if it is above the setting.

SAFETY SYSTEM

The appliance has a resumable safety system which automatically switches off the unit when overheated, for example, due to the total or partial obstruction of the vents. In this case, switch off the appliance, remove the plug from the socket. Let it cool down for about 30 minutes and remove the object which is obstructing the vents. Then put the plug in the socket and switch on the heater. It should now operate normally.

Irretrievable safety system: When overheat happened, if above resumable safety system is out of order or if resumable safety system switches off the appliance, but the internal temperature continues to rise, irretrievable safety system will work. If this situation happens, the appliance shall be send to repair.

CLEANING THE HEATER

1. Always unplug the heater from the wall socket and allow it to cool down completely before cleaning.
2. Clean the outside of the heater by wiping with a damp cloth and with a dry cloth.
3. Do not use any detergents or abrasives and do not allow any water to penetrate the heater.

STORING THE HEATER

When the heater is not used for a long time it should be protected from dust and stored in a clean dry place.

TECHNICAL DATA

Supply voltage: 220-240V \~ 50-60Hz

Power consumption: 1800-2000W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used

device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

ERP information (EN)

Supplier: Emerio International AB

Smedjegatan 6

131 54 Nacka

Sweden

Declare that the product detailed below:

Information requirements for electric local space heaters

Model identifier(s):
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	1.8-2.0	kW	manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	P_min	0.75	kW	manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	P_max,c	2.00	kW	electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				fan assisted heat output	No
At nominal heat output	el_max	N/A	kW	Type of heat output/room temperature control (select one)
At minimum heat output	el_min	N/A	kW	single stage heat output and no room temperature control	No
In standby mode	els_B	0	kW	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	Yes
				with electronic room temperature control	No
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details	Emerio International ABSmedjegatan 6131 54 NackaSweden

Satisfies the requirement of the Council Directives:

COMMISSION REGULATION (EU) No 2015/1188 of 28 April 2015 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for local space heaters

Regarding information for consumers on how to install, use and maintain the product, WEEE information, please check the instruction manual provided with packaging.
