FH-215047 - Heating appliance Emerio - Free user manual and instructions

Product Type	Fan Heater
Brand	Emerio
Model	FH-215047
Power Source	AC 220-240V, 50/60Hz
Power Consumption	2000W (max)
Heat Settings	2 (1000W / 2000W)
Fan Settings	2 (low / high) plus fan-only mode
Thermostat	Adjustable thermostat with auto shut-off
Oscillation	Yes, 70° wide oscillation
Dimensions (W x D x H)	20 x 15 x 25 cm
Weight	1.5 kg
Heating Element	Ceramic PTC
Safety Features	Overheat protection, tip-over switch, cool-touch housing
Noise Level	Approx. 45 dB (low setting)
Cleaning	Unplug and wipe with a dry or slightly damp cloth; do not use abrasive cleaners
Maintenance	Regularly clean air inlet and outlet grilles to prevent dust buildup
Spare Parts Availability	Contact Emerio customer service for replacement parts
Reparability	Not intended for user repair; refer to qualified service personnel
Energy Class	Not specified (typically Class A or B for fan heaters)
Certifications	CE, GS, RoHS

Frequently Asked Questions - FH-215047 Emerio

How do I set the temperature on my Emerio FH-215047 fan heater?

Turn the thermostat dial clockwise to increase the desired temperature. The heater will automatically shut off when the room reaches that temperature and turn back on when it drops below.

Can I use the fan heater in a bathroom?

No, the Emerio FH-215047 is not designed for use in damp environments like bathrooms. It must be kept away from water and moisture to avoid electrical shock.

Why does my heater turn off after a few minutes?

This may be due to the built-in overheat protection. Ensure the air inlet and outlet are not blocked, and place the heater on a stable, flat surface. If it continues, let it cool down and restart.

How do I clean my Emerio fan heater?

Always unplug the heater before cleaning. Use a soft dry cloth to wipe the exterior. To clean the grilles, you can use a vacuum cleaner with a brush attachment. Do not immerse in water.

Does the heater have a remote control?

No, the Emerio FH-215047 does not include a remote control. All settings are adjusted manually via the control panel on the unit.

What is the maximum room size the heater can warm?

The FH-215047 is suitable for rooms up to approximately 20 square meters (215 square feet) when used on the highest setting.

Can I use an extension cord with this heater?

It is not recommended to use an extension cord. Plug the heater directly into a wall outlet to avoid overheating and ensure proper power supply.

Why does the fan keep running after the heater turns off?

This is normal. The fan continues to run for a short time to cool down the internal components after the heating element shuts off. It will stop automatically.

How do I store the heater when not in use?

Allow the heater to cool down completely. Clean it as instructed, store it in a dry place away from dust. The power cord can be wrapped around the base for tidy storage.

Is the Emerio FH-215047 energy efficient?

This fan heater uses PTC ceramic heating which is efficient for fast, targeted heating. However, it is best suited for supplemental heating rather than whole-house heating to save energy.

USER MANUAL FH-215047 Emerio

Black electric water heater with digital display and control buttons (no visible text or symbols)

Fan heater (EN)

Heizlüfter (DE)

Värmefläkt (SE)

Ventilatorkachel (NL)

Lämpöpuhallin (FI)

Vifteovn (NOR)

Varmeventilator (DK)

Content – Inhalt – Innehåll – Inhoud – Pitoisuus – Innhold – Indhold

Instruction manual – English ...... - 2 -

Thank you very much for purchasing our products. In order to ensure correct operation, please read this manual and instruction carefully before use.

This product is only suitable for well insulated spaces or occasional use.

IMPORTANT INSTRUCTIONS

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, burns and other injuries.

1. Read and save these instructions. Attention: pictures in the IM are for reference only.

2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

3. Children shall not play with the appliance.

4. Cleaning and user maintenance shall not be made by children without supervision.

5. Children of less than 3 years should be kept away unless continuously supervised.

6. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

7. CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

8. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

9. This appliance is intended to be used in household and similar applications.

10. WARNING: This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

11. WARNING: In order to avoid overheating, do not cover the heater.

12. The heater must not be located immediately below a socket outlet.

13. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

14. Make sure the appliance is in good condition after remove it from the package.

15. Check your mains voltage; it must match the specification of this heater.

16. Check the power cord and plug carefully before use to ensure that they are not damaged.

17. Be sure the power is turned off before unplugging the heater. Do not touch the plug with wet hands.

18. Don't cover the heater.

19. Don't allow moisture and dust to enter the appliance. Don't use this heater in bathrooms or laundries. Store it in dry areas.

20. Don't put the heater on soft surfaces such as beds or sofas.

21. Children must not play with or plug in the heater. Keep children away from the package. Polyethylene bags can be dangerous.

22. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

23. Indoor use only.
24. Do not allow the power cord to hang (e.g over the edge of a table or counter) or place/run the power cord under rugs, carpeting, or in high-traffic areas where it may be tripped over or pulled.
25. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
26. Do not put any stress on the power cord where it connects to the appliance, as the power cord could fray and break.
27. Keep the power cord and product always away from heated surfaces.
28. Do not insert any other objects into the heater, as it may cause an electric shock, fire or damage to this appliance.
29. Do not use this appliance to dry or heat clothing, shoes, pipes or any other items.
30. Use the appliance in a well-ventilated area, this heater is hot when in use, to avoid burns, do not let bare skin touch a hot surface, if provided, use handle when moving this heater, keep combustible materials, such as furniture pillows, bedding, paper, clothes, and curtains at least 3 feet (0.9 meters) from all sides of the heater.
31. Use this heater only as described in the manual, any other use not recommended by the manufacturer may cause fire, electric shock or personal injury.

32. Do not operate the heater with a damaged cord or plug. After the heater malfunctions or has been dropped or damaged in any manner, return the appliance to a service facility for examination, electrical or mechanical adjustment or repair.

33. The appliance should not be operated by means of an external timer-switch or by means of a separate system with remote control not originally belonging to this appliance.

34. This heating device is not suitable for assembling in vehicles and machines.
35. The rotor guard shall not be disassembled/opened to clean the rotor blades.
36. Never leave the appliance unattended during use.
37. Do not immerse the unit in water.
38. To avoid the risk of fire or electric shock do not remove the housing.
39. Any servicing other than cleaning and user maintenance should be performed by an authorized service representative only.

1. Means "DO NOT COVER".

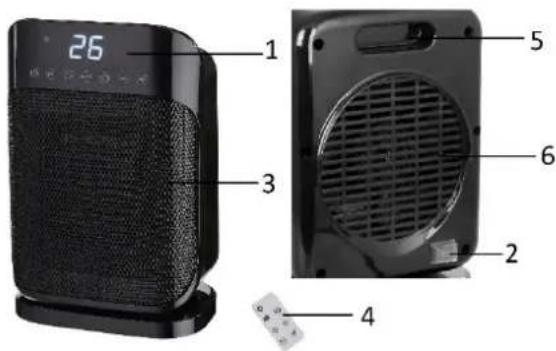

PARTS DESCRIPTION

1. Control panel and display
2. Main power switch
3. Air outlet
4. Remote control
5. Handle
6. Air inlet

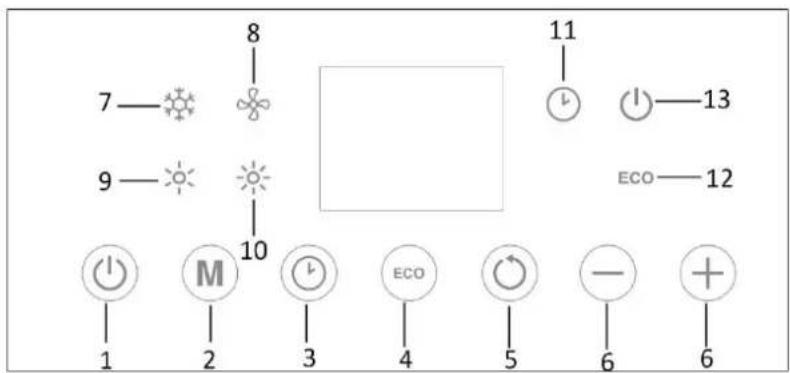

Control panel & Display & Remote control

Note: One piece of CR2025 battery is provided in the remote control. Before use, please pull out the plastic insulation sheet. When the battery has run out of power, change it according to the instruction behind the remote control. If the remote control is not in use for a long time, please take the battery out. Keep button cell batteries out of reach of small children.

Operation

Plug the appliance into an appropriate electrical outlet. Turn on the appliance by pressing the main power switch to position "I". A beep sound will be heard at the meantime, the power icon ⏻ will blink on the display. It will be off when the appliance is turned on.

Press the button “n” in the control panel or remote control, the appliance begins to work and the display of “” is on.

Defrost function:

The appliance has a defrost function. Its icon “” will appear on the display when you turn on the appliance. If the room temperature is higher than 7^ C, the appliance will work on fan mode; if the room temperature is less than 7^ C, the appliance will work on high heat mode.

1. Power setting

1) Fan mode: Press the button "M" once, the display of "” is on.
2) Low heat mode: Press the button "M" twice, the display of "i is on.
3) High heat mode: Press the button "M" thrice, the display of "→" is on.

2. Temperature setting

Press the button “-” or “+” to set the desired temperature. You can choose from 10^ C to 35^ C. When you set your desired temperature, it will flash a few seconds, and then shows the room temperature again.

If the room temperature is lower than the set temperature, the appliance will work on the set power; if the room temperature is higher than the set temperature, the appliance will stop working automatically.

3. Time setting

Press the button “,” the display of “” will be on. Press the button “-” or “+” to set the desired working time from 0h (00) to 24h (24). The set working time will flash a few seconds, and then shows the room temperature again. The time setting is done. The appliance will shut itself off automatically when the time is up. Set the working time to 0h (00) to turn off the timer.

1. Press the button “ECO” to enter into ECO mode. The icon “ECO” will be on.

The default temperature for ECO mode is 22^ C. If the room temperature is lower than 18^ C, the appliance will work on high heat mode; if the room temperature is between 18-22^ C, the appliance will work on low heat mode; if the room temperature is higher than 22^ C, the appliance will work on fan mode.

You can also select your desired temperature for ECO mode. The appliance will compare your set temperature with the current room temperature and will select the most appropriate heating level, like above, to maintain the set temperature while reducing your energy consumption.

5. Oscillation

Press the button “💡”, the appliance begins to swing in horizontal direction. Press the button again, the oscillation will stop.

6. Turn off

Press the button “ again to turn off the appliance. Cold air will continue to below out for another 30 seconds (The display will show countdown from 30 to 0) to protect and enhance the lifespan of the product. Turn off the main power switch and unplug the power cord from the outlet.

SAFETY SYSTEM

- The appliance comprises a protection device protecting against overheating. A temperature limiting system inside the appliance will automatically cut the power supply from the heating element while the ventilator

continues to function to cool the appliance. The appliance can re-start as soon as the normal conditions and temperature needed for it to function are re-established. Identify the causes of this overheating to avoid any recurrences

- This heater is equipped with a tilt protection safety device. For safety reasons, the unit will automatically switch off the power if it is put on unstable or uneven surface or if it is tilted accidentally.

MAINTENANCE

• The fan heater only needs regular cleaning on the outside.
- Before you clean the unit, turn off the switch. Remove the plug from the socket and wait until the fan heater cools down completely.
• Use a damp cloth to wipe the heater housing.
- Do not use detergents, abrasive cleaning liquids or chemicals (alcohol, gasoline etc.) to clean the appliance.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50/60Hz

Power consumption: 1800W

IP 21

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge.

Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY. DO NOT OPEN. DO NOT DISPOSE

OR IN FIRE OR SHORT CIRCUIT.

ERP information (EN)

Supplier: Emerio International AB

Smedjegatan 6

131 54 Nacka

Sweden

Declare that the product detailed below:

Information requirements for electric local space heaters

Model identifier(s):
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	1.8	kW	manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	P_min	0.9	kW	manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	P_max,c	1.8	kW	electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				fan assisted heat output	No
At nominal heat output	el_max	N/A	kW	Type of heat output/room temperature control (select one)
At minimum heat output	el_min	N/A	kW	single stage heat output and no room temperature control	No
In standby mode	el_SB	0.00032	kW	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	No
				with electronic room temperature control	Yes
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	Yes
				with black bulb sensor	No
Contact details	Emerio International ABSmedjegatan 6131 54 NackaSweden

Satisfies the requirement of the Council Directives:

COMMISSION REGULATION (EU) No 2015/1188 of 28 April 2015 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for local space heaters

Regarding information for consumers on how to install, use and maintain the product, WEEE information, please check the instruction manual provided with packaging.
