HG00100A - Uncategorized Livarno Lux - Free user manual and instructions

Product Type	LED Magnetic Light (Set of 2 for HG03223A, Single for HG03223B)
Brand	Livarno Lux
Model	HG00100A
Power Source	3 x 1.5V AAA (HG03223A) or 3 x 1.5V AA (HG03223B) batteries
Bulb Type	8 x LED, 0.5W (HG03223A) / 1 x LED, 3W (HG03223B)
Light On Time	Approx. 1.5 hr (HG03223A) / Approx. 4 hr (HG03223B)
Chromaticity Coordinate	X < 0.27
Magnet	Yes, for attachment to metallic surfaces
Hook	Foldable, 360° rotation
Switch	On/Off button
Intended Use	Illuminating working areas indoors (not for household room illumination)
Included Batteries	Yes (AAA or AA as per model)
Battery Replacement	User-replaceable
LED Replacement	Not replaceable (replace entire product)
Cleaning	Dry cloth only; no water, solvents, or cleaners
Safety	Keep away from children, do not use if damaged, indoor use only
Warranty	3 years from date of purchase
Disposal	Recycle according to local regulations; batteries separately
Certification	CE marked
Manual Languages	Multiple languages available (EN, DE, FI, etc.)

Frequently Asked Questions - HG00100A Livarno Lux

How do I replace the batteries?

For HG03223A, turn the battery compartment cover anticlockwise, remove it, insert three AAA batteries with correct polarity, then replace cover and turn clockwise. For HG03223B, remove the battery compartment cover, insert three AA batteries with correct polarity, then click the cover back into place. Always switch the product off before replacing batteries.

How long do the lights last on one set of batteries?

The HG03223A model lasts approximately 1.5 hours, while the HG03223B model lasts approximately 4 hours. Actual time may vary based on usage.

Can I use rechargeable batteries?

The manual does not specifically recommend or prohibit rechargeable batteries. However, it indicates to only use the specified battery type (1.5V AAA or AA). Rechargeable batteries typically have a lower voltage (1.2V), which may affect performance. Follow safety instructions for batteries/rechargeable batteries.

Are the LEDs replaceable?

No, the LEDs are not replaceable. If they fail, the entire product must be replaced.

Can I use the product outdoors?

No, the product is intended only for indoor use in dry and enclosed areas. It is not suitable for outdoor use or exposure to moisture.

How do I attach the light to a surface?

The product can be attached in two ways: 1) Hold the magnet against a metallic magnetic surface to stick it. 2) Fold out the hook and suspend it from a suitable point. The hook can be rotated 360 degrees.

What is the warranty period?

The product comes with a 3-year warranty from the date of purchase. It covers material and manufacturing defects, but not normal wear (e.g., batteries) or damage from improper use. Keep the original sales receipt as proof of purchase.

How do I clean the product?

Clean the product with a dry cloth only. Never use petrol, solvents, or cleaners that attack plastic. Do not clean with water or other liquids.

Is the product suitable for household room illumination?

No, the product is intended for illuminating working areas in indoor environments, not for household room illumination. It is not bright enough for general room lighting.

What should I do if the light does not turn on?

Check the batteries: ensure they are inserted with correct polarity and are not exhausted. Replace with new batteries if needed. If the product still does not work, it may be defective; contact the retailer for warranty service.

USER MANUAL HG00100A Livarno Lux

LED MAGNETIC LIGHTS / LED MAGNETIC LIGHT

GB

LED MAGNETIC LIGHTS / LED MAGNETIC LIGHT

Operation and Safety Notes

FI

LED-MAGNEETTIVALOT/ LED-MAGNEETTIVALO

GB Operation and Safety Notes Page 5

Line drawing of a remote control device with a lock icon and directional arrow (no text or symbols)

List of pictograms used......Page 6

Introduction......Page 6

Intended use......Page 6

Description of parts....Page 6

Technical data...... Page 7

Includes...... Page 7

General Safety Instructions......Page 7

Safety instructions for batteries / rechargeable batteries...... Page 8

Before use......Page 9

Bringing into use......Page 9

Inserting / replacing the batteries...... Page 9

Switching On/Off Page 10

Fixing the product ...... Page 10

Cleaning and care......Page 11

Disposal Page 11

Warranty Page 12

List of pictograms used
— — —	Direct current LED	life grant

LED Magnetic Lights / LED Magnetic Light

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Intended use

The product is constructed for illuminating working areas in indoor environment. The product is not intended for commercial use or for use in other applications.

■ Not suitable for household room illumination.

• Description of parts

1	LED magnetic light
2	LED
3	Switch (ON/OFF)
4	Hook
5	Magnet
6	1.5V = (direct current) AAA battery (HG03223A)1.5V= (direct current) AA battery (HG03223B)
7	Battery compartment
8	Battery compartment cover

- Technical data

Bulbs: 8 x LED, 0.5 W (HG03223A) /

1 x LED, 3 W (HG03223B)

(The LEDs cannot be replaced)

Batteries: HG03223A:

3 x 1.5 V=== (direct current), AAA

(included)HG03223B:

3 x 1.5 V=== (direct current), AA

(included)

Light on time: HG03223A: approx. 1.5 hr

HG03223B: approx. 4 hr

Chromaticity

coordinate: X < 0.27

- Includes

2 LED magnetic lights (HG03223A)

1 LED magnetic light (HG03223B)

6 Batteries 1.5 V===type AAA (HG03223A)

3 Batteries 1.5 V===type AA (HG03223B)

1 Instructions for use

General Safety Instructions

PLEASE KEEP THE INSTRUCTIONS IN A SAFE PLACE! IF PASSING THIS PRODUCT ON TO A THIRD PARTY ALSO INCLUDE ALL DOCUMENTS.

WARNING! DANGER OF DEATH AND ACCIDENTS FOR TODDLERS AND

CHILDREN! Never leave children unsupervised

with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Always keep children away from the packaging material. This product is not a toy.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concern-

ing use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.

CAUTION! RISK OF INJURY! Please do not use this product if you find that it is damaged in any way.

• Check whether all of the parts are correctly fitted. If the product is not correctly assembled there is a danger of injury.
• Keep the product away from humidity.
• Do not subject the product to any extreme temperatures or severe mechanical stress. Otherwise this may result in deformation of the product.
  The product is only intended for use indoors, in dry and enclosed areas.

■ The LEDs are not replaceable.

If the LEDs fail at the end of their lives, the entire product must be replaced.

Safety instructions for batteries / rechargeable batteries

■ DANGER TO LIFE! Keep batteries/rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.

DANGER OF EXPLOSION! Never re-

charge non-rechargeable batteries. Do not short-circuit batteries/rechargeable batteries

and / or open them. Overheating, fire or bursting can be the result.

■ Never throw batteries / rechargeable batteries into fire or water.

Do not exert mechanical loads to batteries / rechargeable batteries.

Risk of leakage of batteries / rechargeable batteries

Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.

Avoid contact with the skin, eyes and mucous membranes. In the event of contact with battery acid, thoroughly flush the affected area with plenty of clean water and seek immediate medical attention.
WEAR PROTECTIVE GLOVES! Leaked or damaged batteries/rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.
In the event of a leakage of batteries / rechargeable batteries, immediately remove them from the product to prevent damage.
Only use the same type of batteries / rechargeable batteries. Do not mix used and new batteries / rechargeable batteries.
■ Remove batteries / rechargeable batteries if the product will not be used for a longer period.

Risk of damage of the product

■ Only use the specified type of battery / rechargeable battery!
- Insert batteries / rechargeable batteries according to polarity marks (+) and (-) on the battery / rechargeable battery and the product.
- Clean the contacts on the battery / rechargeable battery and in the battery compartment before inserting!
■ Remove exhausted batteries / rechargeable batteries from the product immediately.

- Before use

Note: Remove all packaging materials from the product.

● Bringing into use

- Inserting / replacing the batteries

Note: Switch the product off before you insert or remove the batteries 6.

For HG03223A only:

Turn the battery compartment cover 8 anticlockwise and take it off from the battery compartment 7 (see Fig. B).

☐ Insert the (new) batteries into the battery compartment 7. Note: Make sure you fit the batteries the right way round (polarity). The correct polarity is shown inside the battery compartment.

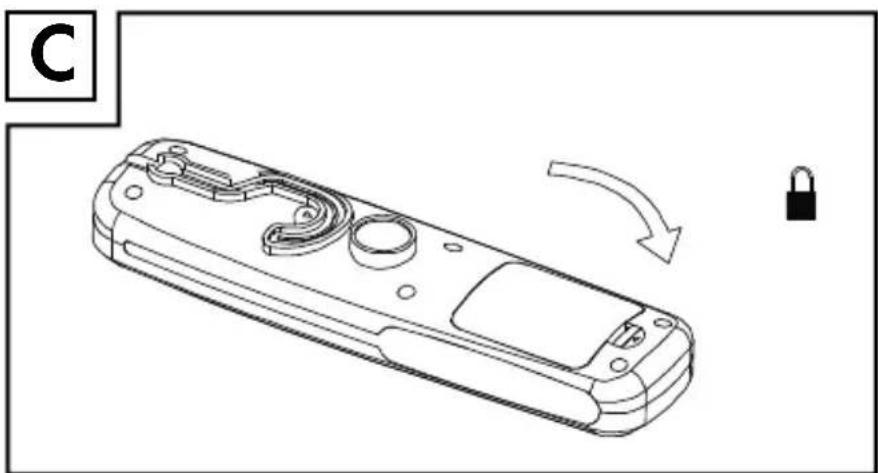

☐ Put the battery compartment cover 8 back at a correct place on the battery compartment 7 and turn it clockwise to tighten it (see Fig. C).

For HG03223B only:

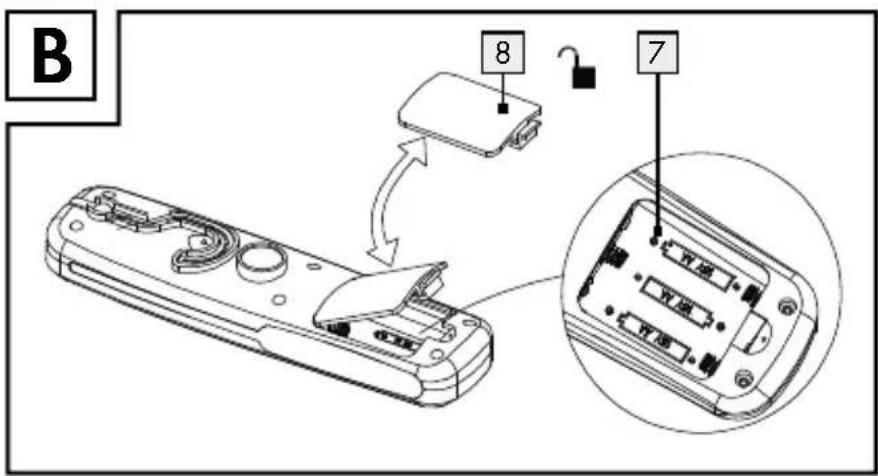

Open the battery compartment 7 by removing the battery compartment cover 8 (see Fig. B).

☐ Insert three 1.5 V, AA batteries 6 into the battery compartment 7. Ensure correct polarity. This is indicated in the battery compartment 7.

☐ Close the battery compartment 7 by placing the battery compartment cover 8 on top of it and clicking it into place (see Fig. C).

- Switching On/Off

☐ Press the ON / OFF button 3 to switch the product on.
☐ Press the ON / OFF button again to switch the product off.

● Fixing the product

The product can be used in 2 ways without having to hold it in your hand:

☐ Hold the magnet 5 against a metallic magnetic surface. The product remains in this position.

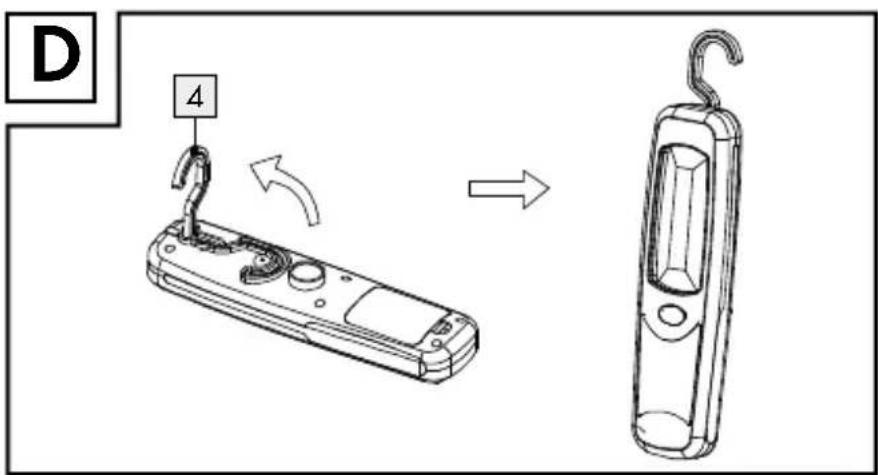

☐ Fold out the hook 4 to suspend the product from a suitable suspension point. The hook 4 can be turned through 360 degree.

- Cleaning and care

Use a dry cloth to clean the product – never use petrol, solvents or cleaners that attack plastic.
Do not clean the product with water or other liquids.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities. The Green Dot is not valid for Germany.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibreboard / 80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

- Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

CE

1 x LED, 3 W (HG03223B)

LED magnetlampor/LED magnetlampa

Inledning

1 x LED, 3 W (HG03223B)

1 x LED, 3 W (HG03223B)

1 x LED, 3 W (HG03223B)

(LED nekeičiami)

Baterijos: HG03223A:

Model-No.: HG03223A/HG03223B

Version: 09/2017

Last Information Update · Tietojen tila

Informationsstatus · Stan informacji · Informacijos

pobūdis · Stand der Informationen: 09 / 2017

Ident.-No.: HG03223A/B092017-3
