Product Type	Curling Iron
Brand	OBH Nordica
Model	Björn Axén Genius Curler 3123
Barrel Diameter	1 inch (25 mm)
Barrel Material	Ceramic with tourmaline coating
Heat Settings	5 adjustable temperature levels (up to 200°C)
Power	45 W
Voltage	220-240 V, 50/60 Hz
Cord Length	2.5 m
Auto Shut-Off	Yes, after 60 minutes
Dual Voltage	No (single voltage)
Swivel Cord	Yes
Cool Tip	Yes, for safe handling
Hanging Loop	Yes
Dimensions (approx.)	30 cm x 4 cm x 4 cm
Weight	0.3 kg
Color	White with gold accents
Warranty	2 years
Maintenance	Wipe with a damp cloth after unplugging; do not use abrasive cleaners
Safety Features	Auto shut-off, cool tip, non-slip handle
Spare Parts	Not available separately; contact customer service
Repairability	Not user-serviceable; refer to authorized service center

Frequently Asked Questions - Björn Axén Genius Curler 3123 OBH NORDICA

What is the barrel diameter of the Björn Axén Genius Curler 3123?

How do I adjust the temperature on this curling iron?

Is the curling iron suitable for fine or damaged hair?

Does the curling iron have automatic shut-off?

Can I use this curling iron while traveling?

How do I clean the curling iron?

What hair types is this curling iron best for?

How long does it take to heat up?

Is the cord long enough for easy use?

What should I do if the curling iron stops working?

USER MANUAL Björn Axén Genius Curler 3123 OBH NORDICA

OBH NORDICA NING GOOD L N AXÉN TOOLS RLING IRON NIUS CURLER ART AUTOMATIC CURLER looking good!

Bruksanvisning - svenska......sida 3 - 7

Visiting address: Deltapark 37, 3. sal

Phone: [phone]

Direct: [phone]

www.obhnordica.dk

Tekniske data

OBH Nordica 3123

100-240V \~, 50-60 Hz

65-67 W

Temperaturindstilling (170-210 °C).

Keramisk belægning.

Automatisk slukning efter ca. 40 min.

Ledningslængde 3 m.

BEGRENSET GARANTI for OBH Nordica

Garantien

OBH Nordica Norway AS

1. Read the instruction manual carefully before use and save it for future use.
2. Plug the appliance to a household outlet of 100-240 V only, and use the appliance only for the intended use.
3. Always unplug the appliance from the mains supply when not in use, in case of a problem, after use, when parts are mounted or removed from the appliance and before cleaning and maintenance.
4. This appliance can be used by persons (including children from the age of 8) with reduced physical, sensory or mental capabilities or lack of experience with/knowledge about the appliance, if they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety and when they are aware of possible risks.
5. Children should be supervised to ensure that they do not play with the appliance. Children are not always able to understand potential risks. Teach children a responsible handling of electrical appliances.
6. Cleaning and maintenance should not be made by children under the age of 8 and they shall be supervised.
7. Check that the cord is not hanging free from the edge of the table.
8. The appliance should only be used under supervision.
9. WARNING! Never use the appliance close to a bathtub, a shower, a washbasin or similar containing water.

1. Never immerse the appliance in water or any other liquid. Never use the appliance with humid hands and do not position the appliance on a wet or humid surface.
2. Always unplug the appliance from the mains supply immediately after use, if the appliance is used in a bathroom, as water presents a hazard even when the appliance has been switched off.
3. Always check the appliance, the cord and the switch before use. If the cord is damaged, it must be replaced by the manufacturer, an authorized service agent or a similarly qualified person in order to avoid any hazard.
4. Extra protection can be obtained by installation of a residual current device of 30 mA. Check with your installer.
5. The appliance is for domestic use only.
6. If the appliance is used for other purposes than intended or not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages of the product as a consequence of the above are not covered by the warranty.

Use

Plug the appliance in. Set the appropriate temperature for your hair type and how defined you want your curls to be by sliding the button to the desired setting – see the recommendations below. Make sure to always start in OFF mode.

170°C – thin, fine hair/coloured hair – lighter curls

190°C – normal hair – normal curls

210°C - very thick, resilient hair - defined curls

Place the curling tongs with the support facing downwards. The surface must be flat and tolerate heat. The indicator light flashes red until the selected temperature is reached. The light then remains lit.

Use styling product with heat protection before you start styling. Make sure your hair is completely dry before using the tongs. Open the lever on the curling tongs and place a section of hair securely inside. Distribute the hair evenly in the clasp.

Roll up the hair around the curling tongs by pressing one of the rotate buttons, depending on the direction of curl you want. Release the button once the hair is rolled up as far as you want. When the button is released, the time is calculated based on the length of the hair rolled up. When you hear 2 beeps, carefully unwind the hair and press the HOME button. The tongs roll back to the start position. Repeat the procedure on the rest of the hair.

To turn off the smartness function (beep) which signals that the tongs are ready, press the HOME button for 3 seconds until the indicator light turns green. To reactivate the smartness function (beep), press the HOME button again until the indicator light turns red.

To ensure the hair holds its curl, do not comb or brush the hair until it has cooled.

Make sure that the hot parts of the tongs do not come into contact with your scalp, face, neck or hands.

Do not use the tongs on wigs, extensions or artificial hair without testing them on a small section of hair first to discover if there is a risk of the hair melting.

Auto-off function

The tongs automatically turn off after around 40 minutes. The indicator light switches off. Please note that the tongs are not fully switched off until you push the power button to OFF. To activate the tongs again, push the power button to OFF and then select a temperature setting. The auto-off function is an extra safety feature, but in principle the power button must be pushed to OFF and the appliance unplugged after use.

Cleaning and maintenance

• Switch off the appliance by pushing the power switch to OFF. Then unplug the appliance and allow it to cool on a heat-resistant surface before cleaning. The tongs reach very high temperatures when in use, and therefore take a long time to cool down. Make sure that the appliance is out of the reach of children.
• The appliance and cord must not be immersed in water or other fluids.
• Wipe the exterior of the appliance and the plates with a damp cloth. Wipe with a dry cloth.
  • Make sure that water does not get into the casing!
• If the tongs become dirty due to styling products, wipe the surface with a slightly damp sponge or cloth. Then wipe with a dry cloth.
• Make sure that the tongs have cooled completely and are dry before putting them away.

- Keep the tongs in the case provided in a dry, safe place out of the reach of children.

Do not wrap the cord around the appliance, as this may cause abnormal strain, with a risk of the cord breaking.

Disposal of the appliance

slation requires that all electrical and electronic equipment shall be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

OBH Nordica LIMITED GUARANTEE

The Guarantee

OBH Nordica guarantees this product against any manufacturing defect in materials or workmanship during 2 years within Sweden, Norway, Denmark and Finland, starting from the initial date of purchase or delivery date.

This manufacturer's commercial guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At OBH Nordicas choice, a replacement product may be provided instead of repairing a defective product. OBH Nordicas sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

OBH Nordica shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase.

The defective product may be returned to the store of purchase.

This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which occurs as a result of misuse, negligence, failure to follow OBH Nordica instructions, or a modification or unauthorised repair of the product, faulty packaging by the owner or mishandling by any carrier. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable
• mechanical damages, overloading
• damages or poor results specifically due to wrong voltage or frequency as stamped on the product ID or specification
• ingress of water, dust or insects into the product
• scaling (any de-scaling must be carried out according to the instructions for use)
• damage as a result of lightning or power surges
• damage to any glass or porcelain ware in the product
• accidents including fire, flood, etc

- professional or commercial use

Consumer Statutory Rights

OBH Nordica's commercial guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from Country to Country. The consumer may assert any such rights at his sole discretion.

TEFAL - OBH Nordica Group AB

Löfströms Allé 5

Phone: [phone]

www.obhnordica.com

Technical Data

OBH Nordica 3123

100-240V \~, 50-60 Hz

65-67 W

Temperature setting (170-210°C).

Ceramic coating.

Automatic switch-off after approx. 40 minutes.

Cord length 3 m.

We reserve the right to make changes without notice.

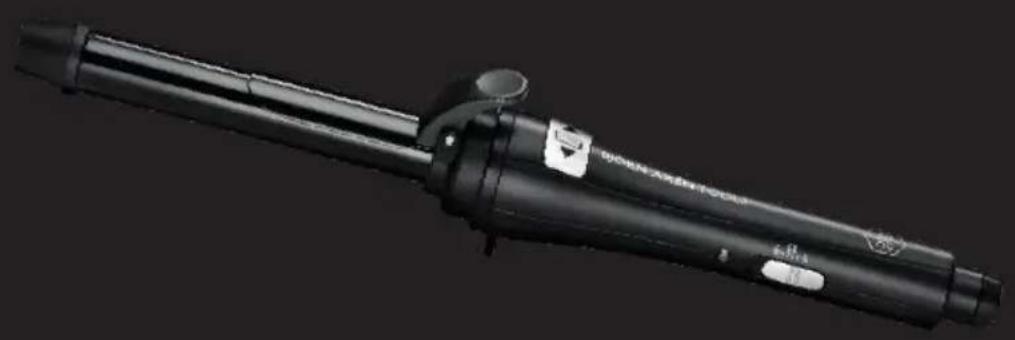

Black hair curling iron with attached clamp and roller (no visible text or symbols)
