Björn Axén Curling Wand Elliptic 3118 - Curling iron OBH NORDICA - Free user manual and instructions

Product type	Curling wand / curling iron
Brand	OBH Nordica
Model	Björn Axén Curling Wand Elliptic 3118
Power supply	220-240 V ~ 50 Hz
Power consumption	45 W
Temperature range	120 °C – 200 °C
Temperature settings	LOW (120 °C), MID (160 °C), HIGH (200 °C)
Heating element	Ceramic coating with tourmaline
Shape	Elliptic
Auto-off	Yes, after approx. 60 minutes
Indication light	Yes, power indicator
Intended use	Domestic use only, for creating big natural-looking waves
Safety features	Auto-off, do not use near water, RCD recommended
Cleaning	Wipe exterior with damp cloth; do not immerse in water
Warranty	2 years limited (Sweden, Norway, Denmark, Finland)
Recommended for	Natural-looking curls, various hair types (thin to thick)

Frequently Asked Questions - Björn Axén Curling Wand Elliptic 3118 OBH NORDICA

What temperature setting should I use for my hair type?

Refer to the temperature recommendations: LOW (120 °C) for thin, fine or coloured hair; MID (160 °C) for normal hair; HIGH (200 °C) for very thick and resilient hair.

How do I create curls with this curling wand?

Ensure hair is completely dry. Take a section of hair, hold the wand near the scalp, and wind the hair evenly around the elliptic heating element. Hold for 5-8 seconds, then release. Adjust section thickness for varied curl volume.

Does the curling wand have an auto-off function?

Yes, it automatically switches off after approximately 60 minutes as a safety feature. Always turn the power button to OFF and unplug after use.

Can I use this product on wet hair?

No, the hair must be completely dry before styling. Using on wet hair can cause damage and increase the risk of electric shock.

How should I clean the curling wand?

Allow the device to cool completely. Wipe the exterior and heating element with a damp cloth, then dry with a soft cloth. Never immerse in water or allow water into the casing.

What safety precautions should I take?

Do not use near bathtubs, showers, or water-filled basins. Always unplug after use. Keep out of reach of children. If the cord is damaged, have it replaced by a qualified person.

Does the warranty cover damage from misuse?

No, the 2-year limited guarantee covers manufacturing defects only. Damage from misuse, neglect, unauthorized repairs, or normal wear and tear is excluded.

Can I use the curling wand on wigs or extensions?

Only after testing on a small section first to check if the material can withstand heat. Some synthetic hair may melt.

How long does it take to cool down after use?

The device reaches high temperatures, so allow it to cool completely on a heat-resistant surface before cleaning or storing. This may take several minutes.

What is the recommended way to store the curling wand?

Ensure it is completely cool and dry. Store in a safe, dry place out of reach of children. Do not wrap the cord around the appliance.

USER MANUAL Björn Axén Curling Wand Elliptic 3118 OBH NORDICA

FOR BIG AND NATURAL LOOKING WAVES

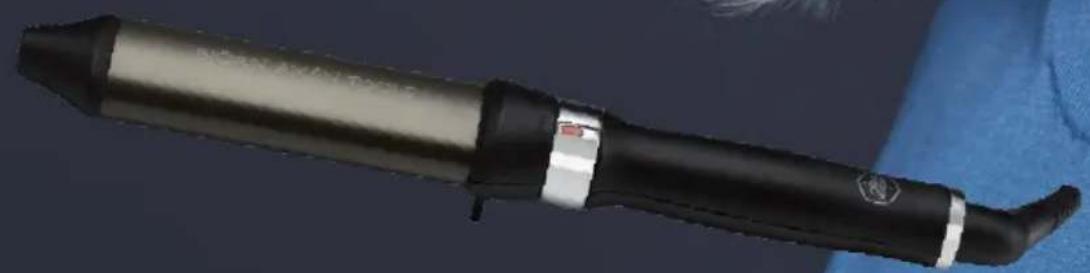

Close-up of a black and silver hair curling iron with a white strap, resting on a blue fabric (no text or symbols visible)

looking good!

BEGRENSET GARANTI for OBH Nordica

Garantien

1. Read the instruction manual carefully before use, and save it for future use.
2. Plug the appliance to a household outlet of 220-240V only, and use the appliance only for the intended use.
3. Always unplug the appliance from the mains supply when disorder is experienced, when not in use, and before cleaning and maintenance.
4. This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe way by a person responsible for their safety and they understand the hazards involved.
5. Children should be supervised to ensure that they do not play with the appliance. Children are not always able to understand potential risks. Teach children a responsible handling of electrical appliances.
6. Cleaning and user maintenance shall not be made by children, unless they are over the age of 8 and supervised.
7. Check that the cord is not hanging over the edge of the table.
8. The appliance should only be used under supervision.
9. Warning: Do not use this appliance near bathtubs, showers, basins or other vessels containing water.
10. The appliance should not be immersed in water

or other liquids. Never use the appliance with wet hands and never place the appliance on a wet or damp surface.

1. Always unplug the appliance from the mains supply immediately after use, if the appliance is used in a bathroom since the proximity of water presents a hazard even when the appliance is switched off.
2. Always examine appliance, cord and plug for damage before use. If the supply cord is damaged, it must be replaced by the manufacturer, or his service agent or a similarly qualified person in order to avoid a hazard.
3. For additional protection the installation of a residual current device (RCD) with a rated residual operating current not exceeding 30 mA is recommended. Ask your installer for advice.
4. The appliance is for domestic use only.
5. If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.

Use

Plug the appliance in. Turn the power button to any temperature setting – LOW-MID-HIGH. The indicator light comes on. Select a suitable temperature based on your hair type. See the recommendations below:

LOW - 120 °C low temperature - thin, fine hair/coloured hair
MID - 160 °C medium temperature - normal hair
HIGH - 200 °C high temperature - very thick and resilient hair

Make sure your hair is completely dry before you start styling. Take a section of hair and hold the tongs near the scalp. Wind the section of hair evenly around the heating element and hold for around 5-8 seconds, depending on the type of hair and the desired results. Repeat the same procedure with the next

section of hair, and so on. Thanks to the elliptical shape of the heating element, you can easily vary the volume of the curls by taking thicker or thinner sections of hair.

With the Curler wand elliptic, you can experiment to see which style suits you. The styling can, of course, be varied and combined depending on the desired results. For a more durable result, do not comb or brush your hair until it has cooled.

Make sure that the hot parts of the tongs do not come into contact with your scalp, face, neck or hands.

Do not use the tongs on wigs, extensions or artificial hair without testing them on a small section of hair first to discover if there is a risk of the hair melting.

Always switch off the appliance after use by turning the power button to OFF and then unplugging the appliance.

Auto-off function

The tongs automatically switch off after around 60 minutes. Please note that the tongs are not fully switched off until you turn the power button to OFF. To activate the tongs again, turn the power button to a different temperature setting. The auto-off function is an extra safety function, but in principle the appliance should always be unplugged after use.

Cleaning and maintenance

• Always switch off the appliance by turning the power button to OFF and then unplugging the appliance.
• Allow the appliance to cool down completely on a heat-resistant surface before cleaning. The appliance reaches very high temperatures when in use, and therefore takes a long time to cool down completely.
• The appliance and cord must not be immersed in water or other liquids and must not come into direct contact with water.
  • Make sure that water does not get into the casing!
• Wipe off the exterior of the appliance and the heating element with a damp cloth. Wipe with a dry cloth.
• The cord must not be wrapped around the appliance.
• Make sure that the appliance has cooled completely and is dry before putting it away.
• Keep the appliance in a safe, dry location out of the reach of children after use.

Disposal of the appliance

Legislation requires that all electrical and electronic equipment shall be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

OBH Nordica LIMITED GUARANTEE

The Guarantee

OBH Nordica guarantees this product against any manufacturing defect in materials or workmanship during 2 years within Sweden, Norway, Denmark and Finland, starting from the initial date of purchase or delivery date.

This manufacturer's commercial guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At OBH Nordicas choice, a replacement product may be provided instead of repairing a defective product. OBH Nordicas sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

OBH Nordica shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. The defective product may be returned to the store of purchase.

This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which occurs as a result of misuse, negligence, failure to follow OBH Nordica instructions, or a modification or unauthorised repair of the product, faulty packaging by the owner or mishandling by any carrier. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable
• mechanical damages, overloading
• damages or poor results specifically due to wrong voltage or frequency as stamped on the product ID or specification
• ingress of water, dust or insects into the product
• scaling (any de-scaling must be carried out according to the instructions for use)
• damage as a result of lightning or power surges
• damage to any glass or porcelain ware in the product
• accidents including fire, flood, etc
• professional or commercial use

Consumer Statutory Rights

OBH Nordica's commercial guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from Country to Country. The consumer may assert any such rights at his sole discretion.

These instructions are also available on our website www.obhnordica.com.

TEFAL - OBH Nordica Group AB

Löfströms Allé 5

172 66 Sundbyberg

Phone: [phone]

www.obhnordica.com

Technical Data

OBH Nordica 3118

220-240 V \~, 50 Hz

45 W

Ceramic coating with tourmaline

We reserve the right to make changes without notice.

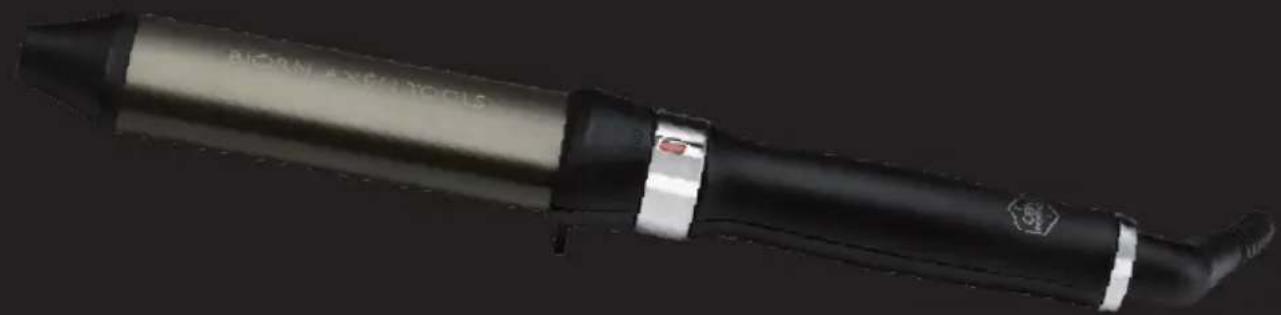

Close-up of a black and silver hair curling iron with a small circular mark on the handle (no visible text or symbols)
