Product Type	Back Protector for Motorcycle, Bicycle, and Winter Sports
Brand	Crivit
Model	VP910
Standard	EN 1621-2:2003/AC:2006
Protection Level	Class 1 (Degree of protection 1, Kerbstone test: impact energy 50J, transmitted residual force less than 18 kN)
Available Sizes	S (torso length 400 mm, for height < 1.65 m); M (torso length 460 mm, for height 1.65-1.80 m); L (torso length 510 mm, for height > 1.80 m)
Materials	Conventional materials not hazardous to health
Cleaning	Wipe outward facing side with a dry cloth; remove from clothing before cleaning
Storage	Dry, well-ventilated environment away from heat sources and direct sunlight; temperature between 5°C and 70°C; store with inside uppermost
Service Life	Replace after 5 years or after significant impact/damage
Guarantee	3 years against manufacturing and material defects, excluding normal wear and misuse
Manufacturer	Shanghai Hehui Safety Products Manufacture Co. Ltd., China
Certification	CE marked, tested by TÜV Rheinland LGA Products GmbH (Notified Body 0197)
Fastening System	Waist strap with hook-and-loop, adjustable elastic shoulder straps, leg harnesses
Intended Use	Motorbike riding, cycling, winter sports; worn over clothing or integrated
Limitations	Tested at 15-22°C, 60-70% RH; performance may vary outside these ranges
Protection Zone	Spinal area; cushioning in neck and rump not EN 1621-2 compliant
Disposal	Via authorized waste disposal company or local facility; comply with regulations
IAN	57280
Product Hotline	00800-88080808 (Mon.-Fri. 10am-4pm, free phone)

Frequently Asked Questions - VP910 CRIVIT

What is the Crivit VP910 back protector used for?

The VP910 is designed for use by motorbike riders, cyclists, and winter sports enthusiasts. It provides impact protection to the spinal area when correctly worn.

What safety standard does the VP910 meet?

It complies with European Standard EN 1621-2:2003/AC:2006 for mechanical impact protection, achieving Class 1 protection level.

How do I choose the correct size?

Size is based on torso length: S (400 mm, for height < 1.65 m), M (460 mm, 1.65-1.80 m), L (510 mm, > 1.80 m). Measure your torso from the base of your neck to your waist.

How should I wear the back protector?

Position it along the spine with soft padding against your back. Secure with the waist strap, shoulder straps, and optional leg harnesses. Ensure the writing is readable and not upside down.

Can the back protector be used without clothing?

No, it must be worn over or under appropriate clothing. Under no circumstances should it be worn outside or without clothing.

How do I clean the VP910?

Remove the protector from clothing. Wipe the outward-facing side with a dry cloth to remove dust and small spots. Do not use water or chemicals.

What is the lifespan of the back protector?

If stored properly and not subjected to impact, it can last several years, but must be replaced after 5 years or immediately after a significant impact or if damaged.

What does the CE mark mean?

The CE mark indicates conformity with EU Directive 89/686/EEC for personal protective equipment and the harmonized standard EN 1621-2. It certifies that the product has passed an EC prototype test.

Can I repair or modify the back protector?

Modifications or repairs must not be carried out without the manufacturer's approval. Unauthorized alterations void liability and may compromise protection.

What is the warranty period?

The VP910 comes with a 3-year guarantee against manufacturing and material defects. It does not cover normal wear and tear or misuse.

USER MANUAL VP910 CRIVIT

Instructions for Use

CE

GIBACK PROTECTOR 2-8
FI SELKÄSUOJA 9 - 15
SE RYGGSKYDD 16-22
DK RYGBESKYTTELSE 23 - 29
DE AT CH RÜCKENPROTEKTOR 30 - 36

GB IE INFORMATION SHEET FOR BACK PROTECTORS WHICH ARE USED WITH MOTORBIKE, BICYCLE OR WINTER SPORTS CLOTHING OR OTHER PROTECTIVE CLOTHING

This back protector is manufactured by:

SHANGHAI HEHUI SAFETY PRODUCTS MANUFACTURE CO. LTD.

8 Fengjin Road, Xidu Industrial Zone, Fengxian District • Shanghai 201401 • China

Tel [phone] • Fax [phone]

It was designed, manufactured and tested according to EUROPEAN STANDARD

EN 1621-2:2003/AC:2006 for devices which protect against mechanical impact.

CAUTION:

Provided that it is correctly used and worn, this protector can minimise the consequences associated with mechanical impact in the areas protected by it. However, it cannot guarantee complete protection. Spinal injuries or fractures cannot be prevented.

MEANING OF THE 'CE' MARK

The CE mark of conformity on the protective device documents the conformity of the product with the corresponding standard and directive of the European Community which demands the affixing of this mark and certifies that the protective device has been subjected to an EC prototype test. The conformity with the requirements of the European Directive 89/686/EEC for personal protective equipment (and subsequent modifications) as well as with the those of the harmonising technical standard EN 1621-2:2003 was certified by the testing institute TÜV Rheinland LGA Products GmbH, Tillystr. 2, D-90431 Nuremberg, Germany, notified body 0197.

LEVEL OF PROTECTION

Degree of protection '1', 'Kerbstone test': impact energy 50J, transmitted residual force less than 18 kN Degree of protection '2', 'Kerbstone test': impact energy 50J, transmitted residual force less than 9 kN The degree of protection given is printed on the webbing sewn in to the interior of the protector (or simply on its exterior). This protector complies with Class 1.

The protector offers limited protection (in so far as it is correctly used and worn) against the consequences of a strong mechanical force, such as would occur with a fall or an impact. Also, in the case of a fall on a motorbike or cycle, or during winter sports, for example, it can lessen the severity of cuts and bruises in the region protected by the device. However, it does not provide a guarantee that no physical injury will be sustained! It is therefore recommended that motorcycle riders, sports cyclists and those practising winter sports use the back protector. However, this should not be interpreted as encouragement to be careless or to drive recklessly while using it. The degree of protection given by the back protector remains undiminished only as long as its original characteristics remain unaltered. For this reason modifications and/or repairs must not be undertaken without the approval of the manufacturer. The cushioning in the neck and rump areas do not comply with the EN 1621-2:2003/AC:2006 and do not provide sufficient protection.

The manufacturers cannot accept liability for any consequences whatsoever which are attributable to unauthorised alterations or repairs.

deSignated uSe

This back protector has been designed for use by motorbike riders, sport cyclists and those practising winter sports. It may be used on its own, with other suitable protective equipment or combined with clothing.

tIPS For uSe

It is important to wear the back protector along the spinal area of the back (with the soft padding against your back) to ensure that maximum effect is achieved. Make sure that the writing is readable and not upside down.

correct SIZE

The back protector is available in three sizes. We advise that you use the back protector which best fits your size:

Size L is recommended for people who are taller than 1.80 m (torso length: 510 mm).

Size M is recommended for people between 1.65 m and 1.80 m in height (torso length: 460 mm).

Size S is recommended for people who are shorter than 1.65 m (torso length: 400 mm).

FurtHer tIPS:

Once the protector is positioned as per instructions, check its fit by putting the appropriate clothing on over it and carrying out all the physical actions you will later go through when performing the particular activity for which its use is designed (i.e. cycling, motorcycling, winter sports). Secure the back protector using the waist strap (which has hook-and-loop fastening) and the adjustable elasticated shoulder straps.

If the back protector is correctly positioned, its anatomical shape will ensure that it does not restrict you.

If you feel wearing the protector is causing discomfort, move it carefully until you find a position which is comfortable for you. Do this before you start your chosen activity (i.e. cycling, motorcycling, winter sports).

The protector also has leg harnesses which can be used to lock the protector in position. In each case, put a harness around your leg and attach it with the help of the hook and loop fastener.

FURTHER TIPS:

The anatomical shaping of the back protector means that it only provides the necessary comfort when it is in the correct position. This should assist you in determining when it is positioned correctly.

CAUTION:

It is important to carry out a basic check on the protector before use in case there is any damage, such as fractures or tears. Even only minor ones may impair its function. In case of damage, or if the protector has been subjected to a significant impact, the protector must be replaced.

The back protector will only fulfil its protective function if it is correctly fitted and secured and is in an undamaged state. The manufacturers cannot accept liability for any damage and any consequences whatsoever which may arise from improper use, or from wearing clothing that is partially or wholly unsuitable for the back protector to be positioned correctly.

LIMITATIONS OF USE

The tests to ascertain the back protector's impact absorption capacity were carried out according to the regulations, at a temperature of between 15^ and 22^ and with a relative humidity of between 60% and 70% . With values beyond these ranges the impact absorption capacity of the back protector may change. It is absolutely necessary to wear appropriate clothing over the back protector. Under no circumstances must it be worn outside (or without) clothing.

PROTECTION ZONE

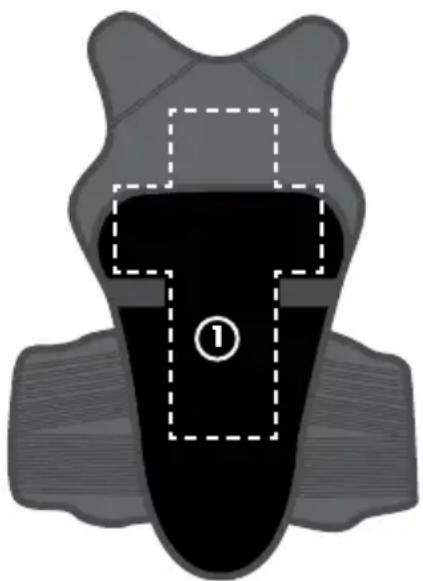

The back protector gives protection within the protection zone, as shown in the illustration (1). If the back protector is no longer in the condition it was as supplied to the customer, or if a damaged back protector is used adequate protection is no longer afforded.

STORAGE, CARE, CLEANING

To keep the protector in good condition we recommend that you store it in a dry, well-ventilated environment, away from heat sources, windows, doors or glass panels, and that you avoid leaving it in direct sunlight.

The ambient temperature must thereby never fall below 5 °C or above 70 °C (which temperature can be exceeded in the car in summer weather, for example). Avoid both extreme cold and heat.

You should also make sure that the back protector is stored with its inside uppermost to ensure that no weight will come to rest on it, as this can cause deformation or damage.

Diagram of a frog's head with a black body and two gray limbs, marked with number 1 (no text or symbols present)

We strongly advise that you check the fastener and anchorage systems of the

protector after each use for possible breaches or other defects. Should any tears or damaged areas, even of a minor nature, be discovered, please correspond with the manufacturer to arrange a further assessment. Should the damage be significant, the protective device must be replaced immediately.

The manufacturers cannot accept liability for any consequences whatsoever which arise from repairs or modifications to the back protector which have not been carried out by the manufacturers themselves.

CAUTION:

Contact with aggressive chemical substances (acids, oils, solvents, etc.) may compromise the integrity of the back protector.

Cleaning: first remove the back protector from clothing, then simply wipe the outward facing side with a dry cloth to remove dust and small spots of dirt.

☒☒☒☒

Conventional materials have been used in manufacturing the back protector. These materials are not known to be hazardous to health.

SERVICE LIFE

Provided that the back protector is stored with care as recommended above and has not been exposed to any mechanical impact it can retain its protective function for a long period of time. The duration of its service life depends in particular on how it is used/worn, the resulting wear and tear of its constituent materials and climatic conditions and other environmental factors. Subject to the stresses it is put under, it is advisable to check its condition regularly and, when necessary, to replace it. The back protector should ultimately be replaced after a period of 5 years.

ADVICE FOR DISPOSAL

Dispose of the back protector via an authorised waste disposal company or your local authority disposal facility. Be careful to comply with all regulations which apply. In case of doubt, enquire at your local disposal facility about disposing of the item in an environmentally friendly manner.

3 YEAR GUARANTEE

This product was manufactured under constant quality controls. We guarantee that it is free from manufacturing and material defects. The guarantee claim is not valid for normal wear and tear and is invalid in case of misuse.

Should you however have cause for complaint, please contact the free phone service hotline, visit our website, or send us an e-mail. You will receive personal advice in all cases. During the guarantee period, you can arrange with our service staff that you send the faulty component(s) to the stated service address.

We will immediately replace or repair the component, and send it back to you.

Please retain the till receipt. Describe the nature of your complaint, and we will do our best to find a satisfactory solution as soon as possible.

IAN: 57280

Product hotline [phone] (Mon.-Fri. 10am - 4pm, free phone)

GB PSB LOGISTICS MANAGEMENT LTD • UNIT B3 SITE B

THE BOWMAN CENTRE ARNCOTT, OX25 1NZ OXON

[e-mail]

SCIMITAR LOGISTICS • WESTBANK ROAD 14-16 • BT 3 95 L BELFAST

[e-mail]

www.nws-service.com
