SB30 - Blender BLACK & DECKER - Free user manual and instructions

Product Type	Hand blender (stick blender)
Model	SB30
Brand	Black & Decker
Voltage	230 V AC
Power Consumption (Blending)	114 W
Weight	1.5 kg
Speed Control	Single speed (press and hold switch)
Attachments Included	Blending attachment (SB30), whisk attachment (SB75W only)
Blade Material	Stainless steel (estimated)
Housing Material	Plastic
Cord Length	Approx. 1 m (estimated)
Maximum Continuous Operation	30 seconds
Cool Down Time Required	At least 1 minute after 30 seconds of use
Dishwasher Safe Parts	No (hand wash recommended)
Cleaning Method	Wash attachments in warm soapy water; wipe motor unit with damp cloth
Safety Features	Double insulation, auto shut-off when released, sharp blade warning
Intended Use	Household blending, mixing, beating, whipping, chopping
Warranty	24 months
Certification	EN 60335, CE marked
Not Suitable For	Commercial use, outdoor use, immersion in water

Frequently Asked Questions - SB30 BLACK & DECKER

How do I assemble the blending attachment?

Ensure the appliance is switched off and unplugged. Fit the attachment to the motor housing and rotate it anti-clockwise until it locks in place.

How do I remove the attachment?

Switch off and unplug. Rotate the attachment clockwise and pull it from the motor housing.

What is the maximum operating time?

Do not operate continuously for more than 30 seconds. After that, let the appliance cool for at least 1 minute before using again.

Can I blend hot liquids?

Yes, but take extra care to avoid splashing. Keep the blades submerged and use short pulses.

How should I clean the blender?

Switch off and unplug. Wash attachments in warm soapy water and dry well. Wipe the motor unit with a damp cloth. Never immerse the motor unit or cord in water.

What should I do if the blades are stuck?

Switch off and unplug. Carefully remove any food blockage with a spatula. Avoid touching the sharp blades directly.

Can I chop nuts with this blender?

Yes, for nuts (max 350 g, shell removed) chop for 8-15 seconds. Cut into pieces before blending.

Is the blender suitable for baby food?

Yes, cook and dice ingredients (max 170 g) and blend for 10-20 seconds until smooth.

What does the warranty cover?

Black & Decker offers a 24-month warranty against defects in materials and workmanship from the date of purchase. Proof of purchase is required.

Can I use the whisk attachment with the SB30?

No, the whisk attachment is only for model SB75W. The SB30 includes only the blending attachment.

USER MANUAL SB30 BLACK & DECKER

English 3

Italiano 6

Español 10

Português 14

Ελληνικά 18

A

SB75W

SB75W

B

Intended use

Your Black & Decker stick blender has been designed for blending, mixing, beating, whipping, whisking and chopping food and beverage ingredients. Do not use this appliance for any other purpose. This product is intended for household use only.

Safety instructions

Warning! When using mains-powered appliances, basic safety precautions, including the following, should always be followed to reduce the risk of fire, electric shock, personal injury and material damage.

◆ Read all of this manual carefully before using the appliance.
The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury.
◆ Retain this manual for future reference.

Using your appliance

Make sure that the appliance is switched off before connecting to or disconnecting from the power supply.
◆ Always take care when using the appliance.
◆ Do not use the appliance outdoors.
◆ Always protect the motor unit from water or excessive humidity.
◆ Do not operate the appliance if your hands are wet.
◆ Do not operate the appliance if you are barefoot.
Do not touch moving parts. Keep long hair and loose clothing out of the way of the moving parts.
◆ Guide the power supply cord neatly so it does not hang over the edge of a worktop and cannot be caught accidentally or tripped over.

- Never pull the power supply cord to disconnect the plug from the socket. Keep the power supply cord away from heat, oil and sharp edges.

◆ Switch off and wait for the motor to stop running before disconnecting the appliance from the power supply.

- Never detach any part or accessory while the appliance is still connected to the power supply. Always disconnect the appliance from the power supply first.

If the power supply cord is damaged during use, disconnect the appliance from the power supply immediately. Do not touch the power supply cord before disconnecting from the power supply.

◆ Disconnect the appliance from the power supply when not in use, before fitting or removing parts and before cleaning.

◆ Misuse could cause an injury.

◆ Keep loose clothing, hair, jewellery etc. away from moving parts.
◆ Care is needed when handling cutting blades, especially when removing the blades and during cleaning.

Safety of others

Do not allow children or any person unfamiliar with these instructions to use the appliance.
Do not allow children or animals to come near the work area or to touch the appliance or power supply cord. Close supervision is necessary when the appliance is used near children.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been give supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children must be supervised to make sure that they do not play with the appliance.

After use

◆ Switch off the appliance before cleaning, changing accessories or approaching parts which move in use.
- Switch off and remove the plug from the socket before leaving the appliance unattended and before changing, cleaning or inspecting any parts of the appliance.
- When not in use, the appliance should be stored in a dry place. Children should not have access to stored appliances.

Inspection and repairs

Before use, check the appliance for damaged or defective parts. Check for breakage of parts, damage to switches and any other conditions that may affect its operation.
- Do not use the appliance if any part is damaged or defective.
◆ Have any damaged or defective parts repaired or replaced by an authorised repair agent.
Before use, check the power supply cord for signs of damage, ageing and wear.
Do not use the appliance if the power supply cord or mains plug is damaged or defective.
If the supply cord is damaged, it must be replaced by the manufacturer or an authorised Black & Decker Service Centre in order to avoid a hazard.
- Never attempt to remove or replace any parts other than those specified in this manual.

ENGLISH

Electrical safety

This tool is double insulated in accordance with EN 60335; therefore no earth wire is required. Always check that the power supply corresponds to the voltage on the rating plate.

To avoid the risk of electric shock, do not immerse the cord, plug or motor unit in water or other liquid.

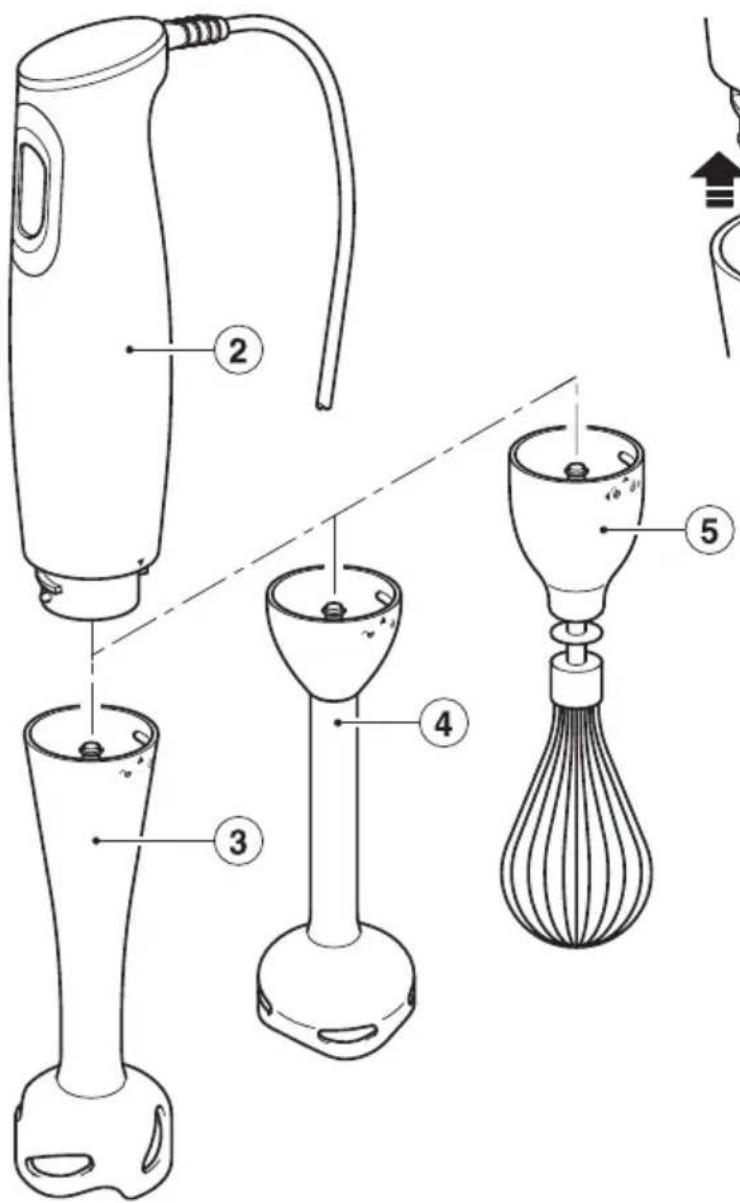

Features

1. Speed control switch
2. Motor housing

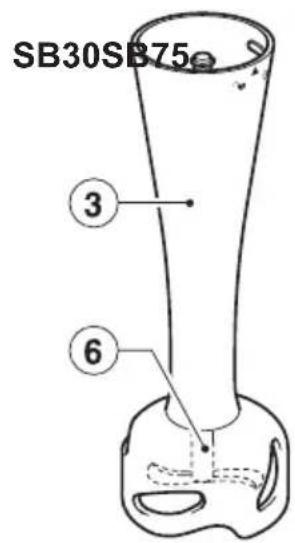

3. Blending attachment (SB30)

Fig. A

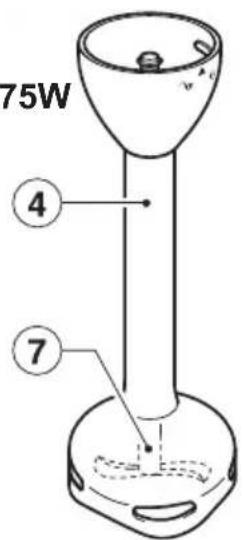

1. Blending attachment (SB75 & SB75W)

2. Whisk attachment (SB75W)

Unpacking

◆ Remove all packaging from the appliance.
◆ Clean the appliance before first use.

Assembly

Warning! Before assembly, make sure that the appliance is switched off and unplugged.

Fitting and removing an attachment (fig. B)

Use the blending attachment (3 or 4) for blending liquids or mashing solids.

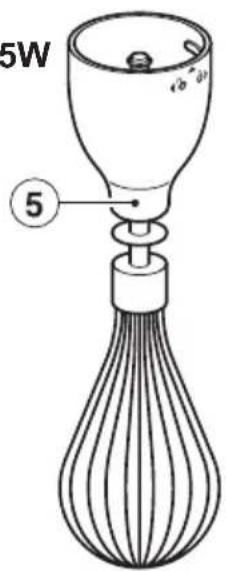

◆ Use the whisk attachment (5) for mixing, beating, whipping and creaming liquids (SB75W only).

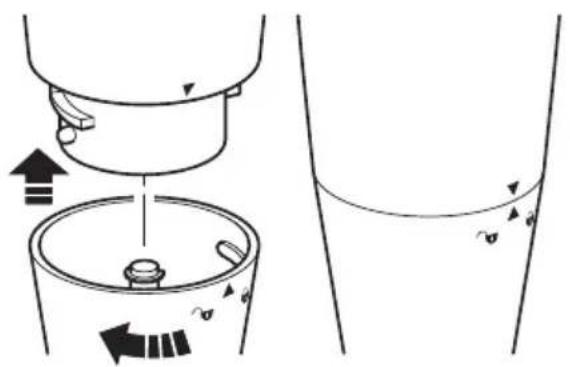

Blending and whisk attachment (fig. B)

◆ Fit the attachment to the motor housing (2) and rotate it in an anti-clockwise direction until it locks in place.
◆ To remove the attachment, rotate it in a clockwise direction and pull it from the motor housing (2).

Use

Blending

• Place the ingredients into a measuring jug or a suitable container.
  ◆ Using a stabbing motion, push the blades (6 or 7) into the ingredients until the correct consistency is reached.
  When blending liquids or fluid ingredients, use short pulses to prevent spillages.
• Keeping the blades (6 or 7) submerged will help to prevent spillages. Take extra care when blending hot ingredients.

Mixing

◆ Place the ingredients into a measuring jug or a suitable container.
- Mix the ingredients until the correct consistency is reached.
- Keeping the beater submerged will help to prevent spillages. Take extra care when mixing hot ingredients.

Operating times and preparations

Ingredient	Maximum quantity	Preparation Time
Meat 300 g	< 2cm cubes	Dice 15-30 s
Onions 100 g Quarter 5-10 s
Baby food 170 g Cook and dice 10-20 s
Nuts 350 g Remove shell 8-15 s
Garlic	20 pieces	Cut into pieces	10-20 s
Dry bread	150 g Cut into pieces		10-20 s
Parsley	1 sprig	Remove stalks	10-20 s

Switching on and off

◆ To switch the appliance on, press the speed control switch (1).

- Keep the switch pressed for continuous operation.

◆ To switch off, release the switch.

Warning! Do not operate the appliance continuously for more than 30 seconds. After operating the appliance continuously for 30 seconds, let it cool down for at least 1 minute before operating it again. This can be repeated up to ten times then the appliance must be left to cool at room temperature.

Warning! After switching off always allow the motor to stop before approaching the blade.

Cleaning and maintenance

Warning! Switch the appliance off and unplug it before cleaning or maintenance. Be careful when cleaning the blades; they are sharp.

Warning! Do not immerse the appliance, the cord set or the plug in water or any other liquid.

• Wash the attachments in warm soapy water and dry well.
  ◆ Wipe the motor unit (2) with a damp cloth. Do not use any abrasive or solvent-based cleaner.

Always clean the appliance immediately after use. Do not let food dry on to the blades as this will make cleaning difficult.

Protecting the environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your Black & Decker product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product. Black & Decker provides a facility for the collection and recycling of Black & Decker products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.

Technical data

	SB30/SB75/SB75W
Voltage Vdc 230
No load power
Whisk W 96
Stick blender W 114
Bowl W 103
Weight kg 1.5

EC declaration of conformity

SB30/SB75/SB75W

Black & Decker declares that these products conform to: EN60335-1, EN60335-2-14, 2006/95/EC, EN50366

The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of Black & Decker

Kevin Hewitt

Director of Consumer Engineering

Spennymoor, County Durham DL16 6JG,

United Kingdom

17-03-2008

Guarantee

Black & Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to make sure of the minimum inconvenience to the customer unless:

• The product has been used for trade, professional or hire purposes.
  ◆ The product has been subjected to misuse or neglect.
• The product has sustained damage through foreign objects, substances or accidents.
  ◆ Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.

To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at:

www.2helpU.com

Please visit our website www.blackanddecker.co.uk to register your new Black & Decker product and to be kept up to date on new products and special offers. Further information on the Black & Decker brand and our range of products is available at www.blackanddecker.co.uk.
