Product Type	Powerfile Belt Sander
Brand	Black & Decker
Model	XTA900EK
Intended Use	Sanding of wood, metal, plastic and painted surfaces (domestic use)
Supply Voltage	230 V~
Power Consumption	400 W
No-Load Speed	900 - 1600 min⁻¹ (variable)
Weight	1.6 kg
Sound Pressure Level	84 dB(A) (K=3 dB(A))
Sound Power Level	95 dB(A) (K=3 dB(A))
Vibration Emission Value	1.7 m/s² (K=1.5 m/s²)
Double Insulation	Yes
Included Accessories	Straight rod (13 mm), fine rod (6 mm), angled rod, dust collector, deflector, dust bag
Main Functions	Variable speed control, continuous lock, belt tension lever, adjustable belt alignment
Maintenance and Cleaning	Clean ventilation slots with a soft brush; motor compartment with a damp cloth; do not use solvents
Spare Parts and Repairability	Repair by qualified personnel only; spare parts available from Black & Decker
Warranty	2 years standard, 3 years after online registration within 90 days
Compliance Standards	2006/42/EC, EN60745-1, EN60745-2-4

Frequently Asked Questions - XTA900EK BLACK & DECKER

How to install the sanding rod on the XTA900EK?

Before first use, ensure the belt tension lever is in the forward position. Loosen and remove the belt alignment knob, remove the adhesive tape holding the spring if present, check that the spring is in its hole, then install the rod (straight, fine or angled) by sliding it in. Replace the alignment knob and tighten it until the rod is aligned with the tool.

How to change the sanding belt?

Move the tension lever forward (position A). Place the sanding belt on the front and rear pulleys, ensuring the belt arrows are in the same direction as those on the tool. Then move the tension lever backward (position B) to tension the belt. Adjust the alignment with the alignment knob while the tool is running.

What is the recommended speed for sanding plastic?

For plastic, use a low speed (approx. 900 min⁻¹) with a fine abrasive to avoid melting the material. The variable speed control at the bottom of the tool allows you to adjust the appropriate speed.

Can I use the sander without the dust collector?

Yes, but only for metal: you must remove the dust collector and install the supplied deflector. For wood, the dust collector is mandatory to collect sawdust.

How to empty and clean the dust collector?

Empty the collector every 10 minutes of use. Pull it backward to remove it, unscrew the cover, shake the filter (without washing it) and empty the contents. Replace the cover by turning clockwise, then reinstall the collector on the tool.

What protective equipment is recommended?

Always wear safety glasses, a suitable dust mask, gloves for metal, and hearing protection. For prolonged work, take regular breaks.

How to use the angled rod?

The angled rod has two sections: section A (angled) is used for grooving and sanding in the center of workpieces or hard-to-reach areas; section B (straight) is for rounded surfaces. Attach it like a straight rod.

What to do if the sanding belt drifts to the side?

Use the belt alignment knob (located near the tension lever) to recenter the belt. Turn on the tool and slowly turn the knob until the belt runs correctly centered on the rod.

Can I use the XTA900EK for cutting or carving?

Yes, with the fine rod (6 mm), you can perform precise details, light cuts and carving on wood or plastic. Use an appropriate speed and do not force.

How to maintain the tool?

Before any maintenance, switch off and unplug the tool. Regularly clean the ventilation slots with a soft dry brush. The motor compartment can be cleaned with a damp cloth (no solvent). Do not immerse any part in liquid.

USER MANUAL XTA900EK BLACK & DECKER

English (Original instructions) 6

Technical line drawing of a mechanical device with a rotating wheel and adjacent panel (no text or symbols)

ENGLISH

Intended use

Your Black & Decker Powerfile™ sander has been designed for sanding wood, metal, plastics and painted surfaces. This tool is intended for consumer use only.

Safety instructions

General power tool safety warnings

Warning! Read all safety warnings and all instructions. Failure to follow all instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

1. Work area safety

a. Keep work area clean and well lit. Cluttered and dark areas invite accidents.

b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

1. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.

Unmodified plugs and matching outlets will reduce risk of electric shock.

b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f. If operating a power tool in a damp location is unavoidable, use a Residual Current Device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

1. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards

1. Power tool use and care

a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5. Service

a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will make sure that the safety of the power tool is maintained.

Additional power tool safety warnings

Warning! Additional safety warnings for sanders.

- Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.

- Warning! Contact with or inhalation of dust arising from sanding applications may endanger the health of the operator and possible bystanders. Wear a dust mask specifically designed for protection against dust and fumes and ensure that persons within or entering the work area are also protected.

- Thoroughly remove all dust after sanding.

Take special care when sanding paint which is possibly lead based or when sanding some woods and metal which may produce toxic dust:

Do not let children or pregnant women enter the work area.

◆ Do not eat, drink or smoke in the work area.

◆ Dispose of dust particles and any other debris safely.

The intended use is described in this instruction manual.

The use of any accessory or attachment or performance of any operation with this tool other than those recommended in this instruction manual may present a risk of personal injury and/or damage to property.

Safety of others

This tool is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
◆ Children should be supervised to ensure that they do not play with the appliance.

Vibration

The declared vibration emission values stated in the technical data and the declaration of conformity have been measured in accordance with a standard test method provided by EN 60745 and may be used for comparing one tool with another. The declared vibration emission value may also be used in a preliminary assessment of exposure.

Warning! The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used. The vibration level may increase above the level stated.

When assessing vibration exposure to determine safety measures required by 2002/44/EC to protect persons regularly using power tools in employment, an estimation of vibration exposure should consider, the actual conditions of use and the way the tool is used, including taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time.

ENGLISH

Labels on tools

Warning! To reduce the risk of injury, the user must read the instruction manual.

Always wear gloves when working with metal workpieces.

Wear safety glasses or goggles when using the tool.

Wear ear protection when using this tool.

The following symbols are marked on your appliance:

Fit the dust cassette before using the tool on wooden workpieces.

Remove the dust cassette and fit the deflector before using the tool on workpieces containing metal.

Electrical safety

This tool is double insulated; therefore no earth wire is required. Always check that the power supply corresponds to the voltage on the rating plate.

If the supply cord is damaged, it must be replaced by the manufacturer or an authorised Black & Decker Service Centre in order to avoid a hazard.

Features

Your tool has some or all of the following features:

1. On/off switch
2. Lock-on button
3. Secondary handle
4. Belt tensioning lever
5. Belt tracking knob

6. Straight arm

7. Variable speed control knob

Assembly

Warning! Before assembly, make sure that the tool is switched off and unplugged.

Fitting and removing sanding arms (fig. A)

Before first use, you must fit the sanding arm to the tool. A straight arm (7, sanding width 13 mm) is supplied. The following is also supplied:

◆ a narrow arm (9, sanding width 6 mm) for intricate work
◆ a cranked arm (10) for grooving and sanding in the centre of workpieces and for reaching confined areas

These parts are also available as an accessory from your Black & Decker dealer, (not available in Australia and New Zealand).

Fitting

◆ Make sure that the belt tensioning lever (5) is in the position shown.
◆ Loosen and remove the belt tracking knob (6).
◆ Remove the tape retaining the spring (8) (if present).
◆ Check that the spring (8) is located in its mounting hole.
◆ Position the arm (7, 9 or 10) as shown.
◆ Fit the belt tracking knob (6) and tighten it until the arm (7) is aligned with the tool.

Removing

◆ Remove the sanding belt (12) (if present) as described below.
◆ Loosen and remove the belt tracking knob (6).
◆ Remove the arm (7, 9 or 10).

Warning! Be careful not to lose the spring (8).

Fitting and removing sanding belts (fig. B)

Warning! The spring must be fitted. Be careful not to lose the spring (8).

Fitting

◆ Move the belt tensioning lever (5) to the front position (A).
Make sure that the arrows on the inside of the sanding belt (12) face the same direction as the arrows (16) on the housing.
◆ Place the sanding belt (12) over the front pulley (11) and the rear pulley (15), sliding it through the slot in the housing.
◆ Move the belt tensioning lever (5) to the rear position (B).
- Adjust the belt tracking as described below.

Removing

◆ Move the belt tensioning lever (5) to the front position (A).
◆ Slide the sanding belt (12) off the pulleys.

Adjusting the sanding belt tracking (fig. C)

◆ Switch the tool on.

- Turn the belt tracking knob (6) as required until the sanding belt runs straight along the length of the arm.

Fitting and removing the dust cassette

Warning! Always remove the dust cassette and fit the deflector when using the tool on metal workpieces.

Fitting

◆ Fit the dust cassette (13) over the dust extraction outlet.
◆ Slide the item (13) onto the tool and make sure that it is securely located.

Removing

◆ To remove the dust cassette (13), pull the item (13) to the rear and off the outlet.

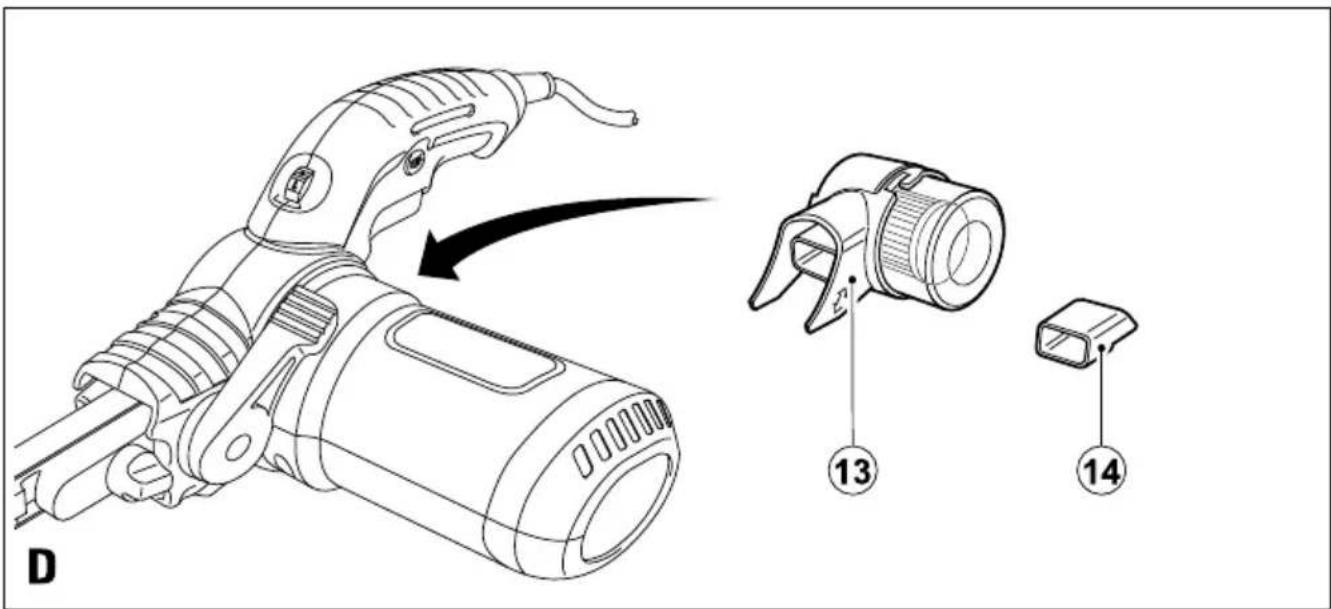

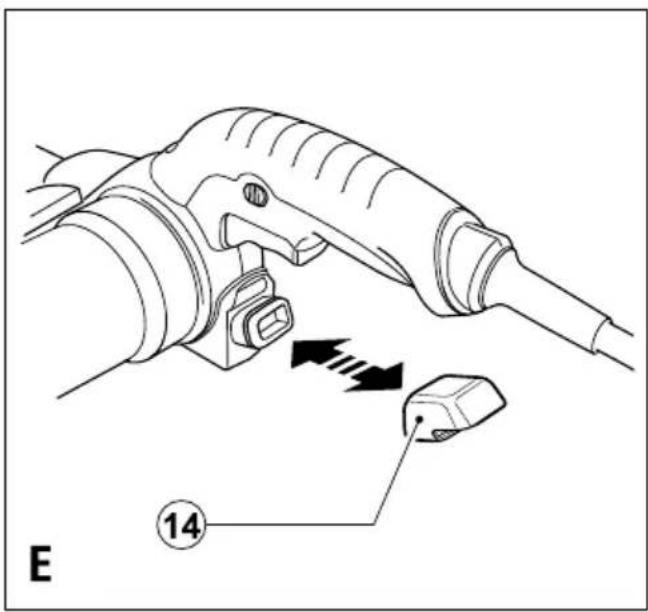

Fitting and removing the deflector (fig. D and E)

Warning! The deflector must be used when sanding metal workpieces.

Fitting

◆ Fit the deflector (14) over the dust extraction outlet.
- Slide the deflector (14) on to the tool and make sure that it is securely located.

Removing

◆ To remove the deflector (14), pull the deflector to the rear and off the outlet.

Residual risks

Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use etc.

Even with the application of the relevant safety regulations and the implementation of safety devices, certain residual risks cannot be avoided. These include:

◆ Injuries caused by touching any rotating/moving parts.
◆ Injuries caused when changing any parts, blades or accessories.
Injuries caused by prolonged use of a tool. When using any tool for prolonged periods make sure you take regular breaks.
◆ Impairment of hearing.
◆ Health hazards caused by breathing dust developed when using your tool (example:- working with wood, especially oak, beech and MDF).

Use

Warning! Let the tool work at its own pace. Do not overload.

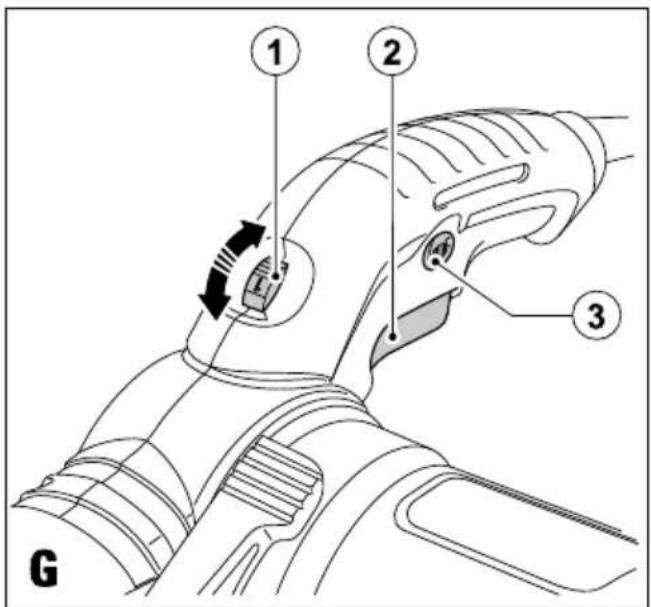

Variable speed control (fig. G)

The variable speed control (1) allows you to adapt the speed of the tool to the workpiece material.

Use a low speed setting when using a fine grit, when working with plastics or ceramics and when removing painted or varnished surfaces.

Use a high speed setting when using a coarse grit and when removing a lot of material.

◆ Set the variable speed control knob (1) to the required setting.

Switching on and off (fig. G)

◆ To switch the tool on, press the on/off switch (2).
◆ To switch the tool off, release the on/off switch (2).
◆ For continuous operation:

• Press the on/off switch (2).
• Press the lock-on button (3).
• Release the on/off switch (2).

◆ To switch the tool off when in continuous operation, press and release on/off switch (2).

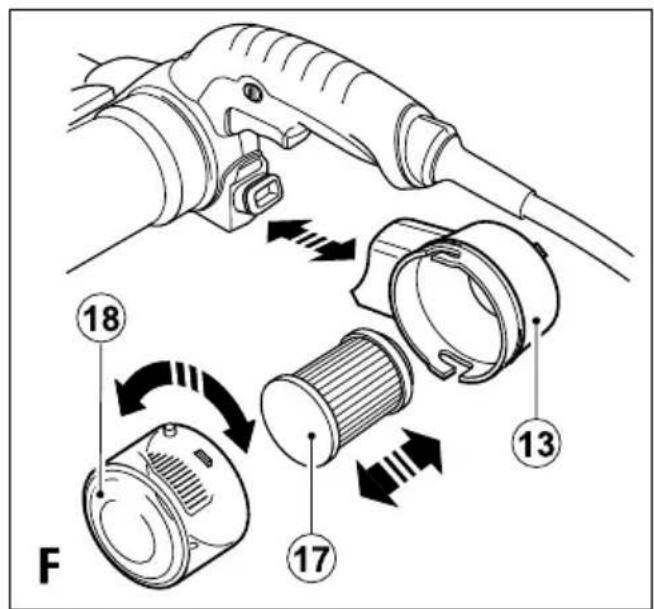

Emptying the dust cassette (fig. F)

◆ The dust cassette (13) should be emptied every 10 minutes.
◆ Pull the dust cassette (13) to the rear and off the tool.
◆ Remove the cover (18) by twisting it counter-clockwise.
◆ Hold dust cassette (13) with the filter (17) facing down and shake the cassette (13) to empty the contents.
◆ Shake the cover (18) to empty the contents.
◆ Refit the cover (18) onto the dust cassette (13), twisting it clockwise until it locks into place.
◆ Refit the dust cassette (13) onto the tool.

Cleaning the dust cassette filter (fig. F)

Warning! Do not brush or use compressed air or sharp objects to clean the filter. Do not wash the filter.

◆ The dust cassette filter (17) is re-usable & should be cleaned regularly.
◆ Empty the dust cassette (13) as described above.
◆ Pull the filter (17) off the dust cassette (13).
◆ Shake off the excess dust by tapping the filter (17) into a dustbin.
◆ Replace the filter (17).
◆ Fit the cover (18).
◆ Slide the dust cassette (13) on to the tool and make sure that it is securely located.

Special applications (fig. H, I and J)

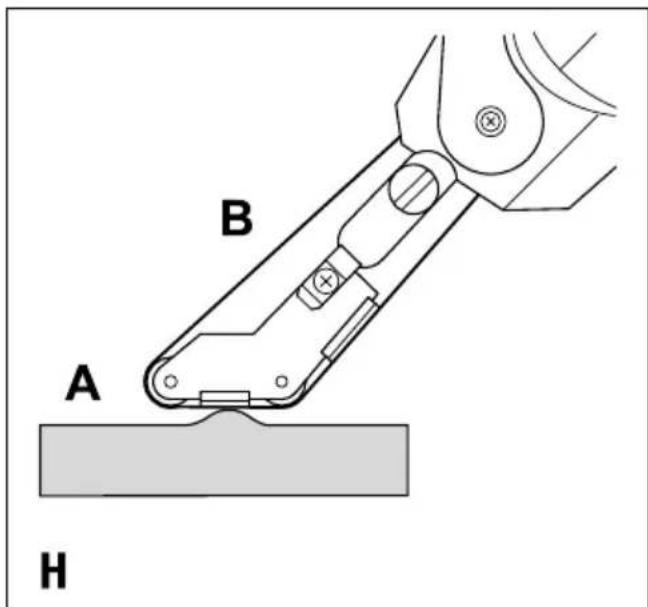

Cranked arm (fig. H)

Use section A for grooving or sanding in the centre of workpieces and in confined areas. Use section B for curved surfaces.

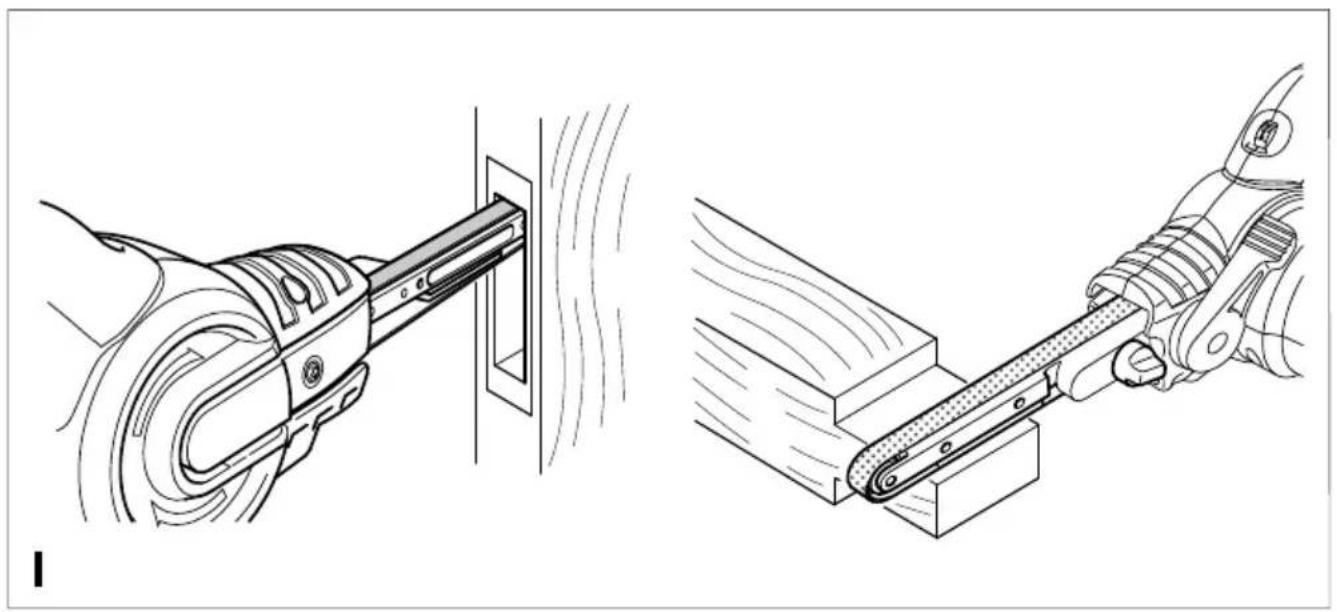

Straight arm (fig. I)

◆ Use the normal or narrow arms for general use, for slotting and for making joints.

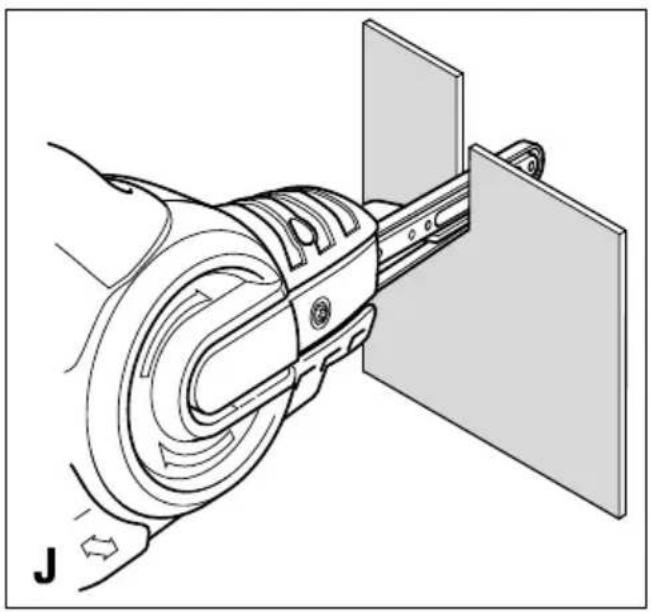

Narrow arm (fig. J)

◆ Use the narrow arm for finer detail, for cutting and for carving.

Hints for optimum use

◆ Always hold the tool with both hands.
◆ Do not exert too much pressure on the tool.
◆ Regularly check the condition of the sanding belt (12). Replace when necessary.
◆ Always sand with the grain of the wood.

ENGLISH

When sanding new layers of paint before applying another layer, use extra fine grit.
- On very uneven surfaces, or when removing layers of paint, start with a coarse grit. On other surfaces, start with a medium grit. In both cases, gradually change to a fine grit for a smooth finish.
- Consult your retailer for more information on available accessories.

Maintenance

Your Black & Decker tool has been designed to operate over a long period of time with a minimum of maintenance.

Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Warning! Before performing any maintenance, switch off and unplug the tool.

- Regularly clean the ventilation slots in your tool using a soft dry brush or dry cloth.

Regularly clean the motor housing using a clean damp cloth. Do not use any abrasive or solvent-based cleaner. Never let any liquid get inside the tool and never immerse any part of the tool into liquid.

Mains plug replacement (U.K. & Ireland only)

If a new mains plug needs to be fitted:

◆ Safely dispose of the old plug.
◆ Connect the brown lead to the live terminal in the new plug.
◆ Connect the blue lead to the neutral terminal.

Warning! No connection is to be made to the earth terminal.

Follow the fitting instructions supplied with good quality plugs.

Recommended fuse: 5 A.

Protecting the environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your Black & Decker product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

Black & Decker provides a facility for the collection and recycling of Black & Decker products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.

Technical data

	XTA900E TYPE 1
Voltage Vac 230
Power input W 400
No load speed min	-1 900-1600
Weight kg 1.6

Level of sound pressure according to EN 60745: Sound pressure ( L_pA ) 84 dB(A), uncertainty (K) 3 dB(A) Sound power ( L_WA ) 95 dB(A), uncertainty (K) 3 dB(A)

Vibration total values (triax vector sum) according to EN 60745:

Vibration emission value (ah) 1.7 m/s², uncertainty (K) 1.5 m/s²

EC declaration of conformity

MACHINERY DIRECTIVE

XTA900E

Black & Decker declares that these products described under "technical data" are in compliance with: 2006/42/EC, EN60745-1, EN60745-2-4

For more information, please contact Black & Decker at the following address or refer to the back of the manual.

The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of Black & Decker.

Kevin Hewitt

Vice-President Global Engineering

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

United Kingdom

28-02-2010

Guarantee

Black & Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black & Decker XT product (excluding accessories, attachments, batteries, chargers and chucks) becomes defective due to faulty materials, workmanship or lack of conformity within 3 years from the date of purchase, Black & Decker guarantees to replace all defective parts, repair products subject to fair wear and tear or replace such products, provided that the product is registered on the Black & Decker XT warranty website within 90 days of purchase. If the product is not registered, then only the standard warranty (2 years) applies.

The warranty does not apply if:

• The product has been used for trade, professional or hire purposes;
  ◆ The product has been subjected to misuse or neglect;
• The product has sustained damage through foreign objects, substances or accidents;
  ◆ Repairs have been attempted by unauthorised persons;
• The product has been adapted in any way from its original specification;
  ◆ Unsuitable accessories or attachments have been used.
  The extended warranty does not apply if:
  ◆ Proof of purchase and the original extended warranty certificate is not produced.

Register your product on-line now at www.blackanddecker.co.uk/xt to qualify for the extended warranty (3 years), and to be kept up to date on new products and special offers.

To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at:

www.2helpU.com

Further information on the Black & Decker brand and our range of products is available at www.blackanddecker.co.uk

DEUTSCH

Vice-President Global Engineering

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Großbritannien

28-02-2010

DEUTSCH

Garantie

Vice-President Global Engineering

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Royaume-Uni

28-02-2010

Garantie

Vice-President Global Engineering

Black & Decker Europe, 210 Bath Road, Slough, Berkshire, SL1 3YD

Regno Unito

28-02-2010

Garanzia

Vice-President Global Engineering

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Verenigd Koninkrijk

28-02-2010

Garantie

Vice-President Global Engineering

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Reino Unido

28-02-2010

ESPAÑOL

Garantía

Vice-President Global Engineering

Black & Decker Europe, 210 Bath Road, Slough, Berkshire, SL1 3YD

Storbritannien

28-02-2010

Garanti

Vice-President Global Engineering

Black & Decker Europe, 210 Bath Road, Slough, Berkshire, SL1 3YD

Storbritannia

28-02-2010

Garanti

Black & Decker er trygg på kvaliteten i sine produkter og tilbyr en enestående garanti. Denne garantierklæringen kommer i tillegg til dine lovbestemte rettigheter, og er ikke i konflikt med disse. Garantien er gyldig i EU- og EFTA-medlemsstatene.

Vice-President Global Engineering

Black & Decker Europe, 210 Bath Road, Slough, Berkshire, SL1 3YD

Storbritannien

28-02-2010

Garanti

Vice-President Global Engineering

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Ηνωμένο Βασίλειο

28-02-2010

Εγγύηση

Do not forget to register your product! www.blackanddecker.co.uk/productregistration

Register your product online at www.blackanddecker.co.uk/productregistration or send your name, surname and product code to Black & Decker in your country.

DEUTSCH

www.blackanddecker.pt/productregistration
