| Product Type | Cordless Electric Screwdriver |
| Model | BCRTA01 |
| Brand | Black & Decker |
| Nominal Voltage | 3.6 V DC |
| No Load Speed | 180 min⁻¹ |
| Maximum Torque | 5.5 Nm |
| Chuck | 6 mm (hexagonal) |
| Battery Type | Lithium-Ion 1.5 Ah |
| Charging Time | 4 hours |
| Weight | 0.4 kg |
| Sound Pressure Level | 57 dB(A) (uncertainty K=5 dB(A)) |
| Sound Power Level | 68 dB(A) (uncertainty K=5 dB(A)) |
| Vibrations (screwdriving without impact) | 0.5 m/s² (uncertainty K=1.5 m/s²) |
| Power Source | Integrated rechargeable battery via USB |
| Lighting | Integrated working LED |
| Rotation Direction | Forward/Reverse with center lock |
| Main Functions | Screwing and unscrewing hex bolts, light drilling |
| Maintenance and Cleaning | Disconnect before cleaning; use a damp cloth without solvent |
| Safety | Switch lock, short-circuit protection |
| Warranty | 2 years |
Frequently Asked Questions - BCRTA01 BLACK & DECKER
User questions about BCRTA01 BLACK & DECKER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Drill in PDF format for free! Find your manual BCRTA01 - BLACK & DECKER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BCRTA01 by BLACK & DECKER.
USER MANUAL BCRTA01 BLACK & DECKER
English (original instructions) 3
Intended use
Your BLACK+DECKER™ BCRTA01 driver has been designed for hex key assembly applications. This tool is intended for consumer use only.
Safety instructions
General power tool safety warnings
Warning! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
- Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
- Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
- Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool.
Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
- Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.
Use of the power tool for operations different from those intended could result in a hazardous situation.
h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
- Battery tool use and care
a. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e. Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.
g. Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
- Service
a. Have your power tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
b. Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.
Additional power tool safety warnings
Warning! Additional safety warnings for screwdrivers.
- Hold power tool by insulated gripping surfaces, when performing an operation where the Fasteners may contact hidden wiring or its own cord.
Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
- Wear ear protectors with impact wrenches. Exposure to noise can cause hearing loss.
- Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.
- Use clamps or another practical way to secure and support the work piece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.
- Before driving fasteners into walls, floors or ceilings, check for the location of wiring and pipes.
- The intended use is described in this instruction manual.
- The use of any accessory or attachment or performance of any operation with this tool other than those recommended in this instruction manual may present a risk of personal injury and/or damage to property.
Safety instructions when using long drill bits
- Never operate at higher speed than the maximum speed rating of the drill bit. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.
- Always start drilling at low speed and with the bit tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.
- Apply pressure only in direct line with the bit and do not apply excessive pressure. Bits can bend causing breakage or loss of control, resulting in personal injury.
Safety of others
- This tool is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
◆ Children should be supervised to ensure that they do not play with the appliance.
Residual risks
Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use etc.
Even with the application of the relevant safety regulations and the implementation of safety devices, certain residual risks can not be avoided. These include:
◆ Injuries caused by touching any rotating/moving parts.
ENGLISH
(Original instructions)
◆ Injuries caused when changing any parts, blades or accessories.
◆ Injuries caused by prolonged use of a tool. When using any tool for prolonged periods ensure you take regular breaks.
◆ Impairment of hearing.
◆ Health hazards caused by breathing dust developed when using your tool (example:- working with wood, especially oak, beech and MDF.)
Vibration
The declared vibration emission values stated in the technical data and the declaration of conformity have been measured in accordance with a standard test method provided by EN62841 and may be used for comparing one tool with another.
The declared vibration emission value may also be used in a preliminary assessment of exposure.
Warning! The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used. The vibration level may increase above the level stated.
When assessing vibration exposure to determine safety measures required by 2002/44/EC to protect persons regularly using power tools in employment, an estimation of vibration exposure should consider, the actual conditions of use and the way the tool is used, including taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time.
Labels on tool
The following pictograms along with the date code are shown on the tool:
Warning! To reduce the risk of injury, the user must read the instruction manual.
Do not stare at operating lamp
Additional safety instructions for batteries and chargers
Batteries
◆ Never attempt to open for any reason.
◆ Do not expose the battery to water.
- Do not store in locations where the temperature may exceed 40 °C.
◆ Charge only at ambient temperatures between 10 °C and 40 °C.
- When disposing of batteries, follow the instructions given in the section "Protecting the environment".
Do not attempt to charge damaged batteries.

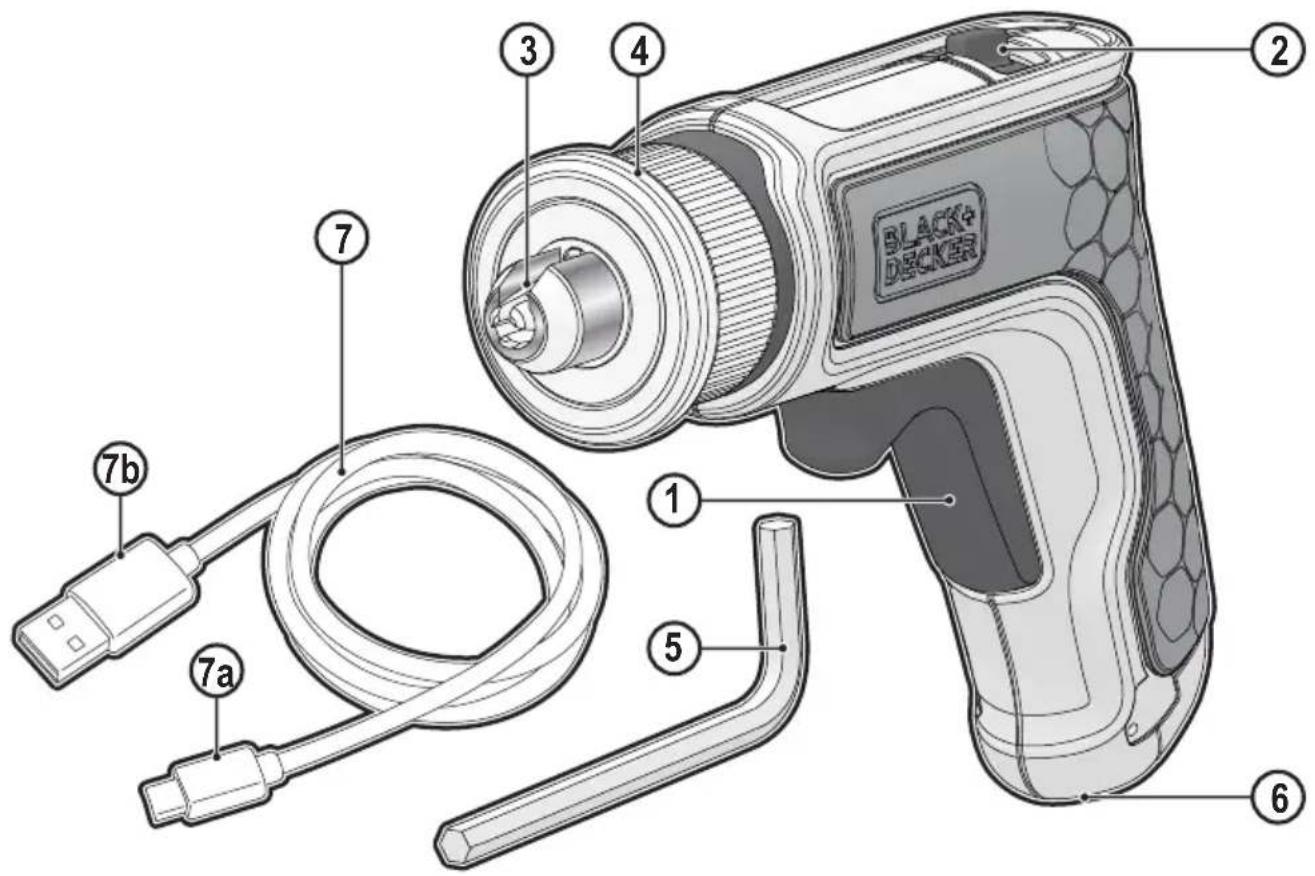

Features
This tool includes some or all of the following features:
- On/off switch
- Forward/reverse slider
- Bit holder chuck
- Collar/LED work light
- Hex key
- Charging port
- USB connector
Charging the battery (fig. A)
◆ Insert the USB connector (7a) into the charging port (6).
◆ Plug the USB connector (7b) into a USB power supply (not included).
- Leave the tool connected to the charger for up to 4 hours.
◆ The charging indicator (6a) will illuminate during charging.
◆ Once fully charged the charging indicator (6a) will go out.
Fitting and removing a Hex key (fig. B, C)
Warning! Make sure the forward reverse slider (2) is in the locked off position (central position).
- Turn the collar (4) anti-clockwise to open the bit holder chuck (3).
- insert the hex key (5) into the bit holder chuck (3) until it comes into contact with the magnetic disc (3a) at the end of the channel, making sure it is central to the chuck body.
◆ Tighten the collar (4) clockwise until the hex key (5) is secure.
◆ A clip on extension collar (3a) is provided to facilitate larger hex keys. Fit as illustrated in figure C.
Warning! Use only with the short end of the hex key sitting in the slot. Injury may occur if the hex key overhangs the collar
LED work light (fig. D)
The LED work light (4) is activated automatically when the on/off switch (1) is depressed. The LED will also illuminate when the trigger is depressed and the forward/reverse slider (2) is in the locked off position (central position).

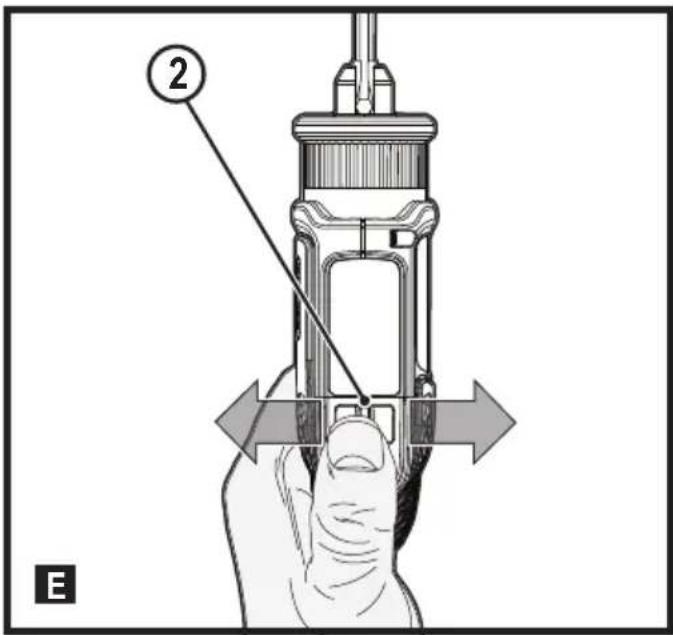

Selecting the direction of rotation (fig. E)
For drilling and for tightening hex bolts, use forward rotation. For loosening hex bolts, use reverse rotation.
◆ To select forward rotation, push the forward/reverse slider (2) to the right position.
◆ To select reverse rotation, push the forward/reverse slider (2) to the left position.
◆ To lock the tool, set the forward/reverse slider into the centre position.
Fastening
- Select forward or reverse rotation using the forward/ reverse slider (2).
◆ To switch the tool on, press the on/off switch (1).
◆ To switch the tool off, release the on/off switch (1).
Hints for optimum use
Screwdriving
◆ Always use the correct type and size of hex key.
- If hex bolts are difficult to tighten, try applying a small amount of washing liquid or soap as a lubricant.
◆ Always hold the tool and hex key in a straight line with the hex bolt.
Note: This unit can also accept standard hex screwdriver bits.
Maintenance
Your BLACK+DECKER tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.
Warning! Before performing any cleaning or maintenance on the tool, unplug from the charger.
◆ Regularly clean the motor housing using a damp cloth. Do not use any abrasive or solvent-based cleaner.
Protecting the environment
Separate collection. Products and batteries marked with this symbol must not be disposed of with normal household waste.
Products and batteries contain materials that can be recovered or recycled reducing the demand for raw materials. Please recycle electrical products and batteries according to local provisions. Further information is available at www.2helpU.com
Technical data
| BCRTA01 | ||
| Voltage V | DC | 3.6 |
| No-load speed min | -1 | 180 |
| Hard stall torque Nm 5.5 | ||
| Max. torque Nm 5.5 | ||
| Chuck mm 6 | ||
| Weight kg 0.4 | ||
| Battery | ||
| Battery type Li-Ion | ||
| Ah rating 1.5Ah | ||
Level of sound pressure according to EN 62841:
Sound pressure ( L_pA ) 57 dB(A), uncertainty (K) 5 dB(A)
Sound power ( L_ ) 68 dB(A), uncertainty (K) 5 dB(A)
Vibration total values (triax vector sum) according to EN 62841:
Screwdriving without impact ( a_h ) 0.5 m/s ^2 , uncertainty (K) 1.5 m/s ^2
EC declaration of conformity
MACHINERY DIRECTIVE
BCRTA01 Driver
Black & Decker declares that these products described under "technical data" are in compliance with:
2006/42/EC, EN62841-1:2015, EN62841-2-1:2018.
These products also comply with Directive 2014/30/EU and 2011/65/EU. For more information, please contact Black & Decker at the following address or refer to the back of the manual.
The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of Black & Decker.
Patrick Dapenbuch
Patrick Diepenbach
Director General, Benelux
Black & Decker,
Black & Decker is confident of the quality of its products and offers consumers a 24 month guarantee from the date of purchase. This guarantee is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.
To claim on the guarantee, the claim must be in accordance with Black & Decker Terms and Conditions and you will need to submit proof of purchase to the seller or an authorised repair agent.
Terms and conditions of the Black & Decker 2 year guarantee and the location of your nearest authorised repair agent can be obtained on the Internet at www.2helpU.com, or by contacting your local Black & Decker office at the address indicated in this manual.
Please visit our website www.blackanddecker.co.uk to register your new Black & Decker product and receive updates on new products and special offers.
Verwendungszweck
Director General, Benelux
Black & Decker,
Director General, Benelux
Black & Decker,
Director General, Benelux
Black & Decker,
Director General, Benelux
Black & Decker,
Director General, Benelux
Black & Decker,
Director General, Benelux
Black & Decker,
Director General, Benelux
Black & Decker,
Director General, Benelux
Black & Decker,
Director General, Benelux
Black & Decker,
Director General, Benelux
Black & Decker,
Director General, Benelux
Black & Decker,
Director General, Benelux
Black & Decker,
- Intended use
- Safety instructions
- General power tool safety warnings
- Save all warnings and instructions for future reference.
- Additional power tool safety warnings
- Safety instructions when using long drill bits
- Safety of others
- Residual risks
- ENGLISH
- (Original instructions)
- Vibration
- Labels on tool
- Additional safety instructions for batteries and chargers
- Batteries
- Features
- Charging the battery (fig. A)
- Fitting and removing a Hex key (fig. B, C)
- LED work light (fig. D)
- Selecting the direction of rotation (fig. E)
- Fastening
- Hints for optimum use
- Screwdriving
- Maintenance
- Protecting the environment
- EC declaration of conformity
- Verwendungszweck
Brand : BLACK & DECKER
Model : BCRTA01
Category : Drill
