G 3120 - Paper Cutter OLYMPIA - Free user manual and instructions

Product Type	Manual Guillotine Paper Cutter
Brand	Olympia
Model	G 3120
Cut Length	310 mm
Cutting Capacity (80 g/m² paper)	20 sheets
Dimensions (L x W x H)	385 x 405 x 300 mm
Weight	2.7 kg
Power	None (manual)
Supported Materials	Paper, cards, photo paper, laminated sheets
Safety Features	Plexiglass blade guard, pressure bar with finger protection, guillotine lock
Maintenance and Cleaning	Clean surfaces with a slightly damp cloth; clean blade with a soft brush; do not use harsh products
Guillotine Adjustment	Adjustment screw to set tension (tighten if too loose, loosen if hard to operate)
Warranty	Return to store with original packaging and receipt in case of defect
Spare Parts and Repairability	Blade not user-replaceable; do not lubricate or sharpen the blade
Important Safety Instructions	Read the manual before use; use on a flat surface; do not touch the blade; use both hands; keep loose clothing and jewelry away; remove staples/paper clips; keep out of reach of children

Frequently Asked Questions - G 3120 OLYMPIA

How to install the blade guard of the Olympia G 3120 paper cutter?

Before first use, remove the screws from the pressure bar, remove the protective paper from the plexiglass blade, unlock the guillotine by turning the lock clockwise, lift it slightly, then insert the guard from the back aligning the screw holes. Fasten with screws without over-tightening.

How to correctly use the G 3120 paper cutter?

Place the device on a flat and stable surface. Unlock the guillotine, raise it, place the paper under the pressure bar and lower the handle to cut. After use, lock the guillotine under the plate by turning the lock counterclockwise.

How to adjust the guillotine tension if it is too loose or too hard?

If the guillotine does not stay in the raised position, slowly tighten the adjustment screw with a suitable tool. If it is hard to operate, loosen the screw. Test after each adjustment while following safety instructions.

What is the cutting capacity of the G 3120 model?

The maximum capacity is 20 sheets of standard paper (80 g/m²). The cut length is 310 mm.

How to clean the Olympia G 3120 paper cutter?

Clean surfaces with a slightly damp cloth. Use a soft brush carefully for the blade. Never use harsh chemical cleaning products.

What safety precautions must be observed?

Never touch the blade. Always use both hands. Keep loose clothing, ties, jewelry, and long hair away. Remove staples and paper clips before cutting. Do not use if the pressure bar is missing. Keep the device out of reach of children.

Can I cut materials other than paper?

Yes, this paper cutter is designed to cut paper, cards, photo paper, and laminated sheets. Do not use for other materials such as metal or hard plastic.

What to do in case of a device defect?

Return the device in its original packaging with the receipt to the store where you purchased it. The warranty covers manufacturing defects.

How to use the paper guide?

Unlock the guide lock, push it on the rail to the desired position using the grids, then lock it. It serves as a stop to align the paper.

What are the dimensions and weight of the G 3120?

The dimensions are 385 x 405 x 300 mm and the weight is 2.7 kg.

USER MANUAL G 3120 OLYMPIA

Black and white photo of a paper-cutting machine with metal cutting edge and grid-patterned base (no visible text or symbols)

Hebelschneider G 3120 / G 4420 / G 3640 / G 4640 / G 3115 / G 4415

Guillotine G 3120 / G 4420 / G 3640 / G 4640 / G 3115 / G 4415

Coupe-papier guillotine G 3120 / G 4420 / G 3640 / G 4640 / G 3115 / G 4415

Cizalla de palanca G 3120 / G 4420 / G 3640 / G 4640 / G 3115 / G 4415

Technical line drawing of a mechanical device with labeled parts (no text or symbols present)

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

Service-Center Hattingen

Zum Kraftwerk 1

45527 Hattingen

Please read the following information thoroughly and observe the instructions and information contained when operating the device.

1. Keep this operating manual in a safe place for future reference.

2. Before starting to use the device, set it down on a level, stable working base.

3. Never take hold of the blades when carrying the device or putting it away.

4. Always use both hands to operate the device.

5. Keep loose clothing, ties, jewellery, long hair and other loose objects away from the device.

6. Remove any staples and/or paper clips from the document before starting to cut it.

7. The cutting blade must be neither greased nor ground.

8. Do not use the device if the pressing rail is not firmly in place.

1. The device must not be used if the blade is damaged.

2. Keep the device out of the reach of small children.

3. The device is not intended to cut fingernails or toenails.

●Intended Use

This guillotine may only be used to cut paper, photo paper and lamination foil.

Unauthorised modification or reconstruction is not permitted.

●Unintended Use

Only cut materials complying with the specifications in Section Technical Data. Any use other than that described in Section Intended Use is considered unintended use.

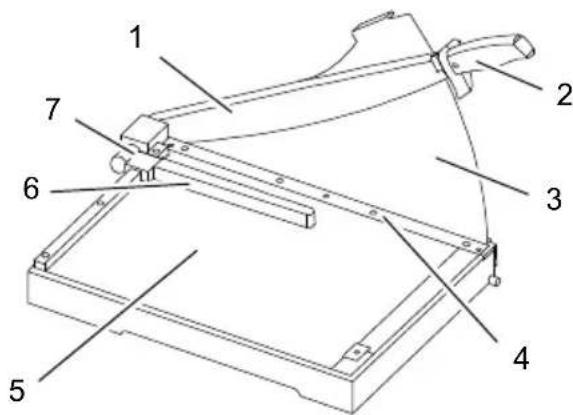

●Overview of Operating Elements

1. Guillotine arm (blade)

2. Handle of guillotine arm

3. Perspex blade protection

4. Pressing rail with finger protection

5. Positioning lines and measuring systems

6. Paper guide

7. Lock for paper guide

●Assembling the Blade Protection

Technical line drawing of a mechanical device with labeled parts (no text or symbols present)

Before starting to use the guillotine, assemble the perspex blade protection to protect the user from the sharp guillotine blade.

1. Remove the device carefully from the packaging.

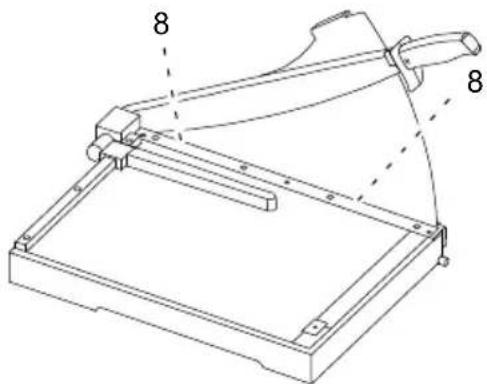

2. Remove the screws (8) from the pressing rail (4).
3. Remove the protective card from the per-spex blade protection (3).
4. Unlock the guillotine arm (1) by turning the lock (9) clockwise.
5. Pull the guillotine arm (1) upwards a little. Install the perspex blade protection (3) carefully, from the rear, so that the protection is against the blade.

Note: The handle (2) is provided with a small projection which must be on the left-hand side of the perspex blade protection (3). Move the cover so that the screw holes are in line with the respective thread.

Attention: Property damage! The per-spex blade protection (3) could be damaged. Do not tighten the screws too tight.

1. Fix the perspex blade protection (3) in place on the pressing rail (4) with the screws (8).

Guillotine

1. Remove the device carefully from the packaging.
   Attention: Risk of injury! The guillotine blade is very sharp! Never reach in towards or take hold of the guillotine blade.
2. Before starting to use the device, set it down on a level, stable working base.

Note: The guillotine arm (1) is locked on the underside of the cutting unit.

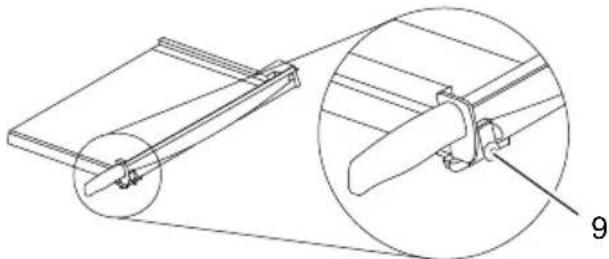

1. Unlock the guillotine arm (1) by turning the lock (9) clockwise.

Technical line drawing of a mechanical assembly with two views (one showing a pin inserted, the other showing a handle inserted), no text or symbols present.

1. Use the handle (2) to move the guillotine arm (1) upwards.
2. Place the material to be cut in the required position under the pressing rail (4) and press the pressing rail down.
3. Cut the material by moving the guillotine arm (1) down using the handle (2).

Attention: Risk of injury! The guillotine blade is very sharp! Never reach in towards or take hold of the guillotine blade.

Note: After completing the cutting task, the guillotine arm (1) must be locked to the underside of the cutting unit.

1. Use the handle (2) to move the guillotine arm (1) down as far as possible. Lock the guillotine arm by turning the lock (9) anticlockwise.

●Paper Guide

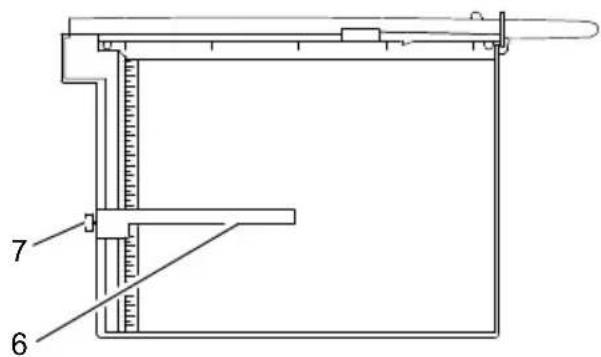

1. Release the lock (7) for the paper guide (6).
2. Slide the paper guide (6) carefully on the rail.

Note: Do not slide the paper guide (6) if the lock (7) has not been released.

1. Position the paper guide (6) with the aid of the measuring units and systems (5).

Note: The paper guide (6) can be adjusted continually in the rail.

1. Lock the paper guide (6). The paper guide serves as a stopper for the material to be cut.

●Technical Data
Cutting length (mm)

G 3640	360
G 4640 460
G 3120 310
G 4420 448
G 4415 448
G 3115 310

• Adjusting the Guillotine Arm


After a period of time in use, the guillotine arm (1) becomes too loose and no longer remains in position of its own accord. The guillotine arm (1) must then be readjusted.

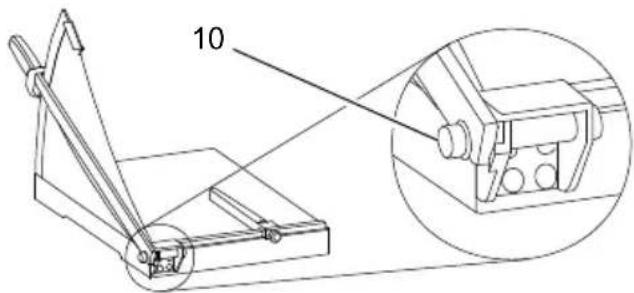

1. Tighten the screw (10) slowly, using an appropriate tool.

Note: Check whether the guillotine arm remains in position, taking the safety information into account. If the guillotine arm is too difficult to move, loosen the screw (10) slowly, using an appropriate tool.

Cutting capacity Sheets (80 g / m²)

G 3640	40
G 4640 40
G 3120 20
G 4420 20
G 4415 15
G 3115 15

Dimensions (L x W x H) (mm)

G 3640	294 x 630 x 360
G 4640 394 x 730 x 370
G 3120 385 x 405 x 300
G 4420 360 x 535 x 445
G 4415 360 x 535 x 445
G 3115 385 x 410 x 445

Weight (kg)

G 3640	4.9
G 4640 8.2
G 3120 2.7
G 4420 4.9
G 4415 4.9
G 3115 2.7

●Cleaning the Device

Attention: Risk of injury! The guillotine blade is very sharp! Take the utmost caution when cleaning the guillotine blade!

Clean the outer surfaces of the device with a slightly damp cloth. Clean the blade carefully with a soft brush.

Do not use any aggressive cleaning agents or chemicals to clean the device.

- Disposal

In order to dispose of your device, take it to a collection point provided by your local public waste authorities (e.g. recycling centre). According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container. The

symbol indicates that the device must not be disposed of in normal domestic waste! Packaging materials must be disposed of according to local regulations.

●Guarantee

Dear Customer,

we are pleased that you have chosen this equipment.

In the case of a defect, please return the device together with the receipt and original packing material to the point-of-sale.

Technical line drawing of a mechanical assembly with two views (one showing a pin inserted, the other showing a blade being inserted), no text or symbols present.

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols
