| Product Type | Range Hood |
| Brand | Infiniton |
| Model | CMPP-90S |
| Width | 90 cm |
| Depth | 50 cm |
| Height (without chimney) | 60 cm |
| Weight | 15 kg |
| Power Supply | 220-240 V ~ 50 Hz |
| Motor Power | 200 W |
| Suction Power (max) | 700 m³/h |
| Noise Level (max) | 68 dB(A) |
| Number of Speeds | 3 |
| Lighting Type | 2 x 1.5W LED |
| Grease Filter Type | Aluminum mesh (washable) |
| Carbon Filter | Optional (for recirculation mode) |
| Duct Diameter | 150 mm |
| Installation Type | Wall-mounted with chimney |
| Control Type | Electronic push buttons |
| Energy Class | A+ |
| Safety Features | Overheat protection, auto shut-off |
| Maintenance | Clean grease filters monthly; replace carbon filters every 3-6 months |
| Spare Parts | Grease filters, carbon filters, LED lamps available |
| Warranty | 2 years (subject to terms) |
Frequently Asked Questions - CMPP-90S Infiniton
How do I install the Infiniton CMPP-90S range hood?

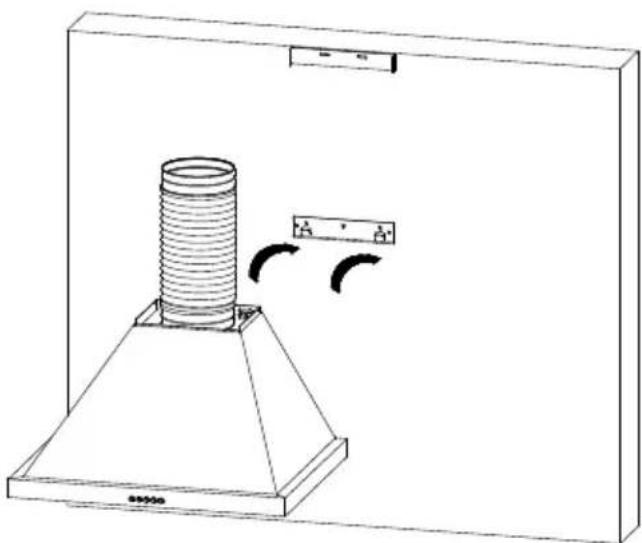

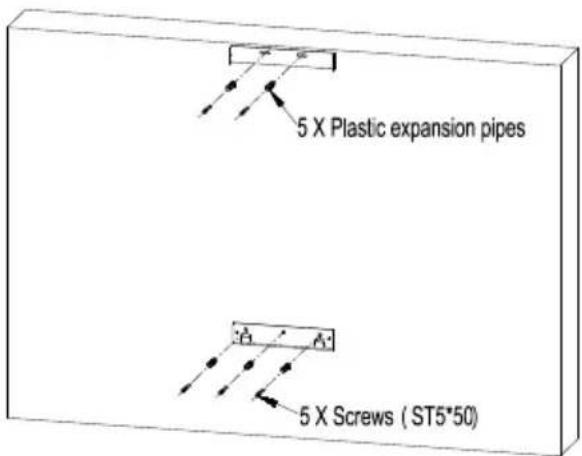

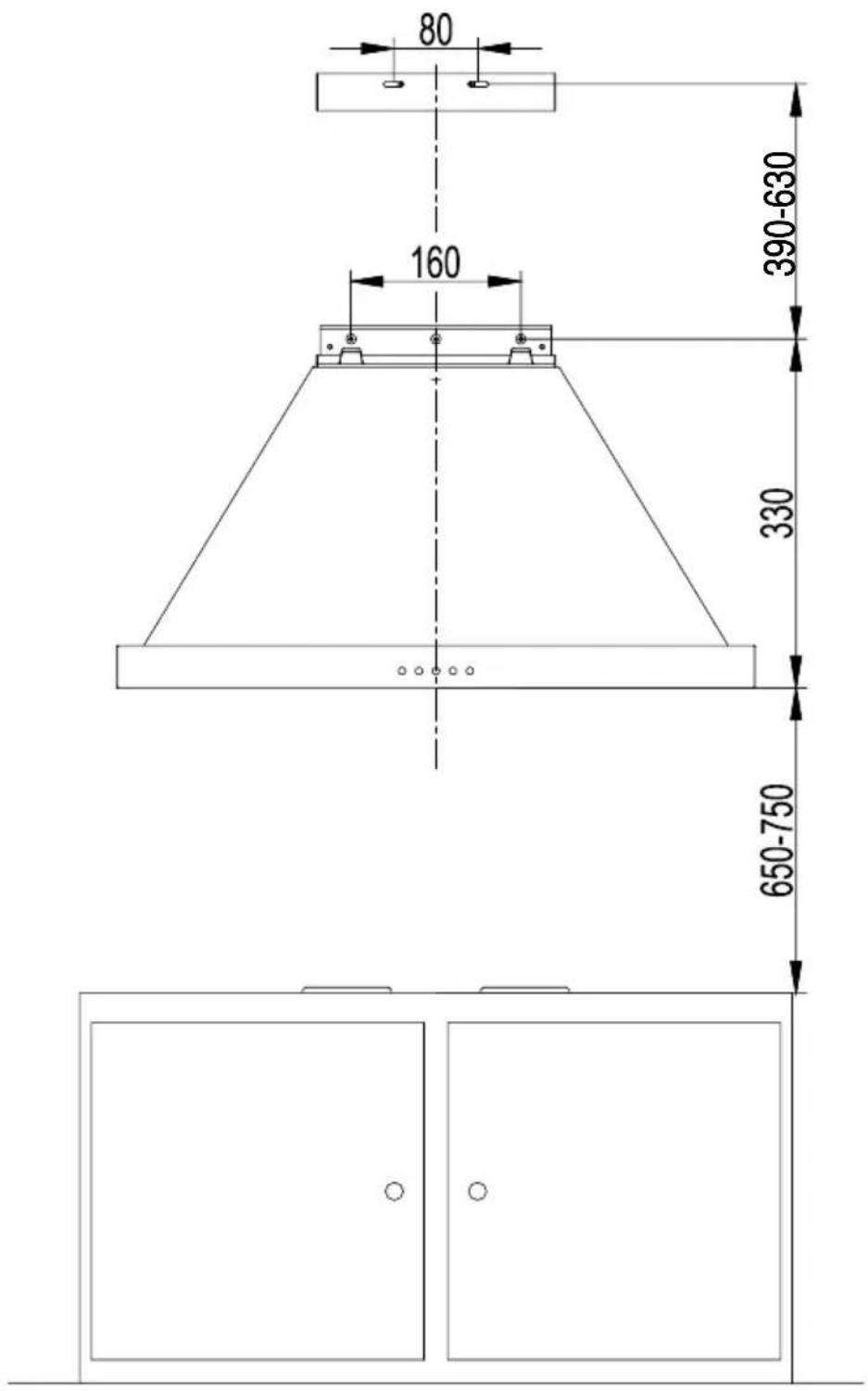

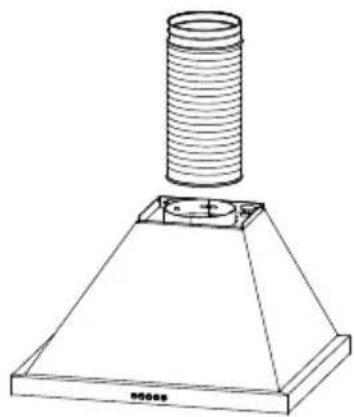

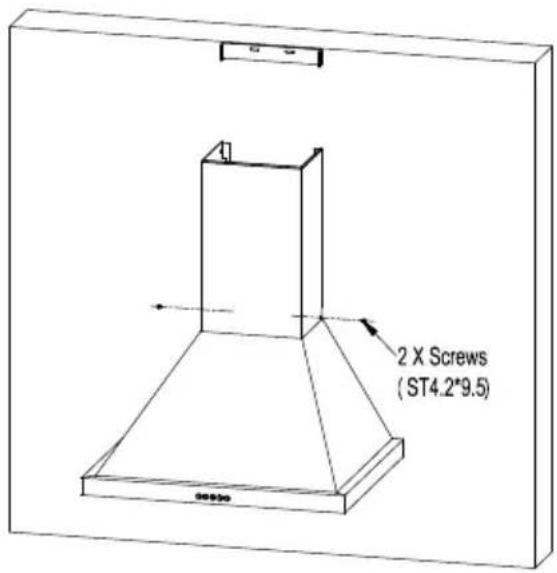

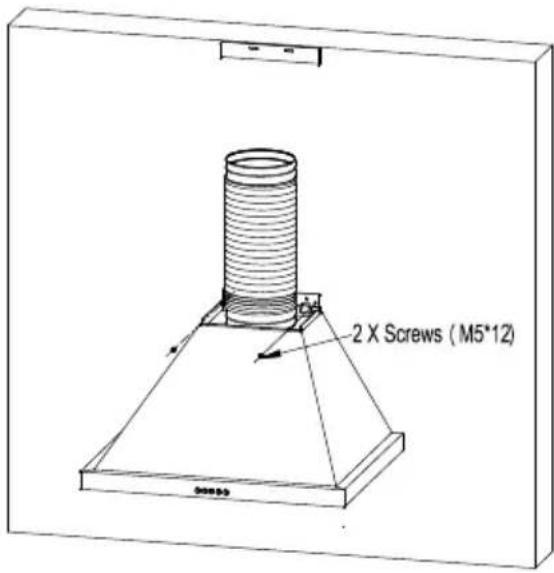

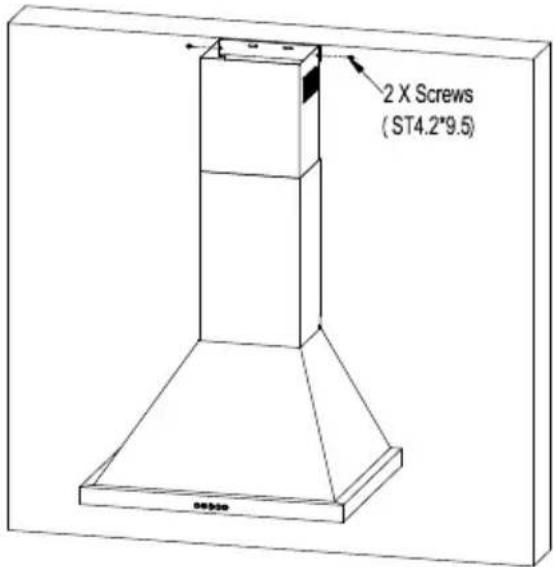

The hood must be mounted at a minimum distance of 65 cm above an electric hob or 75 cm above a gas hob. Ensure the wall is strong enough to support the weight (15 kg). Follow the included installation template and secure with suitable anchors. For ducted mode, connect to a 150 mm duct leading outside. For recirculation mode, install carbon filters.

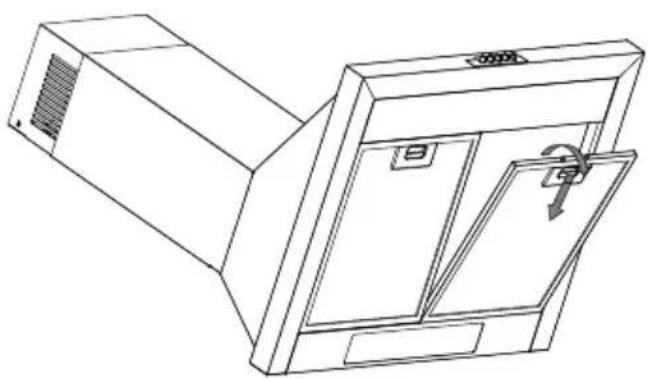

How often should I clean the grease filters?
Grease filters should be cleaned every month or more frequently with heavy use. They can be washed by hand with mild detergent or in the dishwasher at low temperature. Ensure they are completely dry before reinstalling.
Is the carbon filter included?

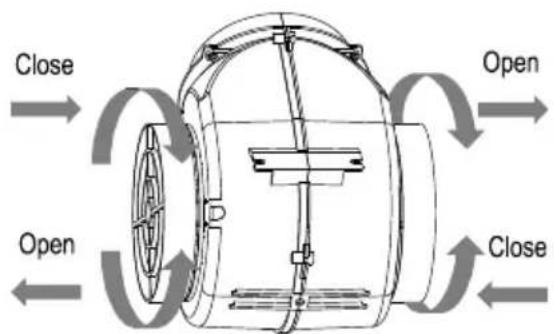

No, the carbon filter is not included with the hood. It must be purchased separately if you intend to use the hood in recirculation mode (without external ducting). Replace every 3-6 months.
How do I replace the LED lights?
The hood uses two 1.5W LED lamps. To replace, disconnect power and remove the lamp cover. Twist the faulty lamp counterclockwise to remove and fit a new one. Use only identical LED lamps rated for the hood.
Why is my range hood noisy?
Noise can be due to loose parts, blocked duct, or accumulated grease. Check that all screws are tight and filters are clean. Ensure the duct is not crushed or obstructed. If noise persists, contact support.
What does the overheat protection do?
The hood automatically shuts off if the motor gets too hot, preventing damage and fire hazard. If this happens, allow the hood to cool down and check for obstructions in airflow.
Can I use the hood without duct?
Yes, you can use it in recirculation mode. You must install carbon filters to absorb odors. The air is then filtered and released back into the kitchen through the top vent.
How do I reset the filter alarm?
After cleaning or replacing filters, press and hold the speed button for about 3 seconds until the filter indicator light turns off. Refer to the manual for exact procedure.
What is the warranty period?
Infiniton typically offers a 2-year warranty from the date of purchase. This covers manufacturing defects but not damage from misuse or lack of maintenance. Keep your receipt.
Where can I find spare parts?
Spare parts such as grease filters, carbon filters, and LED lamps can be purchased from authorized dealers or online stores selling Infiniton accessories. Use only genuine parts.
