CMPT-T90S - Range hood Infiniton - Free user manual and instructions

Product Type	Range Hood
Brand	Infiniton
Model	CMPT-T90S
Voltage	220-240V~50/60Hz
Rated Power	333W
Motor Power	330W
Lighting Power	2 x 1.5W
Airflow	800 m³/h
Noise Level	≤74 dB
Duct Diameter	150 mm
Grease Filter Type	High-density aluminum
Carbon Filter	Optional (not included)
Fan Speeds	3 (Low, Mid, High)
Controls	Button control (varies by model)
Minimum Distance from Hob	65 mm
Installation Type	Wall-mounted, ducted
Delay Shutdown	3-minute auto-off
Lighting	2 LED lamps (switchable)
Filter Cleaning	Dishwasher safe (≤60°C)
Maximum Hob Elements	4

Frequently Asked Questions - CMPT-T90S Infiniton

How do I clean the grease filter?

Remove the aluminum grease filter as shown in Fig.11. Wash it in a dishwasher with detergent at a temperature below 60°C. Do not use abrasive detergents to avoid damage.

How do I replace the carbon filter?

The carbon filter is optional and not included. To replace, remove the grease filter first, then turn the carbon filter until it locks into place. Reverse the procedure to remove. Replace every 2-3 months. Carbon filters cannot be washed or recycled.

What is the minimum distance between the hob and the hood?

The minimum distance between the supporting surface for cooking vessels on the hob and the lowest part of the range hood is 65 mm. Ensure adequate ventilation when using gas appliances.

Can the hood be used with gas hobs?

Yes, but ensure the room is adequately ventilated. The air must not be discharged into a flue used for gas fumes. Follow local regulations for air discharge.

What does the 3-minute delay shutdown feature do?

Press the Power button during operation to activate delay shutdown. The hood will run for 3 more minutes and then automatically turn off. The power button will flash to indicate this state.

How do I adjust the fan speed?

Use the speed buttons (Low, Mid, High) to select the desired speed. Some models have a Plus/Minus key to increase or decrease speed step by step. The digital screen shows the current setting.

What should I do if the hood does not work?

Check if the power cord is properly connected. If the light is on but the motor does not work, the blades may be blocked, or the capacitor or motor may be damaged. Consult a qualified technician for repairs.

How do I install the range hood?

Follow the installation steps in the manual: fix the installation plate to the wall, hang the hood, secure with screws, connect the exhaust pipe, and attach the chimney. Ensure the plug is accessible after installation.

What are the electrical specifications?

The hood operates at 220-240V~50/60Hz, with a rated power of 333W (motor 330W, lighting 2x1.5W). It must be connected to a socket outlet with earthing continuity.

Is the carbon filter included with the hood?

No, the carbon filter is not supplied with the appliance. It is an optional accessory that can be purchased separately for recirculation mode.

USER MANUAL CMPT-T90S Infiniton

Line drawing of a three-tiered rectangular box mounted on a base plate (no text or symbols)

Manual del usuario

modelo: CMP -T90ST

Simple line drawing of a T-shaped structure with a vertical dashed centerline and horizontal base (no text or symbols)

Correcta

Simple line drawing of a rectangular block with a vertical centerline and a base, no text or symbols present.

Incorrecta

Simple line drawing of a vertical structure with a horizontal base and a vertical top, no text or symbols present.

Fig.1

Fig.4

Technical line drawing of a mechanical assembly with a base and housing, showing directional arrows indicating motion (no text or symbols)

Fig.5

Fig.6

Fig.7

Technical line drawing of a rectangular box mounted on a base plate, with no visible text or symbols.

Fig.8

Fig.9

Luz

Bajo

Medio

Alto

Potencia

Fig.10.2

Line drawing of a kitchen air conditioner unit with ventilation system (no text or symbols)

Fig.12
Fig.11

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.
  ● The filter is made of high density aluminum.
• Please do not use corrosive detergent for cleaning. The proper function of the unit is conditioned by the regularity of the maintenance.
• To protect the main body from corrosive of the long time accumulation of dirt, the cooker hood should be cleaned with hot water with non-corrosive detergent every two months.
• There is a fire risk if cleaning is not carried out in accordance with the instructions.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood is 65 mm.
  ● Regulations concerning the discharge of air have to be fulfilled.
  ● The appliance uses 4 hob elements at most.

• CAUTION: Accessible parts may become hot when used with cooking appliances.

• The appliance is not intended for use by young children or infirm persons without supervisions.

• Young children should be supervised to ensure they do not play with the appliance.
• Plug the power cord to socket outlet with earthing continuity terminal.
• The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purposes.
• The cooker hood and its filter should be cleaned regularly according to the instruction.
• Do not use open flame, or allow oil to go beneath the appliance.
• If there is any fault occurred with the appliance, please call after-sale service department.
• Please keep the kitchen room ventilated.
• Prior to any maintenance, cleaning operation, ensure the power is cut off.
• If the supply cord is damaged, it must be replaced by the manufacturer, service agent or similarly qualified person in order to avoid a hazard. The replaced power cord should be provided by manufacturer or seller.
• If the plug or cord is damaged, please call after-sale service center.
• There is a fire risk if cleaning is not carried out in accordance with the instruction.
• In case of damaged connecting wire, please refer to the manufacturer, after-sale service personnel or other qualified technicians.
• Use the unit according to the instructions to avoid any fire hazard.
• The exhaust air must not be introduced into a smoke flue or chimney that is used for exhausting fumes from appliances burning gas.

• Follow the local laws applicable for external air evacuation.

• It can not share the same air ventilation tube with other appliance such as gas tube, warmer tube, and hot wind tube. There will be hazard of underpressure, combustion impaired and harmful gases drawn back.

• The bending of ventilation tube should be ≥ 120^ , parallel or above the start point/should be connected to the external wall.

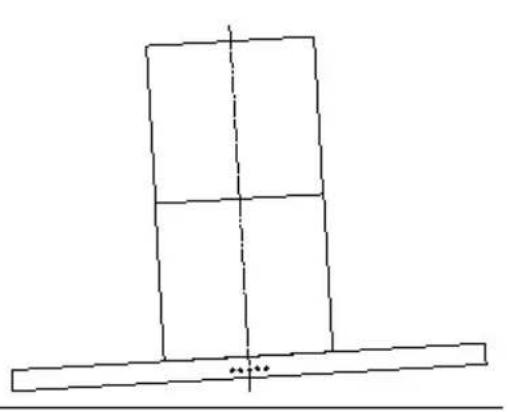

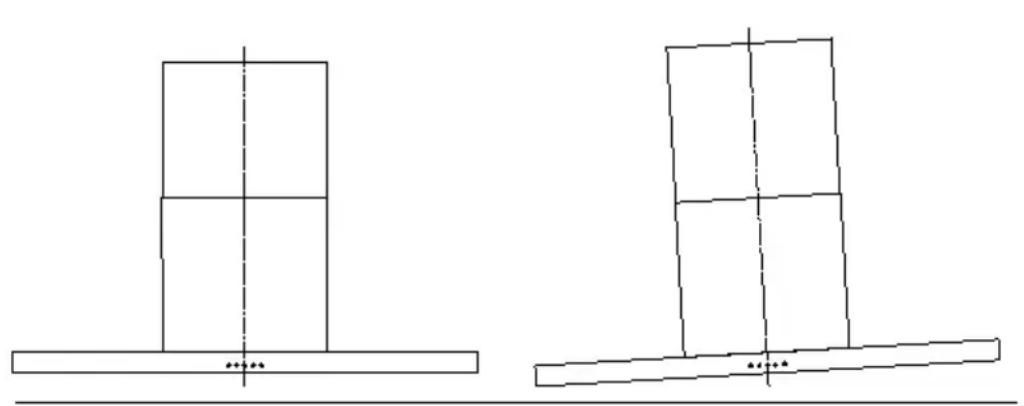

• Please hoalzer startly the installation plate is grease collection at one end. See Fig.1.

Two simple line drawings of stacked rectangular blocks with vertical dashed lines, no text or symbols present.

Right Wrong

Simple line drawing of a vertical pole with a horizontal bar and a vertical divider (no text or symbols)

Fig.1

● After installation, make sure that plug can be pulled out if necessary.

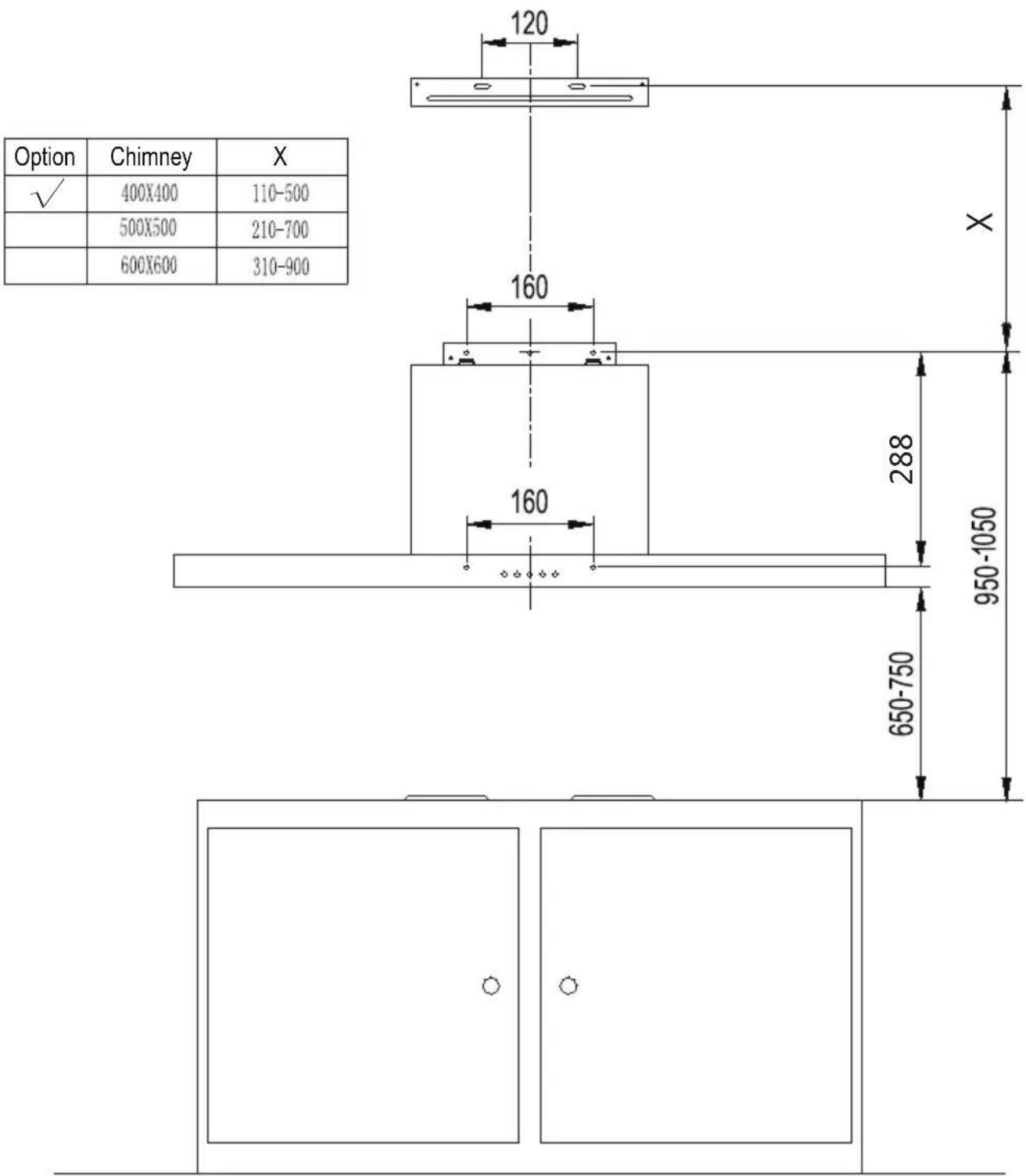

- ed 650e750emhoop should the plac cooking plane for safe and a good effect. See Fig.2.

- There shall be adequate ventilation of the room when the cooker hood is working.

Fig.2

Fig.3

Installation

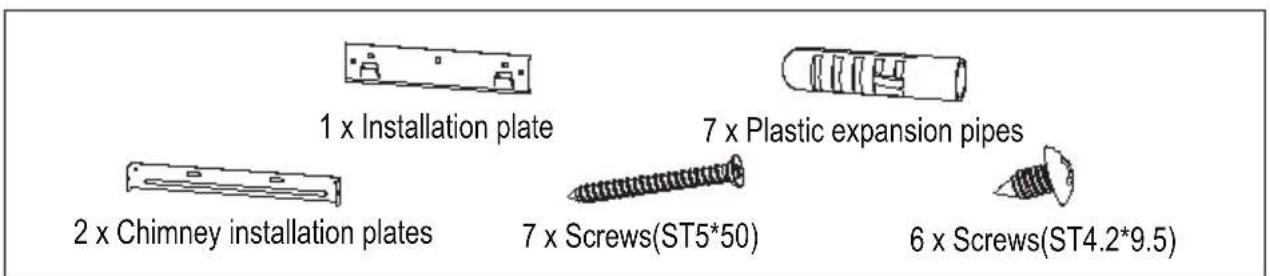

• Accessories. See Fig.3. (Type and quantity of accessories is subject to actual demand.)

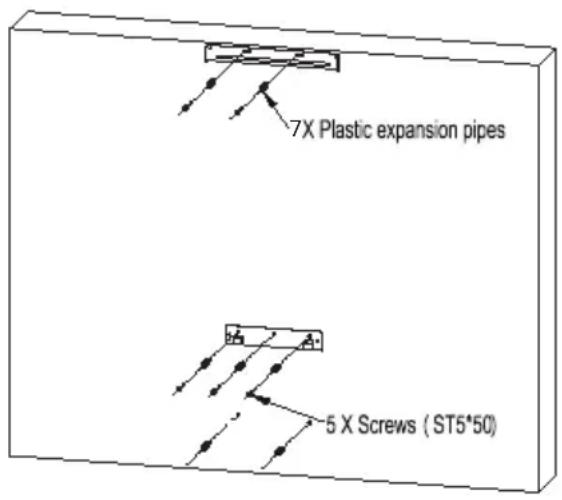

• Fix installation plate and extension chimney installation plate, install the plastic expansion pipes of chimney installation plate on wall. See Fig.4.

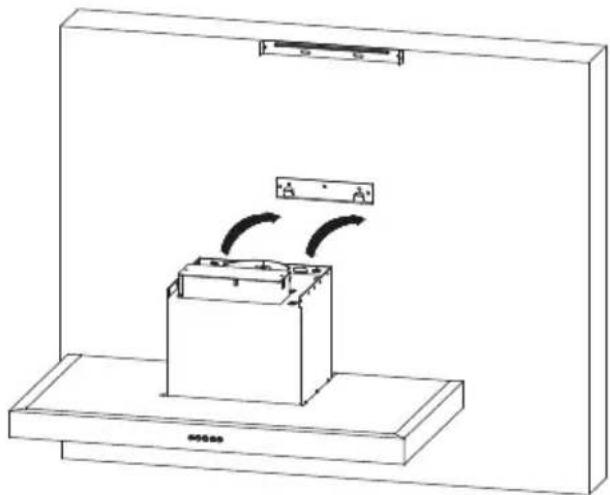

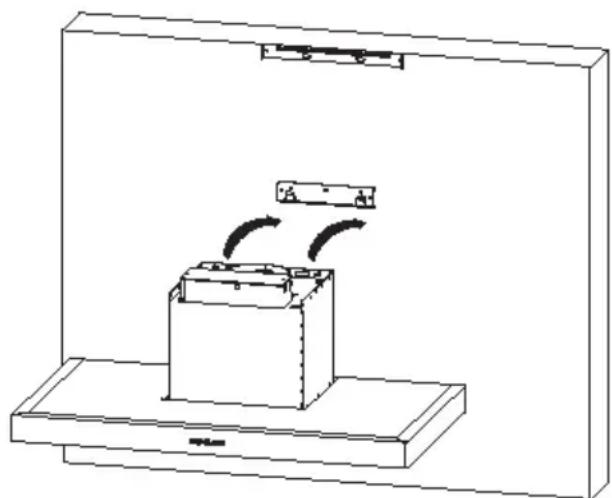

  ● Hang range hood on the installation plate. See Fig.5.

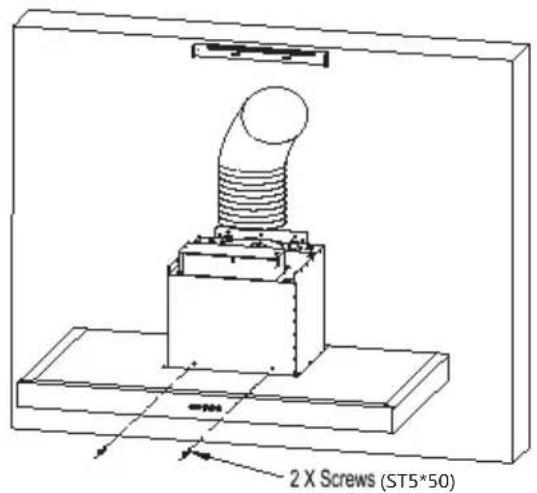

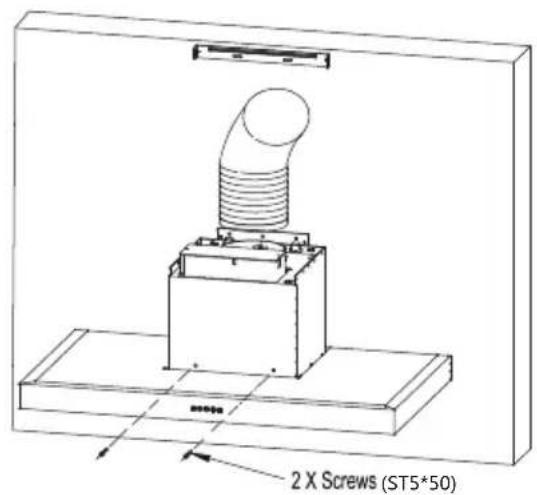

• Fix the exhaust pipe on the main body, open the filter and lock screws (ST5*50) to prevent the range hood from accidentally sliding off the installation plate. See Fig.6.
• Connect chimney installation plate and chimney. See Fig.7.
  ● Fix chimney installation plate. See Fig.8.

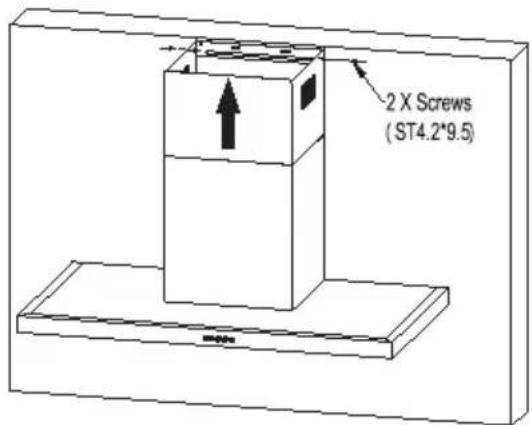

  ● Fix the extension chimney. See Fig.9.

Fig.4 Fig.5

Technical line drawing of a mechanical assembly with a base and housing, showing rotational motion arrows (no text or symbols)

Fig.6

Fig.7

Technical line drawing of a mechanical assembly with a central block and two base plates (no text or symbols)

Fig.8

Fig.9

Fig.10.1

Use

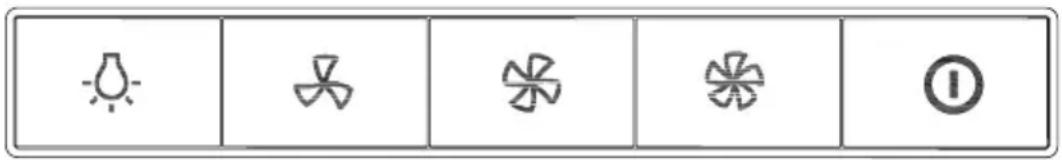

Speed adjustment. See Fig.10.1.(For some models)

• Press Stop button, the motor will stop running.
• Press the Low (speed) button, the motor runs at low speed.
• Press the Mid (speed) button, the motor runs at mid speed.
• Press the High (speed) button, the motor runs at high speed.
• Press the Light button, the two lighting lamps will come on.
• Press it again and the lamps will be turned off.

Speed adjustment. See Fig.10.2. (For some models)

• After plugging, ibuzanacted dowitec electricity. After the connection:
• Pass the 1Power power; condo standby state, press this button, motor will run at low speed, and light for power and low speed button will be on; under power-on state, press this button, hood will enter 3-min-delay-shutdown state, press power button again under this state, the hood will turn off( motor stops running).
• Press the Light button, control light being on and off independently without any other buttons' help. Press it once, lights will be on. Press again, they will be off.
• Press the High button, valid under power-on state. While running at middle or low speed mode, press this button, the hood will enter high speed mode. If already running at high speed, pressing this button takes no effect. In 3-min-delay-shutdown state, press it, the hood cancels delay shutdown mode and enter high speed running state.
• Press the Low button, valid under power-on state. While running at high or middle speed mode, press this button, the hood will enter low speed mode. If already running at low speed, pressing this button takes no effect. In 3-min-delay-shutdown state, press it, the hood cancels delay shutdown mode and enter low speed running state.

Light

Low

Mid

High

Power

Fig.10.2

Speed adjustment. See Fig.10.3. (For some mode)

After the hood is switched on, a beep sound heard and all key lights are lightened for 1 s, indicating the hood has been powered on. Under the condition of hood power-on:

• Power Key: control the motor power, under standby state, press the “power” button, “power” key light is on, the motor starts up at low speed, digital screen displays setting 1; under power-on state, press the “power” button, enter 3-min-delay-shutdown state, setting switched to low speed, the power key flashes at one second interval, which means entering delay-shutdown state; under delay-shutdown state, press the “power” button, it’s shut down immediately (motor stops running).
  ● Light Key: independently control the lighton and off free from the effect of other keys. Press it once, the light is on, meanwhile the light key light is on; press again, the light is off and light key light is off too.
• Plus (+) Key: valid under power-on state, press plus (+) key once, motor speed increased one setting, digital tube displays corresponding setting. When the plus (+) key is pressed down, plus (+) key light is on. When at the highest setting, only give out key touch sound, the setting no longer changes.
• Minus (-) Key: valid under power-on state, press “minus (-)” key once, motor speed decreased one setting, digital tube displays corresponding setting. When the “minus (-)”key is pressed down, “minus (-)”key light is on. When at the lowest setting, only give out key touch sound, the setting no longer changes.

Light

Minus

Digital screen

Plus

Power

Fig.10.3

Cleaning of the filters

• Removing the filters according to Fig.11.
• Put into a dishwasher with detergent, set the temperature below 60 degrees.
• Please do not use abrasive detergent for it will damage the hood.
  ● Make sure that the hood is shut off before cleaning.

Line drawing of a kitchen air conditioner unit with ventilation slots and airflow direction indicators (no text or symbols)

Fig.11 Fig.12

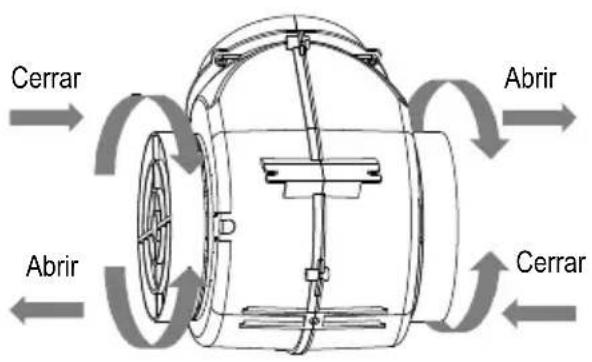

Replacement of the carbon filters (Optional

• Remove the filters see Fig.11.
  ● The carbon filters are located at both end of the motor.

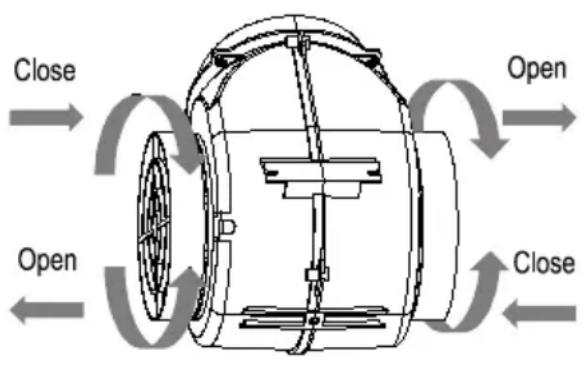

  Turn the carbon filters until they are locked. ee Fig.12.
• Apply reverse procedure to remove the carbon filter.
• It should be replaced after approximately 2-3 months of use.
  ● The carbon filer cannot be washed or recycled.
  ● Carbon filter is not supplied with your appliance.

Fault	Cause Solution
Light on, but does not work.	The blades are blocked.
	The capacitor is damaged.	Replace capacitor.
	motorThe motor is damaged. Replace motor.
	The internal wiring of motor is cut off / disconnected. An unpleasant smell may be produced.	Replace motor.
Both light and do not work.	Apart from the above mentioned, check the following:
	light damaged. Replace lights.
	Power cord loose.	Connect the wires as per the electric diagram.
Oil leakage.	Outlet and the air ventilation entrance are not tightly sealed.	Take down the outlet and seal with glue.
	Leakage from the connection of U-shaped section and cover.	Take U-shaped section down and seal with soap or paint.
Vibration.	The blade, if damaged, can cause vibrating.	Replace the blade.
	The motor is not tightly fastened. Fasten the motor tightly.
	The cooker hood is not tightly fixed. Fixed the cooker hood tightly.
Insufficient suction.	The distance between the cooker hood and the cooker top is too large.	Readjust the distance.
	Too much ventilation from open doors or windows.	Choose a new place to install the appliance or close some doors / windows.
The machine inclines.	The fixing screws are not tight enough.	Tighten the fixing screw and make it horizontal.
	The hanging screws are not tight enough.	Tighten the hanging screw and make it horizontal.

Electrical Diagram

● Electrical diagram see label on main body of the actual product.

egatloV	220-240V~50/60Hz
Rated Power	333W
Lighting Power	2 X 1.5W
Motor Power	330W
Diameter of air tube	150mm
wolf riA	800m3/h
e#N	≤74dB

The air flow parameter is tested under conditions of 230V\~ 50Hz when the voltage is 220-240V\~ 50/60Hz and without carbon filters.

Disposal

Please dispose of it at your local community waste collection / recycling center and ensure it presents no danger to children while being stored for disposal. The plug must be rendered useless and the cable cut off to prevent misuse.
