Product Type	Range Hood
Brand	Infiniton
Model	CMPG-A6035
Installation Type	Built-in / Under Cabinet
Width	60 cm
Depth	Approx. 50 cm
Height (min-max)	60 - 110 cm (adjustable)
Weight	Approximately 12 kg
Power Supply	220-240 V ~ 50 Hz
Maximum Power Consumption	250 W
Extraction Rate (max)	650 m³/h
Number of Speeds	3 + Intensive mode
Noise Level (max)	65 dB(A)
Filter Type	Aluminum grease filter
Filter Cleaning	Dishwasher safe
Charcoal Filter	Optional (for recirculation mode)
Lighting	2 x 3W LED
Controls	Electronic push buttons
Exhaust Diameter	150 mm
Energy Class	A+
Grease Filter Efficiency	Class B
Lighting Efficiency	Class A
Safety Features	Auto shut-off timer, thermal protection
Spare Parts Availability	Filters, bulbs, motor available as spare parts

Frequently Asked Questions - CMPG-A6035 Infiniton

How do I install the Infiniton CMPG-A6035 range hood?

Installation should be carried out by a qualified professional. Ensure the hood is properly fixed to the wall or cabinet, and connect the exhaust duct to the outside. If recirculation mode is desired, install a charcoal filter. The hood must be at least 65 cm above electric hobs and 75 cm above gas hobs.

How often should I clean the grease filter?

The aluminum grease filter should be cleaned every 2-3 months, depending on usage. It is dishwasher safe. After cleaning, let it dry completely before reinstalling.

How do I activate the intensive mode?

Press the intensive speed button (usually marked with a symbol). The hood will run at maximum power for 10 minutes and then automatically return to the previous speed.

Why is the hood making excessive noise?

Check if the grease filter is clogged or if the exhaust duct is blocked. Ensure the hood is properly mounted and not vibrating against cabinets. If noise persists, contact customer support.

Can I use the hood without a charcoal filter?

Yes, if the hood is connected to an external exhaust (ducting mode). The charcoal filter is only required for recirculation mode to absorb odors.

How do I replace the LED lights?

The LED lights are integrated and should be replaced by a qualified technician. Contact Infiniton support for spare parts.

What does the auto shut-off timer do?

The hood will automatically turn off after a preset time (e.g., 15 minutes) to save energy and ensure safe operation.

Where can I find the user manual?

The manual is available for free download on notice-facile.com in PDF format. You can also request a translated version via email.

What is the recommended distance between the hob and the hood?

For electric hobs, minimum 65 cm; for gas hobs, minimum 75 cm. This ensures optimal extraction and safety.

How do I reset the filter saturation indicator?

After cleaning or replacing the grease filter, press and hold the filter reset button (often the speed 1 button) for 3 seconds until the indicator light turns off.

USER MANUAL CMPG-A6035 Infiniton

Architectural line drawing of two kitchen appliances in a room with monitors and lighting equipment (no text or symbols)

CMPG-A7035 CMPG-A9035CMPG-A6035

ean: 8445639005026 ean: 8445639005033ean: 844563900

Índice

Español

The image contains a single, continuous horizontal line, which is a stylistic or background element. According to Rule 2, such elements must be ignored by the OCR result. Therefore, the corrected OCR text is:

[Empty String]

Illustration of a desk lamp illuminating a lamp with a crossed-out X mark (no text or symbols)

HACER SIEMPRE

Technical line drawing of a mechanical component with an inset showing a close-up view of a component (no text or symbols present)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Pic 3

Isometric technical drawing of a mechanical assembly with mounting base and housing (no text or symbols)

Pic 4

The image contains no text or characters. It is a graphical representation of rectangular blocks arranged in a row.

Technical illustration of a mechanical assembly showing a cylindrical component being processed into a housing, with no visible text or symbols.

Technical line drawing of two 3D mechanical assembly views showing internal components and directional arrows (no text or symbols)

Technical line drawing of a mechanical assembly with a cylindrical component and internal components (no text or symbols)

Simple line drawing of a T-shaped object with a vertical dashed centerline and a black checkmark below (no text or symbols)

Simple line drawing of a hat with a cross mark below (no text or symbols)

Illustration of a hand pressing down on a device with a circular background (no text or symbols)

Nota:

Technical line drawing of a mechanical component with arrows indicating motion or assembly (no text or symbols)

Servicio

Symbol of a trash bin crossed with two crossed lines, representing no waste or discharge (no text or labels)

Architectural line drawing of two kitchen appliances in a room with monitors and lighting equipment (no text or symbols)

CMPG-A7035 CMPG-A9035CMPG-A6035

ean: 8445639005026 ean: 8445639005033ean: 844563900

Content	English
Safety instructions	1
Installation	8
How to use	8
Troubleshooting	18
Manteinance and cleaning	22

Tips on how to get the most out of your new cooker hood

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

make your day-to-day life easier. Follow these simple tips and enjoy your kitchen.

Turn it on a few minutes before you start cooking, a small gesture that helps to keep the air clean of impurities. Do not turn it off just after cooking, leave it running for a few more minutes until it completes its function of purifying the cooking vapours.

Protect the stainless steel surface easily

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

There are baby oils and professional products that treat stainless steel to prevent dust, lint and dirt in general from sticking to it.

What is the recommended distance between the hob and the hood?

It will always depend on each model, although the minimum distance between the cooking zone and the extraction zone is generally

extraction zone will generally be 55 cm for vitro-ceramic or induction hobs. If the hob is a gas hob, the recommended distance will be slightly greater, 65 cm.

For built-in modules, this minimum distance should always be 50 cm for electric hobs and 65 cm for gas hobs.

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

used.

Prevents odours

Our engineering team recommends using the extended run function, if the hood does not have this function, you can leave it running for 5 to 10 minutes manually to absorb the rest of the vapours given off during cooking.

Preventing odours while the hood is operating

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

ppens, the solution is simple: clean it and if it is in bad condition, you will have to replace it.

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

t

to other pieces of crockery. If you do it by hand, we recommend that you soak them in hot soapy water

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

How to clean the metallic filters of a cooker hood?

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

soapy water, clean them and rinse them thoroughly, then just drain them well.

then just drain them well. To do this in the dishwasher, be careful not to wash them together with the crockery or cutlery if they are excessively greasy. Treat them beforehand with a concentrated degreaser to remove the most stubborn grease.

This manual explains the correct installation and use of your cooker hood, please read it carefully before use, even if you are familiar with the product. Please read it carefully before use, even if you are familiar with the product. The manual should be kept in a safe place for future reference.

CAUTION! The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating elements. Children younger than 8 years old should stay away unless they are under permanent supervision.

• There shall be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels.
  •
  •
• Clean your appliance periodically by following the method given in the chapter MAINTENANCE.
  •

recommended in this instruction manual.

• Regarding the details about the method and frequency of cleaning, please refer to maintenance and cleaning section in the instruction manual.
• Cleaning and user maintenance shall not be made by children without supervision.
• When the cooker hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4 x 10–5 bar).

WARNING!

WARNING!

A steam cleaner is not to be used.

WARNING!

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

□□□□□□□□□□□□□□□□□

NEVER TO DO

•
- Do not install above a cooker with a high level grill.
•
•

• If the cooker hood is damaged, do not attempt to use.
  •
• CAUTION: Accessible parts may become hot when used with cooking appliances.
• The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood. (When the cooker hood is located above a gas appliance, this distance shall be at least 65 cm)

•

burning gas or other fuels. Range hoods and other cooking fume extractors may adversely affect the safe operation of appliances burning gas or other fuels (including those in other rooms) due to does not occur.

Illustration of a desk lamp illuminating a wall-mounted device with a cross symbol (no text or labels)

ALWAYS TO DO

IMPORTANT! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement.

• The cooker hood must be installed in accordance with the installation instructions and all measurements followed.
  •
• Please dispose of the packing material carefully. Children are vulnerable to it.
• Pay attention to the sharp edges inside the cooker hood especially during installation and cleaning.
  • cooker hood.

WARNING!

result in electrical hazards

WARNING! Before obtaining access to terminals, all supply circuits must be disconnected.

• Always put lids on pots and pans when cooking on a gas cooker.
- When in extraction mode, air in the room is being removed by the cooker hood. Please make sure that proper ventilation measures are being observed. The cooker hood removes odours from room but not steam.
• Cooker hood is for domestic use only

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

What is the QR code on the energy label for?

Although we see them every day on our household appliances, QR codes are largely overlooked. According to a study by the OCU, only 5% of Spaniards have ever scanned one, probably because they are unaware of their usefulness.

Below, we explain why this little black square is your best ally for saving on your electricity bill.

EPREL: The brain behind the QR code

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

directly to EPREL (European Product Database for Energy Labeling).

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

physical sticker:

• Exact annual energy consumption.
• Detailed product dimensions.
- Noise levels (decibels).
• Duration of standard programs.
•

Fun fact: If you prefer not to use your phone, you can go directly to the European Commission website (EPREL) and search by brand or model. For example, there are currently more than 11,900 dishwashers registered!

How to interpret the energy label?

The energy label is mandatory for appliances sold in the EU, whether in physical stores or online. In addition, the regulations are constantly being updated: from June 2025, tablets and smartphones must also carry it.

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

Energy class Color Meaning
Class A Dark green -		sumption
Class B - F Tonal scale
Class G Red Higher consumption and greater

Why should you scan it before buying?

Scanning the QR code allows you to compare models in real time while you're in the store. Don't just go by the letter (A, B, or C); check the actual technical data in the European database to ensure that your investment will translate into real savings in the long term.

INSTALLATION (VENT OUTSIDE)

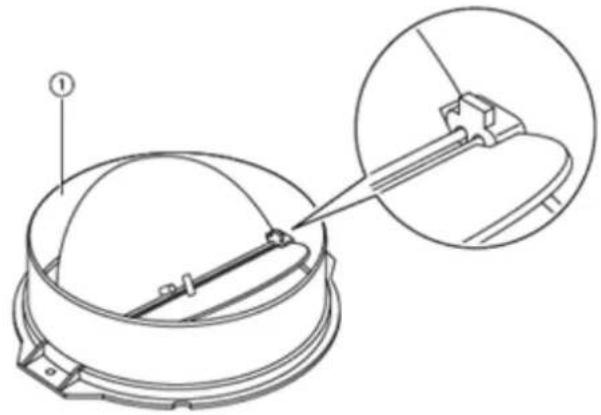

MOUNTING OF THE V-FLAP

1. Mount the two half parts (2) on the body (6).
2. The pin (3) must be facing upwards.
3. The shaft (4) must be inserted into the holes (5) of the body;
   4.

Technical line drawing of a mechanical component with an inset showing a close-up view of a bracket (no text or symbols present)

Installing the cooker hood

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of diameter of 150mm)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

1. Before installation, turn the unit off and unplug it from the outlet.

1. The cooker hood should be placed at a distance of 65\~75cm above the cooking surface for best effect.

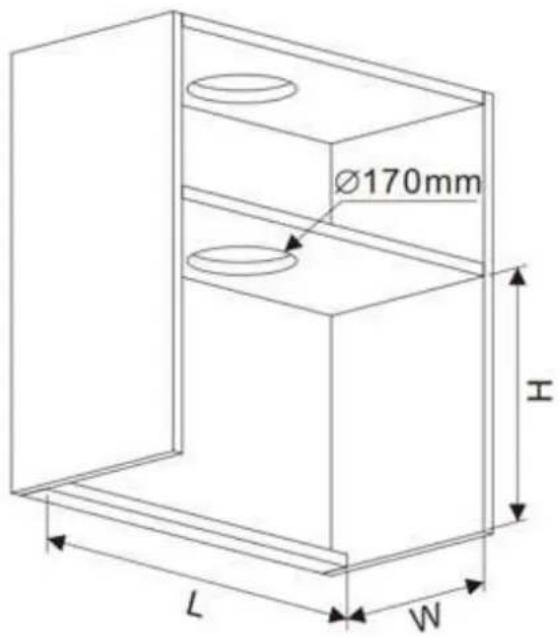

Drill a hole in the cabinet, as shown in picture 2, and reserve space for the socket.

L: 662mm±1 (For the 60cm wide model) 762mm±1 (For 70cm wide model) 962mm±1 (For 90cm wide model)

W: 300mm (without adjustment plate) 315-335mm (without adjustment plate)

H: ≥370mm (without chimney) ≥410mm (without chimney)

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

1. Fix the extractor hood bracket at the back with 8 screws ST4*8mm, see picture 3 (suitable for situations where the opening depth W is 315mm).

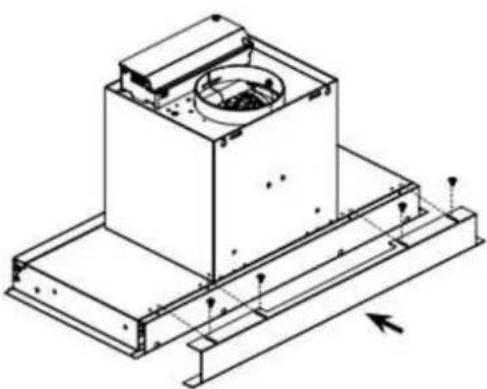

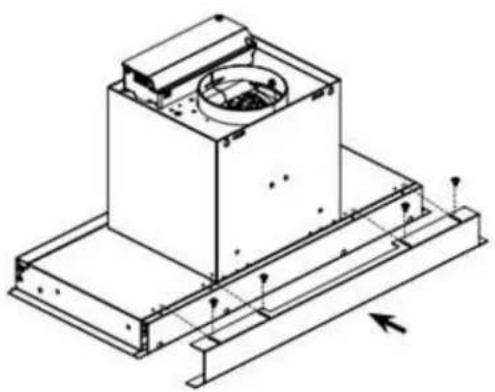

2. Attach the width adjustment bracket to the back of the cooker hood with 4 ST4*8mm screws, and make sure to adjust to the desired width. See picture 4 (suitable for situations where the opening depth W is between 315mm and 335mm).

Technical line drawing of a mechanical assembly with no visible text or symbols

Pic 3

Technical line drawing of a mechanical assembly with mounting base and housing (no text or symbols)

Pic 4

WARNING!	For safety reason, please use only the same size of fixing or mounting screws which are recommended in this instruction manual.
	Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

Technical illustration of a mechanical assembly showing a cylindrical component being processed into a housing, with no visible text or symbols.

1. Lift the extractor hood, pass the power cable and the expansion pipe through the hole in the cabinet,

Technical line drawing of two 3D mechanical assembly views showing internal components and directional arrows (no text or symbols)

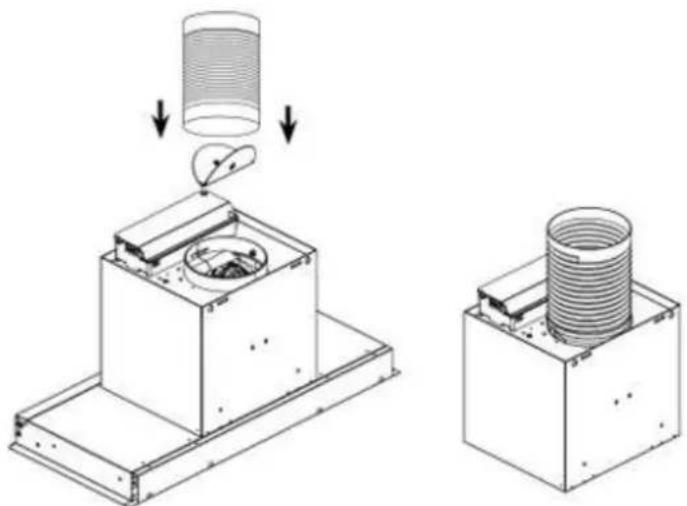

1. Bring the expansion tube to the outside and connect the unit to the mains.

2. Install the chimney on the extractor hood with 2 screws ST4*8mm. See the following picture:

Technical line drawing of a mechanical assembly with a cylindrical component and internal components (no text or symbols)

Tips for the installation of the exhaust pipe

The following rules must be strictly followed to obtain optimum air extraction:

• Keep the expansion tube short and straight.
• Do not reduce the size or restrict the expansion tube.
• When using the expansion tube, always install it taut to minimize pressure loss.
• Failure to follow these basic instructions will reduce performance and increase fume hood noise levels.

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

-Do not connect the hood duct system to any existing ventilation system being used for any other appliance, such as a heater pipe, gas pipe or hot air pipe.

-The angle of the expansion pipe bend must not be less than 120^ ; you must route the pipe horizontally, or, alternatively, the pipe must rise from the starting point and must be routed to an outside wall.

- After installation, make sure that the fume hood is level to avoid grease accumulation at one end.

-Ensure that the expansion pipe selected for installation complies with the relevant standards and is

Simple line drawing of a T-shaped object with a vertical dashed centerline and a black checkmark below (no text or symbols)

Simple line drawing of a hat with a cross symbol below (no text or labels)

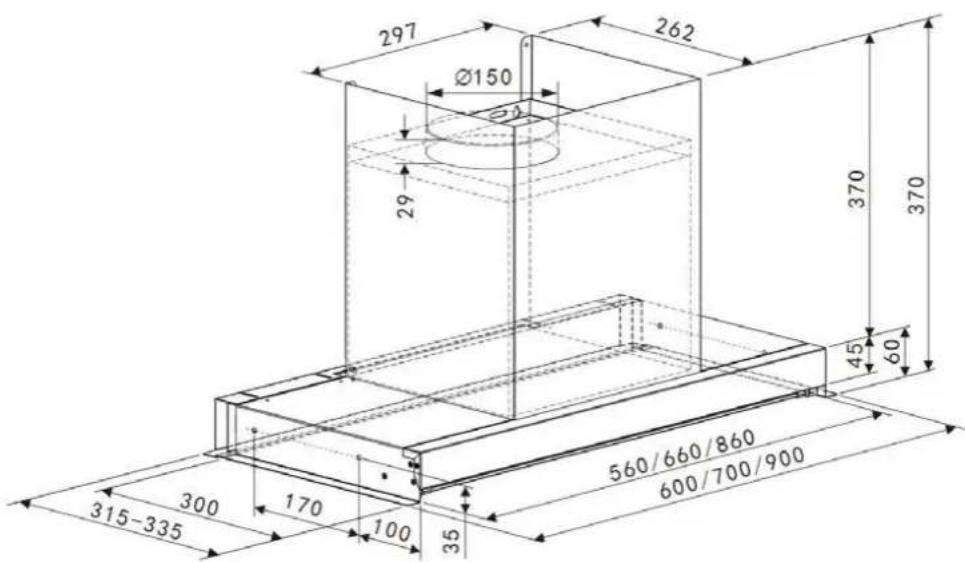

Product's measures

The control panel has 5 buttons:

Once connected to the power supply, the indicator light will turn on, all outputs will close and the hood will enter standby mode. The indicator light will automatically turn off after a reminder if there is no activity.

The indicator light will turn off automatically after recalling if there is no activity.

1. Power On: Press the power button once, the indicator light will turn on and the hood will operate on low speed.

will operate at low speed. The low speed indicator light will illuminate. Press the power button again to turn it off, and its indicator light will turn off. All hood functions will close, the hood will enter standby mode and begin to run in a circular motion.

The speed buttons and the light button can operate separately and are not controlled by the power button. When a certain function button is pressed, the hood will operate in that mode. If the power button is pressed in any state, the cooker hood will turn off without any operation.

1. Press the light button once; the light will turn on. The indicator light of the lamp button and the power button will turn on.

2. Press the light button again to turn off the lights. The indicator light on the light button and the power button will turn off.

3. Press the Suction Power HIGH button once, the motor will run at high speed, the indicator light on the Suction Power HIGH button will turn off.

Press the Suction Power HIGH button once, the motor will run at high speed, the indicator light on the Suction Power HIGH button will turn on. Press the button again and the motor will stop.

will stop. The indicator light on the Suction Power HIGH button and the power button will illuminate. will illuminate. Press the Suction Power HIGH button again and the motor stops. The indicator light on the Suction Power

The indicator light on the Suction Power HIGH button and the power button will go out.

1. Press the MEDIUM Suction Power button once, the motor will run at medium speed, the indicator light on the MEDIUM Suction Power button and the power button will illuminate. Press the power button again and the motor will stop. The indicator light on the MEDIUM suction power button and the power button will go out.

2. Press the LOW Suction Power button once, the motor will run at low speed, the indicator light on the LOW Suction Power button will illuminate, the indicator light on the MEDIUM Suction Power button will turn off.

Press the LOW Suction Power button once, the motor will run at low speed, the LOW Suction Power button indicator light and the power button will illuminate.

Press the Suction Power LOW button again and the motor will stop. The indicator light of the Suction Power LOW button and the power button will illuminate.

The indicator light on the Suction Power LOW button and the power button will turn off.

1. Low speed, medium speed and high speed cannot operate at the same time. When the hood is in high speed, press the low speed button, and it will switch to low speed immediately; when it is in low speed, press the medium speed button, and it will switch to medium speed immediately, and so on.

Whenever there is a problem with the appliance, check if you can solve it by following the tables below. If the problem persists, please contact customer support.

PROBLEM POSSIBLE	CAUSE SOLUTION
Light on, but motor does not work	Fan switch turned offFan switch failedMotor failed	Select a fan switch position.Contact service center.Contact service center.
Light does not work, motor does not work	House fuses blownPower cord loose or disconnected	Reset/Replace fuses.Switch power outlet on.
Oil leakage	One way valve and the outlet are not tightly sealedLeakage from the connection of chimney and cover	Take down the one way valve and seal with sealant.Take chimney down and seal.
Lights not working Broken/Faulty globes	Replace globes as per this	instruction.
The distance between the cooker hood and the gas top is too far		correct distance.
The Cooker hood inclines		Tighten the hanging screw and make it horizontal.

Note: Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact the service centre if in any doubt before undertaking any of the above. Always disconnect the unit from the power source when opening the unit.

CAUTION! Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the mains power supply. Ensure that the cooker hood is switched off at the wall socket and the plug removed.

Note External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructionsto ensure the best possible result is achieved withoutdamage.

General

Cleaning and maintenance should be carried out with the appliance cold especially when cleaning. Avoid leaving alkaline or acid substances (lemonjuice, vinegar etc.) on the surfaces.

Stainless steel

The stainless steel must be cleaned regularly (e.g.weekly) to ensure a long life expectancy.Dry with a

Note: Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly crisscross scratching patterns fromappearing.

Control panel surface

The inlay control panel can be cleaned using warmsoapy water. Ensure the cloth is clean and well wrungbefore cleaning. Use a dry soft cloth to remove anyexcess moisture left after cleaning.

Important! Using neutral detergents and avoid using harsh cleaning chemicals, stronghousehold detergents or products containing abrasives, as this will affect the appearance of the appliance and potentially remove any printing of artwork on the control panel and will void manufactures warrantee.

Grease mesh filters

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

and then brush it gently with a soft brush. Do not apply too much pressure so as to avoid any damage to it . (Leave to dry naturally out of direct sun light)

Filters should be washed separately to crockery andkitchen utensils.It is advisable not to use rinseaid.

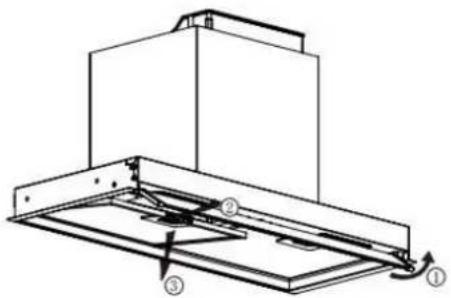

Installing grease mesh filters

□□□□□□□□□□□□□□□□□□

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

□□□□□□□□□□□□□□□□□□□

□□□□□□□□□□□□□□□□□□□□□□□□□□

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

Illustration of a hand using a smartphone to interact with a screen (no text or symbols visible)

Carbon filter - not supplied

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

changed every 3 to 6 months according to your cooking habits. The installation procedure of activated

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

mains power to the unit.

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

□□□□□□□□□□□□□□□□□□□□□□

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

1. Connect the power supply to the wall socket.

Note:

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

Bulb replacement

IMPORTANT!

The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons.

Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it has completely cooled down before any direct contact with hands.

When handling bulbs hold with a cloth or gloves to ensure perspiration does not come in contact with the bulb as this can reduce the life of the bulb.

Note: Before changing the lights, make sure that the appliance isturned off and unplugged.

Protect against danger when changing lights, such as wearing gloves.

To change the cooker hood lights, follow the steps below:

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□○

Use a tool or the hand to press the spring splinter of both sides of LED light to the inside, until the light is pressed out. Then slightly pull the light connecting wire out and replace the lights.

Apply the reverse procedure to install the light back.

ILCOS D code for this lamp is: DSS-1.5/65-S-120/33

• LED modules- RECTANGULAR lamp
• Max wattage: 2×1.5 W
• Voltage range: DC 12V
• Dimensions:

Technical line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Service & Disposal

• competent person.

- This product must be serviced by an authorised Service Centre, and only original spare parts must be used.

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

This symbol on the product or on its packaging indicates that this product must not be treated as household waste. Instead, it must be taken to the appropriate collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this product, please contact your local authorities, your household waste disposal service or the shop where you purchased the product.

Packing materials

Materials with the symbol 🙏 are recyclable. Dispose of the packaging in a suitable collection container for recycling.

Disposal of the device

1. Disconnect the plug from the socket.
2. Cut the power cord and discard it.

Energy saving

The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process).

1. Clean the cooker hood regularly so as not to block the airway.
2. Remember to switch off the cooker hood light after cooking.
3. Remember to switch off the cooker hood after cooking.

INFINITON

EXAUSTOR DE COZINHA

Architectural line drawing of two kitchen appliances in a room with monitors and lighting equipment (no text or symbols)

CMPG-A7035 CMPG-A9035CMPG-A6035

ean: 8445639005026 ean: 8445639005033ean: 844563900

Índice

Português

Illustration of a desk lamp illuminating a wall-mounted device with a cross mark (no text or symbols)

SEMPRE FAZER

Technical line drawing of a mechanical component with an inset showing a close-up view of a bracket (no text or symbols present)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

L: 662mm±1 (para o modelo de 60cm de largura) 762mm±1 (para o modelo com 70cm de largura) 962mm±1 (Para o modelo de 90cm de largura)

L: 300mm (sem a placa de ajuste) 315-335mm (sem a placa de ajuste)

H: ≥370mm (sem chaminé) ≥410mm (sem chaminé)

□□□□□□□□□□□□□□□□□□□

Technical line drawing of a mechanical assembly with no visible text or symbols

Pic 3

Technical line drawing of a mechanical assembly with mounting base and housing (no text or symbols)

Pic 4

Technical illustration of a mechanical assembly showing a cylindrical component being inserted into a housing, with no visible text or symbols.

Technical line drawing of two 3D mechanical assembly views showing internal components and directional arrows (no text or symbols)

Technical line drawing of a mechanical assembly with a cylindrical component and internal components (no text or symbols)

Simple line drawing of a T-shaped object with a vertical dashed centerline and a checkmark below (no text or symbols)

Simple line drawing of a hat with a cross mark below (no text or symbols)

The image contains a single, continuous horizontal line, which is a stylistic or background element. According to Rule 2, such elements must be ignored by the OCR result. Therefore, the corrected OCR text is:

[Empty String]

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

□□□□□□□□□□□□□□□□□□□□□□□□

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

Illustration of a hand using a tablet to interact with a device, showing a finger pointing at the screen (no text or symbols present)

Nota:

Technical line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Symbol of a trash bin crossed with two crossed lines and a solid rectangle below (no text or labels)

¿Necesitas ayuda?

Silhouette of a person wearing a headset with a wrench icon (no text or symbols)

INFINITON

TÉRMINOS Y REGISTRO DE GARANTÍA
