KGV36VLEA - Fridge BOSCH - Free user manual and instructions

Product type	Combined fridge-freezer
Brand	Bosch
Model	KGV36VLEA
Total volume	Approx. 300 L
Refrigerator volume	Approx. 200 L
Freezer volume	Approx. 100 L
Dimensions (H x W x D)	186 cm x 60 cm x 65 cm
Weight	Approx. 70 kg
Power supply	220-240 V, 50 Hz
Lighting	LED (replaceable by customer service)
Refrigerator shelves	4 adjustable glass shelves
Freezer shelves	3 shelves
Drawers	1 vegetable drawer, 1 fruit drawer
Bottle rack	Yes, removable
Reversible door	Yes (interchangeable hinges)
Refrigerator defrosting	Automatic
Freezer defrosting	Manual
Refrigerant	R600a (isobutane)
Safety instructions	Unplug before servicing, wear protective gloves
Spare parts available	Seals, handles, hinges, shelves, drawers, LED lighting, etc.
User repairability	Yes, according to the provided repair guide

Frequently Asked Questions - KGV36VLEA BOSCH

How to replace the refrigerator door seal?

First remove the old seal by pulling it out of the groove at the corners. To install the new seal, warm it with a hair dryer or hot water to restore its shape, then gradually push it into the groove starting from the corners. Make sure the groove is not damaged.

How to replace the door handle?

Unplug the appliance and open the door. Remove the two screw caps, unscrew the two screws with a Torx TX20 bit, then remove the handle. Assembly is in reverse order.

How to defrost the freezer?

The freezer defrosts manually. Turn off the appliance, remove food and drawers, and leave the door open so the ice melts. Do not use sharp objects to scrape ice.

What to do if the LED lighting stops working?

The LED lighting is maintenance-free. To replace it, unplug the appliance and remove the lighting by moving it to the left and releasing the hooks. Assembly is the reverse. If you are not comfortable, contact customer service.

How to adjust the refrigerator shelves?

The glass shelves are adjustable in height. Remove the shelf by lifting it slightly and pulling it forward, then insert it at the desired height on the side supports.

How to reverse the door opening direction?

Reversing requires disassembling the upper, middle, and lower hinges, as well as the handle. Detailed procedures are in sections 4.3 to 4.5 of the manual. It is recommended to call a specialist due to the weight of the appliance.

What tools are needed for common repairs?

The main tools are a Torx TX20 bit, a 2.4 mm flathead screwdriver, a suction cup (∅50 mm), and a special tool (ref. 00342180). A complete list is provided in the 'Tools and aids' section.

Where to find spare parts for this model?

Use only original Bosch parts. You can order them from Bosch customer service or on the official website. Parts include seals, handles, hinges, shelves, drawers, and LED lighting.

How to clean the interior of the refrigerator?

Unplug the appliance, remove all food and accessories. Clean the interior with a soft cloth and warm soapy water. Rinse and dry. Do not use abrasive cleaners or solvents.

What to do in case of a prolonged power outage?

Keep the door closed to maintain cold. Frozen foods remain frozen for about 24 hours if the door is not opened. Do not refreeze partially thawed food without cooking it first.

USER MANUAL KGV36VLEA BOSCH

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Diagram of hands holding a refrigerator with shelves and doors, showing structural components (no text or symbols)

Ремонт

Diagram of a hand interacting with a multi-tiered storage unit, showing directional arrows indicating movement (no text or symbols present)

Diagram showing a star-shaped object with a cross mark and a ruler, no text or symbols present

Simple line drawing of a ruler and a checkmark on a surface (no text or symbols)

Ремонт

Diagram of a device with an arrow pointing to a component labeled ① (no text or symbols beyond the label)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Рафтът е свален.

Abstract diagram with wavy blue lines and a black arrow pointing downward (no text or symbols)

Diagram of a mechanical assembly with two components and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or architectural component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or electrical component with a red rectangular block and directional arrow, no visible text or symbols.

Diagram of a mechanical assembly with a tool inserted into a component, no visible text or symbols

Ремонт

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D cabinet or shelf with arrows indicating direction, no text or symbols present.

Diagram of hands holding a refrigerator with shelves and doors, showing structural components (no text or symbols)

Popravak

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Brtva vrata je postavljena.

Popravak

Diagram showing a star-shaped object with a horizontal line and a cross symbol, no readable text or labels present.

Simple line drawing of a pencil and a checkmark on a surface (no text or symbols)

Popravak

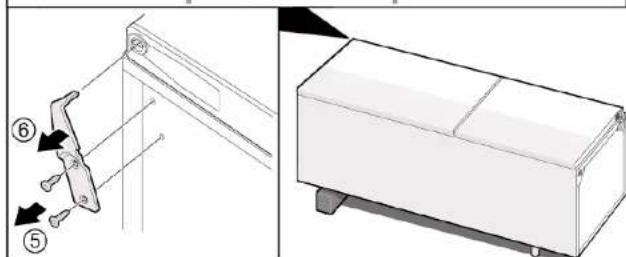

1. 1. Pritisnite poklopac gornjeg zgloba s obje strane (1).

2. Izvadite poklopac gornjeg zgloba (2).

3. Okrenite poklopac zgloba (3).
4. Uklonite poklopac gornjeg zgloba (4).
5. Odvijte dva vijka (5).
6. Uklonite gornji zglob (6)

Gomji je zglob uklonjen.

4.3.2 Postavljanje gornjeg zgloba vrata

▶ Postavite obratnim redoslijedom.

Popravak

Srednji je zglob uklonjen.

4.4.2 Postavljanje srednjeg zgloba vrata

▶ Postavite obratnim redoslijedom.

Popravak

Diagram of a mechanical device with a labeled component (①) and directional arrow, no readable text or symbols present.

Donji je zglob vrata uklonjen.

4.5.2 Postavljanje donjeg zgloba vrata

▶ Postavite obratnim redoslijedom.

Popravak

4.6 Zamjena police

Zahtjev:

Vrata su otvorena.

4.6.1 Uklanjanje police

- Izvucite policu.

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Abstract diagram of wavy blue lines with a black arrow pointing downward, no text or symbols present

Polica za boce je uklonjena.

4.7.2 Postavljanje police za boce

▶ Postavite obratnim redoslijedom.

Popravak

Diagram of a mechanical assembly with two components and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or structural component with directional arrows indicating movement or force (no text or symbols present)

Prilagodljiva posuda za vrata je uklonjena.

4.9.2 Postavljanje prilagodljive posude za vrata

Diagram of a refrigerator with an arrow indicating movement, showing no text or symbols

Spremnik za zamrznute namirnice je uklonjen.

4.10.2 Postavljanje spremnika za zamrznute namirnice

▶ Postavite obratnim redoslijedom.

Popravak

4.11 Zamjena spremnika

Zahtjev:

Vrata su otvorena.

4.11.1 Uklanjanje spremnika

1. Izvadite donji spremnik hladnjaka (1).
2. Izvadite gornji spremnik hladnjaka (2).

Spremnici su uklonjeni.

- Izvlačni spremnik je uklonjen.

4.12.2 Postavljanje izvlačnog spremnika

▶ Postavite obratnim redoslijedom.

Popravak

4.13 Zamjena LED gornjeg svjetla

Specijalni alati:

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a mechanical component with a red block and vertical supports (no text or symbols)

Popravak

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular appliance with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Oprava

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Diagram showing a star-shaped object with a cross mark and a ruler, no text or symbols present

Simple line drawing of a horizontal rod and a checkmark on a surface (no text or symbols)

Oprava

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Abstract diagram with wavy lines and a black arrow pointing downward (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or electrical component with two upward arrows indicating direction (no text or symbols present)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a mechanical assembly with a tool inserted into a component, no visible text or symbols

Oprava

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Reparation

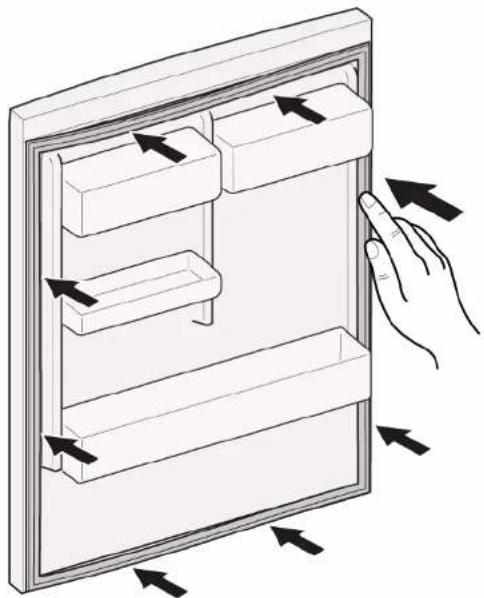

1. Tryk hele pakningen trinvist i rillen.

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Diagram showing a star-shaped object with a cross mark and a hatched line, no readable text or symbols present.

Simple line drawing of a beam and a checkmark on a surface (no text or symbols)

Reparation

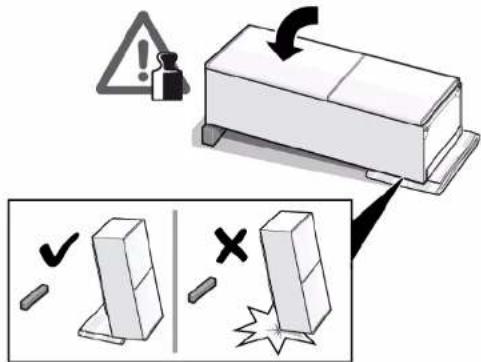

▶ Sørg for at sikre apparater mod at glide.

PAS PÅ!

Diagram of a device with an arrow pointing to a component, no text or symbols present

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Hylden er fjernet.

Abstract diagram with wavy lines and a black arrow pointing downward (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or architectural component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a refrigerator with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a mechanical component with a red component, no visible text or symbols

Reparation

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Reparatie

Diagram of a hand interacting with a multi-tiered storage unit, showing directional arrows indicating movement (no text or symbols present)

Apparaat is losgekoppeld is van de stroomvoorziening.
Deur is open.

Reparatie

Simple line drawing of a box with an arrow and a black tie, no text or symbols present

Diagram of a mechanical device with a labeled component and directional arrow (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Abstract diagram with wavy lines and a black arrow pointing downward (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or structural component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a refrigerator with an arrow indicating direction (no text or symbols present)

Diagram of a ceiling-mounted device with a red component and black arrow indicating direction (no text or symbols)

Diagram of a screwdriver inserted into a component, showing a red block and mechanical assembly (no text or symbols)

Reparatie

Repair hints - Fridge-freezer

i Concerning this document.... 113

1.1 Important information.... 113

1.1.1 Purpose.... 113

1.2 Explanation of symbols 113

1.2.1 Danger levels.... 113

1.2.2 Hazard symbols 113

1.2.3 Structure of the warnings.... 114

1.2.4 General symbols.... 114

Safety

2.1 General Safety instructions 115

2.1.1 All domestic appliances 115

Tools and aids....1

Repair

4.7 Replacing bottle tray....126

4.7.1 Removing bottle tray 126

4.7.2 Installing bottle tray 126

4.8 Replacing door rack 127

4.13.1 Removing LED light.... 132

4.13.2 Installing top LED light 133

i Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumer to repair appliances by himself according to the applicable eco-design regulation (as of 03/2021).

They contain information how to exchange defined spare parts including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Warning level Meaning
	Danger	Non-observance of the warning message will result in death or serious injuries.
	Warning	Non-observance of the warning message could result in death or serious injuries.
	Caution	Non-observance of the warning message could result in minor injuries.
Notice		Non-observance of the warning message could result in damage to property.

Table 1: Danger levels

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger.
The following hazard symbols are used in this document:

Hazard symbol Meaning
		General warning message
		Danger from electrical voltage
		Risk of explosion
		Danger of cuts
		Danger of crushing

i Concerning this document

Hazard symbol Meaning
		Danger from hot surfaces
		Danger from strong magnetic field
		Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Type and source of danger!

Possible consequences of ignoring the danger / warning.

▶ Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
	Identification of a special tip (text and/or graphic)
	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
StartIdentification of a key or button
[00123456] Identification of a material number
StatusIdentification of displayed text / window(in the appliance's display)

Table 3: General symbols

Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts!

• Errors by repairs involving electrical components can lead to electrical shock!
  ■ Disconnect the appliance from the mains for at least 60 seconds before starting work.
  ■ After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of injury from sharp edges!

■ Wear protective gloves.

Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components

■ Wear protective shoes.
■ Secure heavy components from falling down.
■ Do not stick body parts into moving components.

Risk to the appliance's safety / function!

■ Only use original spare parts.

Risk of damage to electrostatically sensitive components (ESDs)!

- Do not touch the modules, including connections and conductor paths.

Tools and aids

Designation Details Images
Protection cloth[00342013]	60 cm x 50 cm
Slotted screwdriver Blade 2.4 mm x 0.4 mm x60 mm, in the kit [00341820]
Special tool[00342180]
Suction cup[00342224]	∅50 mm
Torx Bit TX20[00340865]	6,3 mm (1/4")
Slotted screwdriver Blade 10 mm x 1.6 mm x200 mm

Repair

1. Release door gasket from the groove on right and left corner.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Pull out door gasket from groove.

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Door gasket is removed.

	Thickness of new door gasket may deviate slightly from thickness of old door gasket. This will not affect closing behavior and long-term function.
	If your appliance has adjustable hinges or hinge attachments, you can optimize the closing behavior subsequently.
	Small side holes in door gasket are functional (required for ventilation). These are not production faults.

Repair

1. Check groove for gasket for damage.

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

1. If groove for gasket is it is damaged.

2. Contact customer service.

3. i Slight deformation of door gasket is normal and does not affect its function. It is recommended to straighten door gasket before inserting it into appliance.

Heat door gasket with a hair dryer or hot water and manually reshape it.

1. Push corners of gasket at the top and bottom to the groove.

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Repair

1. Press whole gasket step by step into the groove.

Diagram of a hand interacting with a multi-tiered storage unit, showing directional arrows indicating movement (no text or symbols present)

Door gasket is installed.

Repair

4.2 Replacing door handle

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Slotted screwdriver Blade 10 mm x 1.6 mm x 200 mm

Prerequisite:

√ Appliance is disconnected from power supply.
√ Door is open.

4.2.1 Removing door handle

1. Remove two screw caps (1).
2. Unscrew two screws (2).
3. Remove door handle (3).

Door handle is removed.

Door handle for the second door can be removed in the same manner.

▶ Install in reverse order.

Repair

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance interior fittings are removed.

1. Place appliance on the back side.

Repair

1. 1. Press upper hinge cover on both sides (1).

2. Move out upper hinge cover (2)

3. Rotate hinge cover (3).
4. Remove upper hinge cover (4).
5. Unscrew two screws (5).
6. Remove upper hinge (6)

Upper hinge is removed.

▶ Install in reverse order.

Repair

4.4 Replacing door middle hinge

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance interior fittings are removed.
√ Door upper hinge is removed.

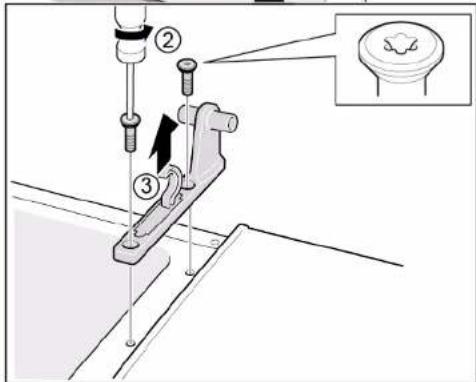

4.4.1 Removing door middle hinge

▶ 1. Remove fridge compartment door (1).
2. Unscrew two screws (2).
3. Remove middle hinge (3).

Middle hinge is removed.

▶ Install in reverse order.

Repair

4.5 Replacing door lower hinge

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance interior fittings are removed.
√ Upper hinge is removed.

√ Middle hinge is removed.

4.5.1 Removing door lower hinge

▶ 1. Remove freezer compartment door (1).
2. Unscrew the screw (2).
3. Turn lower hinge out (3).
4. Remove lower hinge (4).

Door lower hinge is removed.

4.5.2 Installing door lower hinge

▶ Install in reverse order.

Repair

4.6 Replacing shelf

Prerequisite:

Door is open.

4.6.1 Removing shelf

▶ Pull out shelf.

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Shelf is removed.

4.6.2 Installing shelf

▶ Install in reverse order.

Repair

4.7 Replacing bottle tray

Prerequisite:

√ Door is open.

4.7.1 Removing bottle tray

▶ Pull out bottle tray.

Abstract diagram with wavy lines and a black arrow pointing downward (no text or symbols)

→ Bottle tray is removed.

4.7.2 Installing bottle tray

▶ Install in reverse order.

Repair

4.8 Replacing door rack

Prerequisite:

√ Door is open.

▶ Lift door rack upwards.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Door rack is removed.

▶ Install in reverse order.

Repair

4.9 Replacing adjustable door rack

Prerequisite:

√ Door is open.

4.9.1 Removing adjustable door rack

- Move high-adjustable door rack upwards until the door rack is released from the holder.

Diagram of a mechanical or structural component with directional arrows indicating movement or force (no text or symbols present)

Adjustable door rack is removed.

▶ Install in reverse order.

Repair

4.10 Replacing frozen food container

Prerequisite:

√ Door is open.

4.10.1 Removing frozen food container

1. Pull out frozen food container all the way (1).
2. Remove food container (2).

Diagram of a refrigerator with an arrow indicating direction (no text or symbols present)

Frozen food container is removed.

4.10.2 Installing frozen food container

▶ Install in reverse order.

Repair

4.11 Replacing container

Prerequisite:

√ Door is open.

4.11.1 Removing container

1. Move out lower fridge container (1).
2. Move out upper fridge container (2).

Containers are removed.

4.11.2 Installing container

▶ Install in reverse order.

Repair

4.12 Replacing extendable container

Prerequisite:

√ Door is open.

4.12.1 Removing extendable container

1. Pull extendable container out all the way (1).
2. Remove extendable container (2).

Extendable container is removed.

4.12.2 Installing extendable container

▶ Install in reverse order.

Repair

4.13 Replacing LED top light

Required tools:

Slotted screwdriver Blade 2.4 mm x 0.4 mm x 60 mm, in the kit [00341820]

Your appliance features a maintenance-free LED light. These lights may be repaired by customer service or authorised technicians only!

Danger Risk of electric shock due to live Danger to life through electric shock - Electric parts should be rep - After the repair have a safe specific regulations perform

Danger Risk of electric shock due to live Death by electrocution ▶ Disconnect appliances from before starting repairs.

Caution Sharp edges! Cut injuries ▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
Door is open.
√ Upper interior fittings are removed.

4.13.1 Removing LED light

1. Move the LED light to the left side.

Diagram of a mechanical or electrical component with a red component and directional arrow, no visible text or symbols

LED light electrical connection is disconnected.

1. Release LED light hooks.

Diagram of a screwdriver inserted into a mechanical component, showing no text or symbols

Repair

1. Remove LED light moving it forward.

LED light is removed.

4.13.2 Installing top LED light

▶ Install in reverse order.

Remonditeave - Kombikülmik

i Selle dokumendiga seoses 135

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular appliance with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Remont

1. Vajutage terve tihend jupphaaval soonde.

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Diagram showing a star-shaped object with a cross mark and a hatched line, no readable text or symbols present.

Simple line drawing of a tool and a checkmark on a surface (no text or symbols)

Remont

Diagram of a device with a labeled component and directional arrow (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram of a roof drainage system with wavy roof lines and black directional arrows indicating flow or movement (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or architectural component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a refrigerator with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a mechanical component with a red component, no visible text or symbols

Remont

1. Eemaldage LED-tuli, liigutades seda ettepoole.

Diagram of a mechanical or electrical component with a red rectangular block and downward arrow, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular appliance with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating handle and tray (no text or symbols)

Korjaus

Diagram of a hand interacting with a refrigerator drawer, showing arrows indicating movement (no text or symbols present)

Diagram showing a star-shaped object with a cross mark and a hatched line, no readable text or symbols present.

Simple line drawing of a pencil and a checkmark on a surface (no text or symbols)

Korjaus

Diagram of a mechanical device with a labeled component (①) and an arrow indicating direction, no text or symbols present.

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Hylly on poistettu.

Abstract diagram with wavy blue lines and a black arrow pointing downward (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or structural component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a refrigerator with an arrow indicating direction (no text or symbols present)

Diagram of a ceiling-mounted device with a red component and black arrow indicating direction (no text or symbols)

Diagram of a mechanical assembly with a tool inserted into a component, no visible text or symbols

Korjaus

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Retirer le joint de porte de la rainure.

Illustration of hands holding a cable inside a rectangular appliance with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating front and back (no text or symbols)

Réparation

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Diagram showing a star-shaped object with a cross mark and a ruler, no text or symbols present

Simple line drawing of a pencil and a checkmark on a surface (no text or symbols)

Réparation

Diagram of a device with an arrow pointing to a component, labeled with number ① (no text or symbols on the diagram itself)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Abstract diagram with wavy lines and a black arrow pointing downward (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or structural component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a refrigerator with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical or electrical setup with a red component and connected components (no visible text or symbols)

Diagram of a screwdriver inserted into a component, showing a red component and mechanical assembly (no text or symbols)

Réparation

Illustration of hands connecting a cable to a storage unit panel (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating front and back (no text or symbols)

Instandsetzen

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Diagram showing a star-shaped object with a cross mark and a ruler, no text or symbols present

Simple line drawing of a tool and a checkmark on a surface (no text or symbols)

Instandsetzen

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram of a roof drainage system with wavy roof lines and black directional arrows indicating flow or movement (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or architectural component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Diagram of a ceiling-mounted device with a red component and black arrow indicating direction (no text or symbols)

Diagram of a screwdriver inserted into a component, showing a red block and mechanical assembly (no text or symbols)

Instandsetzen

Illustration of hands connecting a cable to a door panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted device with a black arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon, showing internal compartments and directional arrows (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Επισκευή

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Diagram showing a star-shaped object with a cross mark and a rectangular block, no text or symbols present.

Simple line drawing of a tool on an inclined plane and a checkmark below (no text or symbols)

Επισκευή

Diagram of a device with a labeled component and directional arrow (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

To páfi aφαιρέθηκε.

Abstract diagram with wavy lines and a black arrow pointing downward (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

To páfi pórtas éxei aφαιρεθεί.

Diagram of a mechanical or architectural component with directional arrows indicating movement or force (no text or symbols present)

To páfi pórtas me duvatótnta rúθμισης έχει αφαιρεθεί.

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

To theckopiko surtári aφαιρέθηκε.

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a component, showing a red component and surrounding vertical lines (no text or symbols)

Επισκευή

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating handle and seat (no text or symbols)

Javítás

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Javítás

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Abstract diagram with wavy lines and a black arrow pointing downward (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or architectural component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a refrigerator with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a mechanical assembly with a tool inserted into a component, no visible text or symbols

Javítás

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating handle and seat (no text or symbols)

Riparazione

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Diagram showing a star-shaped object with a cross mark and a rectangular block, no text or symbols present.

Simple line drawing of a horizontal rod above a ground surface with a checkmark below (no text or symbols)

Riparazione

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Abstract diagram with wavy lines and a black arrow pointing downward (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or architectural component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a refrigerator with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a mechanical component with no visible text or symbols

Riparazione

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Remonts

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Durvju rokturis ir nonemts.

Otru durvju rokturi nonem tāpat.

Diagram showing a star-shaped object with a horizontal line and a cross symbol, no readable text or labels present.

Simple line drawing of a pencil and a checkmark on a surface (no text or symbols)

Remonts

Diagram of a mechanical device with a labeled component and directional arrow (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Plaukts ir iznemts.

Abstract diagram of wavy blue lines with a black arrow pointing downward, no text or symbols present

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or structural component with directional arrows indicating movement, no text or symbols present.

Diagram of a refrigerator with an arrow indicating movement, showing no text or symbols

- Izvelkamä tvertne ir iznemta.

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a mechanical component with no visible text or symbols

Remonts

1. Lai nonemtu LED gaismekli, virziet to uz priekšu.

→ LED gaismeklis ir nonemts.

Illustration of hands connecting a cable to a rectangular device with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating front and back (no text or symbols)

Remontas

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Diagram showing a star-shaped object with a horizontal line and a cross mark, no text or symbols present

Simple line drawing of a tool on a surface with a checkmark below (no text or symbols)

Remontas

Diagram of a mechanical device with a folded paper box and a black triangular component, no text or symbols present

Diagram of a mechanical device with a labeled component (①) and directional arrow, no readable text or symbols present.

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Lentyna išimta.

Abstract diagram with wavy blue lines and a black arrow pointing downward (no text or symbols)

Diagram of a two-panel door handle assembly with arrows indicating direction (no text or symbols)

Diagram of a mechanical or electrical component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Talpyklos išimtos.

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a component, showing a red component and mechanical assembly (no text or symbols)

Remontas

LED lemputė išimta.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted device with a black arrow indicating rotation (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating handle and seat (no text or symbols)

Reparasjon

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Diagram showing a star-shaped object with a cross mark and a small rectangular object inside, no text or symbols present.

Simple line drawing of a ruler and a checkmark on a surface (no text or symbols)

Reparasjon

∅vre hengsel er demontert.

Diagram of a mechanical device with a handle and arrow, no visible text or symbols

Diagram of a device with a labeled component (①) and an arrow indicating direction, no text or symbols present.

→ Nedre dørhengsel er demontert.

4.5.2 Montering av nedre dørhengsel

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Abstract diagram with wavy blue lines and a black arrow pointing downward (no text or symbols)

Flaskehyllen er demontert.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or electrical component with two upward arrows indicating direction (no text or symbols present)

Diagram of a refrigerator with an arrow indicating movement, showing no text or symbols

→ Beholderen for frysevarer er demontert.

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

LED-lampens elektriske tilkobling kobles fra.

1. Løsne LED-lampens kroker.

Diagram of a mechanical assembly with a tool inserted, showing a red component and a gray base (no text or symbols)

Reparasjon

LED-lampen er demontert.

Illustration of hands connecting a cable to a refrigerator panel with shelves and doors (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted device with a black arrow indicating rotation (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Naprawy

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Diagram showing a star-shaped object with a cross mark and a hatched line, no readable text or symbols present.

Simple line drawing of a ruler and a checkmark on a surface (no text or symbols)

Naprawy

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Półka jest wyjęta.

4.6.2 Montaż półki

Diagram of a roof drainage system with wavy roof lines and black directional arrows indicating flow or movement (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or structural component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a refrigerator with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical or electrical setup with a red component and a black arrow pointing to it, no visible text or symbols.

Diagram of a screwdriver inserted into a component, showing a red component and mechanical assembly (no text or symbols)

Naprawy

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular panel with a curved arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Reparação

Diagram showing a star-shaped object with a cross mark and a ruler, no text or symbols present

Simple line drawing of a tool on a surface with a checkmark below (no text or symbols)

Reparação

1. 1. Pressione a tampa da dobradiça superior de ambos os lados (1).

2. Extraia a tampa da dobradiça superior (2).

3. Rode a tampa da dobradiça (3).
4. Remova a tampa da dobradiça superior (4).
5. Desaperte dois parafusos (5).
6. Remova a dobradiça superior (6).

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Abstract diagram with wavy lines and a black arrow pointing downward (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or structural component with two upward arrows indicating direction (no text or symbols present)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or electrical component with a red component and directional arrow, no visible text or symbols

Diagram of a screwdriver inserted into a mechanical component, showing no text or symbols

Reparação

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Repararea

Diagram of a hand interacting with a multi-tiered storage unit, showing directional arrows indicating movement (no text or symbols present)

Cap torx TX20 6.3 mm (1/4") [00340865]

Cap torx TX20 6.3 mm (1/4") [00340865]

Repararea

Cap torx TX20 6.3 mm (1/4") [00340865]

Diagram of a mechanical device with a handle and arrow, no visible text or symbols

Cap torx TX20 6.3 mm (1/4") [00340865]

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram of a roof drainage system with wavy roof lines and black directional arrows indicating flow or movement (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or structural component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

→ Containerele sunt demontate.

Diagram of a ceiling-mounted device with a red component and black arrow indicating direction (no text or symbols)

Diagram of a screwdriver inserted into a mechanical component with no visible text or symbols

Repararea

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Vytiahnite tesnenie z drážky.

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Oprava

Diagram of a hand interacting with a multi-tiered storage unit panel, showing directional arrows indicating movement (no text or symbols present)

Tesnenie dvierok je namontované.

Oprava

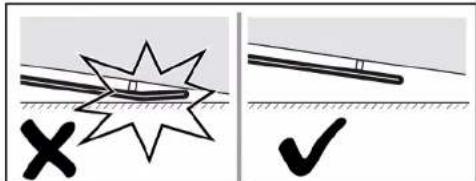

Diagram showing a star-shaped object with a cross mark and a rectangular block, no text or symbols present.

Simple line drawing of a rod and a checkmark on a surface (no text or symbols)

Oprava

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Abstract diagram with wavy lines and a black arrow pointing downward (no text or symbols)

Odkladací priestor na fl'aše je odobratý.

4.7.2 Montáž odkladacieho priestoru na fl'aše

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Polička v dvierkach je odobratá.

Diagram of a mechanical or structural component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a mechanical component with a red component, no visible text or symbols

Oprava

LED svetlo je odobraté.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Tesnilo vrat izvlecite iz utora.

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Diagram of hands holding a refrigerator with shelves and doors, showing structural components (no text or symbols)

Popravilo

1. Celotno tesnilo korak po koraku potisnite v utor.

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Pure technical diagram showing a star-shaped object with a cross mark and a hatched line, no text or symbols present.

Simple line drawing of a horizontal rod above a vertical line and a checkmark below (no text or symbols)

Popravilo

Poškodbe hrbta in mišic

Diagram of a device with a labeled component and directional arrow (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Polica je odstranjena.

4.6.2 Namestitev police

- Namestite v obratnem vrstnem redu.

Popravilo

4.7 Zamenjava nosilca za steklenice

Zahteva:

Vrata so odprta.

4.7.1 Odstranjevanje nosilca za steklenice

Abstract diagram with wavy lines and a black arrow pointing downward (no text or symbols)

Diagram of a two-panel door handle assembly with arrows indicating direction (no text or symbols)

Diagram of a mechanical or electrical component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Električni priključek lučke LED je odklopljen.

1. Sprostite zatiče lučke LED.

Diagram of a mechanical assembly with a tool inserted into a component, no visible text or symbols

Popravilo

1. Lučko LED premaknite naprej in jo odstranite.

→ Lučka LED je odstranjena.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular appliance with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Reparación

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Diagram showing a star-shaped object with a cross mark and a ruler, no text or symbols present

Simple line drawing of a horizontal rod above a ground surface with a checkmark below (no text or symbols)

Reparación

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Abstract diagram with wavy lines and a black arrow pointing downward (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or structural component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or electrical component with a red rectangular block and directional arrow, no visible text or symbols.

Diagram of a screwdriver inserted into a component, showing a red component and mechanical assembly (no text or symbols)

Reparación

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted device with a black arrow indicating rotation (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparation

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Diagram showing a star-shaped object with a horizontal line and a cross symbol, no readable text or labels present.

Simple line drawing of a tool on a surface with a checkmark below (no text or symbols)

Reparation

Diagram of a mechanical device with a labeled component (①) and directional arrow, no readable text or symbols present.

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Abstract diagram with wavy lines and a black arrow pointing downward (no text or symbols)

Flaskhyllan har tagits bort.

4.7.2 Montera flaskhylla

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Dörrhyllan har tagits bort.

4.8.2 Montera dörrhylla

Diagram of a mechanical or electrical component with directional arrows indicating movement or force (no text or symbols present)

Den justerbara dörrhyllan har tagits bort.

4.9.2 Montera justerbar dörrhylla

Diagram of a refrigerator with an arrow indicating movement, showing no text or symbols

Diagram of a mechanical or electrical component with a red rectangular block and directional arrow, no visible text or symbols.

Diagram of a screwdriver inserted into a component, showing a red component and surrounding wiring (no text or symbols)

Reparation

→ LED-lampan har tagits bort.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Onarim

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Diagram showing a star-shaped object with a cross mark and a ruler, no text or symbols present

Simple line drawing of a pencil and a checkmark on a surface (no text or symbols)

Onarim

Diagram of a mechanical device with a folded paper or sheet, showing a black arrow and a black triangular object (no text or symbols)

Diagram of a device with an arrow pointing to a component, labeled with number ① (no text or symbols on the diagram itself)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Abstract diagram of wavy blue lines with a black arrow pointing downward (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or structural component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and connected components (no visible text or symbols)

Diagram of a screwdriver inserted into a component, showing a red component and mechanical assembly (no text or symbols)

Onarim

LED ışığı söküldü.
