Brand	Crivit
Model	IAN 271492
Product Type	Mini bicycle pump
Dimensions (length)	Approx. 190 mm
Nominal Pressure	120 PSI / 8.3 bar
Valve Compatibility	Schrader, Dunlop, Sclaverand (Presta)
Intended Use	Pumping standard bicycle tires with compatible valves
Not for	Car tires
Scope of Delivery	Mini pump, top cap, 2 rubber rings, bike mount, bottom cap, 2 screws, hose, Schrader valve adapter, Dunlop/Sclaverand valve adapter, instructions
Mounting Method	Attach bike mount to frame using screws; secure pump with rubber ring
Safety Notes	Not suitable for children or persons with physical/mental limitations; risk of burns; inspect for damage before use; do not exceed max tire pressure; use calibrated pressure gauge
Operation	Open caps, attach hose, select correct valve end, pump with regular motion; store hose inside when not in use
Maintenance	Do not immerse in water; clean with damp cloth; store in dry, temperature-controlled room
Disposal	Dispose according to local regulations through authorised waste disposal facilities
Warranty	3 years from date of purchase; covers material and workmanship; contact service hotline: [phone] (UK)
Type of Use	Private use only
Pump Mechanism	Manual piston

Frequently Asked Questions - IAN 271492 CRIVIT

What types of valves does this pump support?

The pump supports Schrader, Dunlop, and Sclaverand (Presta) valves. The hose has marked ends for each type.

Can I use this pump for car tires?

No, this pump is designed only for bicycle tires. It is not suitable for car tires due to pressure and volume limitations.

How do I mount the pump to my bike frame?

Remove the screws from the frame intended for a drinking bottle. Attach the bike mount using the included screws or those from the bottle mount. Secure the pump with the rubber ring. Ensure it is tight and does not wobble.

What is the maximum pressure the pump can achieve?

The pump can achieve up to 120 PSI (8.3 bar). Always check the maximum pressure indicated on your tire sidewall.

How do I use the pump with a Sclaverand (Presta) valve?

First, remove the knurled nut on the bike valve. Place the Sclaverand end of the hose vertically onto the valve and pump. After pumping, retighten the knurled nut. Do not bend the hose.

Is the pump suitable for children?

No, the pump is not suitable for children or persons with physical/mental limitations due to high operating forces and risk of burns.

How should I clean and store the pump?

Clean the pump with a damp cloth and wipe dry. Do not submerge in water. Store in a clean, dry, temperature-controlled room. Always store the hose inside the pump and close the caps securely.

What should I do if the pump gets hot during use?

The pump can become hot due to friction. Only hold it by the handle after use to avoid burns. Allow it to cool before storing.

How long is the warranty and how do I claim it?

The warranty is 3 years from the date of purchase, covering material and workmanship. For claims, contact the service hotline at 0871 5000 720 (UK) or email [e-mail]. Keep your receipt.

What is included in the box?

The box includes: mini pump, top cap, 2 rubber rings, bike mount, bottom cap, 2 screws, hose, Schrader valve adapter, Dunlop/Sclaverand valve adapter, and instructions.

USER MANUAL IAN 271492 CRIVIT

Instructions for use

PL

MINI POMPKA

Instrukcja obstugi

HU

MINI PUMPA

Használati útmutató

SI

MINI ZRAČNA TLAČILKA

Navodila za uporabo

CZ

MINIPUMPIČKA

Návod k použití

SK

HUSTILKA

Návod na použitie

DE

AT

CH

MINI-LUFTPUMPE

Gebrauchsanweisung

IAN 271492

GB PL HU

SI CZ SK

DE AT CH

Simple line drawing of a rectangular container with two circular objects on horizontal lines, labeled 'B' in the top-left corner (no text or symbols on the objects themselves)

Diagram of a mechanical device with a curved arrow indicating motion or force direction (no text or symbols)

GB

Scope of delivery / Part names 6

Technical data 6

Correct use 6

Safety notes 6-7

Mounting to the bike frame 7

Use 7

Maintenance and storage 7

Notes on disposal 8

3 Years Warranty 8

PL

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it. Carefully read the following instructions for use. Use the product only as described and only for the given areas of application. Keep these instructions safe.

When passing the product on to a third party, always make sure that the documentation is included.

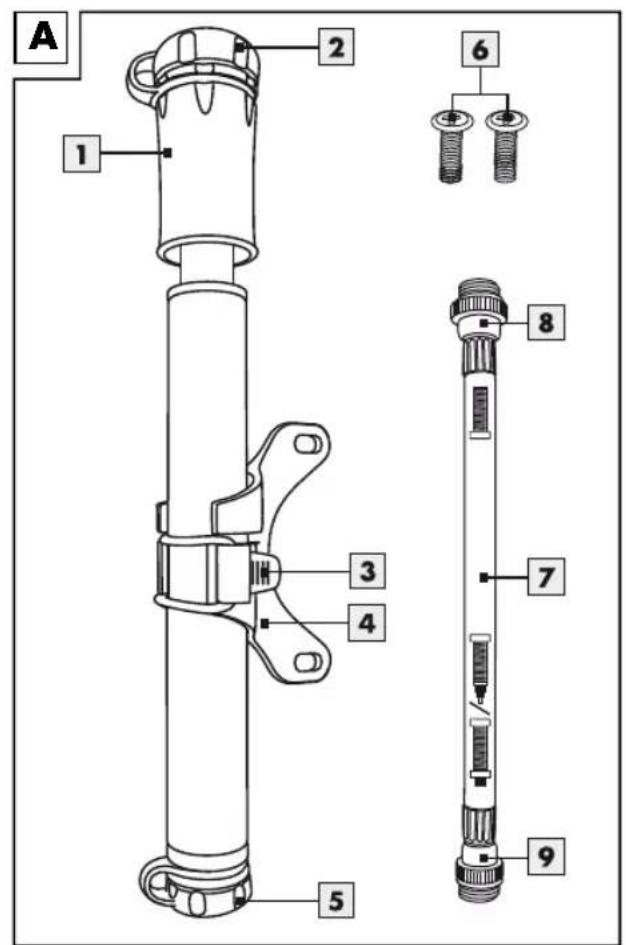

Scope of delivery / Part names (fig. A)

1 x Mini bicycle pump (1)
1 x Top cap (2)
2 x Rubber ring (3)
1 x Bike mount (4)
1 x Bottom cap (5)
2 x Screws (6)
1 x Hose (7)
1 x Schrader valve (8)
1 x Dunlop valve / Sclaverand valve (9)
1 x Instructions for use

Technical data

Dimensions: length approx. 190mm

Nominal pressure: approx. 120 PSI/8.3 bar

Correct use

This article was developed for private use to pump all standard bike tyres with Schrader, Dunlop, or Sclaverand valves. The bike mount is only suitable for bike frames that have holes for a mount (fig. B). Not suitable for pumping up car tyres!

Safety notes

• This article is not suitable for use by children or by adults with physical and/or mental limitations because of the high operating forces and the associated risks.
• Risk of burns! The friction in the mini air pump piston and mini air pump cylinder means that they warm up after longer periods of use. Only hold the article by the handle after use.
• Inspect the article in particular the bike mount and the correct connection between the valve and the mini air pump for damage or wear before each use.
  • Defective articles must not be used and must be discarded as a defective article cannot be repaired.

• Only pump up the article to the maximum pressure stated by the manufacturer. This is usually printed on the sidewall of the bike tyre.

• There is a risk of explosion with over-inflated tyres!

• The pressure must be controlled using a calibrated measurement device.

Mounting to the bike frame

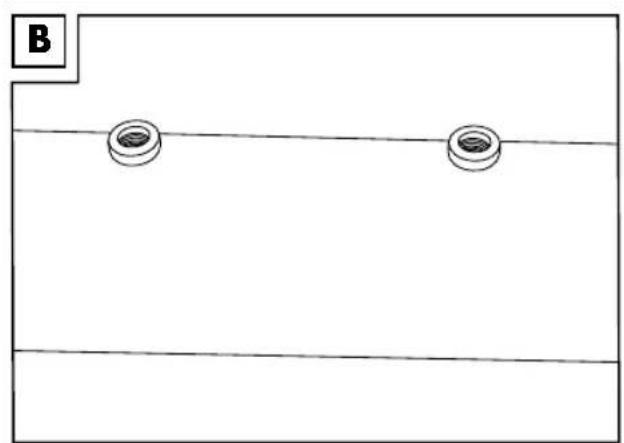

• Remove the screws from the frame designed for attaching a drinking bottle (fig. B).

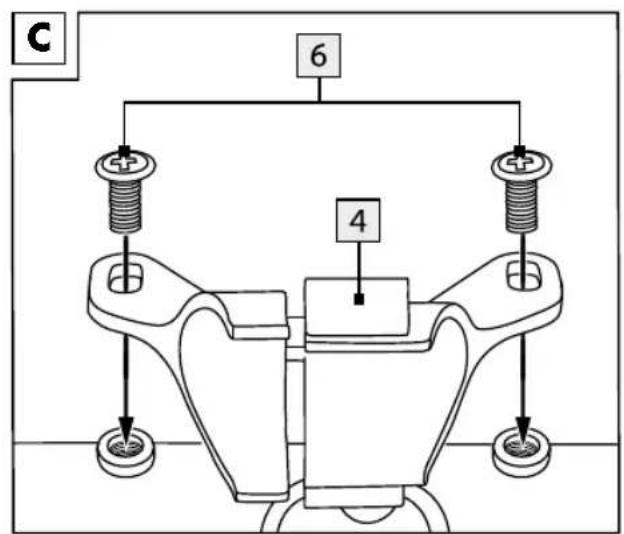

• Attach the bike mount (4) to the frame with the included screws (6) or the screws from the drinking bottle mount (fig. C).

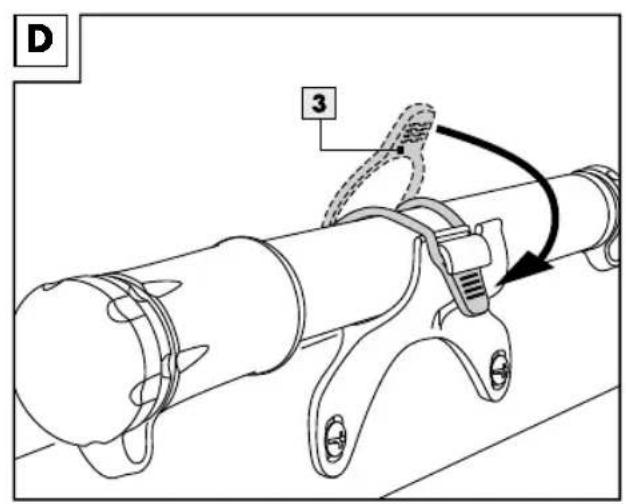

• Secure the pump by placing the rubber ring (3) around the pump (fig. D).
• If the included screws are too large or too small, please purchase the correct screws from a specialist retailer.
  Always ensure the article is attached securely and tightly! The bike mount must stay secure even on unpaved surfaces and it must not wobble.
  Otherwise there is a risk of losing the bike mount with the mini air pump.

Use

• Open the top cap (2) and remove the hose (7).

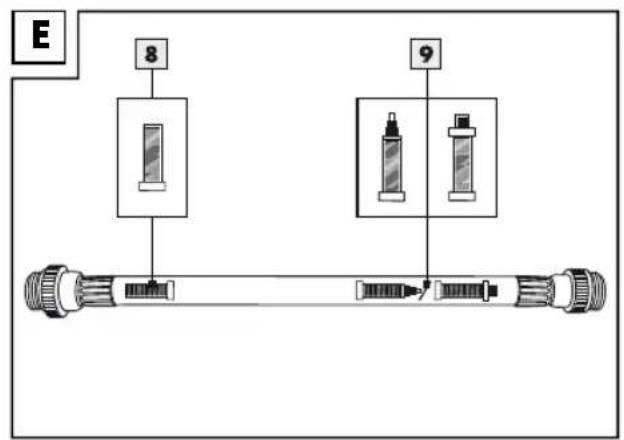

• Open the bottom cap (5). Depending on whether you have a Schrader valve (8), Dunlop valve (9), or Sclaverand valve (9), screw the correct end of the hose to the other end of the mini air pump (see label on the hose: Schrader/Dunlop, Sclaverand) (fig. E).
• Open the cap on the tyre valve.

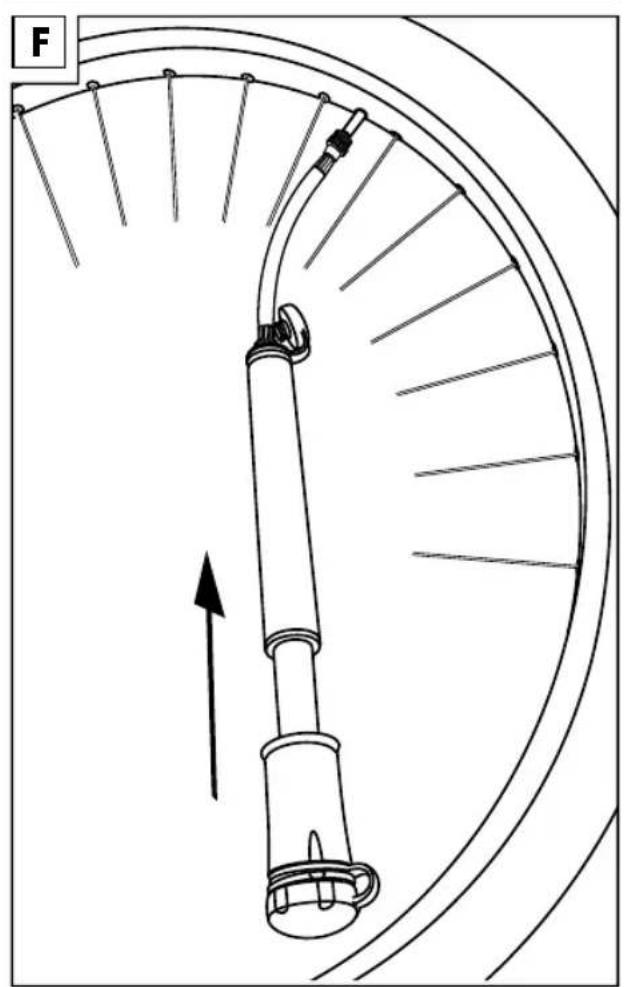

• Screw the correct end of the hose to the OPEN valve and then pump (fig. F).

Special note when pumping bike tyres using the Sclaverand valve (9):

1. Remove the knurled nut (on the bike valve casing) of the bike valve.
2. Place the Sclaverand valve vertically on the bike valve, then pump.
3. Now tighten the knurled nut on the bike valve again after pumping.

- Caution! The hose on the mini air pump must not be bent!

- Pump the mini air pump in a regular motion and do not pump too fast.

When the article is not in use, please always store the hose inside the mini air pump.

Close the caps securely, and always put the mini air pump in the mount with the handle of the air pump pointing upward.

Maintenance and storage

Never submerge the pump in water as this will damage the article. Always store the article in a clean, dry, temperature-controlled room. Important! Only clean with a damp cloth and then wipe dry.

Notes on disposal

Please dispose of the article and all associated components through an authorised waste disposal company or through your local authority facilities. Please observe all valid regulations. If in doubt, please ask at your waste disposal facility regarding environmentally compatible disposal.

3 Years Warranty

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase.

Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail.

Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to re-placed and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 271492

GB Service Great Britain

Tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

All items are also available for purchase directly from our online shop: www.delta-sport.info
