Product type	Canister vacuum
Brand	Rotel
Model	U6744CH
Dimensions (L x W x H)	45 x 30 x 25 cm
Net weight	6.5 kg
Power supply	Mains 220-240 V, 50-60 Hz
Maximum power	1200 W
Tank capacity	1.8 L
Noise level	76 dB(A)
Operating radius	9 m
Filter type	Washable HEPA
Main functions	Floor and carpet vacuuming, motorized brush, electronic power adjustment
Maintenance and cleaning	Emptying the tank, washing the HEPA filter, cleaning the brush
Safety	Overheating protection, automatic shutdown in case of blockage
Spare parts and repairability	Bags, filters, brushes, belts available
General information	Rotel U6744CH canister vacuum, gray/black color, 2-year warranty

Frequently Asked Questions - U6744CH ROTEL

How do I replace the HEPA filter on my Rotel U6744CH?

The HEPA filter is located in the tank compartment. Open the tank, remove the old filter, insert the new one following the mounting direction. It is recommended to replace the filter every 6 months.

How do I clean the motorized brush?

Unplug the vacuum. Remove the brush by pressing the side clips. Use scissors to cut tangled hair and threads. Clean the bristles with a damp cloth. Reattach the brush by clipping it back.

My vacuum is not suctioning properly, what should I do?

First check if the tank is full and empty it. Check if the filter is clogged; clean or replace it. Also inspect the hose and tube for blockages. If the problem persists, contact customer service.

Which bags are compatible with the Rotel U6744CH?

Use original Rotel bags ref. U6744BAG. Equivalent quality generic bags may also work, but we recommend original bags to ensure performance.

The power cord of my vacuum does not retract, what can I do?

Press the rewind pedal while holding the cord slightly taut. If the cord remains stuck, gently pull it out a few centimeters and try again. Never force it, as you may damage the mechanism.

Can I use my Rotel U6744CH vacuum to pick up cold ash?

No, this vacuum is not designed for picking up ash or hot substances. Use a special ash vacuum to avoid damaging the motor and reducing fire risk.

How do I reset the overheating protection?

If the vacuum stops abruptly, unplug it and let it cool for 30 to 60 minutes. Then plug it back in and turn it on. If the problem recurs, check for blockages or contact customer service.

What is the length of the suction hose?

The hose is approximately 2 meters. Combined with the telescopic tube, the total operating radius reaches 9 meters from the outlet.

How can I adjust the suction power?

Turn the dial on the vacuum body. Turn it towards plus to increase suction on thick carpets, and towards minus for hard floors.

Where can I buy spare parts for my Rotel U6744CH?

You can order spare parts on the official Rotel website or from authorized dealers. Use the reference U6744CH to find compatible parts.

USER MANUAL U6744CH ROTEL

Black vacuum cleaner with coiled hose and handle, isolated on white background (no text or symbols)

• GEBRAUCHSANWEISUNG
• MODE D'EMPLOI
• ISTRUZIONI PER L'USO
• INSTRUCTIONS FOR USE

D/F/I/E

Deutsch

1 Universal nozzle
2 Telescopic tube
3 Handle
4 Mechanical suction power control

5 Suction hose
6 Foot-operated switch for cable re-wind
7 Foot-operated On/Off switch & electronic suction power selector

Illustration of a kitchen appliance with a lid and two views of the lid (no text or symbols)

Deutsch		Français
A	Staubbehälter entfernen	A	Enlever le compartiment à poussière
B	PUSH-Taste	B	Touche de PUSH
C	Staubbehälter leeren und reinigen	C	Vider et nettoyer le compartiment à poussière
D	Motorenfilter wechseln	D	Changer le filtre du moteur
E	Abluftfilter wechseln (HEPA)	E	Changer le filtre de sortie d'air (HEPA)
Italiano		English
A	Svuotare comparto della polvere	A	Remove the bin
B	Chiave di PUSH	B	PUSH button
C	Svuotare e pulire il compartimento a polvere	C	Empty and clean the bin
D	Cambiare il filtro del motore	D	Change the motor filter
E	Cambiare il filtro d'uscita d'aria (HEPA)	E	Change the exhaust filter (HEPA)

TECHNISCHE DATEN

Two simple line drawings: one showing a person using a tool on a flat surface, the other showing a hand holding a rectangular object with droplets falling (no text or symbols)

○ HEPA-Filter

Two hand-drawn illustrations: one showing a faucet on a surface with water droplets, the other showing a rectangular object with liquid droplets (no text or symbols)

○ Filtre HEPA

Two simple line drawings: one showing a person standing on a surface with water droplets, the other showing a hand holding a rectangular object with liquid droplets (no text or symbols)

○ Filtro HEPA

- SAFETY INSTRUCTIONS

Please read all instructions before using the device.

• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• This appliance must not be used by children. The appliance and its connecting cable must be kept away from children.
• The appliance must be disconnected from the mains during periods of no supervision and prior to assembling, disassembling or cleaning.

Before cleaning the appliance, when not in use, or attempting any maintenance task, the vacuum cleaner shall be switched off and the plug removed from the mains supply.

- This product is only intended for domestic use, to remove dry dirt and dust from household carpets, floorings and fabrics.

• This vacuum cleaner is not designed to remove vitreous building material including construction products and similar products such as wood/fibres, sand, cement, fibreglass, etc. The removal of these materials may damage the device and will void the manufacturer's warranty.
• The vacuum cleaner must only be connected to an AC supply at the voltage shown on the rating plate. This vacuum shall only be used for its intended purpose, as described in these instructions.
• The vacuum cleaner shall never be operated without its filters.
• The vacuum cleaner must never be used to suck up flammable liquids such as cleaning fluids, petrol etc., or in the presence of such vapours.
• The appliance shall never be used outdoors, on any wet surface or to vacuum up water, liquid or damp dirt.
• The power cable shall not be run over with the power brush.
• Close attention is necessary when used near children.
• If using an extension cord, it shall be ensured it fits the safety standards and is fully extended to prevent overheating and possible damage.

• ASSEMBLING THE VACUUM CLEANER

• Ensure the the vacuum is switched off and disconnected from the mains supply before assembling.
• Insert the hose connector onto the socket on the main body of the cleaner until it clicks into position.
• Insert the suction tube into the floor head.
• Fit the other end of the telescopic suction tube into the handle.
• Unwind the mains cable and plug it into a socket. Never pull the cable further than the yellow mark.
• Press the ON/OFF switch to start vacuuming.
  ○ Adjust the power regulation knob to suit the type of flooring being cleaned.
• By opening the suction power control on the handle, you can lower the power of the suction for more delicate jobs.

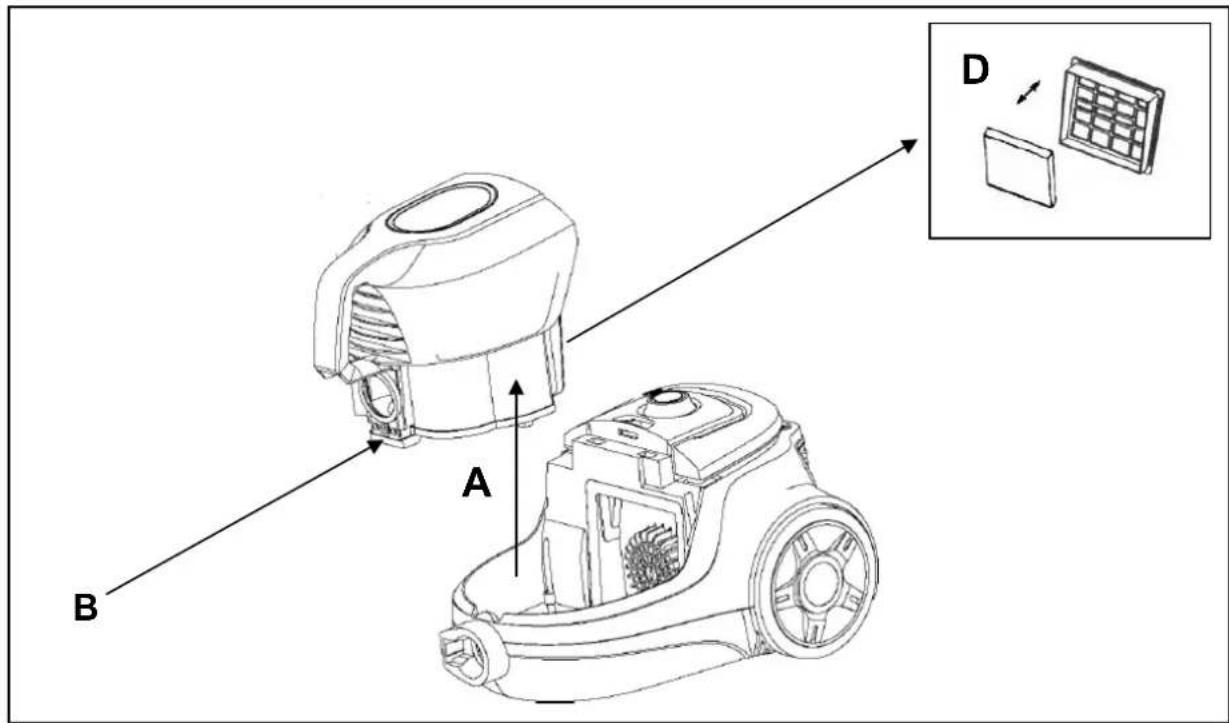

• CLEANING THE DUST COMPARTMENT

• Press the button on the suction hose connection and pull it off in a forwards direction.
• Lift the bin out of the vacuum cleaner (A). Hold the bin over a container for waste and/or rubbish.
• When you press the the PUSH button (B), the cover under the bin will open up.

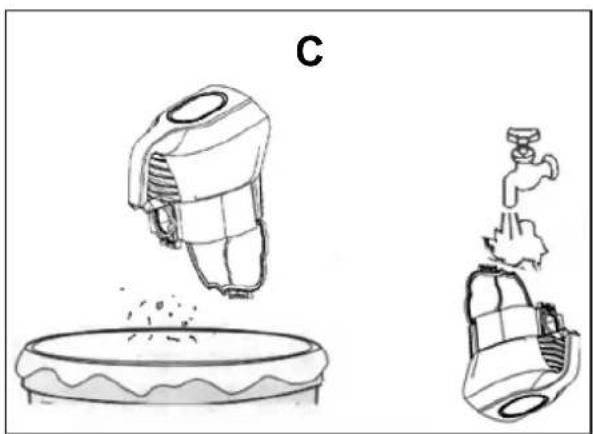

• Dispose of the dust that has collected in the bin with great care into your own container for waste/rubbish. Push the cover shut again.
• Clean the bin from time to time with water and a mild soap. Make sure that it is thoroughly dried before its next use.
  CAUTION: You must remove the motor filter (D) before cleaning with water.

• REPLACING OR CLEANING THE FILTERS

Clean the dust compartment filter at least twice a year or when it becomes visibly dirty. Always operate the vacuum cleaner with its filters installed. Reduced suction power or motor damage may occur if the filters are not replaced or cleaned in good time. Disconnect from power source before cleaning filters. Do not use a washing machine to clean the dust compartment filter and allow to air-dry thoroughly before placing it back in the device.

- Motor filter (motor protection)

■ Remove the bin out of the vacuum cleaner.
■ Pull the fine dust filter out and remove the foam pad (fine dust filter).
- The fine dust filter (foam pad) can be cleaned under running water. Make sure the filter dries thoroughly before putting it back in.

Two hand-drawn diagrams showing a faucet and a hanging object with water droplets (no text or symbols)

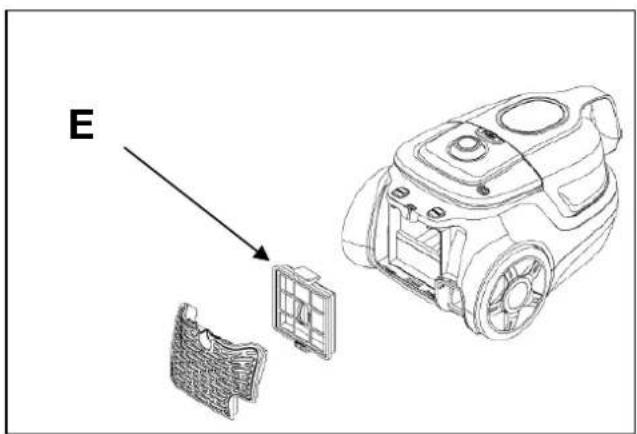

○ HEPA filter

• The highly effective HEPA filter fulfils the stringent requirements of the protection class for suspended particles and is therefore particularly suitable for people who suffer from allergies and respiratory problems. For best results, the filter should be replaced every two years.
• To replace the filter, open the lid and take out the HEPA filter, check it and if necessary, replace it with a new one. Then insert the cover back into the housing and press gently until you hear it click into place.

- AFTER USE

○ Always switch the cleaner off and remove the plug from the electricity supply before cleaning the appliance, when not in use, or attempting any maintenance task.

- TROUBLE SHOOTING

Problem	Cause	Solution
Motor does not start or stops randomly	No power supply	Check cable, plug and socket. If still inoperative, contact Rotel AG
Suction power decreases gradually	Filters are dirty, suction hose or tube is blocked	Clean or replace filters, remove objects from hose and suction tube

If the power cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

- DISPOSAL

- For proper disposal, please return device to a retailer, a service agent or Rotel AG.

European Directive 2012/19/EC concerning Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling materials comprising the machine, while preventing potential damage to public health and the environment. The crossed-out wheeled bin symbol appears on all products to remind owners of the obligations regarding separate waste collection. Owners should contact their local authorities or appliance dealers for further information concerning the correct disposal of household appliances.

This appliance conforms to the following EU directives:

2014/35/EU (Low Voltage Directive)

2014/30/EU (Electromagnetic Compatibility Directive)

• GARANTIE / GARANTIE / GARANZIA / WARRANTY

• 3 JAHRE GARANTIE
• 3 ANS DE GARANTIE
• 3 ANNI DI GARANZIA
• 3 YEARS WARRANTY

○ Warranty commitment

We commit ourselves to repair this device free of charge, should a failure occur within the period of warranty despite proper handling. We repair all defects caused by material or manufacturing faults. The guarantee will be fulfilled either by repairing the device or replacing the defective parts, according to our judgement. A warranty does not cover damages due to wearing parts, damages and defects caused by improper handling or maintenance (such as limescale and commercial use). It will only be granted if either the warranty card stating date of purchase, dealer's stamp and signature, or the purchase receipt is sent with the device to the relevant after-sales service (see address below). Devices shall be returned in their original packaging. Transport costs are to be borne by the purchaser. Remember to specify your address to your sending, as well as a short declaration about the failure, shall the defect not be obvious.

Servicestation / Service après-vente / Servizio Assistenza / After-sales service:
