IAN 69000 - Lamp Livarno Lux - Free user manual and instructions

Product Type	LED lamp
Brand	Livarno Lux
Model	IAN 69000
Dimensions (approx.)	Height 45 cm, Base diameter 20 cm
Weight	1.2 kg
Power Supply	Mains power, 220-240 V, 50/60 Hz
Light Source	Integrated LED, non-replaceable
Luminous Flux	800 lm (approx.)
Color Temperature	3000 K (warm white)
Dimmable	Yes, step dimming (3 levels)
Switch Type	Push button on base or cord switch
Material	Aluminum and plastic
Color	White or black (depending on variant)
Protection Class	IP20 (indoor use only)
Safety Markings	CE, TÜV/GS (if applicable)
Energy Class	F (EU 2019/2015)
Lifespan LED	25,000 hours
Cleaning Instructions	Wipe with dry, lint-free cloth; do not use water or cleaning agents
Disposal	Do not dispose with household waste; take to recycling center
Spare Parts Availability	Spare parts not available; LED unit not replaceable

Frequently Asked Questions - IAN 69000 Livarno Lux

How do I turn on the lamp?

Press the button on the base or the cord switch (depending on model). The lamp will light up at the last brightness level.

Is the lamp dimmable?

Yes, the lamp features step dimming. Press the button repeatedly to cycle through brightness levels (e.g., 100%, 50%, 25%, off).

Can I replace the LED bulb?

No, the LED is integrated and cannot be replaced. If the lamp stops working, the entire unit must be replaced.

What is the power consumption?

The lamp typically consumes around 10-15W, depending on the brightness setting.

Is the lamp suitable for outdoor use?

No, the lamp has IP20 protection and is designed for indoor use only. Do not expose it to moisture or dust.

How should I clean the lamp?

Use a dry, soft cloth to wipe the surface. Do not use water, cleaning agents, or abrasive materials.

What should I do if the lamp does not turn on?

Check the power cord and plug. Ensure the outlet is working. If the lamp still does not respond, it may be defective and should be returned.

Does the lamp include a warranty?

Yes, Livarno Lux products typically come with a 3-year warranty. Keep your receipt for any claims.

Can I use the lamp with a dimmer switch?

No, the lamp is only dimmable via its built-in button. Using an external dimmer may damage the electronics.

How do I dispose of the lamp?

Dispose of the lamp at a recycling center for electrical and electronic equipment. Do not throw it in household waste.

USER MANUAL IAN 69000 Livarno Lux

Technical line drawing of a mechanical device with two components, one cylindrical and one curved, showing no text or symbols.

Technical line drawing of a mechanical component with a cylindrical shaft and circular base (no text or symbols)

B
Z30652B

Line drawing of a lamp with a circular base and handle, no text or symbols present

Line drawing of a standard office lamp with adjustable arm and base (no text or symbols)

Technical line drawing of a mechanical component with a conical top and circular base (no text or symbols)

Table of contents

Introduction

Intended Use Page 7

Description of parts ......Page 7

Technical data Page 8

Included items ......Page 8

Safety

Safety information ......Page 8

Bringing into use......Page 10

Maintenance and Cleaning......Page 11

Disposal Page 11

6 GB/IE

LIVARNO LUX

Introduction

LED Night Light

- Introduction

The instructions for use are to be considered as part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. The product must only be used as described and for the stated fields of application. If you pass the product on to third parties, please give them all of the documentation as well.

- Intended Use

This lamp is intended for providing indoor illumination in dry and enclosed rooms only. Other forms of use or changes to the product are deemed to be contrary to the intended use and may result in risks such as the danger of death, injuries and damage. The manufacturer does not accept any liability for injury or damage resulting from use of this product contrary to its intended use. The product is not intended to be used for commercial purposes.

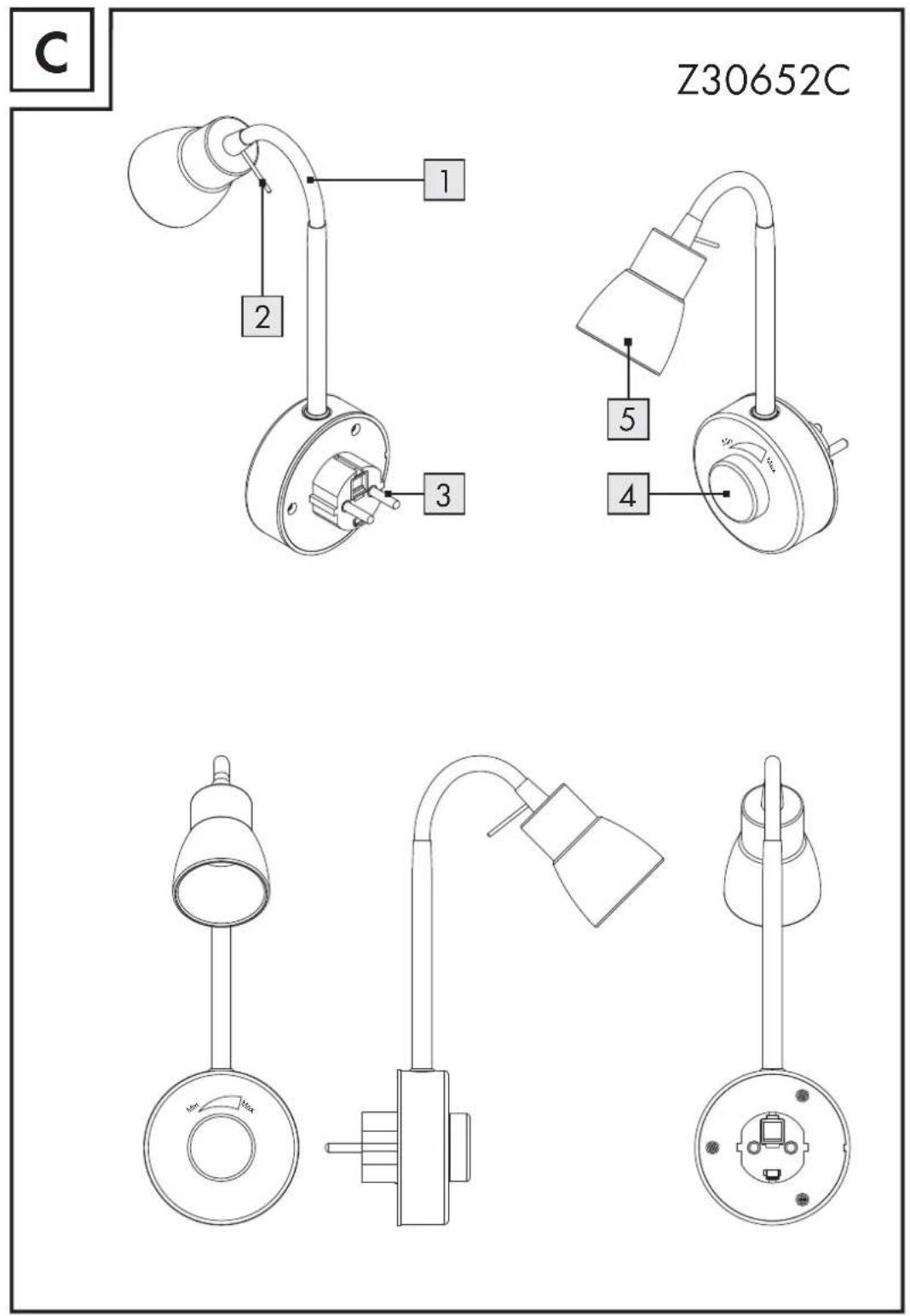

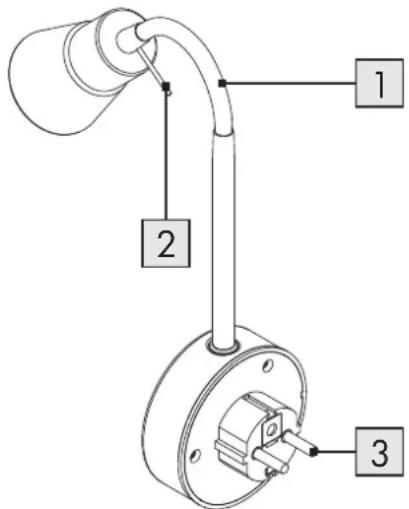

• Description of parts

1 Flexible lamp arm
2 Lamp pin
3 Mains plug

LIVARNO LUX

7 GB/IE

Introduction / Safety

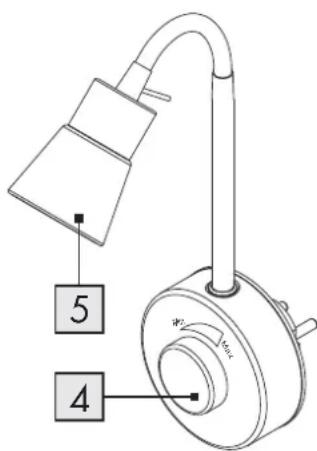

4 ON/OFF switch/dimmer
5 Glass shade

- Technical data

Dimensions: approx. 8 x 36 cm (ø x l)

Operating voltage: 230 V \~, 50 Hz

Rated power of lamp: max. 5 W

Bulb: 1 x LED, 3 W

Protection class:

TÜV/GS tested

The LED cannot be replaced.

- Included items

1 Plug-In Light

1 Operating instructions

- Safety

Safety information

In the case of damage resulting from non-compliance with these operating instructions the guarantee claim becomes invalid! No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

8 GB/IE

LIVARNO LUX

Safety

WARNING! DANGER OF DEATH AND ACCIDENTS FOR TODDLERS AND CHILDREN!

Never leave children unsupervised with the packaging

material.

The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep children away from the device at all times.

This device is not a toy and should not be played by children. Children are not able to understand the dangers that can occur when handling this device.

Children or other individuals who do not know or have no experience of handling this device, or whose physical, sensory or mental abilities are restricted, must not use the device without supervision or instruction by an individual responsible for their safety. Children must be supervised in order to ensure that they do not play with the device.

This light is designed for use indoors only, in dry and enclosed rooms.

CAUTION! Never direct the LED light beam on to reflective surfaces or at people or animals. Failure to observe this advice may result in eye injury and / or loss of sight to people or animals. Even a weak LED light beam can cause eye damage.

Do not look directly into the light or its reflection. Do not aim the light directly at people. This could produce glare, leading to accidents.

■ f direct or reflected light strikes your eyes, close them and move your head immediately out of the light.

If the lamp is not to be used for an extended period, e.g. while you are away on holiday, then it must be pulled out of the mains socket.

LIVARNO LUX

9 GB/IE

Safety / Bringing into use

The bulb becomes hot during operation. Allow the lamp and bulb to cool before you touch them.
The LED cannot be replaced.

Avoid risk of loss of life from electric shock!

WARNING! RISK OF ELECTRIC SHOCK! Always check the device for damage before plugging it into a mains outlet socket. A damaged device presents a risk of loss of life from electric shock.

Before use, ensure that the mains voltage available is the same as the required operating voltage for the device (230 V\~).
- Do not use the device if you find any damage.
- Please consult a specialist electrician if you discover any damage or problems with the device, or for the performance of repairs to the device.
■ Never open any of the electrical equipment or insert any objects into it. Such interventions represent the danger of death from electric shock.
It is essential that the device does not come into contact with water or other liquids.
■ Never use the device in the immediate vicinity of a bathtub, shower or swimming pool.
■ Never touch the mains plug with damp or wet hands.
■ Dispose of the lamp if the glass shade is broken or cracked.

● Bringing into use

☐ Insert the lamp's mains plug into an ordinary mains outlet socket (230V\~).

10 GB/IE

LIVARNO LUX

Bringing... / Maintenance and Cleaning / Disposal

☐ Use the ON/OFF switch/dimmer 4 to switch the lamp on or off.

Note: Set the desired brightness by turning the ON / OFF switch / dimmer 4 clockwise (brighter) or anticlockwise (darker).

☐ Bend the flexible lamp arm into the desired position using the lamp pin 2.

Note: Do not turn the flexible lamp arm 1 completely about itself or the mains lead inside the lamp could be damaged.

● Maintenance and Cleaning

Note: The device requires no maintenance. The LED cannot be replaced.

WARNING! DANGER OF ELECTRIC SHOCK! For electrical

safety reasons do not clean the lamp with water or other liquids and never immerse it in water.

Do not use solvents such as petrol and the like, as they could damage the lamp.

☐ Unplug the lamp from the mains socket and let it cool down at least 10 minutes.

☐ Use a dry, fluff-free cloth for cleaning.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

LIVARNO LUX

11 GB/IE

Disposal

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Product Information:

LED Night Light

Model no.: Z30652A/Z30652B/Z30652C

Version: 09/2011

EMC CE

12 GB/IE

LIVARNO LUX

Sisällysluettelo

Johdanto

Malli nro.:Z30652A/Z30652B/Z30652C

Versio: 09/2011

EMC CE

LIVARNO LUX

19 Fl

Modell nr: Z30652A/Z30652B/Z30652C

Version: 09/2011

Model-nr.: Z30652A/Z30652B/Z30652C

Version: 09/2011
