KD55AG9BU - TV SONY - Free user manual and instructions

Product type	OLED TV
Brand	Sony
Model	KD55AG9BU
Screen size (diagonal)	138.8 cm (55 inches)
Display resolution	3840 x 2160 pixels (4K Ultra HD)
TV standards	Digital: DVB-T/T2/C/S/S2, Analog: B/G, D/K, I
Color system	PAL/SECAM/NTSC3.58/NTSC4.43 (video only)
Power consumption (Standard)	132 W
Power consumption (Intense)	394 W
Standby power consumption	0.50 W (27 W with update/EPG)
Dimensions (with stand)	122.6 x 71.4 x 25.5 cm
Dimensions (without stand)	122.6 x 71.0 x 4.0 cm
Weight (with stand)	22.3 kg
Weight (without stand)	18.7 kg
Power supply	220-240 V AC, 50 Hz
HDMI connectivity	4 inputs (HDCP 2.3, ARC/eARC on HDMI 3)
USB connectivity	2 USB 2.0 ports (500 mA), 1 USB 3.1 port (900 mA)
Network	Ethernet LAN, Wi-Fi 802.11ac, Bluetooth 4.2
Audio output	Digital optical, Headphone (3.5 mm mini-jack)
Center speaker	CENTER SPEAKER IN input for use as center speaker
Screen protection functions	Panel refresh, Pixel shift, Automatic brightness reduction
Voice assistant	Built-in microphone for voice search (requires Internet connection)
Operating temperature	0 °C to 40 °C

Frequently Asked Questions - KD55AG9BU SONY

How to avoid image retention on an OLED TV?

To avoid image retention, avoid displaying static images for long periods (logos, black bars, clocks). Use the built-in functions like pixel shift and panel refresh (recommended once a year). Turn off the TV normally with the remote control.

Which wall mount to choose for the Sony KD55AG9BU?

Sony recommends optional wall mounts SU-WL850 or SU-WL450. Installation must be carried out by a qualified professional. Use the screws provided with the mount and respect ventilation spacing (10 cm around the TV).

How to reset the TV in case of a problem?

If the TV stops responding, press and hold the Power button on the remote until a message appears to restart. If that doesn't work, unplug the power cord, wait two minutes, then plug it back in.

What to do if the remote stops working?

Replace the remote batteries. Ensure there is no obstacle between the remote and the TV sensor. If the problem persists, reset the TV (see previous question).

The TV does not receive satellite channels, what to do?

Check the satellite cable connection. If the 'LNB overload' message appears, disconnect the power and ensure the cable is not damaged. Perform a digital channel search in the menu.

How to connect the TV to the Internet?

Use an Ethernet cable (LAN port) or the built-in Wi-Fi. During initial setup, the TV connects automatically. For privacy reasons, you can choose not to connect the wireless network or not to plug in an Internet cable.

Can I use the TV as a center speaker?

Yes, thanks to the CENTER SPEAKER IN input, you can connect the output of your AV receiver. Make sure to set [Speakers] to [Audio system] and unplug the power before connecting cables.

How to update the TV software?

Connect the TV to the Internet and go to Settings → Support → Software update. Sony recommends regular updates to improve performance and add features.

What does the red blinking of the power LED mean?

Count the number of blinks (3-second interval). Unplug the power cord until the LED turns off, then plug it back in. If the problem persists, contact a Sony service center indicating the number of blinks.

How to clean the OLED screen?

Use a soft, dry cloth (microfiber) to gently wipe the screen. Do not use chemicals, alcohol, or rough cloths. Before cleaning, unplug the TV and let it cool down.

USER MANUAL KD55AG9BU SONY

For useful information about Sony products Pour obtenir les informations utiles concernant les produits Sony Información de utilidad para productos Sony Voor nuttige informatie over Sony producten Für hilfreiche Informationen zu Sony Produkten Para informação útil sobre os produtos Sony Per informazioni utili sui prodotti Sony For nyttig information om Sony-produkter For mere information om Sony-produkter Hyödyllista tietoa Sony tuotteista For nyttig informasjon om Sony produkter Szczegółowe informacje o produktach Sony Užitečné informace o výrobcích Sony Pre viac informácií o produktoch Sony Sony termékekról hasznos információkat találhat az alábbi weboldalon Pentru informații utile despre produsele Sony За полезна информация относно продуктите на Sony Για χρήσιμες πληροφορίες σχετικά με τα προϊόντα SONY Sony ürünleri için faydali bilgiler

www.sony.eu/support

BRAVIA

OLED

Reference Guide	GB
Guide de référence	FR
Guía de referencia	ES
Referentiegids	NL
Referenzanleitung	DE
Guia de referência	PT
Guida di riferimento	IT
Referensmaterial	SE
Referencevejledning	DK
Viiteopas	FI
Referanseveiledning	NO
Przewodnik	PL
Referenční příručka	CZ
Referenčná príručka	SK
Felhasználói útmutató	HU
Ghid de referință	RO
Информация за продукта	BG
Обнýóς αναφοράς	GR
Başvuru Kılavuzu	TR

To attach the Table-Top Stand, refer to the Setup Guide.

Table of Contents

IMPORTANT NOTICE....2

Safety Information .... 3

Protecting the TV Screen (OLED TV) .....4

Parts and Controls .... 5

Controls and Indicators ....5

Using Remote Control 6

Remote Control Parts Description.....6

Connection Diagram 8

Installing the TV to the Wall .....11

Using the optional Wall-Mount Bracket (SU-WL850 or SU-WL450) 11

Troubleshooting....13

Troubles and Solutions....13

Specifications....14

Internet Connection and Data Privacy

This product connects to the internet during initial setup as soon as a network is connected in order to confirm internet

connection, and later to configure the Home screen. Your IP address is used in these and all other internet connections. If you do not want your IP address be used at all, do not set-up the wireless internet function and do not connect an internet cable.

Please refer to the privacy information presented in the set-up screens for further details of internet connections.

Introduction

Thank you for choosing this Sony product.

Before operating the TV, please read this manual thoroughly and retain it for future reference.

Note

• Before operating the TV, please read the "Safety Information" (page 3).
• Read the supplied Safety Information for additional safety information.
• Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product.

Help

Find more troubleshooting and other useful information directly from your TV. Press HELP on the remote control to display a list of topics, or to search by keyword.

Help Guide (Manual)

For more detailed information, select [Help Guide] from the Help menu on your TV. You can also check the Help Guide from your PC or smartphone (information provided on the back cover of this manual).

Location of the identification label

Labels for the TV Model No., Production Date (year/month) and Power Supply rating are located on the rear of the TV or package.

They can be found by removing the stand cover CD1

IMPORTANT NOTICE

Notice for Radio Equipment

Hereby, Sony Visual Products Inc. declares that the radio equipment types

KD-77AG9, KD-65AG9, KD-55AG9 are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:

http://www.compliance.sony.de/

Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives.

For this radio equipment, the following restrictions on putting into service or of requirements for authorization of use apply in AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, EL, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, UK, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo :

5150 - 5350 MHz band is restricted to indoor operations only.

Safety Information

Installation/Set-up

Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electric shock or damage and/or injuries.

Installation

• The TV set should be installed near an easily accessible mains socket.

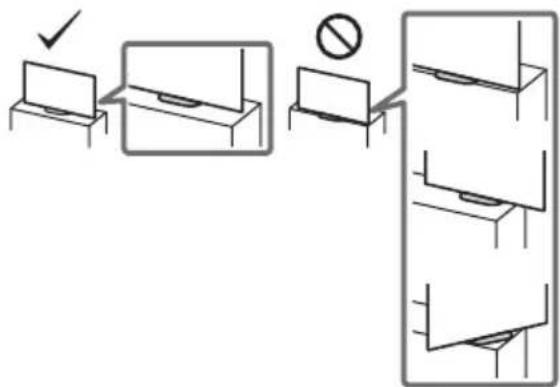

• Place the TV set on a stable, level surface to prevent it from falling over and causing personal injury or property damage.

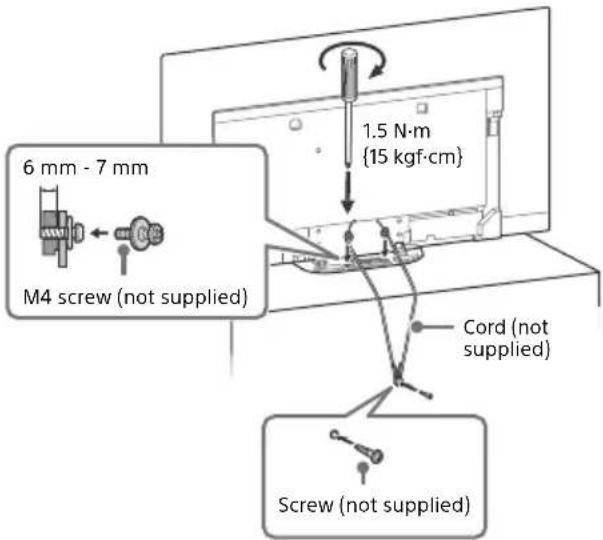

  • Install the TV where it cannot be pulled, pushed, or knocked over.
• Install the TV so that the TV's Table-Top Stand does not protrude out from the TV stand (not supplied). If the TV's Table-Top Stand protrudes out from the TV stand, it may cause TV set to topple over, fall down, and cause personal injury or damage to the TV.

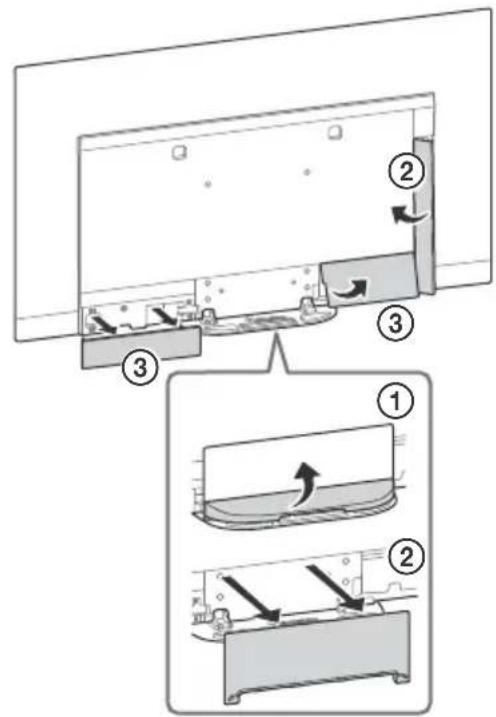

• For safety reasons, be sure to attach the centre covers to the rear of the TV when TV in Table-Top condition.
• Only qualified service personnel should carry out wall-mount installations.
• For safety reasons, it is strongly recommended that you use Sony accessories, including:

— Wall-Mount Bracket SU-WL850 — Wall-Mount Bracket SU-WL450

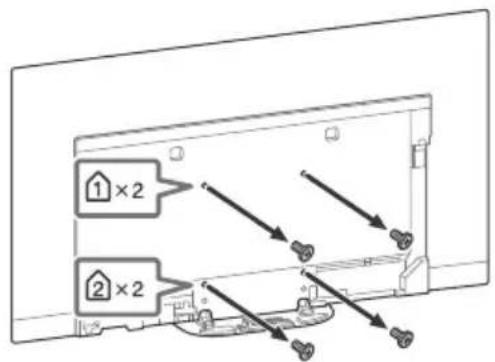

- Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Mount Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket. The diameter and length of the screws differ depending on the Wall-Mount Bracket model.

Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.

9 mm - 13 mm

Transporting

• Before transporting the TV set, disconnect all cables.
• Two or three people are needed to transport a large TV set.

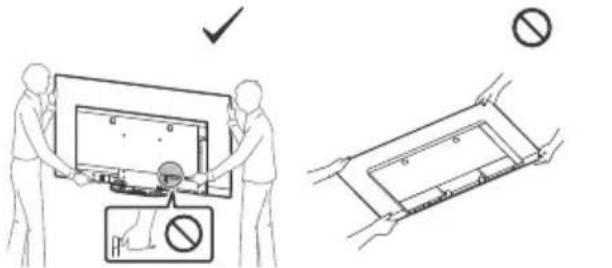

• When transporting the TV set by hand, hold it as shown below. Do not put stress on the panel and the frame around the screen.

- When handling or mounting the TV set, do not lay down the TV.

Technical line drawing of a rectangular electronic component with internal channels and mounting feet, no text or symbols present.

• When transporting the TV set, do not subject it to jolts or excessive vibration.
• When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.

Topple prevention

Ventilation

• Never cover the ventilation holes or insert anything into the cabinet.
• Leave space around the TV set as shown below.
• It is strongly recommended that you use a Sony Wall-Mount Bracket in order to provide adequate air circulation.

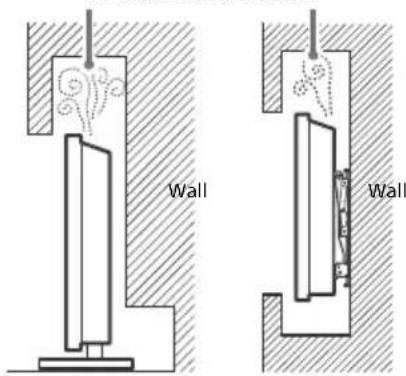

Installed on the wall

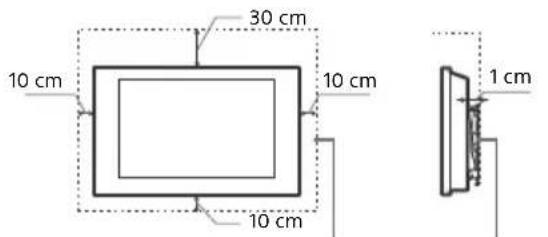

Leave at least this much space around the set.

Installed with stand

Leave at least this space around the set.

- To ensure proper ventilation and prevent the collection of dirt or dust:

— Do not lay the TV set flat, install upside down, backwards, or sideways.
- ☑ not place the TV set on a shelf, rug, bed or in a closet.
— Do not cover the TV set with a cloth, such as curtains, or items such as newspapers, etc.
— Do not install the TV set as shown below.

Air circulation is blocked.

Do not block the air circulation area.

Protecting the TV Screen (OLED TV)

Precautions to Protect the Screen from Damage

Image retention

OLED TV's are susceptible to image retention (burn-in) due to the characteristics of the materials used. Image retention may occur if images are displayed in the same location on the screen repeatedly or over extended periods of time. This is not a malfunction of the TV. Avoid displaying images that may cause image retention.

The following are examples of images that may cause image retention:

• Content with black bars either on the top and bottom and/or the left and right sides of the screen. (for example, Letterboxed, 4:3 screen, Standard definition)
  • Static images such as photos.
  • Video games that might have static content in some part of the screen.
• On-screen menus, programme guides, channel logos etc.
  • Static content from applications.
• On-screen tickers, such as those used for news and headlines.

To reduce the risk of image retention:

• Sony recommends that you turn off the TV normally by pressing the power button on the remote control or the TV.
• Fill the screen by changing [Wide mode] to eliminate the black bars. Select [Wide mode] other than [Normal].
• Turn off the OSD (On Screen Display) by pressing the button, and turn off the menus from connected equipment. For details, refer to the instruction manuals for the connected equipment.
• Avoid displaying static images with bright colours (including white), clocks or logos on any portion of the screen.
• Set the picture settings based on the ambient conditions. The Standard Picture is recommended for home use and when viewing content that often displays the station logos, etc.

The TV has following features to help reduce/prevent image retention.

Panel refresh

Panel refresh will automatically run to adjust the uniformity of the TV screen after it has been in use for long periods of time. Panel refresh can also be performed manually and should only be used if image retention is very noticeable or you see the following message: [Panel refresh did not finish...]

Caution:

• The Panel refresh function may affect the panel. As a reference, perform the Panel refresh only once a year, do not perform it more than once a year as it may affect the usable life of the panel.
• Panel refresh takes about one hour to complete.
• A white line may be displayed on the screen during the Panel refresh, this is not a malfunction of the TV.
• Panel refresh will only work when the room temperature is between 10 °C and 40 °C.

Pixel shift

Automatically moves the image on the screen to prevent image retention.

Other feature

The screen brightness is automatically reduced when displaying still images, clocks, bright colours or logos etc.

Parts and Controls

Controls and Indicators

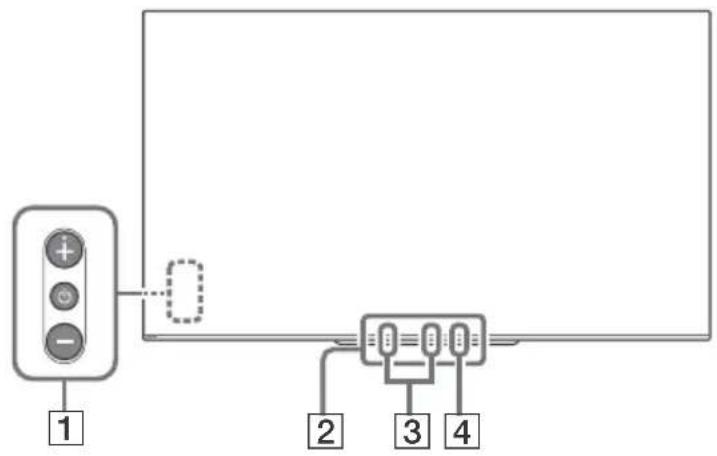

1 ⏻ (Power) / + / -

When the TV is off,

Press ⏻ to power on.

When the TV is on,

Press and hold ⏻ to power off.

Press ⏻ repeatedly to change the function, then press + or - button to:

• Adjust the volume.
• Select the channel.
• Select the input source of TV.

2 Remote Control sensor ^1 / Light sensor ^1 / Illumination LED

The illumination LED lights up or blinks according to the status of the TV.

For more information, refer to the Help Guide.

3 Built-in MIC ^2*3

Use the hands-free built-in microphone for voice search. To enable the built-in MIC, follow the on-screen instructions when you press the button.

4 Built-in MIC LED

The built-in MIC LED lights up in amber when the built-in MIC is enabled. The built-in MIC LED can be disabled.*3

*1 Do not place anything near the sensor.

*2 The voice search requires an Internet connection. The voice search with the built-in MIC is available only on limited region/country/language. Standby power consumption will increase because the built-in MIC is always listening when the voice search with the built-in MIC is enabled.

*3 For more information, see the Online Help Guide (page 2).

Using Remote Control

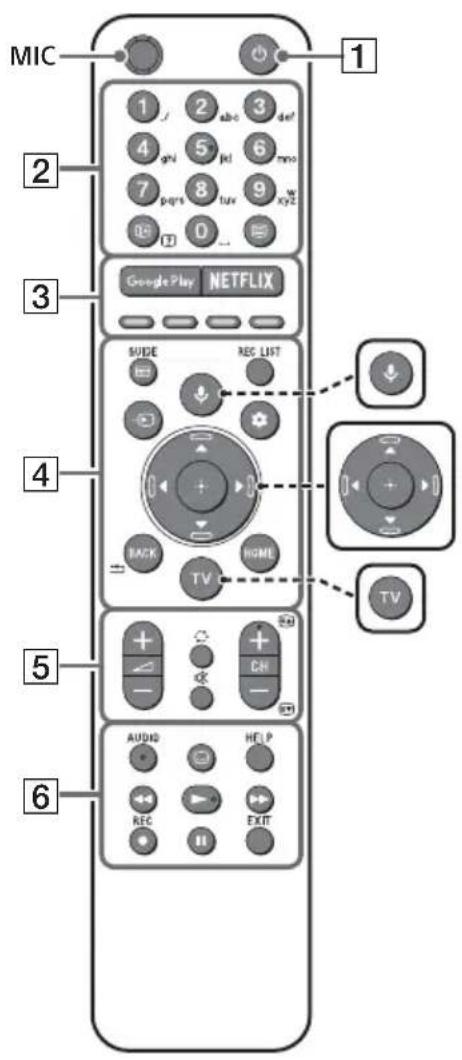

Remote Control Parts Description

The remote control shape, location, availability and function of remote control buttons may vary depending on your region/country/TV model.

(Microphone)

Use voice search*. (e.g., Search various content by voice.)

▲/▼/◄/►/⊕ (Navigation D-Pad)

On screen menu navigation and selection.

TV

Switch to a TV channel or input and display the TV menu.

* The voice search requires an Internet connection.

1 ⏻ (TV standby)

Turn on or turn off the TV (standby mode).

2 Number buttons

i+/? ( Info / Text rev

Display information.

Text

Display text information.

3 Google Play

Access the "Google Play" online service.

NETFLIX (Only on limited region/ country/TV model)

Access the "NETFLIX" online service.

Colour buttons

Execute corresponding function at that time.

4 GUIDE/

Display the digital programme guide, or EPG of cable/satellite box after setting [Cable/Satellite box setup] (Set top box control compatible models only).

REC LIST

Display the Rec list of USB HDD, or DVR after setting [Cable/Satellite box setup].

→ (Input select)

Display and select the input source, etc.

(Qquick settings)

Display Quick Settings.

BACK/←

Return to the previous screen.

HOME

Display the TV Home Menu.

5 ∠ +/- (Volume)

Adjust the volume.

(Jump)

Jump back and forth between two channels or inputs. The TV alternates between the current channel or input and the last channel or input that was selected.

Mute

Mute the sound. Press again to restore the sound.

Hint

- The accessibility shortcut service can be turned on or off by pressing and holding ☑.

CH +/−/▲/▼

In TV mode: Select the channel.

In Text mode: Select the next (▲) or previous (▼) page.

6 AUDIO

Select the sound of multilingual source or dual sound for the programme currently being viewed (depend on programme source).

(Subtitle setting)

Turn subtitles on or off (when the feature is available).

HELP

Display the Help menu. Help Guide can be accessed from here.

◀/▶/▶/||

Operate media contents on the TV and connected BRAVIA Sync-compatible device.

● REC

Record the currently viewed programme on the USB HDD, or DVR after setting [Cable/Satellite box setup] (only on limited region/country/TV model).

EXIT

Return to the previous screen or exit from the menu. When an Interactive Application service is available, press to exit from the service.

Note

- For more information about [Cable/Satellite box setup], refer to the Help Guide.

Connection Diagram

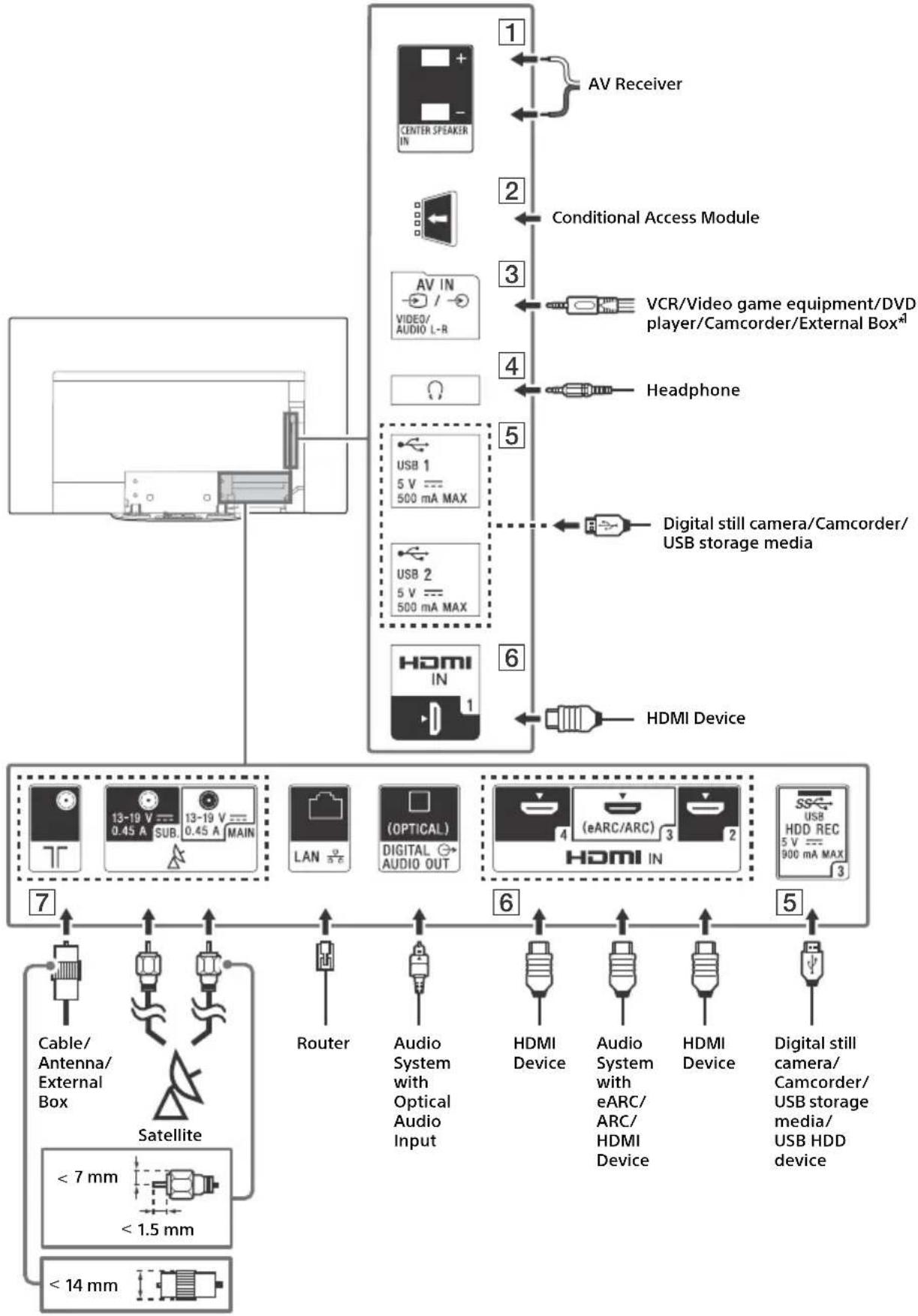

For more information on connections, refer to the Help Guide by pressing HELP on the remote control.

1 CENTER SPEAKER IN

• To use your TV speakers as the centre speaker, connect the output of your AV receiver to the CENTER SPEAKER IN on your TV.
• Before connecting cables, disconnect the mains lead of both TV and AV receiver.
• Make sure the [Speakers] is set to [Audio system].

To prevent hiss when not connecting the CENTER SPEAKER IN to an AV receiver, disable [TV centre speaker mode]. For details, refer to the Help Guide.

2 CAM (Conditional Access Module)

• Provides access to pay details, refer to the instruction manual supplied with your CAM.
• Do not insert the smart card directly into the TV CAM slot. It must be fitted into the Conditional Access Module provided by your authorised dealer.
• CAM is not supported in some countries/areas. Check with your authorised dealer.
• A CAM message may appear when you switch to a digital programme after using the Internet video.

3 → /→ AV IN

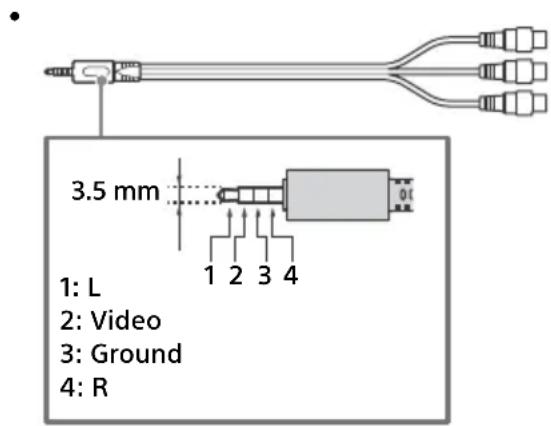

- For a composite connection, use an Analogue Extension Cable (not supplied).

4 (Headphone)

• Supports 3-pole stereo mini jack only.
- You cannot output sound from both the headphone and the TV speakers at the same time.

5 USB 1/2, USB3 (HDD REC)\*

2

• Connecting a large USB device may interfere with other connected devices beside it.
• When connecting a large USB device, connect to the USB 1 port.
• Connect a USB HDD device to the USB 3 port (blue).

6 HDMI IN 1/2/3/4

- HDMI interface can transfer the digital video and audio on a single cable.

• To enjoy high quality 4K 50p/60p contents, connect a Premium High Speed HDMI cable and set the [HDMI signal format] to [Enhanced format]. Do this setting individually for each connected HDMI IN terminal. For details of supported formats, refer to the "Specifications" in this manual (page 14-16).
• HD MI IN 3 eARC/ARC (Enhanced Audio Return Channel/Audio Return Channel) Connect your audio system to the HDMI IN 3 to route TV audio to your audio system. An audio system that supports HDMI eARC/ARC can send video to the TV, and receive audio from the TV via the same HDMI cable. If your audio system does not support HDMI eARC/ARC, an additional connection with DIGITAL AUDIO OUT (OPTICAL) is necessary.
• Use the HDMI cable with Ethernet to connect audio system with eARC.

7 (RF input), (Satellite input)

• Connections for terrestrial/cable and satellite. Connection steps: SUB. → MAIN → Antenna
• For SUB. jack, connect only when you are using twin tuner mode except for Single Cable Distribution EN50494.

*1 For an external device which has only SCART AV OUT, use a SCART-RCA adaptor and Analogue Extension Cable.

*2 Only on limited region/country/TV model.

Note

• You cannot attach the side cover ☐ where the cables are connected to side terminal.
• Be sure to store the side cover in a safe place for future use.

Installing the TV to the Wall

Using the optional Wall-Mount Bracket (SU-WL850 or SU-WL450)

To Customers:

For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Wall-Mount Bracket Installation Information

This TV's instruction manual only provides the steps to prepare the TV for Wall-Mount installation before it is installed on the wall.

For instructions on Wall-Mount Bracket installation, see the Installation Information (Wall-Mount Bracket) on the product page for your TV model.

www.sony.eu/support/

Preparing for Wall-Mount Installation

Use the Wall-Mount Bracket SU-WL850 (not supplied) or SU-WL450 (not supplied) to install the TV to the wall.

Make sure to attach the Table-Top Stand before installing the TV to the wall by referring to the Setup Guide.

• Prepare the TV for the Wall-Mount Bracket before making cable connections.
• Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this TV, especially to determine the strength of the wall for withstanding the TV's weight.
• Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.
• The screws for Wall-Mount Bracket are not supplied.
• Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to attach the Table-Top Stand. Keep the screws away from small children.

1 Remove the stand cover and terminal covers.

2 Remove the screws from the rear of the TV.

Troubleshooting

General troubleshooting for issues like: black screen, no sound, frozen picture, TV does not respond, or network is lost, do the following steps.

1 Restart your TV by pressing the power button on the remote control until a message appears. The TV will restart. If the TV does not recover, try unplugging the mains lead. Then press the power button on the TV and wait for two minutes, and plug in the mains lead.
2 Refer to the Help menu by pressing HELP on the remote control.
3 Connect your TV to the Internet and perform a software update. Sony recommends you to keep your TV software updated. Software updates provide new features and performance improvements.
4 Visit Sony support website (information provided on the front cover of this manual).

When you plug in the TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV.

It takes time to initialize the system. Wait for about one minute, then operate it again.

Troubles and Solutions

When the illumination LED is flashing in red.

• Count how many times it flashes (interval time is three seconds).
  Reboot the TV by disconnecting the mains lead until the illumination LED stopped flashing in red, then turn on the TV.
  If the problem persists, disconnect the mains lead, and contact your dealer or Sony service centre with the number of times the illumination LED flashes.

Terrestrial/cable service cannot be received.

• Check the antenna (aerial)/cable connection and booster settings.
• Select terrestrial/cable service by pressing TV on the remote control, and then select [Digital] if the broadcasting service is not displayed.
• Terrestrial signal might be suppressed if there is a strong signal supplied nearby. Set [LNA (CH ---)] to [Off] in digital tuning settings.
• After moving to a new house or trying to receive new services, attempt a service search by selecting [Digital tuning].

Satellite service cannot be received.

• Check the satellite cable connection.
• When [No signal. LNB overload detected...] message is displayed, unplug the mains lead. Then, ensure the satellite cable is not damaged and the satellite signal line is not short-circuited in the satellite connector.

The remote control does not function.

- Replace the batteries.

The parental lock for broadcast password has been forgotten.

- Enter 9999 for the PIN code and select [Change PIN code].

The TV surrounds become warm.

- When the TV is used for an extended period, the TV surrounds become warm. You may feel hot when touching there by the hand.

The screen becomes darker while watching TV.

- If the whole image or part of the image remains still, the screen brightness will be gradually reduced to prevent image retention. This is not a malfunction of the TV.

You are concerned about image retention.

If the same image is displayed repeatedly or for long periods of time, image retention may occur. To reduce image retention, we recommend that you turn off the TV normally by pressing the power button on the remote control or the TV.

Note

• Perform Panel refresh manually only when image retention is particularly noticeable. As a reference, perform it only once a year. Avoid performing it more than once a year because it may affect the usable life of the panel.
• Images that include clocks, logos and bright colours (including white) easily cause image retention. Avoid displaying these types of images for long periods of time, otherwise image retention may occur.

A white line appears on the screen.

- Panel refresh automatically runs after the TV has been used for long periods of time to reduce image retention. Panel refresh starts after the TV is turned off and takes about one hour to complete. A white line may be displayed on the screen during the Panel refresh. This is not a malfunction of the TV.

The message [Panel refresh did not finish...] is displayed.

Panel refresh automatically runs after the TV has been used for long periods of time to reduce image retention. If the TV is turned on, the mains lead is unplugged, or the room temperature falls outside of the range between 10 °C and 40 °C during the Panel refresh, the process will not be completed and this message will appear.

• If Panel refresh started automatically, it will restart when you turn off the TV with the remote control.
• If Panel refresh initiated manually, you must select it again.

Specifications

System

Panel system

OLED (Organic Light Emitting Diode) Panel

TV system

Depending on your country/area selection/TV model

Analogue: B/G, D/K, I

Digital: DVB-T/DVB-C DVB-T2 ^*1

PAL/SECAM/NTSC3.58 (Video only)/NTSC4.43 (Video only)

Channel coverage

Depending on your country/area selection/TV model

Analogue: UHF/VHF/Cable

Digital: UHF/VHF/Cable

Satellite ^* ^1 : IF Frequency 950-2,150 MHz

Sound output

20W + 20W + 10W + 10W

Wireless technology

Protocol IEEE802.11ac/a/b/g/n

(IEEE802.11ac may not be available depending on countries/regions.)

Bluetooth Version 4.2

Frequency band(s)

Wireless LAN (IEEE802.11ac/a/b/g/n)
Frequency range Output Power
2400 - 2483.5 MHz < 20	0.0 dBm
5150 - 5250 MHz < 23	0 dBm
5250 - 5350 MHz < 20	0 dBm
5470 - 5725 MHz < 20	0 dBm
5725 - 5850 MHz < 13	9 dBm

Bluetooth

Frequency range Output Power

2400 - 2483.5 MHz < 10.0 dBm

RMF-TX600E

Bluetooth

Frequency range Output Power

2400 - 2483.5 MHz < 10.0 dBm

Software version

This radio equipment is intended to be used with the approved version(s) of software that are indicated in the EU Declaration of Conformity. Press HELP on the remote control to know the software version.

Remote control: ____.

Select [Remote control] → [Software version] from [Settings]. For more information, refer to the Help Guide.

The software loaded on this radio equipment is verified to comply with the essential requirements of the Directive 2014/53/EU.

Input/Output jacks

Antenna (aerial)/cable

75 ohm external terminal for VHF/UHF

Satellite antenna ^* 1

Female F Type Connector, 75 ohm.

DiSEqC 1.0, LNB 13 V/18 V & 22 kHz tone, Single

Cable Distribution EN50494.

→/→ AV IN

Video/Audio input (mini jack)

HDMI IN 1/2/3/4 (support 4K resolution, HDCP

2.3-compatible)

Video:

4096 × 2160p (50, 60 Hz)*2*3, 4096 × 2160p

(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*3,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p,

PC Formats*4

Audio:

In eARC (Enhanced Audio Return Channel) mode ^*5

Refer to the Help Guide for details.

Except eARC mode

5.1 channel linear PCM: 32/44.1/48/88.2/96/

176.4/192 kHz 16/20/24 bits, Dolby Digital, Dolby Digital Plus, DTS

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (HDMI IN 3 only)

In eARC mode*5

Refer to the Help Guide for details.

In ARC mode

Two channel linear PCM: 48 kHz 16 bits, Dolby

Digital, Dolby Digital Plus, DTS

→ DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM:

48 kHz 16 bits, Dolby Digital, DTS)

(Stereo mini jack)

Headphone

1, 2, 3 (HDD REC)* 6

USB device port (3USB HDD device for REC feature)

USB port 1 and 2 support High Speed USB (USB 2.0)

USB port 3 supports Super Speed USB (USB 3.1

Gen 1)

CAM (Conditional Access Module) slot

LAN

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. The communication rate and quality are not guaranteed.)

CENTER SPEAKER IN

Centre speaker input terminal

Others

Optional accessories

Wall-Mount Bracket: SU-WL850

Wall-Mount Bracket: SU-WL450

Operating temperature

0^ C - 40^ C

Operating humidity

10% - 80% RH (non-condensing)

Power, Product Fiche and others

Power requirements

220 V - 240 V AC, 50 Hz

Energy Efficiency Class

KD-77AG9: A

KD-65AG9: B

KD-55AG9: B

Screen size (measured diagonally) (Approx.)

KD-77AG9: 194.7 cm / 77 inches

KD-65AG9: 163.9 cm / 65 inches

KD-55AG9: 138.8 cm / 55 inches

Power consumption

In [Standard] mode

KD-77AG9: 211 W

KD-65AG9: 169 W

KD-55AG9: 132 W

In [Vivid] mode

KD-77AG9: 674 W

KD-65AG9: 490 W

KD-55AG9: 394 W

Annual energy consumption ^7

KD-77AG9: 293 kWh per year

KD-65AG9: 234 kWh per year

KD-55AG9: 183 kWh per year

Standby power consumption ^89

KD-77AG9: 0.50 W (29 W in software/EPG update mode)

KD-65AG9: 0.50 W (27 W in software/EPG update mode)

KD-55AG9: 0.50 W (27 W in software/EPG update mode)

Display resolution

3,840 dots (horizontal) × 2,160 lines (vertical)

Output Rating

USB 1/2

5 V, 500 mA MAX

USB 3

5 V, 900 mA MAX

Dimensions (Approx.) (w × h × d)

with Table-Top Stand

KD-77AG9: 172.1 × 100.1 × 30.2 cm

KD-65AG9: 144.7 × 83.8 × 25.5 cm

KD-55AG9: 122.6 × 71.4 × 25.5 cm

without Table-Top Stand

KD-77AG9: 172.1 × 99.6 × 4.9 cm

KD-65AG9: 144.7 × 83.4 × 4.0 cm

KD-55AG9: 122.6 × 71.0 × 4.0 cm

Mass (Approx.)

with Table-Top Stand

KD-77AG9: 39.7 kg

KD-65AG9: 24.8 kg

KD-55AG9: 22.3 kg

without Table-Top Stand

KD-77AG9: 35.3 kg

KD-65AG9: 21.2 kg

KD-55AG9: 18.7 kg

*1 Not all the TV sets have DVB-T2 or DVB-S/S2 technology or satellite antenna terminal.

*2 When 4096 × 2160p is input and [Wide mode] is set to [Normal], the resolution is displayed as 3840 × 2160p. To display 4096 × 2160p, set [Wide mode] setting to [Full 1] or [Full 2].

*3 To support 18 Gbps, set [HDMI signal format] to [Enhanced format].

*4 Refer to the Help Guide for details.

*5 eARC mode is active when [eARC mode] is set to [Auto], [Speakers] is set to [Audio system] and eARC compatible audio system is connected.

*6 Only on limited region/country/TV model.

*7 Energy consumption in kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.

*8 Specified standby power is reached after the TV finishes necessary internal processes.

*9 Standby power consumption will increase when your TV is connected to the network.

Note

• Do not remove the dummy card or cover (availability depends on TV model) from TV CAM (Conditional Access Module) slot other than to insert a smart card fitted in CAM.
• Optional accessories availability depends on countries/region/TV model/stock.
• Design and specifications are subject to change without notice.

Notes on Digital TV function

- Digital TV (DVB terrestrial, satellite and cable), interactive services and network functions may not be available in all countries or areas. Some functions might not be enabled or might not operate correctly with some providers and network environments. Some TV service providers may charge a fee for their services.

- This TV supports digital broadcasting using MPEG-2, H.264/MPEG-4 AVC and H.265/HEVC codecs, but compatibility with all operator/service signals, which may change over time, cannot be guaranteed.

Trademark Information

• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
• Dolby, Dolby Vision, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright ©1992-2015 Dolby Laboratories. All rights reserved.
• "B R A VIA" and BRAVIA Sync are trademarks or registered marks of Sony Corporation.
• Gracenote, the Gracenote logo and logotype, "Powered by Gracenote" logo are either registered trademarks or trademarks of Gracenote, Inc. in the United States and/or other countries.
• Vewd® Core. Copyright 1995-2019 Vewd Software AS. All rights reserved.
• Google, Google Play, Chromecast, YouTube, Android TV and other related marks and logos are trademarks of Google LLC.

• Wi-Fi®, Wi-Fi Alliance® and Wi-Fi Direct® are registered trademarks of Wi-Fi Alliance.

• The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi Alliance.

• For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.
• The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.
• Netflix is a registered trademark of Netflix, Inc.
• DiSEqC™ is a trademark of EUTELSAT. This TV supports DiSEqC 1.0. This TV is not intended for controlling motorized antennas.
• TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.
• USB-IF SuperSpeed USB Trident logo is a registered trademark of USB Implementers Forum, Inc. SS
• All other trademarks are the property of their respective owners.
• The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi Alliance.
• For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.
• The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.
• Netflix is a registered trademark of Netflix, Inc.
• DiSEqC™ is a trademark of EUTELSAT. This TV supports DiSEqC 1.0. This TV is not intended for controlling motorized antennas.
• TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.
• USB-IF SuperSpeed USB Trident logo is a registered trademark of USB Implementers Forum, Inc. SS
• All other trademarks are the property of their respective owners.

Isometric diagram of a rectangular electronic component with internal channels and mounting holes, no text or symbols present.

20 W + 20 W + 10 W + 10 W

Technologie sans fil

Protocole IEEE802.11ac/a/b/g/n

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p, Formats PC ^*4

Audio :

En mode eARC (Enhanced Audio Return

Channel)*5

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (HDMI IN 3 uniquement)

En mode eARC*5

→ DIGITAL AUDIO OUT (OPTICAL)

10% - 80% HR (sans condensation)

Dimensions (approx.) (I × h × p)

Technical line drawing of a rectangular electronic component with internal channels and mounting holes (no text or symbols)

- HDM I IN 3 eARC/ARC (Enhanced Audio Return Channel/Audio Return Channel)

Digital: UHF/VHF/Cable

Satélite ^*1 : Frecuencia IF 950-2 150 MHz

Salida de sonido

20W + 20W + 10W + 10W

(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*3,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p,

Formatos de PC*4

Audio:

En el modo eARC (Enhanced Audio Return

Channel)*5

eARC/ARC (Enhanced Audio Return Channel/

→ DIGITAL AUDIO OUT (OPTICAL)

Toma digital óptica (PCM lineal de dos canales:

48 kHz 16 bits, Dolby Digital, DTS)

Dimensiones (Aprox.) (an × al × prf)

Specifications....14

— Wandmontagesteun SU-WL450

Pure technical diagram of a rectangular component with internal channels and mounting holes, no text or symbols present.

- HDM I IN 3 eARC/ARC (Enhanced Audio Return Channel/Audio Return Channel)

20 W + 20 W + 10 W + 10 W

Draadloze technologie

Protocol IEEE802.11ac/a/b/g/n

(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*3,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p, Pc-formaten*4

Audio:

In eARC (Enhanced Audio Return Channel)-modus ^*5

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (alleen HDMI IN 3) In eARC-modus ^*5

Tweekanaals lineaire PCM: 48 kHz 16 bits, Dolby

Digital, Dolby Digital Plus, DTS

→ DIGITAL AUDIO OUT (OPTICAL)

Pure technical line drawing of a mechanical component with no text or symbols

Pure technical diagram of a rectangular component with internal channels and mounting holes, no text or symbols present.

OLED (Organic Light Emitting Diode)-Panel

Fernsehnorm

(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*3,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p,

Computerformate*4

Audio:

Im eARC (Enhanced Audio Return Channel)-Modus ^4

eARC/ARC (Enhanced Audio Return Channel/

→ DIGITAL AUDIO OUT (OPTICAL)

Technical line drawing of a rectangular electronic component with internal channels and mounting holes (no text or symbols)

20 W + 20 W + 10 W + 10 W

Tecnologia sem fios

Protocolo IEEE802.11ac/a/b/g/n

(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*3,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p,

Formatos PC*4

Áudio:

No modo eARC (Enhanced Audio Return

Channel)*5

→ DIGITAL AUDIO OUT (OPTICAL)

Isometric diagram of a rectangular electronic component with internal channels and a prohibition symbol (no text or labels)

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p,

Formati PC* 4

Audio:

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Solo HDMI IN 3)

→ DIGITAL AUDIO OUT (OPTICAL)

1, 2, 3 (HDD REC)* 6

20 W + 20 W + 10 W + 10 W

Trådlös teknik

Protokoll IEEE802.11ac/a/b/g/n

(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*3,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p,

PC-format*4

Ljud:

I eARC (Enhanced Audio Return Channel)-läge* 5

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Endast HDMI IN 3)

I eARC-läge* 5

→ DIGITAL AUDIO OUT (OPTICAL)

- Vewd® Core. Copyright 1995-2019 Vewd Software AS. All rights reserved.

Diagram of a rectangular frame with hands and a prohibition symbol above (no text or labels)

Technical line drawing of a rectangular electronic component with mounting holes and a prohibition symbol (no text or labels)

20 W + 20 W + 10 W + 10 W

Trådløs teknologi

Protokol IEEE802.11ac/a/b/g/n

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (kun HDMI IN 3)

I eARC-tilstand ^4

→ DIGITAL AUDIO OUT (OPTICAL)

Digitalt optisk stik (to-kanals lineær PCM:

48 kHz 16 bit, Dolby Digital, DTS)

○ (Mini-stereostik)

Hovedtelefoner

1, 2, 3 (HDD REC)\*

6

I [Standard] tilstand

KD-77AG9: 211 W

KD-65AG9: 169 W

KD-55AG9: 132 W

I [Kraftig] tilstand

KD-77AG9: 674 W

KD-65AG9: 490 W

KD-55AG9: 394 W

KD-65AG9: 0,50 W (27 W i software-/

EPGopdateringstilstand)

KD-55AG9: 0,50 W (27 W i software-/

EPGopdateringstilstand)

Skærmopløsning

- Vewd® Core. Copyright 1995-2019 Vewd Software AS. All rights reserved.

Technical line drawing of a rectangular electronic component with internal channels and mounting holes (no text or symbols)

20 W + 20 W + 10 W + 10 W

Langaton teknologia

Protokolla IEEE802.11ac/a/b/g/n

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Vain HDMI IN 3) eARC-tilassa ^4

→ DIGITAL AUDIO OUT (OPTICAL)

1, 2, 3 (HDD REC)* 6

Technical line drawing of a rectangular electronic component with mounting holes and internal channels (no text or symbols)

Vis TV-ens home-meny.

5 ∠ +/- (Volum)

Juster lydstyrken.

(Hopp)

(Teksting-innstilling)

20 W + 20 W + 10 W + 10 W

Trådløs teknologi

Protokoll IEEE802.11ac/a/b/g/n

(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*3,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p, PC-formater ^4

Lyd:

I eARC (Enhanced Audio Return Channel)-modus ^4

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Kun HDMI IN 3)

I eARC-modus*5

→ DIGITAL AUDIO OUT (OPTICAL)

Digital optisk kontakt (tokanals lineær PCM: 48 kHz 16 biter, Dolby Digital, DTS)

(stereo mini-kontakt)

Hodetelefoner

1, 2, 3 (HOD REC)\* 6

Technical line drawing of a rectangular electronic component with internal channels and mounting feet, no text or symbols present.

• HDM I IN 3 eARC/ARC (Enhanced Audio Return Channel/Audio Return Channel)

Panel OLED (Organic Light Emitting Diode)

System TV

(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*3,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p,

W trybie eARC (Enhanced Audio Return

Channel)*5

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (tylko model HDMI IN 3)

W trybie eARC ^*5

→ DIGITAL AUDIO OUT (OPTICAL)

1, 2, 3 (HDD REC)* 6

Pure technical diagram of a rectangular component with internal channels and mounting holes, no text or symbols present.

20 W + 20 W + 10 W + 10 W

(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*3,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p, PC formáty*4

Audio:

V režimu eARC (Enhanced Audio Return Channel)*5

→ DIGITAL AUDIO OUT (OPTICAL)

Technical line drawing of a rectangular electronic component with internal channels and mounting holes (no text or symbols)

Panel OLED (Organic Light Emitting Diode)

20 W + 20 W + 10 W + 10 W

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Len model HDMI IN 3)

→ DIGITAL AUDIO OUT (OPTICAL)

Simple line drawing of a rectangular object with hands and a prohibition symbol above (no text or labels)

Technical line drawing of a rectangular electronic component with internal channels and mounting holes, no text or symbols present.

20 W + 20 W + 10 W + 10 W

(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*3,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p,

PC formátumok*4

Hang:

eARC (Enhanced Audio Return Channel)

üzemmodban*5

→ DIGITAL AUDIO OUT (OPTICAL)

- Vewd® Core. Copyright 1995-2019 Vewd Software AS. All rights reserved.

INFORMATIE IMPORTANTĂ ....2

INFORMATIE IMPORTANTĂ

Observatie cu privire la echipamentul radio

Technical line drawing of a rectangular electronic component with internal channels and mounting holes (no text or symbols)

Analogic: B/G, D/K, I

Digital: DVB-T/DVB-C DVB-T2 ^*1

Analogic: UHF/VHF/Cablu

Digital: UHF/VHF/Cablu

Satelit*1: Frecvență IF 950 - 2.150 MHz

leşire audio

20W + 20W + 10W + 10W

Tehnologie wireless

Protocol IEEE802.11ac/a/b/g/n

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Numai HDMI IN 3)

În modul eARC*5

→ DIGITAL AUDIO OUT (OPTICAL)

1, 2, 3 (HDD REC)* 6

Technical line drawing of a rectangular electronic component with internal channels and mounting feet (no text or symbols)

20 W + 20 W + 10 W + 10 W

Безжична технология

IEEE802.11ac/a/b/g/n протокол

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p,

PC формати* 4

Аудио:

В режим eARC (Enhanced Audio Return

Channel)*5

eARC/ARC (Enhanced Audio Return Channel/Audio Return Channel) (camo HDMI IN 3)

В режим eARC*5

→ DIGITAL AUDIO OUT (OPTICAL)

Цифров оптичен жак (Двуканален линеен PCM: 48 kHz 16 бита, Dolby Digital, DTS)

○ (Стерео мини жак)

Слушалки

1, 2, 3 (HDD REC)\* 6

Technical line drawing of a rectangular electronic component with internal channels and mounting holes (no text or symbols)

20 W + 20 W + 10 W + 10 W

Ασύρματη τεχνολογία

Прωτόκολλο IEEE802.11ac/a/b/g/n

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p,

→ DIGITAL AUDIO OUT (OPTICAL)

Sony Visual Products Inc., KD-77AG9,

KD-65AG9, KD-55AG9 radyo ekipmani

Technical line drawing of a rectangular electronic component with mounting holes and a prohibition symbol (no text or labels)

Dijital: UHF/VHF/Kablolu

20 W + 20 W + 10 W + 10 W

(24 Hz)*2, 3840 × 2160p (50, 60 Hz)*3,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p, PC Formatlari*4

Ses:

eARC (Enhanced Audio Return Channel) modunda ^45

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (sadece HDMI IN 3) eARC modunda ^*5

→ DIGITAL AUDIO OUT (OPTICAL)

- Vewd® Core. Copyright 1995-2019 Vewd Software AS. All rights reserved.
