USER MANUAL IAN 279619 ULTIMATE SPEED

CAR SMARTPHONE BRACKET

GB NI

CAR SMARTPHONE BRACKET

Instructions for use and safety guidelines

DK

AUTO-SMARTPHONEHOLDER

Instructions for use and safety guidelines

- Intended use

Congratulations! You have chosen a high-quality product to purchase. This product is intended as a holder in vehicles for smartphones. The mount is designed for the inside windscreen pane. Use the product only for the intended use.

• Delivery content

1 support bracket with support arm and vacuum suction cup 1 user manual

- Parts Description

1 Vacuum suction cup
2 with vacuum tab
3 Support arm
4 Suction lever
5 Ball joint
6 Holder
7 clamp
8 adjustable holding tabs
9 Cable clips for cable thicknesses of 2.4 – 3.0 mm & 3.5 – 4.1 mm

- Technical Data

Suitable for appliances with a width of approx. 58 - 84 mm

Safety Guidelines

WARNING!

• Do not install the product within the operating parameter of an airbag or near the steering wheel. This may lead to accidents and injuries, in particular in the impact zone of the head or body.
  ■ The positioning of the product must not impair the driver in any way. The field of view must be free.
• Do not use, install or adjust whilst driving. Installation of the product or any accessories must not impair the driver whilst he/she is driving a vehicle.
  ■ Do not pick up or look for any fallen objects during the journey. Risk of an accident!
  ■ Lay all feed lines so that they pose no danger (tripping hazard)

and cannot be damaged. Risk of an accident!

■ Supply cables may be damaged if incorrectly handled!

- Check the mounting support for stability before each time taking a ride.

In case of failure to observe the safety guidelines, the holder or the appliance may come loose and be damaged. Consequential damages cannot be ruled out. Risk of an accident!

■ When passing on to third parties, please include the user manual and safety guidelines. Store the safety guidelines together with the appliance.

- Notes

■ Strong sunlight can affect functioning of the product.
- Direct sunlight can damage the suction cup and adhesion if the temperature inside the vehicle exceeds 70°C (158°F).
- The suction cup is suitable for attaching to a smooth and clean surface for a limited time only.

■ Free the suction cup at regular intervals (at least every 3 months) and reattach it to create a new vacuum.
■ No liability is accepted for damages caused by misuse of the product or by failure to observe the safety guidelines.
In order to avoid break-ins, you should not leave your device unattended in the holder.

• Installation Instructions

1. Fastening the suction cup to the windscreen

- The ambient temperature should be above 15°C (59°F) for an optimal and secure adhesion of the suction cup. If the ambient temperature is not above 15°C (59°F), warm the surface with a hairdryer. Press the sucker 1 firmly onto the base and move the suction lever 4 to create a vacuum between the base and the sucker.

In order to remove the fastening system from the base, pull up the suction lever 4 and pull on the vacuum tab 2 to release the vacuum.

Black handheld device with two labeled parts (1 and 4), no visible text or symbols on the device itself.

2. Setting the ball joint for the desired tilt angle

■ Loosen the little wheel on the ball joint 5 behind the holder and set the desired vertical or horizontal position as well as the tilt angle. Then tighten the little wheel again.

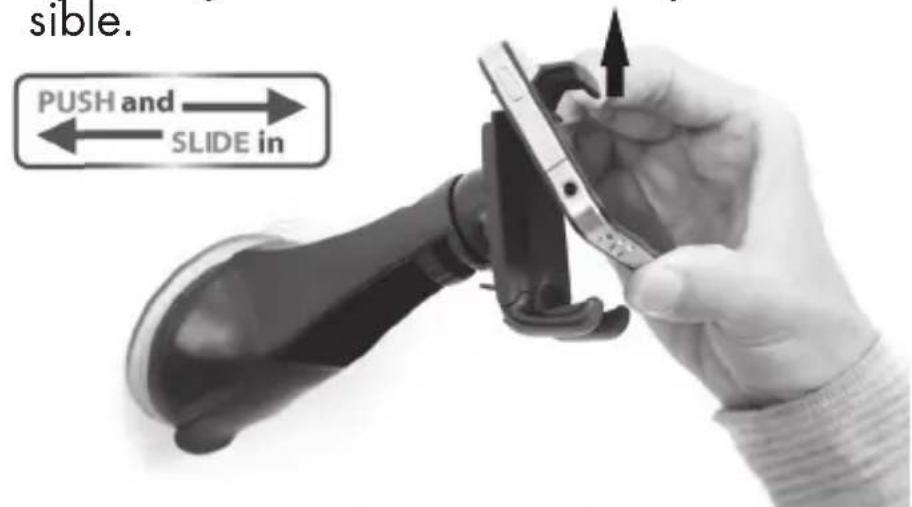

3. Attaching a device to the holder

- The lower holding tabs 8 can be adjusted to fit the size of the device. The tabs 8 can be pulled out and pushed in by pressing the buttons on the back of the holder 6 (marked "Press"). Adjust both the holding tabs to fit the size of your smartphone and make sure that both the holding tabs are set the same.

- Insert the desired device and press against the clamp 7. This will give and the device will simply be held by the holder 6. Now remove the pressure from

the clamp so that the device is pressing against the holding tabs and is therefore locked. Place the device so that all side operating elements remain freely accessible.

- To remove the device, simply press it against the clamp 7 again until it gives, then remove the device at a slight angle. The holder 6 can rotate through 360^irc thanks to the ball joint 5, so the device installed can be put in various positions e.g. vertical (for instance for use as a camera) or horizontal (for instance for the satnav function). On the back of the holder 6 there are two cable clips 9 with which a charging cable may be attached (cable not supplied with the holder). Cable clips: Left cable clip for cable thicknesses of 2.4 - 3.0 mm Right cable clip for cable thicknesses of 3.5 - 4.1 mm.

- Cleaning and care

Do not use any cleaning agents with alcohol or other fl ammable liquids/substances. Clean the product with a dry, lint-free cloth.

- Disposal

The packaging consists of environmentally friendly materials that you can dispose of at local recycling points. Dispose of the product in the residual waste at the end of its lifespan in accordance with regulations and legislation applicable in your country.

- Warranty

3 years warranty on this product from the date of purchase, only applies to the first purchaser, not transferable. Please keep the receipt as proof. The warranty only applies to material or production faults, not for wear parts or for damage due to incorrect use. The warranty is void in the case of external intervention. Your legal rights remain unaffected by this warranty. In the case of a warranty claim, please contact the service point. This ensures that your device can be sent to us free of charge.

Availability of spare parts: 3 years from date of purchase.

Service / Manufacturer

IU Item no.: 97379-6

Model no.: 220 106 51

Serial no.: 43/2016

As at: 05/2016

Version: 1.0
