Product type	Mounting bracket for smartphone, mobile phone and MP3 player in the car
Attachment	Suction cup for windshield
Clamping width	Approximately 46 to 74 mm
Material	Robust plastic
Package contents	Mounting bracket with jaws, mounting bracket with suction cup, instruction manual
Power supply	None (mechanical device)
Angle adjustment	Ball joint with tightening wheel
Jaw opening	Push button on the left side
Recommended operating temperature	Above 15°C for optimal adhesion
Maximum suction cup temperature	70°C (158°F) beyond, risk of damage
Cleaning	With a dry lint-free cloth, without alcohol or solvent
Safety instructions	Do not install near airbags, do not use while driving, check stability before each trip
Warranty	3 years from date of purchase (first buyer)
Manufacturer	Tegro AG, Ringstrasse 3, CH-8603 Schwerzenbach
Model number	1188 1525
IAN	270086

Frequently Asked Questions - IAN 270086 ULTIMATE SPEED

How to install the mount on the windshield?

Ensure the ambient temperature is above 15°C. Press the suction cup firmly onto the clean windshield and operate the lever to create a vacuum. To remove, flip the lever and pull the tab to release the air.

How to fix the device in the jaws?

Press the button on the left side of the mount to open the jaws. Insert your device, then release the button to secure it. To release, press again.

Can I adjust the tilt of the mount?

Yes, loosen the small wheel on the ball joint behind the mount, adjust the desired angle, then retighten the wheel.

What devices can I use with this mount?

This mount is suitable for smartphones, mobile phones, and MP3 players with a width between 46 and 74 mm.

How to clean the mount?

Use a dry lint-free cloth. Do not use products containing alcohol or flammable solvents.

Where should I not install the mount?

Do not install the mount in the deployment zone of airbags or near the steering wheel. It must not obstruct the driver.

What to do if the suction cup does not adhere well?

Check that the surface is clean and smooth. If the temperature is below 15°C, warm the area with a hair dryer. Replace the suction cup if it is damaged.

Does the mount have a warranty?

Yes, the product comes with a 3-year warranty from the date of purchase, valid for the first buyer. Keep the sales receipt.

Can I use the mount while driving?

No, it is forbidden to adjust or install the mount while driving. Perform all adjustments before setting off.

How to contact customer service?

For complaints in English, contact Tegro AG by email at [e-mail] or by mail at Ringstrasse 3, CH-8603 Schwerzenbach.

USER MANUAL IAN 270086 ULTIMATE SPEED

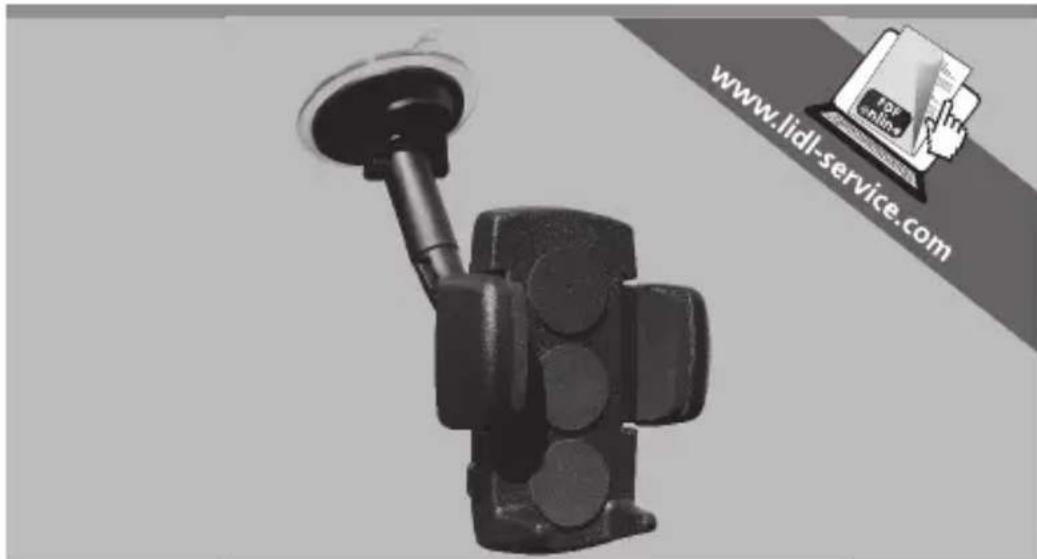

Multi-purpose car bracket

Instructions for use and safety guidelines

IAN 270086

Close-up of a black electrical plug with circular arrows indicating rotation or clockwise motion (no text or symbols visible)

Two identical 3D mechanical components with circular holes and directional arrows, one pointing to a button (no text or symbols)

Illustration of a hand holding a device with a separate close-up view (no text or symbols)

Mechanical component diagram showing a linkage mechanism with labeled parts (1 and 2), no text or symbols present.

Close-up of a black mechanical component with circular arrows indicating rotational motion (no text or symbols visible)

Two identical mechanical components with circular holes and directional arrows, one pointing to a button (no text or symbols)

Illustration of a hand holding a device with a separate close-up view (no text or symbols)

Close-up of a black mechanical component with circular arrows indicating rotation or adjustment (no text or symbols visible)

Two identical 3D mechanical components with circular holes, shown in two different states of movement (no text or symbols)

Multi-purpose car bracket

Instructions for use and safety guidelines

Intended use

Congratulations! You have chosen a high-quality product to purchase. This product is intended as a holder in vehicles for smartphones, mobile phones or MP3 players. The mount is designed for the inside windscreen pane. Use the product only for the intended use.

Delivery content

• 1 mounting support with jaws
• 1 support bracket with vacuum suction mount
- 1 user manual

Parts Description

• Vacuum suction cup
- Holding arm with ball joint and connector plate
- Holder with fixing jaw

Technical Data

- Suitable for appliances with a width of 46-74mm

Safety Guidelines

• Do not install the product within the operating parameter of an airbag or near the steering wheel.
• The positioning of the product must not impair the driver in any way.
• Do not use, install or adjust whilst driving.
• Lay all feed lines so that they pose no danger (tripping hazard) and cannot be damaged.
• Check the mounting support for stability before each time taking a ride.
• In case of failure to observe the safety guidelines, the holder or the appliance may come loose and be damaged. Consequential damages cannot be ruled out.
• When passing on to third parties, please include the user manual and safety guidelines.
• Store the safety guidelines together with the appliance.

Notes

• Strong sunlight can affect functioning of the product.
- Direct sunlight can damage the suction cup and adhesion if the temperature inside the vehicle exceeds 70°C (158°F).
- The suction cup is suitable for attaching to a smooth and clean surface for a limited time only.
- No liability is accepted for damages caused by misuse of the product or by failure to observe the safety guidelines.

Installation Instructions

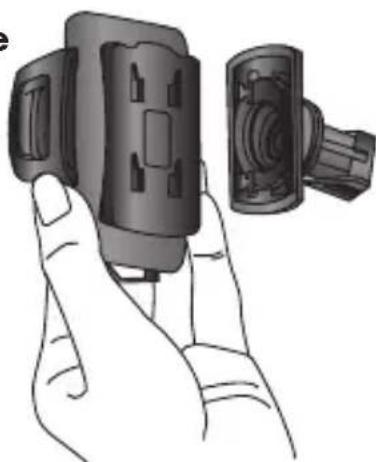

1. Fastening the holder on the holding arm:

a. Insert the suction cup's 4 claws into the holder's 4 hole system. Hold it vertically so that the 2 holding feet face downward.

b. To connect securely, push the holder downward until it clicks into place.

c. To remove the holder, push it upward.

2. Fastening the suction cup to the windscreen

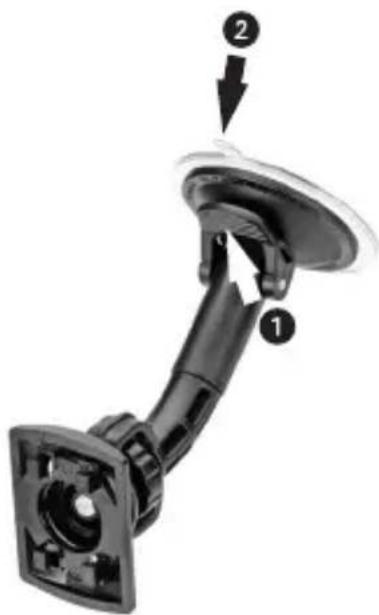

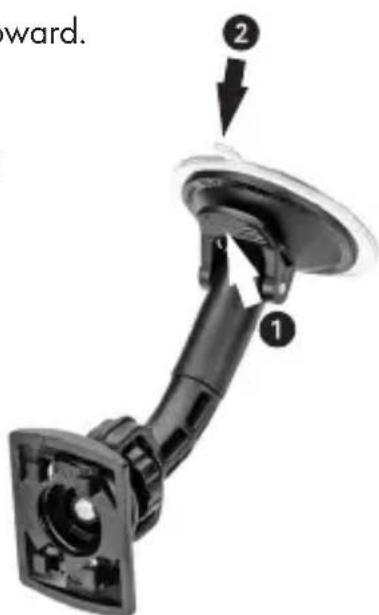

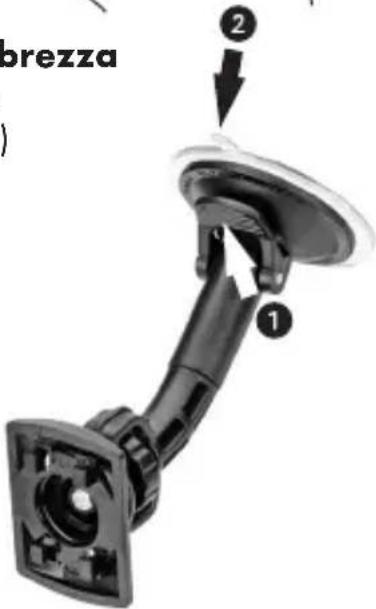

a. The ambient temperature should be above 15^ C ( 59^ F) for an optimal and secure adhesion of the suction cup. If the ambient temperature is not above 15^ C ( 59^ F), warm the surface with a hairdryer. Press the sucker firmly onto the base and move the suction lever ① to create a vacuum between the base and the sucker.

b. In order to remove the fastening system from the base, pull up the suction lever ① and pull on the vacuum tab ② to release the vacuum.

Illustration of a hand holding a device with a separate close-up view (no text or symbols visible)

3. Setting the ball joint for the desired tilt angle

a. Loosen the little wheel on the ball joint behind the holder and set the desired vertical or horizontal position, as well as the tilt angle. Then tighten the little wheel again.

Close-up of a black plastic connector with circular arrows indicating rotation or adjustment (no text or symbols visible)

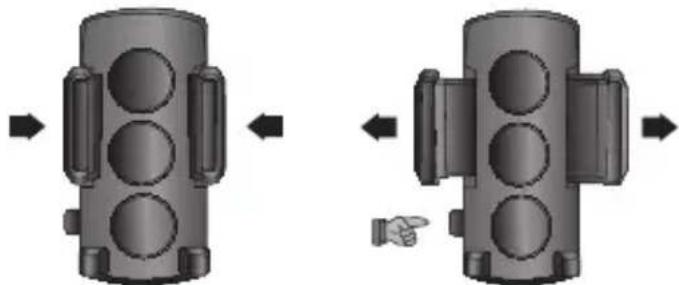

4. Fastening the jaws

Two identical 3D mechanical components with circular holes, shown in two different states of movement (no text or symbols)

a. To open the jaws, push the button on the left side of the holder.

b. Insert the desired appliance and secure into place by pushing the jaws together.

c. To release the appliance, push the button to open the jaws.

Cleaning and care

- Do not use any cleaning agents with alcohol or other flammable liquids/substances.

- Clean the product with a dry, lint-free cloth.

Disposal

- The packaging consists of environmentally friendly materials that you can dispose of at local recycling points. Dispose of the product in the residual waste at the end of its lifespan.

Warranty

3 years warranty on this product from the date of purchase, only applies to the first purchaser, not transferable. Please keep the receipt as proof. The warranty only applies to material or production faults, not for wear parts or for damage due to incorrect use. The warranty is void in the case of external intervention. Your legal rights remain unaffected by

this warranty. In the case of a warranty claim, please contact the service point. This ensures that your device can be sent to us free of charge.
