EAP620 HD - Access Point TP-LINK - Free user manual and instructions

Product Type	Access Point
Brand	TP-Link
Model	EAP620 HD
Wi-Fi Standard	802.11ax (Wi-Fi 6)
Frequency Bands	2.4 GHz & 5 GHz
Maximum Data Rate	Up to 1775 Mbps (2.4 GHz: 574 Mbps, 5 GHz: 1201 Mbps)
Ethernet Port	1 x Gigabit (PoE In)
PoE Support	802.3af/at PoE or Passive PoE
Power Supply	PoE (via switch or injector) or 12 V DC (adapter included)
Power Consumption	Maximum 12 W
Mounting Options	Ceiling or wall (mounting bracket included)
Dimensions	200 x 200 x 27.5 mm (7.9 x 7.9 x 1.1 in)
Weight	0.5 kg (1.1 lbs)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Management	Standalone (web UI) or via TP-Link Controller (software/hardware)
Security	WPA2/WPA3 Personal, Enterprise, MAC filtering
LED Indicators	Power, Ethernet, 2.4 GHz, 5 GHz
Safety Precautions	Keep away from water, fire, humidity; do not disassemble; use only recommended chargers
Maintenance	Clean with soft dry cloth; unplug before cleaning
Warranty	Limited hardware warranty (varies by region, see TP-Link website)

Frequently Asked Questions - EAP620 HD TP-LINK

How do I reset the TP-Link EAP620 HD to factory defaults?

Locate the reset button on the device. With the device powered on, press and hold the reset button for about 10 seconds using a paperclip until the LED lights flash. Release the button. The device will reboot and restore factory settings.

What power options are available for the EAP620 HD?

The EAP620 HD can be powered via PoE (802.3af/at) using a PoE switch or PoE injector, or via the included 12V DC power adapter. Both methods are supported.

Can I manage multiple EAP620 HD units without a controller?

Yes, each access point can be managed individually via its web interface when accessed by its IP address. However, for centralized management of multiple units, TP-Link recommends using the TP-Link Controller (software or hardware).

What is the maximum coverage of the EAP620 HD?

Coverage depends on the environment, but typical indoor range is up to 250 m² (2,700 ft²) in open spaces. Walls and obstacles will reduce coverage.

Does the EAP620 HD support Wi-Fi 6 (802.11ax)?

Yes, the EAP620 HD is a dual-band Wi-Fi 6 access point, offering higher speeds, lower latency, and improved capacity compared to previous Wi-Fi standards.

How do I mount the EAP620 HD on a ceiling?

Follow the included ceiling mount instructions: remove the ceiling tile, attach the mounting bracket, drill holes for screws and Ethernet cable, then secure the bracket with washers and wing nuts. Finally, attach the AP to the bracket and rotate to lock.

Can I use the EAP620 HD as a wireless repeater?

No, the EAP620 HD is designed as a standalone access point and does not support repeater or mesh mode. It requires a wired Ethernet connection to the network.

What security protocols does the EAP620 HD support?

It supports WPA2/WPA3 Personal and Enterprise, as well as MAC address filtering and wireless access control for enhanced network security.

How do I clean the EAP620 HD?

Unplug the device and wipe the exterior with a soft, dry cloth. Do not use water, solvents, or abrasive cleaners.

Where can I find the user manual and support?

The full user manual can be downloaded from the TP-Link support website (https://www.tp-link.com/support). Use the search function to find the manual for the EAP620 HD.

USER MANUAL EAP620 HD TP-LINK

Hardwareinstallation

■ Option 1: Deckenmontage

2

■ Option 2: Wandmontage

Spannungsversorgung

Note: Images may differ from your actual product

Network Topology

A typical network topology for the AP is shown below

APs can be centrally configured and monitored via Controller You can get the Controller from https://www.tp-link.com or contact the sales staff

Hardware Installation

■ Option 1: Ceiling Mounting

Follow the steps below to install the AP with the provided accessories:

Note: The mounting bracket and the accessories (quantity and size) may vary by product

Washers Pan-head Screws Wing Nuts

1 Remove the ceiling tile

English

2

Place the mounting bracket in the center of the ceiling tile Mark positions for the screw holes and a position for the Ethernet cable hole Drill 4 mm diameter holes for the screws and a 25 mm diameter hole for the Ethernet cable at the marked positions

3

Secure the mounting bracket to the ceiling tile using pan-head screws, washers and wing nuts

4

Feed the Ethernet cable through the hole and set the ceiling tile back into place

5

Connect the Ethernet cable to the Ethernet port Attach the AP to the mounting bracket by aligning the arrow mark on the AP with the arrow mark on the mounting bracket, then rotate the AP until it is locked into place

Hole for Ethernet cable

■ Option 2: Wall Mounting

Follow the steps below to install the AP with the provided accessories:

Note: The mounting bracket and the accessories (quantity and size) may vary by product

Plastic Wall Anchors Self-tapping Screws

If your Ethernet cable feeds through the wall, position the mounting bracket and feed the Ethernet cable Mark positions for the screw holes and then drill 6 mm diameter holes at the marked positions

2 Insert the plastic wall anchors into the 6 mm diameter holes

3 Secure the mounting bracket to the wall by driving the self-tapping screws into the anchors Make sure that the shoulders of the mounting bracket are on the outside

4 Connect the Ethernet cable to the Ethernet port on the AP

5 Attach the AP to the mounting bracket by aligning the arrow mark on the AP with the arrow mark on the mounting bracket, then rotate the AP until it is locked into place

Power Supply

■ Power via PSE Device or Power Adapter

Some APs can be powered via the power adapter or the PSE device (such as a PoE switch) which complies with Power Source Class 2 (PS2) or Limited Power Source (LPS) of IEC 62368-1

Note: Availability depends on the actual product Please refer to the product specifications

Via PoE Switch

Via Power Adapter

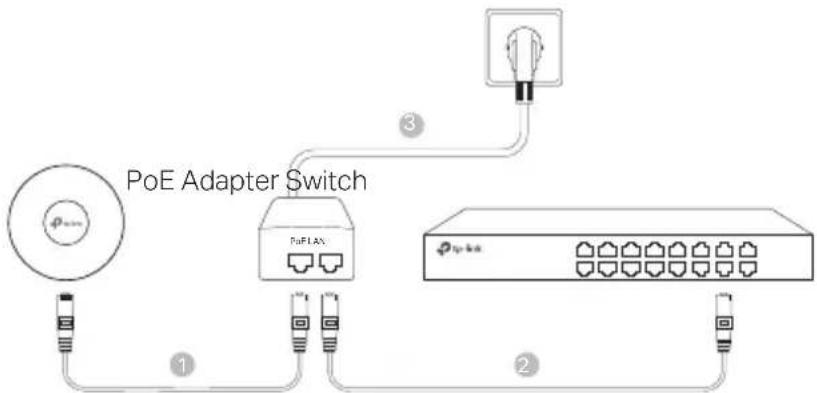

■ Power via PoE Adapter

Some APs can be powered via the PoE adapter

Note: Availability depends on the actual product

Please refer to the product specifications

2

4 Conecte el cable Ethernet al puerto ETHERNET en el AP

2

2

3

4

5

Rondelles Vis CHC Écrous papillon

2

3

4

5

1

2

3

4

5

4 Conecte o cabo de rede Ethernet na porta de rede Ethernet

2

■ Optie 2: Plafondmontage

Stroomvoorziening

Via strömadapter

■ Ström via PoE-adapter

Vissa AP:er kan drivas via PoE-adaptern

2

■ Alternativ 2: Montering på vegg

4 Koble Ethernet-kabelen til Ethernet-porten på AP

Strømforsyning

■ Strøm via PoE-adapter

Noen AP-er kan drives via PoE-adapteren

Dansk

2

4 Forbind Ethernet-kablet til ETHERNET-porten på AP

■ Strøm via PoE-adapter

Nogle AP'er kan forsynes med strøm via PoE-adapteren
