Notice MAKITA DDA351RTJ - page 4
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type Cordless Angle Drill/Driver
Brand Makita
Model DDA351RTJ (DDA351)
Drilling capacity in steel 10 mm
Drilling capacity in wood 25 mm
No load speed 0 – 1 800 min⁻¹
Overall length 326 mm
Net weight (with battery) 1,8 kg
Rated voltage 18 V DC
Battery type Lithium-ion battery (with star marking)
Front light LED, illuminates with the trigger
Reversing switch Yes, with neutral position
Side grip (auxiliary) Included, can be installed on both sides
Hanging hook Yes, removable from both sides
Sound pressure level 73 dB(A) (K=3 dB(A))
Vibration (metal drilling) 2,5 m/s² or less (K=1,5 m/s²)
Battery protection system Automatic cut-off in case of overload or low voltage
Care and cleaning Wipe with a dry cloth; do not use solvents
Spare parts and accessories Drills, hook, battery, charger, transport case
Repairability Authorized Makita service center, genuine spare parts
Intended use Drilling in wood, metal, and plastic
Conformity standards CE, EN60745

Frequently Asked Questions - DDA351RTJ MAKITA

How to install or remove the battery?
Turn off the tool. To remove the battery, slide it while pushing the button at the front. To install, align the tab with the slot in the housing and push until it clicks. The red indicator should no longer be visible.
How to use the reversing switch?
The reversing switch is located above the trigger. Push the lever to side A for clockwise rotation, to side B for counterclockwise. The trigger is locked in neutral position. Only switch the reversing switch after the tool has completely stopped.
What to do if the tool stops automatically?
The tool is protected by an overload protection device. If the battery is too hot or the voltage is too low, the tool stops. Release the trigger, let it cool down or recharge the battery, then press the trigger again.
How to change the drill bit?
Hold the tool firmly. Turn the chuck body counterclockwise to open, insert the drill bit fully, then tighten by turning clockwise. To remove, turn counterclockwise.
Which lubricant to use for drilling metal?
Use a suitable drilling lubricant. Iron and brass can be drilled dry. Excessive pressure does not speed up drilling and may damage the drill bit.
How to maintain the drill?
Clean the drill with a dry cloth. Do not use gasoline, benzine, thinner, or alcohol. For any repairs, contact an authorized Makita service center.
What accessories are available?
Drill bits, hanging hook, transport case, genuine Makita batteries and chargers. Some accessories may be included depending on the country.
Is the drill equipped with a light?
Yes, an LED light illuminates when you press the trigger and stays on for 10 to 15 seconds after release. Clean the lens with a dry cloth.
How to install the side grip?
Screw the side grip firmly onto the tool. It can be mounted on either side according to your preference. Make sure it is tightened before use.
What are the important safety precautions?
Hold the tool firmly, use the side grip, do not touch the hot drill bit, wear hearing protection (noise > 80 dB), and do not look directly at the LED light.

User questions about DDA351RTJ MAKITA

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Drill driver in PDF format for free! Find your manual DDA351RTJ - MAKITA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DDA351RTJ by MAKITA.

USER MANUAL DDA351RTJ MAKITA

natural_image Line drawing of a mechanical power tool with a drill bit and base (no text or symbols)

1 2 3

1

4

2

5

3

MAKITA DDA351RTJ - 4

natural_image Technical line drawing of an electric motor with labeled component '6' (no text or symbols beyond label)

4

7 B 7 A

5

MAKITA DDA351RTJ - 6

natural_image Technical line drawing of a mechanical assembly with two rotating components (no text or symbols)

6

8

7

9 10 11

8

MAKITA DDA351RTJ - 9

natural_image Line drawing of a hand using a power tool to lift a motor (no text or symbols)

9

Explanation of general view

1Button5Switch trigger9Groove
2Redindicator6Lamp10Hook
3Batterycartridge7Reversing switch11Screw
4Starmark8Sgeeve

SPECIFICATIONS

ModelDDA341
Capacities
Steel10 mm10 mm
Wood25 mm25 mm
No load speed (min ^-1 )0–1,7000 – 1,800
Overall length326 mm326 mm
Net weight1.7 kg1.8 kg
Rated voltageD.C. 14.4 VD.C. 18 V

- Due to our continuing program of research and development, the specifications herein are subject to change without notice.

- Specifications and battery cartridge may differ from country to country.

- Weight, with battery cartridge, according to EPTA-Procedure 01/2003

ENE032-1

Intended use

The tool is intended for drilling in wood, metal and plastic.

GEA010-1

General Power Tool Safety Warnings

⚠ WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

GEB051-2

CORDLESS DRILL SAFETY WARNINGS

  1. Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
  2. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
  3. Always be sure you have a firm footing. Be sure no one is below when using the tool in high locations.
  4. Hold the tool firmly.
  5. Keep hands away from rotating parts.
  6. Do not leave the tool running. Operate the tool only when hand-held.
  7. Do not touch the drill bit or the workpiece immediately after operation; they may be extremely hot and could burn your skin.
  8. Some material contains chemicals which may be toxic. Take caution to prevent dust inhalation and skin contact. Follow material supplier safety data.

SAVE THESE INSTRUCTIONS.

WARNING:

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.

ENC007-7

IMPORTANT SAFETY INSTRUCTIONS

FOR BATTERY CARTRIDGE

  1. Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
  2. Do not disassemble battery cartridge.
  3. If operating time has become excessively shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.
  4. If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.
  5. Do not short the battery cartridge:

(1) Do not touch the terminals with any conductive material.
(2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc.
(3) Do not expose battery cartridge to water or rain.

A battery short can cause a large current flow, overheating, possible burns and even a breakdown.

  1. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50°C (122°F).
  2. Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out. The battery cartridge can explode in a fire.
  3. Be careful not to drop or strike battery.
  4. Do not use a damaged battery.

SAVE THESE INSTRUCTIONS.

Tips for maintaining maximum battery life

  1. Charge the battery cartridge before completely discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

  2. Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life.

  3. Charge the battery cartridge with room temperature at 10^ C – 40^ C ( 50^ F – 104^ F). Let a hot battery cartridge cool down before charging it.

  4. Charge the battery cartridge once in every six months if you do not use it for a long period of time.

FUNCTIONAL DESCRIPTION

CAUTION:

- Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool.

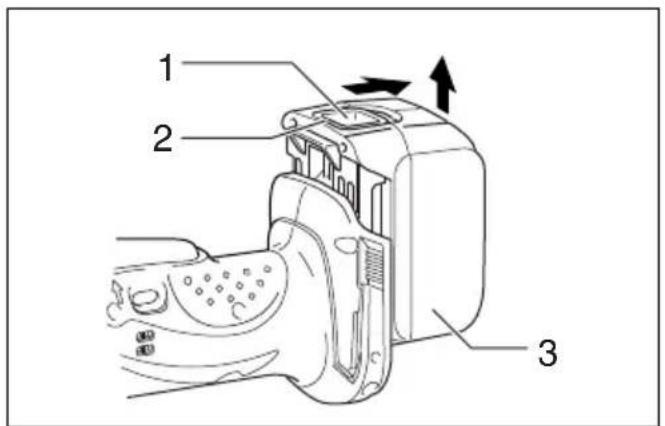

Installing or removing battery cartridge (Fig. 1)

- Always switch off the tool before installing or removing of the battery cartridge.

- To remove the battery cartridge, slide it from the tool while sliding the button on the front of the cartridge.

- To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Always insert it all the way until it locks in place with a little click. If you can see the red indicator on the upper side of the button, it is not locked completely. Install it fully until the red indicator cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.

- Do not use force when installing the battery cartridge. If the cartridge does not slide in easily, it is not being inserted correctly.

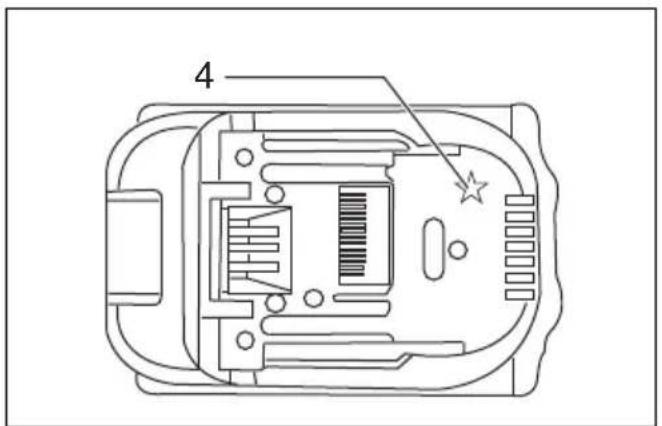

Battery protection system (Lithium-ion battery with star marking) (Fig. 2)

Lithium-ion batteries with a star marking are equipped with a protection system. This system automatically cuts off power to the tool to extend battery life.

The tool will automatically stop during operation if the tool and/or battery are placed under one of the following conditions:

- Overloaded:

The tool is operated in a manner that causes it to draw an abnormally high current.

In this situation, release the trigger switch on the tool and stop the application that caused the tool to become overloaded. Then pull the trigger switch again to restart.

If the tool does not start, the battery is overheated. In this situation, let the battery cool before pulling the trigger switch again.

- Low battery voltage:

The remaining battery capacity is too low and the tool will not operate. In this situation, remove and recharge the battery.

Switch action (Fig. 3)

CAUTION:

- Before inserting the battery cartridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released.

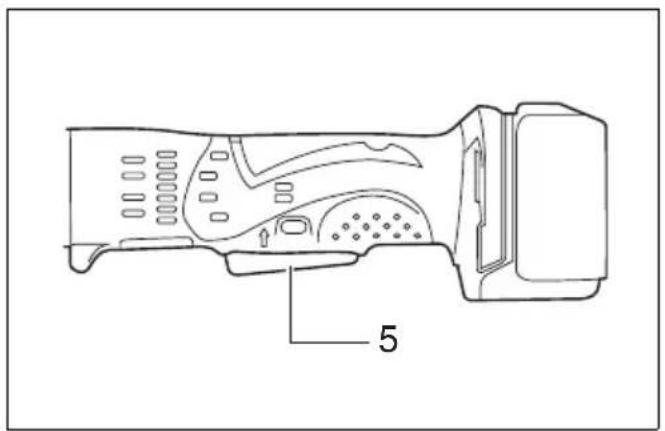

To start the tool, simply pull the switch trigger. Tool speed is increased by increasing pressure on the switch trigger. Release the switch trigger to stop.

CAUTION:

- Be sure to hold the tool firmly before the tool is switched off.

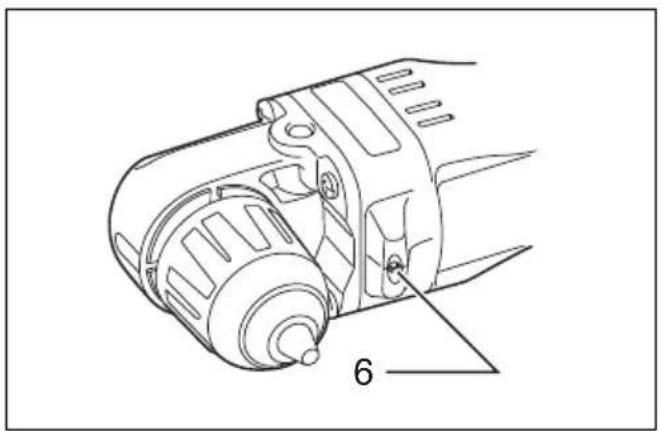

Lighting up the front lamp (Fig. 4)

CAUTION:

- Do not look in the light or see the source of light directly.

Pull the switch trigger to light up the lamp. The lamp keeps on lighting while the switch trigger is being pulled. The light automatically goes out 10 - 15 seconds after the switch trigger is released.

NOTE:

- Use a dry cloth to wipe the dirt off the lens of lamp. Be careful not to scratch the lens of lamp, or it may lower the illumination.

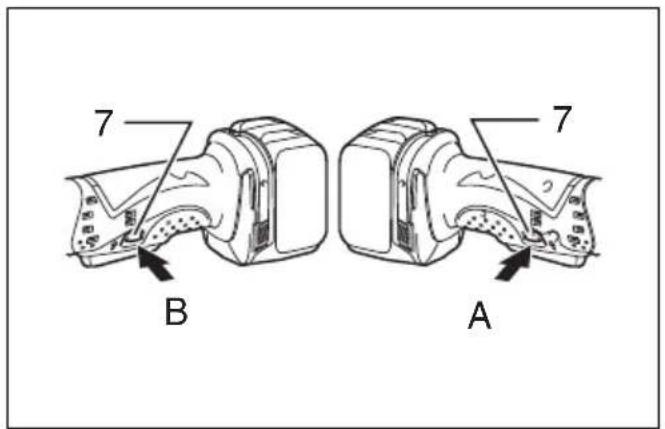

Reversing switch action (Fig. 5)

This tool has a reversing switch to change the direction of rotation. Depress the reversing switch lever from the A side for clockwise rotation or from the B side for counterclockwise rotation.

When the reversing switch lever is in the neutral position, the switch trigger cannot be pulled.

CAUTION:

- Always check the direction of rotation before operation.

- Use the reversing switch only after the tool comes to a complete stop. Changing the direction of rotation before the tool stops may damage the tool.

- When not operating the tool, always set the reversing switch lever to the neutral position.

ASSEMBLY

CAUTION:

- Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool.

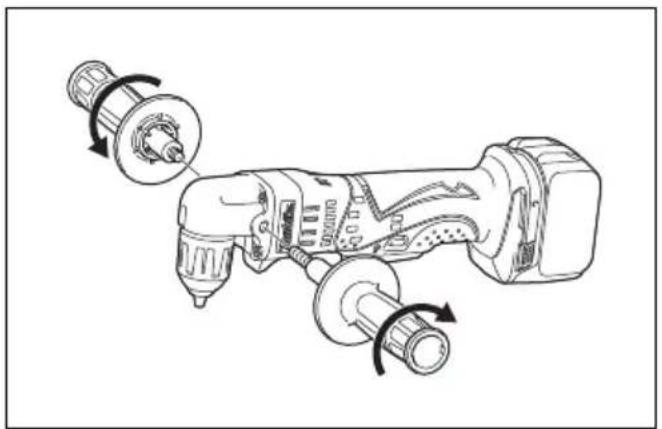

Installing side grip (auxiliary handle) (Fig. 6)

CAUTION:

- Always be sure that the side grip is installed securely before operation.

Screw the side grip on the tool securely. The side grip can be installed on either side of the tool, whichever is convenient.

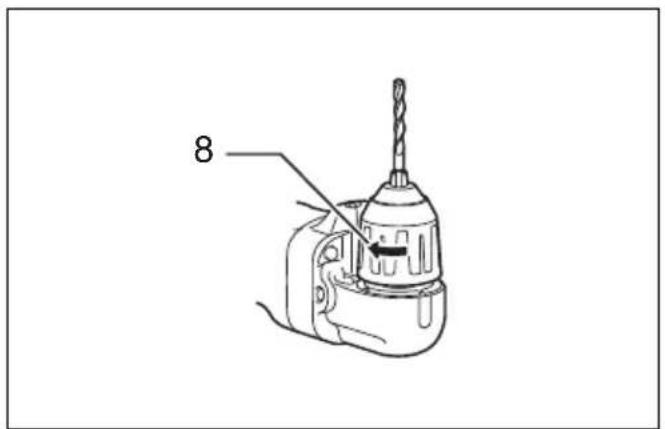

Installing or removing drill bit (Fig. 7)

Hold the tool firmly and turn the sleeve counterclockwise to open the chuck jaws. Place the bit in the chuck as far as it will go. Hold the tool firmly and turn the sleeve clockwise to tighten the chuck.

To remove the bit, hold the tool firmly and turn the sleeve counterclockwise.

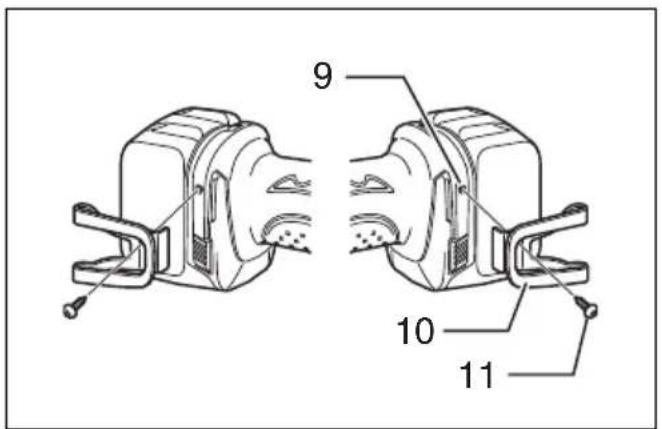

Hook (Fig. 8)

The hook is convenient for temporarily hanging the tool. This can be installed on either side of the tool.

To install the hook, insert it into a groove in the tool housing on either side and then secure it with a screw. To remove, loosen the screw and then take it out.

OPERATION

CAUTION:

- Hold the tool firmly with one hand on the gripping part of the tool and the other hand on the side grip when performing the tool. (Fig. 9)

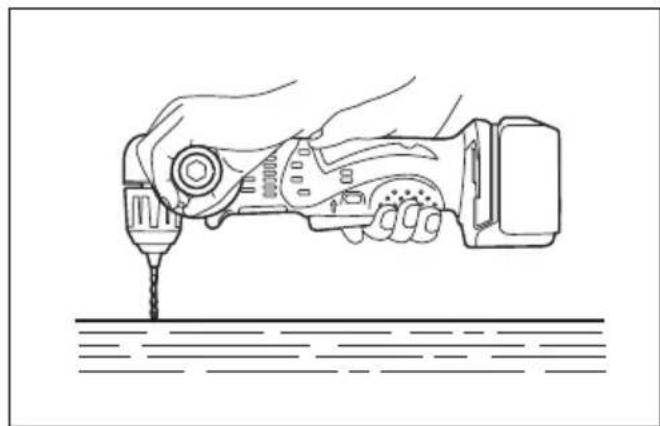

Drilling operation

Drilling in metal

To prevent the bit from slipping when starting a hole, make an indentation with a center-punch and hammer at the point to be drilled. Place the point of the bit in the indentation and start drilling.

Use a cutting lubricant when drilling metals. The exceptions are iron and brass which should be drilled dry.

CAUTION:

  • Pressing excessively on the tool will not speed up the drilling. In fact, this excessive pressure will only serve to damage the tip of your bit, decrease the tool performance and shorten the service life of the tool.
  • There is a tremendous force exerted on the tool/bit at the time of hole break through. Hold the tool firmly and exert care when the bit begins to break through the workpiece.
  • A stuck bit can be removed simply by setting the reversing switch to reverse rotation in order to back out. However, the tool may back out abruptly if you do not hold it firmly.
  • Always secure small workpieces in a vise or similar hold-down device.
  • If the tool is operated continuously until the battery cartridge has discharged, allow the tool to rest for 15 minutes before proceeding with a fresh battery.

MAINTENANCE

CAUTION:

  • Always be sure that the tool is switched off and the battery cartridge is removed before attempting to perform inspection or maintenance.
  • Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result.

To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized Service Centers, always using Makita replacement parts.

OPTIONAL ACCESSORIES

CAUTION:

- These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.

If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

  • Drill bits
  • Hook
  • Plastic carrying case
  • Various type of Makita genuine batteries and chargers

NOTE:

- Some items in the list may be included in the tool package as standard accessories. They may differ from country to country.

For European countries only

Noise

The typical A-weighted noise level determined according to EN60745:

Sound pressure level ( L_pA ): 73 dB (A)

Uncertainty (K): 3 dB (A)

The noise level under working may exceed 80 dB (A).

Wear ear protection.

ENG202-3

Vibration

The vibration total value (tri-axial vector sum) determined according to EN60745:

Work mode: drilling into metal

Vibration emission ( a_h,D ): 2.5 m/s ^2 or less

Uncertainty (K): 1.5 m/s²

ENG901-1

  • The declared vibration emission value has been measured in accordance with the standard test method and may be used for comparing one tool with another.
  • The declared vibration emission value may also be used in a preliminary assessment of exposure.

WARNING:

  • The vibration emission during actual use of the power tool can differ from the declared emission value depending on the ways in which the tool is used.
  • Be sure to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

ENH101-15

For European countries only

EC Declaration of Conformity

We Makita Corporation as the responsible manufacturer declare that the following Makita machine(s):

Designation of Machine: Cordless Angle Drill

Model No./ Type: DDA341, DDA351

are of series production and

Conforms to the following European Directives: 2006/42/EC

And are manufactured in accordance with the following standards or standardised documents:

EN60745

The technical documentation is kept by our authorized representative in Europe who is:

Makita International Europe Ltd.

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, England

30.1.2009

MAKITA DDA351RTJ - EC Declaration of Conformity - 1

Tomoyasu Kato

Director

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

Descriptif

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, Angleterre

30.1.2009

MAKITA DDA351RTJ - EC Declaration of Conformity - 2

Tomoyasu Kato

Directeur

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

1 Knopf

5 Ein-Aus-Schalter

9 Führungsnut

2 Rote Anzeige

6 Lampe

10 Haken

3 Akku

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, England

30.1.2009

MAKITA DDA351RTJ - EC Declaration of Conformity - 3

Tomoyasu Kato

Direktor

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

Visione generale

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, England

30.1.2009

MAKITA DDA351RTJ - EC Declaration of Conformity - 4

Tomoyasu Kato

Amministratore

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

OPTIONELE ACCESSOIRES

LET OP:

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, Engeland

30.1.2009

MAKITA DDA351RTJ - LET OP: - 1

Tomoyasu Kato

Directeur

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, Inglaterra

30.1.2009

MAKITA DDA351RTJ - LET OP: - 2

Tomoyasu Kato

Director

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

Explicação geral

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, Inglaterra

30.1.2009

MAKITA DDA351RTJ - LET OP: - 3

Tomoyasu Kato

Director

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, England

30.1.2009

MAKITA DDA351RTJ - LET OP: - 4

Tomoyasu Kato

Direktør

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

Michigan Drive Tongwell,

Milton Keynes, Bucks MK15 8JD, England (Aγγλία)

30.1.2009

MAKITA DDA351RTJ - LET OP: - 5

Tomoya su Kato

Διευθυντήσ

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

Makita Corporation

Anjo, Aichi, Japan

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : MAKITA

Model : DDA351RTJ

Category : Drill driver
