Product Type	TV Soundbar
Brand	Bose
Model	Solo 5 series II
Audio Technologies	Videostage® and TrueSpace® for surround sound
Wireless Connectivity	Bluetooth® (up to 8 remembered devices, multipoint for 2 devices)
Input Connectors	Optical, Coaxial, AUX (3.5 mm jack input)
Power Supply	Power adapter 20 V DC, 1.8 A (100-240 V AC, 50/60 Hz)
Maximum Power Consumption	30 W
Standby Power Consumption	≤ 0.5 W
Remote Control	Programmable universal (AA batteries included)
Dialogue Mode	Yes (optimizes voices)
Auto Standby	Yes (adjustable)
Wall Mounting	Possible (WB-120 bracket sold separately)
TV Speaker Disable	Yes (via remote or TV settings)
Compatibility	TVs, Blu-ray players, game consoles, cable/satellite boxes
Box Contents	Soundbar, remote control, optical cable, coaxial cable, power adapter, mounting ring, quick start guide
Safety	Important instructions: do not expose to water, do not modify, use provided adapter
Cleaning	Soft, dry cloth, no solvents or aerosols
Warranty	Limited (see global.Bose.com/warranty)
Repairability	Refer all servicing to qualified personnel
Spare Parts Available	WB-120 wall mount kit, AA batteries for remote

Frequently Asked Questions - Solo 5 series II BOSE

How do I pair a Bluetooth device with the soundbar?

Press the Bluetooth button on the remote until the Bluetooth indicator flashes blue. Enable Bluetooth on your device and select 'Bose Solo 5 system' from the list.

What should I do if the soundbar produces no sound?

Check that the audio cable is connected to a TV Audio OUT port, not an input. Increase the volume and make sure sound is not muted. If necessary, unplug the power for one minute.

How do I program the universal remote to control my TV?

Hold down the TV button until the six source buttons light up. Enter your brand's code (see provided guide) using the numeric keypad, then press Volume+. Test and repeat with another code if needed.

How do I activate Dialogue mode?

Press the Dialogue button () on the remote. The status indicator lights orange. This mode reduces bass to better hear voices.

How do I clear the soundbar's Bluetooth pairing list?

Hold down the Bluetooth button on the remote for 10 seconds until the indicator flashes blue. Then delete 'Bose Solo 5 system' from your device.

How do I reset the bass level?

Press the BASS button on the remote for 5 seconds. The status indicator flashes white three times, then bass level returns to factory setting.

The remote is not working, what should I do?

Check that the batteries are correctly installed (two AA batteries). Point the remote at the soundbar. If the status indicator does not flash when you press a button, replace the batteries.

How do I mount the soundbar on the wall?

Purchase the WB-120 wall mounting kit (sold separately). Follow the instructions provided with the kit. After installation, hold down the button for 5 seconds to optimize bass.

How do I disable the TV speakers?

Use your TV's audio menu to disable the internal speakers. You can also mute the TV or lower the volume to zero.

The soundbar stays in standby, how do I wake it?

Press the Power (⏻) button on the remote. If auto standby is enabled, the soundbar wakes automatically upon receiving an audio signal.

USER MANUAL Solo 5 series II BOSE

Please read and keep all safety and use instructions.

Bose Corporation hereby declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and all other applicable EU directive requirements. The complete declaration of conformity can be found at: www.Bose.com/compliance

Important Safety Instructions

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

10. Only use attachments/accessories specified by the manufacturer.

with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

1. Unplug this apparatus during lightning storms or when unused for long periods of time.

2. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

WARNINGS/CAUTIONS

This symbol on the product means there is uninsulated, dangerous voltage within the product enclosure that may present a risk of electrical shock.

This symbol on the product means there are important operating and maintenance instructions in this guide.

Contains small parts which may be a choking hazard. Not suitable for children under age 3.

This product contains magnetic material. Consult your physician on whether this might affect your implantable medical device.

• To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
• Do NOT expose this apparatus to dripping or splashing, and do not place objects filled with liquids, such as vases, on or near the apparatus.
• Keep the product away from fire and heat sources. Do not place naked flame sources, such as lighted candles, on or near the product.
• Do NOT make unauthorized alterations to the product.
• Do NOT use a power inverter with this product.
• Do NOT use in vehicles or boats.
• The speaker wire and interconnect cables included with this system are not approved for in-wall installation. Please check your local building codes for the correct type of wire and cable required for in-wall installation.
• Use this product only with the power supply provided.
• Where the mains plug or appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
• The batteries provided with this product may present a risk of fire or chemical burn if mishandled.
• Do NOT expose products containing batteries to excessive heat (e.g. from storage in direct sunlight, fire or the like).
• Only use the mounting hardware supplied with this product.
• Do NOT mount on surfaces that are not sturdy, or that have hazards concealed behind them, such as electrical wiring or plumbing. If you are not sure about installing the bracket, contact a qualified professional installer. Ensure the bracket is installed according to local building code.
• Due to ventilation requirements, Bose does not recommend placing the product in a confined space such as in a wall cavity or in an enclosed cabinet.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by Bose Corporation could void the user's authority to operate this equipment.

This device complies with part 15 of the FCC Rules and ISED Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This Class B digital apparatus complies with Canadian ICES-003.

CAN ICES-3(B)/NMB-3(B)

This device complies with FCC and ISED Canada RF radiation exposure limits set forth for general population. It must not be co-located or be operating in conjunction with any other antennas or transmitters.

This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Model: 418775

For Europe:

Frequency band of operation 2400 to 2483.5 MHz.

Maximum transmit power less than 20 dBm EIRP.

Maximum transmit power is below regulatory limits such that SAR testing is not necessary and exempt per applicable regulations.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

Management Regulation for Low-power Radio-frequency Devices

Article XII

According to “Management Regulation for Low-power Radio-frequency Devices” without permission granted by the NCC, any company, enterprise, or user is not allowed to change frequency, enhance transmitting power or alter original characteristic as well as performance to an approved low power radio-frequency devices.

Article XIV

The low power radio-frequency devices shall not influence aircraft security and interfere legal communications; If found, the user shall cease operating immediately until no interference is achieved. The said legal communications means radio communications operated in compliance with the Telecommunications Act.

The low power radio-frequency devices must be susceptible with the interference from legal communications or ISM radio wave radiated devices.

Product Power State Table

The product, in accordance with the Ecodesign Requirements for Energy Related Products Directive 2009/125/EC, is in compliance with the following norm(s) or document(s): Regulation (EC) No. 1275/2008, as amended by Regulation (EU) No. 801/2013.

Required Power State Information	Power Modes
	Standby Networked Standby
Power consumption in specified power mode, at 230V/50Hz input	≤ 0.5 W N/A^*
Time after which equipment is automatically switched into mode	< 2.5 hours N/A*
Power consumption in networked standby if all wired network ports are connected and all wireless network ports are activated, at 230V/50Hz input	N/A N/A*
Network port deactivation/activation procedures. Deactivating all networks will enable standby mode.	Bluetooth: Deactivate by clearing the pairing list by pressing and holding the Bluetooth button for 10 seconds. Activate by pairing with a Bluetooth source.*product does not utilize a networked standby mode for a Bluetooth connection and does not have the ability to be configured to a network via Wi-Fi or Ethernet

External Power Supply Technical Information

The external power supply provided with the product, in accordance with the Ecodesign Requirements for Energy Related Products Directive 2009/125/EC, is in compliance with the following norms(s) or documents(s): Commission Regulation (EU) 2019/1782.

Manufacturer Bose Products B.V.
Commercial registration number 36037901
Address	Gorslaan 601441 RG PurmerendThe Netherlands
Model identifier DT20V-1.8C-DC
Input voltage 100V-240V
Input AC frequency 50Hz/60Hz
Output voltage 20V DC
Output current 1.8A
Output power 36W
Average active efficiency 89.0%
Efficiency at low load (10%)	88.3%
No-load power consumption	0.08W

China Restriction of Hazardous Substances Table

Names and Contents of Toxic or Hazardous Substances or Elements
	Toxic or Hazardous Substances and Elements
Part Name	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent (CR(VI))	Polybrominated Biphenyl (PBB)	Polybrominated diphenylether (PBDE)
PCBs X 0 0 0 0 0
Metal Parts X 0 0 0 0 0
Plastic Parts 0 0 0 0 0	0
Speakers X 0 0 0 0 0
Cables X 0 0 0 0 0
This table is prepared in accordance with the provisions of SJ/T 11364.O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.

Taiwan Restriction of Hazardous Substances Table

Equipment name: Bose’ Solo, Type designation: 410376
	Restricted substances and its chemical symbols
Unit	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent chromium (Cr+6)	Polybrominated biphenyls (PBB)	Polybrominated diphenyl ethers (PBDE)
PCBs	-	○	○	○	○	○
Metal Parts	-	○	○	○	○	○
Plastic Parts	○	○	○	○	○	○
Speakers	-	○	○	○	○	○
Cables	-	○	○	○	○	○
Note 1: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.Note 2: The “-” indicates that the restricted substance corresponds to the exemption.

Please complete and retain for your records

The serial and model numbers are located on the bottom of the soundbar and on the packaging for the remote control.

Serial number:

Model number:

Please keep your receipt with your owner's guide. Now is a good time to register your Bose product.

You can easily do this by going to global.Bose.com/register

Date of Manufacture: The eighth digit in the serial number indicates the year of manufacture; "0" is 2010 or 2020.

China Importer: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

EU Importer: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

Taiwan Importer: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan Phone Number: [phone]

Mexico Importer: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. Phone Number: [phone]

The CMIIT ID is located on the back panel product label.

California: Contains lithium ion battery with Perchlorate Material - special handling may apply.

See www.dtsc.ca.gov/hazardouswaste/perchlorate

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Bose Corporation is under license.

Blu-ray Disc ^™ and Blu-ray ^™ are trademarks of the Blu-ray Disc Association.

Dolby Audio

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

Bose Corporation Headquarters: 1-877-230-5639

©2020 Bose Corporation. No part of this work may be reproduced, modified, distributed, or otherwise used without prior written permission.

Introduction

About your TV sound system 11

System features.... 11

Unpacking.... 12

Setting up the System

Placing the soundbar 13

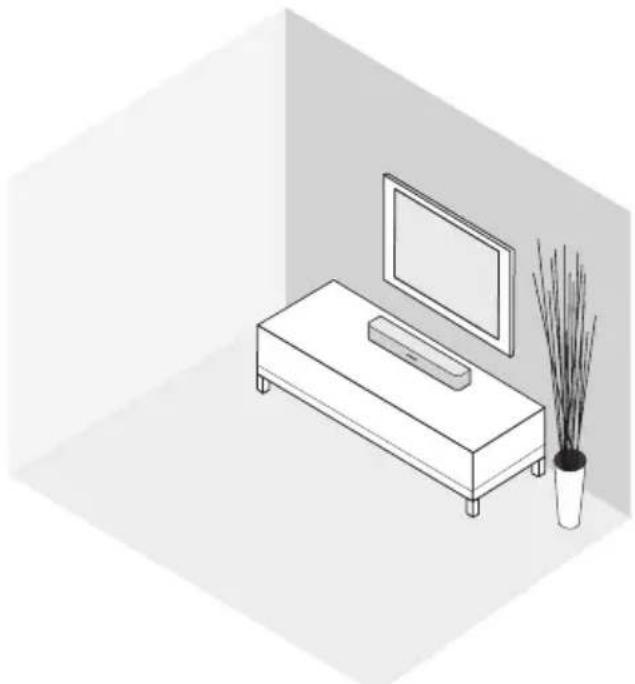

Sample soundbar placement 13

Wall mounting the soundbar.... 13

Cable options 14

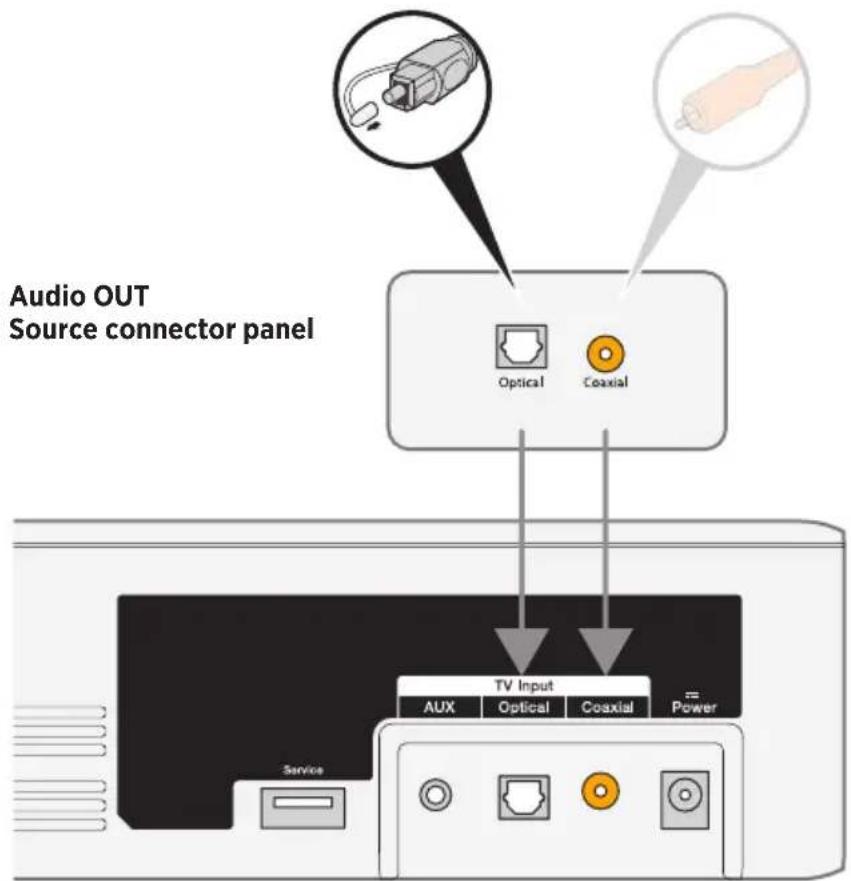

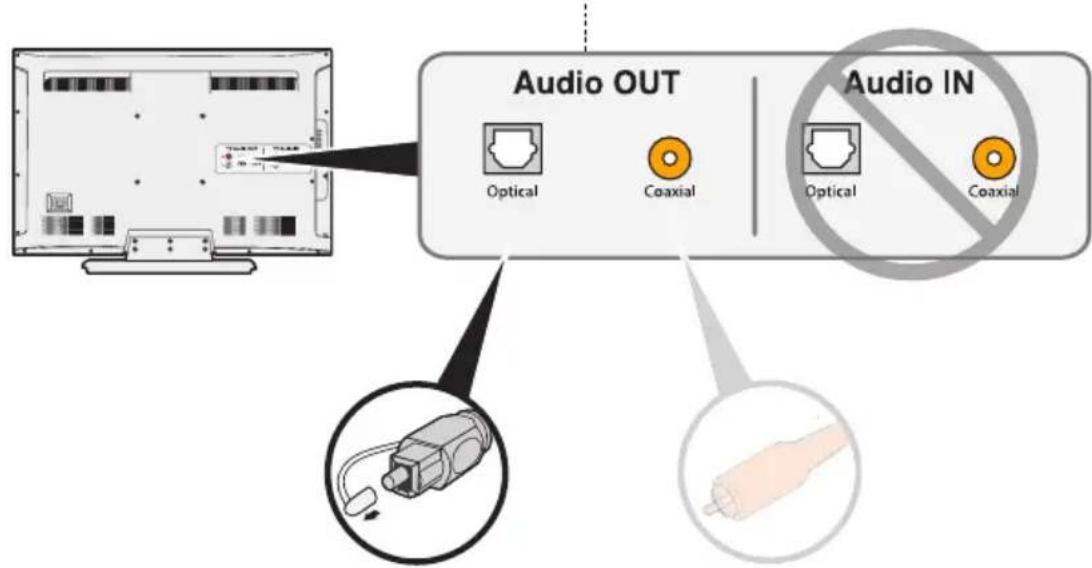

Connecting your TV.... 14

Connecting the soundbar.... 15

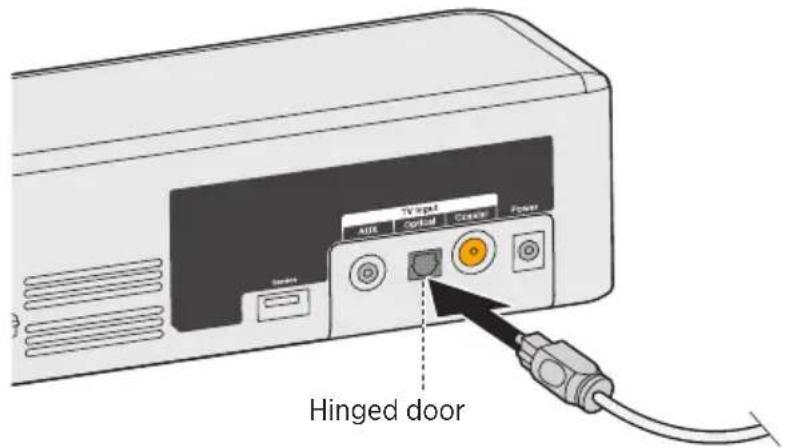

Option 1: Optical cable (preferred).... 15

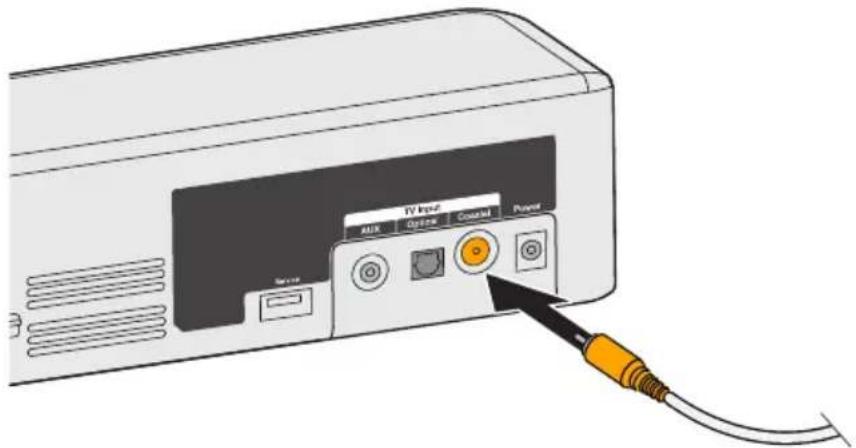

Option 2: Coaxial cable 16

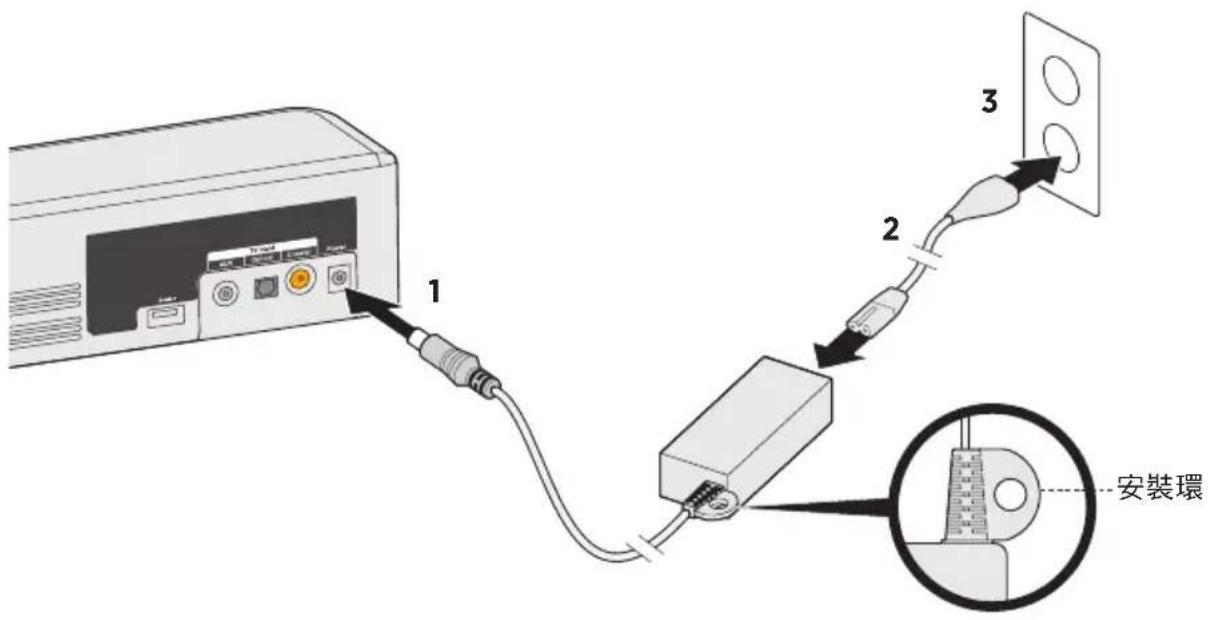

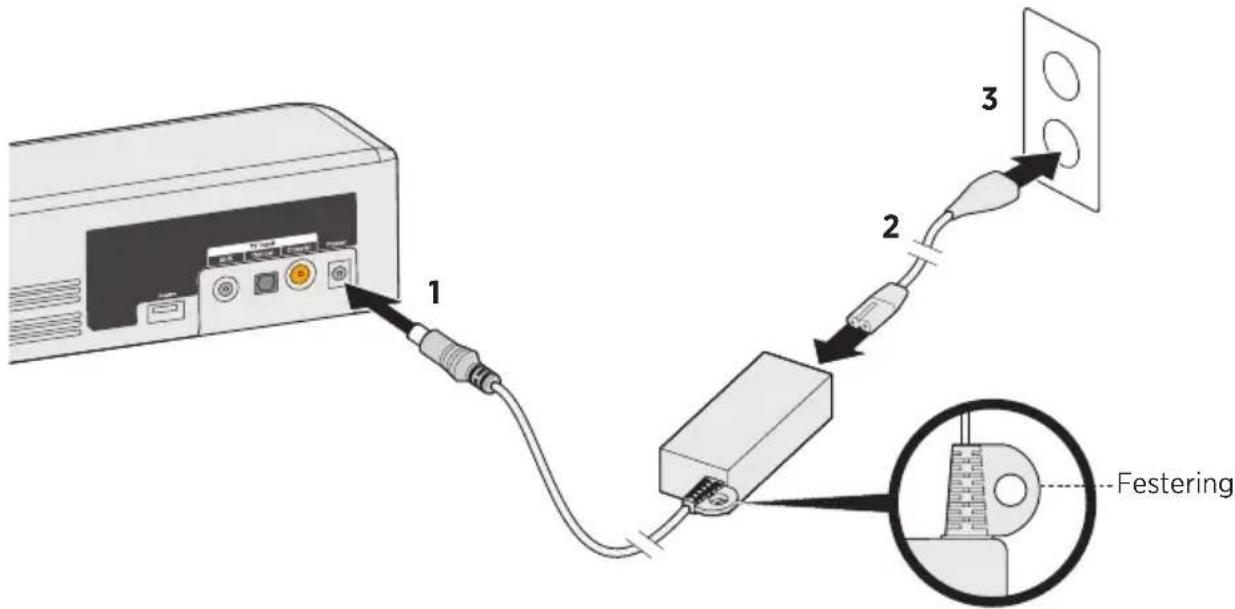

Connecting to power.... 17

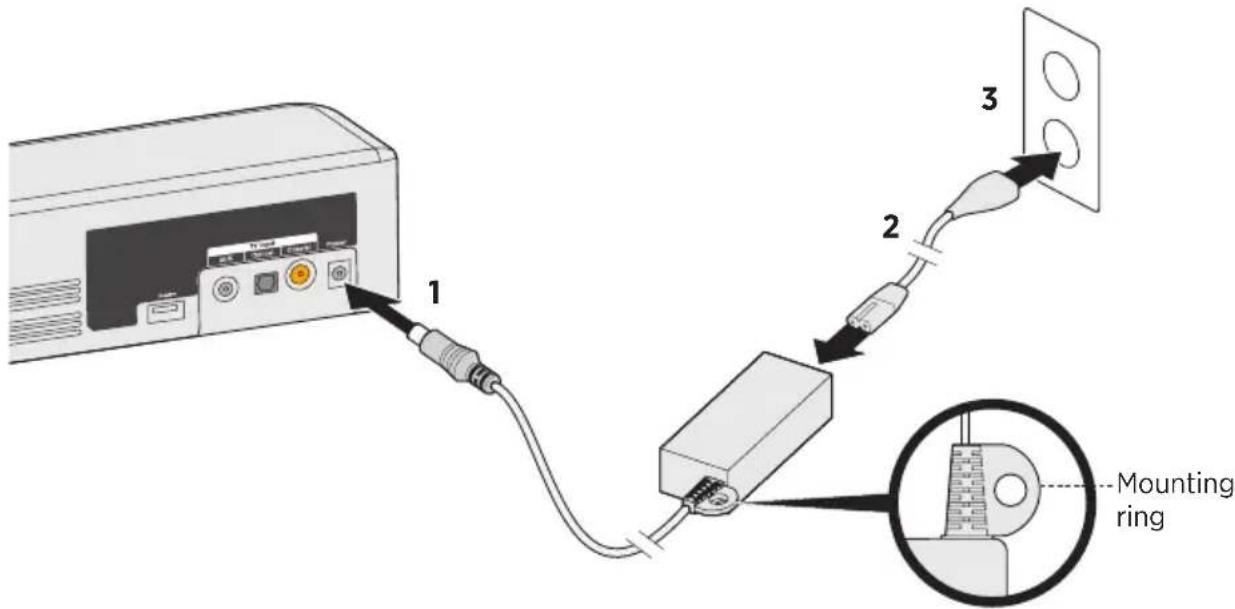

Mounting ring.... 17

Turning off your TV speakers.... 18

Powering on your soundbar 18

Confirming your TV speakers are off.... 18

Using the System

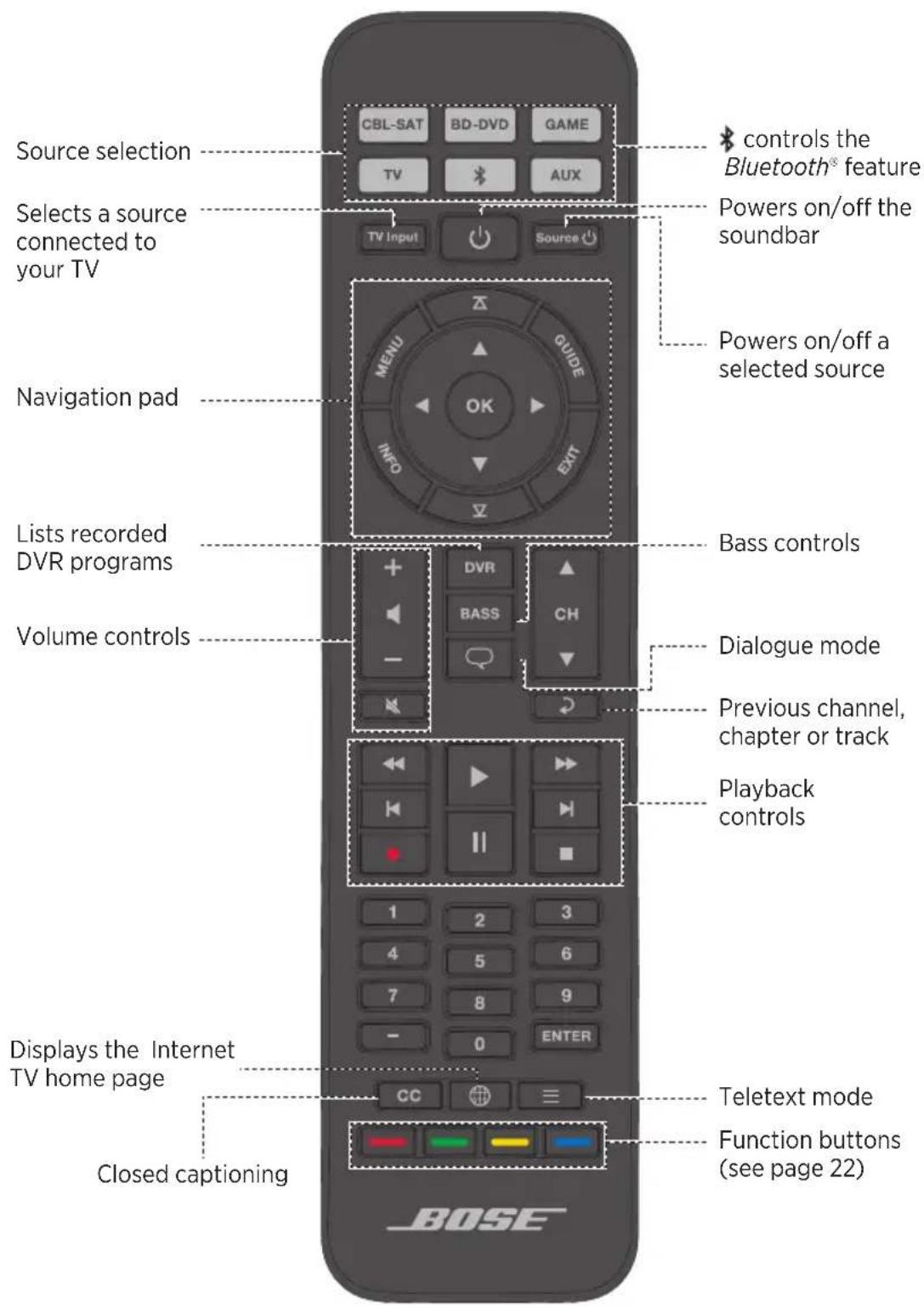

Remote control buttons.... 19

Programming the universal remote.... 20

Customizing the power button 21

Resyncing your cable/satellite box and TV 21

Switching between sources.... 22

Function buttons.... 22

Adjusting the volume 22

Adjusting the bass level 22

Resetting the bass level 23

Dialogue mode.... 23

Auto-wake 23

Programming a non-Bose remote control 23

Bluetooth®

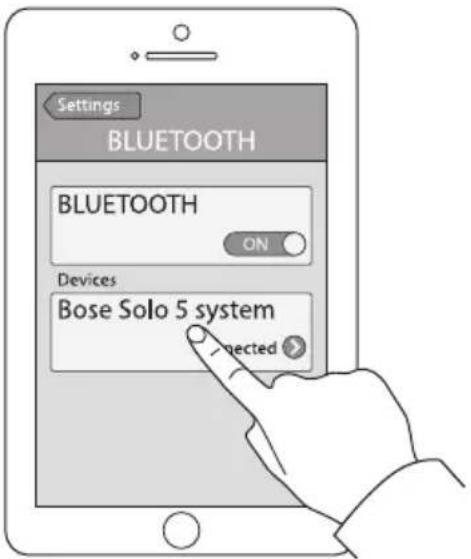

Pairing a Bluetooth ^® device.... 24

Connecting to a paired Bluetooth ^® device.... 25

Switching between connected devices.... 25

Clearing the soundbar's Bluetooth® pairing list 25

Getting System Information

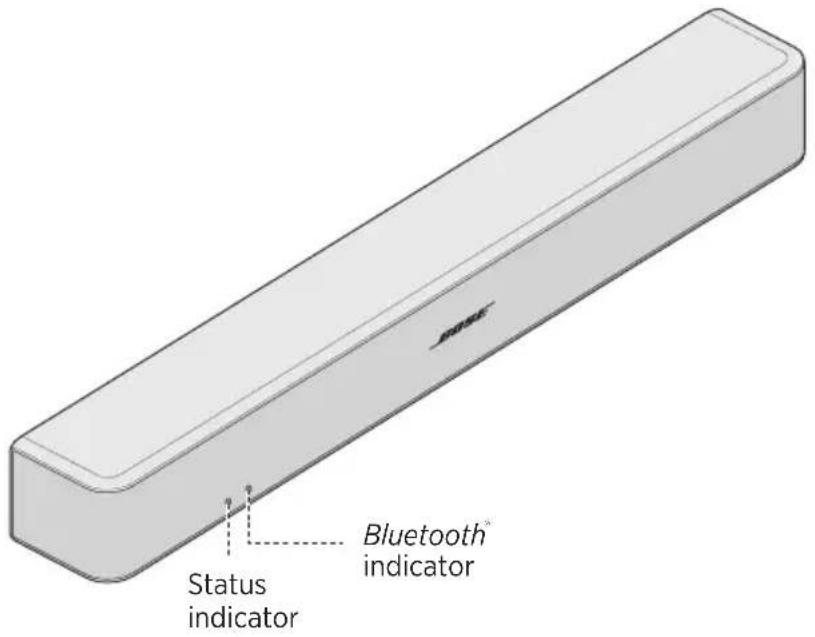

Soundbar indicators 26

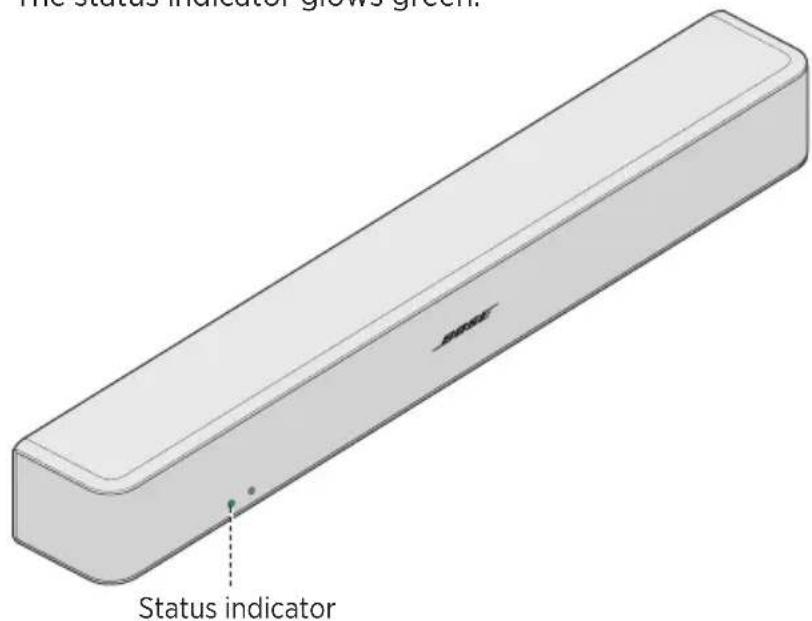

Status indicator 26

Bluetooth® indicator.... 26

Alternate Setup

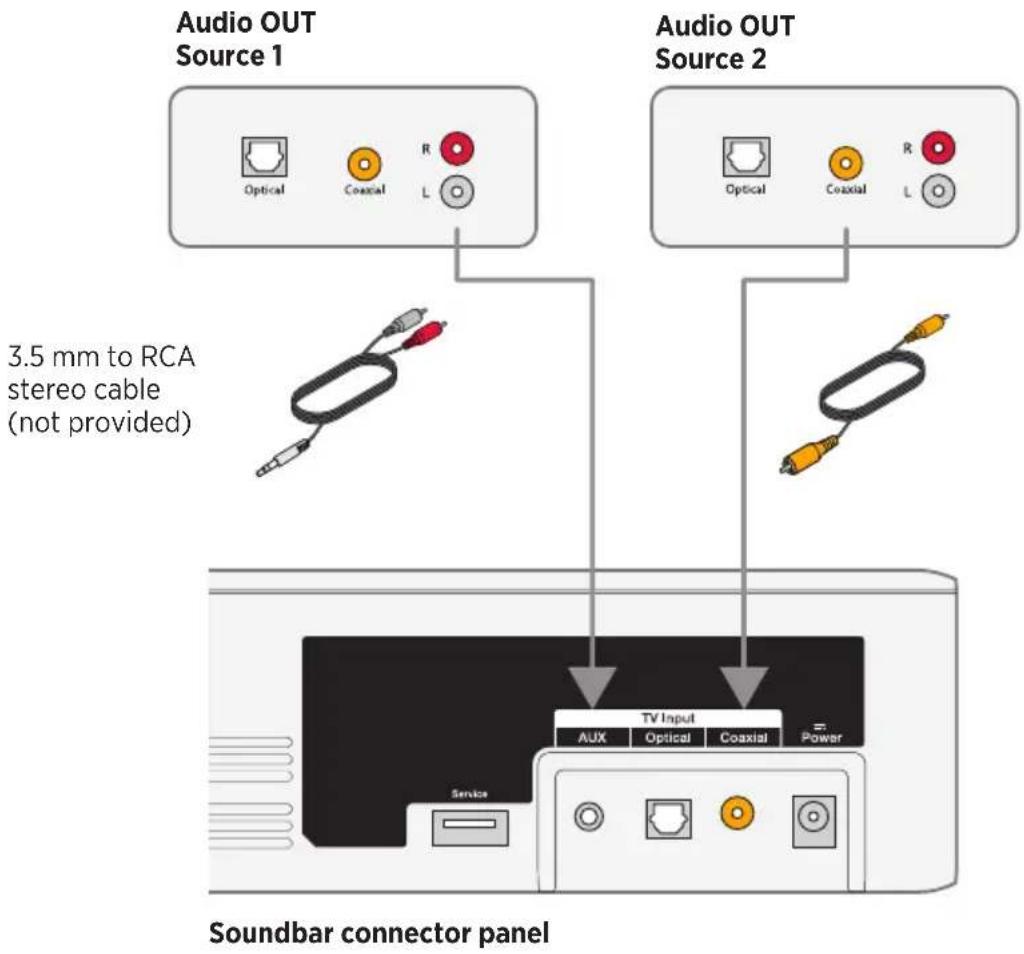

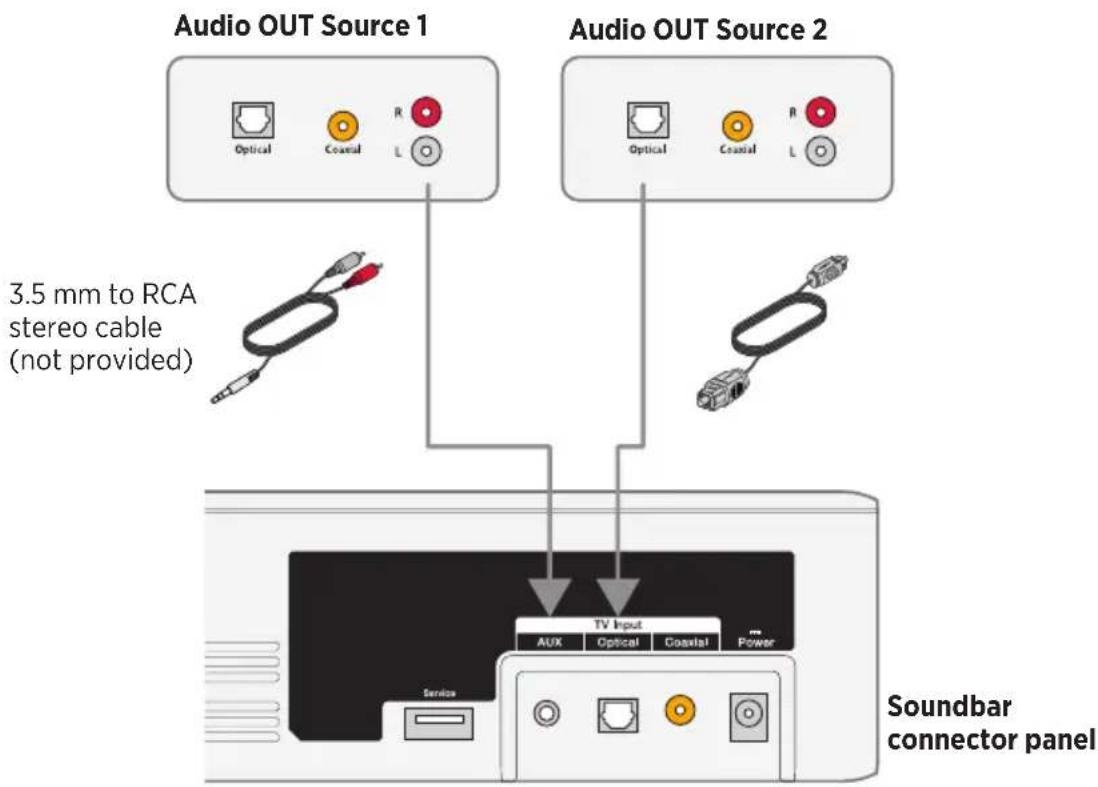

No sound from a source(s) connected to your TV 27

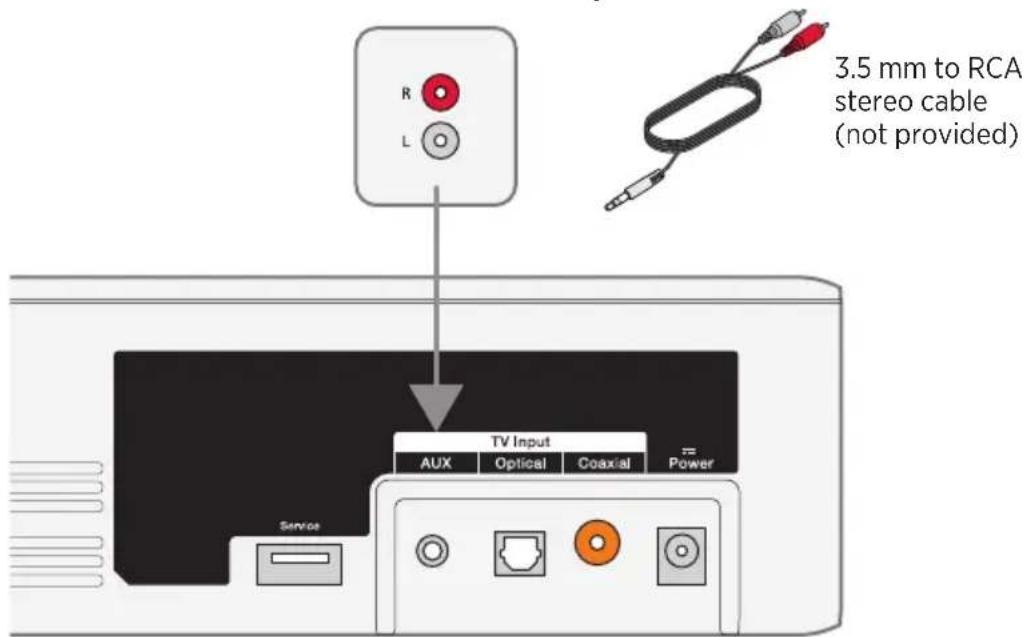

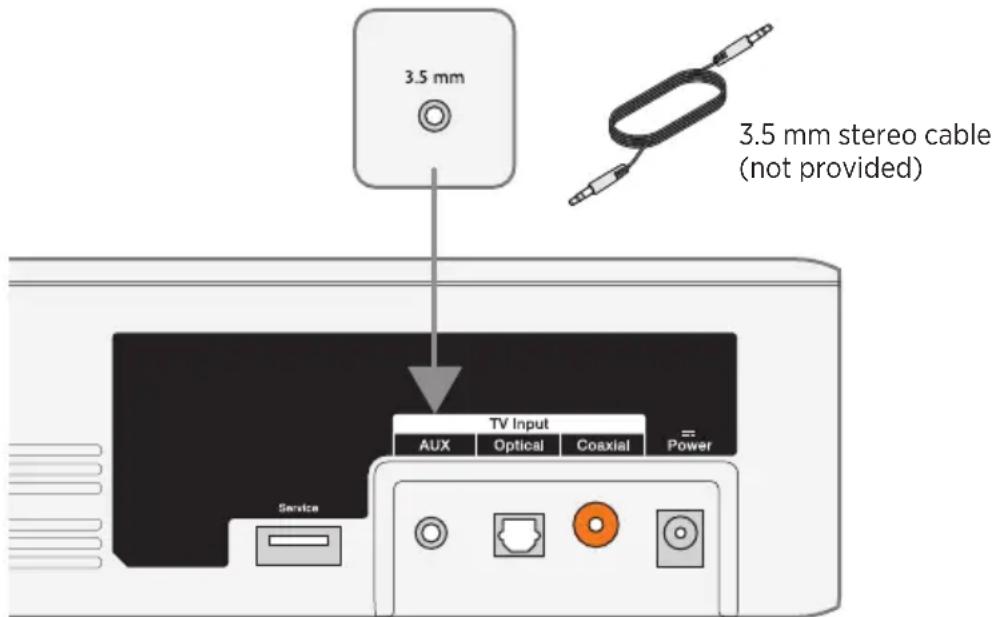

No optical or coaxial connector on your TV 27

Connect Bose Products

Connect to a Bose Home Speaker or Soundbar 33

Compatible products 33

Connect using the Bose Music app 33

Reconnect to a Bose Home Speaker or Soundbar 34

Care and Maintenance

Troubleshooting 35

Adjusting the audio for wall mounting.... 37

Replacing the remote batteries.... 37

Cleaning.... 38

Customer service 38

Limited warranty 38

Technical Information.... 38

About your TV sound system

Your TV sound system provides clear, spacious sound from one compact soundbar.

System features

• Videostage® and TrueSpace® technologies deliver many of the benefits of a five-speaker home theater in a single soundbar.
• Sleek and elegantly designed soundbar fits easily in front of your TV.
• Connects with just one audio cable for easy setup.
• Programmable universal remote powers on/off your TV, cable/satellite box and system with the press of a single button.
• Stream music from Bluetooth ^ devices.
• Stores up to eight Bluetooth devices in its pairing list.
• Connects up to two Bluetooth devices for easy switching between devices.
• Mounting ring to hide the power supply behind your mounted TV.
• Soundbar can be mounted on the wall (kit available separately).

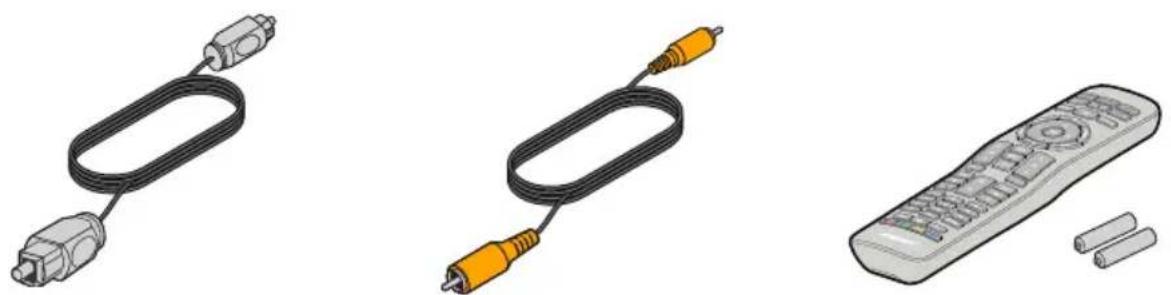

Unpacking

Carefully unpack the carton and confirm that the following parts are included:

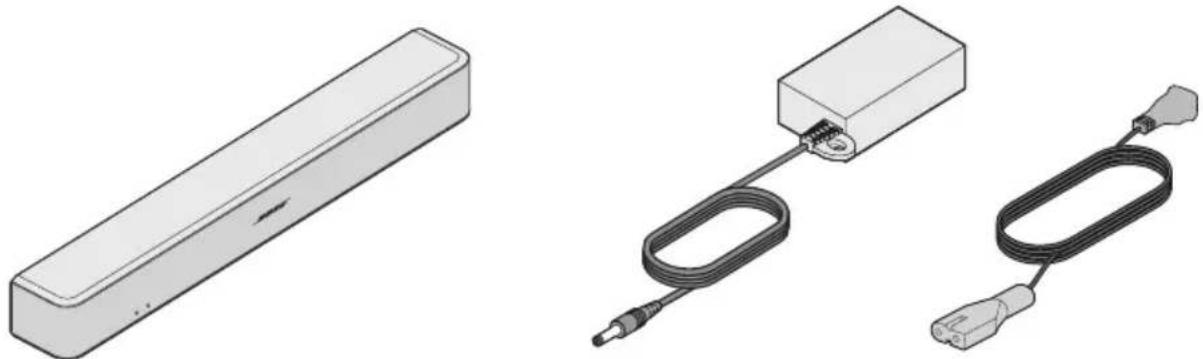

Illustration of two electronic devices: a rectangular device with a lightning bolt and cable, and a connected electrical connector (no text or symbols present)

Soundbar Power supply and cord*

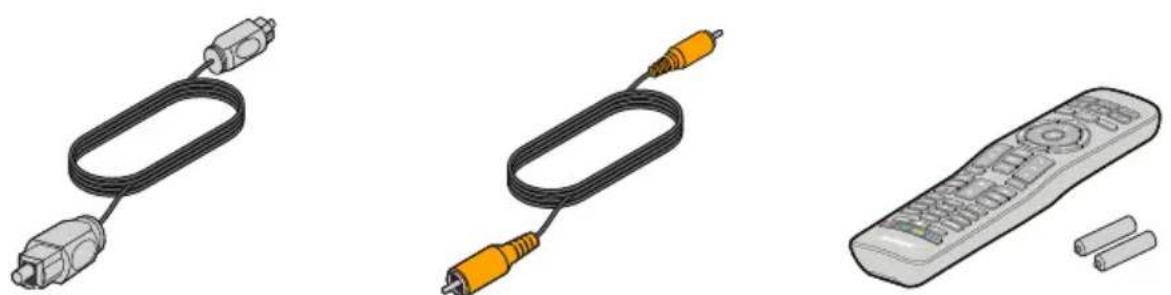

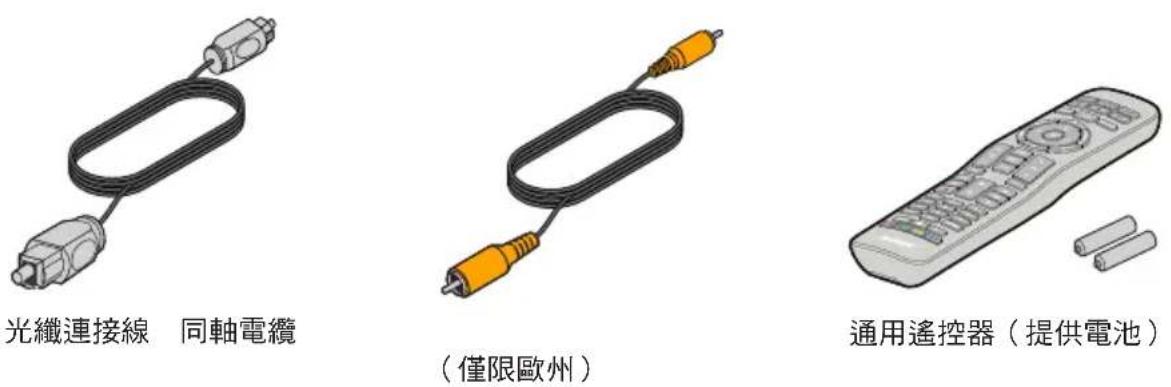

Illustration of three different types of electronic devices: a cable with connectors, a U-shaped cable with orange connectors, and a remote control with batteries (no text or symbols present)

Optical cable Coaxial cable
(Europe only)

Illustration of a remote control with two cylindrical batteries beside it (no text or symbols)

Universal remote control (batteries provided)

*May ship with multiple power cords. The appropriate power cord for your region is supplied.

Note: If part of the system is damaged, do not use it. Contact your authorized Bose® dealer or Bose customer service. Refer to the contact sheet in the carton.

Placing the soundbar

• Stand the soundbar on its feet in front of your TV.
• Do not place your TV on the soundbar.
• Make sure there is an AC (mains) power outlet nearby.

To avoid wireless interference:

• Keep other wireless equipment away from the soundbar.
• Place the soundbar outside of and away from metal cabinets, other audio/video components and direct heat sources.

Sample soundbar placement

Isometric line drawing of a modern home TV setup with a monitor, a potted plant, and a wall-mounted screen (no text or symbols)

Wall mounting the soundbar

You can mount the soundbar on a wall. To purchase the WB-120 Wall Mount Kit, contact your local Bose® dealer or visit www.Bose.com

After wall mounting and setting up the soundbar, adjust the audio for better bass sound (see page 37).

CAUTION: Do not use any other hardware to mount the soundbar.

Cable options

Connect your TV to the soundbar using one of the two digital cable options. The optical cable is the preferred method for connection.

Note: If your TV does not have an optical or coaxial connector, see “Alternate Setup” on page 27.

1. On the back of your TV, locate the Audio OUT (digital) connector panel.

Note: You must connect the audio cable through your Audio OUT connector panel.

Your TV's connector panel may not appear as shown. Look for the shape or color (coaxial) of the connector.

Option 1: Optical cable (digital audio) Preferred method for connection.
Option 2: Coaxial cable (digital audio) Use if no optical output is available.

1. Choose an audio cable.

Connecting your TV

Insert one end of the audio cable into the correct Audio OUT (digital) connector on your TV.

CAUTION: If using an optical cable, remove the protective caps from both ends. Inserting the plug in the wrong orientation can damage the plug and/or the connector.

Illustration of a USB cable with a connector and cable ends (no text or symbols)

Connecting the soundbar

After connecting the audio cable to your TV, connect the other end to your soundbar. Use only one audio cable.

For instructions on connecting a coaxial cable, see page 16.

Option 1: Optical cable (preferred)

CAUTION: Ensure you have removed the protective cap from both ends of the optical cable. Inserting the plug in the wrong orientation can damage the plug and/or the connector.

1. Hold the optical cable's plug with the Bose logo facing down.

2. Align the plug with the Optical connector on the soundbar and insert the plug carefully.

Note: The connector has a hinged door that swings inward when inserting the plug.

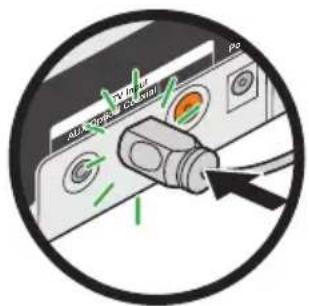

1. Firmly push the plug into the connector until you hear or feel a click.

Option 2: Coaxial cable

Insert the other end of the coaxial cable into the Coaxial connector on the soundbar.

Connecting to power

1. Plug the power supply into the Power connector.

1. Plug one end of the power cord into the power supply.

2. Plug the other end into a live AC power (mains) outlet.

The soundbar emits a tone.

Mounting ring

To hide the power supply behind your mounted TV, use the mounting ring. Attach the mounting ring to your TV's wall mount using zip ties or bread ties (not provided).

Turning off your TV speakers

To avoid hearing distorted sound, turn off your TV speakers.

Refer to your TV's owner's guide for more information.

Powering on your soundbar

1. Power on your TV.
2. If you are using a cable/satellite box or other secondary source, power on the source.
3. Press the Power button ( ) on the remote control.

The status indicator glows green.

1. Check if sound is coming from the soundbar.

Note: If you do not hear sound coming from the soundbar, see "Troubleshooting" on page 35.

Confirming your TV speakers are off

1. Press the Mute button ( ) on the soundbar's remote control.

2. Check that no sound is coming from your TV.

Note: If you hear sound coming from your TV, see "Troubleshooting" on page 35.

Remote control buttons

Use the remote to control sources connected to your system, adjust the system volume, change channels, use playback functions, enable cable/satellite box functions and navigate source menus.

Programming the universal remote

You can program the universal remote to control your source, such as a TV, DVD/Blu-ray Disc™ player, cable/satellite box, game system or DVR, by entering the code for your source's brand. There may be several codes for your source. You may need to perform this procedure multiple times to locate the correct code.

Locate your source's code

1. Power on your source.
2. Locate the code for your source's brand in the Universal Remote Device Codes book (provided).

Enter your source's code

1. On the remote control, press and hold the appropriate source button until all six source buttons glow, then release.

For example, to program your TV, press and hold TV until all six source buttons glow, then release.

The appropriate source button continues to glow.

1. On the number keypad, enter the code for your source's brand and press on the volume button.

Test your source's code

1. Test your source for basic functions. Follow the instructions for your source:

2. TV: press the channel buttons. Press . The settings menu appears. Press ▶ and ▶ to navigate.

3. Cable/satellite box: press ▶ The programming guide appears. Press ◀ and ▶ to navigate.
4. DVD or Blu-ray Disc™ player: press ▶ The settings menu appears. Press ▶ and ▶ to navigate.

5. Game system: press ◀nd ▶ navigate through your menu.

6. Based on your source's response to basic functions:

7. Remote responds accurately: press EXIT to exit programming and save your settings.

8. Remote does not respond or does not respond accurately:

- If your source button glows: press + on the volume button to move to the next code. Repeat steps 1 - 2 in “Test your source’s code.” You may need to repeat this procedure 30 or more times. If all six buttons blink three times, you have cycled through all codes for your source.

- If your source button is off: your remote exited programming mode. Repeat steps 1 - 2 in “Enter your source’s code” and steps 1 - 2 in “Test your source’s code.”

Tip: After you exit programming mode, press the appropriate source button to use your source.

Note: Your source may not be compatible with universal remote controls or may not accept IR (infrared) signals. Refer to your source's owner's guide for moreinformation.

Customizing the power button

You can customize (power button) on your remote to power on/off your soundbar, TV and cable/satellite box simultaneously.

1. Program your remote to control your TV and cable/satellite box (see page 20).
2. Press CBL-SAT multaneously and hold for 10 seconds.

Both buttons flash three times.

Resyncing your cable/satellite box and TV

After customizing the power button, your cable/satellite box and TV may become out of sync and not power on/off simultaneously. Use the following steps to resync your soundbar.

1. Press the source button for the source that is out of sync.
2. Press Source ⏻ to power on/off the source.
3. Press ⏻

Your sources power on/off simultaneously.

Switching between sources

You can switch from one source to another by pressing the appropriate source button on the remote.

Note: Before you begin, ensure you have correctly programmed your sources.

1. Press the button for the source you want to control.

The source button glows.

1. Press Source

The source powers on.

1. Press TV and select the correct input on your TV.

Function buttons

The red, green, yellow and blue buttons on the remote control correspond with the color-coded function buttons on your cable/satellite box or teletext functions.

• Cable/satellite box functions: refer to your cable/satellite box's owner's guide.
• Teletext functions: correspond with color-coded page numbers, headings or shortcuts on a teletext display.

Adjusting the volume

On the remote control:

Press + to increase the volume.

Press – to decrease the volume.

Press 📂 to mute or unmute the audio.

Note: If you hear sound coming from your TV, see “Troubleshooting” on page 35.

Adjusting the bass level

1. Press the Bass button ( )BASS

The status indicator blinks white three times.

1. On the remote control:

2. Press +to increase the bass.

3. Press – to decrease the bass.

3. Press the Bass button (BASS

The status indicator blinks white three times and the soundbar saves your settings.

Note: For optimal sound quality for dialogue-only programs, such as news and talk shows, see “Dialogue mode.”

Resetting the bass level

On the remote control, press and hold BASS five seconds to reset the bass level to original factory settings.

The status indicator blinks white three times and remains solid white. The soundbar returns to original factory settings.

Dialogue mode

Dialogue mode provides optimal sound quality for dialogue-only programs, such as news and talk shows, by decreasing the soundbar's bass settings.

Press the dialogue button (☐) to toggle between dialogue mode and your default audio settings.

The status indicator glows amber when dialogue mode is enabled.

Auto-wake

You can set the soundbar to power on whenever a sound signal is received.

Note: The soundbar powers off after 60 minutes of inactivity.

Press and hold ⏻ on the remote for five seconds until you hear a tone to toggle between auto-wake and default power settings.

The status indicator glows dim amber when the soundbar is off and auto-wake is enabled.

Programming a non-Bose remote control

You can program a non-Bose remote control, such as your cable/satellite box remote, to control the soundbar. Refer to your non-Bose remote control's owner's guide or cable/satellite website for instructions.

Once programmed, the non-Bose remote performs basic functions such as power on/off and volume.

Pairing a Bluetooth® device

Bluetooth® wireless technology enables you to stream music from Bluetooth smartphones, tablets, computers or other audio devices to the soundbar.

Before you can stream music from a Bluetooth device, you must pair your device with the soundbar.

1. On the remote control, press and hold the Bluetooth button ✝ until the Bluetooth indicator blinks blue.

Make sure the Bluetooth indicator blinks blue before you pair your device.

1. On your Bluetooth device, turn on the Bluetooth feature.

Tip: The Bluetooth feature is usually found in Settings. A gear icon (💡) often represents Settings on the Home screen.

1. Select Bose Solo 5 system from your device list.

Once paired, the Bose Solo 5 system appears connected in the device list.

1. On your Bluetooth device, play music to stream to your soundbar.

If you cannot pair your device

You may need to clear the soundbar's Bluetooth pairing list (see page 25). After you clear the list, try pairing again.

See "Troubleshooting" on page 35 for more information.

Connecting to a paired Bluetooth® device

You can stream audio from a Bluetooth device to the soundbar.

Note: If there are multiple devices stored in the soundbar's pairing list, it may take a minute or two for the paired device to connect. The soundbar's Bluetooth indicator shows connection status (see page 26).

1. On the remote control, press .\$

The soundbar connects to the last two devices that streamed to your soundbar.

1. Once connected, on the Bluetooth device, play music.

If you cannot stream audio from a paired device

The soundbar may have lost connection to your device. Check the soundbar's Bluetooth indicator. If the paired device is out of range of the soundbar, move your device within range.

Switching between connected devices

The soundbar supports multi-point connectivity, which allows you to seamlessly switch playing music between connected devices.

The last two devices that streamed to the soundbar remain connected. During playback, you can pause audio on the streaming device, and then play music from another connected device.

1. Pause music from the streaming device.
2. On another connected device, play music.
3. Repeat steps 1 and 2 to switch between connected devices.

Clearing the soundbar's Bluetooth® pairing list

When you pair a Bluetooth® device to the soundbar, the connection is stored in the soundbar's pairing list. You may need to clear the pairing list if you cannot connect to a device. Once you clear the list, you need to pair the device again.

1. Press and hold ✝ for 10 seconds, until the Bluetooth indicator blinks blue.
2. On your mobile device, delete Bose Solo 5 system from the Bluetooth menu.
   The soundbar emits a tone and is ready to pair to a device (see page 24).

Soundbar indicators

The status and Bluetooth ^® indicators on the front of the soundbar provide information on soundbar activity.

Status indicator

Indicator activity System state
Off Soundbar off (standby)
Green Solid: Soundbar is on	Blinking: Soundbar is muted
Amber Dim: Standby, auto-wake is enabled	Solid: Dialogue modeBlinking: Dialogue mode, Soundbar is muted
Red System error: Call Bose Customer Service.	Refer to the contact sheet in the carton.

Bluetooth indicator

Indicator activity System state
Blue Blinking: ready to pair
White Blinking: Connecting	Solid: Connected

You may need to use an alternate setup method for the following reasons:

• No sound from a source(s) connected to your TV.
• No optical or coaxial connector on your TV.

No sound from a source(s) connected to your TV

Some TVs do not deliver sound from connected sources to the soundbar. Use an alternate setup method to directly connect your source(s) to the soundbar.

Problem What to do
No sound from a source connected to your TV	Connect your source to the soundbar using one of the two cable options.(See page 28.)
No sound from two sources connected to your TV	Connect your sources to the soundbar using Option 1 or Option 2. (See page 30.)

No optical or coaxial connector on your TV

Some TVs do not have optical or coaxial connectors. Use an alternate setup method to connect your TV to the soundbar.

Problem What to do
TV only has an analog connector Connect your TV using a 3.5 mm to RCA stereo cable (not provided). (See page 29.)
TV only has a headphones connector Connect your TV using a 3.5 mm stereo cable (not provided). (See page 32.)
TV has no audio outputs Use the audio outputs on another source,such as a cable/satellite box to connect to the soundbar. (See page 28.)

Connecting a source to the soundbar

If you do not get sound from a source, such as a DVD/Blu-ray Disc™ player, cable/satellite box, game system or DVR, connected to your TV, connect it to the soundbar. Use only one audio cable.

CAUTION: If using an optical cable, remove the protective caps from both ends. Inserting the plug in the wrong orientation can damage the plug and/or the connector.

1. On the back of your source, locate the Audio OUT (digital) connector panel.

Soundbar connector panel

1. Choose an audio cable.

2. If you have not already, disconnect your TV from the soundbar.

3. Connect the audio cable from your cable/satellite box's Audio OUT (digital) connector panel to the soundbar.

Note: Do not disconnect your source's video cable, such as an HDMI™ cable, from your TV.

Connecting a source's analog connector to the soundbar

If your source does not have an optical or coaxial connector, and only has analog connectors (red and white), use a 3.5 mm to RCA stereo cable (not provided) to connect to the soundbar.

1. If you have not already, disconnect your TV from the soundbar.
2. Insert the RCA analog cable into the Audio OUT RCA (red and white) connectors on your source.
3. Insert the stereo plug into the soundbar's AUX connector.

Audio OUT Source connector panel

Soundbar connector panel

Connecting two sources to the soundbar

If you do not get sound from any source, such as a DVD/Blu-ray Disc™ player, cable/satellite box, game system or DVR, connected to your TV, connect it to the soundbar. Use only one audio cable for each source.

1. On the back of each source, locate the Audio OUT (digital) connector panel.
2. Choose a separate audio cable for each source using either Option 1 or Option 2 (see page 31).

Note: You MUST use either Option 1 or Option 2. Do not use the coaxial cable and optical cable at the same time.

1. If you have not already, disconnect your TV from the soundbar.

2. Separately connect the chosen audio cable from each source's Audio OUT (digital) connector panel to the soundbar.

Note: Do not disconnect your source's video cable, such as an HDMI™ cable, from your TV.

Option 1

This figure shows two source connections using an optical cable and 3.5 mm to RCA stereo cable (not provided).

CAUTION: If using an optical cable, remove the protective caps from both ends. Inserting the plug in the wrong orientation can damage the plug and/or the connector.

Option 2

This figure shows two source connections using a coaxial cable and 3.5 mm to RCA stereo cable (not provided).

Using two sources connected to the soundbar

Power off sources when not in use. In order for one source to deliver audio to the soundbar, your other source must be off.

Connecting a TV headphones connector to the soundbar

If your TV only has a headphones connector, use a 3.5 mm stereo cable (not provided) to connect it to the soundbar.

1. Insert the stereo plug into the TV headphones connector.
2. Insert the other end of the cable into the AUX connector on your soundbar.

3. Ensure your TV speakers are on. Refer to your TV's owner's guide for more information.

4. To ensure optimal volume control from your soundbar,

5. Set your TV's volume to 75 percent of maximum.

6. Next, set the volume level of your soundbar using the remote control.

Audio OUT

TV headphones connector panel

(or other variable audio output)

Soundbar connector panel

Connect to a Bose Home Speaker or Soundbar

With Bose SimpleSync™ technology, you can connect your Bose Solo 5 TV sound system to a Bose Home Speaker or Bose Soundbar to listen to the same song in two different rooms at the same time.

Note: SimpleSync™ technology has a Bluetooth® range of 30 ft (9 m). Walls and construction materials can affect reception.

Compatible products

You can connect your Bose Solo 5 TV sound system to any member of the Bose Home Speaker family.

Popular compatible products include:

• Bose Smart Soundbar 700
• Bose Soundbar 500
• Bose Home Speaker 500
• Bose Home Speaker 300
• Bose Portable Home Speaker

New products are added periodically. For a complete list and more information, visit: worldwide.Bose.com/Support/Groups

Connect using the Bose Music app

1. On your Bose Solo 5 TV sound system remote control, press and hold the Bluetooth button ✝ until the Bluetooth indicator on your Bose Solo 5 TV sound system blinks blue.
2. Use the Bose Music app to connect your Bose Solo 5 TV sound system to a compatible Bose product. For more information, visit: worldwide.Bose.com/Support/Groups

Notes:

• Make sure that your Bose Solo 5 TV sound system is within 30 ft (9 m) of your Bose Home Speaker or Bose Soundbar.
• You can connect your Bose Solo 5 TV sound system to only one product at a time.

Reconnect to a Bose Home Speaker or Soundbar

Power on your Bose Solo 5 TV sound system (see page 18).

Your Bose Solo 5 TV sound system tries to connect to the two most recently- connected Bluetooth ^® devices, including your Bose Home Speaker or Bose Soundbar.

Notes:

• Your Bose Home Speaker or Bose Soundbar must be within range (30 ft or 9 m) and powered on.
• If your Bose Solo 5 TV sound system doesn't connect, connect using the Bose Music app. You can access this option from the Settings menu.

Troubleshooting

Problem What to do
No power	·Secure both ends of the power cord.·Plug the power cord into a live AC (mains) outlet.·Unplug the power cord for at least one minute and reconnect.
No sound	·Unmute the soundbar.·Increase the volume.·Plug the audio cable into a connector on your TV labelled Audio Output or Audio OUT, not Audio Input or Audio IN.·Use only one audio cable.·Secure all cable connections and ensure they are correct.·If you are using a cable/satellite box or other secondary source for sound, select the correct TV input.·Enable your TV's audio output and select the correct setting, such as such as Stereo or 5.1 Channel Audio. Refer to your TV's owner's guide for more information.·Use alternate setup (see page 27).·If connecting to two sources:–Power off the other source.–Ensure that you are not using an optical cable and coaxial cable.·If the soundbar is connected to a TV output labelled VARIABLE (VAR), power off your TV speakers, set your TV volume to 75 percent of maximum and unmute your TV.·If connecting through a TV headphones output, increase your TV volume to the maximum limit.·Unplug the power cord for at least one minute and reconnect.
Cannot playBluetooth*	On your soundbar:-Pair a device (see page 24).-Clear the soundbar's pairing list (see page 25).-Try pairing a different device.On your Bluetooth device:-Turn off and on the Bluetooth feature.- Remove the soundbar from the Bluetooth menu. Pair again.-Use a different music source.- Check your Bluetooth device for compatibility. Refer to your Bluetooth device's owner's guide.Increase the volume on the soundbar, your mobile device and music source.Ensure you are using the correct device.If more than one Bluetooth device is connected, pause your streaming device first.Disconnect other Bluetooth devices when not in use.See "Distorted sound" or "No sound."
Distorted sound	Secure cable connections on the soundbar and TV (or other connected sources).If the soundbar is connected to a TV output labelled VARIABLE (VAR), reduce the TV volume.Use alternate setup (see page 27).If wall mounting the soundbar, adjust the audio (see page 37).Unplug the power cord for at least one minute and reconnect.
Remote control is inconsistent or does not work	Check the batteries to see if they are installed properly or if they need to be replaced (see page 37).Point the remote control directly at the soundbar.Check that the status indicator flashes when you press the remote volume or mute button.Unplug the power cord for at least one minute and reconnect.
Sound is coming from the TV	Turn off your TV speakers (see page 18).Mute or decrease the volume your TV.
Soundbar doesn't connect with a Bose Home Speaker or Bose Soundbar	Make sure your soundbar is ready to connect: On your Bose Solo 5 TV sound system remote control, press and hold the Bluetooth button until the Bluetooth indicator on your Bose Solo 5 TV sound system blinks blue.Make sure that your Bose Solo 5 TV sound system is within 30 ft (9 m) of your Bose Home Speaker or Bose Soundbar.
Soundbar doesn't reconnect to a previously-connected Bose Home Speaker or Bose Soundbar	Connect using the Bose Music app. You can access this option from the Settings menu.
Delayed audio when connected to a Bose Home Speaker or Bose Soundbar	Visit btu.Bose.com and check for available software updates.
Status indicator is red	System error: Call Bose Customer Service. Refer to the contact sheet in the carton.

Adjusting the audio for wall mounting

After wall mounting the soundbar, adjust the audio for better bass sound.

Press and hold 🔔 for five seconds.

Tip: If you remove the soundbar from the wall, repeat to return the soundbar to default audio settings.

Replacing the remote batteries

Replace both batteries when the remote control stops operating or its range seems reduced. Use Alkaline batteries.

1. Slide open the battery compartment cover on the back of the remote.
2. Remove both batteries.
3. Dispose of the batteries according to the regulations in your area.
4. Insert two AA (IEC-LR6) 1.5V batteries or the equivalent. Match the + and - symbols on the batteries with the + and - markings inside the compartment.
5. Slide the battery compartment cover back into place.

Illustration of a mechanical tool or device with a handle and lever mechanism (no text or symbols)

Cleaning

• Clean the surface of the system with a soft, dry cloth.
• Do not use any sprays near the system. Do not use any solvents, chemicals or cleaning solutions containing alcohol, ammonia or abrasives.
• Do not allow liquids to spill into any openings.

Customer service

For additional help, contact Bose Customer Service. Refer to the contact sheet in the carton.

Limited warranty

Your system is covered by a limited warranty. Visit our website at global.Bose.com/warranty for details of the limited warranty.

To register your product, visit global.Bose.com/register for instructions. Failure to register will not affect your limited warranty rights.

Technical Information

Input rating

Input: 20VDC, 30W MAX.

Management Regulation for Low-power Radio-frequency Devices

Artikel XII

Importor i Kina: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, Kina (Shanghai) Pilot Free Trade Zone

Importør i EU: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Holland

Importør i Taiwan: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan Telefonnummer: [phone]

Importor i Mexico: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. Telefonnummer: [phone]

Illustration of two electronic devices: a rectangular device with a lightning bolt and a connected cable with connector pins (no text or symbols)

Isometric line drawing of a modern TV setup with a monitor, a potted plant, and a wall-mounted screen (no text or symbols)

Illustration of a USB cable with a connector and cable ends (no text or symbols)

Soundbarens tilslutningspanel

Illustration of a mechanical tool with a handle and lever (no text or symbols)

Rengøring

China-Import: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

EU-Import: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Niederlande

Taiwan-Import: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan Telefonnummer: [phone]

Mexiko-Import: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. Telefonnummer: [phone]

Illustration of two electronic devices: a rectangular battery and a connected electrical connector with cable (no text or symbols)

Isometric line drawing of a modern TV setup with a monitor, a coffee table, and a plant (no text or symbols)

Option 1: Optisches Kabel (digitaler Ton)

Illustration of a cable with a plug and connector (no text or symbols)

Option 2: Koaxialkabel

Illustration of a mechanical tool with a handle and lever (no text or symbols)

Reinigung

Importeur in China: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importeur in de EU: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Nederland

Importeur in Taiwan: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan Telefoonnummer: [phone]

Importeur in Mexico: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. Telefoonnummer: [phone]

Illustration of two electronic devices: a rectangular device with a lightning bolt and cable, and a connected electrical connector (no text or symbols present)

Isometric line drawing of a modern home TV setup with a monitor, a potted plant, and a wall-mounted screen (no text or symbols)

Optie 1: Optische kabel (digitale audio)

Illustration of a cable with a plug and connector (no text or symbols)

Illustration of a mechanical tool with a handle and central component (no text or symbols)

Schoonmaken

Importador en China: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Illustration of two electronic devices: a rectangular device with a lightning bolt and a rectangular device connected to a coiled cable (no text or symbols present)

Isometric line drawing of a modern TV setup with a monitor, a coffee table, and a plant (no text or symbols)

Illustration of a USB cable with a connector and cable ends (no text or symbols)

Opción 2: Cable coaxial

Illustration of a mechanical tool with a handle and lever (no text or symbols)

Limpieza

Maahantuoja Kiinassa: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Maahantuoja EU:ssa: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

Maahantuoja Taiwanissa: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan Puhelinnumero: [phone]

Maahantuoja Meksikossa: Bose de Mexico S. de R.L. de C.V., Paseo de las Palmas 405–204, Lomas de Chapultepec, 11000 México, D.F. Puhelinnumero: [phone]

Illustration of two electronic devices: a rectangular device and a coiled cable with connectors (no text or symbols)

Illustration of three different types of electronic devices: a cable with connectors, a black cable with orange connectors, and a remote control with batteries (no text or symbols present)

Illustration of a remote control with two cylindrical batteries beside it (no text or symbols)

Isometric line drawing of a modern TV setup with a monitor, a potted plant, and a wall-mounted screen (no text or symbols)

Illustration of a USB cable with a connector and cable ends (no text or symbols)

Virran yhdistäminen

Illustration of a mechanical tool with a handle and lever (no text or symbols)

Puhdistaminen

Illustration of two electronic devices: a rectangular battery and a connected electrical connector with cable (no text or symbols)

Isometric line drawing of a modern TV setup with a monitor, a potted plant, and a straw plant in the background (no text or symbols)

Illustration of a USB cable with a connector and cable ends (no text or symbols)

Illustration of a mechanical tool with a handle and lever (no text or symbols)

Nettoyage

Importatore per la Cina: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importatore per l'UE: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Paesi Bassi

Importatore per Taiwan: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan Numero di telefono: [phone]

Importatore per il Messico: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. Numero di telefono: [phone]

Illustration of two electronic devices: a rectangular device with a lightning bolt and a connected cable with connector pins (no text or symbols)

Illustration of three different types of electronic devices: a cable with connectors, a black cord with orange connectors, and a remote control with batteries (no text or symbols present)

Illustration of a remote control with two cylindrical batteries beside it (no text or symbols)

Isometric line drawing of a modern TV setup with a monitor, a potted plant, and a straw plant in the background (no text or symbols)

Illustration of a cable with a plug and connector, showing a cable with a pin and a separate cable (no text or symbols)

Illustration of a mechanical tool with a handle and lever (no text or symbols)

Pulizia

Kínai importôr: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, Kína (Shanghai) Pilot Free Trade Zone

EU-importör: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

Tajvani importór: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Tajvan. Telefonszám: [phone]

Mexikói importör: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 Mexico, D.F. Telefonszám: [phone]

Illustration of a black cable with two connectors (no text or symbols)

Illustration of a black and orange coiled cable with two metallic connectors (no text or symbols)

(csak Európában)

Illustration of a remote control with two cylindrical batteries beside it (no text or symbols)

Isometric line drawing of a modern home TV setup with a potted plant beside it (no text or symbols)

Illustration of a USB cable with a connector and cable ends (no text or symbols)

Illustration of a mechanical tool with a handle and lever (no text or symbols)

Tisztítás

Management Regulation for Low-power Radio-frequency Devices

Artikkel XII

Importør for Kina: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, Kina (Shanghai) Pilot Free Trade Zone

Importør for EU: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Nederland

Importør for Taiwan: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan Telefonnummer: [phone]

Importør for Mexico: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. Telefonnummer: [phone]

CMIIT-ID er plassert på produktetiketten på bakpanelet.

California: Inneholder litium-ion-batteri med perkloratmateriale. Spesiell håndtering kan gjelde.

Se www.dtsc.ca.gov/hazardouswaste/perchlorate

Illustration of two electronic devices: a rectangular device with a lightning bolt and a connected cable with connector pins (no text or symbols)

Isometric line drawing of a modern TV setup with a monitor, a potted plant, and a straw rod in the background (no text or symbols)

Veggmontering av lydplanken

Du kan montere lydplanken på veggen. Hvis du vil kjøpe veggmonteringssettet WB-120, kan du kontakte den lokale Bose®-forhandleren eller gå til www.Bose.com.

Etter at lydplanken er montert på veggen og konfigurert, må du justere lyden for bedre basslyd (se side 37).

Alternativ 1:

Illustration of a USB cable with a connector and cable ends (no text or symbols)

Koble til lydplanken

Koble til strøm

1. Plugg strømforsyningen inn i Power-kontakten.

1. Plugg den ene enden av strømledningen inn i strømforsyningen.

2. Plugg den andre enden inn i en stikkontakt.

Lydplanken spiller av en tone.

Festering

Illustration of a mechanical tool with a handle and central component (no text or symbols)

Rengjøring

Importer — Chiny: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importer — UE: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Holandia

Importer — Tajwan: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Tajwan. Numer telefonu: [phone]

Importer — Meksyk: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. Numer telefonu: [phone]

Illustration of two electronic devices: a rectangular device with a lightning bolt and a rectangular device connected to a coiled cable (no text or symbols present)

Isometric line drawing of a modern TV setup with a monitor, a potted plant, and a chair (no text or symbols)

Illustration of a cable with two connectors and a switch (no text or symbols)

Illustration of a mechanical tool with a handle and lever (no text or symbols)

Czyszczenie

Importador na China: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importador na CE: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

Importador em Taiwan: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan – Número de telefone: [phone]

Illustration of two electronic devices: a rectangular battery and a coiled cable with connectors (no text or symbols)

Isometric line drawing of a modern TV setup with a monitor, a potted plant, and a wall-mounted screen (no text or symbols)

Illustration of a USB cable with a plug and connector (no text or symbols)

Conexão da barra de som

Illustration of a mechanical tool or device with a handle and lever, no text or symbols present.

Limpeza

Kinaimportör: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

EU-importör: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Nederländerna

Taiwanimportör: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, telefonnummer Taiwan: [phone]

Mexikoimportör: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. Telefonnummer: [phone]

Isometric line drawing of a modern TV setup with a monitor, a potted plant, and a straw rod in the background (no text or symbols)

Alternativ 1: Optisk kabel (digital)

Illustration of a USB cable with a connector and cable ends (no text or symbols)

Ansluta ström

1. Välj Bose Solo 5 system i enhetslistan.

Illustration of a mechanical tool with a handle and lever, no text or symbols present

Rengöring

Illustration of two electronic devices: a rectangular device and a multi-wire cable with connectors (no text or symbols)

Line drawing of a modern office setup with a monitor, coffee table, and plant (no text or symbols)

Illustration of a USB cable with a port and cable ends (no text or symbols)

การต่อสายไฟ

ไฟแสดงสถานะ

Illustration of a mechanical tool with a handle and base, showing no text or symbols

การทำความสะอาด

중국 수입업체: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

EU 수입업체: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

대만 수입업체: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan 전화 번호: [phone]

멕시코 수입업체: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. 전화 번호: [phone]

Illustration of two electronic devices: a rectangular device with an arrow indicating direction and a connected cable with ports (no text or symbols present)

사운드바 전원 공급장치 및 코드*

Illustration of three different types of electronic devices: a cable with connectors, a black cable with orange connectors, and a remote control with batteries (no text or symbols present)

광케이블 동축케이블
(유럽에 한함)

Illustration of a remote control with two cylindrical batteries beside it (no text or symbols)

범용 리모콘 (배터리 제공됨)

Isometric line drawing of a modern home TV setup with a monitor, a potted plant, and a wall-mounted screen (no text or symbols)

사운드바 벽면 장착

옵션 1:

광 케이블(디지털 오디오)

권장 연결 방법.

옵션 2:

동축 케이블(디지털 오디오)

Illustration of a USB cable with a connector and cable ends (no text or symbols)

사운드바 연결

옵션 2: 동축 케이블

전원 연결

Illustration of a mechanical tool or device with a handle and lever, no text or symbols present

청소

Illustration of two electronic devices: a rectangular device with a lightning bolt and cable, and a connected electrical connector (no text or symbols present)

条形音箱 电源和电源线

Illustration of three different types of electronic devices: a cable with connectors, a black cable with orange connectors, and a remote control with batteries (no text or symbols present)

光缆 同轴电缆
(仅限欧州)

Illustration of a remote control with two cylindrical batteries beside it (no text or symbols)

通用遥控器（提供电池）

Isometric line drawing of a modern home TV setup with a monitor, a potted plant, and a wall-mounted screen (no text or symbols)

墙式安装条形音箱

选项1:

光缆（数字音频）

首选连接方法。

选项 2:

同轴线缆（数字音频）

无可用的光缆输出时使用。

1. 选择音频线缆。

连接电视

Illustration of a USB cable with a connector and cable ends (no text or symbols)

连接条形音箱

选项 2: 同轴电缆

接通电源

1. 将电源线插入 Power 连接器中。

worldwide.Bose.com/Support/Groups

使用 Bose Music 应用连接

Illustration of a mechanical tool or device with a handle and lever mechanism (no text or symbols)

清洁

www.Bose.com/compliance

重要安全指示

Illustration of two electronic devices: a rectangular battery and a multi-pin cable with connectors (no text or symbols)

條形音箱 電源和電源線 *

Isometric line drawing of a modern home TV setup with a monitor, a potted plant, and a wall-mounted screen (no text or symbols)

牆式安裝條形音箱

Illustration of a USB cable with a connector and cable ends (no text or symbols)

連接條形音箱

選項 2：同軸電纜

接通電源

1. 將電源線插入 Power 連接器。

條形音箱連接器面板

Illustration of a mechanical tool or device with a handle and lever (no text or symbols)

清潔

中国における輸入元: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

EUにおける輸入元: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

台湾における輸入元: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan Phone Number: [phone]

Bose Corporation Headquarters: 1-877-230-5639

Illustration of two electronic devices: a rectangular device and a multi-pin cable with connectors (no text or symbols)

Isometric line drawing of a modern TV set with a potted plant beside it (no text or symbols)

サウンドバーを壁に取り付ける

オプション1:

光ケーブル(デジタル音声)

接続に最適です。

オプション2:

同軸ケーブル(デジタル音声)

Illustration of a cable with a connector and plug (no text or symbols)

14- 日本語

サウンドバーを接続する

電源に接続する

Illustration of a mechanical tool or device with a handle and lever, no text or symbols present

お手入れについて

North Riying Road, China (Shanghai) Pilot Free Trade Zone

Illustration of two connected cables with connectors, one showing a plug and the other a rectangular device (no text or symbols)

3D illustration of a rectangular block with a central slot and a small arrow, no text or symbols present.

Illustration of a remote control with two cylindrical batteries beside it (no text or symbols)

Illustration of a black and orange U-shaped cable with two metallic connectors (no text or symbols)

(أوروبا فقط)

Illustration of a black cable with two connectors (no text or symbols)

: المحور كبل ضوني

Isometric line drawing of a modern TV setup with a monitor, a potted plant, and a wall-mounted screen (no text or symbols)

:1-expiry

Illustration of a USB cable with a connector and cable spool (no text or symbols)

توصيل مKEYر الصوت

worldwide.Bose.com/Support/Groups

Illustration of a mechanical tool or device with a handle and lever, no visible text or symbols

الإستعمال

• رطبة.
