USER MANUAL Panaray 802 BOSE


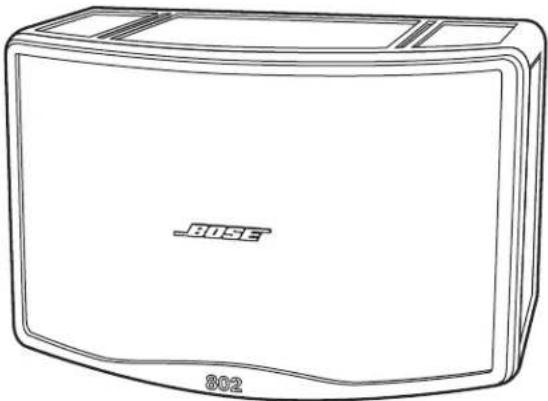

Line drawing of a rectangular electronic device labeled '802' with no visible text or symbols on the body itself.Panaray ^® 802 ^® Series IV
Loudspeaker
Installation Guide
Guía de instalación
This product is intended for installation by professional installers only! This document is intended to provide professional installers with basic installation and safety guidelines for Bose® 802® Series IV Loudspeakers in typical fixed-installation systems. Please read this document before attempting installation.
WARNING: All Bose ^® products must be used in accordance with local, state, federal and industry regulations. It is the installer's responsibility to ensure installation of the loudspeakers and mounting system is performed in accordance with all applicable codes, including local building codes and regulations. Consult the local authority having jurisdiction before installing this product.
WARNING: Unsafe mounting or overhead suspension of any heavy load can result in serious injury and equipment damage. It is the responsibility of the installer to evaluate the reliability of any mounting method used for their application. Only professional installers with the knowledge of proper hardware and safe mounting techniques should attempt to install any loudspeaker overhead.
Guidelines for Permanent Installation of 802 Series IV Loudspeakers
The installation information contained in this document is only a general guideline and cannot, as such, represent all requirements and precautions. Accordingly, anyone using this material assumes all liability and is expressly responsible for the safety of all loudspeaker array designs and mounting configurations applied in practice.
- Prior to the installation of any overhead loudspeaker, a licensed professional engineer must approve the location and method of attachment to the building structure and confirm they are consistent with all building codes and regulations. Ensure the mounting surface and the method of attaching the loudspeaker system to the surface is capable of supporting the total weight (37 lb/16.8 kg) of the system. A safety factor of 10:1 is recommended.
- Obtain all mounting system components from reputable manufacturers. Select a mounting system appropriate for your loudspeaker system and its intended application. We recommend Bose mounting accessories when available. A licensed professional engineer must review the design and fabrication of any custom mounting hardware.

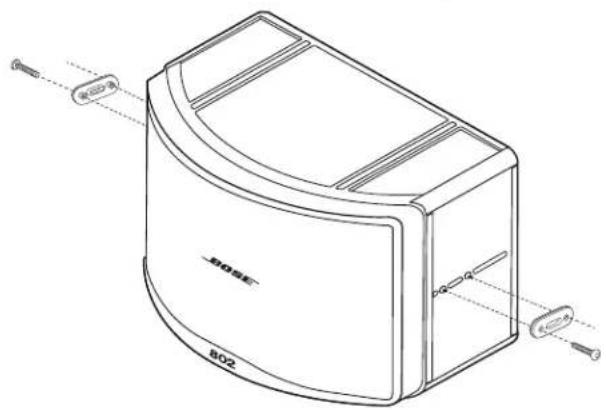

- Bose 802 Series IV Loudspeakers feature integrated M8 threaded inserts to facilitate loudspeaker mounting by professional installers. Do NOT use SAE 5/16" size threaded hardware! Use only metric hardware. Fasteners should be metric Class 8.8 (load bearing rated) or equivalent. Unmarked (not rated for load bearing) fasteners should not be used.
- Use lock washers or a locking compound intended for hand disassembly, such as LOCTITE ^3 THREADLOCKER BLUE 242 ^6 compound, for a vibration resistant assembly.
- Fasteners should be tightened using torque of 50 inch-pounds (5.6 Newton-meters). Over-tightening the fasteners could result in irreparable damage to the cabinet and create an unsafe assembly.
-
Do not attempt to alter the threaded attachment points or re-thread the attachment points to accommodate any other thread size or type; doing so will compromise the safety while permanently damaging the loudspeaker.
-
Use a safety cable, separately attached to the cabinet, at a point not in common with the load bearing attachment points of the mounting system to the loudspeaker. This is recommended even if not required by local regulation. Consult a licensed professional engineer or a rigging professional for proper design and installation.
CAUTION: Installed loudspeakers require regular inspection and routine maintenance to ensure proper function and safe operation. Inspect mounting hardware and attachments for signs of corrosion, bending or any other condition that may decrease the structural integrity. Immediately replace worn or damaged components.
CAUTION: Make no modifications to the loudspeakers or mounting accessories. Unauthorized alterations may compromise safety and could result in damage, injury, or death.
This product conforms to all applicable EU directive requirements. The complete declaration of conformity can be found at www.Bose.com/compliance.
The Bose ^® Panaray ^® 802 ^® Series IV sound-reinforcement loudspeaker features full-range cone transducers in a proprietary Articulated Array ^® that provide exceptional reliability in adverse conditions while delivering natural vocal clarity and is intended for both indoor and outdoor permanently-installed sound systems. The 802 Series IV loudspeaker provides wide 120° horizontal and 100° vertical coverage with low-frequency response to 50 Hz in a lightweight, compact enclosure. Now in the fourth generation, the Panaray 802 Series IV loudspeaker continues the legacy of reliability, wide coverage, and natural sound quality, that has made the 802 loudspeaker one of the best-selling sound-reinforcement loudspeakers in the world.
Carton Contents


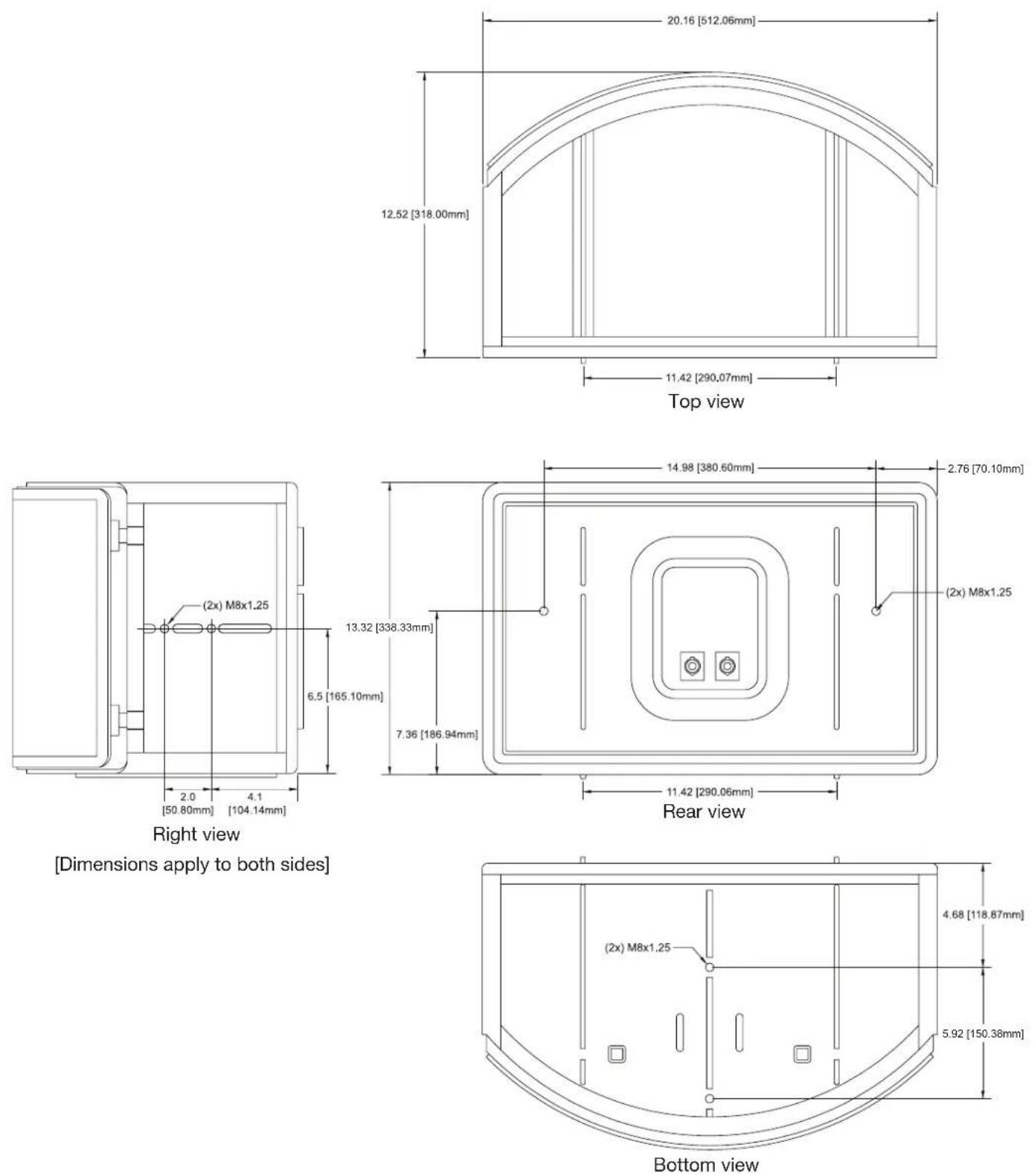

Figure 1. Panaray® 802® Loudspeaker Dimensions
Mounting the 802 ^® Series IV loudspeaker with the U-bracket
The Bose ^® 802 Series IV loudspeaker can be mounted on a wall or ceiling using the U-bracket accessory kit (not included).
Before You Begin
This installation should be performed only by trained installers.
Recommended Tools: 5 mm Allen wrench
CAUTION: The 802 Series IV loudspeakers weigh 37 lb (16.8 kg). Use caution when lifting to avoid injury and/or damage to the speaker. Do not rest loudspeakers on their grilles.
Mounting Procedure
- Choose a mounting location that will safely support the weight (37 lb/16.8 kg) of the loudspeaker. Refer to "Guidelines for Permanent Installation of 802 Series IV Loudspeakers" on page 2.
CAUTION: Choose a position and mounting method consistent with local building codes and regulations. Ensure the mounting surface and the method of attaching the loudspeaker to the surface is structurally capable of supporting the weight of the loudspeaker. A 10:1 safety weight ratio is recommended.

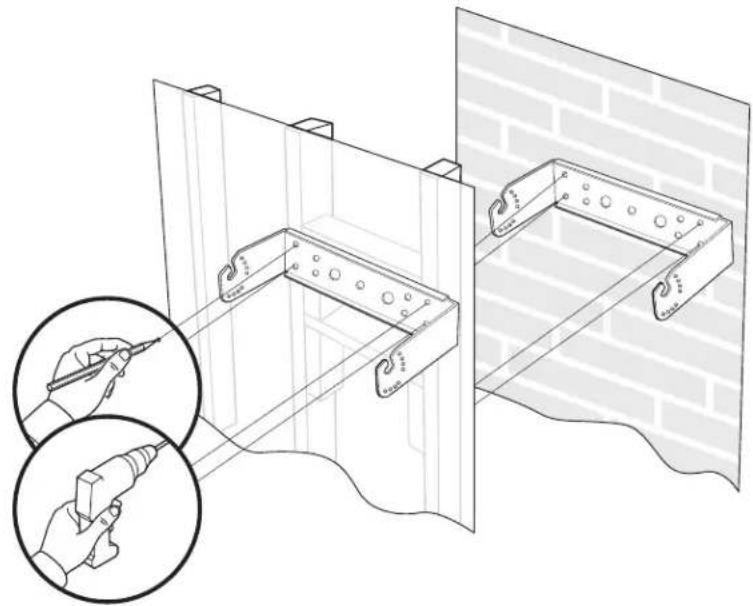

- Hold the U-bracket in the mounting location and mark the holes.
- Remove the film from the foam tape and attach a bracket spacer to each side of the speaker. Insert an M8 cap screw into the front hole on each side of the speaker. Do not tighten.

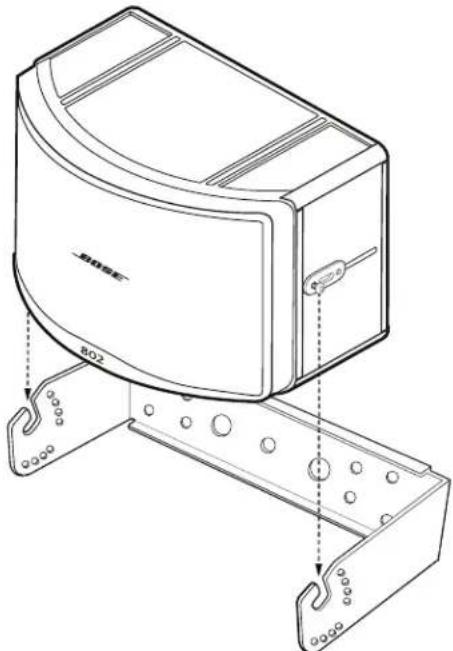

- Place the speaker on the bracket.

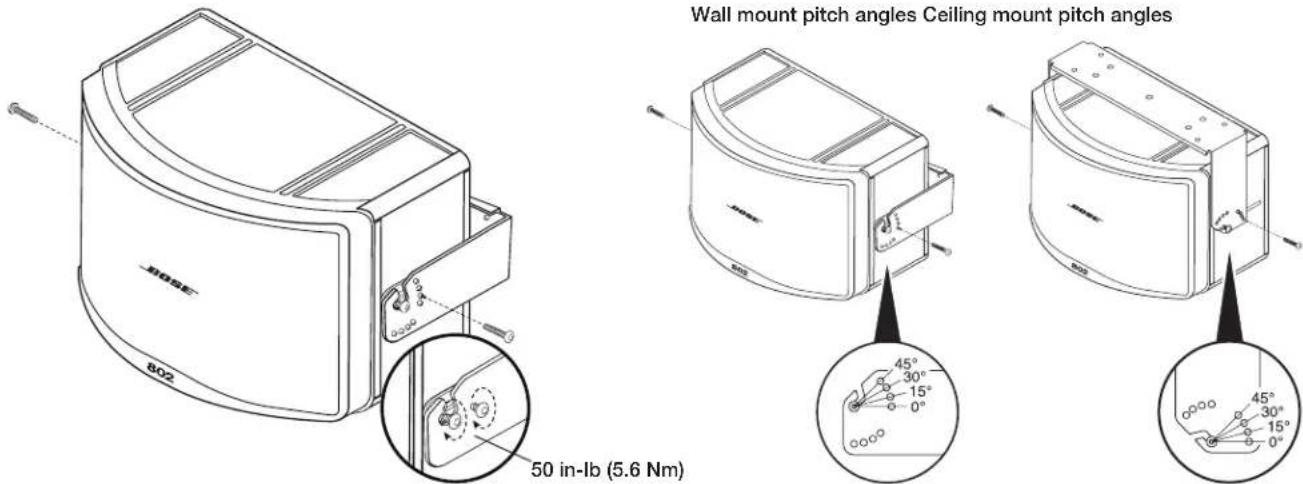

- Tilt the speaker to the desired angle and insert the second M8 cap screw on each side of the speaker.
-
Using a 5 mm Allen wrench, tighten all four cap screws to 50 inch-pounds (5.6 Newton-meters).
-
Connect field wiring and test loudspeaker operation.
Mounting the 802 ^® Series IV Loudspeaker on a Speaker Stand
The 802 Series IV loudspeaker can be mounted on a speaker stand, such as the Bose ^® SS10 model. The SS10 comes with thumb screws for attaching the speaker to the adapter on the top of the stand.
Note: Other stands have not been tested and may create a tipping hazard.

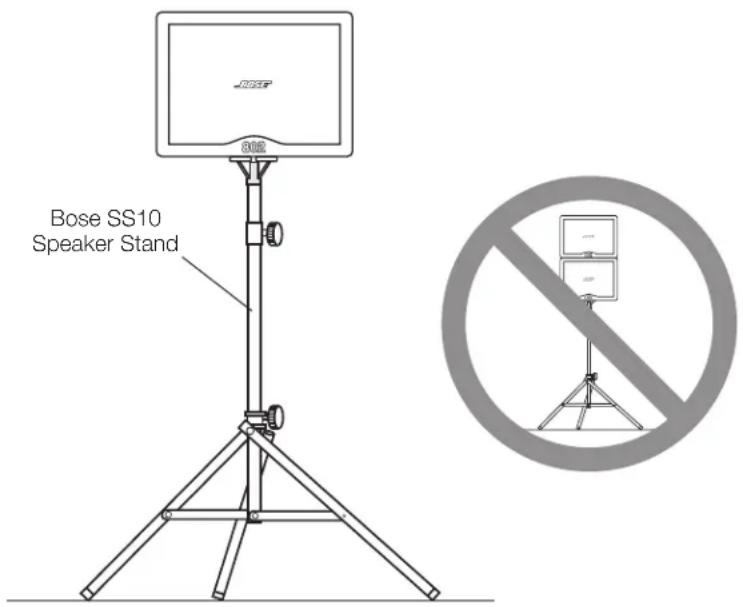

Figure 2. Panaray® 802 Series IV loudspeaker on a Bose SS10 Speaker Stand
Recommended Power Amplifiers
Selecting the proper amplifier size for a given loudspeaker requires analysis of the transducer long-term (or RMS) power rating, dynamic range of the input-source material (crest factor), desired sound pressure levels, and other factors. As a general guideline, the following table provides recommended power amplifier ranges for Bose Panaray ^® loudspeakers:
Model Nominal Impedance Required Channels Amp Power Rating
| 802 Series IV 8 ohms 1 250 – 500 Watts |
CAUTION: Failure to follow these guidelines may result in damage to the loudspeaker!
Please refer to the specifications listed on the pro.bose.com website for PowerMatch® amplifiers and compare with the table above to determine which PowerMatch model is best for your particular Panaray loudspeaker system design.
Recommended DSP Settings
The Bose Panaray 802 Series IV loudspeaker requires active equalization for optimal sound quality. The recommended equalization is contained in the preset libraries of the Bose PowerMatch ^® Configurable Power Amplifiers, ControlSpace ^® engineered sound and loudspeaker processors.
Technical Specifications
| System Performance | |
| Frequency Range (-10 dB) | 50 Hz - 16 kHz |
| Coverage Pattern, Horizontal 120° | |
| Coverage Pattern, Vertical 100° | |
| Long-Term Power Handling[1] | 300 W |
| Calculated Maximum SPL @ 1 m, peak[2] | 123 dB |
| Requires active EQ for best performance Yes | |
| Transducers | |
| Driver Compliment Eight (8) 4.5" (114 mm) full-range environmental drivers | |
| Nominal Impedance 8 ohms | |
| Physical | |
| Dimensions | 13.3" H x 20.5" W x 12.9" D (338 mm x 520 mm x 327 mm) |
| Net Weight 37 lb (16.8 kg) | |
| Finish Color Black | |
| Environmental Rating Outdoor (IP55) | |
| Suspension / Mounting Eight (8) M8 x 1.25 inserts (2 back, 2 bottom) | |
| Shipping Weight 42 lb (19.1 kg) | |
| Product Code | |
| Black | 739058-0110 |
Notes:
-
Power handling using Bose Extended-Lifecycle Test.
-
Maximum SPL calculated from sensitivity and power handling specifications, exclusive of power compression.
-
All specifications subject to change without notice.
Visit us on the web at pro.Bose.com for more information, including specifications, technical literature, product warranty, parts and accessories, and global support contact information.
