| Type de produit | Cordless stainless steel electric kettle |
| Marque | SilverCrest |
| Modèle | SWKE 2400 A1 |
| Alimentation | 220-240 V AC, 50/60 Hz |
| Consommation électrique | 2000 - 2400 W |
| Capacité | 1.7 L (max), 0.5 L (min) |
| Matériau | Stainless steel housing, plastic handle and lid |
| Dimensions (H x L x P) | Approx. 260 x 222 x 160 mm |
| Poids | Approx. 1070 g (including all accessories) |
| Longueur du câble | 72 cm |
| Éléments chauffants | Integrated heating element (concealed) |
| Indicateur de niveau d'eau | External water level indicator with MIN and MAX marks |
| Filtre anti-calcaire | Removable scale filter inside the kettle |
| Base | 360° rotatable base with cord wrap |
| Interrupteur | ON/OFF switch with integrated blue power indicator, auto shut-off after boiling |
| Sécurité | Overheat protection, automatic shut-off, boil-dry protection |
| Classe de protection | I |
| Entretien et nettoyage | Clean exterior with damp cloth; descale with commercial descaling agent; wash scale filter separately |
| Utilisation prévue | Only for heating drinking water in household environments |
| Garantie | 3 years |
Frequently Asked Questions - SWKE 2400 A1 SILVERCREST
User questions about SWKE 2400 A1 SILVERCREST
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Kettle in PDF format for free! Find your manual SWKE 2400 A1 - SILVERCREST and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SWKE 2400 A1 by SILVERCREST.
USER MANUAL SWKE 2400 A1 SILVERCREST
TARGA GMBH
DE-59494 Sos
GERMANY
Operating instructions and safety instructions
GR CY
English....2
Ελληνικά 18
Deutsch 36
Table of Contents
- Intended use.... 3
- Package contents .... 4
- Technical specifications .... 5
- Safety instructions .... 5
- Copyright 10
- Before you start 10
- Getting started 11
7.1. Boiling water.... 11 - Maintenance / cleaning 13
8.1. Descaling the kettle (4).... 13
8.2. Cleaning the scale filter (1) 14
8.3. Storage when not using the product.... 14 - Troubleshooting 15
- Environmental regulations and disposal information .... 15
- Conformity notes.... 15
- Warranty information 16
Congratulations!
By purchasing the SilverCrest SWKE 2400 A1 cordless stainless steel kettle, hereinafter referred to as the kettle, you have opted for a quality product.
Before first using it, familiarise yourself with the way the kettle works and read these operating instructions through carefully. Be careful to follow the safety instructions and only use the kettle as described in the operating instructions and for the applications given.
Keep these operating instructions in a safe place. If you pass the kettle on to someone else, make sure to give them all the relevant documents with it.
1. Intended use
This kettle is a household appliance and is used to heat water only. It may not be used outdoors or in tropical climates. The kettle has not been designed for corporate or commercial applications. Use the kettle in domestic environments for private applications only. Any use other than that does not correspond to the intended use. This kettle fulfils all relevant norms and standards concerning CE conformity. Any modifications to the kettle other than recommended changes by the manufacturer may result in these standards no longer being met. The manufacturer shall not be liable for any damage or malfunctions resulting therefrom. Only use accessories supplied with the appliance by the manufacturer.
Observe the regulations and laws in the country of use.
2. Package contents
Remove the kettle (4) and all accessories from the packaging. Remove the packaging material and check whether all the components are complete and undamaged. If you find anything missing or damaged, please contact the manufacturer.
• SilverCrest SWKE 2400 A1 Stainless Steel Electric Kettle
- Base
• This User's Manual
These operating instructions have a fold-out cover. On the inside of the cover is a diagram of the SilverCrest SWKE 2400 A1 Stainless Steel Electric Kettle with the components numbered. You can keep this page folded out whilst reading the different chapters of this user manual. This allows you to refer to the relevant controls at any time. The meanings of the numbers are as follows:
| 1 | Scale Filter |
| 2 Holder (for scale filter) | |
| 3 Water Level Indicator | |
| 4 SWKE 2400 A1 Kettle | |
| 5 Base (with integrated cord wrap) | |
| 6 ON/OFF Switch (with integrated blue power indicator) | |
| 7 Power cord | |
| 8 Handle | |
| 9 Lid Release Button | |
| 10 Lid | |
3. Technical specifications
| Manufacturer TARGA GmbH | |
| Name SilverCrest SWKE 2400 A1 | |
| Power supply 220-240 VAC | 50/60 Hz |
| Power consumption 2000 - 2400 W | |
| Power cord (7) length 72 cm | |
| Capacity 0.5 (minimum) to 1.7 (maximum) litres | |
| Indicators Power indicator when the kettle (4) is switched on | |
| Safety Class | I |
| Overall dimensions(H x W x D): | approx. 260 x 222 x 160 mm(Kettle (4): approx. 238 x 222 x 157 mm,Base (5): approx. 35 x163 x 160 mm) |
| Weight approx. 1070g including all accessories | |
The technical specifications and design can be changed without prior notice.
4. Safety instructions
Before you use this appliance for the first time, please read the following notes in this manual and heed all warnings, even if you are familiar with handling electronic devices and household appliances. Keep these operating instructions in a safe place for future reference. If you sell the appliance or give it away, pass on the user manual at the same time. The User Manual forms part of the product.
Explanation of symbols used
DANGER! This icon and the word "Danger" alert you to a potentially dangerous situation. Ignoring it can lead to severe injury or even death.
WARNING! This symbol denotes important information for the safe operation of the Stainless Steel Electric Kettle and user safety.
DANGER! This symbol denotes danger for human health and risk of death and/or risk of damage to equipment due to electric shock.
DANGER! This symbol denotes danger for human health from scalding.
This symbol points out that the base (5) should never be immersed in liquids.
This symbol designates products whose physical and chemical composition has been tested and found to be non-hazardous to health when used in contact with food in accordance with the requirements of Ordinance EU 1935/2004.
This symbol denotes further information on the topic.
Predictable misuse
- Only heat the kettle (4) using the specially designed base (5). Never place it on a stove to heat it and do not use the base from a different kettle.
- Do not use the kettle (4) for other liquids, only with drinking water.
- Always use fresh drinking water. Discard any water left to stand in the kettle (4) for longer than one hour. Do not reboil any water that has cooled down. Always pour away old water. Otherwise pathogenic germs could form.
The kettle may not be used with an external timer or a separate remote control system.
Children and persons with disabilities
- This appliance may be used by children over the age of 8 and by persons with reduced physical, sensory, or intellectual abilities or with limited experience or knowledge, if under supervision or if they have been instructed in the safe use of the device and have understood the resulting dangers.
- Do not allow children to play with the appliance.
- User cleaning and maintenance should not be carried out by children unless they are aged 8 or over and are under supervision.
- Children under the age of 8 must be kept away from the appliance and the power cord (7).
DANGER! Packaging material is not a toy. Do not allow children to play with plastic bags. There is a risk of suffocation.
Keep the appliance out of the reach of children.
General safety instructions
DANGER: Risk of burns
- Never touch the kettle (4) housing during or immediately after operation. Only ever hold or carry the kettle (4) using the handle (8).
-
When the water boils, hot steam will be emitted. Be careful not to burn yourself. Wear oven gloves if necessary. Rotate the kettle (4) so that the steam is directed away from you.
-
Clean the kettle (4) only after it has completely cooled down.
- Fill the kettle (4) with 1.7l of water maximum. See the water level indicator (3) to help with this. Overfilling can result in the kettle boiling over and could cause burns or damage to property.
- Only boil water with the lid (10) closed. Otherwise the water could boil over and cause burns and property damage.
- Do not open the lid (10) while the water is being heated.
WARNING about property damage
- The kettle (4) should only be used with the corresponding base (5).
- Never place any objects on the base (5).
- Only operate the kettle on an even, stable and heat-resistant surface. If the kettle is not placed on an even surface the movement of the boiling water could make it tip over causing damage to property and burns.
- Never leave the kettle unattended during operation.
- Disconnect the mains plug from the wall outlet when the kettle is unattended.
DANGER: Risk of electric shock
- If the power cable of this appliance is damaged, it must be replaced by the manufacturer, its customer service or a similarly qualified person, in order to avoid any possible danger.
- Do not open the base (5) housing - it contains no serviceable parts. Opening the housing can expose you to the risk of electric shock.
- If you notice any smoke, unusual noises or strange smells, switch off the kettle immediately and remove the mains plug from the wall outlet. If this occurs, the kettle should no longer be used until it has been inspected by authorized service personnel. Never inhale smoke from a possible appliance fire. If you do inadvertently inhale smoke, seek medical attention. Smoke inhalation can be damaging to your health.
- Make sure that the power cord (7) cannot be damaged by sharp edges or hot spots. After use, always wind the power cord (7) back around the cord wrap underneath the base (5).
- Make sure that the power cord (7) cannot become crushed or squashed.
- The appliance must always be disconnected from the mains when left unsupervised and before assembly, disassembly or cleaning.
- When disconnecting the power supply from the wall outlet, always pull on the mains plug and never on the power cord (7) itself.
- If you notice visible damage to the kettle or the power cord (7), switch the appliance off immediately, disconnect the mains plug from the wall outlet and contact our hotline (see "Warranty information" section).
- Only connect the base (5) to a properly installed, easily accessible wall outlet whose mains voltage corresponds to that on the rating plate. After connecting the appliance, the
wall outlet must still be easily accessible so that you can remove the mains plug quickly in the event of an emergency.
- No liquids must penetrate the plug-type connection between the kettle (4) and the base (5).
- Never immerse the base (5) in water or other liquids. If liquid does penetrate the base (5), disconnect the mains plug from the wall outlet immediately and contact our hotline (see "Warranty information" section).
DANGER: Risk of fire
Fill the kettle (4) with at least 0.5l of water. If insufficient water is added, there is a risk of fire due to overheating.
Maintain a clearance of at least 50 cm around the kettle (4) to flammable and combustible materials. There is a risk of fire.
5. Copyright
All the contents of this user manual are protected by copyright and provided to the reader for information only. Copying data and information without the prior explicit written consent of the author is strictly forbidden. This also applies to any commercial use of the contents and information. All texts and diagrams are up-to-date as of the date of printing. Subject to change without notice.
6. Before you start
Remove the SWKE 2400 A1 Stainless Steel Electric Kettle and all accessories from the packaging and check that the package contents are complete. Remove all protective films. Keep the packaging material away from children and dispose of appropriately.
7. Getting started
Before preparing water for consumption for the first time, you must first clean the kettle (4) to remove dust and any residues from the packaging materials. Proceed as follows:
- Open the lid (10) by pressing the lid release button (9) and rinse the kettle (4) with clean water.
- Fill the kettle (4) with drinking water up to the "1.71 MAX" mark.
- Close the lid (10) by pressing down until it clicks into place and allow the water to boil once (see next step "Boiling water") then pour it away.
Repeat steps 1 to 3 once more. The kettle (4) is then clean and disinfected. The kettle (4) is now ready for use.
7.1. Boiling water
DANGER: Risk of electric shock
Keep the base (5) away from water. Otherwise there is a risk of lethal electric shock.
WARNING
On the very first use, boil and pour away water twice (see previous section "Getting started").
WARNING
Always use fresh drinking water. Discard any water left to stand in the kettle (4) for longer than one hour.

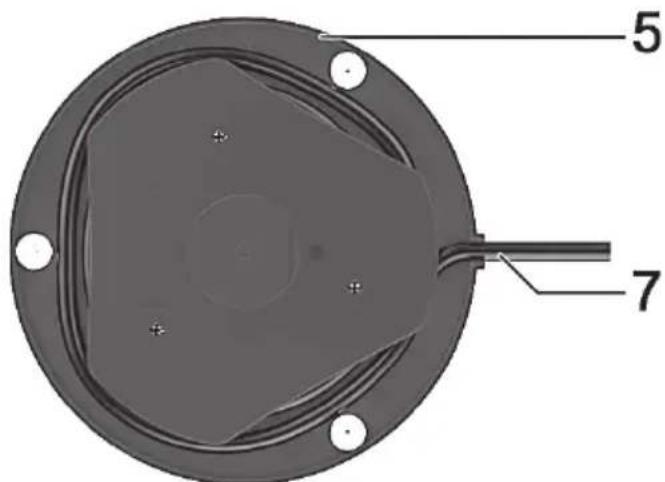

Cord wrap
There is an integrated cord wrap on the underside of the base (5). This enables you to adjust the power cord (7) length to suit your conditions.
When the kettle is not in use you can reduce the cord length to a minimum here.
- Unwind the power cord (7) underneath the base (5).
- Place the base (5) on an even, non-slip and dry surface. Note that the power cord (7) must be fed through one of the notches provided on the underside of the base (5) to ensure stable positioning.
WARNING
If the power cord (7) is not fed through one of the notches provided on the underside of the base (5), the base (5) and kettle (4) will not be stable. The movement of the boiling water could make the kettle (4) tip over causing severe damage to property and personal injury!
- Open the lid (10) by pressing the lid release button (9).

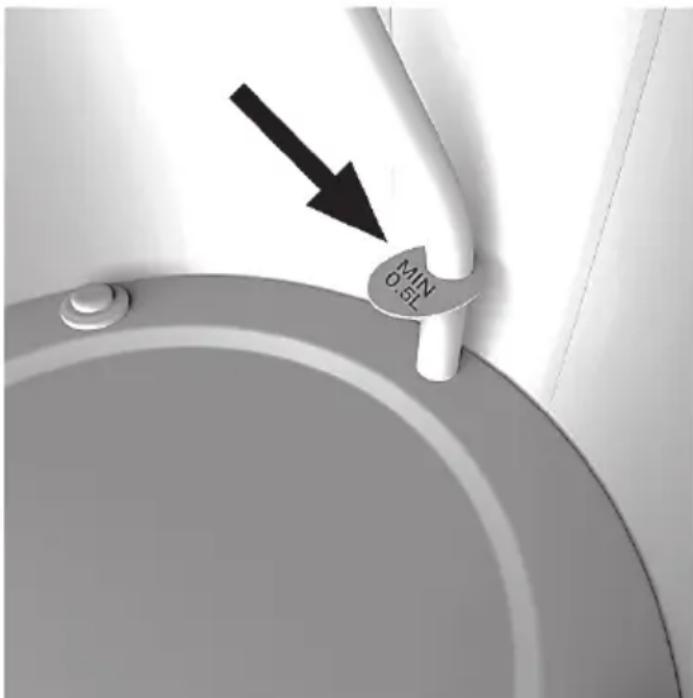

"Minimum fill level" indicator
The minimum water fill level is 0.5 litres. This low level is not visible on the outer water level indicator (3).
A special mark indicating the exact minimum fill level can therefore be seen inside the kettle (4) while filling with water. This mark inside the kettle (4) is visible when the lid (10) is open.
- Fill the kettle (4) with drinking water, at least up to the "MIN 0.5L" mark inside and up to the "1.7L MAX" mark on the water level indicator (3) and close the lid (10) by pressing it down until it clicks into place.
When the kettle (4) is placed on the base (5), it can be freely rotated 360^ around the vertical axis. It does not need to engage in a certain position. This allows you to rotate the kettle (4) such that you can easily check the water level indicator (3) and rotate the kettle (4) so that the steam is directed away from you.
- Plug the mains plug into an easily accessible wall outlet.
- Place the kettle (4) onto the base (5) and press the ON/OFF switch (6) down to switch the kettle (4) on. The power indicator integrated into the ON/OFF switch (6) lights up blue. The kettle (4) will make noises during the heating process. This is not a malfunction.
DANGER: Risk of burns
Rotate the kettle (4) so that the steam is directed away from you. Otherwise you could get burnt.
Only boil water with the lid (10) closed. Otherwise the kettle (4) could boil over and cause burns and property damage.
- As soon as the water boils, the kettle (4) turns off. The ON/OFF switch (6) returns to the up position automatically and the integrated power indicator goes out.
- Disconnect the power cord (7) plug from the wall outlet, remove the kettle (4) from the base (5) and pour the water out.
DANGER: Risk of burns
Never touch the kettle (4) housing during or immediately after operation. Only hold or carry the kettle (4) using the handle (8).
When the water boils, hot steam will be emitted. Be careful not to burn yourself. Wear oven gloves if necessary. Rotate the kettle (4) so that the steam is directed away from you.
8. Maintenance / cleaning
DANGER: Risk of burns
Wait until the kettle (4) is completely cool before cleaning it. Otherwise you could get burnt.
DANGER: Risk of electric shock
Always remove the mains plug from the socket before cleaning. Failure to do so could cause an electric shock.
Do not pour or spray any liquids onto the base (5) and do not immerse it in water or other liquids. This could cause short circuits which could cause electric shocks or burns.
WARNING about property damage
Do not use abrasive or astringent detergents or tools which could scratch the surface (e.g. metal sponges). This can cause damage to the kettle (4).
- Rinse the kettle (4) out with clean water.
- Clean the exterior or the kettle (4) and the base (5) with a slightly damp cloth. For stubborn dirt add a little detergent to the damp cloth. Make sure there are no detergent residues on the kettle (4) or the base (5) before operating the kettle (4) again. Dry the kettle (4) and base (5) well before using again.
To remove stubborn dirt inside the kettle (4) you can use a long-handled dishwashing brush or bottle brush.
8.1. Descaling the kettle (4)
Over time, limescale can build up in the kettle (4). This can result in energy loss and reduce the lifespan of the kettle (4). Limescale should therefore be removed as soon as it becomes visible.
- Use a descaling agent suitable for coffee machines and other household appliances. Proceed as described in the instructions for using the descaling agent.
• After descaling, rinse the kettle (4) out multiple times with plenty of clean water.

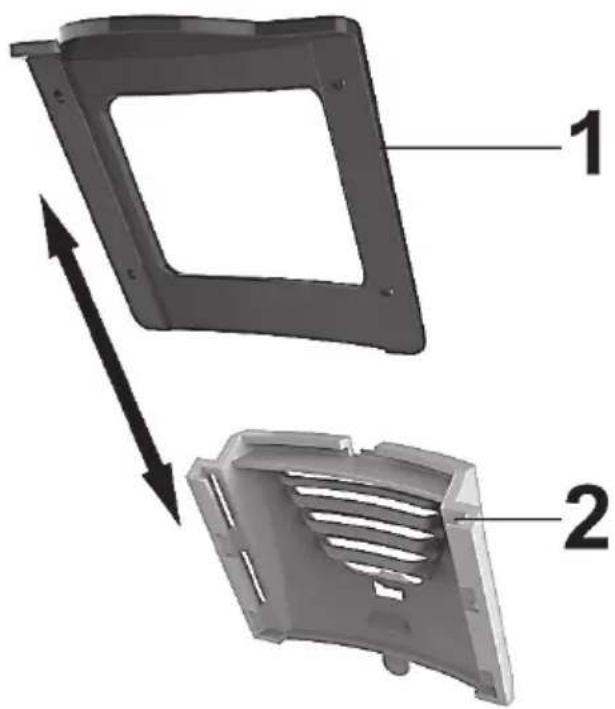

8.2. Cleaning the scale filter (1)
A scale filter (1) is installed in the kettle (4) that needs to be cleaned from time to time. Clean the scale filter (1) as follows:
- Remove the cooled kettle (4) from the base (5).
- Open the lid (10) by pressing the lid release button (9)
- Carefully reach into the kettle (4), take hold of the top edge of the scale filter (1) and pull it upwards out of the holder (2). Please note that the holder (2) must not be removed.
- Place the scale filter (1) into a warm descaling solution for household appliances (e.g. for coffee machines) for a few hours and then rinse it well in clean water.
- Replace the scale filter (1) by inserting it into the lateral guides on the holder (2) from above.
- Close the lid (10) by pressing down on it until it clicks into place.
8.3. Storage when not using the product
If the kettle is not to be used for an extended period, store it in a clean and dry place.
- Allow the kettle (4) to cool completely before storing it.
- Wrap the power cord (7) around the cord wrap under the base (5) and store the kettle in a safe and dust-free place.
9. Troubleshooting
If your kettle does not work as normal, follow the instructions below to try to solve the problem. If working through the tips below does not fix the fault, please contact our hotline (see "Warranty information" section).
The stainless steel electric kettle does not work
- The mains plug is not plugged in. Insert the mains plug into a wall outlet.
- The wall outlet is defective. Test the appliance in a different wall outlet that you are certain is working.
- The kettle (4) is not switched on. Press the ON/OFF switch (6) down to switch on the kettle (4).
- The kettle (4) has overheated and the overheating protection is preventing it from switch on. Wait until the kettle (4) has cooled down. Fill the kettle (4) with at least 0.5 litres of water up to the "MIN 0.5L" mark inside the kettle (4).
The ON/OFF switch (6) does not snap into place when switched on
- The kettle (4) is not correctly placed on the base (5). Place the kettle (4) correctly on the base (5).
10. Environmental regulations and disposal information
Devices marked with one of these symbols are subject to the European Directive 2012/19/EU. All electrical and electronic devices must be disposed of separately from household waste at official disposal centres. Avoid hazards to the environment and dangers to your personal health by disposing of the device properly. For further information about proper disposal, contact your local government, disposal bodies or the shop where you bought the device.
Dispose of all packaging in an environmentally-friendly manner. Cardboard packaging can be taken to paper recycling centres or public collection points for recycling. Any film or plastic contained in the packaging should be taken to your public collection points for disposal.
11. Conformity notes
This appliance has been approved for compliance with the basic and other relevant requirements of the Low-voltage Directive 2014/35/EU, the EMC Directive 2014/30/EU, the ErP Directive 2009/125/EC and the RoHS Directive
2011/65/EU.
You can download the full EU declaration of conformity at the following link:
www.targa.de/downloads/conformity/288371.pdf
12. Warranty information
Warranty of TARGA GmbH
Dear Customer,
This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below.
Warranty conditions
The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or replace the product free of charge as we deem appropriate.
Warranty period and legal warranty rights
The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge.
Scope of warranty
The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our authorised service technicians interfere with the device. No new warranty period commences if the product is repaired or replaced.
Submitting warranty claims
To ensure speedy handling of your complaint, please note the following:
- Before using your product for the first time, please read the enclosed documentation carefully. Should any problems arise which cannot be solved in this way, please call our hotline.
- Always have your receipt, the product article number as well as the serial number (if available) to hand as proof of purchase.
- If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault.
Service
Phone: 020 - 70 49 04 03
E-Mail: service.GB@targa-online.com
Phone: 01-4370121
E-Mail: service.IE@targa-online.com
Phone: 027 78 11 03
E-Mail: service.MT@targa-online.com
Phone: 02 - 20 09 025
E-Mail: service.CY@targa-online.com
IAN: 288371
Manufacturer
Please note that the following address is not a service address. First contact the service point stated above.
TARGA
GmbH
Coesterweg 45
DE-59494 Soest
GERMANY
Περιεχόμενα
- KETTLE SWKE 2400 A1
- Table of Contents
- Congratulations!
- Intended use
- Package contents
- Technical specifications
- Safety instructions
- Explanation of symbols used
- Predictable misuse
- Children and persons with disabilities
- General safety instructions
- DANGER: Risk of burns
- WARNING about property damage
- DANGER: Risk of electric shock
- DANGER: Risk of fire
- Copyright
- Before you start
- Getting started
- Boiling water
- WARNING
- Cord wrap
- "Minimum fill level" indicator
- Maintenance / cleaning
- Descaling the kettle (4)
- Cleaning the scale filter (1)
- Storage when not using the product
- Troubleshooting
- The stainless steel electric kettle does not work
- The ON/OFF switch (6) does not snap into place when switched on
- Environmental regulations and disposal information
- Conformity notes
- Warranty information
- Warranty of TARGA GmbH
- Warranty conditions
- Warranty period and legal warranty rights
- Scope of warranty
- Submitting warranty claims
- Service
- Manufacturer
- Περιεχόμενα
Brand : SILVERCREST
Model : SWKE 2400 A1
Category : Kettle
