Brand	Klarstein
Model	Mett Max
Product type	Electric meat grinder
Power supply	220-240 V ~ 50/60 Hz
Maximum power	2000 W
Nominal power	600 W
Main functions	Grinding, sausage making, kibbeh making (minced meat rolls), forward/reverse
Included accessories	Cutting discs fine, medium, coarse; cutting knife; spiral screw; sausage tubes (large, medium, fine); Kibbeh accessory; funnel plate; pusher
Number of cutting discs	3 (fine, medium, coarse)
Housing material	Plastic (not specified in manual)
Accessories material	Stainless steel (discs and knife), plastic (others)
Care and cleaning	Accessories washable in warm water with mild detergent; housing cleaned with a damp cloth; do not immerse housing; accessories not dishwasher safe
Safety	Use the pusher (do not push by hand); max operating time 10 minutes followed by a 10-minute break; do not grind bones, nuts, or fibrous foods; do not use reverse immediately after stopping (wait 30 seconds)
Spare parts and repairability	Do not repair yourself; contact the manufacturer or authorized service
General information	Household use only; not for commercial use
Weight	Approx. 3 kg (estimated)
Dimensions (L x W x H)	Approx. 30 x 20 x 30 cm (estimated)
Cable length	Approx. 1 m (estimated)
Warranty	According to manufacturer's terms (not specified)

Frequently Asked Questions - Mett Max Klarstein

What types of meat can I grind with the Klarstein Mett Max?

You can grind meat without tendons, bones, and fat. It is recommended to cut the meat into pieces about 2x2x6 cm to ease passage through the funnel. Avoid grinding hard foods like bones or nuts, and fibrous foods like ginger.

How to use the reverse function?

In case of jamming, press the REVERSE button for 3 to 6 seconds, then release. Then unplug the appliance and remove the blocked food. Do not use reverse immediately after a cycle (wait 30 seconds to avoid damaging the appliance).

Can I wash the accessories in the dishwasher?

No, the accessories are not dishwasher safe. Clean them with warm water and a small amount of mild detergent. The housing should be cleaned with a damp cloth, never under running water or immersed.

How long can I run the grinder continuously?

Do not operate the grinder for more than 10 minutes at a time. Let it cool down for at least 10 minutes before using it again.

How to assemble the meat grinder?

Insert the head into the inlet and turn the lock clockwise. Place the spiral screw with the long end forward into the head. Put the cutting knife on the shaft (blade facing forward), then the desired cutting disc. Secure with the fixing ring. Install the funnel plate turned upside down.

How to disassemble the grinder?

Make sure the motor is stopped and unplug the appliance. Disassemble the parts in reverse order of assembly. To remove the perforated disc, insert a screwdriver between the blade and the disc to loosen it.

Can I use the grinder to make sausages?

Yes, the Klarstein Mett Max comes with several sausage accessories (large, medium, fine). Place the chosen stuffing tube, thread the sausage casing, and tie the end. Fill loosely to prevent the casing from bursting during cooking.

What if the appliance stops working?

First check the electrical connection and voltage. If the problem persists, do not attempt to repair it yourself. Contact the manufacturer (Chal-Tec GmbH) or an authorized service.

Can I grind bones or nuts?

No, do not grind hard foods like bones or nuts, as they could damage the appliance. Use only boneless meat.

How to clean the grinder housing?

Clean the housing with a damp cloth and mild detergent. Never clean it under running water or immerse it. Avoid corrosive or abrasive cleaning products.

USER MANUAL Mett Max Klarstein

KLARSTEIN

www.klarstein.com

INHALTSVERZEICHNIS

Line drawing of a manual washing machine with handle and control panel (no text or symbols)

13

Line drawing of a hand holding a small mechanical component next to a second-hand electric shaver (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 16

Before first Use 16

Product Overview 17

Assembly and Operation 18

Disassembly 22

Cleaning and Care 22

Disposal Considerations 23

Manufacturer & Importer (UK) 23

TECHNICAL DATA

Item number 10034244
Power supply 220-240 V ~ 50/60 Hz
Max. Power 2000 W
Rated power 600 W

SAFETY INSTRUCTIONS

• The device is not intended for commercial use, but only for household and similar environments. This includes kitchens in offices, farms, hotels, motels and Bed & Breakfasts.
• Disconnect the plug before assembling or disassembling the appliance.
• Only use the appliance under supervision when children are present.
• When moving the unit, hold it by the housing with both hands. Never hold it by the hopper plate or any other part of the unit.
• When using the Kibbeh attachment (for minced meat rolls), do not attach a cutter or perforated discs.
• Do not grind hard food such as bones or nuts in the mincer.
• Do not crush fibrous foods such as ginger in the mincer.
• Do not allow the mincer to run for more than 10 minutes at a time. Let it cool for 10 minutes before using it again.
• Wait 30 seconds after finishing the current process before using the reverse switch. Doing so may damage the unit.
  • To avoid blockages, do not press the meat into the funnel under excessive pressure.
• Never attempt to replace or repair permanently installed parts of the appliance yourself.

WARNING

Risk of injury! Never push the meat into the funnel by hand. Always use a food pusher.

BEFORE FIRST USE

• Before use, check the voltage on the device badge. Connect the device only to sockets which correspond to the voltage of the device.
• Wash all accessories with warm water and a little detergent.
• Before plugging the appliance into a wall outlet, make sure that the appliance is switched off.

PRODUCT OVERVIEW

1	Kibbeh attachment	13	Head
2	Kibbeh attachment	14	Food container
3	Sausage top	15	Head inlet
4	Sausage top (coarse)	16	Locker
5	Sausage top (medium)	17	Reverse switch
6	Sausage top (fine)	18	Off switch
7	Cutting plate (medium)	19	On switch
8	Fixing ring	20	Body
9	Cutting plate (fine)	21	Power cord and plug
10	Cutting plate (coarse)	22	Hopper plate
11	Cutting blade	23	Food pusher
12	Screw conveyor

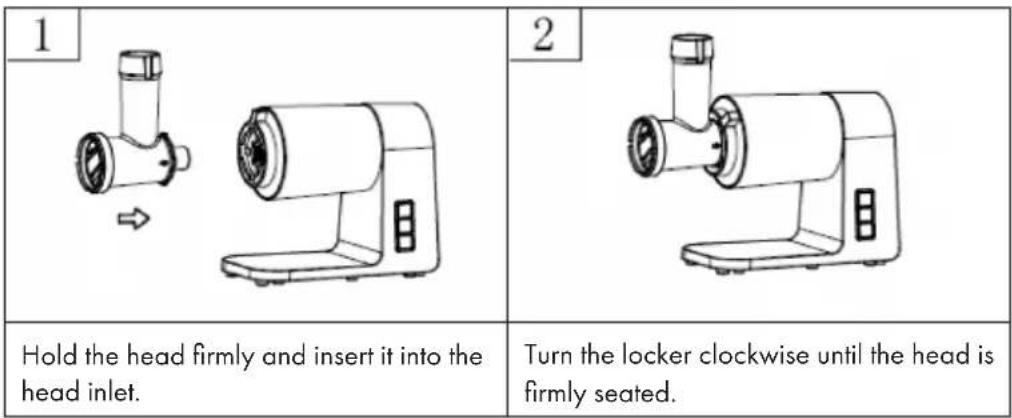

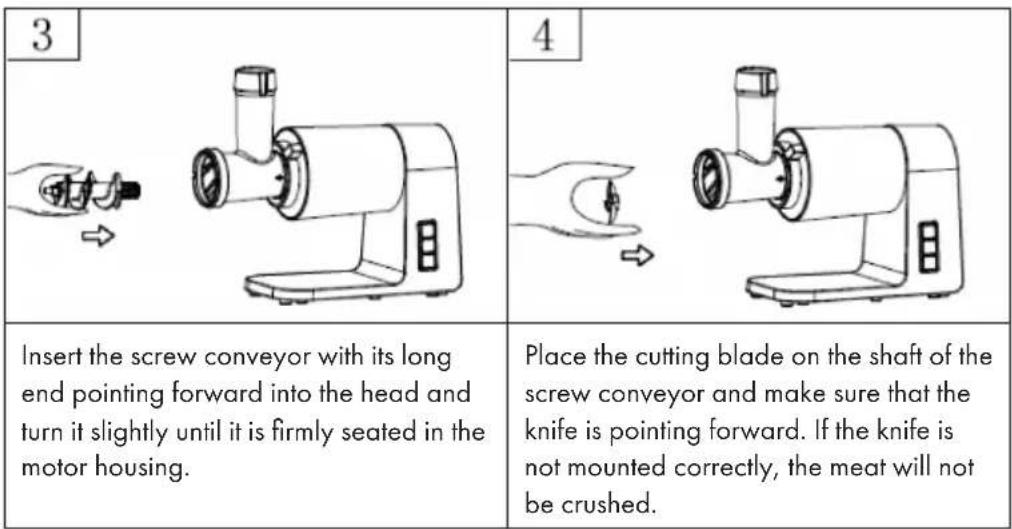

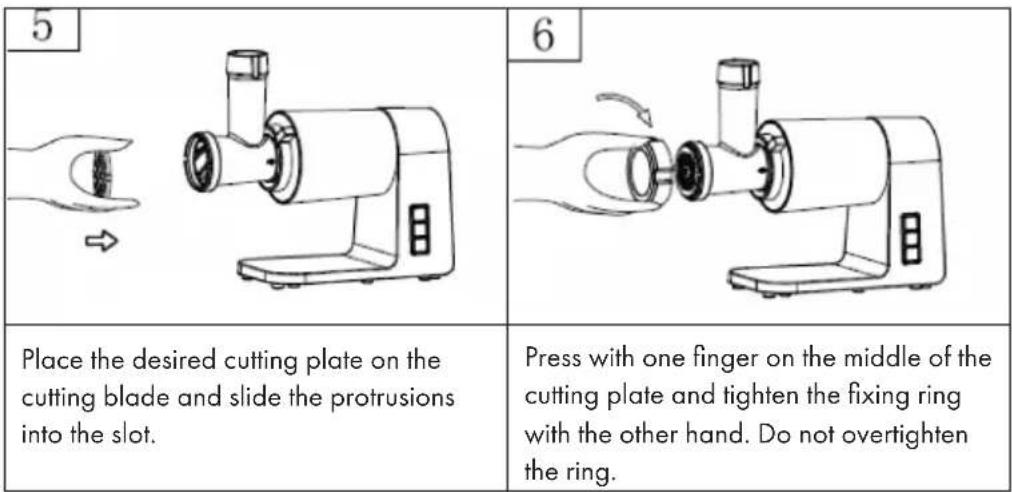

ASSEMBLY AND OPERATION

7
Place the hopper plate on the head and fix it into position. Place the unit on a solid worktop. The air outlet on the floor and on the side of the motor housing should be kept free and not blocked.

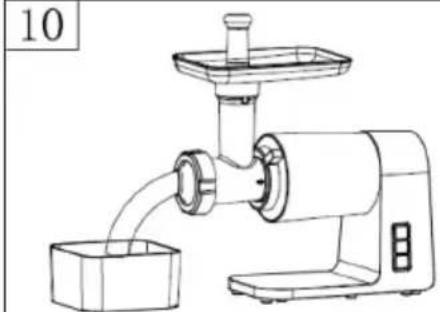

Mincing meat

Cut all food into pieces. We recommend that you use tendonless, boneless and fat-free meat and cut it to a size of eta 2x2x6 cm so that it fits easily into the funnel opening.

• Press the ON button.
• Place the pieces of meat on the funnel plate and push them into the funnel with the food pusher (see Fig. 7).
• When you are finished, press the OFF button.

Reverse function

If a blockage occurs, press and hold the REVERSE button for 3-6 seconds. Then release the button. Unplug the appliance and remove the food from the head of the appliance.

Making Kibbeh (minced meat rolls)

Agredients
Stuffing:	For the rolls:
Mutton 100 gOlive oil 1 1⁄2 tbspOnion 1 1⁄2 tbspFlour 1 1⁄2 tbspSpices to tasteSalt to taste	Lean meat 450 gFlour 150-200 gSpices to tasteNutmeg 1 tspPaprika to tastePepper to taste
Chop the meat three times for the filling and three times for the rolls and mix the minced meat with the remaining ingredients in a bowl.

8	[DT7H6]
Before attaching the Kibbeh attachments, remove the perforated disc and the cutting blade.		Screw cap into place until tight. Do not over tighten.
1		Place the food container under the outlet. Place the minced meat mixture for the rolls in the funnel and make minced meat rolls.

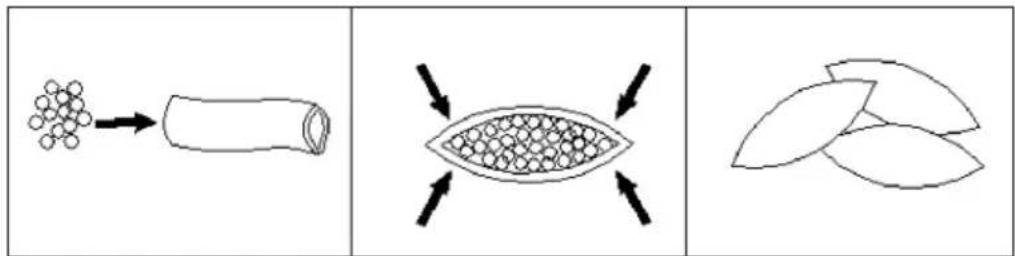

Fill the finished minced meat rolls with the minced meat filling as shown below and fry or deep-fry them.

Making sausages

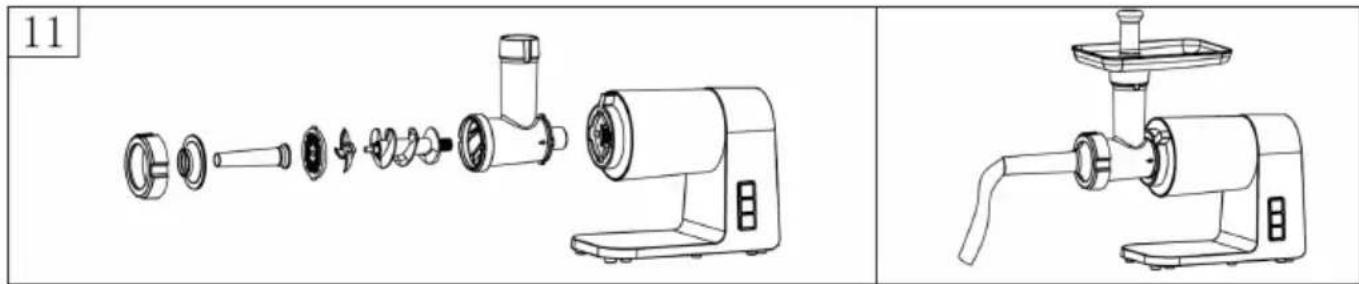

Place the cutting knife, one of the perforated discs (fine, medium, coarse) and the corresponding funnel (fine, medium, coarse) on the screw shaft and screw the fastening ring tight.

Thread the sausage skin onto the sausage filling tube and knot the end. Make sure that the sausage casing is loosely filled, as the sausage expands during frying or cooking and the casing can tear open. Press the sausage together at the end with your fingers and turn it once or twice around its own axis.

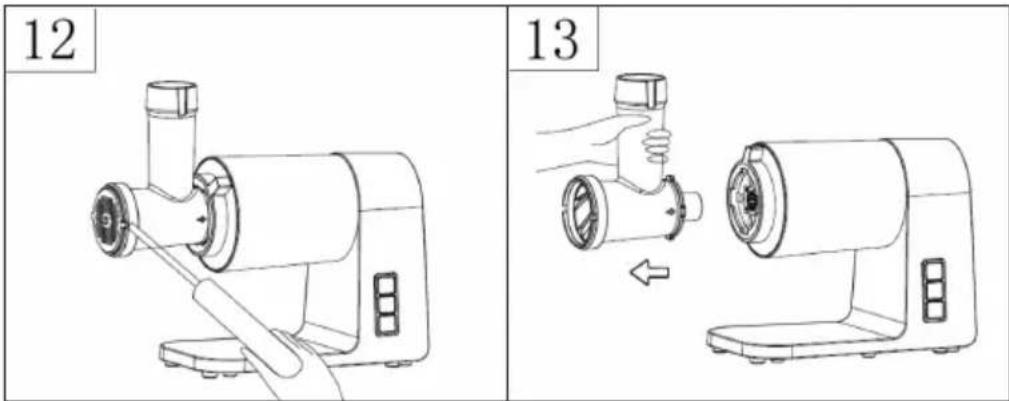

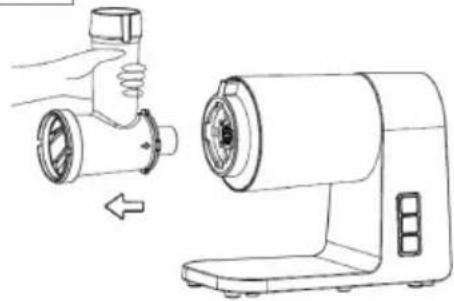

DISASSEMBLY

• Make sure that the engine is completely stopped.
- Disconnect the plug from the socket.
- Disassemble the parts by performing steps 1-6 in reverse order (see below).

Note: It is easier to remove the perforated disc by inserting a screwdriver between the cutting blade and the perforated disc to loosen it.

CLEANING AND CARE

• Switch off the device and unplug the plug from the socket.
• Allow the appliance to cool down completely.
• Clean the housing with a damp cloth using a mild detergent. Never clean the housing under running water and never put it in water.
• Do not clean the unit with caustic or abrasive cleaning agents.
• The attachments are not dishwasher safe. These parts should only be cleaned in warm water with a small amount of detergent.
• When you have finished cleaning, attach the cable to the cable holder on the back and store the unit in a dry, clean place where children have no access.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or labels present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom
