FKG 48 A1 - Barbecue FLORABEST - Free user manual and instructions

Product Type	Round Charcoal Barbecue
Model	FKG 48 A1
Brand	Florabest
Assembled Dimensions (approx.)	82 x 52 x 69 cm
Grill Grate Diameter	47 cm
Weight (approx.)	6 kg
Fuel Type	Charcoal
Firebowl Capacity (max.)	2 kg
Material	Enameled Steel
Assembly Required	Yes (8 steps)
Intended Use	Outdoor domestic grilling
Safety Features	Stable legs, wind protection, heat-resistant handles (removable), keep-warm grate
Ignition Aid Requirement	Only use ignition aids complying with EN 1860-3; do not use spiritus or petrol
Cleaning Instructions	Allow to cool completely; use mild detergent and water; no abrasive cleaners
Storage	Store in a dry place after cooling
Warranty	3 years (subject to terms)
Included Components	Firebowl, legs (2 long, 2 short), wheels, axle, bottom shelf, wind protector sheets, grill grate, keep-warm grate, handle, hardware
Country of Origin	Germany (Imported by Kompernass GmbH)
Customer Service (UK)	Tel: [phone] (0.10 £/min)
Customer Service (Ireland)	Tel: [phone] (0.08 EUR/min peak)

Frequently Asked Questions - FKG 48 A1 FLORABEST

How long does it take to assemble the FKG 48 A1 barbecue?

Assembly typically takes about 30-45 minutes. Follow the 8-step instructions in the manual. Use a Phillips screwdriver and an 8 mm/13 mm spanner.

Can I use lighter fluid to start the charcoal?

No, do not use spiritus, petrol, or lighter fluid. Only use ignition aids that comply with EN 1860-3, such as solid firelighters.

Is the barbecue safe to use on a wooden deck?

Place the barbecue on a secure, level, and non-flammable surface. Avoid wooden decks unless protected with a heat-resistant mat. Keep away from flammable materials.

How do I adjust the grilling height?

The grill grate can be positioned at different heights using the slots in the wind protector sheets. Use the provided handles to adjust, as the brackets on the grate become hot.

What is the maximum amount of charcoal I can use?

The firebowl capacity is max. 2 kg of charcoal. Do not overfill to ensure proper airflow and safety.

How should I clean the grill grate?

Allow the barbecue to cool completely. Clean the grate with mild detergent and a household sponge. Do not use abrasive cleaners that could damage the enamel.

Can I use the barbecue in the rain?

The barbecue is for outdoor use only, but it is best to avoid using it in heavy rain. Water on hot charcoal can cause flare-ups and damage. Store it in a dry place when not in use.

What should I do if the barbecue tips over?

Ensure the barbecue is on a firm, level surface. If it tips during use, do not touch it until it has cooled completely. Check for damage before reusing. The legs and wheels should be securely tightened.

How do I properly dispose of the barbecue?

Dispose of the barbecue at an approved waste facility or community recycling centre. Follow local regulations. Packaging materials should be recycled.

What is covered under the 3-year warranty?

The warranty covers material and manufacturing defects. It does not cover transport damage, wear parts, or damage from improper use. Retain your receipt for claims.

USER MANUAL FKG 48 A1 FLORABEST

Round Barbecue FRG 45 A1

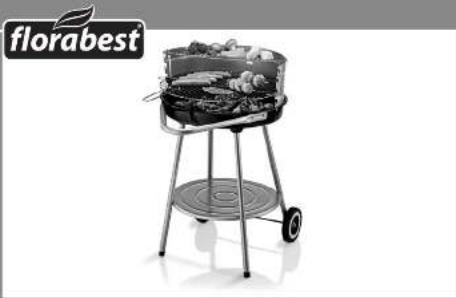

Black-and-white photo of a portable outdoor grill with food and wheels, no visible text or symbols on the main subject.

Round

Barbecue

Assembly and Operating Instructions

Pallogrilli

Index

Introduction....2

Information for these operating instructions.... 2

Copyright. 2

Intended use 2

Safety....3

Basic Safety Instructions.... 3

Items supplied 4

Connection elements 4

Assembly 4

Preparing for assembly 4

Required assembly material.... 5

Commissioning 10

Cleaning and Care 10

Disposal....11

Technical data 11

Appendix 12

Warranty 12

Service....12

Importer....12

GB IE

Introduction

Information for these operating instructions

These operating instructions are a component of the Round Barbecue FRG 45 A1 (hereafter designated as the barbecue) and they supply you with important information about the intended use, safety and assembly as well as operation of the appliance.

These operating instructions must constantly be kept available close to the appliance. They are to be read and applied by everyone occupied with operating the appliance.

Retain these operating instructions and pass them on, with the appliance, to any future owner.

Copyright

This documentation is copyright protected.

All reproductions or duplications, also as extracts, as well as representations of the illustrations, even in an altered state, are only permitted with the written approval of the manufacturer.

Intended use

This round barbecue is intended exclusively for the preparation of grilled foods. It is suitable only for use outdoors. This round barbecue is intended for use only in domestic environments, not for commercial applications. No liability will be accepted for damage resulting from incorrect or improper usage, the application of force or unauthorised modifications.

ARNING

Risks from unintended use!

Risks can be engendered if the appliance is used for unintended purposes and/or other types of use.

Use the appliance exclusively for its intended purposes.

Observe the procedures described in these operating instructions.

The manufacturer assumes no responsibility for damage caused by improper use, inappropriate repairs, making unauthorised changes or for using unapproved replacement parts.

The user alone bears liability.

Safety

In this chapter you will receive important safety information regarding the handling of the appliance.

This appliance complies with the statutory safety regulations.

Incorrect usage can lead to personal injury and property damage.

Basic Safety Instructions

WARNING

Warnings about burns!

1. During use, place the grill on a secure, level and firm surface, otherwise it could tip over.
2. CAUTION! For igniting and reigniting, do NOT use spiritus oder benzine! Use only ignition aids complying with EN 1860-3. The defl agration could cause an uncontrollable development of heat.
3. ATTENTION! During use the grill will become very hot and therefore may not be moved, otherwise it could tip over.
4. ATTENTION! Keep children and pets well away from it!
5. When grilling, wear appropriate grilling gloves and use grilling tongs.
6. NEVER leave a heated up grill unsupervised.
7. Allow the grill to cool down completely before cleaning it..
8. NEVER use water to extinguish the glowing charcoal.

WARNING

Warning in regard to suff ocation!!

Use the grill ONLY outdoors! ▶

Do NOT operate the grill in enclosed spaces or roofed-over areas.

GB IE

Items supplied

1 2 x Wind protector sheets
2 1 x Keep-warm grate
3 1 x Grill grate (including 2 handles)
4 1 x Handle
5 2 x Legs (long)
6 1 x Bottom shelf
⑦ 2 x Wheels
8 1 x Axle
9 2 x Legs (short)
10 4 x Leg Caps
11 1 x Firebowl

Connection elements

M6x30	M5x30	M5x12	M5	M8	∅6	∅6	∅8
4x	4x	10x	14x	2x	10x	4x	2x

Assembly

Preparing for assembly

Allow yourself plenty of time for the assembly of the round barbecue. Secure a level workplace of about two to three square meters. Remove all individual items from the packaging and place them where they are conveniently handy. Check the items to ensure that that they are all present and without any damage.

Required assembly material

Pliers

Philips head screwdriver

Open-jawed spanner 8 mm / 13 mm

IMPORTANT

To avoid possible injury, the screw heads should always face outwards. First tighten all screw connections down when the assembly is complete, this will help avoid undesirable material tensions.

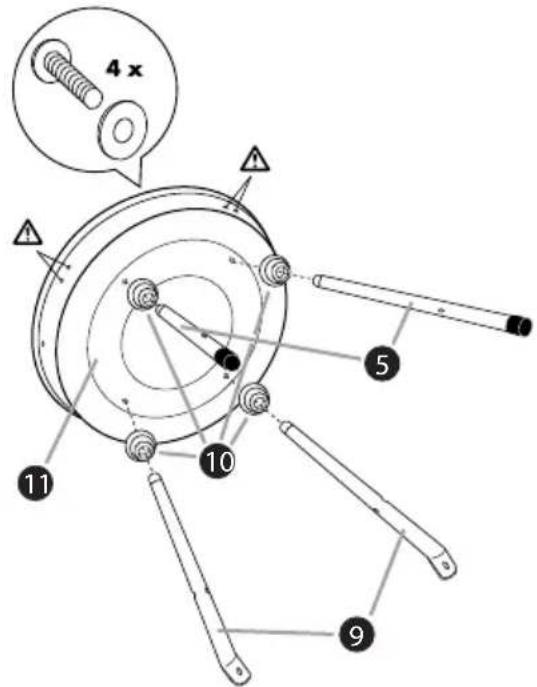

Step 1

IMPORTANT

The two long legs 5 must be assembled on the side where the double holes in the fi rebowl 11 are located.

Assemble the 4 legs (5 + 9), each with 1 screw M6 x 30, a washer ∅ 6 and a leg cap 10, onto the fi rebowl 11.

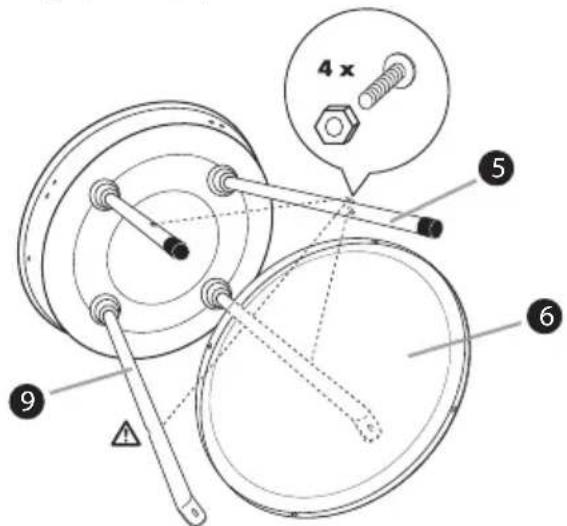

Step 2

IMPORTANT

The edge of the bottom shelf ⑥ must face downwards. The legs (5 + 9) must be rotated such that the indentations of the boreholes face outwards, thereby enabling the screwheads to be accommodated within them.

Assemble and secure the bottom shelf 6, using 4 M5 x 30 screws plus M5 nuts, to the 4 legs (5 + 9).

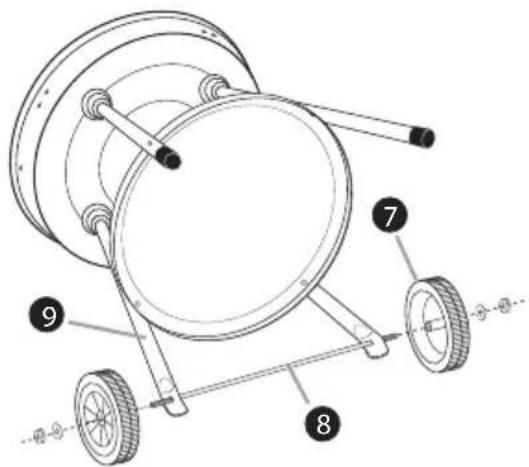

Step 3

Guide the axle 8 through the lower boreholes on the short legs 9.

Place the wheels 7 on the axle 8 and secure both of them, each with a ∅ 8 washer and an M8 self-securing nut.

Tighten the nuts with an 13 mm open-jawed spanner. If necessary, hold the axle ⑧ with the pliers. To prevent scratches, place a cloth between the pliers and the axle ⑧.

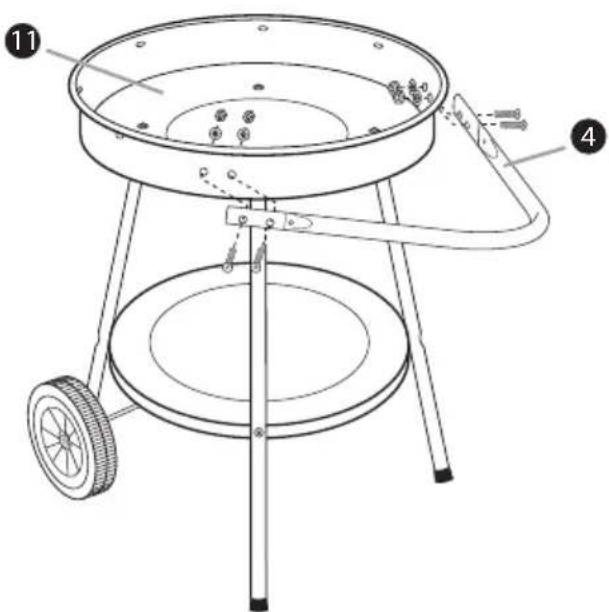

Step 4

Assemble and secure the handle 4, using 4 M5 x 12 screws, 4 ∅ 6 washers and 4 M5 nuts, to the firebow11.

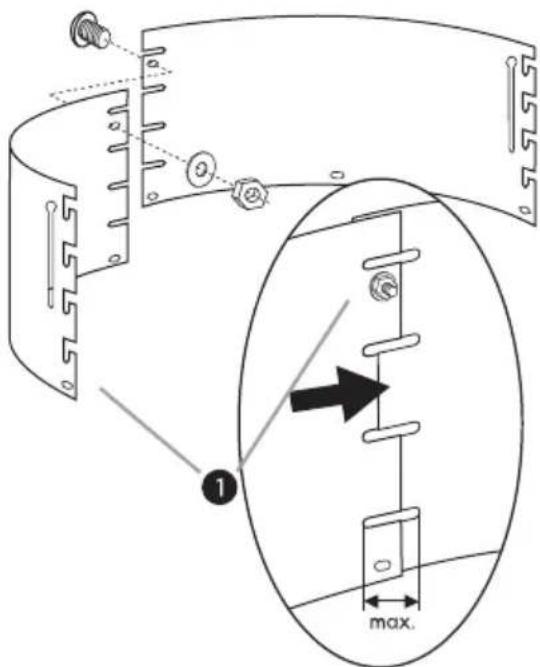

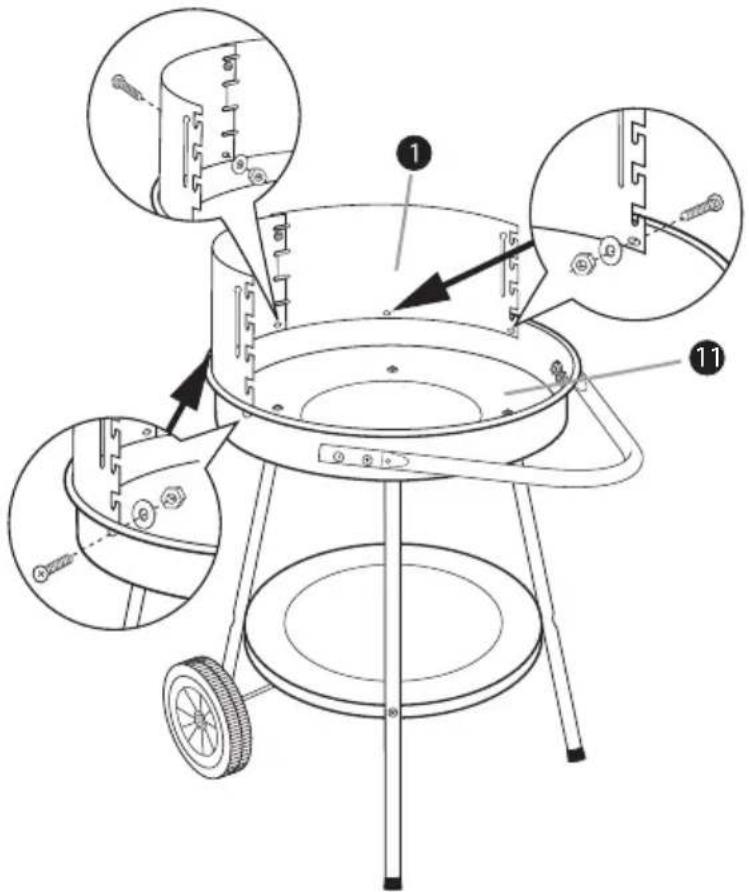

Step 5

Align the two wind-protector sheets 1 with each other and fasten them together using an M5 x 12 screw, a ∅ 6 washer and an M5 nut. Thereby, make use of the maximum distance between the sheets, so that the grill grate fi ts between the slots of the wind-protector sheets 1

Step 6

Firmly secure the wind protector sheets ①, using 5 M5 x 12 screws, 5 ∅ 6 washer and 5 M5 nuts, to the fi rebowl.

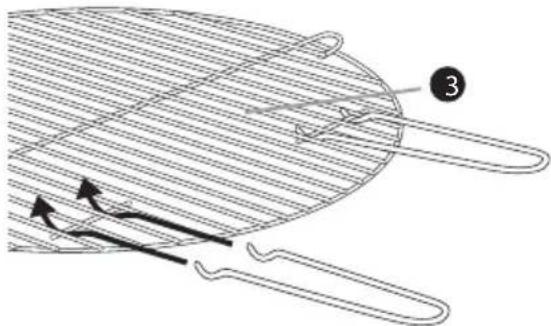

Step 7

Hook the two handles onto the cooking grill ③.

Diagram of a kitchen pan with handle and blade, showing internal blades and motion arrows (no text or symbols)

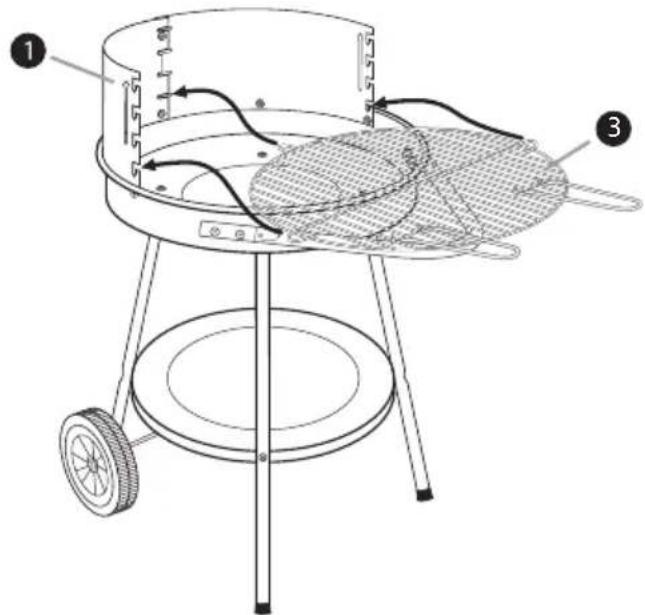

Step 8

Attach the grill grate ③ at the desired location in the wind protector ① You can now remove the handles from cooking grill ③, so that they do not disturb when you are grilling.

WARNING

Warning on the risk of burns!

The two brackets fitted on the sides of the grill grate are not handles and will become hot when it is in use!

Do NOT grasp these brackets with your bare hands. To insert or adjust the height of the grill grate, use exclusively the supplied handles.

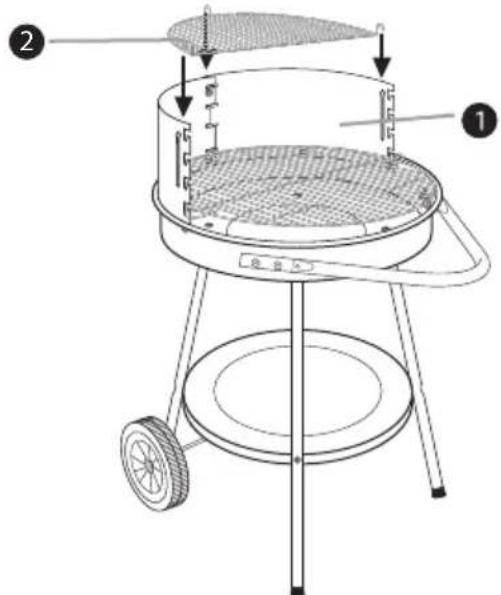

Step 9

Attach the keep-warm grate ② to the wind protector ①

GB IE

Commissioning

NOTICE

Before the first use, the grill must be warmed up for at least 30 minutes.

WARNING

Warnings about burns!

Warning! For igniting and reigniting, do not use spiritus or petrol! Use only ignition aids complying with EN 1860-3. The defl agration could cause an uncontrollable development of heat.

Build up a small pile of charcoal in the firebowl.

Place one or two solid fi relighters on the existing layer of charcoal and ignite the solid fi relighters with a match or lighter.

Allow the firelighters to burn for 2 to 4 minutes. Then slowly start fi lling the fi rebowl with charcoal.

■ After about 20 minutes the charcoal will display a white coating of ash. The optimal burning temperature has now been reached.

Distribute the charcoal, using a suitable metallic implement, evenly in the ■ fi rebowl.

Insert the grill grate and start the barbecue.

Cleaning and Care

WARNING

Warnings about burns!

Before cleaning it or putting it into storage, allow the round barbecue to cool down completely. NEVER use water to extinguish the glowing charcoal.

Warning in regard to property damage!

Do not use abrasive or aggressive cleaning agents, they can damage the enamelled surfaces.

For normal cleaning, use a cloth and water with standard detergent.

For heavy soiling on the enamelled parts, use a standard commercial enamel cleaner. Pay heed to the instructions supplied by the manufacturer of the cleaning agent being employed. Clean the grill grate with detergent and a household sponge.

Disposal

Dispose of fl ammable materials carefully and with regard to the environment. Fundamentally, dispose of such remaining waste ONLY into containers made of metal and intended for this purpose or those made of non-fl ammable materials.

Dispose of the Round Barbecue through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

Dispose of all packaging materials in an environmentally friendly manner.

Technical data

Dimensions (assembled) approx. 82 x 52 x 69 cm

Grill grate ∅ 47 cm

Weight approx. 6 kg

Fuel Charcoal

Firebowl capacity max. 2 kg

Appendix

Warranty

You receive a 3-year warranty for this appliance as of the purchase date. This appliance has been manufactured with care and meticulously examined before delivery.

Please retain your receipt as proof of purchase. In the case of a warranty claim, please make contact by telephone with your Service Centre. Only in this way can a post-free despatch for your goods be assured.

NOTICE

The warranty covers only claims for material and manufacturing defects, not for transport damages, wearing parts or for damage to fragile components, e.g. switches.

This product is for private use only and is not intended for commercial use. The warranty becomes void in cases of abusive and improper handling, use of force and modifications not carried out by our authorized Service Centre.

Your statutory rights are not restricted in any way by this warranty. The warranty period is not extended by repairs effected under warranty. This applies also to replaced and repaired parts.

Damages and defects discovered on purchase are to be reported directly after unpacking, at the latest by two days after the date of purchase.

On the lapse of the warranty period, all repairs carried out are liable to charges.

Service

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 71245

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 71245

Importer

KOMPERNASS GMBH

BURGSTRASSE 21

44867 BOCHUM, GERMANY

www.kompernass.com
