USER MANUAL FGH 750 A1 FLORABEST
IT MT
ELETTROZAPPA
Translation of the original instructions
PT
MOTOENXADA
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
DE AT CH
GB / MT Translation of the original instructions Page 31
ITM
Indice
Introduzione ....4
Utilizzo 4
Service-Center......16
Service-Center....30
Importador ......30
Intended purpose ....31
General description......32
Scope of delivery 32
Functional description ....32
Overview 32
Technical data....32
Safety precautions ....33
Symbols used in the manual .....33
Symbols on the implement .....33
General notes on safety 34
Assemblyinstructions......37
Fitting the grip tubing 37
Operation 38
Switching on and off....38
Operating instructions....38
Cleaning/Maintenance ....39
General cleaning and maintenance
work....39
Changing the tines ....39
Storage....40
Spare Parts/Accessories ....40
Disposal, environmental protection ....40
Guarantee 41
Repair Service......42
Service-Center......42
Importer ....42
Translation of the original EC declaration of conformity .....58
Exploded Drawing 60/61
Introduction
Congratulations on the purchase of your new device. With it, you have chosen a high quality product.
During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed. It cannot be ruled out that residual quantities of water or lubricants will remain on or in the equipment/hose lines in isolated cases. This is not a fault or defect and it represents no cause for concern.
The operating instructions constitute part of this product. They contain important information on safety, use and disposal.
Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.
Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.
Intended purpose
The tool is intended for breaking up and tilling coarse soil for the purpose of mixing in fertiliser, peat and compost in domestic areas.
Any use other than that specifically named in this manual may lead to damage to the tool and represents a serious injury hazard for the operator.
The operator or user of the tool is responsible for any damage or injury caused to other persons or property.
GBMT
This tool is intended for use by adults. Children and persons unfamiliar with the manual must not be allowed to use the tool. Do not use the tool in rain or damp surroundings.
The manufacturer shall not be held liable for damage arising from improper use or incorrect operation of the tool.
General description
The major functional parts are shown on the foldout pages.
Scope of delivery
Carefully remove the tool from the packaging and check that the following parts are complete:
- Motor housing with tines and frame tubing
- Right-hand fork with dead-man lever and permanently fixed mains cable
- Left-hand fork grip
- Plastic cross-plate with cable guide
- Assembly tools, cable clip and belt clip
• Translation of the original instructions for use
Functional description
Your hand-operated garden tiller is equipped with a maintenance free electric motor and a gearbox with sump lubrication.
The tool is fitted with four rotating tine wheels that automatically dig themselves into the ground.
The aluminium frame can be folded to aid storage.
Please refer to the following descriptions for the function of the controls.
Overview
A 1a Right-hand fork grip with dead-man lever, safety release catch and cable tension relief
1b Left-hand fork grip
2 Mains cable
3 Plastic cross-plate
4 Two central tubes 5
6 Frame tubing
7 Vent
8 Motor housing
9 Gearbox
10 Driveshaft
11 Tines
12 Belt clip
B 13 Bolts provided 14 Screws
15 Wing nuts
c 16 Cable tension relief
17 Safety release catch
18 Dead-man lever
19 Hex bolt
20 Self-locking nut
Technical data
Garden Cultivator ......FGH 750 A1
Motor power input 750 W
Rated input voltage ....230 V\~, 50 Hz
Degree of protection....IPX4
Working width ....360 mm
Max working depth ......max. 180 mm
Number of tine wheels....4
Weight 7.7 kg
Acoustic pressure level
$$ \left(L _ {p A}\right) \dots 8 1, 4 \mathrm{dB(A)}, K _ {p A} = 2, 5 \mathrm{dB} $$
32
Sound power level ( L_WA )
Measured 92,12 dB (A), K_WA = 1,02 dB
Guaranteed 93 dB (A)
Vibration at hand grip ( q_h ) .....1.361 m/s ^2
$$ K _ {h} = 1. 5 \mathrm{m} / \mathrm{s} ^ {2} $$
Noise and vibration values have been determined according to the standards and regulations named in the declaration of conformity.
Technical and optical alterations may be made without notice for the purposes of improvement. No guarantee can be given for the accuracy of dimensions, notices and specifications stated in this manual.
The manufacturer shall therefore not accept liability for statutory claims arising from the manual.
The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to compare one power tool to another.
The stated vibration emission value may also be used for a preliminary exposure assessment.
Warning:
vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used.
Safety precautions aimed at protecting the user should be based on estimated exposure under actual usage conditions (all parts of the operating cycle are to be considered, including, for example, times during which the power tool is turned off and times when the tool is turned on but is running idle).
Safety precautions
This section deals with the basic safety regulations while working with the electric tiller.
Symbols used in the manual
Warning symbols with information on damage and injury prevention.
Instruction symbols (the instruction is explained at the place of the exclamation mark) with information on preventing damage.
Help symbols with information on improving tool handling.
Symbols on the implement
Caution! Read the user manual
Caution! Protect from rain and damp
Danger of injury from objects spinning off! Keep surrounding persons away form the hazard area
Caution! Switch off the tool and disconnect it from the mains before carrying out any cleaning or maintenance work
GBMT
Danger from damaged mains cable! Keep mains cables away from tines
Danger of injury from rotating parts. The tines will continue to rotate after the tool has been switched off. Wait for them to stop moving
Sound power level L_WA in dB
Safety class II
Do not dispose of electrical equipment in household waste
General notes on safety
Warning! Improper use of this tool may lead to serious injury. Read this instruction manual carefully before you start working with the tool, and familiarise yourself with its controls.
If the power cable for this equipment is damaged, it must be replaced with a special power cable, which is available from the manufacturer or a customer service agent of the same.
Please read the following safety guidelines in order to avoid risk of fire, electric shock, personal injury and damage to objects:
Preparation:
- This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
- The equipment is to be used only by people who are adequately trained.
- Never allow children or other persons unfamiliar with the user manual to use the shredder. Local regulations or bylaws may determine the minimum age for using the device.
- Never use the tool while others, especially children or pets, are close by.
- Remember: the user is responsible for accidents involving other people or their property.
- Familiarise yourself with handling the tool and pay attention to all possible dangers that may be overheard while working with the tool.
- Check the terrain on which you will be using the tool, and remove stones, sticks, wires or other foreign objects that may be caught up and spun off.
- Wear proper working clothes, such as firm footwear with non-slip soles and strong long trousers. Do not use the tool barefoot or wearing open-toed sandals.
- Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
- To prevent injury from the tines, only switch the tool on in its working position.
- Examine the tool beforehand every time you use it. Do not use the tool when the safety components (such as the power safety catch or guard), cutting parts or bolts are missing, worn or damaged. In particular, check the mains cable and dead-man lever for damage.
- Only replace damaged bolts or tines in complete sets to prevent imbalance.
- Only use replacement and accessory parts delivered and recommended by the manufacturer. Using foreign parts will immediately lead to loss of guarantee.
Working with the tool:
Keep your hands and feet away from the tines while working, especially when starting up the tool – injury hazard!
- Observe any noise-prevention regulations and local by-laws.
- Do not use the tool to chop up stones or till lawn soil, as such use may damage the tool.
- Do not use the tool in rain, foul weather or damp surroundings (such as near garden ponds or swimming pools). Only use in daylight or good lighting conditions.
- Be sensible. Do not use the tool if you are tired or easily distracted, or after the use of alcohol or medicines. Take a break as soon as you need one.
- Make sure that you are standing firmly when using the tool, especially on slopes. If working on a slope, work along the slope, not upwards or downwards. Be particularly careful when changing direction on the slope. Do not use the tool on excessively steep slopes.
- If there is any danger of slipping on sloped ground, have a second person secure the tool with a rod or cable. The second person should stand up the slope at a safe distance from the tool.
• Always hold the tool securely in both hands while working with it.
• Make sure that the grips are dry and clean. Be careful while moving backwards – danger of tripping over!
• Take particular care when turning or raising the machine.
- If the chopping knife is blocked by a foreign body, switch off the equipment and disconnect at the plug. Remove the foreign body (e.g. root) before restarting the equipment.
GBMT
- Do not use the tool if it is damaged, incomplete or altered without the approval of the manufacturer. In particular, do not work with the tool if guards or protection fittings are damaged or missing.
- Do not overload the tool. Only work in the performance range stated. Do not use tools that do not have sufficient power for heavy jobs. Do not use the tool for any use other than that intended by the manufacturer.
- Avoid damage to the tool. Do not apply extra weight and do not drag the tool over hard surfaces such as tiles or steps.
- Remove plants and root remains regularly in the area of the drive shaft. Thus, you avoid an overload and damage the appliance.
- Watch out for special hazards when working on difficult (Rocky, hard or similar) soil.
Stopping work:
Warning! The tines will continue to turn for a few seconds after you switch the tool off. Wait until they have stopped moving – injury hazard!
- Do not lift or transport the tool while the motor is running. Turn the tool off and wait for the tines to stop moving, then disconnect the tool from the mains before changing the area you are working on.
- Never leave the tool unattended where you were using it. - Switch the tool off, wait for the tines to stop moving and disconnect the tool from the mains under the following circumstances:
- Always before leaving the tool.
- Before removing remnants of soil and plants.
- When the tool is not in use.
- Before you conduct maintenance or cleaning work on the tool.
- If the mains cable is damaged or caught up.
- If the tool collides with an obstacle or starts to vibrate in an unusual manner. In this case, examine the tool for damage, and have it repaired if necessary.
- Use the tool away from flammable fluids or gases. Failure to do so may result in fire or explosion.
Maintenance and storage:
- Make sure that all nuts, bolts and screws are tight and that the tool is in safe working order.
- Do not attempt to repair the tool yourself unless you are qualified to do so. Return the tool to our service centre to carry out any work not listed in the user manual.
- Keep the tool in a dry place out of children's reach.
- Be careful in handling the tool. Keep the tines sharp and clean to improve its working safety and effectiveness.
- Follow the maintenance regulations.
Electrical safety:
Warning! Do not use the tool if the mains or extension cable is damaged – danger of electrical shock.
- Keep the mains cable away from the tines. Always trail the mains cable behind you or the person operating the tool. If the cable becomes damaged during use, immediately disconnect it from the mains.
Never touch the mains cable before unplugging it from the mains.
- Make sure that the mains voltage matches the data on the tool's rating label.
- Avoid skin contact with earthed objects such as metal fences and posts.
- Make sure that the connector on the extension cable is protected from splash water, and is made of rubber or has a rubber covering. Only use extension cables that are intended for outdoor use and are labelled as such. Use extension cables with a cable core diameter of at least one square millimetre. Always completely unwind the cable reel before use. Check the cable for damage.
- Use the cable hanger fitted for the purpose when using an extension cable.
- Do not carry the tool by the cable. Do not unplug the cable by tugging on it. Keep the cable away from heat, oil and sharp edges.
- Connect the appliance to a power socket with a residual current circuit breaker of rated residual current no more than 30 mA.
Assembly instructions
Always disconnect the tool from the mains before conducting any work on it.
While assembling the tool, make sure that the mains cable (2) does not become caught and has enough slack.
Fitting the grip tubing
-
Push the two fork grips (1a/1b) into the plastic cross-plate (3), and screw the plate into the corresponding holes in the grip tubing using the bolts provided (13).
-

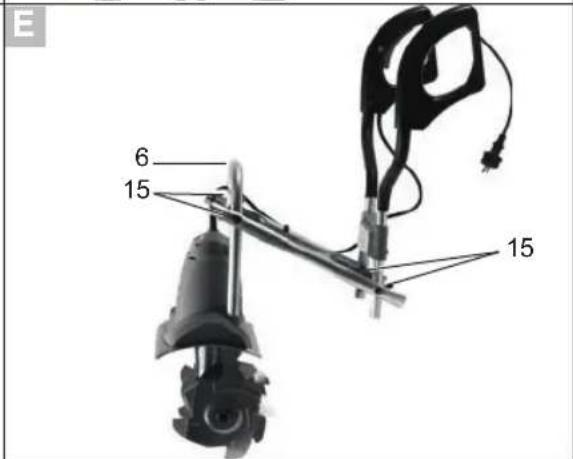

Screw both central tubes (4) onto the fork handles (1a/1b). To do this, push the enclosed screws (14) inwards through the holes and screw them in place with the wing nuts (15).
- Position the handle rod with the pipe ends to the left and right on the lower frame tubing (A 6) and screw it in place with the enclosed screws (14) and wing nuts (15).
When assembled correctly, the handle ends point away from the equipment front with the ventilation slits (see A 7).
GBMT
- Fasten the mains cable with the cable clip supplied.
Operation
Observe noise-abatement laws and local by-laws.
Switching on and off
Before switching the tool on, make sure that the tool is not touching any other objects and hold it firmly in both hands.
-
Plug the tool into the extension cable.
-
Loop the end of the extension cable and hang it onto the cable tension relief (16) to ease the tension on the cable.
- Plug the tool into the mains.
- Hang the extension cable onto the belt clip (12) and fasten it to your trouser belt.
- To switch on, press the safety release catch (17) and then squeeze the dead-man lever (18). Release the safety release catch (17).
The tines (A 11) will begin to rotate and dig themselves into the earth.
- To switch off, release the dead-man lever (18).
Warning! The tines will continue to turn for a few seconds after the tool has been switched off. Do not touch the rotating tines – injury hazard!
Operating instructions
Always keep a firm grip on the tool with booth hands and watch your feet. The tines (11) may cause an accident. Be careful while moving backwards – danger of tripping!
Do not touch the gearbox, as it may become hot during operation - danger of burns!
Switch the tool off after working with it and for transport; disconnect from the mains and wait for the tines to stop moving.
To avoid damage to the tool:
- Never lift or drag the tool with the motor running.
- Lift the tool while moving it over hard surfaces such as tiles or steps.
- Walk the tool through the soil at normal pace and in a line as straight as possible.
- Always work away from the mains socket. Make sure that the cable is kept well away from the working area. Hanging the cable into the belt clip included in the package will help.
Overload protection: The motor will cut out immediately if overloaded. The tool cannot be used until it has completely cooled down again.
Cleaning/Maintenance
Always return the tool to the service centre for work not described in the manual. Only use original parts.
Switch the tool off, unplug it from the mains, and wait for the tines (11) to stop moving before carrying out any maintenance or cleaning work on the tool.
Perform regular maintenance and cleaning on the tool. This will ensure long, reliable service.
General cleaning and maintenance work
Do not spray the tool down with water (especially not under pressure), and do not clean it under running water.
Wear protective gloves when carrying out maintenance and cleaning work on the tool to avoid injury from cuts.
Always clean the tool thoroughly after each use. Always keep the tool clean. Do not use cleaning fluids or solvents.
- Remove any soil and dirt residues stuck to the tines (11), driveshaft (10), tool surface and vents (7) with a brush or dry cloth.
- Spray or rub biodegradable oil into the tines (11).
• Clean soiled grips with a damp cloth. - Always check the tool for obvious damage such as loose, worn or damaged parts before using it. Check that all nuts, bolts, and screws are tight.
- Check the covers and guards for damage and correct fit. Change them if necessary.
Changing the tines
The tool is fitted with four tine wheels that can easily be changed in pairs. Both of the tine-wheel pairs can be fitted on the left or right, as required.
Always change both tine pairs at the same time to avoid damage to the tool from imbalance.
Switch the tool off, unplug it and wait for the tines to stop turning.
-
Unscrew the hex bolt (19) and the self-locking nut (20) on the tine-wheel pair (11). To do this, use two spanners (SW13).
-
Slide the tine-wheel pair off the shaft (10).
-
Clean the driveshaft with biological oil.
-
Slide the new tines onto the driveshaft with the holes on the axles aligned to the holes on the driveshaft (see D 1).
GBMT
Make sure that the tines are set to their proper turning direction. The arrows on the gearbox and tines should point the same way (see D ②).
- Slide the hex bolt through the hole and tighten on the self-locking nut (supplied with each new tine wheel pair (see D 3)).
Storage
- Leave the motor to cool down before you put the tool into a closed space.
- Keep the tool clean, dry and out of the reach of children.
- Do not cover the tool in plastic bags as moisture may form.
Unscrew the wing nuts and fold the fork grips down to reduce the space taken by the tool. The frame tubing (6) also serves as a hook to hang up the tool at the place of storage. Make sure that the cable does not become jammed.
Do not use the tool with the handle folded closed. There is a risk of injury!
Spare Parts/Accessories
Spare parts and accessories can be obtained at www.grizzly-service.eu
If you do not have internet access, please contact the Service Centre via telephone (see "Service-Center" Page 42). Please have the order number mentioned below ready.
Set of tines Right/left .... Order No. 91104325
Disposal, environmental protection
Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have finished with them.
Do not dispose of electrical appliances in household waste.
Return the tool to a recycling centre. The plastic and metal parts used can be separated and sorted for recycling. Ask our service centre for details.
40
Guarantee
Dear Customer,
This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.
Terms of Guarantee
The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.
If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.
If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.
Guarantee Period and Statutory Claims for Defects
The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.
Guarantee Cover
The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.
The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. Set of tines) or to cover damage to breakable parts (e.g. switches, batteries, or parts made of glass).
This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.
The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.
Processing in Case of Guarantee
To ensure quick handling of you issue, please follow the following directions:
- Please have the receipt and identification number (IAN 270725) ready as proof of purchase for all enquiries.
- Please find the item number on the rating plate.
- Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.
GBMT
- After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.
Repair Service
For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.
We can handle only equipment that has been sent with adequate packaging and postage.
Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.
Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.
We will dispose of your defective devices free of charge when you send them to us.
Service-Center
GB Service Great Britain
Tel.: 0871 5000 720
(£ 0.10/Min.)
E-Mail: grizzly@lidl.co.uk
IAN 270725
MT Service Malta
Tel.: 80062230
E-Mail: grizzly@lidl.com.mt
IAN 270725
Importer
Please note that the following address is not a service address. Please initially contact the service centre specified above.
Service-Center......56
Importeur ....56
 | Translation of the original EC declaration of conformity | |
 | ||
| We hereby confirm that theFGH 750 A1 seriesgarden cultivatorSerial number201512000001 - 201512055870conforms with the following applicable relevant version of the EU guidelines: | ||
| 2006/42/EC • 2004/108/EC • 2000/14/EC • 2005/88/EC • 2011/65/EU* | ||
| In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied: | ||
| EN 709/A4:2009 • EN 60335-1:2012+A11:2014 • EN 62233:2008EN 55014-1/A2:2011 • EN 55014-2/A2:2008EN 61000-3-2:2014 • EN 61000-3-3:2013 | ||
| We additionally confirm the following in accordance with the 2000/14/EC emissions guideline:Sound power levelGuaranteed: 93 dB(A)Measured: 92,12 dB(A)Compliance evaluation process accordance with appendix VI, 2000/14/EC Registered Office: NB 0499, Société Nationale de Cerification et d’Homologation S.À.R.L., 2a Kalchesbruch, 1852 Luxembourg | ||
| This declaration of conformity is issued under the sole responsibility of the manufacturer: | ||
 | Grizzly Tools GmbH & Co. KGStockstädter Straße 2063762 Großostheim,Germany15.01.2016 |  Volker LappasDocumentation Representative |
* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.
