IAN 281142 - Above ground pool CRIVIT - Free user manual and instructions

Product type	Inflatable above-ground pool
Brand	Crivit
Model	IAN 281142
Dimensions (inflated)	Approximately 195 x 195 x 39 cm
Weight	Approximately 2750 g
Material	Durable PVC plastic
Package contents	Inflatable pool, 2 screw valves, 2 repair patches, instruction manual
Intended use	Children's play and wading pool, private outdoor use
Water capacity	Max level indicated on product (do not exceed)
Valve type	Threaded valves with caps
Inflation recommendation	Manual pump only, no compressor
Operating temperature	Between 15 °C and 40 °C
Cleaning	Slightly damp lint-free cloth, water changed regularly
Repair	Repair kit included for small damages
Storage	Dark and dry place, temperature 10-20 °C, out of reach of children
Safety	Never leave a child unattended - risk of drowning
Warranty	3 years from date of purchase
Disposal	Packaging recyclable, check with local authorities for used product

Frequently Asked Questions - IAN 281142 CRIVIT

How to inflate the pool?

Unscrew the valve cap counterclockwise, use a manual pump (no compressor) and inflate until the seams tighten. Screw the cap back on clockwise.

Can the pool be left filled for several days?

It is recommended to empty the pool after each use, especially if unsupervised, to avoid any risk of drowning. Water should be changed regularly, especially in hot weather.

How to repair a hole in the pool?

Completely deflate the air. Cut a repair patch larger than the hole, round the edges, remove the protective film and press firmly. Let dry for 24 hours before reinflating.

What is the ideal temperature for using the pool?

The pool must be used between 15 °C and 40 °C. Below 15 °C, the plastic becomes brittle; above 40 °C, it may expand excessively.

Is the pool suitable for adults?

The intended use is children's play and wading. The pool is not designed to support adult weight or for professional use.

How to clean the pool?

Use a slightly damp lint-free cloth. Never use caustic or harsh cleaners. Change water regularly to avoid impurities.

What is the warranty period?

The warranty is 3 years from the date of purchase. Keep the receipt as proof. The warranty covers material and manufacturing defects, but not normal wear or damage due to misuse.

Can the pool be used on concrete or asphalt?

No, it is not recommended to set up the wading pool on concrete, asphalt, or any rough surface. Set it up on a flat surface, at least 2 meters from any obstacles.

How to store the pool in winter?

Make sure the pool is completely dry inside and out. Fold it without creases, store in a dark, dry place between 10 and 20 °C, out of reach of children and away from sharp objects.

What to do if the valve leaks?

Check that the cap is screwed on tightly. If the leak persists, use a repair patch around the valve or replace the valve if possible. The supplied repair kit can be used for small repairs.

USER MANUAL IAN 281142 CRIVIT

PLANSCHBECKEN / PADDLING POOL / PISCINE GONFLABLE

DE AT CH

PLANSCHBECKEN

Operation and Safety Notes

NL BE

OPBLAASBAARZWEMBAD

GB / IE Operation and Safety Notes Page 8

Line drawing of a person kneeling on a large rectangular object, handling a rolled-up sheet (no text or symbols)

B

C

D

Simple black upward arrow with wavy line above it, no text or symbols present

Planschbecken

●Einleitung

Symbolic icon showing a person swimming with an arrow, enclosed in a black circle (no text or numbers present)

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Intended use

This article is intended for use for playing / paddling. This product is intended for private, outdoor use only. The product is not intended for commercial use.

• Description of parts and features

1 End cap
2 Valve opening
3 Stopper
4 Patches for repairs

- Technical data

Dimensions: approx. 195 x 195 x 39 cm

(when inflated)

Weight: approx. 2750 g

- Contents

1 paddling pool
2 screw-on-valve
2 patches for repairs
1 instruction manual

Safety advise

KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE!

Avoid the risk of injury!

RISK OF WARNING! LOSS OF LIFE OR ACCIDENT TO INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging material or the product. The packaging material presents a suffocation hazard and there is a risk of loss of life from strangulation and / or drowning. Children often underestimate danger. Always keep the product out of reach of children.

Symbolic icon showing a person swimming with an arrow, enclosed in a circle (no text or symbols)

Prohibition sign showing a person walking away from a child, enclosed in a circle with no text or symbols.

WARNING! Never leave your child unattended - drowning hazard.
■ WARNING! Only for domestic use.
Children can drown in very small amounts of water. Empty the pool when not in use.
- Do not install the paddling pool over concrete, asphalt or any other hard surface.
- When filling with water, the maximum depth of the water should not exceed the maximum water level mark on the product. (see fig. D).
■ Once inflated, make sure that the product does not come in contact with stones, gravel or other sharp objects which could puncture the item.

Operation

Note: Before using the product for the first time, check it carefully for holes, porous places and seams that are not airtight.

Recommendation: Pump the product up and leave it alone for one day. Let a new product air outside in fresh air for a couple of days.

Recommendation: Place the activity toy on a level surface at least 2 m from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry lines or electrical wires.

- Pumping up the product

CAUTION! Inflatable plastic products react sensitively to the cold and hot. That is why you should never use the product when the ambient temperature falls to below 15 °C and rises above 40 °C. Otherwise damage to the product may result.

Note: Basically, only an adult should be responsible for pumping the pool up. Make sure that you do not pump too much air into the product. On no account should you use a compressor. Stop the process when resistance increases during pumping and the seams start to stretch. Otherwise the material might tear. Only use manual pumps and / or pumps specifically designed for use with inflatable plastic products.

☐ Roll the product out first and then check for holes, tears and other damage (see Fig. A).

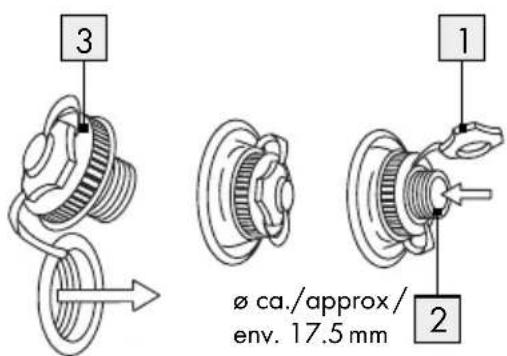

Note: You will need a pump with conical adapter with a diameter of approx. 17.5 mm for the screw valve 2 to inflate the product.
☐ Turn the end cap 1 of the valve opening 2 anti-clockwise off the air valve in order to open it.
□ Pump the product up.

IMPORTANT! Keep in mind that air temperature and weather conditions can affect the air pressure inside inflatable products. In cold weather the product behaves as if it has less air pressure in it because the air inside contracts. Under these conditions you may have to add air. In hot weather the air inside expands. Under these conditions you may have to remove air in order to avoid overfilling.

☐ Turn the end cap 1 of the valve opening 2 clockwise onto the air valve to close it.

- Deflating the product

☐ Turn the stopper 3 anti-clockwise to open the air valve.

☐ Allow the air to escape completely.
☐ Slowly fold the product together (see Fig. A).

Note: Make sure that the product is completely dry before folding it together.

● Cleaning and Maintenance

• On no account should you use corrosive or scouring detergents.
  ☐ Use a slightly damp, lint-free cloth to clean the product.

Change the water of paddling pools frequently (particularly in hot weather) or when noticeably contaminated.

- Repairing the product

Note: Minor damage can be repaired by the owner using the supplied repair kit. Have any major damage carried out at a specialist repair shop.

☐ First let all the air escape from of the product.
☐ Cut the patch 4 to suit the size of the hole.
Note: Ensure that the patch 4 is larger than the hole and overlaps the edges of the hole.
☐ Round off the sides of the patch 4 and pull off the protective foil.
Place the patch 4 on the hole and press it down firmly. If necessary, stand a heavy object on the patch 4.
☐ Wait for 24 hours before you pump up the product again.

● Storage instruction

☐ Make sure that the product is completely dry both inside and out when wishing to store it for any length of time. Otherwise mildew and mould may form.
Store the product in a dark, dry place – out of reach of children.
☐ The ideal storage temperature is 10–20 °C.

☐ Ensure that the product does not come into contact with sharp objects during storage.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

- Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

CE

Piscine gonflable

- Introduction

Symbolic icon showing a person swimming with an arrow, no text or numbers present

Symbolic icon showing a person swimming with an arrow, no text or numbers present

Prohibition sign showing a person walking away from a child, enclosed in a circle (no text or symbols)

Symbolic icon showing a person swimming with an arrow indicating water movement (no text or numbers present)

Prohibition sign showing a person walking away from a child, enclosed in a circle (no text or symbols)

Symbolic icon showing a person swimming with an arrow indicating water movement (no text or numbers present)

Prohibition sign showing a person walking with a 'no' symbol and a child below (no text or numbers present)

Symbolic icon showing a person swimming with an arrow, no text or numbers present

Prohibition sign showing a person walking away from a child, enclosed in a circle (no text or symbols)
