Product Type	Cordless Edger
Brand	EGO
Model	ST1210E
Rated Voltage	56 V —
No-Load Speed	7000 /min
Cutting Width	30 cm
Line Diameter	2.0 mm
Line Type	Round nylon line (ref. AL0800)
Weight (without battery)	2.85 kg
Guaranteed Sound Power Level	91 dB(A)
Sound Pressure Level at Ear	75.0 dB(A)
Vibration (rear handle)	3.279 m/s²
Vibration (front handle)	4.915 m/s²
Cutting Mechanism	Bump head
Power Source	56 V lithium-ion battery (models BA1120E, BA2240E, BA2800, BA3360, BA4200)
Compatible Charger	CH5500E, CH2100E
Protection	Double insulation (Class II)
Package Contents	Edger, protective guard, auxiliary front handle, 6 mm hex key, user manual
Maintenance	Clean with a damp cloth and mild soap; do not immerse; store in a dry, ventilated place
Safety	Wear eye and hearing protection; do not use in rain; keep others 15 m away

Frequently Asked Questions - ST1210E EGO

Why won't my edger start?

First check that the battery is properly inserted and the contacts are clean. If the battery is discharged, recharge it. Also ensure you press the unlock lever and the switch trigger simultaneously.

What should I do if the cutting line does not advance?

This may be due to a lack of line, a tangled spool, or a dirty head. Remove the battery, clean the head, and check the spool. If necessary, rewind or replace the line following the instructions in the manual.

How do I change the cutting line?

Two methods: either wind new line (approx. 7 m of 2.0 mm nylon line) onto the spool, or install a pre-wound spool (ref. AS1301). Press the tabs to open the housing, place the spool aligning the notches, then close.

How do I adjust the cutting line length?

While the tool is running, lightly tap the bump knob on a hard surface. The line will automatically extend. For optimal cutting, keep the line at maximum length.

What should I do if the tool stops while cutting?

Possible causes: line too thick, grass blocking the shaft, motor overload, or battery too hot. Remove the battery, clean the head, use only 2.0 mm nylon line, and let it cool if necessary.

How do I assemble the protective guard?

Place the cutting head facing up, remove the two screws, align the guide edges with the housing grooves, push the guard on, and retighten the screws. Always wear gloves to avoid cutting yourself with the blade.

Which batteries are compatible?

The following EGO 56 V batteries: BA1120E, BA2240E, BA2800, BA3360, BA4200. Use exclusively CH5500E or CH2100E chargers.

How to clean and maintain the tool?

Clean with a damp cloth and mild soap. Never immerse the tool. Use a brush to clear the ventilation slots. After each use, remove the battery and store the tool in a dry place.

What protective equipment should I wear?

Always wear safety glasses with side shields, hearing protection, gloves, sturdy shoes, and long pants. Avoid loose clothing and jewelry.

How to safely store the tool?

Remove the battery, clean the tool, and store it in a dry, well-ventilated place out of reach of children. Do not store near fertilizers, gasoline, or chemicals.

USER MANUAL ST1210E EGO

Technical line drawing of a mechanical device with three upward arrows indicating motion or force directions (no text or symbols present)

Technical line drawing of a mechanical device with a curved housing and cable, showing no text or symbols

Technical line drawing of a mechanical component with arrows indicating assembly or force direction (no text or symbols)

Illustration of a hand using a tool to lift a curved pipe, with no text or symbols present.

Line drawing of a mechanical tool interacting with a component, showing a hand holding a tool (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating assembly direction (no text or symbols)

Line drawing of a worker in protective gear using a handheld metal detector (no text or symbols)

Diagram of a grass lawn mower with downward arrows indicating movement or pressure (no text or symbols)

Diagram of a grass lawn mower with water spray, showing blade and blade blades (no text or symbols)

Illustration of hands holding a mechanical component with a curved arrow indicating rotation (no text or symbols)

EN

READ ALL INSTRUCTIONS!

READ & UNDERSTAND INSTRUCTION MANUAL

Residual risk! People with electronic devices, such as pacemakers, should consult their physician(s) before using this product. Operation of electrical equipment in close proximity to a heart pacemaker could cause interference or failure of the pacemaker.
WARNING: To ensure safety and reliability, all repairs and replacements should be performed by a qualified service technician.

SAFETY SYMBOLS

The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations with them deserve your careful attention and understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitutes for proper accident prevention measures.

WARNING: Be sure to read and understand all safety instructions in this Operator's Manual, including all safety alert symbols such as "DANGER," "WARNING," and "CAUTION" before using this tool. Failure to following all instructions listed below may result in electric shock, fire, and/or serious personal injury.

SYMBOL MEANING

SAFETY ALERT SYMBOL: Indicates DANGER, WARNING, or CAUTION. May be used in conjunction with other symbols or pictographs.

WARNING: The operation of any power tools can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shields and a full face shield when needed. We recommend a Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields.

SAFETY INSTRUCTIONS

This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate.

	Safety Alert	Precautions that involve your safety.
	Read Operator's Manual	To reduce the risk of injury, user must read and understand operator's manual before using this product.
	Wear Eye Protection	Always wear safety goggles or safety glasses with side shields and a full face shield when operating this product.
	Wear Ear Protection	Always wear ear protection when operating this product.
	Line Diameter	The Diameter of the nylon cutting line
	Cutting Width	The Max. cutting width of line trimmer
	Do Not Expose To Rain	Do not use in the rain or leave outdoors while it is raining.
	Class II Construction	Double-insulated Construction.
	Keep Bystanders Away	Ensure that other people and pets remain at least 15m away from the line trimmer when it is in use.
	Keep Bystanders Away	Ensure that other people and pets remain at least 15m away from the line trimmer when it is in use.
V Volt Voltage
A Amperes Current
Hz Hertz		Frequency (cycles per second)
W Watt Power
min Minutes Time
	Alternating Current	Type of current
	Direct Current	Type or a characteristic of current
n_0	No Load Speed	Rotational speed, at no load
... /min Per Minute Revolutions per minute

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using line trimmers, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including the following:

READ CAREFULLY BEFORE USE

KEEP FOR FUTURE REFERENCE

DANGER: Do not rely on the tool's insulation against electric shock. To reduce the risk of electrocution, never operate the machine in the vicinity of any wires or cables (power, etc.) which may carry electric current.

CAUTION: Wear appropriate personal hearing protection during use. Under some conditions and durations of use, noise from this product may contribute to hearing loss.

TRAINING

• Read the instructions carefully. Be familiar with the controls and the proper use of the machine.
  ■ Never allow people unfamiliar with these instructions or children to use the machine. Local regulations can restrict the age of the operator.
• Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.

PREPARATION

■ Never operate the machine while people, especially children, or pets are nearby.
■ Wear eye protection and stout shoes at all times while operating the machine.

OPERATION

■ Use the machine only in daylight or good artificial light.
■ Never operate the machine with damaged guards or shields or without guards or shields in place.
■ Switch on the motor only when the hands and feet are away from the cutting means.
■ Always disconnect the machine from the power supply (i.e. remove the plug from the mains or remove the disabling device).

■ whenever leaving the machine unattended;
■ before clearing a blockage;
■ before checking, cleaning or working on the machine;
■ after striking a foreign object;
■ whenever the machine starts vibrating abnormally.

■ Take care against injury to feet and hands from the cutting means.

■ Always ensure that the ventilation openings are kept clear of debris.

MAINTENANCE AND STORAGE

■ Disconnect the machine from the power supply (i.e. remove the plug from the mains or remove the disabling device) before carrying out maintenance or cleaning work.
- Use only the manufacturer's recommended replacement parts and accessories.
- Inspect and maintain the machine regularly. Have the machine repaired only by an authorized repairer.
■ When not in use, store the machine out of the reach of children.

OTHER SAFETY WARNINGS

• Avoid Dangerous Environments – Don't use trimmers in damp or wet locations.
  ■ Always turn the line trimmer off or remove the battery pack whenever leaving the trimmer unattended.
• Don’t Use In Rain.
• Keep Children Away – All visitors should be kept at a distance from work area.
• Dress Properly – Do not wear loose clothing or jewelry. They can be caught in moving parts. Use of rubber gloves and substantial footwear is recommended when working outdoors. Wear protective hair covering to contain long hair.
• Use Safety Glasses – Always use a face or dust mask if operation is dusty.
  ■ Use the Right Tool—Do not use the tool for any job except that for which it is intended.
• Don't Force the Trimmer – It will do the job better and with less likelihood of a risk of injury at the rate for which it was designed.
• Don't Overreach – Keep proper footing and balance at all times.
  ■ Stay Alert – Watch what you are doing. Use common sense. Do not operate the trimmer when you are tired.

EN

■ Do not operate the trimmer while under the influence of alcohol or drugs.
- Keep guards in place and in working order.
■ Store Trimmer Indoors – When not in use the trimmer should be stored indoors in a dry and high or locked-up place with the battery pack removed – out of reach of children.
- Maintain Trimmer With Care – Keep the cutting attachment clean for best performance and to reduce the risk of injury. Follow instructions for changing accessories. Keep handles dry, clean, and free from oil and grease.
- Check Damaged Parts – Before further use of the trimmer, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless indicated elsewhere in this manual.
- Clear the area to be cut before each use. Remove all objects such as rocks, broken glass, nails, wire, or line that can be thrown or become entangled in the cutting attachment. Make sure that other persons and pets are at least 15m away.
■ Before using the machine and after any impact, check for signs of wear or damage and repair as necessary.
■ Always hold the trimmer firmly, with both hands on the handles while operating. Wrap your fingers and thumbs around the handles.
- Avoid Accidentally Starting—Don't carry the trimmer with your finger on the trigger.
■ Do not operate the trimmer in petrolic or explosive atmospheres. Motors in these appliances normally spark, and the sparks might ignite fumes.
- Damage to Trimmer – If you strike a foreign object with the trimmer or it becomes entangled, stop the tool immediately, remove the battery pack from the line trimmer, check for damage and have any damage repaired before further operation is attempted. Do not operate with a broken guard or spool.
If the equipment should start to vibrate abnormally, stop the motor, remove the battery pack from the line trimmer. and check immediately for the cause. Vibration is generally a warning of trouble. A loose head may vibrate, crack, break or come off the trimmer, which may result in serious or fatal injury. Make sure that the cutting attachment is properly fixed in position. If the head loosens after fixing it in position, replace it immediately. Never use a trimmer with a loose cutting attachment.

■ Replace a cracked, damaged or worn-out cutting head immediately, even if damage is limited to superficial cracks. Such attachments may shatter at high speed and cause serious or fatal injury.
- Check the cutting attachment at regular short intervals during operation, or immediately if there is a noticeable change in cutting behavior.
■ Only use EGO2,0 mm)authorized polymer trimmer line accessories and trimmer line that are designed for use with this tools. Although certain unauthorized attachments might be fitted to the EGO™ line trimmer, their use may be extremely dangerous, and/or damaging to the tools.
■ To reduce the risk of serious injury, never use wire or metal-reinforced line or other material in place of the nylon cutting lines. Pieces of wire could break off and be thrown at high speed toward the operator or bystanders.
■ To reduce the risk of injury from loss of control, never work on a ladder or on any other insecure support. Never hold the cutting attachment above waist height.
■ If situations occur that are not covered in this manual, use care and good judgment. Contact the EGO Service Center for assistance.
■ Do not charge the battery pack in rain, or in wet locations.
■ Use only with battery packs and chargers listed below:

BATTERY CHARGER
BA1120E, BA2240E, BA2800, BA3360, BA4200	CH5500E, CH2100E

■ The battery pack must be removed from the appliance before it is scrapped.
■ The battery shall be disposed of safely.
- Do not dispose of the battery in a fire. The cells may explode. Check with local codes for possible special disposal instructions.
■ Do not open or mutilate the battery. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.
■ Exercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets, and keys. The battery or conductor may overheat and cause burns.
- When servicing, use only identical Eplacement parts. Use of any other accessory or attachment may increase the risk of injury.

■ Battery tools do not have to be plugged into an electrical outlet; therefore, they are always in operating condition. Be aware of possible hazards even when the tool is not operating. Take care when performing maintenance or service.

■ Do not wash with a hose; avoid getting water in motor and electrical connections.

■ Save these instructions. Refer to them frequently and use them to instruct others who may use this tool. If you loan this tool to someone else, also loan these instructions to them to prevent misuse of the product and possible injury.

■ Always wear substantial footwear and long trousers while operating the machine.

■ Always be sure of the footing on slopes and to walk, never run.

SAVE THESE INSTRUCTIONS!

SPECIFICATIONS

Voltage		56 V---
No-load speed 7000 /min
Cutting Mechanism Bump Head
Cutting Line Type		AL0800 ∅2.0 mm nylon round line
Cutting Width 30 cm
Weight (without battery pack)		2.85 kg
Measured sound power level L_WA		90.76 dB(A)K=2.5 dB(A)
Sound pressure level at operator's ear L_PA		75.0 dB(A)K=2.5 dB(A)
Guaranteed sound power level L_WA (according to 2000/14/EC)		91 dB(A)
Vibration a_h	Rear Handle	3.279 m/s2K=1.5 m/s2
	Front Handle	4.915 m/s2K=1.5 m/s2

■ The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another;
■ The declared vibration total value may also be used in a preliminary assessment of exposure.

NOTICE: The vibration emission during actual use of the power tool can differ from the declared value in which the tool is used; In order to protect the operator, user should wear gloves and ear protectors in the actual conditions of use.

PACKING LIST

PART NAME	QUANTITY
Line Trimmer	1
Guard	1
Front-assist handle assembly	1
Hex wrench	1
Operator's manual	1

DESCRIPTION

KNOW YOUR LINE TRIMMER (Fig. A)

1. Soft Sleeve
2. Adjustable Front-assist Handle
3. Shaft
4. Bump Protector
5. Bump Knob
6. Bump Head (Cutting Head)
7. Guard
8. Line-cutting Blade
9. Ejection Mechanism
10. Electric Contacts
11. Latch

12. Battery-release Button

13. Trigger

14. Rear Handle

15. Lock-Off Lever

ASSEMBLY

WARNING: If any parts are damaged or missing, do not operate this product until the parts are replaced. Use of this product with damaged or missing parts could result in serious personal injury.

WARNING: Do not attempt to modify this product or create accessories not recommended for use with this line trimmer. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious

EN

WARNING: To prevent accidental starting that could cause serious personal injury, always remove the battery pack from the tool when assembling parts.

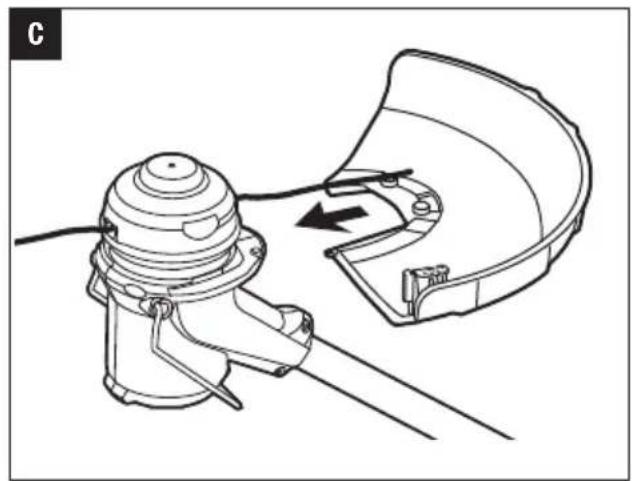

MOUNTING THE GUARD (Fig. B & C & D)

WARNING: Always wear gloves when mounting or replacing the guard. Take care of the blade on the guard and protect your hand from cutting.
WARNING: Never operate the tool without the guard firmly in place. The guard must always be on the tool to protect the user! When the guard was fixed, never attempted to remove or adjust the guard, if replace needed, it shall be performed by a qualified service technician!

Face the trimmer head up, loosen and remove the two screws. Then align the guide ribs with the housing slots, push the guard into place and lock it with the two screws. Make sure that the internal surface of the guard faces towards the trimmer head.

MOUNTING AND ADJUSTING THE FRONT-ASSIST HANDLE

Push the front-assist handle onto the shaft (Fig. F), then insert the clamping block into the handle slot (Fig. G), mount the lock pole, lock them with the wing nut (Fig. H). The sequence is as Fig. E shown. Lastly, adjust the front-assist handle position to make your front arm is straight when using the trimmer (Fig. I) and then lock the lever of the lock pole (Fig. J).

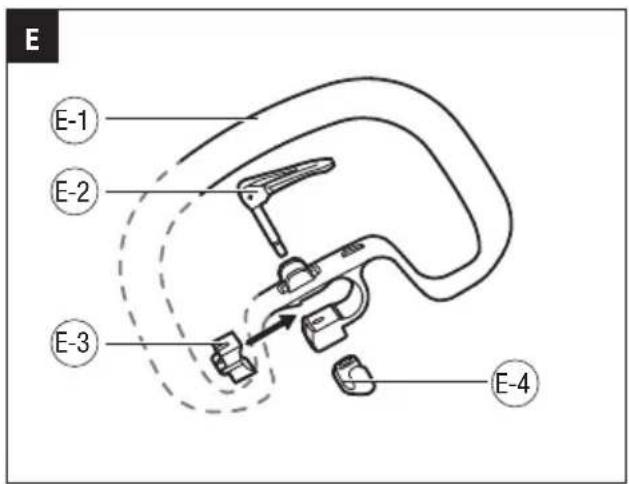

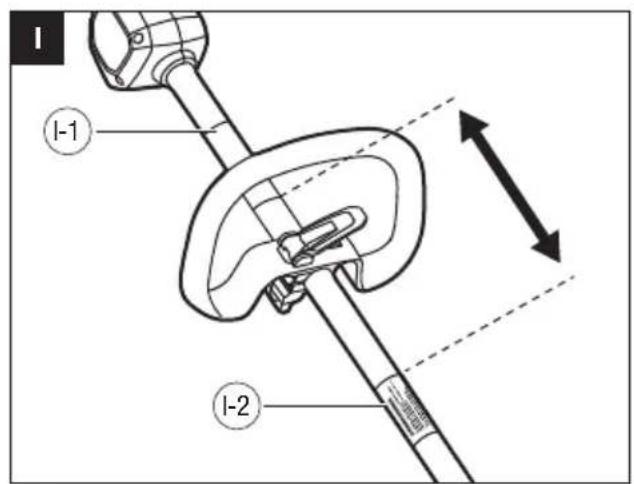

Fig. E & I parts description see below:

E-1 Front-assist Handle E-4 Wing Nut

E-2 Lock Pole I-1 Soft Sleeve

E-3 Clamping Block I-2 Warning Label

NOTICE: The front-assist handle should be turned upwards to point toward the top of the handle.

WARNING: Only fix the front-assist handle in front of the soft sleeve on the shaft.

WARNING: The tool can not be used without the front-assist handle reliably fixed.

OPERATION

WARNING: Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.
WARNING: Always wear eye protection with side shields. Along with hearing protection. Failure to do so could result in objects being thrown into your eyes and other possible serious injuries.

WARNING: Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury.
⚠ WARNING: Use your line trimmer equipped with the appropriate cutting line only for cutting grass and similar material.
WARNING: To prevent accidental starting that could cause serious personal injury, always remove the battery pack from the tool when assembling parts making adjustments, cleaning, or when not in use.

You may use this product for the purposes listed below:

Trimming: used for removing grass and weeds up against walls, fences, trees and borders.

Cutting: used for cutting the grass that is difficult to reach using a normal mower.

NOTICE: The tool is to be used only for its prescribed purpose. Any other use, for example edge trimming, is deemed to be a case of misuse

ATTACHING/DETACHING THE BATTERY PACK

Fully charge before first use.

To Attach (Fig. K)

Align the battery ribs with the mounting slots and press the battery pack down until you hear a “click”.

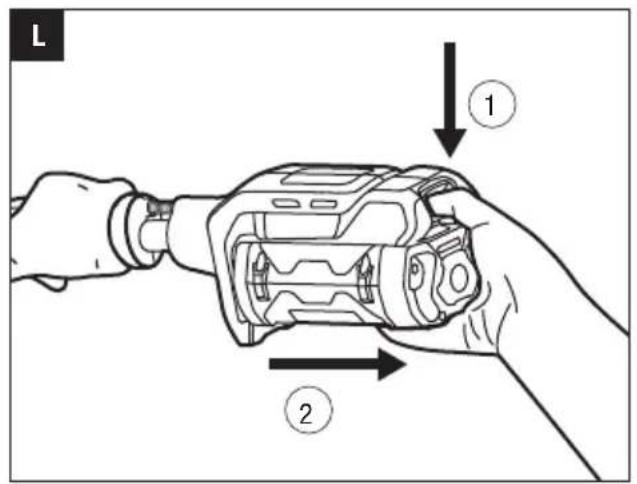

To Detach (Fig. L)

WARNING: Always take care of your feet and children or pets around you when pressing the battery release button. Serious injury could result if the battery pack falls. NEVER remove the battery pack at a high location.

Depress the battery-release button and pull the battery pack out.

HOLDING THE LINE TRIMMER

WARNING: Dress properly to reduce the risk of injury when operating this tool. Do not wear loose clothing or jewelry. Wear eye and ear/hearing protection. Wear heavy, long pants, boots and gloves. Do not wear short pants, sandals or go barefoot.

Before operating, hold the trimmer with both hands, one hand on the rear handle and the other on the front-assist handle which shall be straight (Fig. M). Then check for balanced footing and a proper cutting distance.

STARTING/STOPPING THE LINE TRIMMER (Fig. N)

To Start

Press down the lock-off lever and hold it in that position. Depress the trigger to turn on the line trimmer.

To Stop

Release the lock-off lever and the trigger.

WARNING: Always remove the battery pack from the line trimmer during work breaks and after finishing work.

USING THE LINE TRIMMER

WARNING: To avoid serious personal injury, wear goggles or safety glasses at all times when operating this unit. Wear a face mask or dust mask in dusty locations.

Clear the area to be cut before each use. Remove all objects, such as rocks, broken glass, nails, wire, or line, that can be thrown or become entangled in the cutting attachment. Clear the area of children, bystanders, and pets. At a minimum, keep all children, bystanders and pets at least 15m away; there still may be risk to bystanders from thrown objects. Bystanders should be encouraged to wear eye protection. If you are approached, stop the motor and cutting attachment immediately.

Before each use check for damage/worn parts

Check the bump head, guard and front-assist handle and replace the parts that are cracked, warped, bent, or damaged in any away.

The line-cutting blade on the edge of the guard can dull over time. It is recommended that you periodically sharpen it with a file or replace it with a new blade.

WARNING: Always wear gloves when mounting the guard or sharpen or replacing the blade. Take care of the blade on the guard and protect your hand from cutting.

After each use, clean the trimmer.

■ Use only mild soap and a damp cloth to clean the tool. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.
- Keep air vents in the motor housing and shaft free from debris at all times (Fig. 0).

Fig. 0 parts description see below:

0-1 Air vents in shaft

0-2 Air vents in motor housing

CAUTION: Obstructions in the vents will prevent the air from flowing into the motor housing and result in overheating or damaged of the motor.

WARNING: Never use water for cleaning your trimmer. Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents. Use clean cloths to remove dirt, dust, oil, grease, etc.

ADJUSTING CUTTING LINE LENGTH

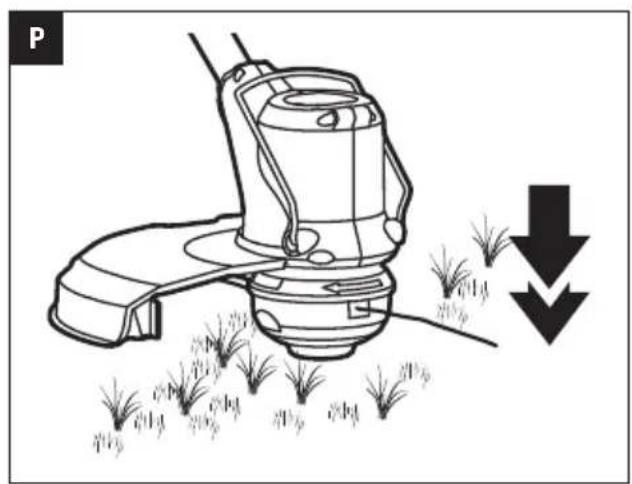

The bump head allows the operator to release more cutting line without stopping the motor. As line becomes frayed or worn, additional line can be released by lightly tapping the bump knob on the ground while operating the trimmer (Fig. P).

For best results, tap the bump knob on bare ground or hard soil. If line release is attempted in tall grass, the motor may overheat. Always keep the cutting line fully extended. Line release becomes more difficult as the cutting line becomes shorter.

WARNING: Do not remove or alter the line cutting blade assembly. Excessive line length will cause the motor to overheat and may result in serious personal injury.

WORKING WITH BUMP PROTECTOR

The bump protector can limit the cutting range of the cutting line and reduce the risk of the rotating cutting line causing damage (Fig. Q)

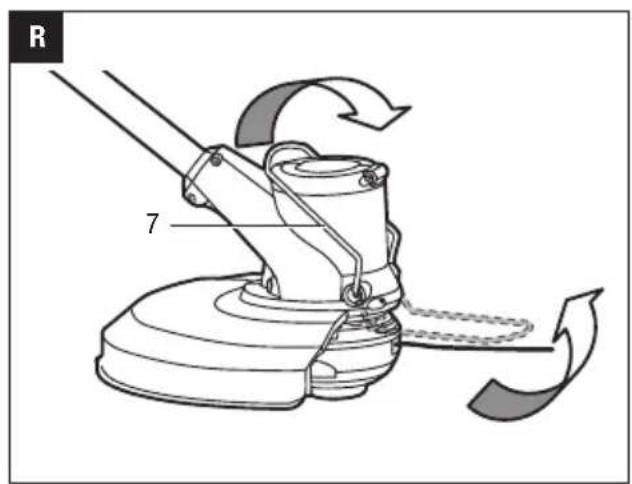

To use the bump protector, flip it down from its stored position (Fig. R).

WARNING: The bump head may continue to rotate briefly after you switch off the line trimmer. Wait for the bump head to come to a complete stop before adjusting the bump protector. Do not adjust it with your foot.

LINE REPLACEMENT

NOTICE: Always use standard nylon cutting line with diameter no more than ∅2.0 mm.

WARNING: Never use metal-reinforced line, wire, rope, etc. These can break off and become dangerous projectiles.

There are two methods to replace the cutting line:

1. Wind the spool with new line.
2. Install a pre-wound spool (AS1301, if necessary, available in dealer).

Wind the spool with new line

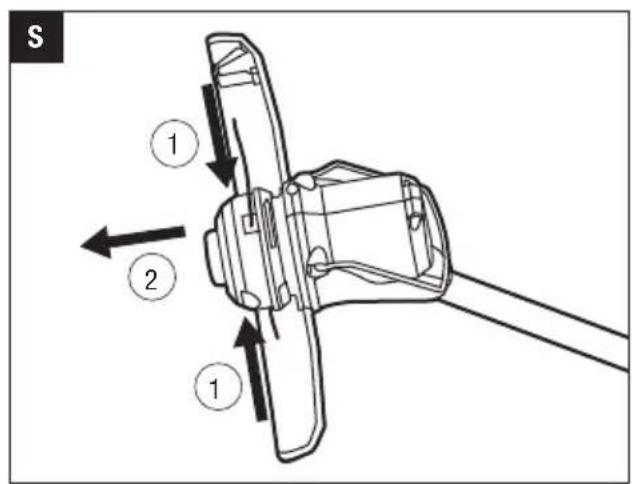

Press the two release tabs on the spool base and pull the spool retainer out (Fig. S). Take out approximately 7m of new cutting line. Fold and wind it onto the spoon as Fig. T & U shown. Then place the line ends through the two opposite notches in the spoon (Fig. V) and place the spoon into its retainer with notches aligned with retainer eyelets (Fig. W). Lastly, align the retainer slots with the tabs on the spoon base and press the retainer evenly down, ensuring that it snaps into place (Fig. X).

EN

NOTICE: Always clean the spool retainer, spool and spool base before reassembling the trimmer head. Check the spool retainer, spool and spool base for wear. If necessary, replace the wear parts.

NOTICE: Failure to wind the line in the direction indicated will cause the trimmer head to operate incorrectly.

Install a pre-wound spool

Press the two release tabs on the spool base and pull the spool retainer out (Fig. S). Then place a pre-wound spool into the retainer with notches aligned with retainer eyelets (Fig. W). Lastly, align the retainer slots with the tabs on the spoon base and press the retainer evenly down, ensuring that it snaps into place (Fig. X).

Fig. W & X parts description see below:

W-1 Notch X-1 Tab
W-2 Eyelet X-2 Slot

NOTICE: Make sure that the tabs on the spool base snap into place or the spool will come out during operation.

MAINTENANCE

WARNING: When servicing, use only identical

replacement parts. Inspect and maintain the machine regularly. To ensure safety and reliability, all repairs should be performed by a qualified service technician.

WARNING: Battery tools do not have to be plugged into an electrical outlet; therefore, they are always in operating condition. To prevent serious personal injury, take extra precautions and care when performing maintenance, service or for changing the cutting attachment or other attachments.

WARNING: To prevent serious personal injury,

remove the battery pack from the tool before servicing, cleaning, changing add-on attachments or removing material from the unit.

CLEANING THE UNIT

■ Clean the unit using a damp cloth with a mild detergent.
- Do not use any strong detergents on the plastic housing or the handle. They can be damaged by certain aromatic oils, such as pine and lemon, and by solvents such as kerosene. Moisture can also cause a shock hazard. Wipe off any moisture with a soft dry cloth.
■ Use a small brush or the air discharge of a small vacuum cleaner brush to clean the air vents free of obstructions on the rear housing.

STORING THE UNIT

■ Remove the battery pack from the line trimmer when it is not in use.
■ Clean the tool thoroughly before storing it.
■ Store the unit in a dry, well-ventilated area, locked-up or up high, out of the reach of children. Do not store the unit on or adjacent to fertilizers, petrol, or other chemicals.

Protecting the environment

Do not dispose of electrical equipment, battery charger and batteries/rechargeable batteries into household waste!

According to the European law 2012/19/EU, electrical and electronic equipment that is no longer usable, and according to the European law 2006/66/EC, defective or used battery packs/batteries, must be collected separately.

If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.

EC DECLARATION OF CONFORMITY

EN

We, EGO EUROPE GMBH

Declare that the product 56V lithium-ion cordless line trimmer ST1210E complies with the essential health and safety requirements of the following Directives:

2006/42/EC, 2014/30/EU, 2011/65/EU, 2000/14/EC

Standards and technical specifications referred to:

EN 60335-1, EN 50636-2-91, EN 55014-1, EN 55014-2

Measured Sound Power Level: 90.76 dB(A).

Guaranteed Sound Power Level: 91 dB(A).

Conformity assessment procedure of Annex VI is followed according 2000/14/EC.

Quality Manager of Chervon

* (Authorized representative for CHERVON and responsible for technical documentation)

01/09/2016

EN

TROUBLESHOOTING

PROBLEM CAUSE SOLUTION
Line trimmer fails to start.	■ The battery pack is not attached to the trimmer.■ No electrical contact between the trimmer and battery.■ The battery pack is depleted.■ The lock-off lever and trigger are not depressed simultaneously.	■ Attach the battery pack to the trimmer.■ Remove battery, check contacts and reinstall the battery pack.■ Charge the battery pack.■ Press down the lock-off lever and hold it, then depress the trigger to turn on the line trimmer.
LINE trimmer stops while cutting.	■ The guard is not mounted on the trimmer, resulting in an overly long cutting line and motor overload.■ Heavy cutting line is used.■ The motor shaft or trimmer head is bound with grass.■ The motor is overloaded.■ The battery pack or line trimmer is too hot.■ The battery pack is disconnected from the tool.■ The battery pack is depleted.	■ Remove the battery pack and mount the guard on the trimmer.■ Use only with nylon cutting line 2.0mm diameter or less.■ Stop the trimmer, remove the battery, and remove the grass from the motor shaft and trimmer head.■ Remove the trimmer head from the grass. The motor will recover to work as soon as the load is removed. When cutting, move the trimmer head in and out of the grass to be cut and remove no more than 20cm of length in a single cut.■ Allow the battery pack or trimmer to cool until the temperature drops below 67°C.■ Re-install the battery pack.■ Charge the battery pack.
Trimmer head will not advance line.	■ The motor shaft or trimmer head is bound with grass.■ There is not enough line on the spool.■ The trimmer head is dirty.■ Line is tangled on spool.■ The line is too short.	■ Stop the trimmer, remove the battery, and remove the grass from the motor shaft and trimmer head.■ Remove the battery and replace the cutting line; follow the section “LINE REPLACEMENT” in this manual.■ Remove the battery and clean the spool, spool retainer and spool base.■ Remove the battery, remove the line from the spool and rewind; follow the section “LINE REPLACEMENT” in this manual.■ Remove the battery and pull the lines while alternately pressing down on and releasing the bump knob.
Grass wraps around trimmer head and motor housing.	■ Cutting tall grass at ground level.	■ Cut tall grass from the top down, removing no more than 20cm in each pass to prevent wrapping.
Line is not cutting well.	■ The line-cutting blade on the edge of the guard has become dull.	■ Sharpen the line-cutting blade with a file or replace it with a new blade.

EN

WARRANTY

EGO WARRANTY POLICY

Please visit the website egopowerplus.com for full terms and conditions of the EGO Warranty policy.

DÉCLARATION DE CONFORMITÉ CE

CE

Nous, EGO EUROPE GMBH

2006/42/CE, 2014/30/UE, 2011/65/UE, 2000/14/CE

2006/42/CE, 2014/30/UE, 2011/65/UE, 2000/14/CE

2006/42/CE, 2014/30/UE, 2011/65/UE, 2000/14/CE

Standard e specifiche tecniche conformi a:

EN 60335-1, EN 50636-2-91, EN 55014-1, EN 55014-2

ANDERE VEILIGHEIDSWAARSCHUWINGEN

BATTERIJ LADER
BA1120E, BA2240E, BA2800, BA3360, BA4200	CH5500E, CH2100E

DE BESCHERMING MONTEREN (afb. B & C & D)

HET APPARAAT SCHOONMAKEN

HET APPARAAT OPBERGEN

BATTERI	OPLADER
BA1120E, BA2240E, BA2800, BA3360, BA4200	CH5500E, CH2100E

RENG∅RING AF APPARATET

OPBEVARING AF APPARATET

BEHOLD FOR SENERE BRUK

VEDLIKEHOLD OG LAGRING

BATTERI	LADER
BA1120E, BA2240E, BA2800, BA3360, BA4200	CH5500E, CH2100E

W-1 Innsnitt X-1 Fane
W-2 ∅yehull X-2 Hull

DEKLARACJA ZGODNOŚCI WE

CE

Producent, EGO EUROPE GMBH

2006/42/WE, 2014/30/UE, 2011/65/UE, 2000/14/WE

POLITYKA GWARANCYJNA EGO

MONTÁŽ KRYTU (obr. B, C a D)

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

OLULISED OHUTUSJUHISED

AKU	LAADIJA
BA1120E, BA2240E, BA2800, BA3360, BA4200	CH5500E, CH2100E
