| Product type | Corded hammer drill |
| Brand | Black & Decker |
| Model | BEHS01 |
| Input voltage | 230 V AC |
| Power input | 650 W |
| No-load speed | 0 - 1600 min⁻¹ |
| Concrete drilling capacity | 16 mm |
| Steel drilling capacity | 13 mm |
| Wood drilling capacity | 30 mm |
| Weight | 2.6 kg |
| Sound pressure level | 93.5 dB(A) |
| Sound power level | 104.5 dB(A) |
| Vibration (hammer drilling) | 14.1 m/s² |
| Vibration (chiseling) | 15.2 m/s² |
| Chuck type | Quick-release chuck |
| Rotation direction | Forward and reverse |
| Variable speed | Yes, by trigger |
| Hammer drilling mode | Yes (T1 selector) |
| Chiseling mode | Yes (T selector) |
| Side handle | Included, adjustable |
| Depth gauge | Included, adjustable |
| Double insulation | Yes, no earth wire |
| Warranty | 2 years |
| Maintenance | Regular cleaning of ventilation slots and chuck |
| Compatible accessories | Wood, metal, concrete drill bits and screwdriver bits |
Frequently Asked Questions - BEHS01 BLACK & DECKER
User questions about BEHS01 BLACK & DECKER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Drill in PDF format for free! Find your manual BEHS01 - BLACK & DECKER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BEHS01 by BLACK & DECKER.
USER MANUAL BEHS01 BLACK & DECKER
Intended use
Your BLACK+DECKER BEHS01 SDS Impact drill has been designed for drilling in wood, metal, plastics, and masonry as well as for screwdriving purposes. This tool is intended for consumer use only.
Safety instructions
General power tool safety warnings
Warning! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury..
Save all warnings and instructions for future reference.
The term "power tool" in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool.
- Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
- Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.
b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.
Use of an RCD reduces the risk of electric shock.
- Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool.
Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
- Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.
Use of the power tool for operations different from those intended could result in a hazardous situation.
h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
- Service
a. Have your power tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
Additional power tool safety warnings
Warning! Additional safety warnings for rotary and chiselling hammers
- Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.
◆ Use auxiliary handles supplied with the tool. Loss of control can cause personal injury. - Brace the tool properly before use. This tool produces a high output torque and without properly bracing the tool during operation, loss of control may occur resulting in personal injury.
- Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
Safety instructions when using long drill bits
- Never operate at higher speed than the maximum speed rating of the drill bit. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.
- Always start drilling at low speed and with the bit tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.
- Apply pressure only in direct line with the bit and do not apply excessive pressure. Bits can bend causing breakage or loss of control, resulting in personal injury.
- Never use a chisel accessory in rotary mode. The accessory will bind in the material and rotate the drill.
◆ Use clamps or another practical way to secure and support the workpiece to a stable platform.
Holding the work by hand or against your body leaves it unstable and may lead to loss of control.
◆ Before drilling into walls, floors or ceilings, check for the location of wiring and pipes.
- Avoid touching the tip of a drill bit just after drilling, as it may be hot.
- The intended use is described in this instruction manual. The use of any accessory or attachment or performance of any operation with this tool other than those recommended in this instruction manual may present a risk of personal injury and/or damage to property.
◆ Use a face or dust mask whenever the operations may produce dust or flying particles.
Safety of others
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
◆ Children should be supervised to ensure that they do not play with the appliance.
Residual risks.
Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use etc.
Even with the application of the relevant safety regulations and the implementation of safety devices, certain residual risks can not be avoided. These include:
◆ Injuries caused by touching any rotating/moving parts.
◆ Injuries caused when changing any parts, blades or accessories.
- Injuries caused by prolonged use of a tool. When using any tool for prolonged periods ensure you take regular breaks.
◆ Impairment of hearing.
◆ Health hazards caused by breathing dust developed when using your tool (example:- working with wood, especially oak, beech and MDF.)
Vibration
The declared vibration emission values stated in the technical data and the declaration of conformity have been measured in accordance with a standard test method provided by EN 60745 and may be used for comparing one tool with another. The declared vibration emission value may also be used in a preliminary assessment of exposure.
Warning! The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used. The vibration level may increase above the level stated.
When assessing vibration exposure to determine safety measures required by 2002/44/EC to protect persons regularly using power tools in employment, an estimation of vibration exposure should consider, the actual conditions of use and the way the tool is used, including taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time.
Labels on tool
The following pictograms are shown on the tool along with the date code:
Warning! To reduce the risk of injury, the user must read the instruction manual.
Wear ear protectors with Impact drills. Exposure to noise can cause hearing loss
Electrical safety
This tool is double insulated; therefore no earth wire is required. Always check that the power supply corresponds to the voltage on the rating plate.
If the supply cord is damaged, it must be replaced by the manufacturer or an authorised BLACK+DECKER Service Centre in order to avoid a hazard.

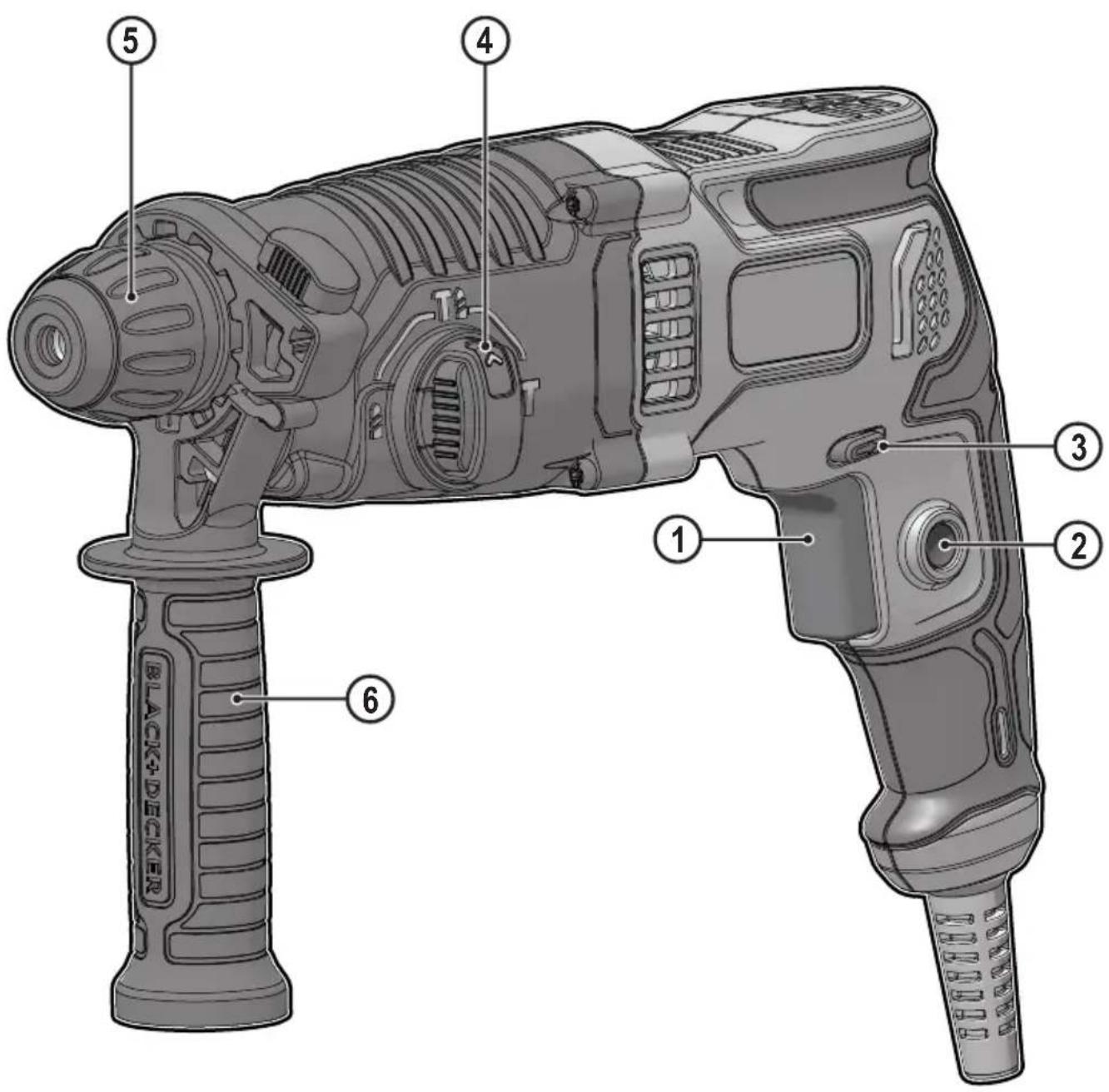

Features
- Variable speed switch
- Lock on button
- Forward/reverse switch
- Drilling mode selector
- Chuck
- Side handle
- Depth gauge
Assembly
Warning! Before assembly, make sure that the tool is switched off and unplugged.

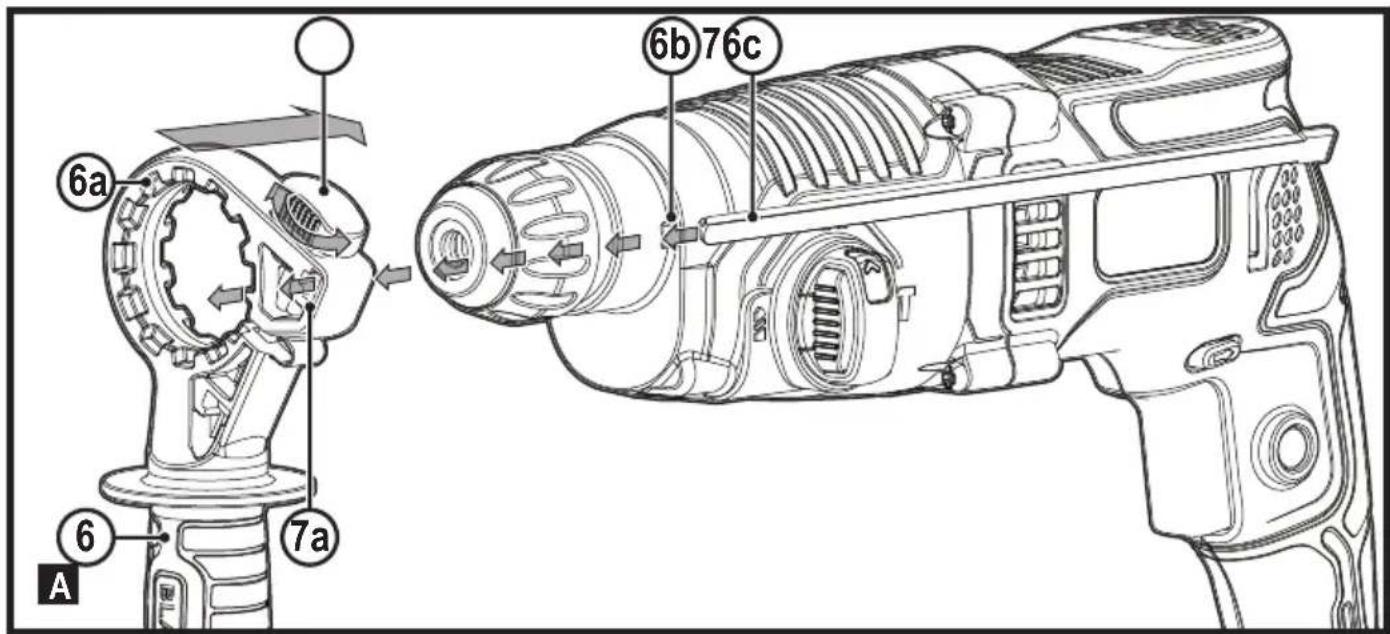

Fitting the side handle and depth guage (fig. A, B)
- Turn the knob (6c) counter clockwise until you can slide the side handle (6) onto the front of the tool as shown.
◆ Rotate the side handle into the desired position ensuring that the notches (6a) engage with the sprocket (6b).
◆ Insert the depth guage (7) into the mounting hole (7a).
◆ Set the drilling depth as described below.
◆ Tighten the side handle by turning the knob (6c) clockwise.

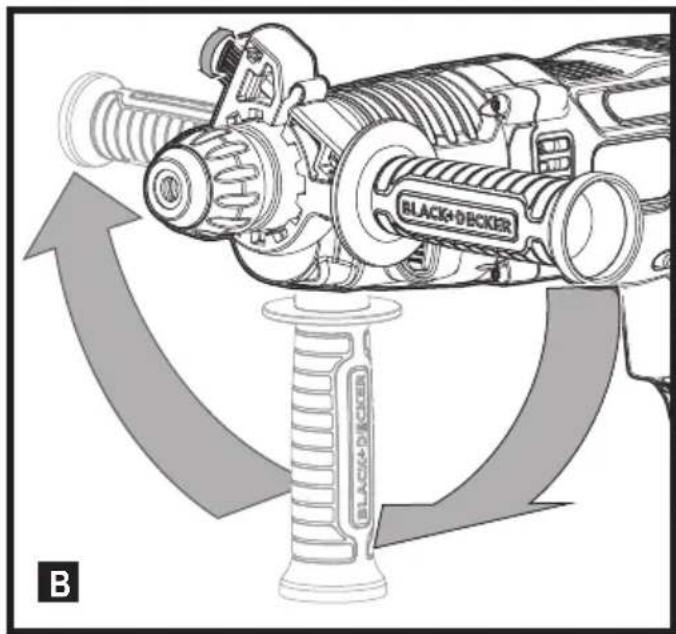

Note: the side handle can be positioned as shown in figure B, depending on personal preference.

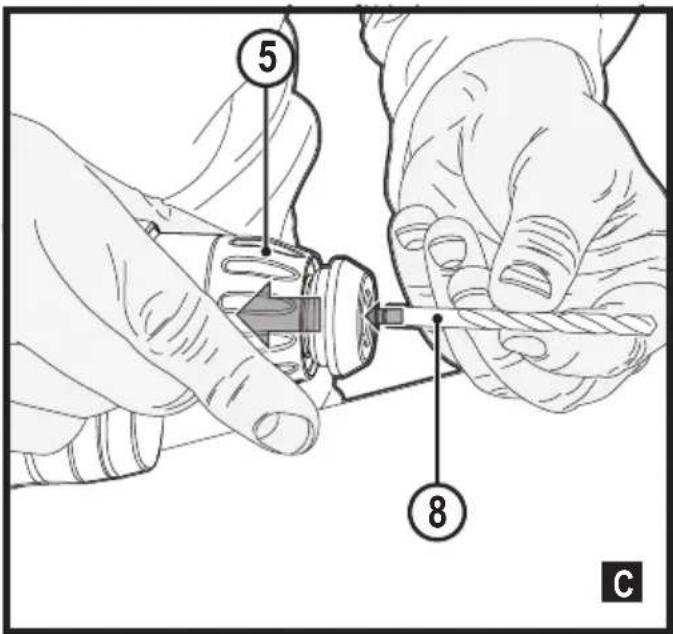

Fitting a drill bit (fig. C)
This tool is fitted with a quick release chuck to allow for an easy exchange of bits.
Warning! Make certain the tool is locked to prevent switch actuation before installing or removing accessories.
◆ Lock the tool by setting the forward/reverse slider (2) to the centre position.
◆ Insert the bit shaft (8) into the chuck (5) (Fig. C).
Note! To remove the bit/socket, pull and hold the chuck collar (5) away from the front of the tool (Fig. C).
Use
Warning! Let the tool work at its own pace. Do not overload.
Warning! Before drilling into walls, floors or ceilings, check for the location of wiring and pipes.

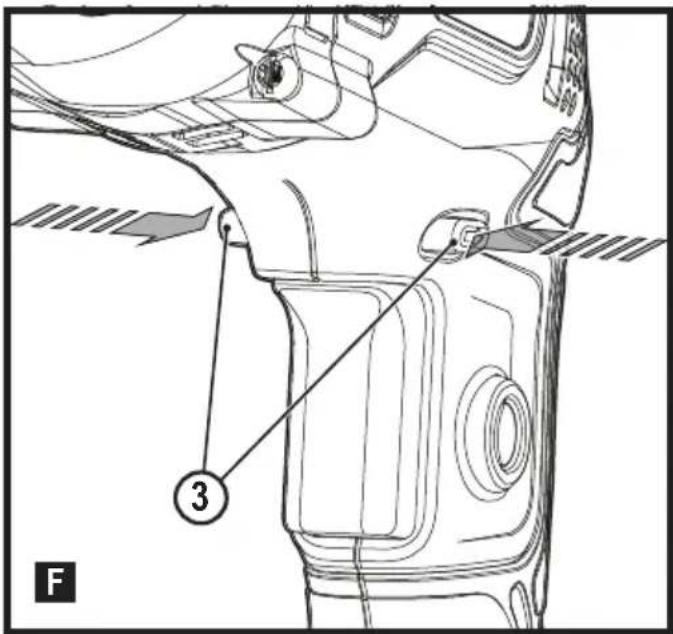

Selecting the direction of rotation (fig. D)
For drilling and for tightening screws, use forward (clockwise) rotation. For loosening screws or removing a jammed drill bit, use reverse (counter clockwise) rotation.
◆ To select forward rotation, push the forward/reverse switch (3) to the left position.
- To select reverse rotation, push the forward/reverse button to the right.
Warning! Never change the direction of rotation while the motor is running.

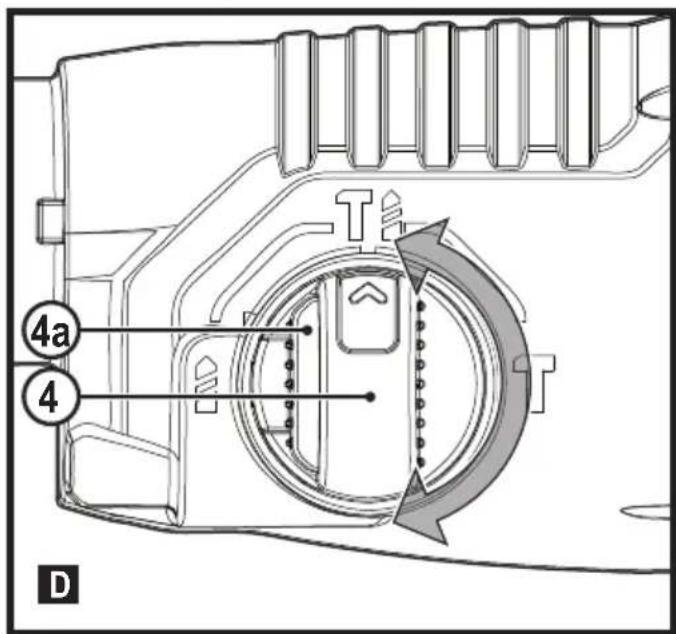

Selecting the drilling mode (fig. D)
- To select a drilling mode, push button 4a and rotate the selector to the required setting.
- For Impact drilling in masonry and concrete, set the drilling mode selector (4) to the T2 position.
- For drilling in steel, wood and plastics or for screw driving drilling mode selector (4) to the 1 position.
- For chiselling mode set the drilling mode selector (4) to the T position.
Setting the drilling depth (fig. A)
- Slacken the side handle (6) by turning the knob (6a) counter clockwise.
- Set the depth guage (7) to the desired position. The maximum drilling depth is equal to the distance between the tip of the drill bit and the front end of the depth guage.
◆ Tighten the side handle by turning the knob (6c) clockwise.

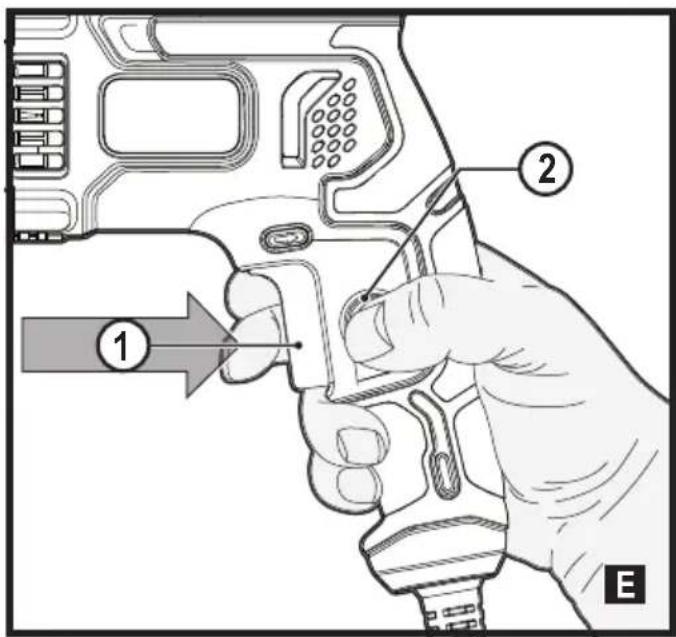

Switching on and off
- To switch the tool on, press the variable speed switch (1). The tool speed depends on how far you press the switch. As a general rule, use low speeds for large diameter drill bits and high speeds for smaller diameter drill bits.
- For continuous operation, press the lock-on button (2) and release the variable speed switch. The lock on button is available only at full speed in forward mode. In the reverse mode, the lock on button is not available.

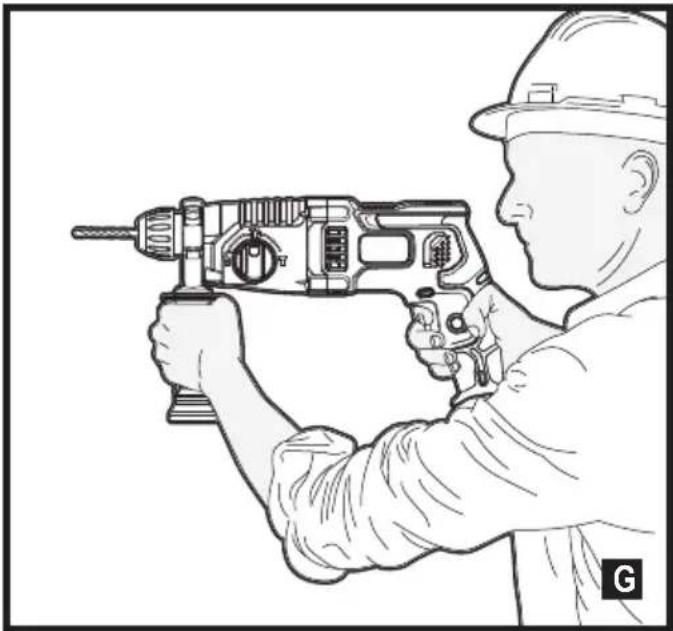

- To switch the tool off, release the variable speed switch. To switch the tool off when in continuous operation, press the variable speed switch again and release it. Always hold the tool as shown in figure G.
Accessories
The performance of your tool depends on the accessory used. BLACK+DECKER accessories are engineered to high quality standards and designed to enhance the performance of your tool. By using these accessories you will get the very best from your tool.
Maintenance
Your BLACK+DECKER corded/cordless appliance/tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.
Warning! Before performing any maintenance on corded/cordless power tools:
◆ Switch off and unplug the appliance/tool.
- Or switch off and remove the battery from the appliance/tool if the appliance/tool has a separate battery pack.
- Or run the battery down completely if it is integral and then switch off.
◆ Unplug the charger before cleaning it. Your charger does not require any maintenance apart from regular cleaning.
- Regularly clean the ventilation slots in your appliance/tool/charger using a soft brush or dry cloth.
◆ Regularly clean the motor housing using a damp cloth. Do not use any abrasive or solvent-based cleaner.
- Regularly open the chuck and tap it to remove any dust from the interior (when fitted).
Mains plug replacement (U.K. & Ireland only)
If a new mains plug needs to be fitted:
◆ Safely dispose of the old plug.
- Connect the brown lead to the live terminal in the new plug.
◆ Connect the blue lead to the neutral terminal.
Warning! No connection is to be made to the earth terminal. Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 5 A.
Protecting the environment
Separate collection. Products and batteries marked with this symbol must not be disposed of
with normal household waste.
Products and batteries contain materials that can be recovered or recycled reducing the demand for raw materials.
ENGLISH
(Original instructions)
Please recycle electrical products and batteries according to local provisions.
Further information is available at www.2helpU.com
Technical data
| BEHS01 | ||
| Input voltage V | AC | 230 |
| Power input W 650 | ||
| No load speed min | -1 | 0 - 1600 |
| Max. drilling capacity | ||
| Concrete mm | 16 | |
| Steel mm | 13 | |
| Wood mm | 30 | |
| Weight kg | 2.6 | |
| Declared dual-number noise emission values in accordance with ISO 4871 |
| Measured A-weighted sound power level, L_WA (ref. 1pW), in decibels = 104.5 dB(A)Uncertainty, K_WA , in decibels = 3 dB(A) |
| Measured A-weighted emission sound pressure level at the work station, L_PA (ref. 20μPA),in decibels = 93.5 dB(A)Uncertainty, K_PA , in decibels = 3 dB(A) |
| Values determined according to noise test code given in EN 60745-1:2009+A11:2010,using the basic standards EN 60745-2-6:2010 |
| NOTE - The sum of a measured noise emission value and its associated uncertaintyrepresents an upper boundary of the range of values which is likely to occur inmeasurements |
| Vibration total values (triax vector sum) determined according to EN 60745 | ||
| the work mode description 'hammer drilling into concrete' | the work mode description 'chiselling' | |
| Vibration emission Value a_i | 14.1 m/s ^2 | 15.2 m/s ^2 |
| Uncertainty K 1.5 m/s | ^2 | 1.5 m/s ^2 |
| Values determined according to EN 60745-1:2009+A11:2010 and EN 60745-2-6:2010 | ||
EC declaration of conformity
MACHINERY DIRECTIVE
BEHS01 Impact drill
Black & Decker declares that these products described under "technical data" are in compliance with:
EN60745-1:2009+A11:2010, EN60745-2-6:2010.
These products also comply with Directive 2006/42/EC, 2014/30/EU and 2011/65/EU. For more information, please contact Black & Decker at the following address or refer to the back of the manual.
The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of Black & Decker.
Ed Higgins
Director – Consumer Power Tools
Black & Decker Europe, 270 Bath Road, Slough,
Berkshire, SL1 4DX
United Kingdom
07/02/2020
Guarantee
Black & Decker is confident of the quality of its products and offers consumers a 24 month guarantee from the date of purchase. This guarantee is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.
To claim on the guarantee, the claim must be in accordance with Black & Decker Terms and Conditions and you will need to submit proof of purchase to the seller or an authorised repair agent. Terms and conditions of the Black & Decker 2 year guarantee and the location of your nearest authorised repair agent can be obtained on the Internet at www.2helpU.com, or by contacting your local Black & Decker office at the address indicated in this manual.
Please visit our website www.blackanddecker.co.uk to register your new Black & Decker product and receive updates on new products and special offers.
Director – Consumer Power Tools
Black & Decker Europe, 270 Bath Road, Slough,
Berkshire, SL1 4DX
Black & Decker Europe, 270 Bath Road, Slough,
Berkshire, SL1 4DX
Royaume-Uni
07/02/2020
Garantie
Black & Decker Europe, 270 Bath Road, Slough,
Berkshire, SL1 4DX
Regno Unito
07/02/2020
Garanzia
Director – Consumer Power Tools
Black & Decker Europe, 270 Bath Road, Slough,
Berkshire, SL1 4DX
Verenigd Koninkrijk
07/02/2020
Garantie
Black & Decker Europa, 270 Bath Road, Slough,
Berkshire, SL1 4DX
Reino Unido
07/02/2020
Garantía
Black & Decker Europe, 270 Bath Road, Slough,
Berkshire, SL1 4DX
Reino Unido
07/02/2020
Garantia
Black & Decker Europe, 270 Bath Road, Slough,
Berkshire, SL1 4DX
Storbritannien
07/02/2020
Garanti
Stille inn boredybden (figur A)
Director – Consumer Power Tools
Black & Decker Europe, 270 Bath Road, Slough,
Berkshire, SL1 4DX
Storbritannia
07/02/2020
Garanti
Black & Decker Europe, 270 Bath Road, Slough,
Berkshire, SL1 4DX
Storbritannien
07/02/2020
Garanti
Black & Decker Europe, 270 Bath Road, Slough,
Berkshire, SL1 4DX, Iso-Britannia
07/02/2020
Takuu
Black & Decker Europe, 270 Bath Road, Slough,
Berkshire, SL1 4DX
- Intended use
- Safety instructions
- General power tool safety warnings
- Additional power tool safety warnings
- Safety instructions when using long drill bits
- Safety of others
- Residual risks.
- Vibration
- Labels on tool
- Electrical safety
- Features
- Assembly
- Fitting the side handle and depth guage (fig. A, B)
- Fitting a drill bit (fig. C)
- Use
- Selecting the direction of rotation (fig. D)
- Selecting the drilling mode (fig. D)
- Setting the drilling depth (fig. A)
- Switching on and off
- Accessories
- Maintenance
- Mains plug replacement (U.K. & Ireland only)
- Protecting the environment
- ENGLISH
- (Original instructions)
- EC declaration of conformity
- Guarantee
- Garantie
- Garanzia
- Garantía
- Garantia
- Garanti
- Stille inn boredybden (figur A)
- Takuu
Brand : BLACK & DECKER
Model : BEHS01
Category : Drill
