Brand	Black & Decker
Model	BDPS600
Product Type	Paint Sprayer
Power Source	Electric Corded (120V, 60Hz)
Motor Power	400 W
Paint Capacity	600 ml (20 oz)
Maximum Viscosity	70 KU (Stormer units)
Spray Pattern	Adjustable: horizontal, vertical, round
Nozzle Size	1.5 mm
Flow Control	Variable speed trigger
Weight	2.5 kg (5.5 lbs)
Dimensions (L x W x H)	25 cm x 20 cm x 12 cm (10" x 8" x 5")
Hose Length	1.5 m (5 ft)
Container Material	Plastic
Cleaning Method	Disassemble and rinse with water or solvent
Safety Features	Trigger lock, overheat protection
Replacement Parts	Nozzle kit, cup, filter available
Included Accessories	Viscosity cup, cleaning brush, instruction manual
Warranty	2 years limited

Frequently Asked Questions - BDPS600 BLACK & DECKER

What type of paint can I use with the BDPS600?

You can use latex, oil-based, stain, and enamel paints. Thin paint as needed to achieve the correct viscosity (similar to milk). Always filter paint to remove lumps.

How do I clean the sprayer after use?

Disconnect power, remove the paint cup, and flush the system with warm soapy water (or mineral spirits for oil-based paints) until the spray runs clear. Remove the nozzle and clean with the included brush.

Why is my sprayer spitting or clogging?

Common causes: paint too thick, dried paint in nozzle, or clogged filter. Thin the paint, clean the nozzle with solvent, and replace the filter if necessary.

Can I spray without thinning the paint?

Most paints need thinning for proper atomization. Check the paint label for recommended thinning ratios. Overly thick paint will cause spitting and poor finish.

How do I adjust the spray pattern?

Rotate the nozzle to switch between horizontal, vertical, and round patterns. Use the flow control trigger to adjust paint output while spraying.

Is the BDPS600 suitable for large projects?

It is designed for medium-sized projects like furniture, fences, and walls. For continuous large areas, consider a larger capacity sprayer.

What safety precautions should I take?

Always wear a respirator mask, safety goggles, and gloves. Work in a well-ventilated area. Keep the sprayer away from children and pets. Disconnect the power before cleaning.

Can I use the sprayer with non-paint coatings?

Yes, you can spray sealers, primers, varnishes, and lacquers. Ensure the coating is thin enough and clean the sprayer immediately to prevent clogging.

How do I store the sprayer when not in use?

Clean it thoroughly, dry all parts, and store in a dry, dust-free place. Remove the battery (if cordless) or unplug. Keep the nozzle protection cap on.

Where can I find replacement parts or accessories?

Replacement nozzle kits, cups, and filters are available online at Black & Decker's official website or through authorized retailers. Use only genuine parts.

USER MANUAL BDPS600 BLACK & DECKER

Line drawing of a DSLR camera with attached lens and control panel (no text or symbols on the device itself)

Catalog Numbers

BDPS400 & BDPS600

Thank you for choosing Black & Decker! Go to

www.BlackandDecker.com/NewOwner to register your new product.

PLEASE READ BEFORE RETURNING THIS PRODUCT FOR ANY REAS

If you have a question or experience a problem with your Black & Decker WWW.BLACKANDDECKER.COM/INSTANTANSWERS for instant answers 24 hour If you can't find the answer or do not have access to the internet, call 1-800-544-6986 from 8 a.m. to 5 p.m. EST Mon. - Fri. to speak with Please have the catalog number available when you call.

SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE.

VEA EL ESPAÑOL EN LA CONTRAPORTADA.

Important Safety Instructions ....3

General Safety Warnings....4

Grounding Instructions....4

Extension Cords....5

Components......6

Set-Up....7

Selecting Proper Spray Nozzle 7

Attaching Spray Nozzles 7

Adjusting Fan Spray Nozzle....7

Liquid Material Preparation 8

Preparation Tips....8

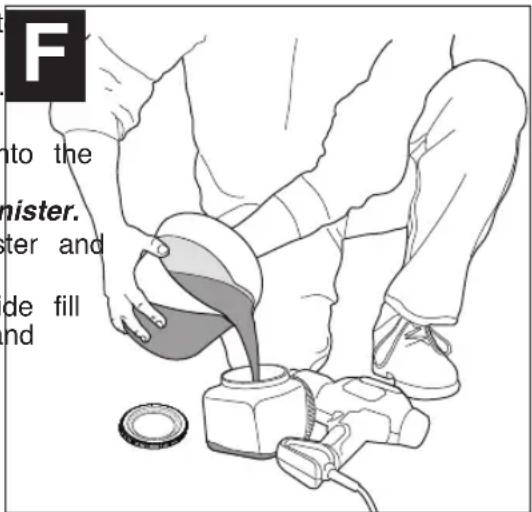

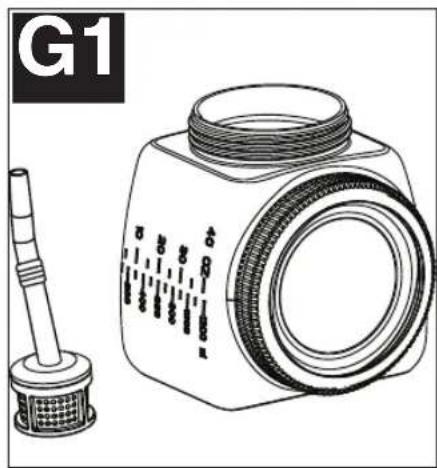

Filling The Canister 8

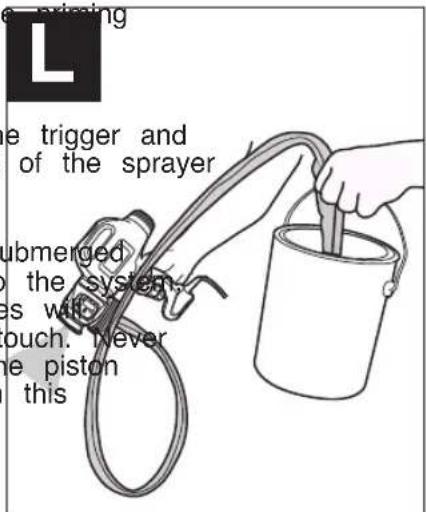

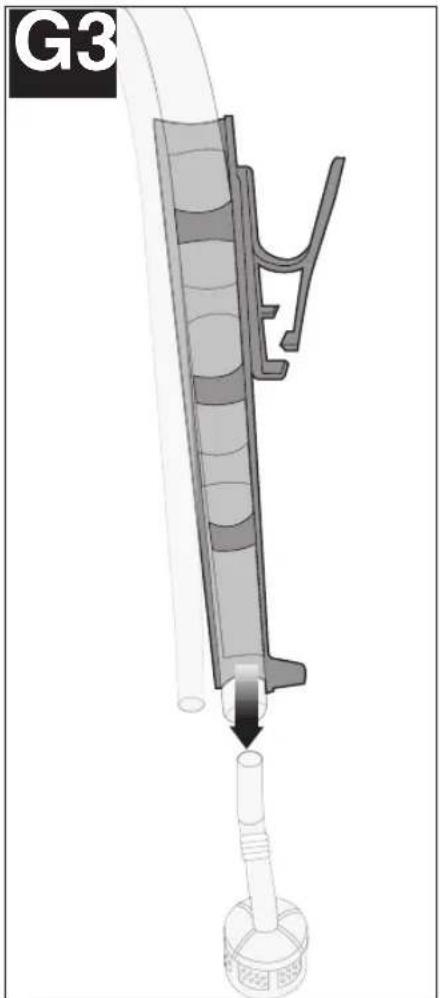

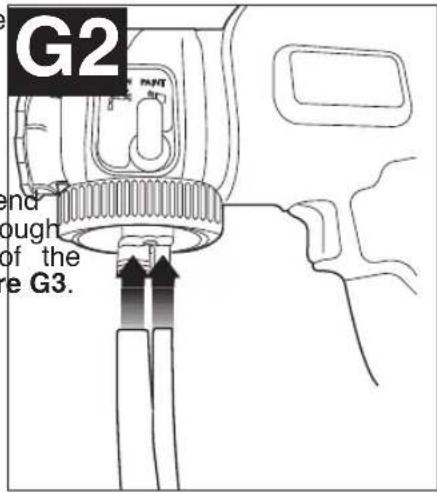

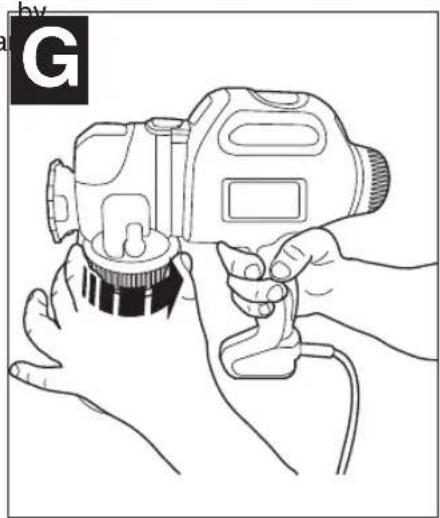

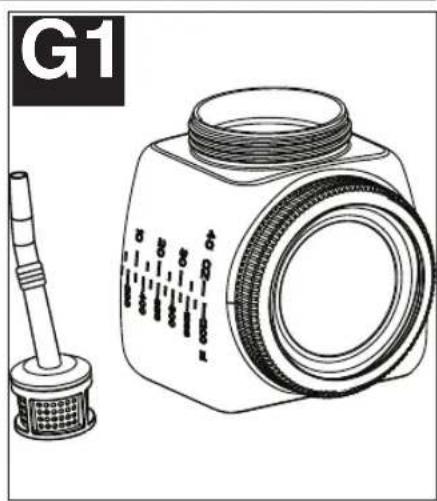

Optional Setup Using Remote Tubing....9

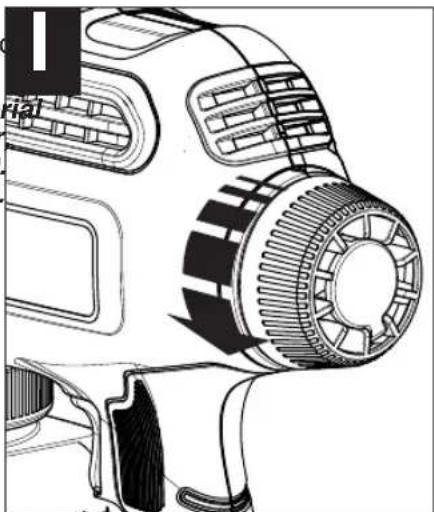

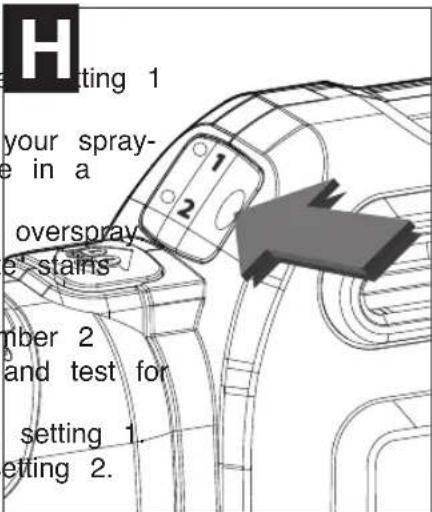

Speed and Flow Control Settings 10

Operation 10

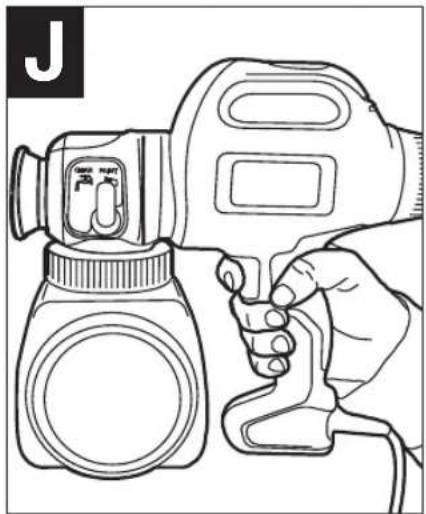

On/Off Switch....10

Priming With Remote Tubing 10

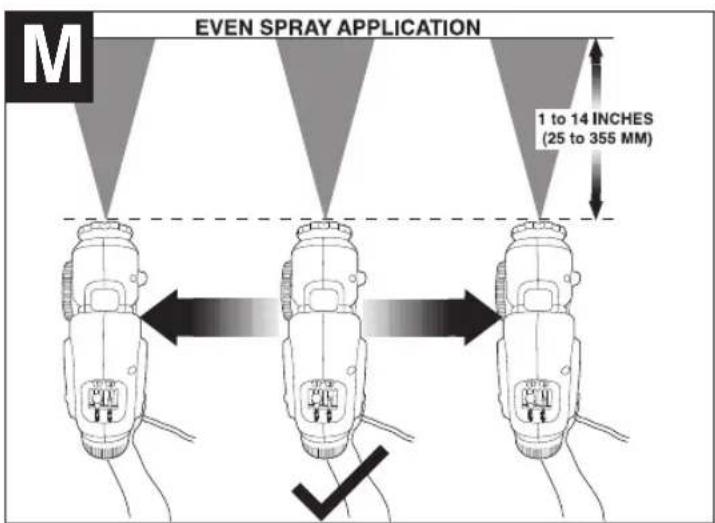

Spraying Technique....11

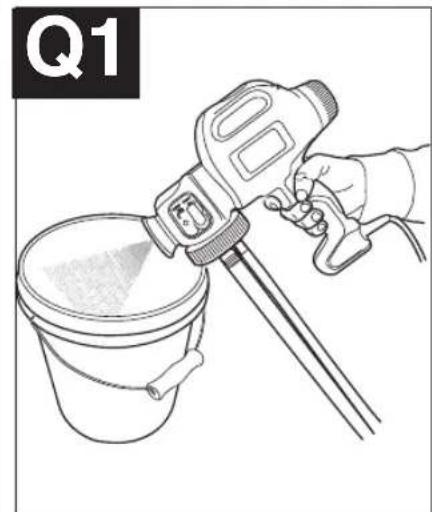

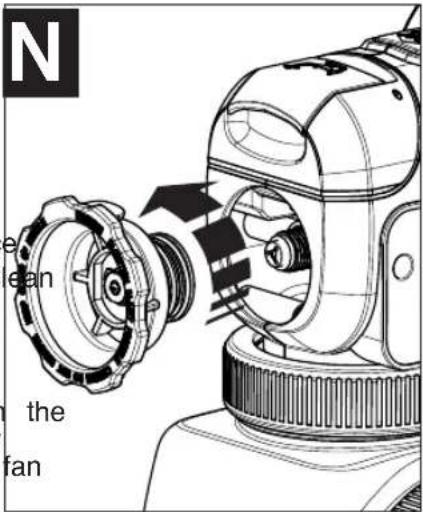

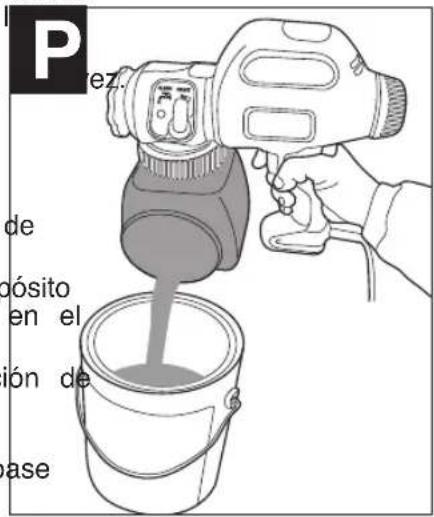

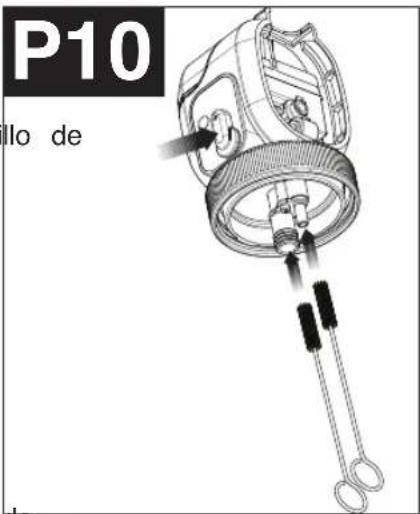

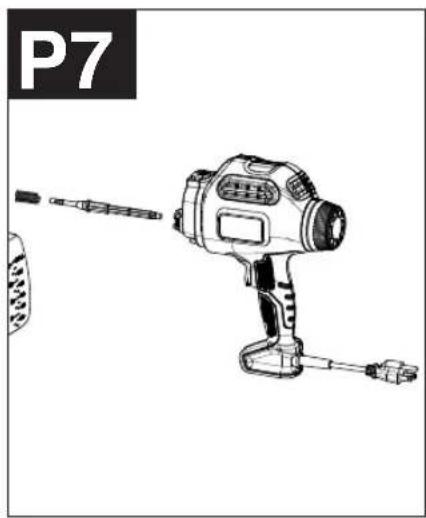

Cleaning....12

Using Quick Flush System....13

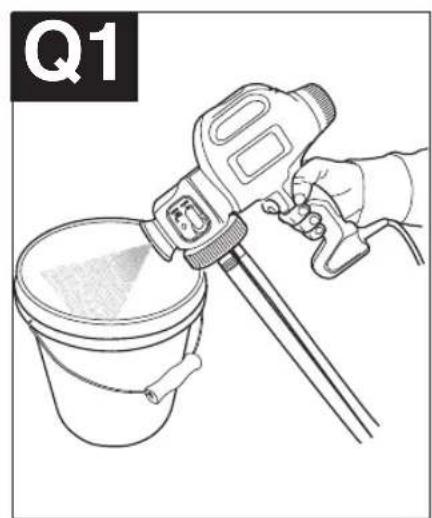

Cleaning Remote Tubing 14

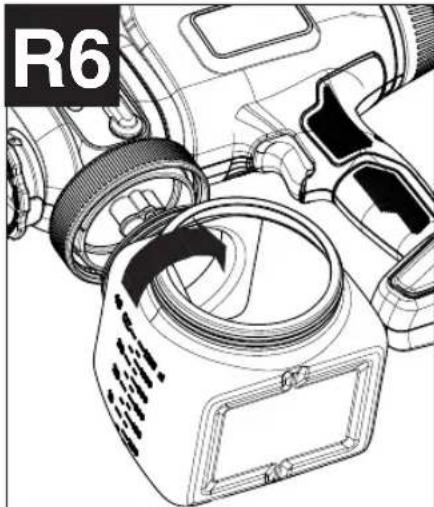

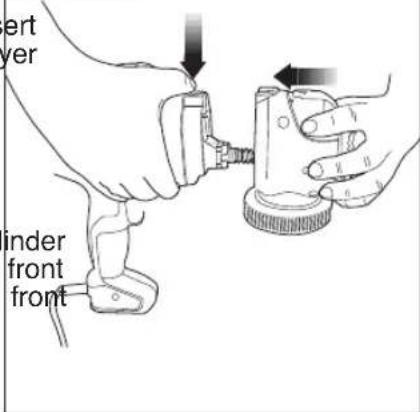

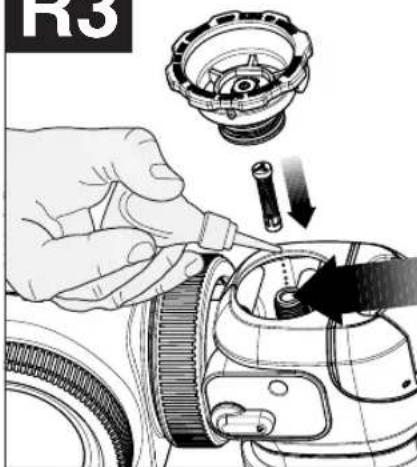

Reassembly 15

Troubleshooting 16

Maintenance 17

Accessories....17

Service Informaiton 17

Warranty....17

SAFETY GUIDELINES - DEFINITIONS

It is important for you to read and understand this manual. The information it contains relates to protecting SAFETY and PREVENTING PROBLEMS. The symbols below are used to help you recognize this information

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE: Used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage.

The following are explanations of important safety hazard pictorials in this manual.

1. Read and understand the instruction manual.

1. Explosion hazard.

1. Electric shock hazard.

1. Fire hazard.

1. Respiratory hazard.

1. Skin injection hazard.

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS - To reduce the risks of fire or explosion, electrical shock and the injury to persons, read and understand all instructions included in this manual. Be familiar with the controls and the usage of the equipment.

• This product is intended for household use only.

⚠ WARNING: FIRE OR EXPLOSION HAZARD. Solvent and spray material fumes can explode or ignite. Severe injury or property damage can occur.

To avoid these risks, take the following preventions:

• Exhaust and fresh air introduction must be provided to keep the air within the spray area free from ac flammable vapors.
• Keep spray area well ventilated
• Avoid all ignition sources such as static electricity sparks, open flames, pilot lights, hot objects, lit tobacco products, and sparks from connecting and disconnecting power cords or working light switches.
• Fire extinguisher equipment shall be present and working."
• Keep area clean and free of paint or solvent containers, rags, and other flammable materials.
• Follow the material and solvent manufacturer's safety precautions and warnings.
• Do not spray flammable or combustible materials near an open flame or sources of ignition such as lit products, motors, and electrical equipment.
• Know the contents of the spray materials and their cleaning solvents. Read all Material Safety Data Sheet and container labels provided with the spray materials and solvents. Follow the spray material and solver manufacturer's safety instructions.

⚠ WARNING: EXPLOSION HAZARD DUE TO INCOMPATIBLE MATERIALS. Severe injury or property damage can occur.

To avoid these risks, take the following preventions:

• Do not use bleach.
• Do not use halogenated hydrocarbon solvents such as methylene chloride and 1,1,1 - trichloroethane. Th compatible with aluminum and may cause an explosion. If you are unsure of a material's compatibility with aluminum, contact your coating supplier.
• Keep spray area well ventilated

⚠ WARNING: HAZARDOUS VAPORS. Spray materials, solvents, and other materials can be harmful if inhaled or come in contact with the body. Vapors can cause severe nausea, fainting, or poiso

To avoid these risks, take the following preventions:

• Keep spray area well ventilated.
• Use a respirator or mask if vapors can be inhaled. Read all instructions supplied with the mask to be provide the necessary protection.
• Wear protective eyewear.
• Wear protective clothing as required by coating manufacturer.

To avoid these risks, take the following preventions

• Keep electrical cord plug and sprayer trigger free from spray material and other liquids. Never hold cord connections to support cord. Failure to observe may result in an electrical shock.
• Never immerse electrical parts in water or any other liquid. Wipe the exterior of the sprayer with a dan cleaning. Always make sure the sprayer is unplugged before taking it apart for cleaning.
• Do not expose unit to rain or wet conditions.
• Do not abuse the cord. Never use the cord to carry the unit or pull the plug from an outlet. Keep co oil, sharp edges or moving parts. Replace damaged cords immediately.

⚠ WARNING: SKIN INJECTION HAZARD. May cause severe injury.

To avoid these risks, take the following preventions

• NEVER aim the sprayer at any part of the body.
• Do not aim the sprayer at, or spray any person or animal.
• NEVER allow any part of the body to come in contact with the fluid stream.
• NEVER put your hand in front of the sprayer. Wear gloves. Gloves will not provide protection against an injection injury.
• Keep hands and other body parts away from the discharge. For example, do not try to stop leaks with any part of the body.
  • Always unplug the sprayer before servicing, cleaning tip guard, changing tips, or leaving unattended.
  • Always use the nozzle tip guard. Do not spray without nozzle tip guard in place.
• Only use a nozzle tip specified by the manufacturer.
• Use caution when cleaning and changing nozzle tips. In the case where the nozzle tip clogs while spra manufacturer's instructions.
• High-pressure spray is able to inject toxins into the body and cause serious bodily injury. In the event that injection occurs, seek medical attention immediately.
• Verify that all connections are secure before operating the unit.

GENERAL SAFETY WARNINGS

⚠ WARNING: GENERAL. To Reduce the risk of severe injury or property damage.

To avoid these risks, take the following preventions:

• Always wear appropriate gloves, eye protection, and a respirator or mask when painting.
- Do not aim the sprayer at, or spray any person, including self, or animal.
- Do not spray outdoors on windy days
- Wear protective clothing to keep spray material off skin and hair.
• Follow all appropriate local, state, and national codes governing ventilation, fire prevention, and operation.
• Always use appropriate gloves, eye protection and a respirator or mask when spraying, thinning, mixing, pouring, or cleaning.
- Do not operate or spray near children. Keep children away from equipment at all times. Keep sprayer reach of children.
- Do not overreach or stand on an unstable support. Keep effective footing and balance at all times.
- Stay alert and watch what you are doing.
- Do not operate the unit when fatigued or under the influence of drugs or alcohol.
- Read all instructions and safety precautions for equipment and spray material before operating any equipi
- Hearing protection is recommended for extended use.

GROUNDING INSTRUCTIONS

This product must be grounded. In the event of an electrical short circuit, grounding reduces the risk of by providing an escape wire for the electric current. This product is equipped with a cord having a group an appropriate grounding plug. The plug must be plugged into an outlet that is properly installed and ground accordance with all local codes and ordinances. Connect to a grounded outlet and use grounded extensions not use a 3 to 2 adapter.

⚠ WARNING: ELECTRIC SHOCK HAZARD. Improper installation of the grounding plug is able to result in a risk of electric shock. When repair replacement of the cord or plug is required, do not connect the ground either flat blade terminal. The wire with insulation having an outer surface green with or without yellow stripes is the grounding wire.

This product is for use on a nominal 120-V circuit and has a grounding plug similar to the plug illustrat connect the product to an outlet having the same configuration as the plug. Do not use an adapter with Check with a qualified electrician or serviceman when the grounding instructions are not completely unders

when in doubt as to whether the product is properly grounded. Do not modify the plug provided; if it does not fit the outlet, have the proper outlet installed by a qualified electrician. modify the plug provided; if it does not fit the outlet, have the proper outlet installed by a qualified electrician.

EXTENSION CORDS

Use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the product. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. If an extension cord is to be used outdoors, it must be marked with the suffix W-A after the cord type designation. For example, a designation of SJTW-A would indicate that the cord would be appropriate for outdoor use. For proper size cords see chart below.

Minimum Gauge for Cord Sets
Volts	Total Length of Cord in Feet
120V	0-25	26-50	51-100	101-150
		(0-7,6m)	(7,6-15,2m)	(15,2-30,4m)	(30,4-45,7m)
240V	0-50	51-100	101-200	201-300
		(0-15,2m)	(15,2-30,4m)	(30,4-60,9m)	(60,9-91,4m)
Ampere Rating
More	Not more	American	Wire	Gauge
Than	Than
0	-	6	18	16	16
6	-	10	18	16	14
10	-	12	16	16	14
12	-	16	14	12	Not Recommended

⚠ WARNING: Some spray materials contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. To reduce your exposure wear appropriate safety equipment such as face masks, gloves, and other appropriate protective equipment. Please review and follow the safety precautions on the paint container.

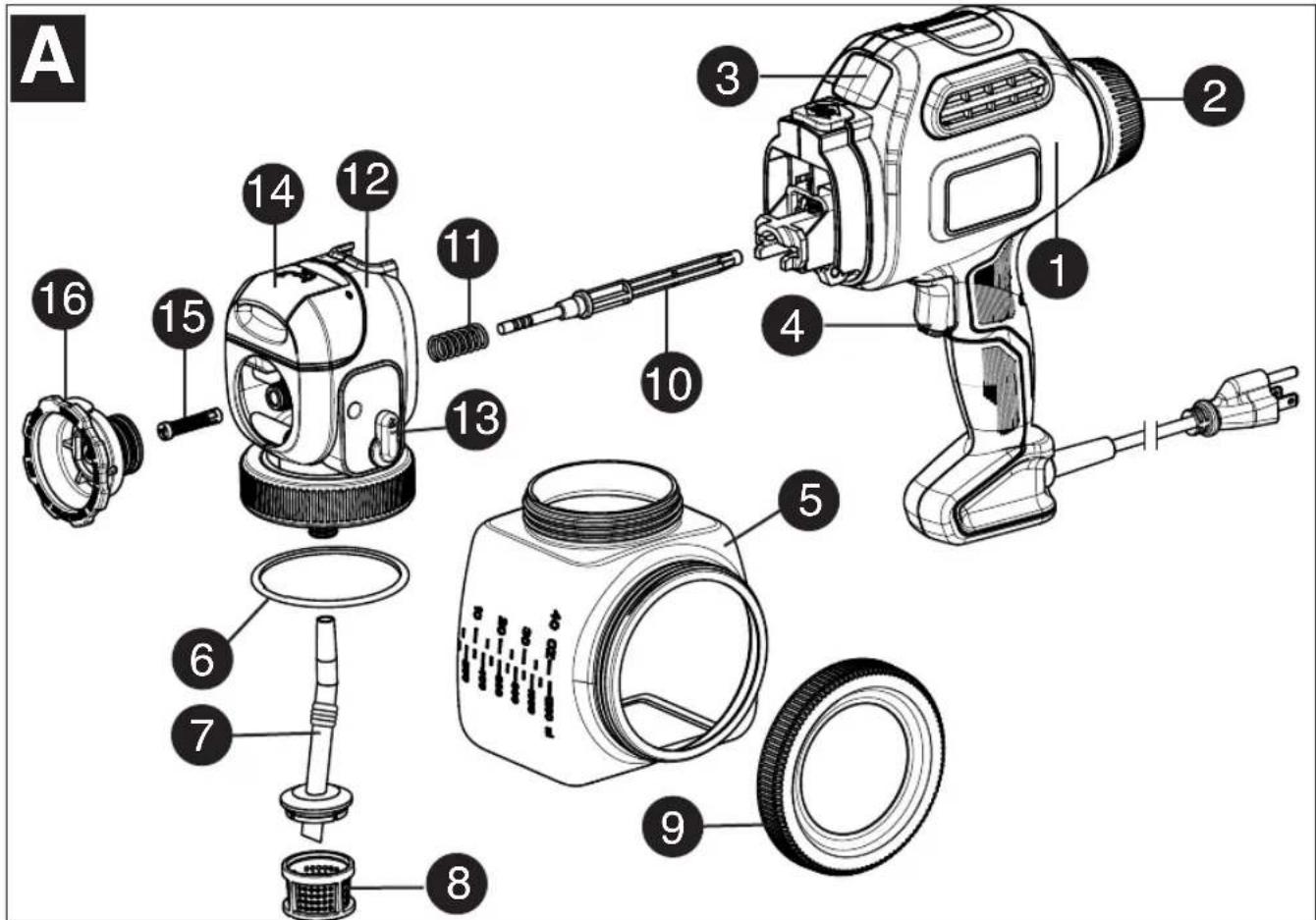

FUNCTIONAL DESCRIPTION

1.) Paint sprayer
2.) Flow control knob
3.) Speed control switch
4.) Trigger
5.) Side fill canister
6.) O-ring
7.) Pickup tube
8.) Pickup tube filter
9.) Lid
10.) Piston
11.) Piston spring
12.) Valve body assembly
13.) Quick clean knob
14.) Quick clean door
15.) Atomizer valve
16.) Fan nozzle (green)

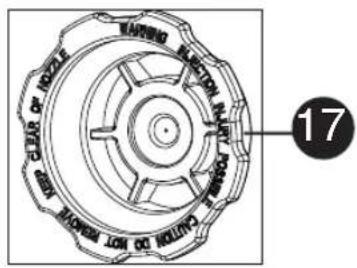

17.) Cone nozzle (blue)
18.) Oil lubricant
19.) Cleaning brush
20.) Mixing bucket
21.) Quick Clean fill cup
22.) Paint can clip - BDPS600 only
23.) Direct to Can hose -BDPS600 only
24.) Cleaning pin

Line drawing of a dropper bottle with a cap and tube, labeled with number 18 (no text or symbols on the bottle itself)

Simple line drawing of a beaker with liquid level indicated by a dashed line (no text or symbols)

Simple line drawing of a rectangular trash bin with a label '21' pointing to it (no text or symbols on the bin itself)

Diagram of a mechanical hook or spring with a numbered label (22) pointing to its end, no text or symbols present.

Pure diagram of a coiled wire or filament with a numbered label '23' at the bottom (no text or symbols on the diagram itself)

Simple line drawing of a medical or surgical tool with a labeled point '24' (no text or symbols on the tool itself)

SET-UP

⚠ WARNING: Be sure to use appropriate protective gear and unplug unit.
⚠ WARNING: Make sure area is well ventilated and free of flammable vapors.

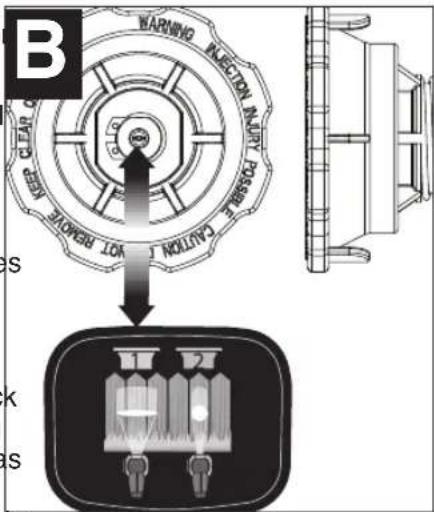

SELECTING THE PROPER SPRAY

NOZZLE - (FIGURES B AND B1)

The sprayer includes two standard nozzles that are colored coded for ease of identification.

Fan (wide) nozzle (green - figure B) - This nozzle has a spring attached to the back which allows for adjustments for spraying both vertically and horizontally. It also has tabs on the side which match the spray pattern when set for spraying side to side and top to bottom. The spray pattern covers a wide area. This is the spray nozzle that is identified as i diagram on top of the sprayer.

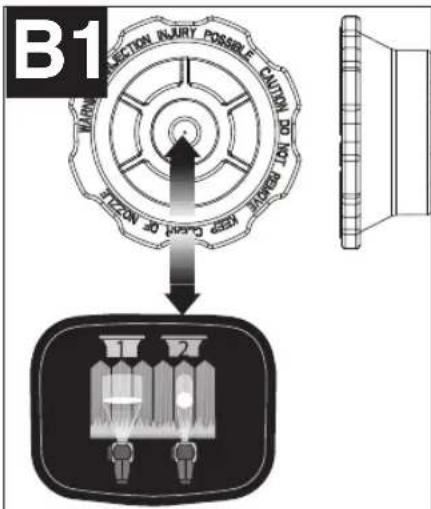

Cone nozzle (blue - figure B1) - The cone nozzle spray pattern is more concentrated. Use this nozzle for items that are too small for the fan nozzle. This is the spray nozzle that is identified as number 2 in the diagram sprayer.

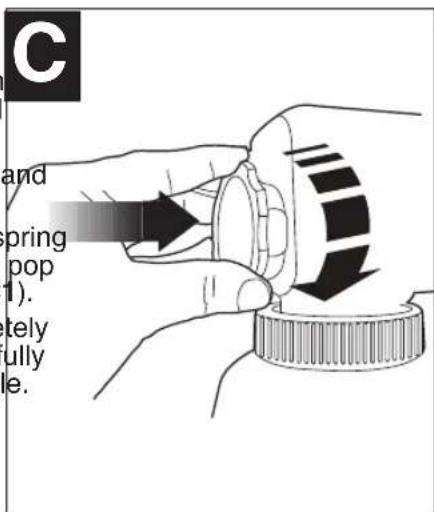

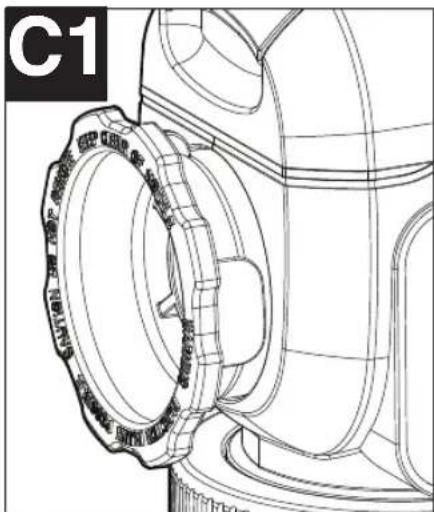

ATTACHING THE SPRAY NOZZLES - (FIGURES C AND C1)

To attach the green fan spray nozzle:

• Make sure cord is unplugged.
• Thread the nozzle onto the spindle un you feel a little resistance (about 10 full turns).
• Push in on the spring loaded nozzle and turn until it is fully seated (figure C).
• Once the nozzle is fully seated, the spring on the back of the nozzle will make it pop out slightly when it is released (figure C1).
  • Make sure fan spray nozzle is completely threaded on by hand only. If it is not fully seated in can leak or damage the nozzle.

To remove the green fan spray nozzle:

- Press in on the nozzle and turn counterclockwise.

Technical line drawing of a mechanical component with no visible text or symbols

To attach the blue cone spray nozzle:

• Thread the nozzle onto the spindle until it is fully seated.
  • Make sure cone spray nozzle is completely threaded on by hand only. If it is not fully seated in can the nozzle.

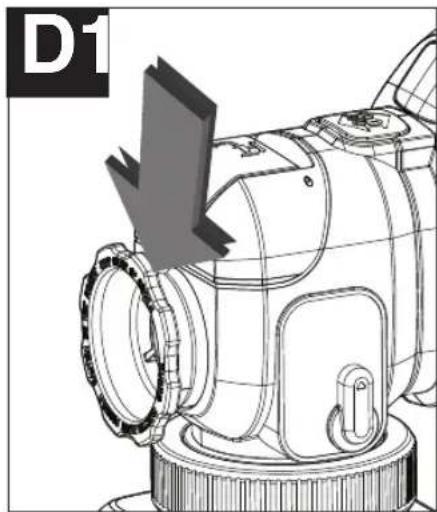

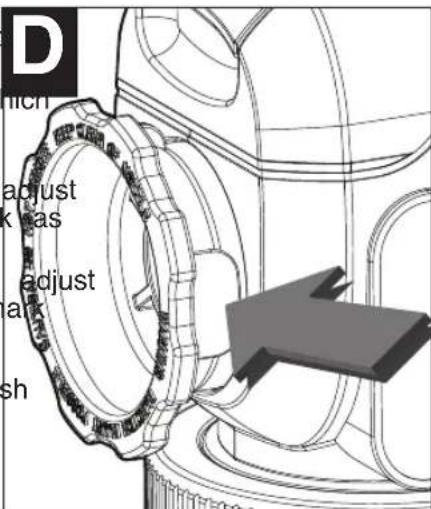

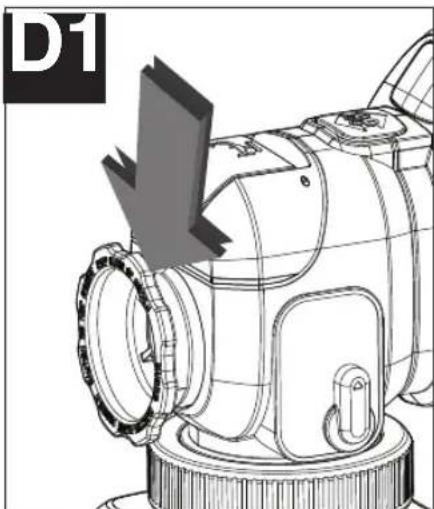

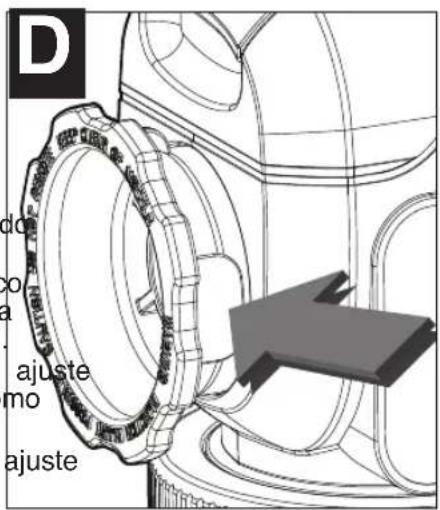

ADJUSTING THE FAN SPRAY NOZZLE - (FIGURES D AND D1)

To adjust the fan spray nozzle:

• Make sure cord is unplugged and that fan spray nozzle is fully hand-tightened.

- The fan spray nozzle has two tabs with align to indicate vertical and horizontal positions.

- If you will be spraying (side to side) adjust the nozzle to align with the vertical mark as shown in figure D.

- If you will be spraying (up and down) adjust the nozzle to align with the horizontal mark as shown in figure D1.

⚠️ CAUTION: Do not compress or push spring when adjusting fan pattern. The nozzle should rotate and not loosen.

Technical line drawing of a mechanical device with a downward arrow indicating motion or force (no text or symbols present)

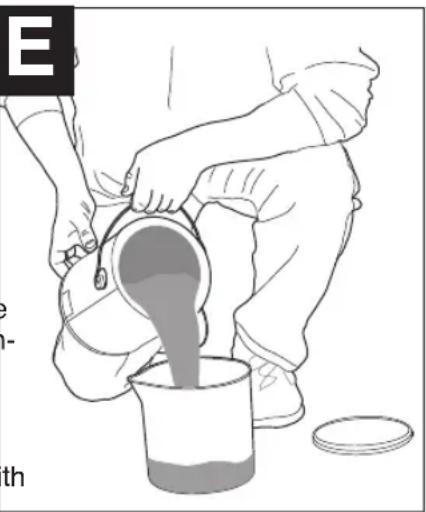

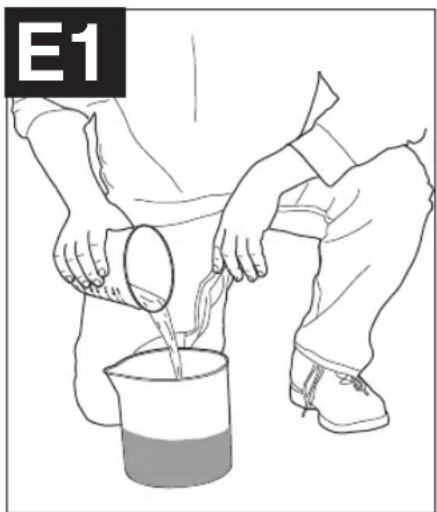

LIQUID MATERIAL PREPARATION - (FIGURES E, E1)

TIP: Make sure the type of material you use can be cleaned with either mineral spirits or paint thinner (for oil-based paints) or a warm water and soap solut (for water soluble paints like latex). Use drop cloths during pouring, mixing, and viscosity testing of materials to be sprayed to protect your floors and anything else in the spraying area that you wish to remain untouched.

The liquid being sprayed may need to be thinned (diluted) before starting. When thinning, use the proper liquid thinner recommended on the container by the material manufacturer and the proper dilution rate.

⚠ WARNING: Do not use materials with a flashpoint higher than 60°C (140°F).

Illustration of hands pouring liquid into a beaker with a lid, no text or symbols present

Line drawing of a person pouring liquid from a beaker into a container (no text or symbols)

A 2- 3 / 4 quart mixing bucket is provided to use when transferring spray material from the original container into the bucket for thinning and measuring purposes (figure E).

- If material needs thinning, add the appropriate liquid thinning material recommended by the manufacture (figure E1).

• The quick clean fill cup has a measurement of 2.5 ozs. This can be used as a quick measurement wl 5% in the side fill canister.
• It is possible to spray latex paint with this unit, however, the required thinning may exceed material man recommendation. The operator should consider the type of application and final location of the project when

COMMON DILUTION RATES ON PAINT CAN
MANUFACTURERS SUGGESTED OUNCES PER GALLON
1/2 pint 8 ounces
5% 6-1/2 ounces
10% 13 ounces

PREPARATION TIPS

• With any spraying job you should always ensure that you have properly prepared the surface to get the That is, that all surfaces are free from dust, dirt, rust and grease. Lightly pressure wash decks or exterior surfaces and ensure that they are dry before spraying.
• It is recommended that you mask all edges and other areas and use drop cloths to protect your floors else in the spraying area that you wish to remain untouched.
• Skin that forms on the top of paint can clog the sprayer. Remove skin before mixing. Older material m strained with a funnel with a filter attached or through hosiery to remove any impurities that could clog sy
• Before starting have gloves, paper towels, rags etc. available for unexpected spills.

FILLING THE CANISTER - (FIGURE F)

• Check to make sure that the canister is completely screwed on sprayer.
• Lay the sprayer on its side with the canister side lid facing up.
• Unscrew the lid on the side of the canister.
• Pour the properly thinned and strained material to be sprayed into the side fill canister (figure F). TIP: Use the mixing bucket provided to pour material from the original material container into the side fill canister.
• Clean any residual liquid from the threads or sides of the canister and sprayer.
• Starting the threads evenly, screw the lid completely onto the side fill canister. Check the lid to make sure it is threaded on squarely and completely before picking up the sprayer.

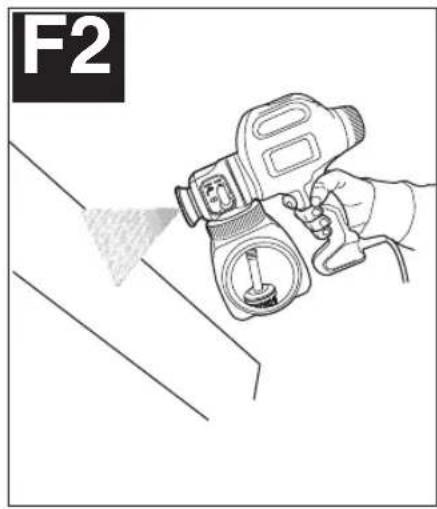

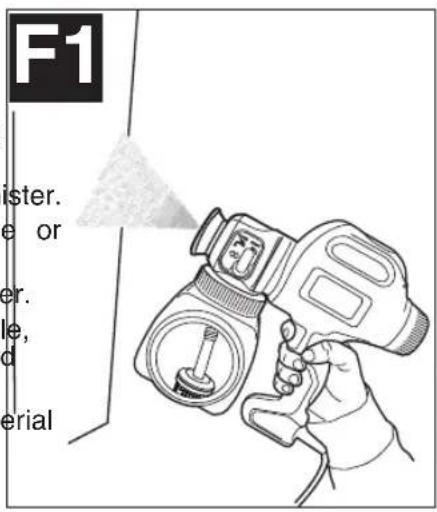

ALIGNING THE PICKUP TUBE - (FIGURES F1 AND F2)

The pickup tube can be aligned in the direction that you will be doing the most spraying to help minimize the amount of times that you will have to refill the canister.

- If you are spraying at an upward angle or straight on, position the pickup tube

(figure F1) toward the back of the canister.

- If you are spraying at a downward angle, position the pickup tube (figure F2) toward the front of the canister.

This will ensure you spray as much material as possible before you need to refill.

Line drawing of a hand using a spray gun to shoot material from a surface, no text or symbols present

OPTIONAL SETUP USING DIRECT TO CAN HOSE - BDPS600 ONLY

- Unscrew the canister from the sprayer turning the collar as shown in figure G a remove the pickup tube and filter (figure G1).

Line drawing of hands using a handheld electric drill (no text or symbols)

- Push the suction hose onto the intake return ports as shown. (figure G2).

- Pull the hose apart on the opposite end and slide the larger hose completely through the container clip, then over the barbs of the pickup tube and filter as shown in figure G3.

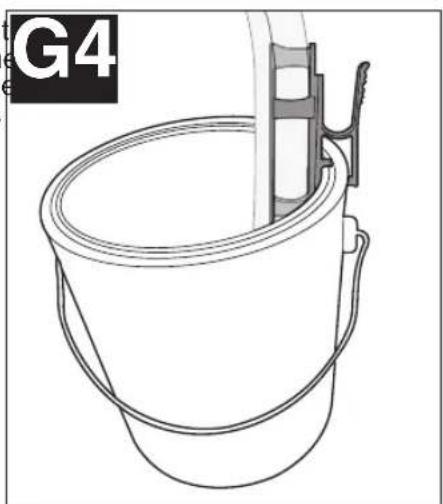

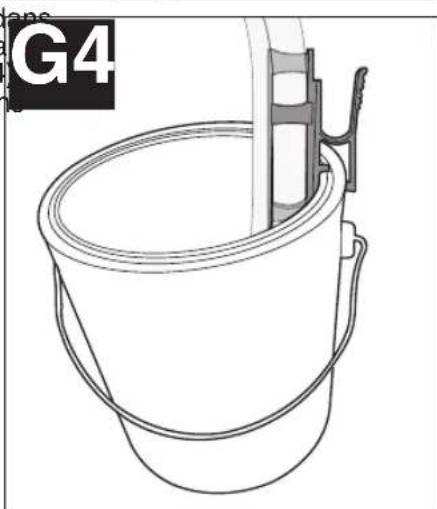

- Place the suction tube assembly into a material container and attach the containment clip securely to the side (figure G4). Chel to make sure that complete assembly is submerged in the material container.

Diagram of a mechanical device with a cylindrical component inserted, showing internal structure and a downward arrow indicating motion (no text or symbols)

Line drawing of a bucket with a handle and internal component (no text or symbols)

SPEED AND FLOW CONTROL SETTINGS

TWO SPEED CONTROL SWITCH - (FIGURE H) (MODEL BDPS600 ONLY)

Your sprayer has two different speed settings.

• To change speeds, press the right side of the switch. An LED indicate or 2.
- Use the lower speed setting (Setting 1) to obtain greater control over ing project, while the higher speed (Setting 2) allows for greater coverage shorter amount of time.
• The lower speed level allows you to get closer to your work with less Low setting works well with lighter bodied or more free flowing paints like and sealers.
- More heavy bodied paints, like water based latex, will need setting nur
- Use the speed control setting in conjunction with the flow control knob what works best with your material being sprayed.

Set the flow control to a lower or medium settling (1-5) when on speed

Set the flow control to medium or higher setting (5-9) when on speed s

FLOW CONTROL KNOB - (FIGURE I)

The flow control knob regulates the amount of liquid that can be sprayed

- Select low (1), medium (5) or high (9) on the flow control knob.

TIP: Always test the spray pattern on scrap cardboard or similar material first. Begin with flow control knob on the highest flow setting. Heavier thicker materials should be sprayed on the higher setting closer to #9. Thinner materials should be sprayed on the lower setting closer to #1.

Technical line drawing of a mechanical device with gears and housing (no text or symbols)

OPERATION

ON / OFF TRIGGER - (FIGURE J)

The sprayer is turned on and off by the trigger.

• To turn the sprayer on, squeeze the trigger.
• To turn the sprayer off, release the trigger.

⚠ WARNING: Risk of injury. Never point the sprayer at any part of the body.

Never pull the trigger while adjusting the spray setting.

Line drawing of a hand holding a handheld device with a camera and lens (no text or symbols)

PRIMING WITH THE DIRECT TO CAN HOSE - BDPS600 ONLY

• The time needed to prime will vary from 30 seconds to 3 minutes depending upon the thickness of the spraying. When the sprayer is priming or sucking up the paint on the initial use, it will produce a loud noise, this is normal. When the sprayer is primed and painting, the noise will lessen.
• If your sprayer is properly cleaned and oiled and it takes longer than three minutes to prime, your pish housing may be worn and will need to be replaced before using your direct to can hose.
• Using the direct to can hose will decrease the material flow, so it will take longer to apply the same amount of material to the surface being sprayed.
  • A 75% duty cycle is recommended when using the direct to can hose. For example, trigger the spray seconds, and then allow the sprayer to remain idle for 5 seconds.

If you are using the direct to can hose, you will need to prime the sp removing air from the system. To prime:

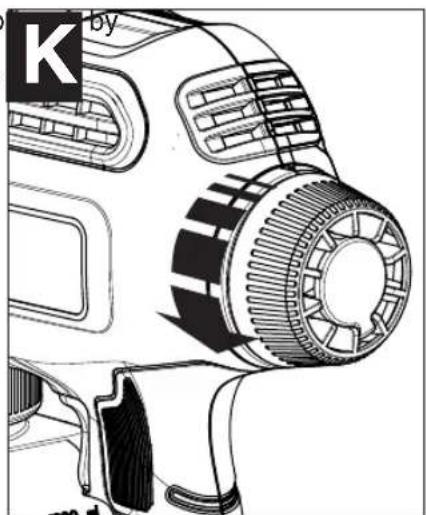

1. Make sure the sprayer is plugged in, and turn the flow control knob counterclockwise to maximum (figure K).

Technical line drawing of a mechanical device with gear and housing (no text or symbols)

1. Hold the sprayer below the level of the paint. This will speed up the drawing (figure L).

2. Aim the sprayer at a piece of scrap wood or cardboard. Squeeze the trigger and hold until all air is out of the system and material is flowing freely out of the sprayer tip. This could take up to three minutes.

Important: The end of the direct to can hose must remain completely submerged in the material. If it is not completely submerged and air is sucked into the system, the piston could seize. If the piston seizes, the sound the sprayer makes with change to a low hum and the sprayer will quickly become hot to the touch. Never run the sprayer when the piston is seized. Should this happen, clean the piston and the pump housing thoroughly using the cleanup procedures found in this manual.

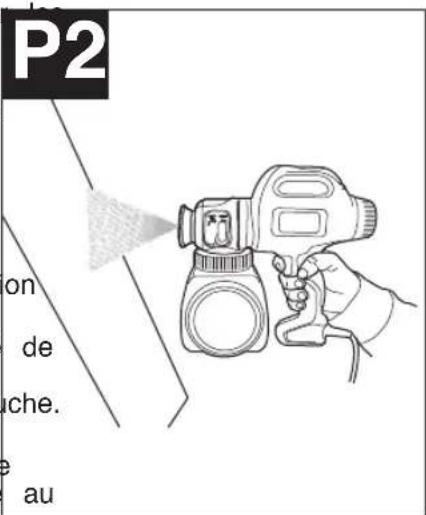

DEVELOPING THE PROPER SPRAYING TECHNIQUE

• Practice spraying on a piece of scrap material such as cardboard to test your spray pattern and become the speed settings flow control features of the sprayer.
• Ensure surface to be sprayed is free of dust, dirt, and grease.
• Ensure spray area is clean and free of dust that could be blown onto newly sprayed surfaces.
• Cover any areas not intended to be sprayed.
  • Always spray from a minimum of 1 inch (25mm) to a maximum of 14 inches (355mm) (figure M). Optimal is usually around 10 inches or use a paint stir stick as a reference.
• A commonly used method for spraying a large surface is the "crisscross" pattern. This is done by spray tal strips and then crossing over these strips with vertical strips.

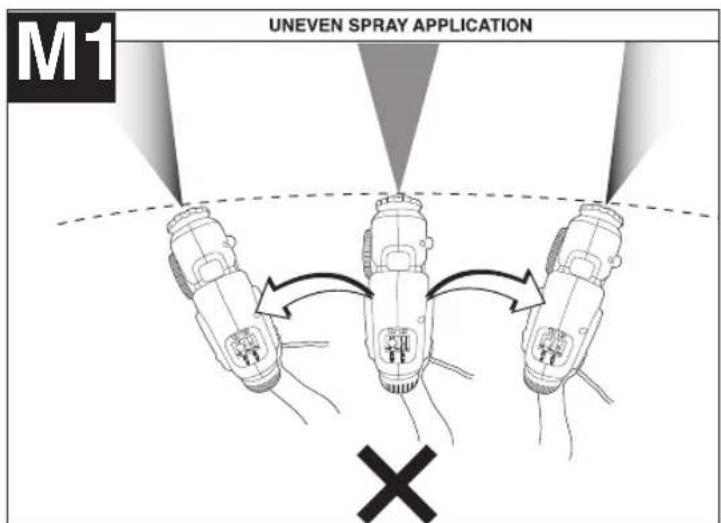

• To get an even spray distribution, always keep your arm at the same distance (figure M) from the surface you are spraying and avoid moving your wrist (figure M1).

- Maintain smooth and consistent speed which will help avoid inconsistencies. Begin spraying after the pass begun and release trigger before stopping the pass. - Avoid spraying too heavily in any one area. Several lighter coats are better than one heavy coat which running and dripping. Remember that the flow control knob regulates the amount of liquid that can be spr the flow knob counterclockwise increases the flow of liquid. Turning the knob clockwise decreases the flow runs or drips do occur, have a dry paint brush on hand to smooth them out.

WARNING: ELECTRIC SHOCK HAZARD. When spraying overhead, never tip the sprayer more than 45 degrees. The material being sprayed could leak into the motor housing.

TIP: If the atomizer valve is not seated properly, spray material will leak from behind the spray nozzle. If material is leaking, turn off and unplug sprayer from power source immediately. Follow these steps to correct the problem:

- Unplug the sprayer from the power source Follow steps for "How to Use the Quick C System" on page 13.

If problem presists:

- Check that the sprayer is unplugged from power source. Remove the spray nozzle by turning counterclockwise (figure N). For the nozzle, remember to push and turn counterclockwise to remove.

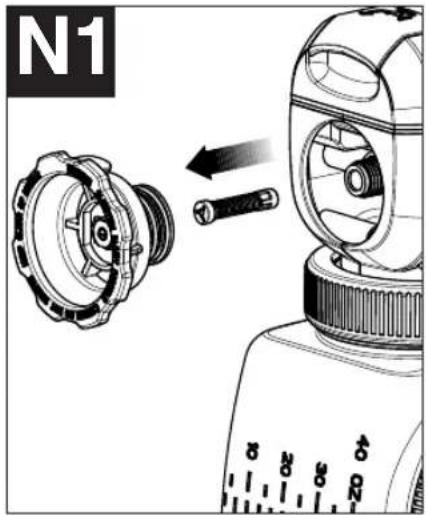

- Remove the atomizer and check to see it needs to be cleaned or replaced. Also check inside the pump housing for any debris or obstruction and clean if necessary (figure N1)

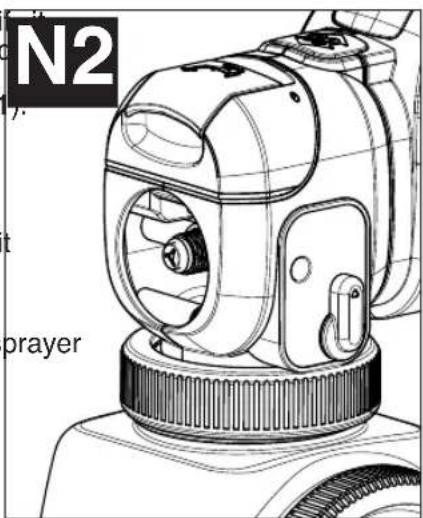

- Replace the atomizer valve making sure it seats properly (figure N2).

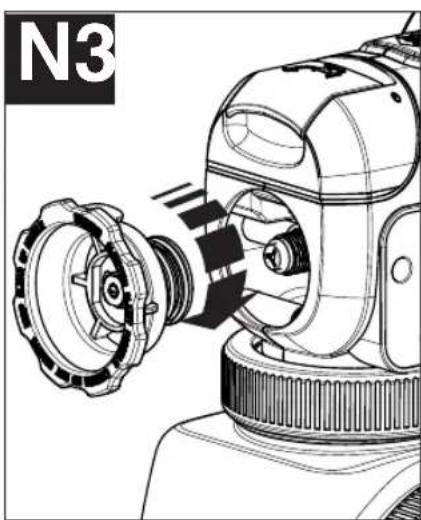

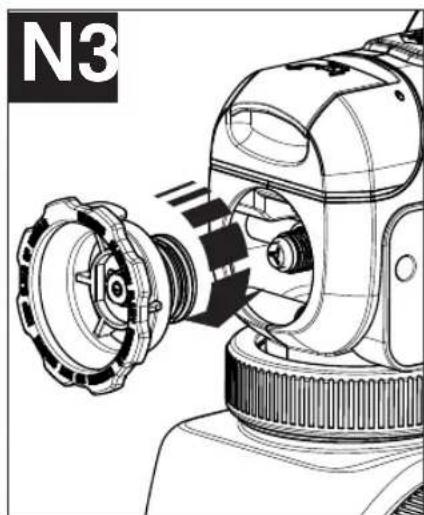

- Thread the spray nozzle back onto the sprayer by turning clockwise (figure N3).

Technical line drawing of a surveying instrument with labeled components (no readable text or symbols)

Technical line drawing of a mechanical device with gear and housing (no text or symbols)

CLEANING

⚠ WARNING: Be sure to use appropriate protective gear.

• Make sure clean up area is well ventilated and free of flammable vapors.
  • Always spray outdoors when spraying cleaning solution through sprayer.
• Use drop cloths during pouring, mixing, and viscosity testing of materials to be sprayed to protect your anything else in the spraying area that you wish to remain untouched.

USING THE QUICK CLEAN SYSTEM

The quick clean system allows for a variety of useful functions.

First, the system can allow you to spray water or a suitable cleaning liquid while there is still spray material in the main canister. This is useful when setting up your spray pattern with the fan nozzle. You can spray water instead spray material to view the spray pattern.

Second, the quick clean system allows you to flush the pump assembly, the piston, the nozzle and the a When spraying for long periods of time, spray material may build up causing a deterioration of the spray good to flush this system with water or cleaning liquid after every other spray material refill. It is also important to flush the system when the sprayer will sit for more than 15 minutes without use. Spray material can dry on the pump assembly and would require a thorough cleaning. Always oil piston if sitting idle for a long period of "Reassembly Section".

Third, the quick clean system allows for a faster clean-up when your project is complete. On two flushes through the quick clean system gives you a head start on cleaning the no the atomizer, the pump and piston. Please follow recommended cleaning steps in this manual when performing a final clean of the system.

HOW TO USE THE QUICK CLEAN SYSTEM

• Unplug the sprayer from the power source.

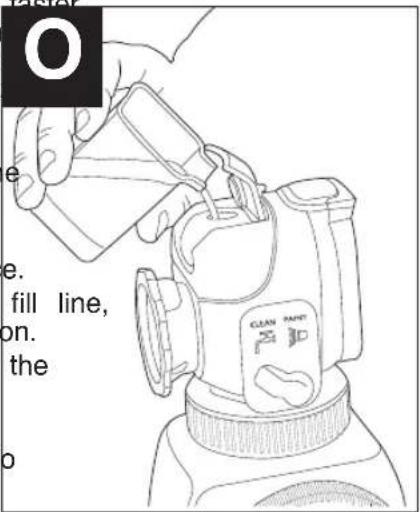

• Fill the quick clean fill cup, to the 95ml fill line, with water or the appropriate cleaning solution.
• Open the quick clean door, and pour in the cleaning solution as shown in figure O. Do not overfill the reservoir.

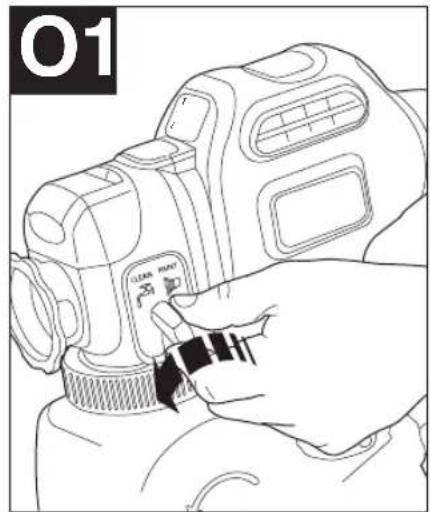

• Switch the quick clean lever from paint to clean (figure 01).
• Plug in the sprayer.
• Spray into a waste container, cardboard test surface to completely flush the sprayer system.
• Once the spray pattern turns to only the of the cleaning solution, begin cleaning.
• You may need to flush more than once.

NOTICE: Please note, this is not the final cleaning step.

TO BEGIN CLEANING:

• Unplug the sprayer from the power source.

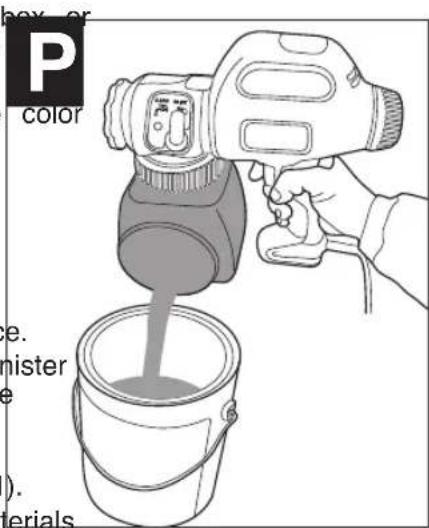

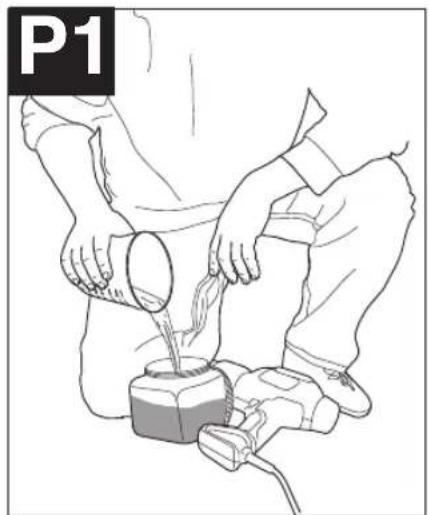

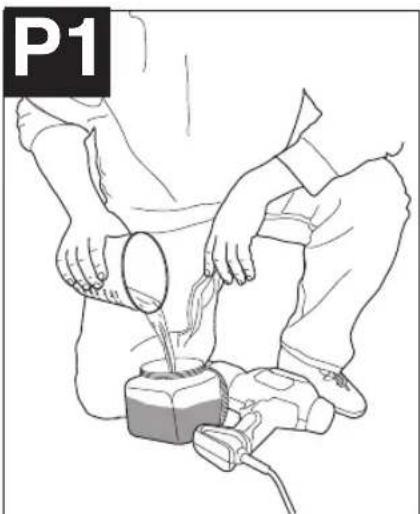

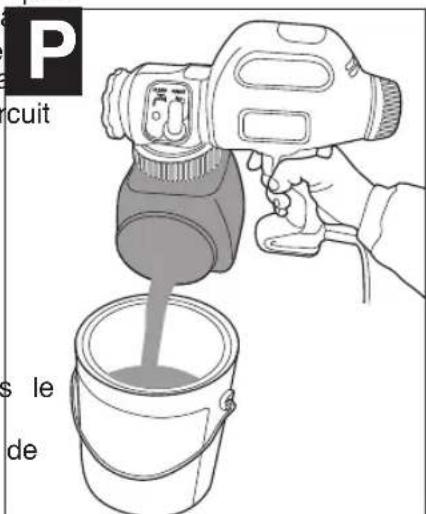

• Unscrew the lid from the side of the canister and pour any remaining liquid back into the original container (figure P).
• Pour a small amount of the appropriate cleaning solution into the canister (figure P1).

• Warm soapy water for water based materials
• Manufacturers recommended cleaning solution for oil based materials
- Replace the lid on the canister securely vigorously shake the sprayer.
- Unscrew the lid from the side of the canister and properly dispose of cleaning solution.
- Refill the canister with a small amount of new cleaning solution (figure P1). Screw lid securely on canister.

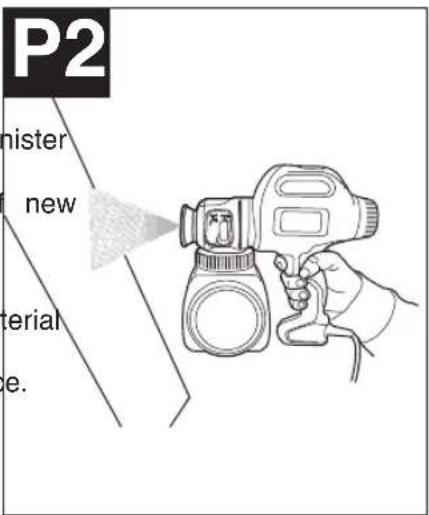

- Plug in the cord and spray the cleaning solution through the sprayer onto scrap material for 5 seconds (figure P2).
- Unplug the sprayer from the power source.
- Properly dispose of cleaning solution.

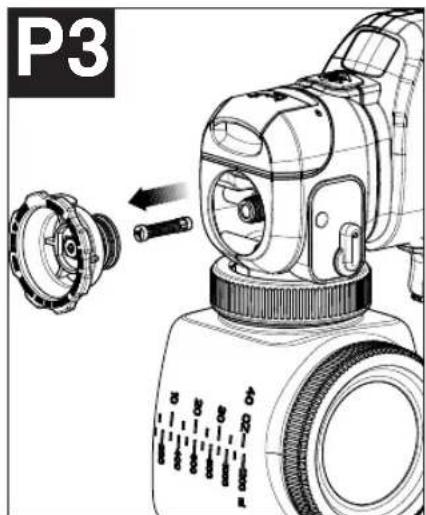

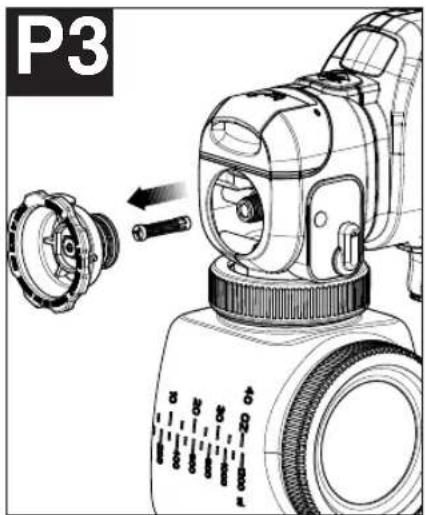

- Remove the spray nozzle, by turning counterclockwise, then remove the atomizer (figure P3). Refer to figures C & C1.

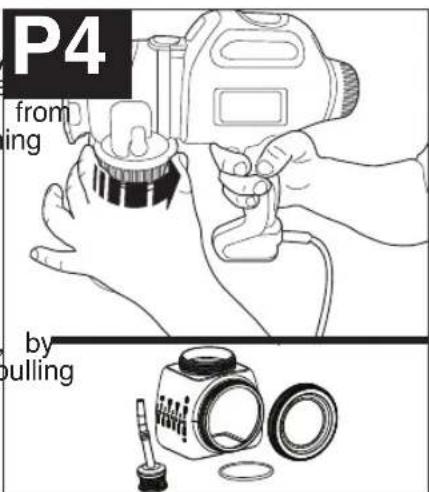

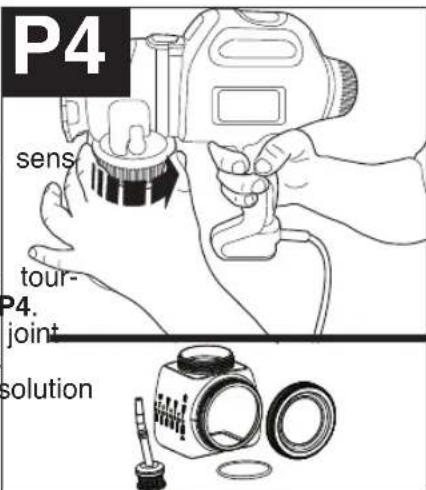

- Unscrew the canister from the sprayer by turning the collar as shown in figure P4. Remove the pickup tube and filter and o-ring the sprayer. Clean the parts with the clean brush in the appropriate cleaning solution.

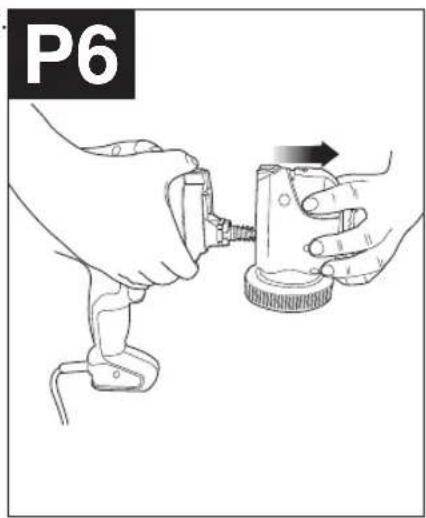

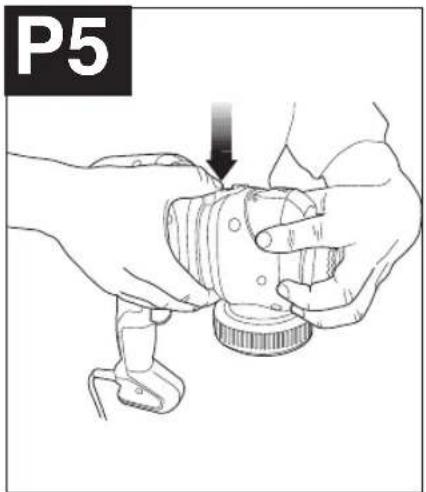

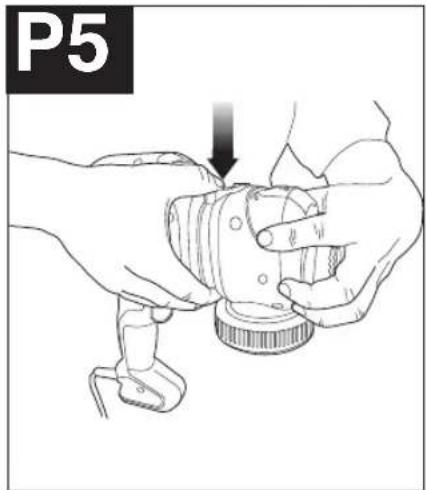

- Remove the front housing of the sprayer, pressing down on the release button and p the front housing off of the sprayer (figure P5, P6).

Line drawing of a person performing a manual cupping operation on a device (no text or symbols)

Illustration of hands holding a mechanical component with a circular base and a downward arrow indicating motion (no text or symbols)

- Remove the piston and spring (figure P7).

Line drawing of a handheld electric drill with trigger and base mount (no text or symbols)

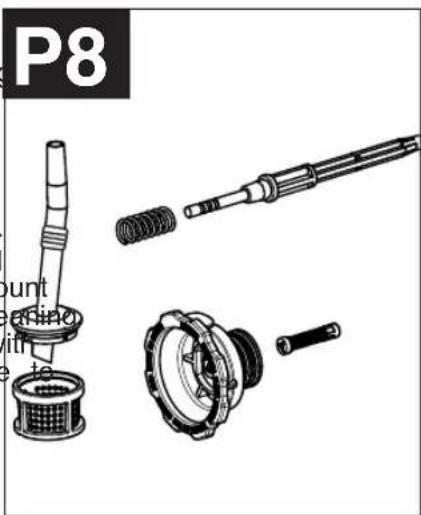

• Clean the spray nozzle, pickup tube and atomizer, piston and spring with the cleaning brush in the appropriate cleaning solution (figure P8).

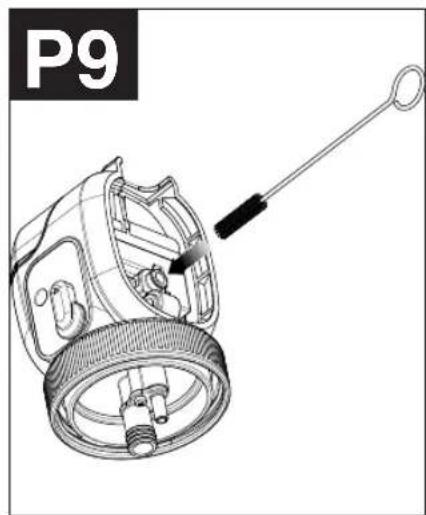

• Thoroughlyclean the inside of the piston chamber with the cleaning brush (figure P9). IMPORTANT: Be sure to remove all material from inside of piston chamber. A small amount of material that is not removed with the cleaver brush can harden over time and interfere with the movement of the piston causing damage, the sprayer.

Technical line drawing of a mechanical device with a handle and labeled part P9 (no text or symbols on the diagram itself)

Ensure that quick clean knob is oriented in spray position as shown in figure P10 with a arrow.

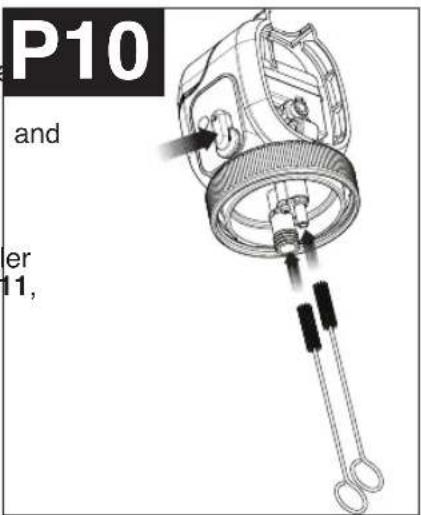

• Thoroughly clean the inside of the intake and return openings with the cleaning brush (figure P10).

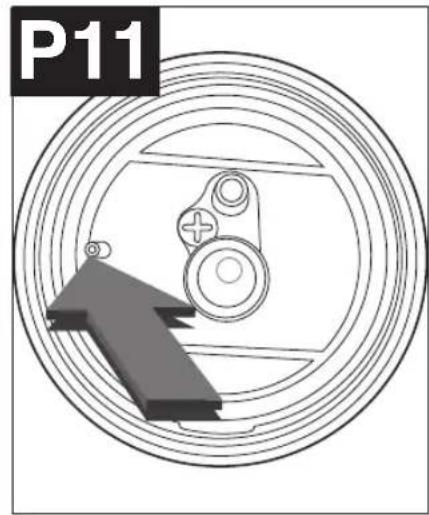

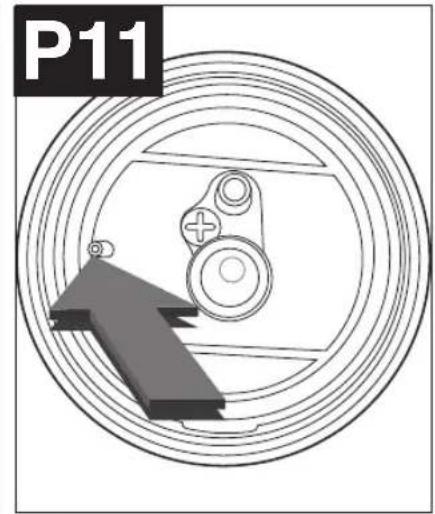

IMPORTANT: Also thoroughly clean the smaller vent hole, shown with an arrow in figure P11, with included cleaning pin.
• Dry all parts thoroughly.

Technical diagram of a mechanical assembly with concentric rings and a central gear-like component (no text or symbols)

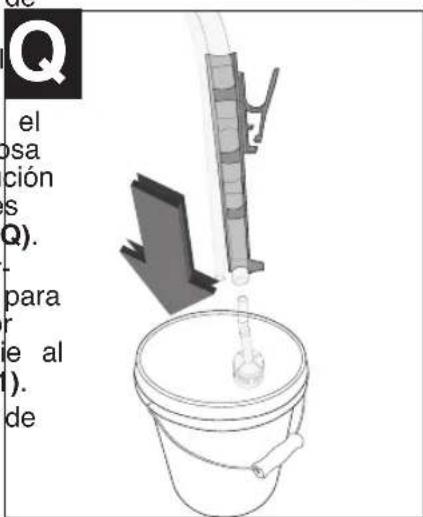

CLEANING THE DIRECT TO CAN HOSE:

• Unplug the sprayer from the power source.

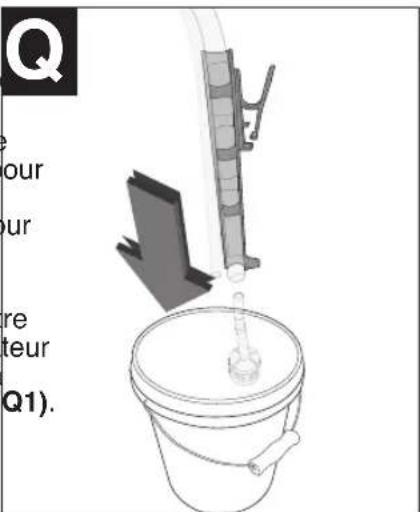

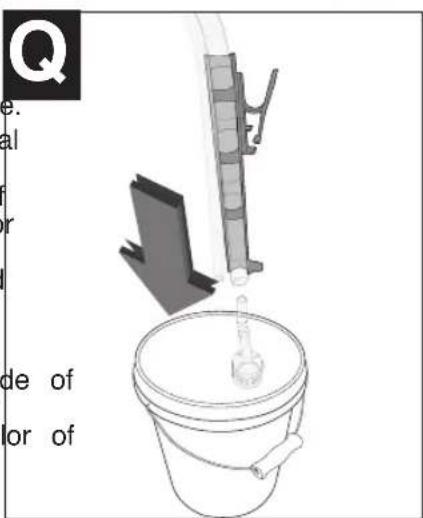

• Remove the suction tube from the material container and submerge into a bucket containing solvent appropriate to the type of material you sprayed (warm, soapy water for latex-based materials; manufacturers recommended cleaning solution for oil based materials (figure Q).

• Plug in sprayer. Point sprayer into the side of another waste container. Trigger the sprayer until the spray pattern turns to only the color of the cleaning solution (figure Q1).

Illustration of a hand using a spray gun to clean or paint the bucket (no text or symbols)

• Unplug the sprayer from the power source.

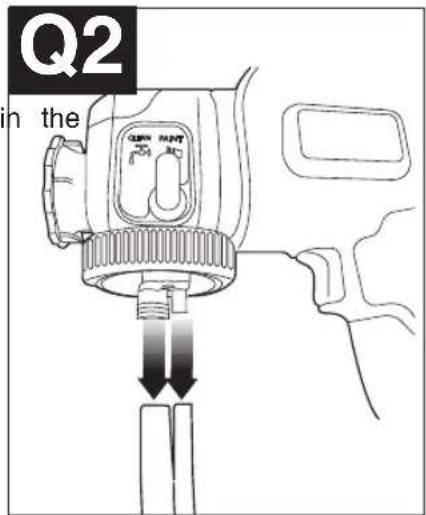

• Remove the tubing from the intake and return ports (figure Q2).
• Hold the tubing over the waste container and let any remaining liquid hose drain out.

REASSEMBLY

• Slide the spring onto the front of the piston (figure R).

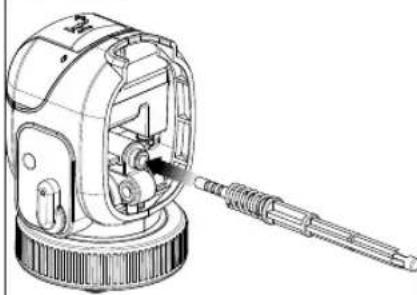

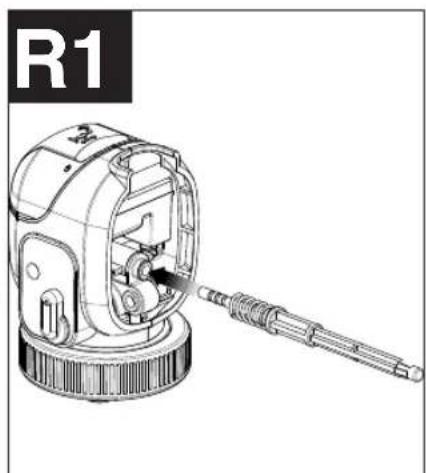

• Insert the piston and spring into the front housing (figure R1).

R

Diagram of a mechanical tool with a spring and shaft, showing motion direction (no text or symbols)

R1

Technical line drawing of a mechanical device with a shaft and housing (no text or symbols)

• Pressing down on the release button, insert the front housing with piston, into the sprayer until the release button pops into place (figure R2).
  NOTICE: The unit will not reassemble without the piston and spring in place.

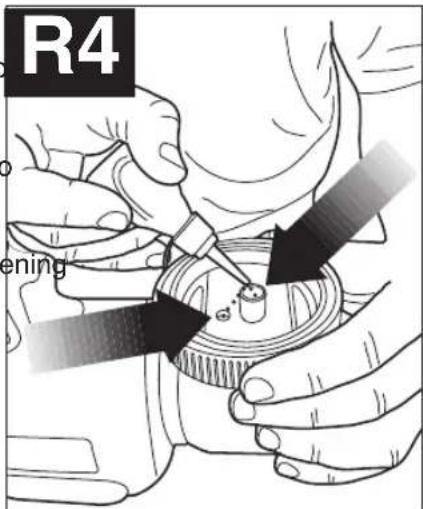

• Place a few drops of oil through the cy opening. Insert the atomizer valve into the housing. Thread the spray nozzle onto the housing and hand tighten (figure R3).
  • Using the oil lubricant provided, place a drops of oil down the intake and return op of the sprayer as shown in figure R4.
• Rotate the quick clean lever from paint to clean and back 3 times after oiling.

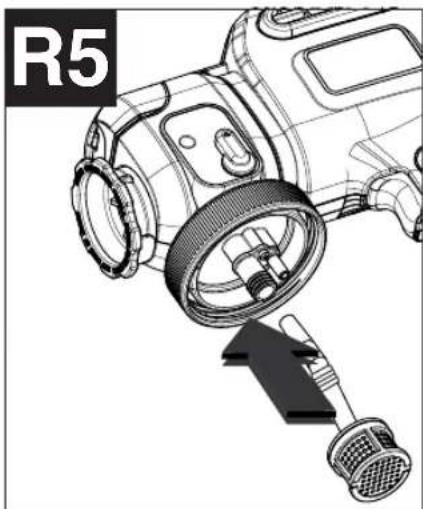

• Insert the pickup tube into the intake opening on the sprayer (figure R5).

R2

R3

Illustration of a hand adjusting a mechanical component with a gear and adjustment arrows (no text or symbols)

Technical line drawing of a camera with a sensor and adjustment knob (no text or symbols)

- Thread the canister back onto the sprayer (figure R6) making sure the tabs on the canister align with the tabs on the threaded collar. The side fill lid always be on the left side of the sprayer.

Technical line drawing of a camera module with no visible text or symbols

TROUBLESHOOTING

Problem Possible Cause Possible Solution

- Material runs or drips · Spraying too much material. · Reduce air flow by turning flow control knob.

• Spraying too slowly. • Increase speed of application.
• Spraying too close. • Increase distance from surface.
• Viscosity too thin. - Check dilution recommendation.

- Too much over spray. - Sprayer too far from surface. - Reduce distance to surface.

- Too much material being sprayed. - Reduce flow by turning flow co knob clockwise.

- Little or no material being released. - Spray nozzle/tip clogged. - Clean nozzles.

• Pickup tube loose or clogged. - Check tube.
• Flow control knob setting too low. • Increase flow control setting.
• Material too thick.

• Check viscosity recommendation.

• Material being sprayed is splattering. • Viscosity of material is too low. • Thin material per manufacturer

• Sprayer pulsates.
• Material in canister almost empty.
• Refill canister.
• Liquid comes out side of canister. - Lid not on square or tight enough. - Remove lid and reattach squarely and evenly, then tighten cap securely.
• Paint on threads of canister and lid. • Clean threads on top and sid canister and lid.
• Motor operates properly but does spray.
• Failure to prime with remote tubing.

• Thin spray material. Hold sprayer below level of spray material can. Oil intake opening.

• Loose or damaged suction tube. • Tighten or replace.

• Plugged or worn atomizer valve. - Clean or replace as needed.
• Atomizer valve missing.
• Put in atomizer valve.
• Material too thick.
• Thin material.
• Plugged spray tip.
• Clean tip.
• Intake filter plugged.
• Clean intake filter.
• Control knob needs adjusting. • Adjust knob.
• Worn piston.
• Clean and oil or replace

- Cannot reassemble unit. - Skipped an assembly step. - Insert spring and piston into the housing prior to reassembling.

- Press and hold the release button while reassembling.

For assistance with your product, visit our website www.blackanddecker.com for the location of service center nearest you or call the BLACK & DECKER help line at 1-800-544-6986.

MAINTENANCE

Use only mild soap and damp cloth to clean the power unit. Never let any liquid get inside the power immerse any part of the power unit into a liquid.

IMPORTANT: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment (other than those listed in this manual) should be performed by authorized service centers or other qualified service organizations, always using identical replacement parts.

ACCESSORIES

Recommended accessories for use with your product are available from your local dealer or authorized site center. If you need assistance regarding accessories, please call: 1-800-544-6986

WARNING: The use of any accessory not recommended for use with this product could be hazardous.

SERVICE INFORMATION

All Black & Decker Service Centers are staffed with trained personnel to provide customers with efficient and reliable power tool service. Whether you need technical advice, repair, or genuine factory replacement parts, conta & Decker location nearest you. To find your local service location, refer to the yellow page directory unc "Tools—Electric" or call: 1-800-544-6986 or visit www.blackanddecker.com

WARNING: Tool service must be performed only by qualified repair personnel.

WARNING: When servicing a tool, use only identical replacement parts.

WARRANTY

Full Two-Year Home Use Warranty

Black & Decker (U.S.) Inc. warrants this product for two years against any defects in material or work made defective product will be replaced or repaired at no charge in either of two ways.

The first, which will result in exchanges only, is to return the product to the retailer from whom it was (provided that the store is a participating retailer). Returns should be made within the time period of the retailer's policy for exchanges (usually 30 to 90 days after the sale). Proof of purchase may be required. Please check for their specific return policy regarding returns that are beyond the time set for exchanges.

The second option is to take or send the product (prepaid) to a Black & Decker owned or authorized Service Center for repair or replacement at our option. Proof of purchase may be required. Black & Decker owned and authorized Centers are listed under "Tools-Electric" in the yellow pages of the phone directory.

This warranty does not apply to accessories. This warranty gives you specific legal rights and you may rights which vary from state to state or province to province. Should you have any questions, contact the your nearest Black & Decker Service Center. This product is not intended for commercial use.

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, check country specific warranty information contained in the packaging, call the local company or see the warranty information.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-800-544-6986 for a free replacement.

Imported by Black & Decker (U.S.) Inc., 701 E. Joppa Rd. Towson, MD 21286 U.S.A.

See 'Tools-Electric' - Yellow Pages for Service & Sales

17

Line drawing of a bottle with a pipette and cap, no text or symbols present

18

Simple line drawing of a beaker with liquid level indicated by a dotted line and number 20 at the base (no text or symbols on the object itself)

Simple line drawing of a trash bin with label '21' pointing to the side (no text or symbols on the bin itself)

Diagram of a rope knot with a numbered label (22) pointing to the knot's end, no text or symbols present.

Pure diagram of a coiled wire with a numbered label '23' pointing to it (no text or symbols beyond the number)

Simple line drawing of a medical or surgical tool with a numbered label (24) and no text or symbols on the tool itself.

PRÉPARATION

AVERTISSEMENT

Technical line drawing of a mechanical device with a downward arrow indicating motion or force (no text or symbols)

PRÉPARATION DU PRODUIT LIQUIDE - (FIGURES E ET E1)

Line drawing of a person pouring liquid from a beaker into a container (no text or symbols)

Line drawing of a hand using a spray gun to shoot material from a surface, no text or symbols present

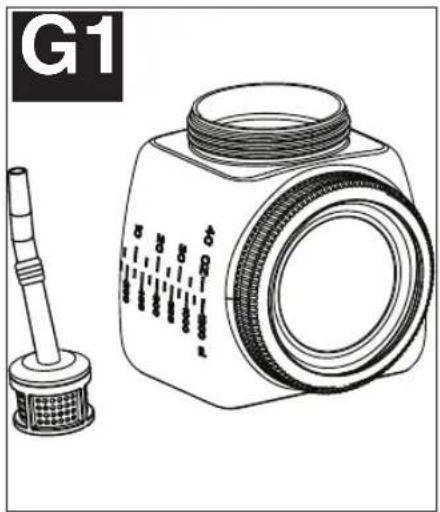

RÉGLAGE FACULTATIF AVEC LE TUBE DIRECTEMENT RELIÉ AU CONTENANT - BDPS60 SEULEMENT

Line drawing of hands using a handheld electric drill (no text or symbols)

Technical line drawing of a camera lens assembly with a cylindrical component and a separate inset showing its internal structure (no text or symbols)

Diagram of a mechanical device with internal components and a base component, no visible text or symbols

Line drawing of a bucket with a handle and internal structure, labeled 'G4' in the top-left corner (no other text or symbols)

Technical line drawing of a mechanical device with gear and housing (no text or symbols)

Technical line drawing of a surveying instrument (no text or symbols visible)

Technical illustration of a mechanical device with gear and housing (no text or symbols)

NETTOYAGE

Line drawing of a hand holding a digital camera with a scroll wheel (no text or symbols)

Line drawing of a person pouring liquid from a container into a machine (no text or symbols)

Illustration of hands using a mechanical tool to adjust a component (no text or symbols visible)

Line drawing of a handheld electric drill with screwdriver and trigger (no text or symbols)

Technical line drawing of a mechanical device with a handle and labeled part P9 (no text or symbols on the diagram itself)

Technical diagram of a mechanical assembly with concentric rings and a central gear mechanism (no text or symbols)

Line drawing of a hand using a spray gun to prevent a bucket filled with powder, labeled Q1 (no text or symbols on the diagram itself)

Technical line drawing of a mechanical device with a screwdriver inserted, labeled R1 (no text or symbols on the device itself)

Technical illustration of a mechanical device with a wrench and labeled component 'R5' (no readable text or symbols beyond label)

Line drawing of a camera module with a circular dial and a belt, no text or symbols present

DÉPANNAGE

Line drawing of a DSLR camera with lens and control lever (no text or symbols on the device itself)

Catálogo N°

BDPS400 y BDPS600

Visite www.BlackandDecker.com/NewOwner

Simple line drawing of a conical container with a pointed tip and a dotted line indicating depth (no text or symbols)

Illustration of a dropper bottle with a pipette and label number 18 (no text or symbols on the bottle itself)

Simple line drawing of a trash bin with label '21' at the bottom (no text or symbols on the bin itself)

Simple line drawing of a medical or surgical tool with a labeled point '24' (no text or symbols on the tool itself)

Diagram of a mechanical hook or spring with a numbered label (22) pointing to it, no text or symbols present.

INSTALACIÓN

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with a downward arrow indicating motion or force (no text or symbols present)

Line drawing of a person pouring liquid from a container into a beaker (no text or symbols)

Line drawing of a hand using a spray gun to shoot material from a surface, labeled F2 (no text or symbols on the diagram itself)

Line drawing of hands using a handheld electric shaver to adjust a component (no text or symbols present)

Technical line drawing of a camera lens assembly with a cylindrical connector and a separate inset showing internal components (no text or symbols)

Line drawing of a bucket with a handle and internal structure (no text or symbols)

Cross-sectional diagram of a mechanical device with internal components and a base component (no text or symbols)

AJUSTES DE CONTROL DE VELOCIDAD Y FLUJO

INTERRUPTOR DE CONTROL DE DOS VELOCIDADES (FIGURA H) (MODELO BDPS600 ÚNICAMENTE)

Technical illustration of a mechanical device with gear and housing (no text or symbols)

LIMPIEZA

Illustration of a person performing CPR on a patient's leg, pouring liquid from a cup into a bottle (no text or symbols)

Illustration of hands using a camera lens to adjust a component (no text or symbols)

Line drawing of a handheld electric shaver with a labeled part 'P7' (no text or symbols on the device itself)

Technical line drawing of a mechanical device with a handle and gear assembly (no text or symbols)

Technical diagram of a mechanical assembly with concentric rings and a central gear-like component (no text or symbols)

Line drawing of a hand using a spray gun to prevent a bucket filled with granular material (no text or symbols)

Diagram of a mechanical tool emitting a spring, with no visible text or symbols

Technical illustration of a mechanical device with a screwdriver inserted, labeled R1 (no text or symbols on the device itself)

Technical line drawing of a mechanical device with a highlighted component (no text or symbols)

Technical line drawing of a camera module with no visible text or symbols

Col. Fracc. Universidad

Chihuahua, Chihuahua

Tel. [phone]

Fernando González Armenta Bolivia No. 605

Col. Felipe Carrillo Puerto

Cd. Madero, Tampico

Tel. [phone]

Date of purchase · Fecha de compra Invoice No. · No. de factura
