KIN70MOD1XB - Range hood BERTAZZONI - Free user manual and instructions

Brand	Bertazzoni
Model	KIN70MOD1XB
Product type	Range hood
Width	70 cm
Minimum safety distance	650 mm (may vary depending on the cooktop)
Electrical supply	As per rating plate (mains voltage)
Electrical class	Class I (grounding required)
Duct diameter	Minimum 120 mm
Motor speeds	4 speeds (including an intensive one)
Lighting	Integrated LED, maximum intensity, replacement by after-sales service
Grease filters	Dishwasher-safe, every 2 months
Charcoal filter	Not washable, replace every 4 months
Filter saturation alarm	Yes (metal after 100h, charcoal after 200h)
Remote control	Yes, can be activated/deactivated
Material	Stainless steel (exterior parts)
Cleaning	Damp cloth and neutral detergent, avoid alcohol and silicone
Use	Domestic, removal of cooking odors
After-sales service	Contact Bertazzoni (https://fr.bertazzoni.com/customer-care)

Frequently Asked Questions - KIN70MOD1XB BERTAZZONI

What is the minimum safety distance between the cooktop and the hood?

The minimum distance is 650 mm. Check your cooktop's instructions, as a greater distance may be required.

How to clean the grease filters?

Grease filters should be cleaned every 2 months (more often with heavy use). They are dishwasher-safe. Use a neutral detergent.

When to replace the charcoal filter?

The charcoal filter is not washable and must be replaced every 4 months (or more often with heavy use). The alarm lights up after 200 hours of operation.

How to reset the filter alarm?

Press and hold the T3 button (motor and lights off) until the S1 LED flashes 3 times. This resets the saturation alarm.

Does the hood have a remote control?

Yes, the remote control is included. It can be activated or deactivated by pressing and holding the T4 button (when off). The LED flashes twice for activation, once for deactivation.

What to do if the LED lighting stops working?

The LEDs must be replaced by an authorized after-sales service. Contact Bertazzoni via their website: https://fr.bertazzoni.com/customer-care.

Can I use the hood with a gas cooktop?

Yes, but ensure the room is well ventilated. The negative pressure must not exceed 0.04 mbar to prevent backflow of combustion gases.

What type of duct should I use?

Use a pipe with a minimum diameter of 120 mm. The path should be as short as possible. Never connect the hood to a chimney flue used for combustion fumes.

How to clean the Comfort Panel?

The Comfort Panel is not dishwasher-safe. Clean it with a damp cloth and neutral liquid detergent, outside and inside. Do not use abrasive products.

What to do in case of fire under the hood?

Never flambé food under the hood. In case of fire, cut off the power supply and use an appropriate fire extinguisher. Deep fryers must be constantly monitored.

USER MANUAL KIN70MOD1XB BERTAZZONI

IT LIBRETTO DI USO
DE GEBRAUCHSANLEITUNG
EN USER MANUAL
FR MANUEL D'UTILISATION
NL GEBRUIKSAANWIJZING
ES MANUAL DE USO
DA BRUGSVEJLEDNING
FI KÄYTTÖOHJEET
NO BRUKSVEILEDNING
SV ANVÄNDNINGSHANDBOK
PL INSTRUKCJA UŻYTKOWANIA
AR المستخدم دليل

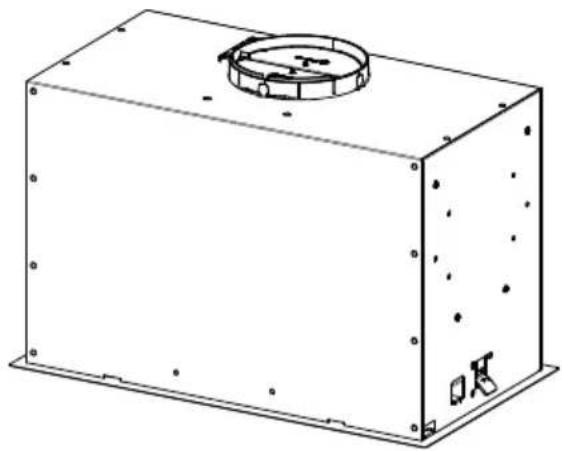

Technical line drawing of a rectangular industrial enclosure with a circular top fixture and mounting holes (no text or symbols)

IT 3
DE 9
EN 13
FR 18
NL 23
ES 28
DA 33
FI 38
NO 43
SV 47
PL 52
AR 56

IT

Illustration of a hand holding a tablet device with an arrow indicating the touch point (no text or symbols present)

Pulizia Comfort Panel

Illustration of a hand holding a tablet device with an arrow indicating the touch point (no text or symbols present)

For your own safety and to ensure proper operation of the appliance, please read this manual carefully before installation and operation. Keep these instructions together with the appliance, even if it is sold or transferred to third parties. It is important that users know all the appliance's operating and safety characteristics.

The cables must be connected by a trained technician.

• The manufacturer shall not be considered responsible for any injury or damage caused by improper installation or use.
• The minimum safety distance between the hob and the suction hood is 650 mm (some models may be fitted at a lower height; please see the paragraph relating to working dimensions and installation).
• If the instructions for installation of the gas hob specify a distance greater than the one indicated, this must be taken into account.
• Check that the mains power supply corresponds to the one indicated on the data plate affixed inside the hood.
• The cut-out devices must be installed in the fixed system according to wiring system regulations.
• For Class I appliances, check that the domestic power supply is adequately earthed.
• Connect the hood to the flue using a pipe with a minimum diameter of 120 mm. The fumes must travel the shortest distance possible.
• All the air venting regulations must be complied with.
• Do not connect the ducting hood to flues that also carry combustion fumes (e.g. boilers, chimneys, etc.).
• If the hood is used in combination with non electric appliances (e.g. gas appliances), a sufficient level of ventila-

tion must be guaranteed in the room to prevent any exhaust backflow. If the kitchen hood is used in combination with appliances that are not electrically powered, the negative pressure in the room must not exceed 0.04 mbar to avoid any risk of the fumes being sucked back into the room by the hood.

• The air must not be extracted through a flue that is also used as an exhaust flue for fumes from gas or other fuel powered combustion devices.
• If it is damaged, the power cable must be replaced by the manufacturer or by a service technician.
• Connect the plug to a socket that complies with current regulations and is in an accessible position.
• As regards the technical and safety measures to be taken for exhausting of fumes, it is important that the regulations set by local authorities be complied with scrupulously.

CAUTION: remove the protective films before installing the hood.

- Only use screws and hardware of a sort suitable for the hood.

CAUTION: failure to install the screws or fixing devices as described in these instructions may mean there is a risk of electric shocks.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambé food under the hood: you might cause a fire.

- This appliance may be used by children over the age of 8 years and by persons with limited psycho-physical and sensory abilities or with insufficient experience and knowledge, provided they are carefully supervised and instructed on how to use the appliance safely and on the dangers that it involves. Make sure that children are not allowed to play with the appliance. Cleaning and maintenance to be per-

formed by the user must not be carried out by children, unless they are under supervision.

• Supervise children, to make sure they do not play with the appliance.
• The appliance must not be used by persons (including children) with limited psycho-physical or sensory capacities or with insufficient experience and knowledge, unless they are carefully supervised and instructed.

Accessible parts may become extremely hot during the use of cooking appliances

• Clean and/or replace the filters after the period of time indicated (danger of fire). See the paragraph on Maintenance and cleaning.
• The room must be adequately ventilated when the hood is used simultaneously with appliances that use gas or other fuels (not applicable to appliances that only discharge air into the room).

- The symbol ☐ on the product or on its packaging indicates that the product must not be disposed of with the normal domestic waste. The product must be disposed of at a specialist recycling centre for electrical and electronic components. By making sure that this product is disposed of properly, you will help prevent possible negative consequences for the environment and for health that might result from its improper disposal. For more detailed information on how to recycle this product, please contact your local municipal offices, local waste disposal service or the shop in which the product was purchased.

- Range hoods and other cooking fume extractors may adversely affect the safe operation of appliances burning gas or other fuel (including those in other rooms) due to back flow of combustion gases. These gases can potentially result in carbon monoxide poisoning. After installation of a range hood or other cooking fume extractor,

the operation of flued gas appliances should be tested by a competent person to ensure that back flow of combustion gases does not occur.

2. USE

• The suction hood has been designed exclusively for domestic use, to eliminate kitchen odours.
• Never use the hood for purposes other than those for which it was designed.
• Never leave high flames under the hood when it is in operation.
• Adjust the intensity of the flame so that it is directed onto the bottom of the cooking pan, making sure it does not wrap around the sides.
• Deep-fryers must be kept under constant supervision when in use: the oil may catch fire if it gets too hot.

3. CLEANING AND MAINTENANCE

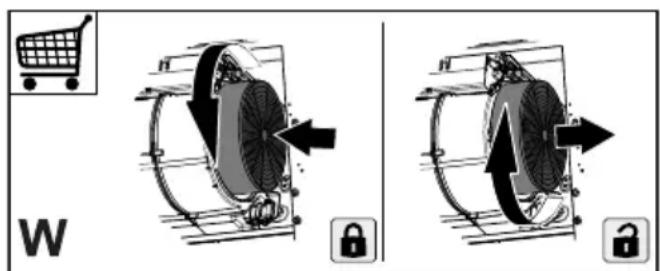

- The activated carbon filter is neither washable nor regenerable and must be replaced approximately every 4 months of operation or more frequently in case of very intense use (W).

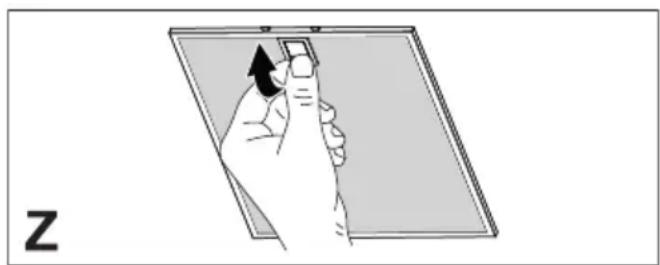

- The grease filters must be cleaned every 2 months of operation or more frequently in case of very intense use and can be washed in a dishwasher (Z).

Illustration of a hand holding a small object with an arrow indicating motion (no text or symbols)

• Clean the hood using a damp cloth and a neutral liquid detergent.
• For external and internal cleaning of the hood avoid alcoholic or silicone products.

If the product or one of its parts is made of stainless steel, use specific non-abrasive products for cleaning and follow the lines of the satin finish during cleaning.

Comfort Panel Cleaning

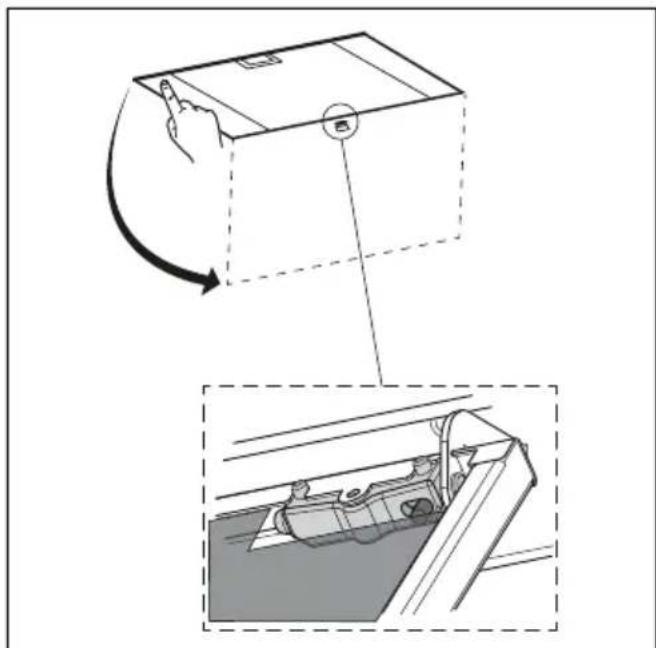

• Open the Comfort Panel by pulling it.
• Detach the panel from the hood body by sliding the dedicated lever of the fixing pin.
  • The comfort panel must never be washed in the dishwasher.
• Clean it externally with a damp cloth and neutral liquid detergent.
• Also clean it internally using a damp cloth and neutral detergent; do not use wet cloths, sponges or jets of water; do not use abrasive substances.
• When the operation is completed, reattach the panel to the hood body and close it again.

4. CONTROLS

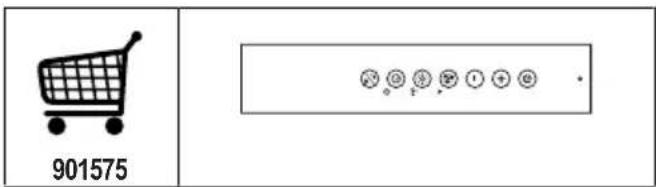

						[S1]
Key Key	press Function		LED
L	Short Switches the lights on/off at maximum intensity. -
T1	Short Turns the motor on/off at the first speed. Fixed
T2	Short Turns the motor on at the second speed. Fixed
	Long press with all loads off (motor and lights)	Activates/Deactivates the Activated Carbon Filters alarm.This function is activated/deactivated when the key is released.				LED flashes twice:alarm activated.LED flashes once:alarm deactivated.
T3	Short Turns the motor on at the third speed. Fixed
	Long press with all loads off (motor and lights)	The Filter saturation alarm is reset.This function is activated/deactivated when the key is released.				LED S1 flashes 3 times.
T4	Short	Turns the motor on at the Intensive speed.This speed is timed for 6 minutes. At the end of this time, the system automatically returns to the previously selected speed. If activated with the motor off, once the time has passed it switches to OFF mode.It is deactivated by pressing the same key or by switching off the motor.				Fixed
	Long Activates/Dea	activates the remote control.This function is activated/deactivated when the key is released.				The LED flashes twice:remote control activated.The LED flashes once:remote control deactivated.
S1	-	Signals the saturated Metal Grease Filters alarm and the need to wash them. The alarm is activated after 100 hours of effective hood operation.				Fixed
	-	Signals the Activated Charcoal Odour Filter saturation alarm.The alarm is activated after 200 hours of effective hood operation.				Flashing

5. REMOTE CONTROL (OPTIONAL)

exempt from risk group under IEC/EN62471 at a distance of 30cm.

6. LIGHTING

• Please contact the Service Department to change it ("Please contact the service department to purchase it").
  • Lamps in risk group 1 under IEC/EN62471 at a distance of 20cm and in

Bertazzoni is committed to providing the highest quality service to our customers. In the unlikely event that your product should have a manufacturing defect, please contact our service team at:

https://uk.bertazzoni.com/more/care-service

You will be requested to provide product information, proof of purchase, a photo of the silver data label and a description of the issue. Please have this information ready.
