Product Type	Range Hood
Brand	Bertazzoni
Model	KR70HER1ADA
Width	70 cm
Connection Diameter	120 mm
Power Supply Voltage	220-240 V ~ 50 Hz
Insulation Class	Class I
Number of Speeds	3 + intensive (timed 6 min)
Delay Function	Yes (delayed shutdown 30 min)
24h Function	Yes (suction 10 min/h for 24h)
Remote Control	Yes (battery CR2032 not supplied)
Lighting	LED, adjustable intensity
Grease Filters	Metal, dishwasher safe (every 2 months)
Charcoal Filter	Replace every 4 months (not washable)
Filter Saturation Alarm	Yes (LED S1): 100 h for grease, 200 h for charcoal
Minimum Safety Distance	650 mm above cooking surface
Usage	Domestic only
Installation Type	External evacuation or recirculation (with charcoal filter)
Remote Control Power	3V CR2032 battery (not included)

Frequently Asked Questions - KR70HER1ADA BERTAZZONI

What is the safety distance between the hood and the cooking surface?

The minimum safety distance is 650 mm between the cooking surface and the hood. Also check your gas cooker instructions if they specify a greater distance.

How to clean the grease filters?

Metal grease filters should be cleaned every 2 months (or more often with heavy use). They are dishwasher safe or can be hand washed with mild detergent. Make sure they are completely dry before reinstalling.

How often to replace the charcoal filter?

The activated charcoal filter cannot be washed and should be replaced approximately every 4 months, or more often if you cook a lot. This filter is required in recirculation mode.

How to use the delay function?

Press the T2 button for about 3 seconds to activate the Delay function. The hood will automatically shut off after 30 minutes. A blinking LED T2 indicates it is active.

How to activate the 24h function?

Hold the T1 button pressed for about 2 seconds. The motor will run at first speed for 10 minutes every hour over a 24-hour cycle. The function does not activate if Intensive or Delay mode is running.

What does the blinking LED S1 mean?

A steady LED S1 indicates the grease filters need cleaning (100 hours of operation). If it blinks, it signals that the charcoal filter needs replacement (200 hours); also clean the grease filters.

How to reset the filter alarm?

With motor and lighting off, press and hold the T3 button for about 3 seconds. The LED S1 will blink 3 times to confirm reset.

What type of battery for the remote control?

The remote control uses a 3V CR2032 battery (not included). Insert it respecting polarity. Do not discard used batteries in nature.

How to replace the LED lighting?

The LED lighting is integrated. For replacement, contact the authorized Bertazzoni After-Sales Service. Do not attempt to replace it yourself.

Can I use the hood without external evacuation?

Yes, in recirculation mode. You must install an activated charcoal filter (not supplied) which absorbs odors. In this case, air is returned to the room.

USER MANUAL KR70HER1ADA BERTAZZONI

Technical line drawing of a multi-tiered industrial chimney or duct structure (no text or symbols)

IT 3
DE 8
EN 13
FR 18
NL 23
ES 28
DA 33
FI 38
NO 43
SV 48
PL 53

Illustration of a hand interacting with a small electronic device on a tablet screen (no text or symbols)

Close-up of a black remote control with eight function buttons (power, refresh, alarm, clock, plus, minus) arranged in a grid on a dark surface.

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols)

3D diagram of a mechanical assembly with a tool inserted into a component, no text or symbols present

Black remote control device with six circular buttons arranged in a grid (no text or symbols visible)

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

• Regulations concerning the discharge of air have to be fulfilled.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.
• Connect the plug to a socket complying with current regulations, located in an accessible place.
• With regards to the technical and safety measures to be adopted for fume discharging

it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the protective films.

- Use only screws and small parts in support of the hood.

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambè under the range hood; risk of fire.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.

- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack

of experience and knowledge, unless they have been given supervision or instruction.

Accessible parts may become hot when used with cooking appliances.

- Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.

- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop

where you purchased the product.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

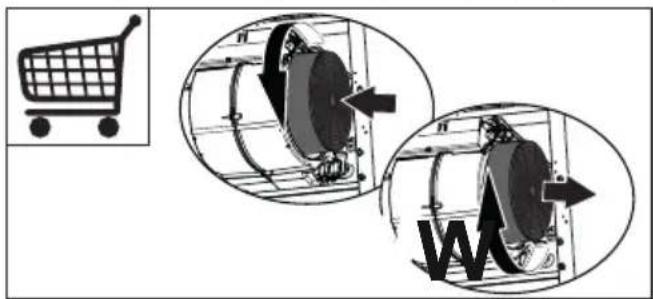

- The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

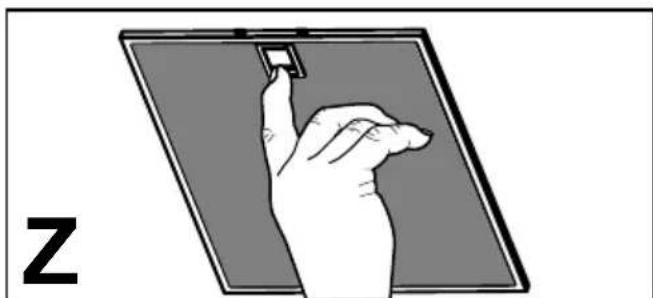

- The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

Illustration of a hand interacting with a device on a flat surface, labeled 'Z' (no text or symbols on the diagram itself)

- Clean the hood using a damp cloth and a neutral liquid detergent.

4. CONTROLS

Button	Led Function
L - Turns the lights ON/OFF at maximum strength.
- Press and hold for 2sec to turn the Hood lights On/Off at reduced intensity.
T1 Fixed Turns the motor on/off at speed one.
Flashing 24h function:Press and hold the button for approx. 2 seconds to Activate/Deactivate the motor in 24h Air Circulation mode, a speed that allows ducting for 10 minutes every hour, for a 24 hour cycle. Cannot be activated if Intensive or Delay modes are active.
T2 Fixed Turns the Motor on at speed two.
T3 Fixed Turns the Motor on at speed three.
T4	Fixed	Turns the Motor on at Intensive.Speed.This speed is timed to run for 6 minutes. At the end of this time, the system returns automatically to the speed that was set before. If it is activated with the motor turned off, the hood will switch to OFF at the end of the time.
	Flashing	Press and hold the button for approximately 2 seconds, with all the loads turned off (Motor and Lights), to turn the Activated Charcoal Filter alarm on. The 4 LEDs on the buttons flash twice to confirm.To turn the alarm off, press the button again and hold for at least 2 seconds. The 4 LEDs on the buttons flash once.
S1	Fixed	Signals the Metal Grease Filter saturation alarm, indicating that it is necessary to wash the filters. The alarm is triggered after the Hood has been in operation for 100 working hours.
	Flashing	When this is activated, it signals the Activated Charcoal Filter saturation alarm, indicating that the filter must be changed; the Metal Grease Filters must also be washed. The Activated Charcoal Filter saturation alarm comes into operation after the Hood has been working for 200 hours.

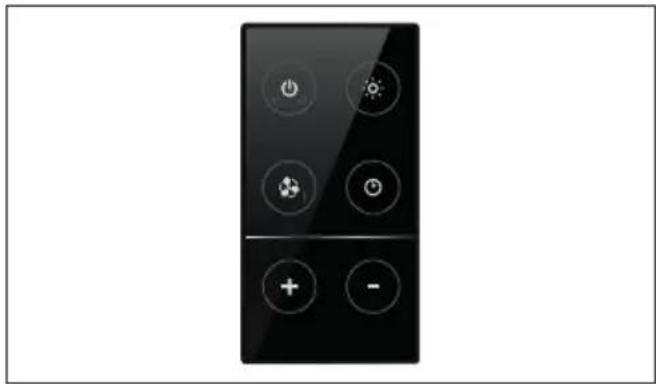

5. REMOTE CONTROL

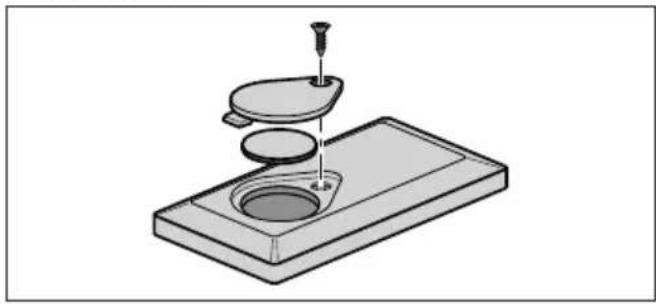

The remote control is powered by a CR2032 type 3 V battery (not included).

• Do not place the remote control near heat sources.
• Do not discard the batteries with normal waste, they must be put into the specific containers.

3D illustration of a mechanical assembly with a tool inserted into a component, no text or symbols present

Black remote control device with six function buttons (no text or symbols visible)

		Turns the motor On and Off.
		-
		-
		Turns the lights On/Off.
		Press and hold for 2sec to turn the Hood lights On/Off at reduced intensity.
		Activates/Deactivates Intensive operation.
		Brief pressure: Activates/Deactivates the Delay function: automatic switch-off with a 30' delay. The display shows the operating speed and the dot at the bottom right flashes once a second. Press for 2 seconds: Activates/Deactivates the 24h function: turns the suction motor on at speed one and effects one 10 minute extraction every hour. The display shows the number 24 and the dot at the bottom right flashes once a second.
+		Increases the working speed of the motor.
		Decreases the working speed of the motor.

6. LIGHTING

- For replacement contact technical support ("To purchase contact technical support").

FR

1. CONSIGNES DE SÉCURITÉ

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols)

3D diagram of a mechanical assembly with a tool inserted into a component, no text or symbols present

Black remote control device with six circular buttons arranged in a grid (no text or symbols visible)

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols)

3D diagram of a mechanical assembly with a tool inserted into a component, showing no text or symbols.

Black remote control device with six circular buttons arranged in a grid (no text or symbols visible)

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols)

3D diagram of a mechanical assembly with a tool inserted into a component, no text or symbols present

Black remote control device with six circular buttons arranged in a grid (no text or symbols visible)

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols)

3D diagram of a mechanical assembly with a central component and two circular components, no text or symbols present.

Black remote control device with six buttons arranged in a grid (no text or symbols visible)

Illustration of a hand interacting with a small electronic device on a tablet screen (no text or symbols)

3D illustration of a mechanical assembly with a tool inserted into a component, no text or symbols present

Illustration of a hand holding a small object on a flat surface, with letter 'Z' in the corner (no text or symbols on the diagram itself)

3D illustration of a mechanical assembly with a tool inserted into a component, no text or symbols present

	∅	Slår motoren på og av.
	↓↑	-
	%	-
		Slår belysningen på/av.
		Trykk i 2 sekunder: Dempet belysning slås på eller av.
	∅	Aktiverer/deaktiverer den intensive hastigheten.
	∅	Raskt trykk: Aktiverer/deaktiverer Delay-funksjonen: den automatiske slukkingen med en forsinkelse på 30 minutter. På displayet vises driftshastigheten. Punktet nede til høyre på displayet blinker en gang i sekundet.Trykk på knappen i 2 sekunder for å aktivere/deaktivere 24h-funksjonen: Slår motoren på ved den første hastigheten og tillater en utsug-ing i 10 minutter pr. time. På displayet vises tallet 24. Punktet nede til høyre på displayet blinker en gang i sekundet.
+		∅ker motorens driftshastighet.
-		Reduserer motorens driftshastighet.

6. BELYSNING

- Kontakt kundeservice for utbytting ("Kontakt kundeservice for kjøp").
