Product Type	Sandwich maker / Grill
Brand / Model	Eta / Kvadro 4153 90000
Dimensions (W x D x H)	235 x 245 x 87 mm
Weight	1.4 kg
Power Supply	220–240 V, 50–60 Hz (see type label for exact wattage)
Power Consumption	Approx. 900 W (typical for sandwich makers)
Protection Class	I (grounded plug)
Heating Plates	Non-stick coated, square cutouts
Signaling Lights	Red (power) and green (temperature ready)
Locking Clip	Yes, secures lid during operation
Handle	Plastic, heat-resistant
Cord Length	Not specified; typical length ~0.8 m
Material	Plastic housing, metal heating plates
Cleaning	Wipe with damp cloth; do not immerse in water
Safety Features	Auto-off thermostat, hot surface warning, non-slip feet
Intended Use	Household only; not for commercial use
Warranty	Standard manufacturer warranty (check certificate)

Frequently Asked Questions - Kvadro 4153 90000 Eta

Why does the appliance produce smoke when first used?

A small amount of smoke during initial use is normal. It results from heating residue on the plates. Operate the appliance open for about 10 minutes in a well-ventilated area, then let it cool and wipe the plates.

How do I clean the sandwich maker?

Unplug the appliance and let it cool. Wipe the plates and housing with a soft, damp cloth. Do not use abrasive cleaners, steel wool, or immerse in water. Never use a dishwasher.

What do the indicator lights mean?

A red light indicates the appliance is connected to power. A green light turns on while heating and goes off when the operating temperature is reached. The green light cycles on/off during cooking as the thermostat maintains temperature.

Can I cook other foods besides sandwiches?

Yes, you can grill vegetables, meat, or other foods suitable for a contact grill. However, the appliance is designed primarily for sandwiches and should not be overloaded.

How do I lock the lid?

Close the lid and press the locking clip (A4) until it clicks. Do not use excessive force. The lock keeps the lid closed during cooking.

Why is the green light blinking?

The green light blinks or turns on/off to indicate that the thermostat is maintaining the correct cooking temperature. This is normal operation.

Can I use metal utensils on the plates?

No, metal utensils can scratch the non-stick coating. Use wooden, silicone, or plastic utensils to preserve the coating.

The appliance is not heating up. What should I do?

Ensure the power cord is fully plugged into a working outlet. Check that the red power light is on. If not, try a different outlet. If still not heating, contact customer service.

Is the sandwich maker dishwasher safe?

No, never immerse the appliance or any part in water or a dishwasher. Only wipe with a damp cloth after cooling.

How do I store the appliance?

Ensure the appliance is cool and clean. Wrap the cord loosely around the base or in a storage compartment if available. Store in a dry place away from children.

USER MANUAL Kvadro 4153 90000 Eta

Sandwich make • INSTRUCTIONS FOR USE

13-16

White rectangular kitchen grater with square cutouts and a black handle, no visible text or symbols on the device itself.

CZ I. BEZPEČNOSTNÍ UPOZORNĚNÍ 3

II. POPIS SPOTŘEBIČE (obr. 1) 5

III. PŘÍPRAVA K POUŽITÍ 5

IV. POKYNY K OBSLUZE 5

V. ÚDRŽBA 6

VI. EKOLOGIE 6

VII. TECHNICKÁ DATA 7

SK I. BEZPEČNOSTNÉ UPOZORNENIA 8

II. OPIS SPOTREBIČA (obr. 1) 10

III. PRÍPRAVA NA POUŽITIE 10

IV. POKYNY NA OBSLUHU 10

V. ÚDRŽBA 11

VI. EKOLÓGIA 12

VII. TECHNICKÉ ÚDAJE 12

GB I. SAFETY WARNING 13

II. DESCRIPTION OF THE APPLIANCE (Fig. 1) 14

III. PREPARATION FOR USE 15

IV. INSTRUCTIONS FOR USE 15

V. MAINTENANCE 16

VI. ENVIRONMENT 16

VII. TECHNICAL DATA 16

HU I. BIZTONSÁGI ELŐÍRÁSOK 17

III. PŘÍPRAVA K POUŽITÍ

III. PRÍPRAVA NA POUŽITIE

Dear customer, thank you for buying our product. Before putting the appliance into operation, read carefully these instructions for use and store this manual properly together with the certificate of warranty, a cash voucher and possibly with the package and the internal contents of the package.

I. SAFETY WARNING

GENERAL PROVISIONS:

- Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.

- Check whether the data on the type label correspond with the voltage in your socket. The power cord plug has to be connected to the properly connected and grounded socket according to the national standard.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children younger than 8 years must be kept out of reach of the appliance and its power cord.

- Before replacing accessories or accessible parts, before assembly and disassembly, before cleaning or maintenance, turn off the appliance and disconnect it from the mains by pulling the power cord from the power socket!

- Please handle the appliance with care so as to avoid injuries (e.g. burns, scalding).

- CAUTION - Do not use the appliance with a program, time switch or any other part that turns the appliance on automatically as there is a risk of fire if the appliance is not covered or placed properly.

- NOTICE - Some parts of this product may become very hot and cause burns. Take special care when children or handicapped persons are present.

- When the appliance is in operation, prevent pets, plants or insects to get in contact with it.

- Do not plug the fork of the supply cord into the power outlet and do not unplug the cord with wet hands or by pulling by the supply cord!

- When the appliance is switched on for the first time, short and slight smoke can come out that does not mean any defect and it is not a reason for claiming a defect of the appliance.

- Do not place the appliance on unstable, fragile or flammable surfaces (e.g. glass, paper, plastic, wooden varnished boards and various fabric/table cloths).

- With regards to fire safety, the appliance complies with EN 60 335–2–6. Within the intention of the standard, this appliance can be operated on a table or on a similar surface while safe distance must be maintained from flammable materials of at least 500 mm in the direction of the main heat radiation and 100 mm in the other directions.

• Use this appliance only for the purpose for which it was designed as specified in this user's manual. Never use the appliance for any other purpose.
• The producer does not undertake any responsibility for damage caused by improper use of the appliance (e.g. deterioration of food, injury, burning, scalding, fire, etc.) and its guarantee does not cover the appliance in the case of failure to comply with the safety warning above.

USE OF THE APPLIANCE:

• The appliance is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!
• Never immerse the appliance into water (even its parts)!
• The appliance must not be used in damp or wet environment and in any environment with the danger of fire or explosion (spaces where chemicals, fuels, oils, gases, paints and other flammable or volatile materials are stored).
• When handling the appliance, use the handle.
• Use the appliance in the working position only at places with no risk of turning over and in sufficient distance from heat sources (e.g. heater, stove, cooker, oven, grill), flammable objects (e.g. curtains, drapes, etc.) and wet surfaces (e.g. sinks, wash basins, etc.).
• Spontaneous ignition of prepared food may occur during grilling. Unplug the appliance from the mains and put out the fire in case of sudden ignition.
• In order to ensure safety and proper function of the appliance, use only original spare parts and accessories approved by the manufacturer.

POWER CORD:

• If the power cord of the appliance is corrupted, it has to be replaced by the manufacturer, its service technician or a similarly qualified person so as to prevent dangerous situations.
• Never use the appliance if its power cord or plug is damaged, if it does not work properly, if it fell down and was damaged or if it fell to water. In this case take the appliance to a special service to check its safety and proper function.
• Never put the power cord on hot surfaces or do not let it hang over the edge of a table or a work top. Plugging or pulling the power cord e.g. by children can result in tilting over or drawing the appliance down and serious injury!
• The power cord must not be damaged with sharp or hot objects, open fire, it must not be sunk into water or bent over sharp edges.

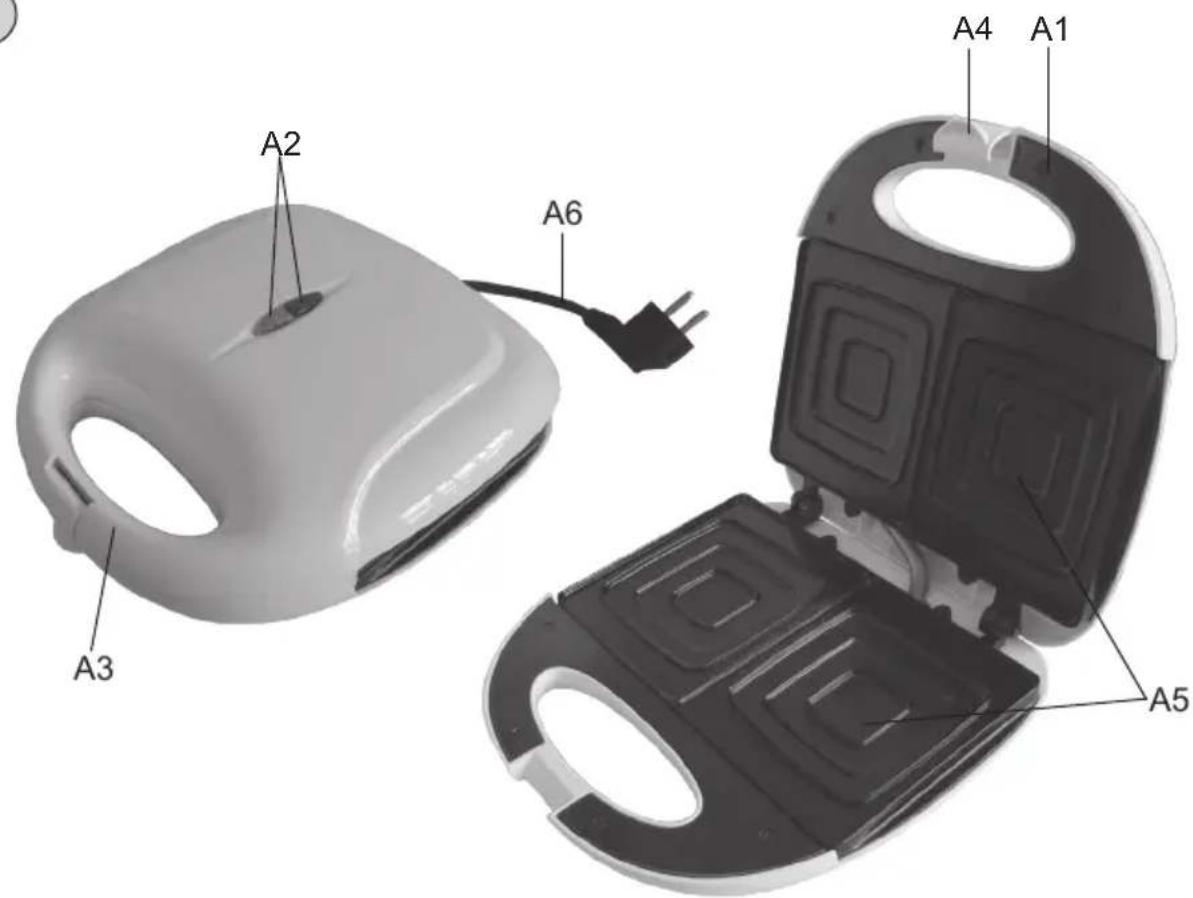

II. DESCRIPTION OF THE APPLIANCE (Fig. 1)

A1 – hinged lid A4 – lock (locking clip)

A2 – signaling lights A5 – plates

A3 – handle A6 – power cord

1

III. PREPARATION FOR USE

Remove all the packing material and take out the toaster. Remove all possible adhesion foils, stick-on labels or paper from the toaster. After the first putting into operation and let an „open“ toaster in operation with a window open for about 10 minutes, then turn it off and let it cool down.

IV. INSTRUCTIONS FOR USE

Plug the power cord connector A6 to an electric socket. The socket must be readily accessible so that the appliance could be easily disconnected from the mains in case of danger. Now the appliance is ready for use. A red and green signaling light A2 will come on, signaling connection to electric power supply. The plates will start to heat. When the operating temperature is reached, the green signaling light A2 will come OFF. When the appliance is used for the first time, short and slight smoke may occur which does not mean any defect. Open the lock A4 and lift off the lid A1 using the handle A3. Put the prepared food on the bottom plate A5, close the lid and secure it with the lock A4. Do not close the lid by excessive force! During preparation of food, the green signaling light will come on and off which means that the thermostat keeps the proper temperature.

V. MAINTENANCE

Unplug the appliance from power supply! Clean the toaster only when it has cooled down! Clean the appliance regularly after each use. Do not use rough and aggressive detergents (e.g. sharp objects, peelers, caustic agents for cleaning ovens, or other solvents). Do not use any pressure-cleaning appliance (e.g. dishwasher, WAP, steam cleaners)! For cleaning the cover, use detergents for cleaning plastic surfaces. Clean the surface by wiping it with a soft and wet cloth. It is normal that the colour of the surface changes in the course of time. This change does not change the features of the surface in any way and thus is not a reason for sales return of the appliance! - Do not immerse the appliance or the cord in water or any other liquid.

VI. ENVIRONMENT

If the dimensions allow, there are marks of materials used for production of packing, components and accessories as well as their recycling on all parts. The symbols specified on the product or in the accompanying documentation mean that the used electrical or electronic products must not be disposed of together with municipal waste. For proper disposal, hand them over at the special collection places where they will be accepted free of charge. Suitable disposal of the product can help to maintain valuable natural resources and to prevent possible negative impacts on the environment and human health, which could be the possible consequences of improper waste disposal. Ask for more details at the local authority or at a collection site. Fines can be imposed for improper disposal of this type of waste in agreement with the national regulations. If the appliance is to be put out of operation, after disconnecting it from power supply we recommend its cutoff and in this way it will not be possible to use the appliance again.

More extensive maintenance or maintenance requiring intervention in the inner parts of the appliance must be carried out by professional service! Failure to comply with the instructions of the manufacturer will lead to expiration of the right to guarantee repair!

VII. TECHNICAL DATA

Voltage (V) shown on the type label of the appliance Input (W) shown on the type label of the appliance Weight about (kg) 1.4 Protection class of the appliance I. Size of the product (mm) 235 x 245 x 87

WARNINGS AND SYMBOLS USED ON THE APPLIANCE, PACKAGING OR IN THE INSTRUCTIONS MANUAL:

HOT. DO NOT COVER. HOUSEHOLD USE ONLY. CAUTION: BE CAREFUL OF STEAM. DO NOT IMMERSE IN WATER OR OTHER LIQUIDS.

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

NOTICE

WARNING: HOT SURFACE
