FGS-2400 - Compost Grinder Ferm - Free user manual and instructions

Product Type	Compost Shredder
Brand	Ferm
Model	FGS-2400
Power Source	Electric (mains)
Motor Power	2400 W
Voltage	230 V ~ 50 Hz
No Load Speed	4500 rpm
Cutting System	Impact plate with reversible blades
Max Branch Thickness	40 mm
Collection Box Capacity	50 L
Weight	20 kg
Dimensions (L x W x H)	600 x 400 x 900 mm
Safety Features	Overload protection, safety switch, automatic shut-off
Housing Material	Heavy-duty plastic and steel
Blade Material	Hardened steel
Noise Level	95 dB(A)
Vibration Level	< 2.5 m/s²
Maintenance	Sharpen blades periodically; clean after each use
Warranty	2 years

Frequently Asked Questions - FGS-2400 Ferm

How do I assemble the Ferm FGS-2400 compost shredder?

All parts are pre-assembled. Simply attach the collection box, hopper, and push stick. Refer to the manual for detailed steps.

What materials can I shred?

You can shred branches up to 40 mm thick, leaves, garden waste, and soft organic material. Do not shred metal, stones, or wet grass.

How do I start the shredder?

Ensure the safety switch is on (green). Press and hold the start button for 1 second. The motor will start. Release the button once running.

What should I do if the shredder jams?

Turn off and unplug the shredder. Open the housing and remove the jammed material manually. Use the included push stick to clear blockages.

How often should I sharpen the blades?

Sharpen the blades after approximately 10 hours of use or when shredding performance declines. Use a fine file or sharpening stone.

Can I use an extension cord?

Yes, but use a heavy-duty outdoor extension cord with a minimum cross-section of 1.5 mm² and a maximum length of 30 m.

Why does the shredder stop suddenly?

The overload protection may have activated. Let the motor cool for 10 minutes, then press the reset button (if present) or restart.

How do I clean the shredder?

After use, unplug and let all parts cool. Remove debris from the blades and housing using a brush. Do not use water; wipe with a damp cloth.

What safety gear should I wear?

Always wear safety goggles, hearing protection, gloves, and sturdy shoes. Avoid loose clothing and tie back long hair.

How do I store the shredder?

Store indoors in a dry, frost-free place. Keep the hopper covered to prevent debris accumulation. Store the push stick separately.

USER MANUAL FGS-2400 Ferm

Exterior view of a gray industrial vacuum cleaner with black wheels and mounting bracket (no visible text or symbols)

www.ferm.com

Fig. 1

Fig. 3

Line drawing of a device with rotating arm and base, no text or symbols present

Fig. 2

Technical line drawing of a mechanical device with two wheels and a handle (no text or symbols)

Fig. 4
2 Ferm

Ferm 63

GARDEN SHREDDER FGS-2400

TECHNICAL SPECIFICATIONS

Artnr. GSM 1001

Voltage 230 V

Frequency 50 Hz

Power S6 2400 W (40%)

No load speed 2880/min

Max. capacity ∅ 40 mm

Feeding capacity 120 kg/h

Weight 23.5 kg

Sound power level 107 dB(A)

IP Class IPX 4

The numbers in the following text are correspond-

ding with the pictures at page 2

PRODUCT INFORMATION

Figure 1

1. Inlet

2. Cover securing knob

3. On/off switch

4. Power connection

5. Lce

6. Election port

7. Housing

CONTENTS OF PACKING

I Main body

| Leg

4 Bolcs

4 Washers

4 Spring washers

1 Axle

Large spacer

1 Large spacer 2 Small spacers

2 Small spacers 3 Washers

2 Washers 3 Sails pine

2 Split pins

2 Wheels

2 Wheel caps

I Allen key

1 Operating instruction

I safety instruction

I Warranty card

Check the machine, loose parts and accessories for

transport damage.

EXPLANATION OF SYMBOLS

Read operator's manual

Danger - Rotating blades. Keep hands and feet out of openings while machine is running.

Keep bystanders away

The blades will continue to rotate after

the machine has been switched off.

Beware of objects being flung out.

Wear eye and ear protection

Sound power level

Remove the plug from the wall socket before

carrying out any kind of maintenance.

SAFETY INSTRUCTIONS

Please read these instructions carefully and thoroughly before using this appliance and keep them for future reference. It is very important that you understand how to use this appliance safely so please take the time to familiarise yourself with the requirements as outlined in these instructions.

If you are in any doubt what so ever about using this appliance, we strongly recommend that you employ the services of a suitably qualified person.

- Keep children and pets well away from the work area and never allow children to use this appliance or touch the main power cord or extension cord at any time. When not in use, keep this appliance stored in a safe place out of reach of children.

- Wear ear protection and safety glasses at all times while operating the machine

- Only operate the machine in open space (e.g. not close to a wall or other fixed object) and on a firm, level surface.

- Do not operate the machine on a paved or gravel surface where ejected material could cause injury.

- Before starting the machine, check that all screws, nuts, bolts, and other fasteners are properly secured and that guards and screens are in place. Replace damaged or unreadable labels.

- Only use a waterproof, fully unwound extension cable suitable for outdoor use.

• This appliance is for outdoor use only

- Do not expose this appliance to rain.

- Keep the work area well lit.

• Never leave the appliance unattended.

- Do not use the appliance in an area where it could cause an explosion or fire - keep it away from flammable liquids and gases.

- Dress sensibly for the job in hand - no loose clothing that could get caught in the moving parts of the appliance.

• Always wear safety goggles and a dust mask when using this appliance.

• Always wear heavy-duty outdoor gloves when using the appliance.

• Pull long hair back out of the way and wear a protective hat.

- Guard against electric shock - prevent body contact with earthed or grounded surfaces i.e. metal gates, posts or other metal objects in the work area.

- Never pull the appliance by its power cord. Wheel it or carry it with two hands.

- Do not allow the power cord to lay on or across sharp objects that might pierce the outer insulation. Carry out a visual inspection of the power cord before use and if it is damaged, have it replaced by a specialist service centre. Do not use the appliance if the cord is damaged.

- Keep the power cord away from heat, frost, oil, solvents or any sharp objects or edges.

Do not use this appliance if you are on strong medication, unwell or have been drinking alcohol.

ELECTRICAL INFORMATION

Check that the mains power supply corresponds to the voltage printed on the appliance rating plate.

IF IN DOUBT CONSULT A QUALIFIED ELECTRICIAN

All electrical connections e.g. extension cable, must be of an approved waterproof type for outdoor use and marked accordingly. Extension cables must be three-core, one of which is EARTH.

Always fully unwind extension cables before use.

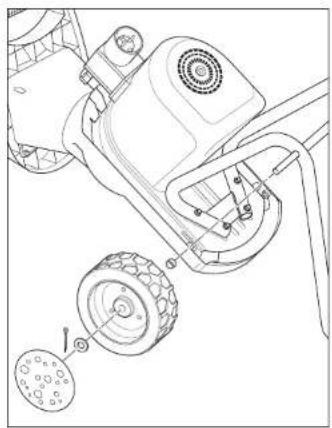

ASSEMBLY (fig. 3+4)

Step 1. Attach the legs to the shredder using 4 hex bolts and tighten with allen key supplied.

Step 2. Attach wheels to legs. Feed spindle through legs, add spacers at both ends and attach wheels using a spring clip and washer.

Step 3. Place upright and push-fit wheel caps.

GENERAL USE

WARNING!

NEVER ATTEMPT TO PUT YOUR HAND INSIDE THE SHREDDER INLET CAVITY. IF YOU WANT TO PUSH MATERIAL INTO THE CUTTING CHAMBER USE A SUITABLE STRONG STICK!

• Before starting the machine, look into the feeding chamber to make certain that it is empty.

- Keep your face and body away from the feed intake opening.

- Do not allow hands or any other part of the body or clothing inside the feeding chamber, discharge chute, or near any moving part.

- Keep proper balance and footing at all times. Do not overreach. Never stand at a higher level than the base of the machine when feeding material into it.

• Always stand clear of the discharge zone when operating this machine.

- When feeding material into the machine be extremely careful that pieces of metal, rocks, bottles, cans, or other foreign objects are not included.

- If the cutting mechanism strikes any foreign objects or if the machine should start making any unusual noise or vibration, shut off the power source and allow the machine to stop (electric unit disconnect from supply):

- i n s pect for damage

- check for and tighten any loose parts

• have any damaged parts replaced or repaired with parts having equivalent specifications

- Do not allow processed material to build up in the discharge zone; this may prevent proper discharge and can result in kickback of material through the feed intake opening.

- If the machine becomes clogged, shut-off the power source (electric unit disconnect from supply) before clearing debris. Keep the power source clear of debris and other accumulations to prevent damage to the power source or possible fire. Remember that operating the starting mechanism on engine powered machines will still cause the cutting means to move.

- Keep all guards and deflectors in place and in good working condition

- Do not tamper with the power source governor settings; the governor controls the safe maximum operating speed and protects the power source and all moving parts from damage caused by overspeed. Seek authorised service if a problem exists.

- Do not transport this machine while the power source is running.

- Shut off the power source and disconnect from supply whenever you leave the work area.

- Do not tilt the machine while the power source is running.

Your shredder must be placed on firm, level ground.

Never lay the shredder on its back, front or sides - keep it upright at all times.

Do not overload the shredder - feed it slowly and let it work at its own pace.

Before use, ensure the inlet cavity is empty. Do not start the shredder with material in the shredder.

Unless there is an emergency, do not switch the shredder off until it is completely empty of material.

Remove stones or other hard objects from plant roots before shredding.

Hold large twigs or fine branches firmly when feeding them into the shredder.

Do not allow the outlet to get covered or blocked at any time (see 'Blockages).

BLOCKAGES (fig. 2)

If your shredder gets blocked up at any time, switch it off at the mains and remove the plug from the power socket.

Turn the hood knob anti-clockwise until the hood become loose. Pull it up and away from you to reveal the inside of the shredder. Clear any blockages, (be careful not to touch the sharp blades, replace the hood and re-tighten by turning the hood knob fully clockwise.

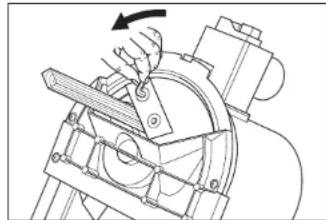

Changing a blade

If you suspect your blades need replacing, switch the shredder off at the mains and remove the plug from the power socket.

Turn the hood knob anti-clockwise until the hood become loose. Pull it up and away from you to reveal the inside of the shredder.

The blades have two edges so they can be turned around to make use of the unused edge of the blade. If this has already been done you will need to order new blades.

Technical line drawing of a mechanical device with a hand operating a lever (no text or symbols)

Contact your local dealer for new blades.

MAINTENANCE

These appliances are designed to function without difficulty for a long time and to require minimum maintenance. You will prolong the appliance's life by cleaning it regularly and using it correctly.

- When the machine is stopped for servicing, inspection, or storage, or to change an accessory, shut off the power source (electric unit disconnect from supply), make sure that all moving parts have come to a complete stop and, where a key is fitted remove the key. Allow the machine to cool before making any inspections, adjustments, etc.

- When servicing the cutting means be aware that, even though the power source will not start due to the interlock feature of the guard, the cutting means can still be moved by a manual starting mechanism.

Cleaning

Clean the housing regularly with a soft cloth, preferably every time it is used. Keep the air vents free of dust and dirt. Remove stubborn dirt with a soft rag moistened in soapy water. Do not use any solvents such as petrol, alcohol, ammonia, etc. as such substances can damage the plastic parts.

Lubrication

The appliance does not need any extra lubrication.

Faults

If a fault arises through wear in an element, please contact the service address shown on the warranty card. A drawing of the spare parts that may be obtained is included at the end of these operating instructions.

ENVIRONMENT

To prevent damage during transport, the appliance is delivered in a solid packaging which consists largely of reusable material. Therefore please make use of options for recycling the packaging.

WARRANTY

Read the terms of warranty on the separate warranty card which is enclosed.

Please contact the service address if you have any questions regarding accessories and/or batteries.

CE DECLARATION OF CONFORMITY (UK)

We take sole responsibility for confirming that this product conforms with the following standards or related documents:

EN13683, EN55014-1, EN55014-2,

EN61000-2-3, EN61000-3-3

in compliance with the provisions of the Directives:

98/37/EEC

73/23/EEC

89/336/EEC

from 01-03-2004

ZWOLLE N

W. Kamphof

Quality department

It is our policy to continuously improve our products and we therefore reserve the right to change the product specification without prior notice.

Deutsch

GARTENHÄCKSLER FGS-2400

TECHNISCHE DATEN

Art.nr. GSM 1001

Spannung 230 V

Frequenz 50 Hz

PRODUKTINFORMATIONEN

Abbildung I

I. Eintritt

Technical line drawing of a mechanical device with a hand operating a lever (no text or symbols)

Technical line drawing of a mechanical device with a hand operating a lever (no text or symbols)

2 Mikrá diaywriotika kolára

2 Робелес

2 Копідес

2 Tagyoi

Line drawing of a mechanical device with a hand operating a lever (no text or symbols)

98/37/EEC 73/23/EEC 89/336/EEC

от 01-03-2004

ZWOLLE NL

W. Kamphof

Line drawing of a mechanical device with a hand operating a lever (no text or symbols)

98/37/EEC 73/23/EEC 89/336/EEC

vanaf 01-03-2004 ZWOLLE NL W. Kamphof Quality departme

No lead speed 2880/min

No load speed 2000/min Max capacity @ 40 mm

Max. capacity @ 40 mm Feeding capacity: 120 km

Feeding capacity 120 kg/m

Weight 23.5 kg

Sound power level 107 dB(A)

IP Class IPX 4

Puissance \$6,2400 W (40%)

INFORMATION DES PRODUITS

Fig.

Mechanical assembly diagram showing a hand operating a rotating component with a curved arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical device with a hand operating a lever (no text or symbols)

CE DÉCLARATION DE CONFORMITÉ (F)

INFORMACJA O PRODUKCIE

Rys. 1

Technical line drawing of a mechanical device with a hand operating a lever (no text or symbols)

Za nova rezila stopite v stik z vašim lokalnim prodajalcem.

VZDRŽEVANJE

98/37/EEC 73/23/EEC 89/336/EEC

od 01-03-2004

ZWOLLE NL W. Kamphof Oddelek za preverjanje kakovosti

Technical line drawing of a mechanical device with a hand operating a lever (no text or symbols)

Line drawing of a mechanical device with a hand operating the lever (no text or symbols)

Technical line drawing of a mechanical device with a hand operating the lever (no text or symbols present)

98/37/EEC 73/23/EEC 89/336/EEC

01-03-2004-töl

98/37/EEC 73/23/EEC 89/336/EEC

de 01-03-2004

ZWOLLE NL

Technical line drawing of a mechanical device with a hand operating a lever (no text or symbols present)

- When feeding material into the machine be extremely careful that pieces of metal, rocks, bottles, cans or other foreign objects are not included.

Line drawing of a mechanical device with a hand operating a lever (no text or symbols)

Line drawing of a hand operating a mechanical device with a lever and adjustment knob (no text or symbols)

Technical line drawing of a mechanical device with a hand operating a lever (no text or symbols)

Technical line drawing of a mechanical device with a hand operating a lever (no text or symbols)

Kontakt din lokale forhandler for a bestille nye blader.

VEDLIKEHOLD

CE SAMSVARSERKLÆRING (N)

Vi erklærer herved at dette produktet oppfyller folgende standarder eller relaterte dokumenter:

EN13683, EN55014-1, EN55014-2, EN61000-2-3, EN61000-3-3

i samsvar med bestemmelsene i direktivene:

98/37/EOF

73/23/EOF

89/336/EOF

fra 01-03-2004

ZWOLLE NL

W. Kamphof

Kvalitetsavdeling

Line drawing of a hand operating a mechanical device with a tool, no text or symbols present

98/37/ETY 73/23/ETY 89/336/ETY

01-03-2004 lähtien

ZWOLLE,

ALANKOMAAT

W. Kamphol Laadunvarmistusosasto
