CHVF010 - Vacuum sealer Champion - Free user manual and instructions

Product Type	Handheld Vacuum Sealer
Brand	Champion
Model	CHVF010
Power Supply	USB DC 3-5V or 2 x 1.5V AA batteries
Maximum Vacuum Pressure (USB)	-0.5 bar
Maximum Vacuum Pressure (Battery)	-0.3 bar
Battery Type	2 x 1.5V AA (not included)
Compatible Bags	Zipper bags with air valve (not for liquids)
Main Parts	Indicator light, ON/OFF button, front cover, suction mouth type 1, suction mouth type 2
Operation	Place vacuum nozzle over bag valve, press start button
Cleaning	Wipe with mild soap and damp cloth; do not immerse in water
Safety	Do not operate with damaged cord or plug; keep away from children; use on level surface
Intended Use	Household use only
Country of Design	Sweden
Country of Assembly	China

Frequently Asked Questions - CHVF010 Champion

How do I insert batteries into the Champion CHVF010?

Screw out the suction mouth anticlockwise, pull off the silicone sealing sheet, open the battery cover (use a screwdriver if needed), insert 2 x 1.5V AA batteries, close the cover, replace the sealing sheet, and screw the suction mouth back on clockwise.

Can I use the vacuum sealer while charging via USB?

Yes, you can use the machine with the USB cable connected. This provides higher vacuum pressure and extends battery life.

What types of bags can I use with this device?

Only zipper bags with an air valve are compatible. Do not use the machine for vacuum packaging liquids directly in bags.

Why is the bag not sealing properly?

Ensure the zipper is firmly closed and free of food debris. Place the bag flat so the air valve is on a level surface with no food underneath. Do not overfill the bag.

How do I clean the vacuum sealer?

Unplug the device. Use a mild dish soap and a warm, damp cloth to wipe away food residue. Do not immerse in water or use abrasive cleaners.

What should I do if the vacuum sealer does not start?

Check that the batteries are inserted correctly and have power, or connect the USB cable to a power source.

Can I vacuum package liquids?

Direct vacuum sealing of liquids in zipper bags is not recommended. For soups or sauces, use a container and place in the refrigerator before sealing.

How do I prevent air from re-entering the bag after sealing?

Examine the zipper and valve for food debris. Wipe the inside of the bag around the zipper and beneath the valve. If sharp foods caused a puncture, cover them with paper towel and use a new bag.

Is the vacuum sealer safe for use around children?

Close supervision is required when the product is used near children. Do not allow children to operate the machine.

How should I dispose of the vacuum sealer?

Do not dispose of with household waste. Recycle responsibly in accordance with local regulations to prevent environmental harm.

USER MANUAL CHVF010 Champion

Black and white photo of a CHAMPION brand water dispenser with a handle and glass cap (no text or symbols on the device itself)

EN - English

SE - Svenska

DK - Danske

NO - Norsk

FI - Suomi

Important Points for your Safety

Read and fully understand all instructions and warnings prior to using this machine.

EN

1. Read the instructions carefully.
2. This machine should not be operated by children.
3. Do not operate the machine with a damaged power cord or plug.
4. Do not use the machine on a wet or hot surface, or near a heat source.
5. Always use the machine on a level surface.
6. Do not immerse any part of the machine, power cord or plug into water or other liquid.
7. Do not operate the machine if it malfunctions or is any way damaged. If the charging cable or the machine is damaged, contact authorized service center.
8. Close supervision is required when this product is used near children.
9. Use appliance only for its intended use. Use only the charge cable supplied with this product.
10. Connect the USB cable to the standard electrical outlet.
11. This Machine is for household use only.

Important Tips

When vacuum packaging zipper bags, small amounts of liquid, crumbs or food particles can be pulled inadvertently into the Valve, creating a possible air leak. To prevent this, follow these tips:

a) For soups, sauces, and liquids: Use a container and then place in refrigerator.
Sealing liquid in zipper bags is NOT recommended.
b) For powdery or fine-grained foods: avoid over filling bags or use a container. You can also place a coffee filter or paper towel on top of the food beneath the valve before vacuum packaging.
c) Ensure the zipper is closed securely and no food debris is trapped in the zipper.
Food trapped in the zipper can create a leak, which may cause the bag to lose vacuum over time.

Vacuum Packaging & Food Safety

• The vacuum packaging process extends the life of foods by removing most of the air from sealed zipper bags and containers, thereby reducing oxidation, which affects nutritional value, flavor and overall quality. Removing air can also inhibit growth of micro-organisms, which can cause problems under certain conditions:
• To preserve foods safely, it is critical that you maintain low temperatures. It is important to note that vacuum packaging is NOT a substitute for canning and it cannot reverse the deterioration of foods. It can only slow down the changes in quality. It is difficult to predict how long foods will retain their top-quality flavor, appearance or texture because it depends on the age and condition of the food on the day it was vacuumed packaged.

Technical specification

• USB Voltage DC 3-5V
• Battery Voltage 2x1.5V AA
  • Vacuum Degree -0.3bar (battery) -0.5bar (USB) MAX

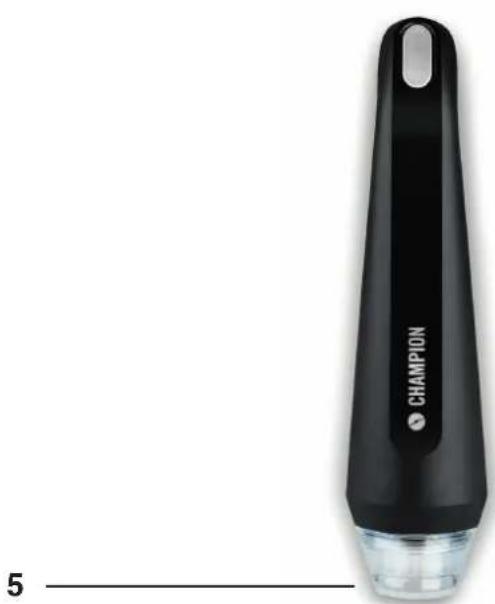

Main Parts

1. Indicator Light
2. ON/OFF Button
3. Front cover
4. Suction mouth type 1
5. Suction mouth type 2

Black and white photo of a CHAMPION tool with a pointed tip and small base (no text or symbols on the tool itself)

EN

Before Initial Use

1. You can use the vacuum machine with the USB-cable connected to the power. This is the best way to keep the machine with longer lifetime and the vacuum pressure will be higher.

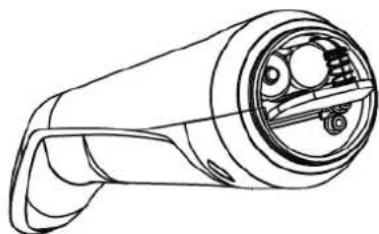

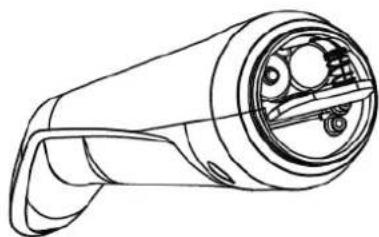

2. You can also use the handheld vacuum machine with 2 pcs of 1.5V, AA batteries. How to insert batteries:

a) Screw Out the suction mouth anticlockwise.
b) Pull off the silicone sealing sheet.
c) Open the battery cover. Use a slot type screwdriver if necessary.
d) Insert 2*1.5V AA batteries into place.
e) Close the battery cover. Put back the silicone sealing sheet into place.
f) Screw in the suction mouth clockwise until it is in place again.

Line drawing of a handheld device with three close-up views showing internal components (no text or symbols)

Line drawing of a cylindrical device with internal components and a handle (no text or symbols)

How to Vacuum

1. Fill and seal the Zipper Bag.
2. Lay the Zipper Bag flat with the vent facing upwards. Place vacuum nozzle against vent and press start-button.

Note: Bags are not intended for liquids.

Maintenance & Cleaning

1. Always unplug appliance before cleaning.
2. Do not immerse appliance in water.
3. Avoid using abrasive products or materials to clean any appliance components. These cleaners can scratch the surface and damage the black foam rubber pads.
4. Use mild dish washing soap and a warm, damp cloth to wipe away food residue inside or around components

Troubleshooting

Vacuum sealer does not start when ON Button is pressed:

- Ensure vacuum sealer is charged or with battery.

Vacuum Sealer starts but bag does not tighten around food:

• Ensure zipper is firmly closed. Slide fingers across entire zipper.
• Air valve is not on flat surface. Reposition bag so the Air Valve lies flat on counter with no food under Air Valve.
• Do not overfill bag.

Air was removed from the bag, but now air has re-entered:

• Examine zipper and valve of bag. Food debris in zipper or valve may cause leakage and allow air to enter.
• Sometimes moisture or food material along seal edges of the zipper or beneath the valve prevents bag from sealing properly. Wipe the inside of bag around zipper and beneath value and attempt to reseal.
• If you are vacuum packaging sharp food items, bag may have been punctured. Use a new bag if there is a hole. Cover sharp food items with a soft cushioning material, such as a paper towel, and reseal.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

CHAMPION

Champion®

Makadamgatan 14 | 254 64 Helsingborg | Sweden

Designed in Sweden I Assembled in China

Technical specification

• USB-spänning DC 3-5V
- Batteri 2x1.5V AA
• Vakuumtryck -0.3bar (batteri) -0.5bar (USB) MAX

Delar

Black and white photo of a CHAMPION tool with a pointed tip and small base, no visible text or symbols on the device itself.

Line drawing of a handheld device with three close-up views showing internal components (no text or symbols)

Line drawing of a cylindrical mechanical device with internal components (no text or symbols)

Designed in Sweden 1 Assembled in China

Black and white photo of a CHAMPION tool with a pointed tip and small base (no text or symbols on the device itself)

DK

Line drawing of a handheld device with a circular lens and handle (no text or symbols)

Line drawing of a cylindrical mechanical device with internal components (no text or symbols)

Designed in Sweden | Assembled in China

Black and white photo of a black CHAMPION tool with a small transparent base, shown against a plain white background (no text or symbols on the device itself)

Før førstegangsbruk

Line drawing of a handheld device with three close-up views showing internal components (no text or symbols)

Line drawing of a cylindrical device with internal components (no text or symbols)

Designed in Sweden I Assembled in China

Black and white photo of a CHAMPION tool with a pointed tip and small base (no text or symbols on the device itself)

FI

Line drawing of a handheld device with internal components and three views (no text or symbols)

Line drawing of a cylindrical device with internal components, no text or symbols present

Designed in Sweden | Assembled in China
