Product type	Extractor hood
Brand	Elica
Model	Easy IX/F/50
Width	50 cm
Depth	30 cm
Height	15 cm
Weight	8 kg
Power supply	220-240 V, 50 Hz
Motor power	120 W
Maximum noise level	55 dB
Maximum airflow	600 m³/h
Installation type	Built-in
Material	Stainless steel
Grease filter	Washable aluminum filter
Lighting	2 halogen bulbs of 40 W each
Controls	Mechanical push buttons
Number of speeds	3
Air outlet diameter	150 mm
Energy class	C
Warranty	2 years
Maintenance	Regular cleaning of the grease filter and stainless steel surface
Safety	Automatic shutdown in case of overheating
Spare parts	Available from Elica after-sales service
Repairability	Repairability index: 7.0/10

Frequently Asked Questions - Easy IX/F/50 ELICA

How to install the Elica Easy IX/F/50 hood?

Installation must be carried out by a qualified professional. Observe safety distances from the cooking surface (65 cm minimum for an electric cooker, 75 cm for a gas cooker). Use the template provided for drilling.

How to clean the grease filter?

The aluminum filter can be washed in the dishwasher or by hand with hot water and detergent. Dry it completely before putting it back. Clean it every month.

What to do if the hood does not turn on?

Check the power supply and the circuit breaker. If the problem persists, the motor or switch may be defective. Contact the after-sales service.

Are the halogen bulbs replaceable?

Yes, the halogen bulbs (G4, 40 W) are easily replaceable. Turn off the hood and let it cool before changing them.

How to reduce the noise of the hood?

Use lower speeds for less noise. Check that the filters are clean and the installation is stable. A smooth exhaust duct also reduces noise.

Can the hood work in recirculation mode?

Yes, it is possible to install a recirculation kit with a charcoal filter (not supplied). In this case, the air is returned to the room.

What is the recommended installation height?

For an electric cooker, the hood should be 65-75 cm above the cooking surface. For a gas cooker, allow 75-85 cm.

How to order spare parts?

Contact Elica customer service or an authorized dealer. Have the part reference indicated in the manual ready.

Is the hood compatible with a 125 mm external outlet?

No, the outlet diameter is 150 mm. Use an adapter if necessary, but this may reduce performance.

How to maintain the stainless steel surface?

Clean with a soft cloth and a special stainless steel cleaner. Avoid abrasive products that scratch the surface.

USER MANUAL Easy IX/F/50 ELICA

EN Instruction on mounting and use

↓

1

[Non-Text]

2

[Non-Text]

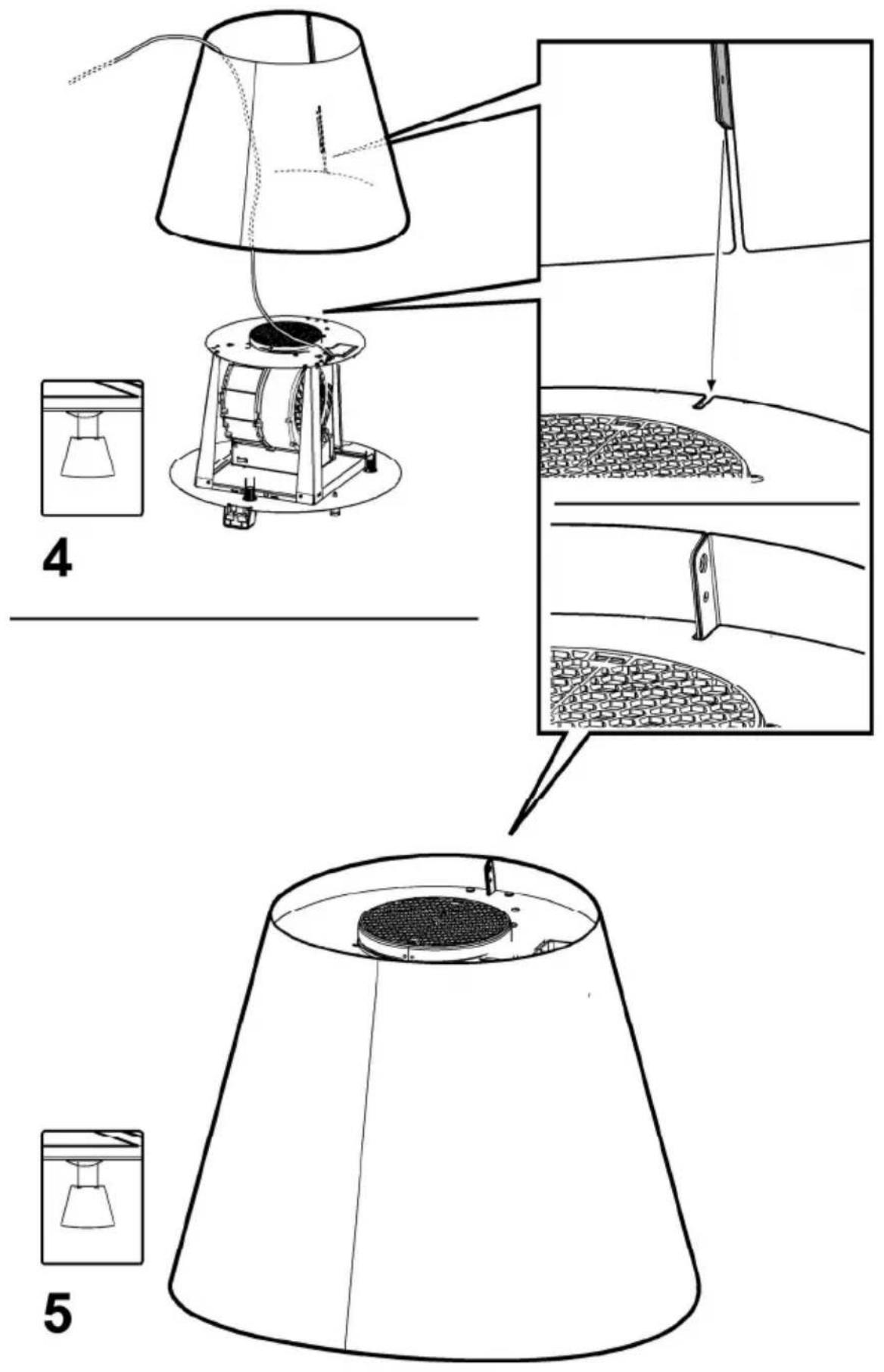

8

L (≡) = X-H-36cm

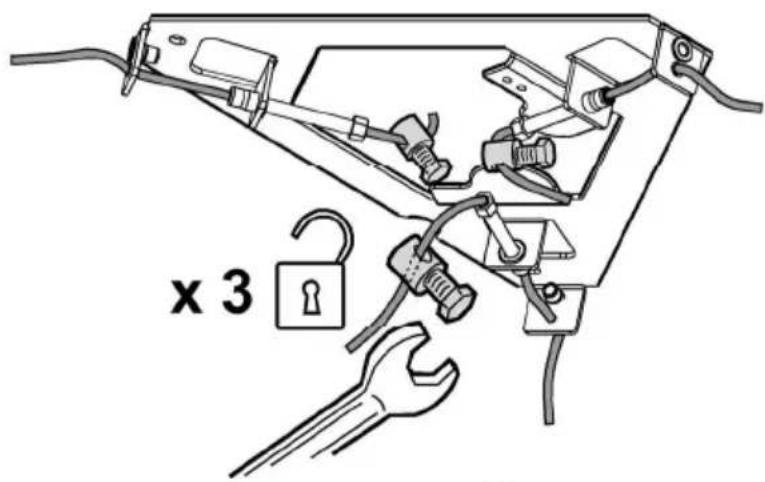

STOP! ⚠️ x 3

Illustration of a hand using a tool to install a component, with a padlock symbol nearby (no text or labels)

9

10

11

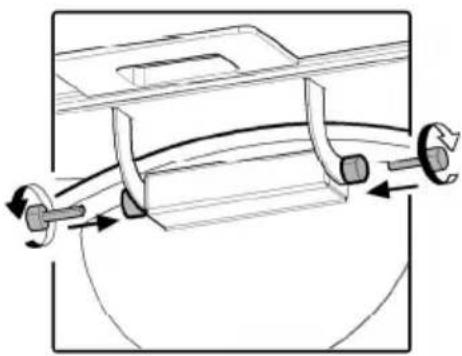

Technical line drawing of a mechanical assembly with a tool, bracket, and gear (no text or symbols)

Technical line drawing of a mechanical assembly with a lever and base plate (no text or symbols)

Technical line drawing of a mechanical assembly with a lever and bracket (no text or symbols)

Technical line drawing of a mechanical assembly with a circular component and a vertical rod (no text or symbols)

Diagram showing a cable being inserted into an open electrical contact box with multiple connectors (no text or symbols present)

Technical line drawing of a conical lamp with exposed wiring and internal components (no text or symbols)

Diagram of an open electrical meter box with internal components and a cable inserted (no text or labels)

14

15

Simple line drawing of a mechanical device with a central bowl and vertical supports (no text or symbols)

Simple line drawing of a funnel with vertical supports (no text or symbols)

16

18

19

20

21

22

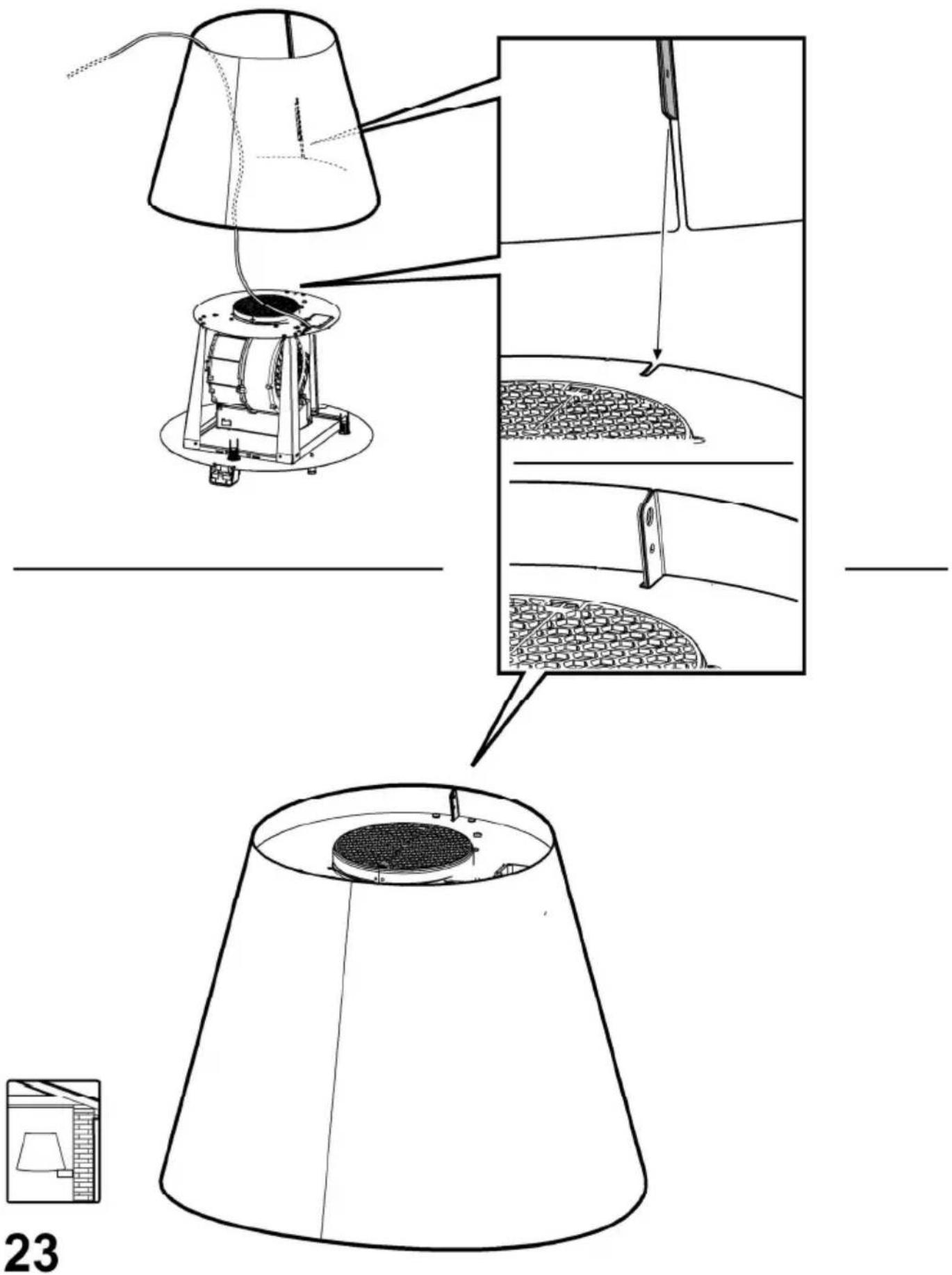

24

Simple line drawing of a scientific apparatus with a central circular component and two connected devices (no text or symbols)

Simple line drawing of a circular mechanical component with mounting holes and a central shaft (no text or symbols)

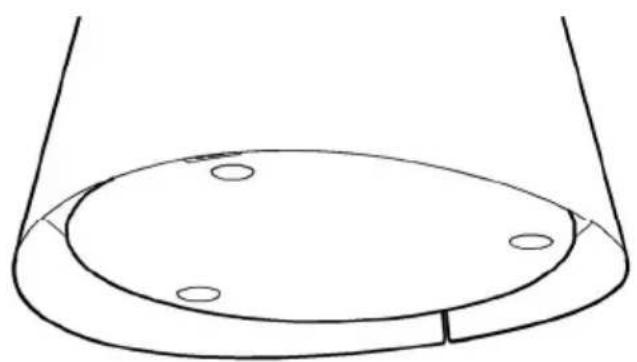

.1

Simple line drawing of a circular object with four holes and a rectangular slot on top (no text or symbols)

Technical line drawing of a mechanical assembly with circular components and mounting holes (no text or symbols)

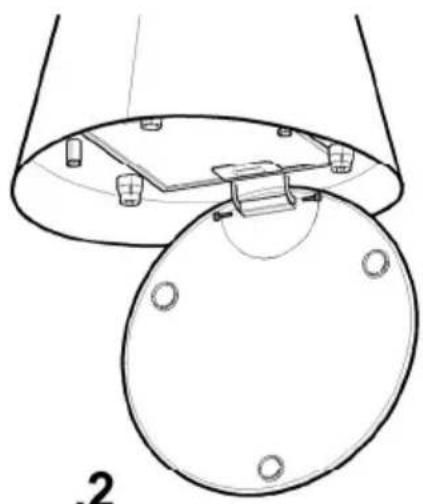

.2

Mechanical diagram showing a rotating shaft and housing with directional arrows indicating motion (no text or symbols)

Technical diagram of a mechanical component with a curved arrow indicating motion or assembly (no text or symbols present)

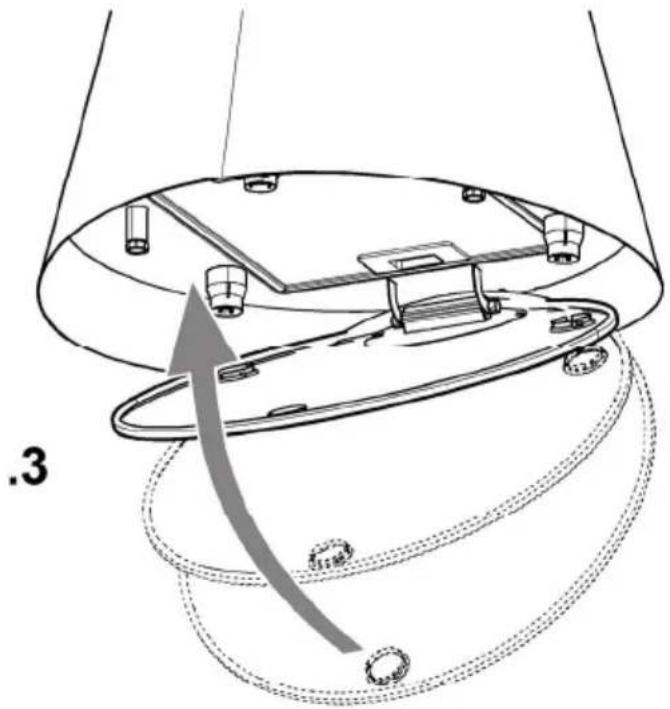

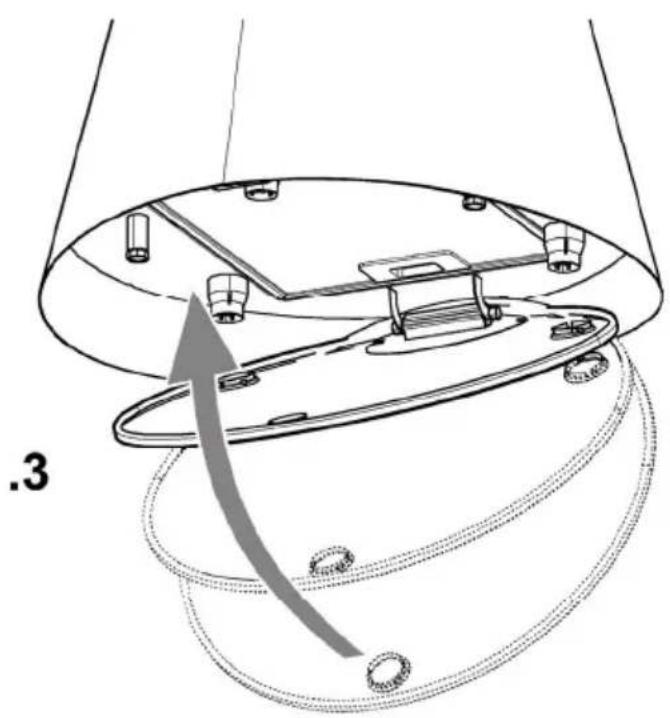

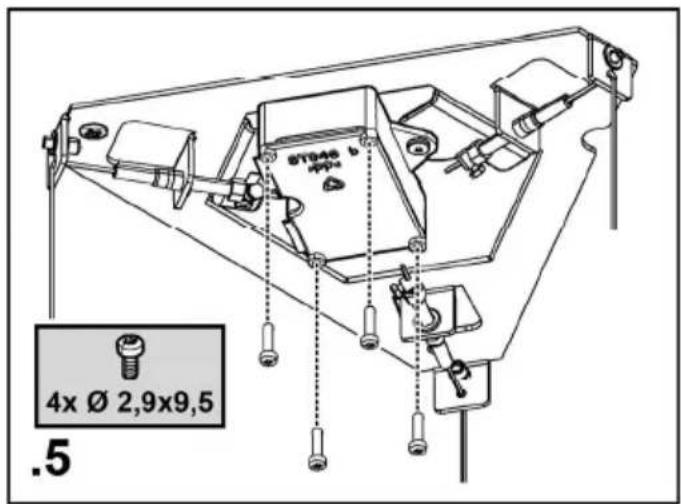

25

Simple line drawing of a circular object with four small circles, enclosed in a curved container (no text or symbols)

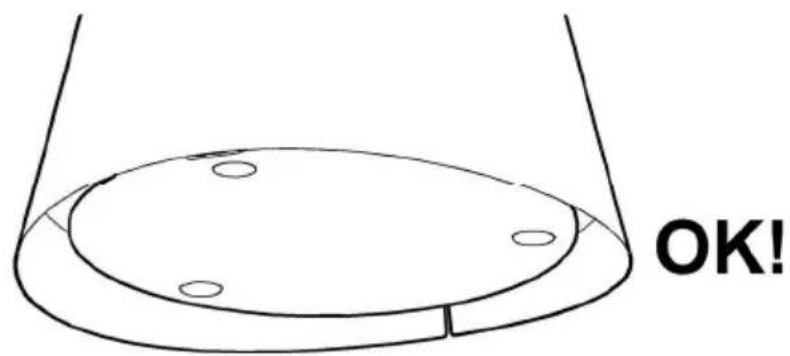

OK!

Technical illustration of a mechanical assembly with a hand holding a tool, showing a rotating component and a close-up view of the mechanism (no text or symbols present)

26

Diagram of a solar panel assembly showing internal structure and mounting details (no text or symbols)

27

Diagram showing a device interior with a top-down view of its base and surrounding components, no text or symbols present.

28

Technical diagram of a mechanical component with a curved arrow indicating motion or assembly (no text or symbols present)

29

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar application such as: - staff kitchen areas in shop, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

! It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
! Read the instructions carefully: there is important information about installation, use and safety.
! Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
! Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

Note: the elements marked with the symbol “(*)” are optional accessories supplied only with some models or elements to purchase, not supplied.

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

Caution

Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves for all installation and maintenance operations.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not be allowed to tamper with the controls or play with the appliance.

Cleaning and user maintenance shall not

be made by children without supervision.

The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the hood and filters will lead to the risk of fires.

Do not flambé under the range hood.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

WARNING! Do not connect the appliance to the mains until the installation is fully complete.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.

Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

Never use the hood without effectively mounted grids.

The hood must NEVER be used as a support surface unless specifically indicated.

Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

Use the correct length for the screws which are identified in the Installation Guide.

In case of doubt, consult an authorised service assistance centre or similar qualified person.

WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.

This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
  • Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.
• EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapour and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odour reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

Use

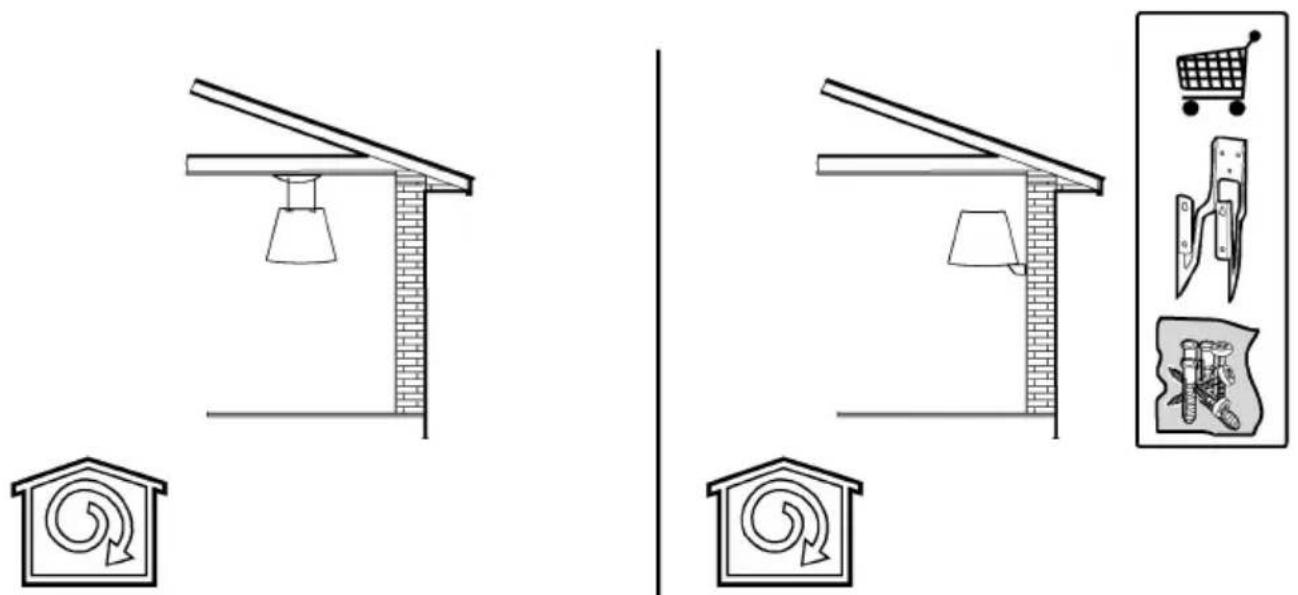

The hood has been made for use in the internal recirculating filtering version.

Cooking fumes and steam are aspirated inside the hood, filtered and cleaned, passing through the fat filter/s and the carbon filter/s that MUST be supplied with the hood.

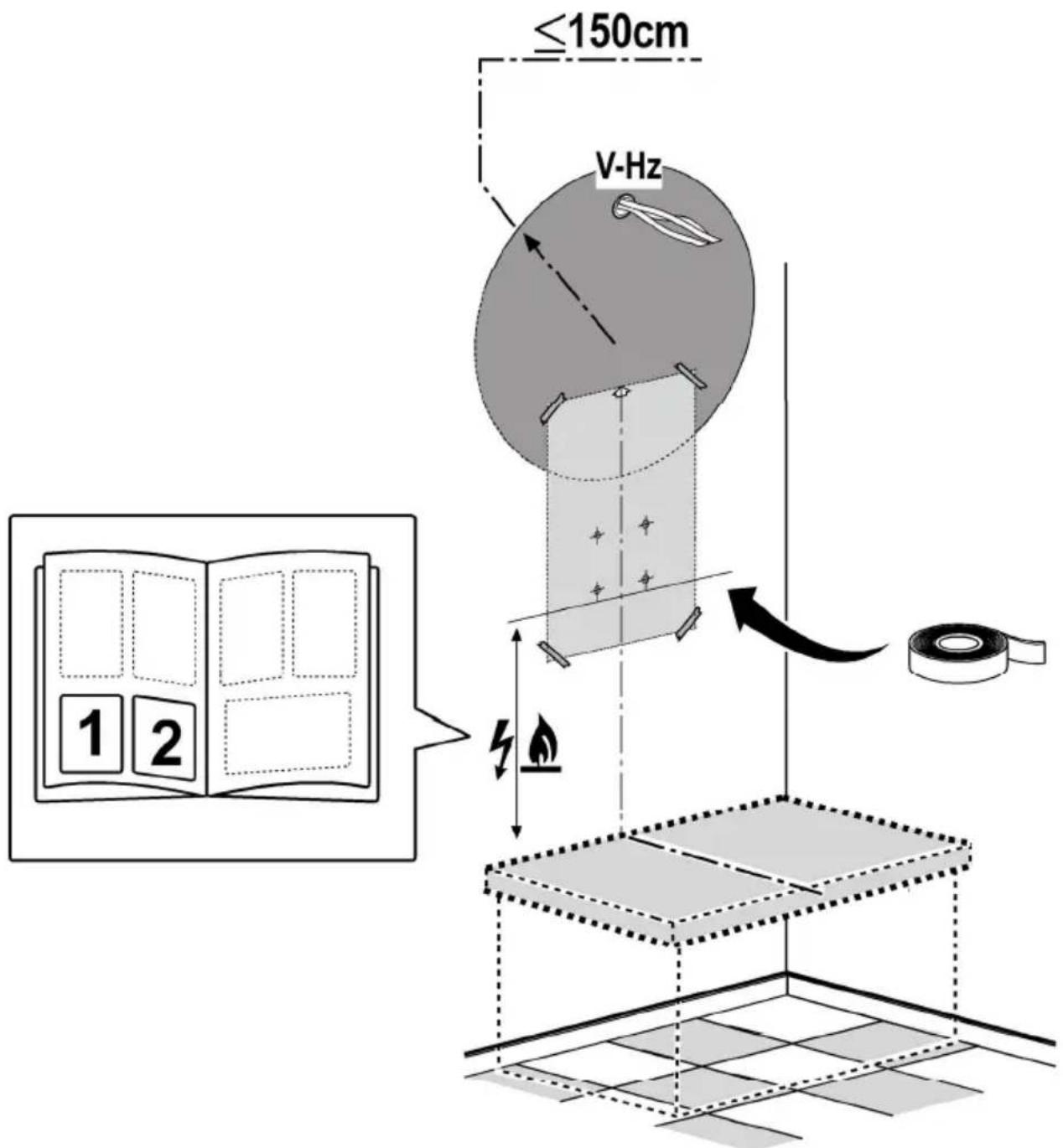

Installation

Specialised personnel must carry out both the electrical and the mechanical installation.

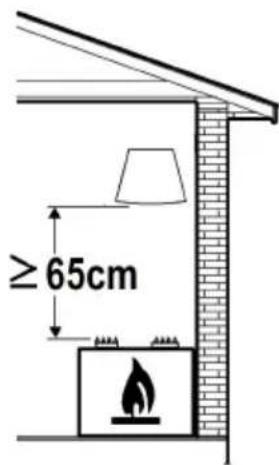

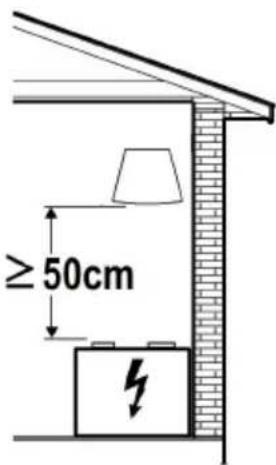

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

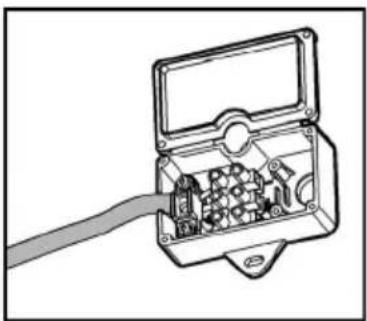

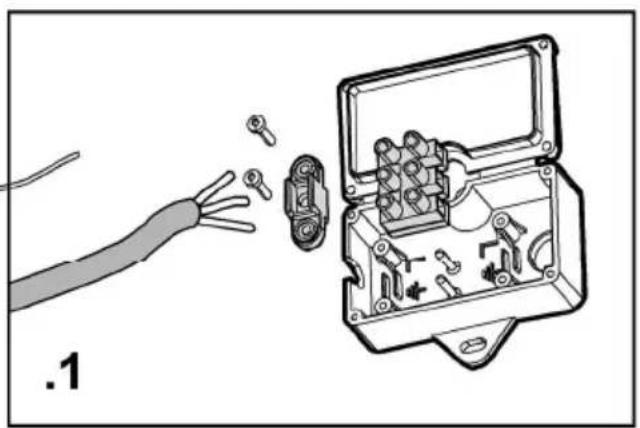

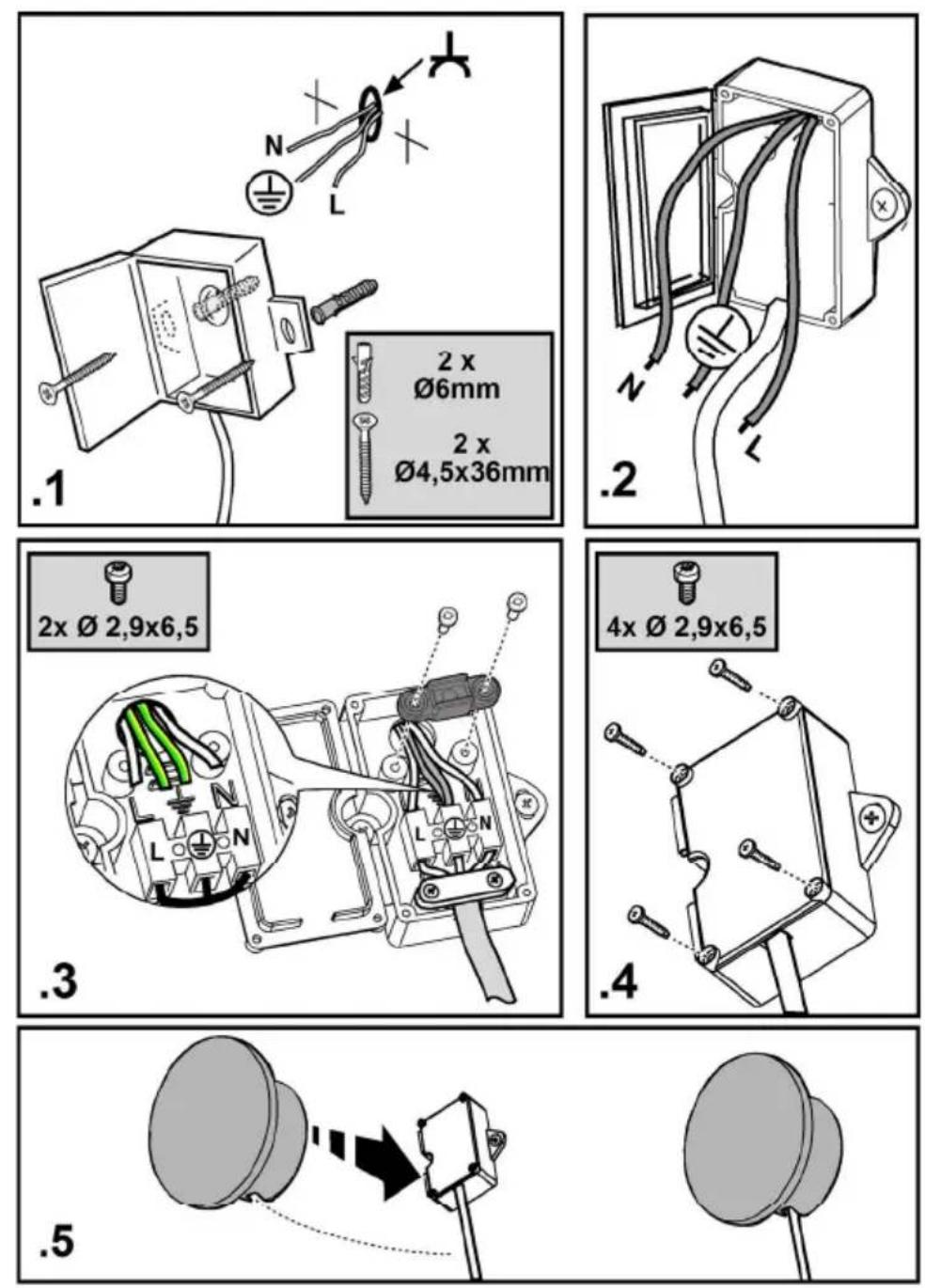

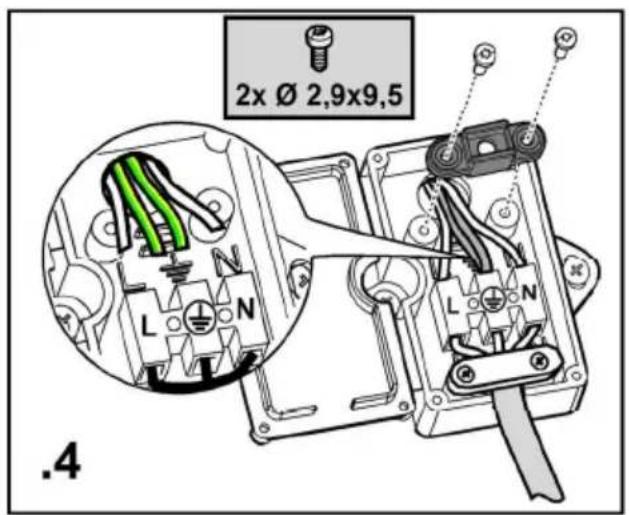

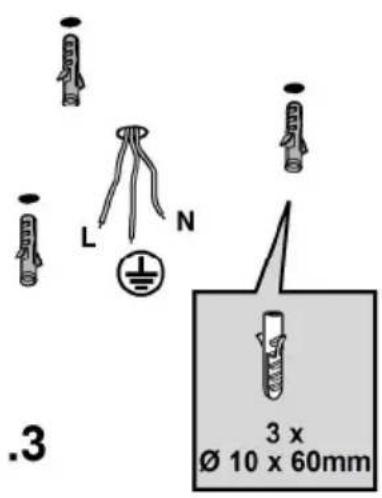

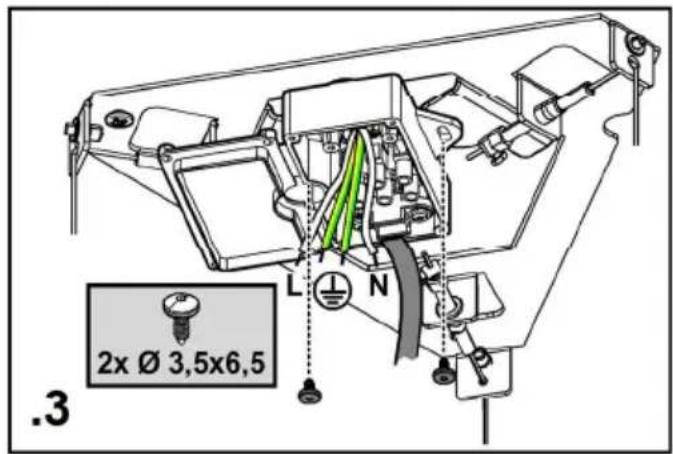

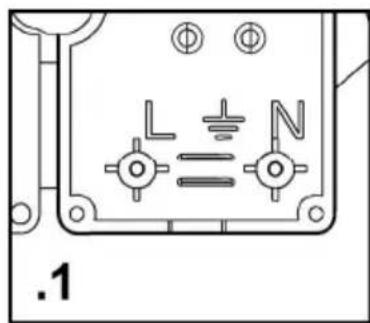

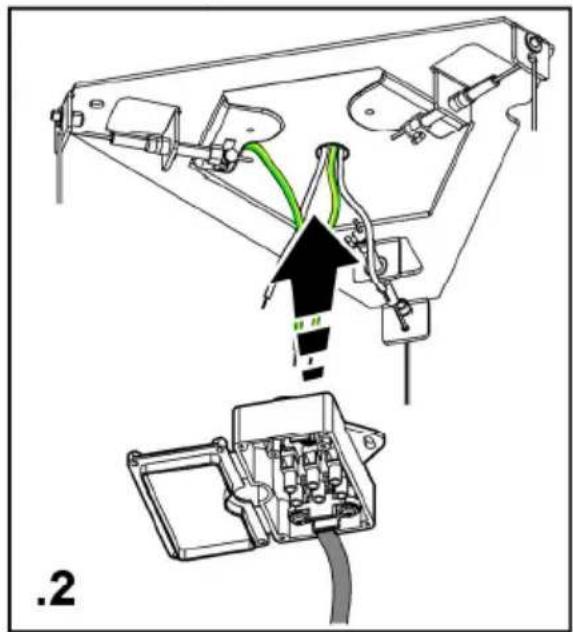

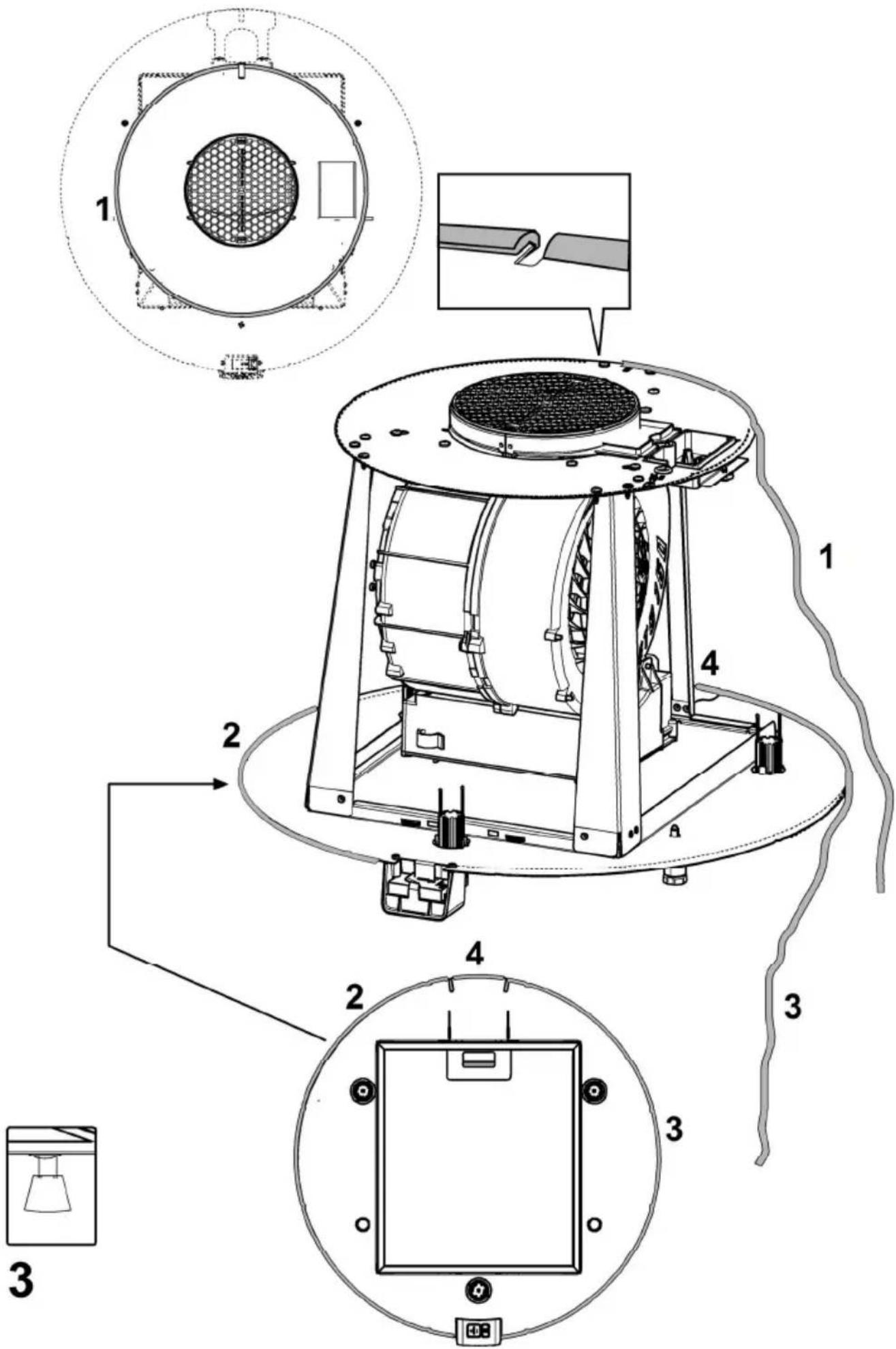

Electrical connection

The mains tension must correspond to the tension shown on the characteristic label situated inside the hood.

The product is meant for connecting directly to the mains supply, therefore apply a regulation bipolar switch that ensures complete disconnection from the mains in the conditions of category III over-tension, conforming to the installation rules.

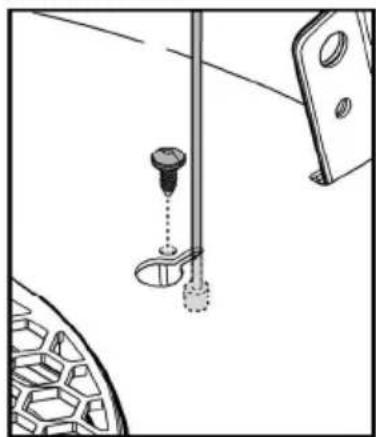

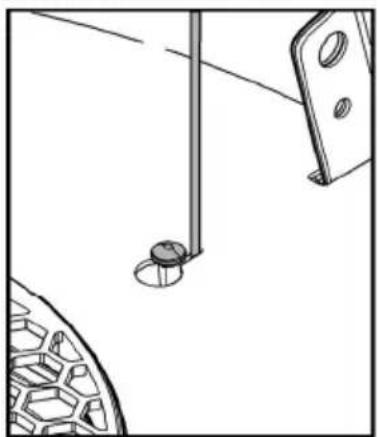

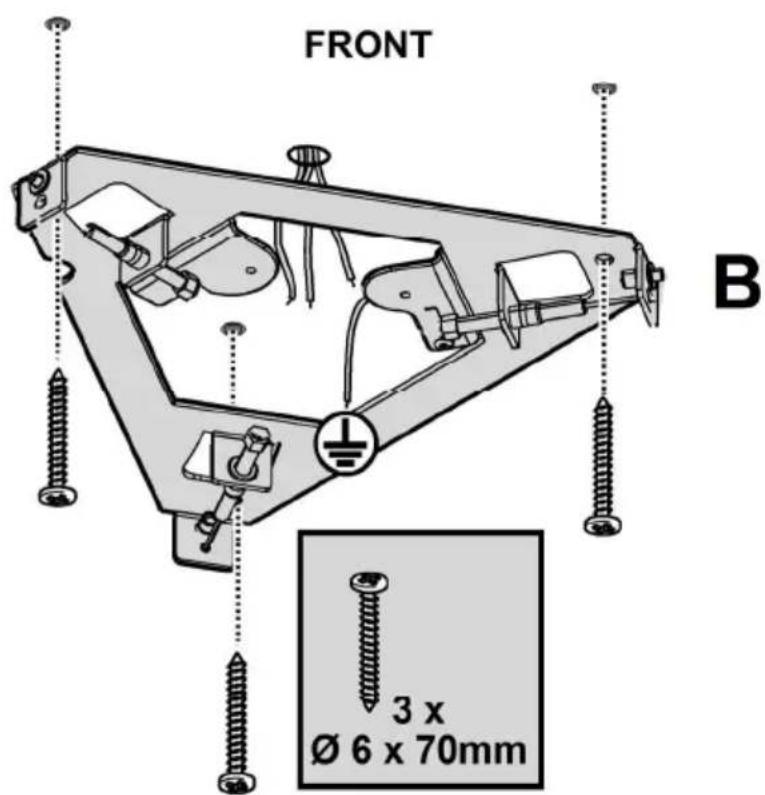

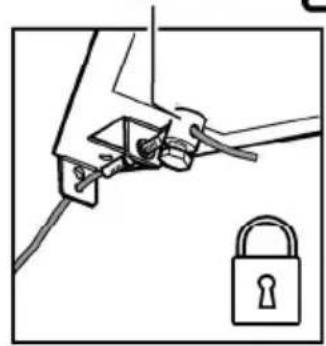

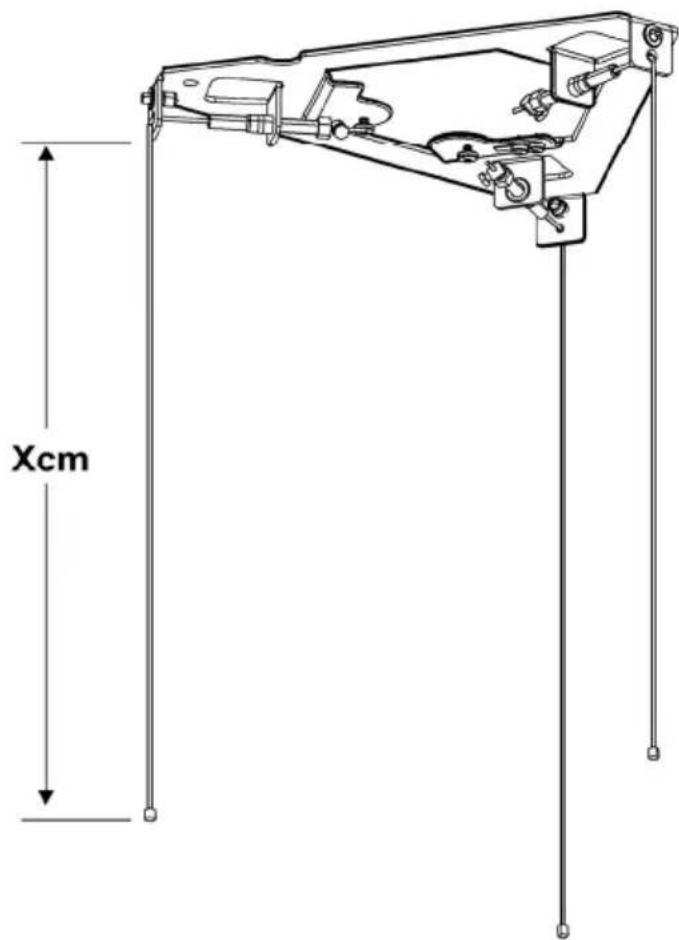

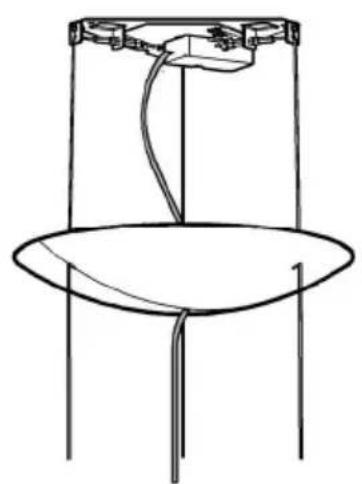

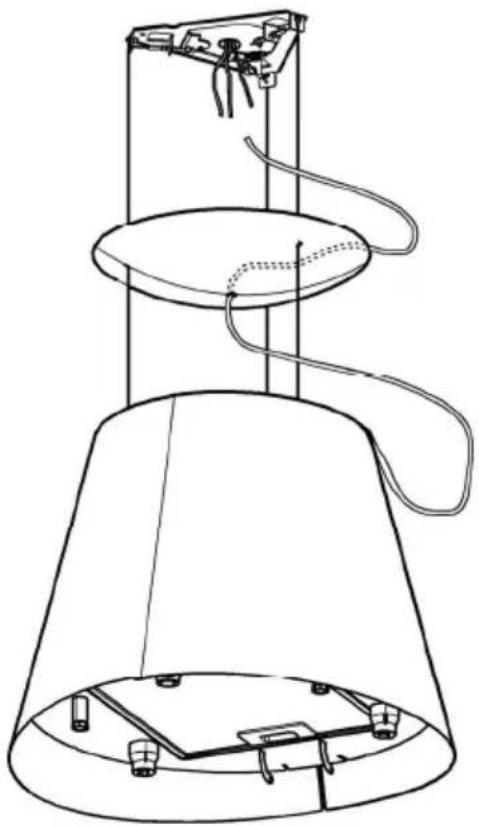

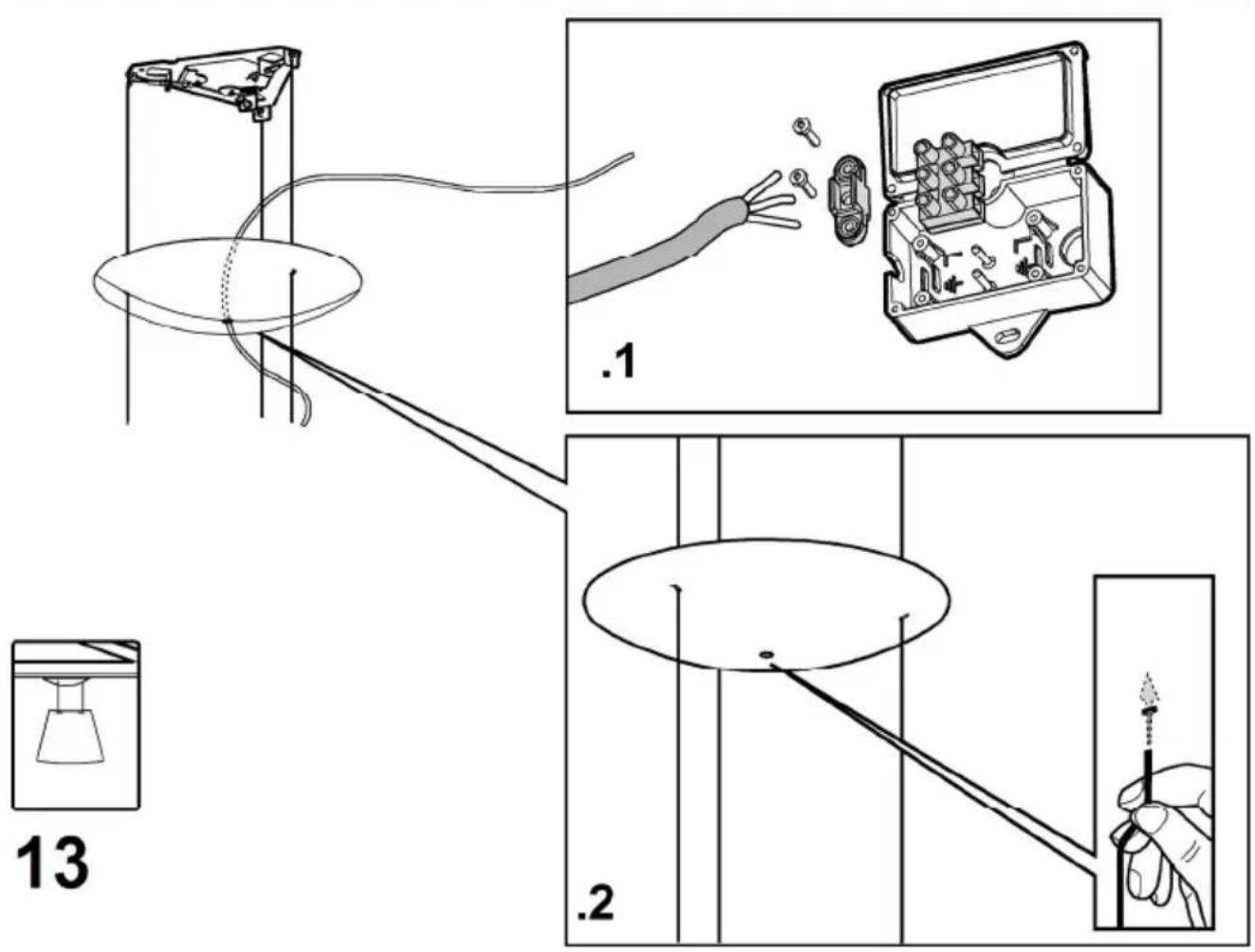

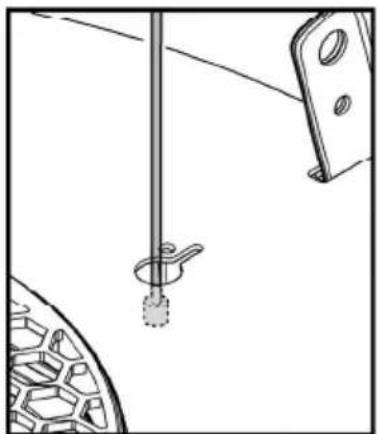

Warning! Detail B (fixing bracket to the ceiling) is equipped with a conductor (yellow-green) that must be connected to the earth of the domestic electrical plant.

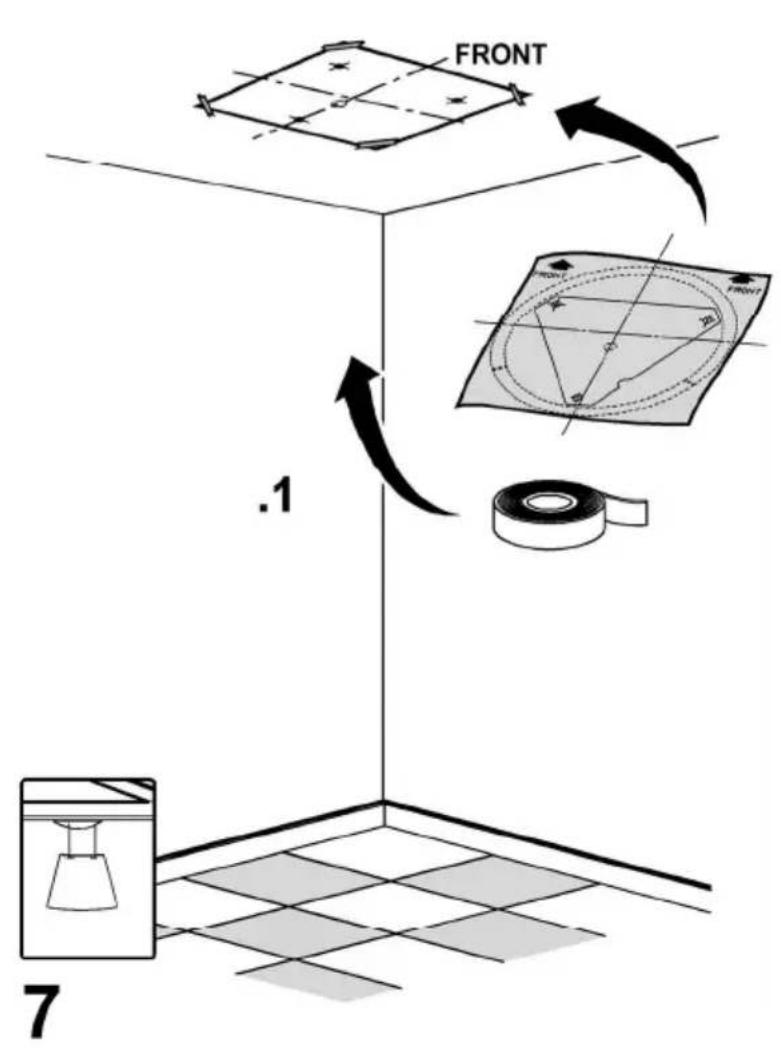

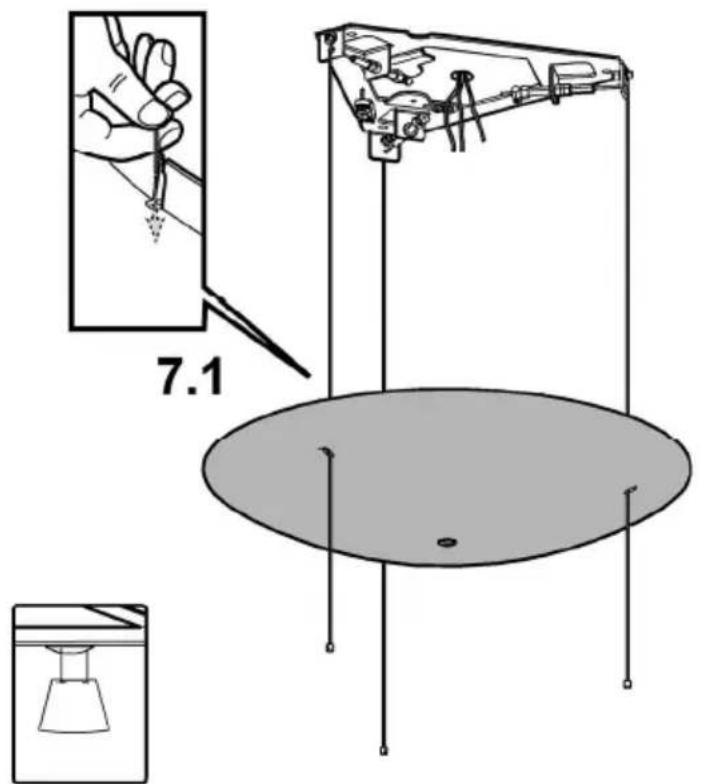

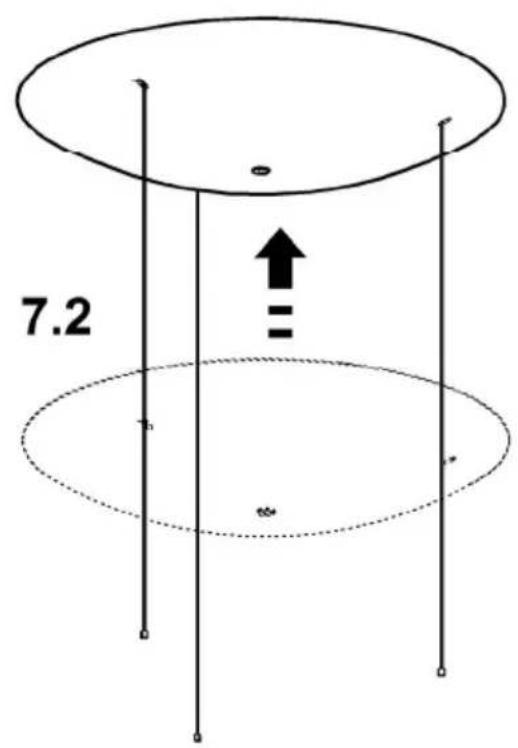

Fig. 7

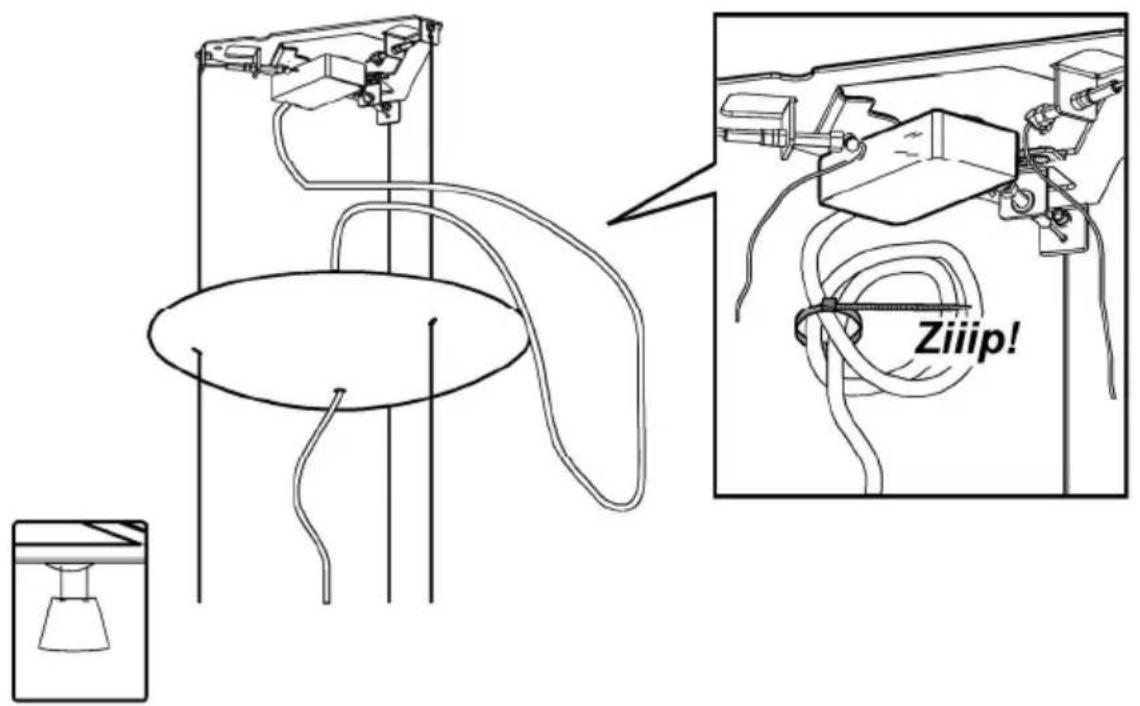

ATTENTION! Be particularly careful about positioning the excess cable. Failure to observe this indication could cause grave damage to the apparatus and/or an electric shock to the user or the installer.

Waring! Changing the interconnection cable must be carried out by the authorised technical assistance service.

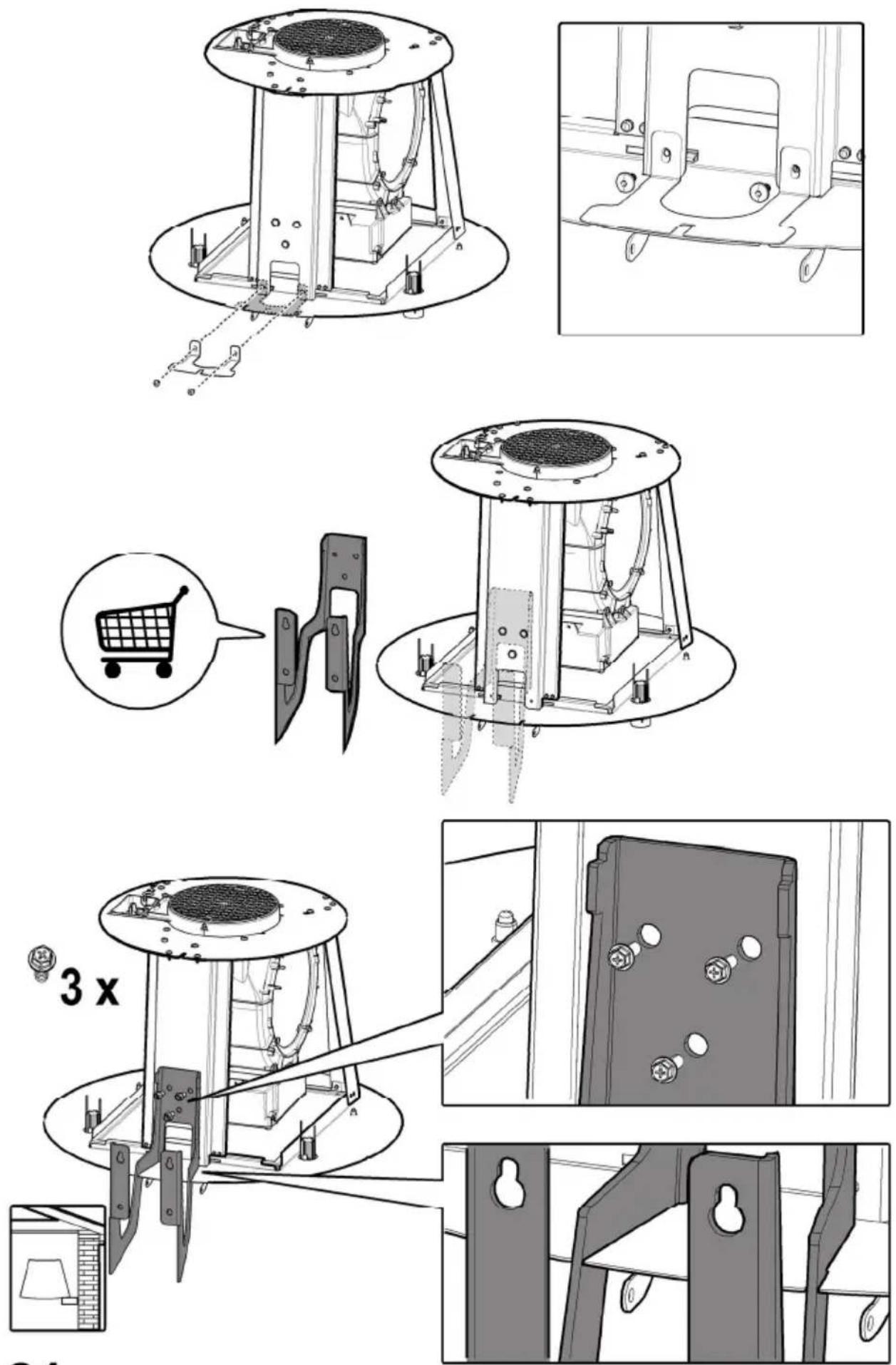

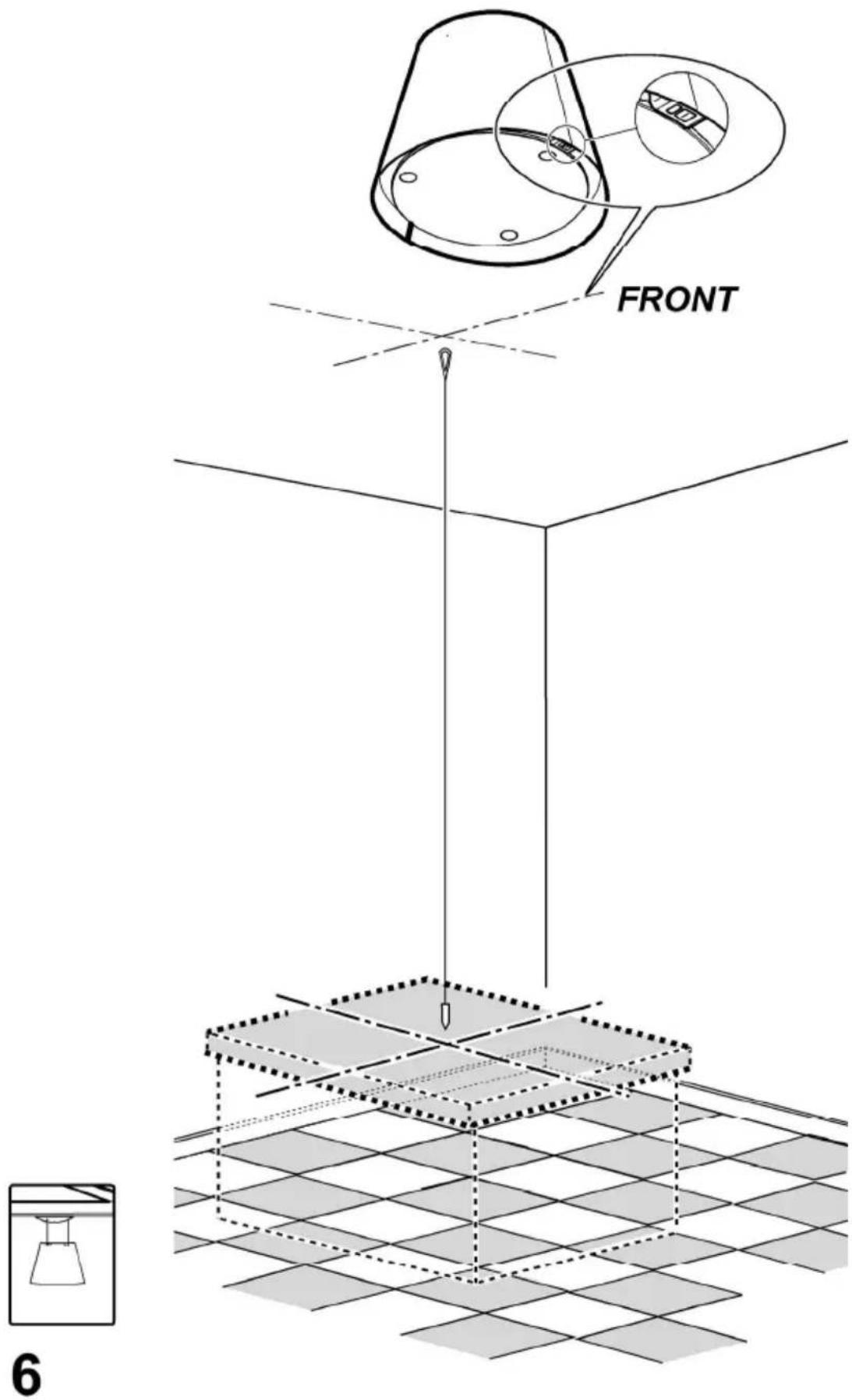

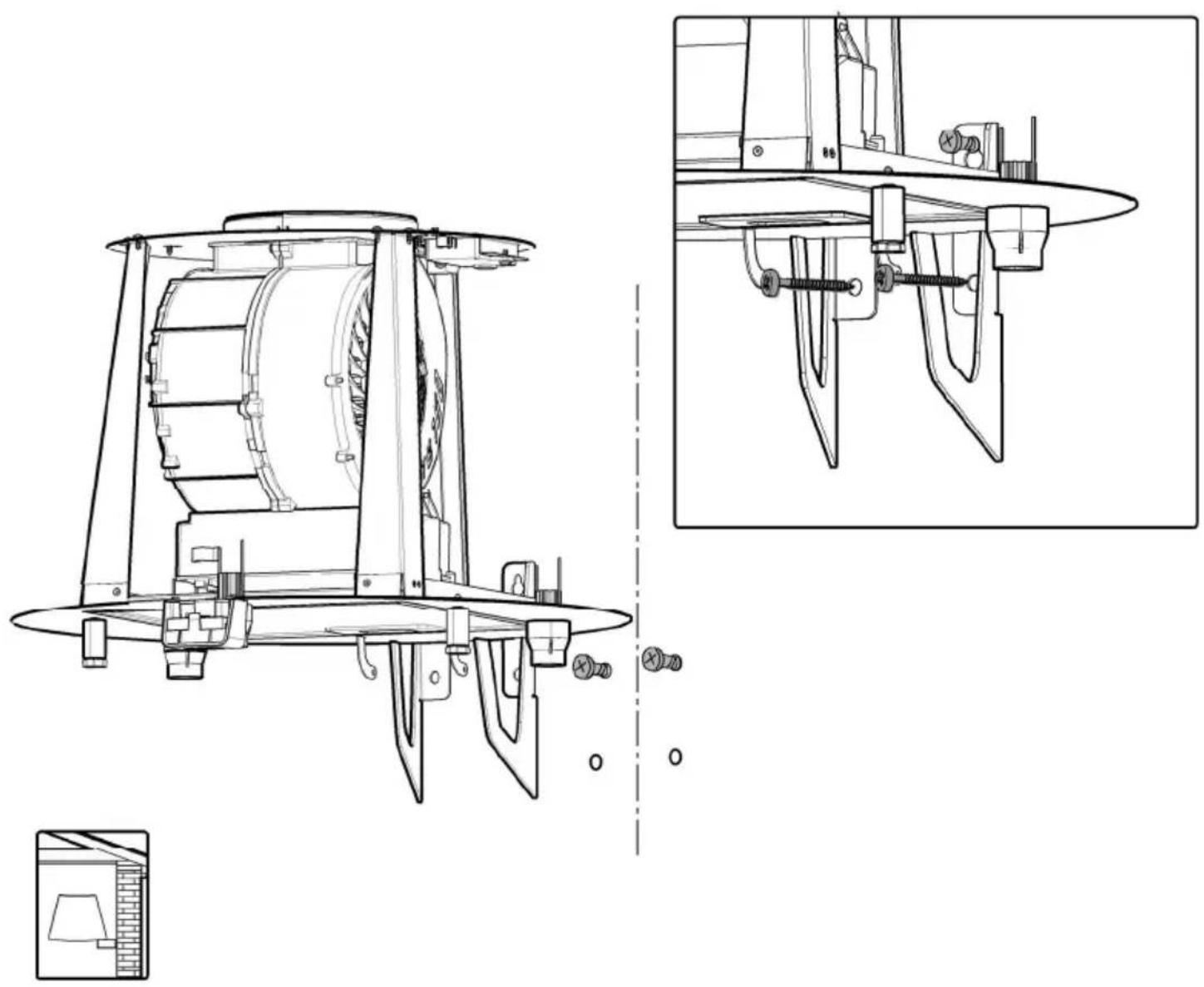

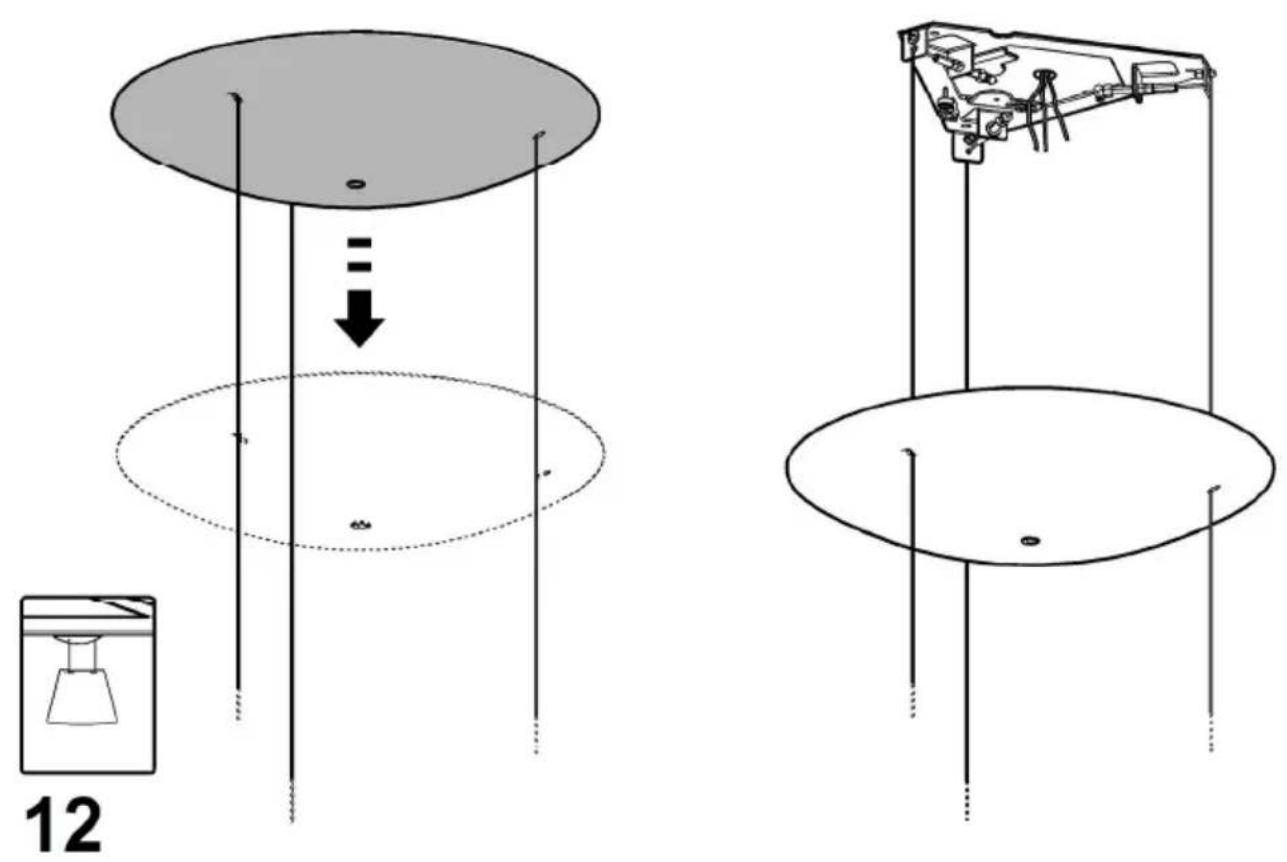

Mounting

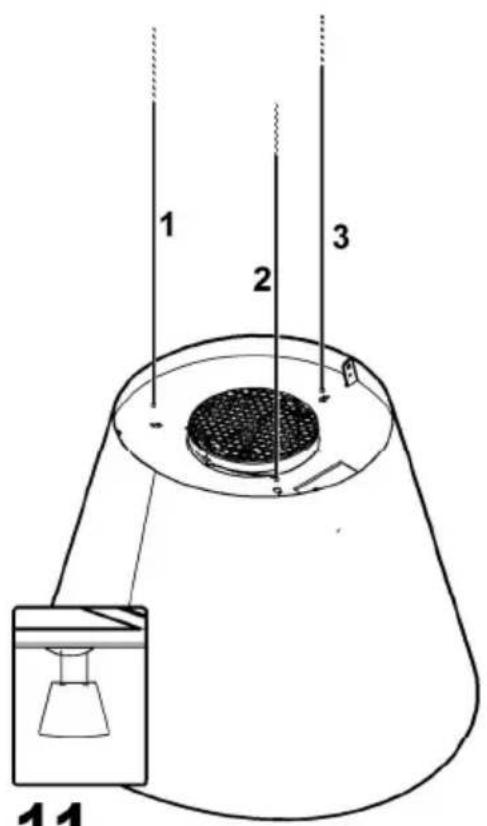

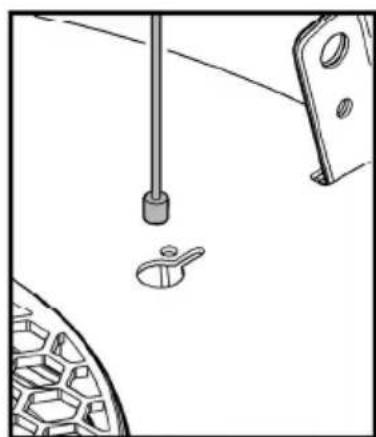

This type of cooker hood must be fixed to the ceiling.

Very heavy product; hood handling and installation must be carried out by at least two persons.

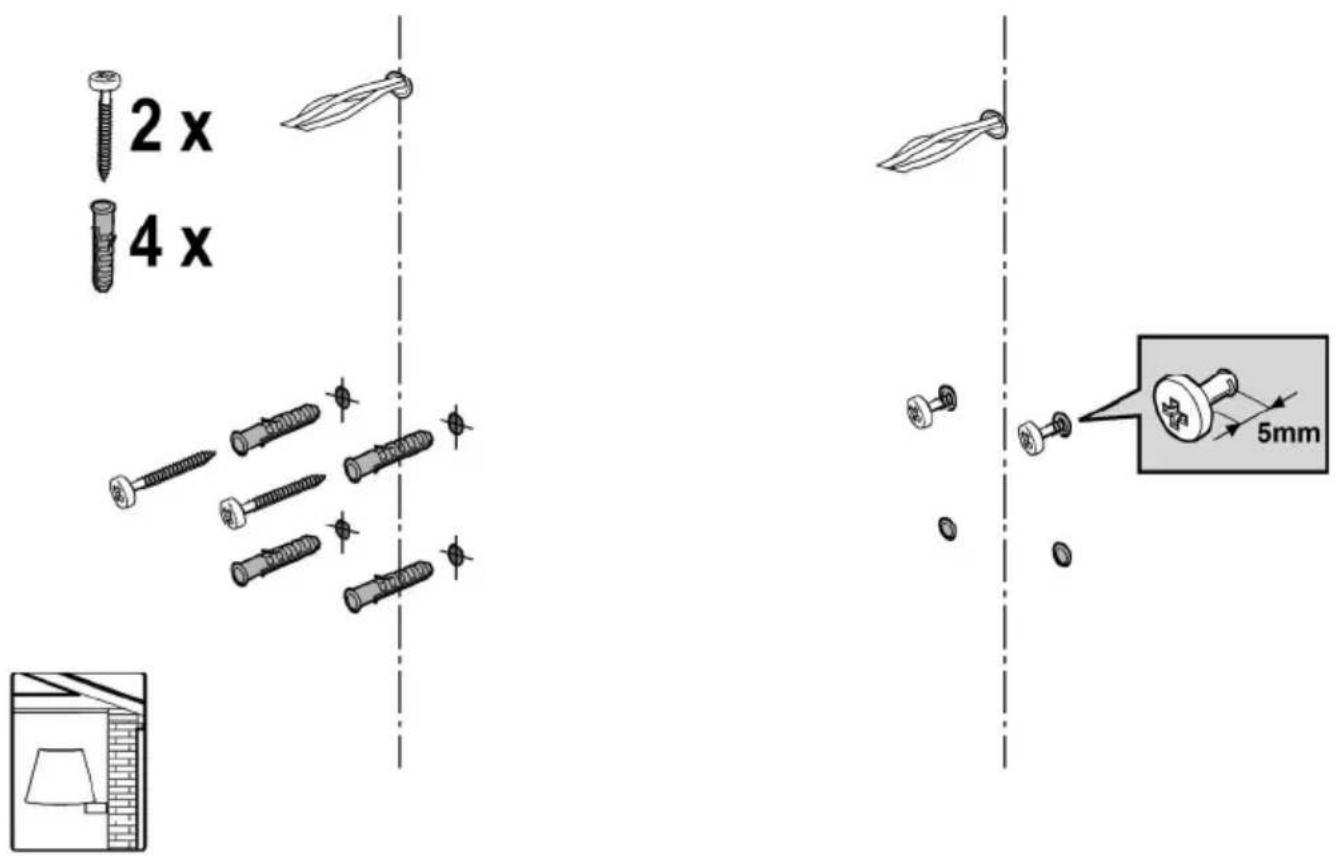

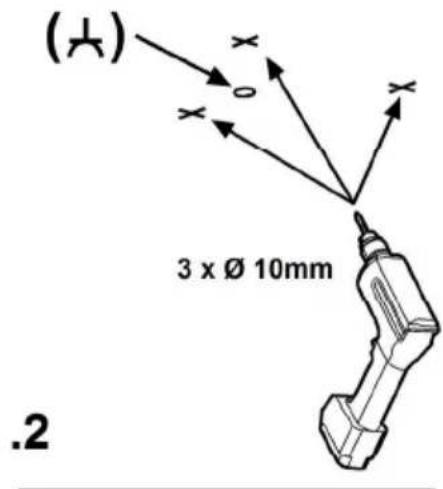

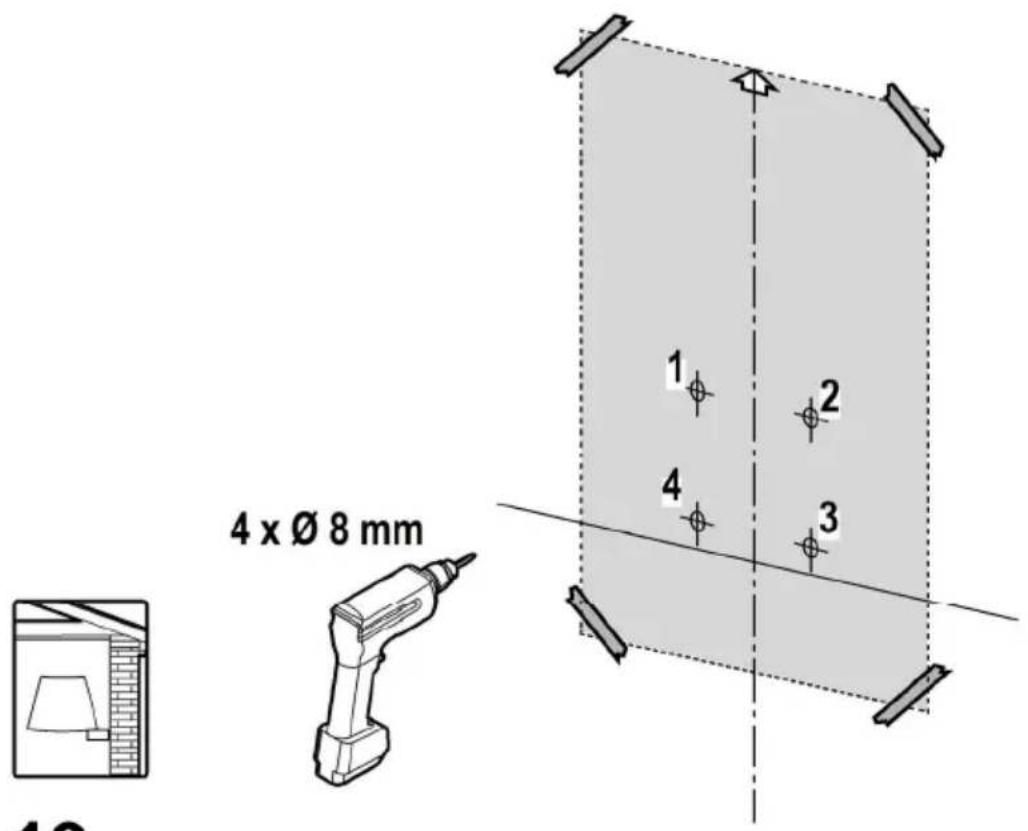

Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone this appliance to the wall. Surface mounting only.

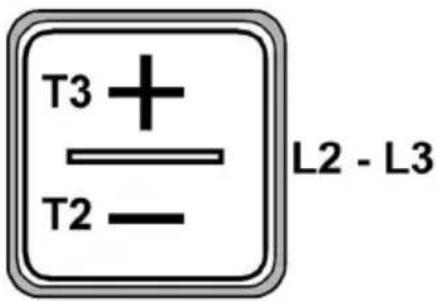

Operation

T1. Button ON/OFF lights

T2. Button to decrease suction speed (power)

OFF 1: press repeatedly to decrease the speed until turn off the hood

OFF 2: at any speed press and hold for a longer time

T3. Button ON/to increasesuction speed (power) (1-2-3-Intensive) / Timer

Intensive speed has a duration of approx. 5 minutes, then speed 3 is automatically set.

To program the automatic switch-off (Timer) press and hold for a longer time; the shutoff time changes according to the set speed:

Speed 1: 20 minutes

Speed 2: 15 minutes

Speed 3: 10 minutes

Intensive speed: 5 minutes

Filter Saturation Indicator

The hood signals when necessary to perform filter maintenance:

Grease filter (every 40 hours of use): all Leds with red light Activated charcoal odour filter (every 160 hours of operation): all LEDs with red light, LEDs L2 and L3 blink

Reset Filter Saturation

After performing filter maintenance, press and hold buttons T1 and T3, Leds L1, L2 and L3 blink briefly in red and then turn off for good.

Activation indicator for odour filter saturation with activated charcoal

This indicator is normally disabled. To enable it, proceed as follows:

With the hood off, press and hold simultaneously T1 and T2: L1 turns on first, then L2 and L3 and after that, when the buttons are released, the Leds L2 and L3 flash briefly to indicate successful activation.

Disabling the LED for charcoal filter saturation:

repeat the operation above; first the LEDs L1, L2 and L3 turn on simultaneously, then only L1, and after that, when the buttons are released, the leds L1, L2 and L3 turn on again to indicate successful disabling.

Maintenance

Cleaning

Clean using ONLY the cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

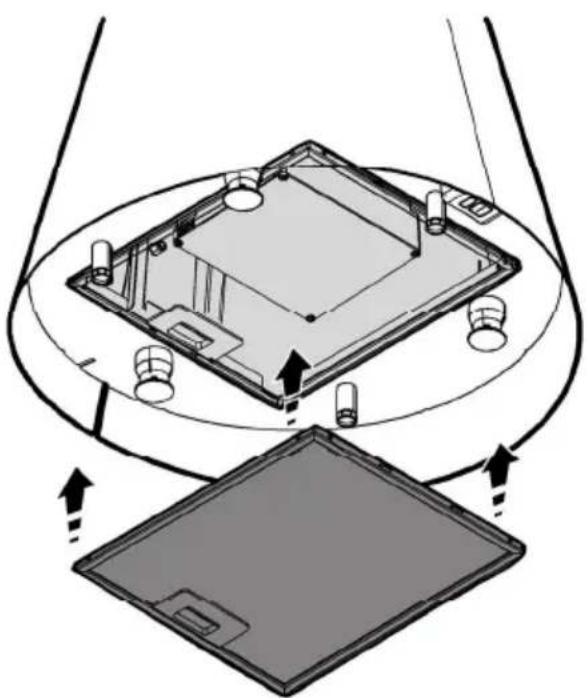

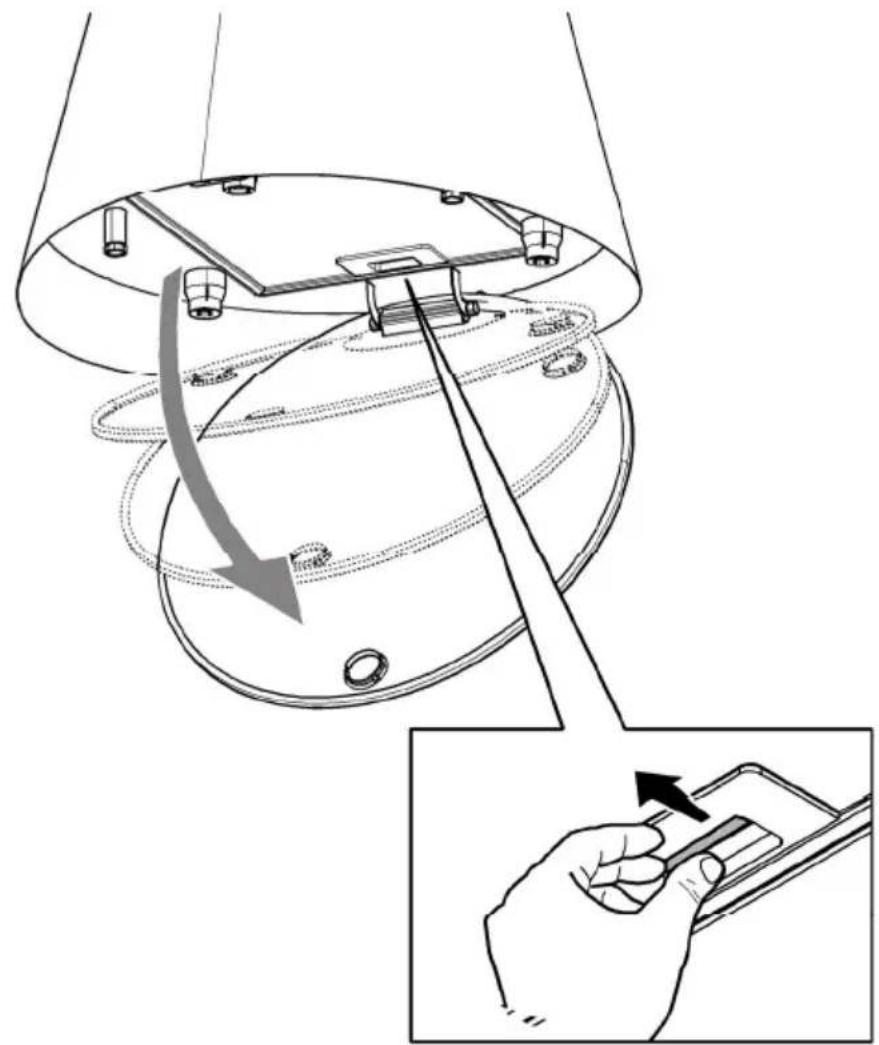

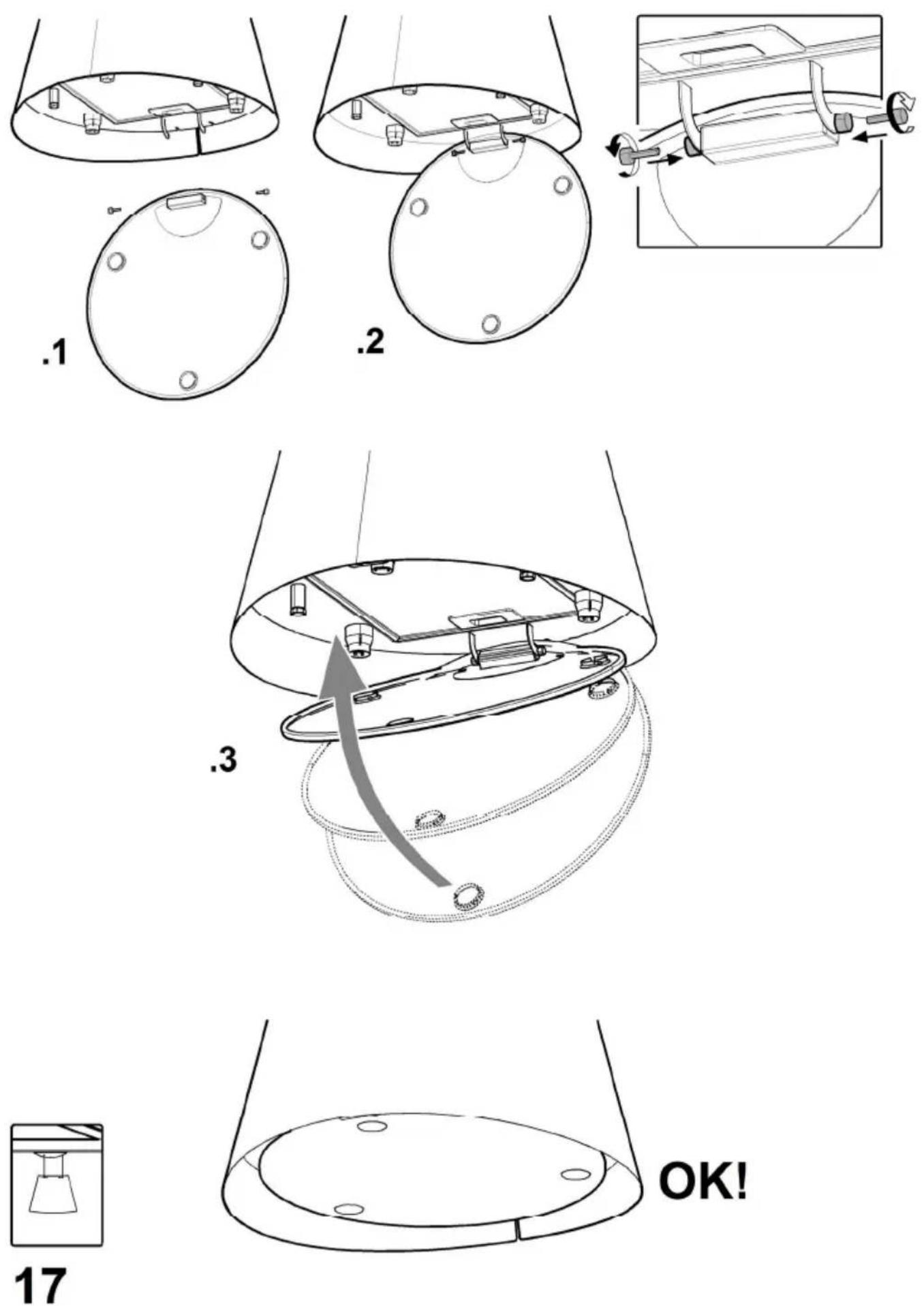

Grease filter

Fig. 26-28

Traps cooking grease particles.

This must be cleaned once a month (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle.

When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

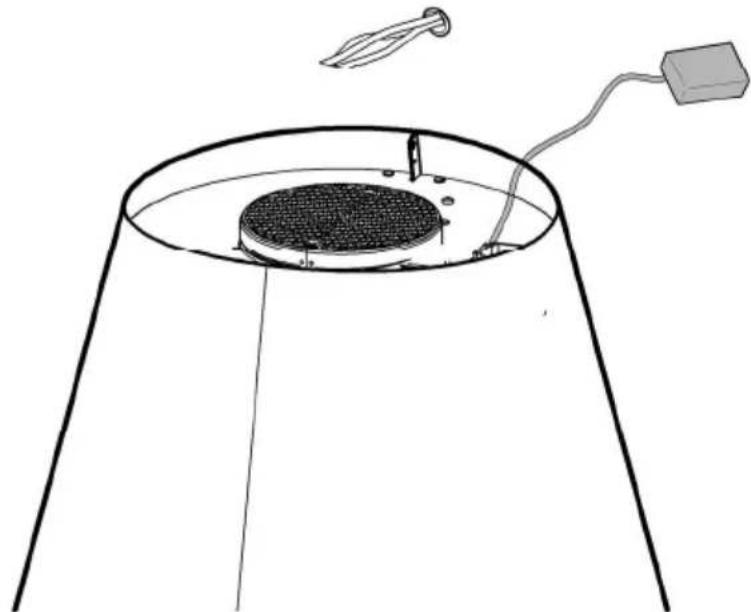

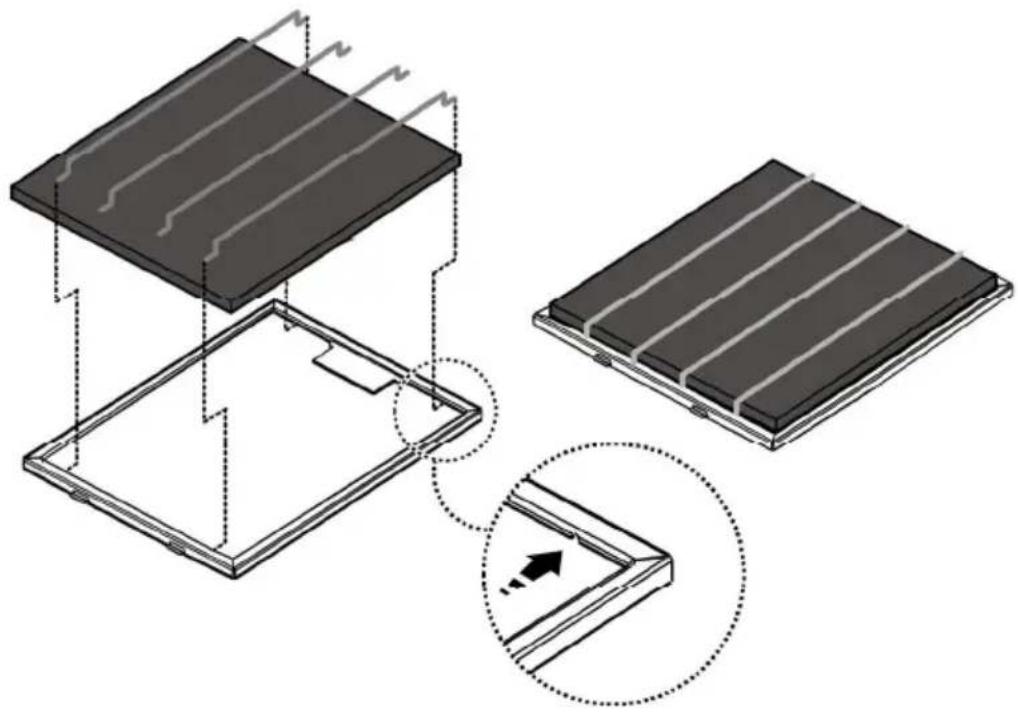

Charcoal filter (filter version only)

Fig. 27

It absorbs unpleasant odours caused by cooking.

The charcoal filter can be washed once every two months (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using hot water and a suitable detergent, or in a dishwasher at 65^ C (if the dishwasher is used, select the full cycle function and leave dishes out).

Eliminate excess water without damaging the filter, then put it in the oven for 10 minutes at 100^ C to dry completely. Replace the mattress every 3 years and when the cloth is damaged.

Replacing lamps

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy.

To purchase spare LEDs, contact the technical assistance service.
