LFP316FW - Range hood ELECTROLUX - Free user manual and instructions

Product Type	Range hood
Brand	Electrolux
Model	LFP316FW
Motor Speeds	3 speeds (1, 2, 3) plus Off (0)
Control Type	Push buttons for motor; telescopic slide for light
Lighting Type	LED (CANDLE 4W, 220-240V, E14, 37mm)
Light Bulb Replacement	CANDLE LED 4W, 220-240V, E14, 37mm; ILCOS D code: DRBB/F-4-220-240-E14-37/100
Grease Filter Type	Metal (washable)
Grease Filter Cleaning Frequency	Every 2 months; hand wash or dishwasher with neutral detergent
Charcoal Filter Type	Activated carbon (not washable, replaceable)
Charcoal Filter Replacement Frequency	Every 4 months (more frequently with heavy use)
Installation Type	Ducting (air exhaust outside) or Recirculating (filtering version)
Minimum Distance to Hob	At least 65 cm (unless specified otherwise in hob instructions)
Power Supply	220-240 V, 50 Hz
Electrical Connection	Requires qualified electrician; appliance must be earthed if symbol not on rating plate
Safety Features	Disconnect from power before maintenance; do not flambé under hood; clean regularly to prevent fire; maximum vacuum in room ≤0.04 mbar
Compliance	RoHS compliant; EACCE
Environmental	Recycle packaging and WEEE; do not dispose with household waste
Service	Contact Authorised Service Centre; use original spare parts only

Frequently Asked Questions - LFP316FW ELECTROLUX

How often should I clean the grease filters?

Clean the grease filters every 2 months to prevent fire risk. They can be washed by hand or in a dishwasher using a neutral detergent. Discoloration does not affect performance.

How do I replace the charcoal filter?

The activated charcoal filter is not washable and must be replaced approximately every 4 months, or more frequently if the hood is used heavily. It cannot be regenerated.

What type of light bulb does the hood use?

The hood uses a CANDLE LED 4W bulb with 220-240V, E14 socket, and 37mm length. The ILCOS D code is DRBB/F-4-220-240-E14-37/100.

Can I install the hood in recirculation mode?

Yes, the hood can be used in filtering version (recirculation) where air is purified and returned to the room. Alternatively, you can use the ducting version to exhaust air outside. For best efficiency, ducting is recommended.

What is the minimum distance between the hood and the hob?

The minimum distance is at least 65 cm between the hob surface and the lower part of the hood, unless the hob installation instructions specify a greater distance.

How do I turn on the light?

The light is controlled by the telescopic slide. Pulling out the slide turns the light on, and pushing it in turns it off.

Is the hood safe for children?

The hood can be used by children aged 8 years and above under supervision. Children between 3 and 8 years and those with disabilities should be kept away unless continuously supervised. Children under 3 must be kept away. Do not let children play with the appliance.

What should I do if the hood is damaged or needs repair?

Contact an Authorised Service Centre for repairs. Always use original spare parts. Before any maintenance, disconnect the hood from the power supply.

Can I install the hood myself?

Installation must be carried out by a qualified person. Do not install or use a damaged appliance. Follow the installation instructions supplied with the hood. The electrical connection should be made by a qualified electrician.

Why is my hood not extracting properly?

Check that the grease filters are clean (clean every 2 months) and the charcoal filter (if in recirculation mode) is not clogged (replace every 4 months). Ensure ventilation openings are not blocked and the exhaust duct is not obstructed.

USER MANUAL LFP316FW ELECTROLUX

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com

Register your product for better service:

www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

⚠ Warning / Caution-Safety information

① General information and tips

Environmental information

Subject to change without notice.

1. ⚠SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

• Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away unless continuously supervised.
• Children of less than 3 years of age should be kept away unless continuously supervised.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep children and pets away from the appliance when it operates.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is intended for domestic use above hobs, cookers and similar cooking devices.
• Before carrying out any maintenance, disconnect the appliance from the power supply.
• CAUTION: Accessible parts may become hot during use with cooking appliances.
• Use only the fixing screws supplied with the appliance if not supplied, use the screws recommended in the installation instructions.
• Do not use adhesives to fix the appliance.
• The minimum distance between the hob surface on which the pans stand and the lower part of the appliance shall be at least 65 cm, unless otherwise specified in the installation instructions. If the hob installation instructions specify a greater distance, it must be taken into account.
• The discharge of air must comply with local authorities regulations.
• Ensure good air ventilation in the room where the appliance is installed to avoid the backflow of unwanted gases into the room from appliances burning gas or other fuels, including open fires.
• Make sure that the ventilation openings are not blocked and the air collected by the appliance is not conveyed into a duct used to

exhaust smoke and steam from other appliances (central heating systems, thermosiphons, water-heaters, etc.).

- When the appliance operates with other appliances the maximum vacuum generated in the room should not exceed 0.04 mbar.

- Make sure not to cause damage to the mains cable. Contact our Authorised Service Centre or an electrician to change a damaged mains cable.

- If the appliance is connected directly to the power supply, the electrical installation must be equipped with an isolating device that allows to disconnect the appliance from the mains at all poles. Complete disconnection must comply with conditions specified in the overvoltage category III. The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

- Do not fl ambé under the appliance.

- Do not use to exhaust hazardous or explosive materials and vapours.

- Clean the appliance regularly to prevent the deterioration of the surface material.

- Clean the appliance with a soft cloth regularly.

- Do not use a steam cleaner, water spray, harsh abrasive cleaners or sharp metal scrapers to clean the surface of the appliance. Use only neutral detergents.

- Clean grease fi Iters regularly (at least every 2 months) and remove grease deposits from the appliance to prevent the risk of fi re.

- Use a cloth or brush to clean the interior of the appliance.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Risk of injury, electric shock, fire, burns or damage to the appliance.

- Only a qualified person must install this appliance.

- Do not install or use a damaged appliance.

- Follow the installation instructions supplied with the appliance.

• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.

- Before installing the appliance remove all the packaging, the labelling and the protective film.

- Do not install the exhaust air into a wall

cavity, unless the cavity is designed for that purpose.

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

- All electrical connections should be made by a qualified electrician.

- Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.

- If the symbol (回) is not printed on the rating plate, the appliance must be earthed.

- Always use a correctly installed hockproof socket.

- Do not let the electricity mains cable tangle.

• Do not use multi-plug adapters and extension cables.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable can make the terminal become too hot.
• Connect the appliance at the end of the installation. Make sure that there is access to the mains after the installation.

2.3 Use

WARNING!

Risk of injury, burns and electric shock.

• This appliance is for cooking purpose only. Do not use the appliance for other purpose.
• Do not change the specification of this appliance.
• Do not operate the appliance with wet hands or when it has contact with water.
• Use only the accessories supplied with the appliance.
• Keep fl ames or heated objects away from fats and oils during cooking and frying.
• Do not use uncovered electric grates.
• Do not use the appliance as a storage surface.
• Do not use magnifying glasses, binoculars or similar optical devices to look directly at the lighting of the appliance.

2.4 Service

• To repair the appliance contact an Authorised Service Centre.
- Use original spare parts only.

2.5 Disposal

WARNING! Risk of injury or suffocation.

• Contact your municipal authority for information on how to discard the appliance correctly.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

3. MAINTENANCE

Clean grease fi Iters in relation to use, at least every 2 months to prevent the risk of fi re. Hand wash or clean in a dishwasher using a neutral detergent. If washing in the dishwasher, possible discoloration of the fi Iters does not in any way compromise their functioning.

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

The activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.

Illustration of hands operating a mechanical device with rotating buttons (no text or symbols)

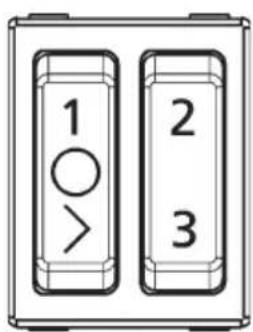

4. CONTROLS

1: fi rst speed motor.

0 : OFF motor.

• 2 : second speed motor.

• 3 : third speed motor.

The opening/closing of the telescopic slide regulates the Lights On/OFF.

5. INSTALLATION METHODS

FILTERING OR DUCTING VERSION ?

The hood may be in filtering or in ducting version. Decide from the outset which type is to be installed.

For better efficiency, we recommend installing the hood in the ducting version (if possible).

Ducting version

The hood purifi es the air and evacuates it to the outside through an exhaust duct.

Filtering version

The hood purifi es the air and recycles the clean air back into the room.

6. LIGHTING

Disconnect the hood from the electricity.

⚠ Warning! Prior to touching the light bulbs ensure they are cooled down.

Replace it with lamps of the same type (CANDLE LED 4W, 220-240V, E14, ø37mm).

Close-up of a single white incandescent light bulb with screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol

Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol with the household waste.

Return the product to your local recycling facility or contact your municipal office.
