Product Type	Cordless Drill
Brand	Hitachi
Model	DS 9DVF2
Voltage	9.6 V
Battery Type	NiCd (rechargeable)
Chuck Type	Keyless
Chuck Capacity	10 mm (0.4 in)
No-Load Speed	0 - 550 RPM (variable)
Maximum Torque	10 Nm
Weight (with battery)	1.2 kg
Dimensions (L x W x H)	200 x 180 x 60 mm
Power Source	Battery (9.6 V NiCd)
Charger	1-hour charger included
Applications	Drilling in wood, metal, plastic
Safety Features	Double insulation, lock-off button
Maintenance	Clean vents, check carbon brushes regularly
Spare Parts Availability	Through Hitachi service centers
Reparability	Designed for service, carbon brushes replaceable
General Information	Compact design, soft grip handle

Frequently Asked Questions - DS 9DVF2 HITACHI

What is the battery voltage of the Hitachi DS 9DVF2?

The Hitachi DS 9DVF2 operates on a 9.6 V NiCd battery.

How long does it take to charge the battery?

The included charger provides a 1-hour charging time for the NiCd battery.

Can I use this drill for masonry?

The DS 9DVF2 is designed for drilling in wood, metal, and plastic. For masonry, a hammer drill is recommended.

How do I change the drill bit?

The drill has a keyless chuck. Rotate the chuck sleeve to open, insert bit, and tighten by hand.

What is the maximum drilling capacity?

The chuck capacity is 10 mm (0.4 in), so you can use bits up to that diameter.

How do I maintain the drill?

Keep the ventilation slots clean and periodically check the carbon brushes. Replace them when worn.

Is the drill double insulated?

Yes, it features double insulation for enhanced safety without grounding.

What safety features does it have?

It includes a lock-off button to prevent accidental start and double insulation.

Where can I find spare parts?

Spare parts are available through Hitachi authorized service centers.

Can I use the DS 9DVF2 with other Hitachi batteries?

This model uses a 9.6 V NiCd battery. It is not compatible with newer 18 V or lithium batteries.

USER MANUAL DS 9DVF2 HITACHI

Batteridriven skruvidragare/borr

Batteridrevet

Cordless Driver Drill

Variable speed

Line drawing of a DS14DVF2 electric drill press (no text or symbols on the device itself)

Read through carefully and understand these instructions before use.

Bruksanvisning

Brugsanvisning

Bruksanvisning

Käyttöohjeet

Handling Instructions

1

2

3

4

5

6

7

8

9

	Svenska Dansk	Norsk Suomi English
1	9,6V Uppladdningsbart batteri (För DS9DVF2)	9,6V Genopladeligt 9,6batteri (For DS9DVF2)	V Oppladbart 9,6V Ladattbatteri (For DS9DVF2)	attava 9.6V Rechargeable paristo (DS9DVF2) baterry	(For DS9DVF2)
2	12V Uppladdningsbart batteri (För DS12DVF2)	12V Genopladeligt 12V batteri (For DS12DVF2)	Oppladbart 12V Ladattbatteri (For DS12DVF2)	ava 12V Rechargeable paristo (DS12DVF2)	baterry (For DS12DVF2)
3	14,4V Uppladdningsbart batteri (För DS14DVF2)	14,4V Genopladeligt batteri (For DS14DVF2)	14,4V Oppladbart batteri (For DS14DVF2)	14,4V Ladattava paristo (DS14DVF2)	14.4V Rechargeable baterry (For DS14DVF2)
4	Lås	Smæklås	Sperrehake	Salpa	Latch
5	Dra ut Træk ud	Dra ut Ota ulos	Pull out
6	Passa in	Ilæg	Sett i	Paina sisään	Insert
7	Handtag	Håndtag	Håndtak	Kahva	Handle
8	Tryck	Tryk	Skyv	Työnnä	Push
9	Passa in	Ilæg	Sett i	Paina sisään	Insert
10	Signallampa	Kontrollampe	Pilot-lys	Markkivalo	Pilot lamp
11	Hål för iläggning av det uppladdningsbara batteriet	Hul til tilslutning af det opladelige batteri	Hull for tilkopling av det oppladbare batteriet	Ladattavan pariston liitäntäaukko	Hole for connecting the rechargeable battery
12	Läget	mærkning	merke	Merkki	mark
13	Borrsockel	Kappe	Hette	Holkki Cap
14	Triangelmärke	Trekantmærke	Trekantmerke	Kolmikulmiomerkki	Triangle mark
15	Svag åtdragningskraft	Svag	Svak	Kevyt	Weak
16	Stark åtdragningskraft	Stærk Sterk	Vahva	Strong
17	Svart linje	Sort linie	Svart linje	Musta viiva	Black line

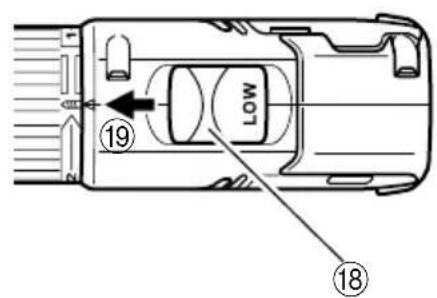

18	Hastighetsomkopplare	Omskifterknap	Omskifterbryter	Liukunäppäin Shift knob
19	Låg hastighet	Lav hastighed	Lav hastighet	Hidas	Low speed
20	Hög hastighet	Høj hastighed	Høy hastighet	Nopea	High speed
21	Ring	Ring	Ring	Ranges	Ring

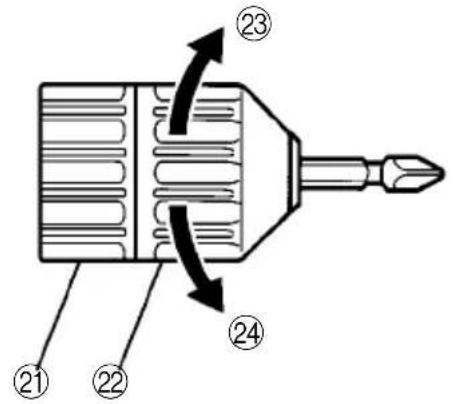

22	Chuckhylsa	Muffe Muffe	Holkki Sleeve
23	Dra åt	Fastgøre	Stramme	Kiristää	Tighten
24	Lossa	Løsne	Løsne	Irrottaa	Loosen
25	Startomkopplare	Aftrækkerkontakt	Starbryter	Käynnistysliipaisin	Trigger switch
26	Väljarknapp	Vælgerknap	Velgerknapp	Valintapainike	Selector button
27	Lägena (R) (höger) och (L) (väster)	(R) og (L) afmærkning	(R) og (L) merker	(R) ja (L) merkit	(R) and (L) marks

SÄKERHETSFÖRESKRIFTER

Line drawing of a cylindrical electronic device with ports and a base (no text or symbols)

1. Batteri (EB1212S/EB1214S/EB1214L/EB1222HL) (För DS12DVF2)

Technical line drawing of a mechanical component with mounting holes and internal slots (no text or symbols)

Technical line drawing of a rectangular electronic component with mounting holes and a central housing (no text or symbols)

Line drawing of a cylindrical electronic device with a flat top and internal components (no text or symbols)

1. Batteri (EB1212S/EB1214S/EB1214L/EB1222HL) (För DS12DVF2)

Technical line drawing of a mechanical component with mounting holes and a rectangular housing (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a battery with a flat top and side slots (no text or symbols)

1. Batteri (EB1212S/EB1214S/EB1214L/EB1222HL) (For DS12DVF2)

Line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with mounting holes and a central shaft (no text or symbols)

VEDLIKEHOLD OG INSPEKSJON

Line drawing of a cylindrical electronic device with ports and casing (no text or symbols)

1. Paristo (EB1212S/EB1214S/EB1214L/EB1222HL) (DS12DVF2)

Technical line drawing of a mechanical component with no visible text or symbols

1. Paristo (EB1412S/EB1414S/EB1414/EB14H) (DS14DVF2)

Line drawing of a rectangular electronic component with mounting holes and a side panel (no text or symbols)

1. Keep work area clean. Cluttered areas and benches invite accidents.
2. Avoid dangerous environment. Don't expose power tools and charger to rain. Don't use power tools and charger in damp or wet locations. And keep work area well lit. Never use power tools and charger near flammable or explosive materials. Do not use tool and charger in presence of flammable liquids or gases.
3. The appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance. All visitors should be kept safe distance from work area.
4. Store idle tools and charger. When not in use, tools and charger should be stored in dry, high or locked-up place-out of reach of children and infirm persons. Store tools and charger in a palce where the temperature is less than 40^ C.
5. Don't force tool. It will do the job better and safer at the rate for which it was designed.
6. Use right tool. Don't force small tool or attachment to do the job of a heavy duty tool.
7. Wear proper apparel. Do not wear clothing or jewelry. They can be caught in moving parts. Rubber gloves and footwear are recommended when working outdoor.
8. Use eye protection with most tools. Also use face or dust mask if cutting operation is dusty.
9. Don't abuse cord. Never carry charger by cord or yank it to disconnect from receptacle. Keep cord from heat, oil and sharp edges.
10. Secure work. Use clamps or a vise to hold work. It's safer than using your hand and it frees both hands to operate tool.
11. Don't overreach. Keep proper footing and balance at all times.
12. Maintain tools with care. Keep tools sharp at all times, and clean for best and safest performance. Follow instructions for lubricating and changing accessories.
13. When the charger is not in use, or when being maintained and inspected, disconnect its power cord from the AC outlet.
14. Remove chuck wrenches and wrenches. Form habit of checking to see that wrenches are removed from tool before turning it on.
15. Avoid accidental starting. Don't carry tool with finger on switch.
16. To avoid danger, always use only the specified charger.
17. Use only original HITACHI replacement parts.
18. Do not use power tools for applications other than those specified in the Handling Instructions.
19. To avoid personal injury, use only the accessories or attachment recommended in these handling instructions or in the HITACHI catalog.
20. If the supply cord of this charger is damaged, the charger must be returned to the HITACHI authorized service center for the cord to be replaced. Let only the authorized service center do the repairing. The Manufacturer will not be responsible for any damages or injuries caused by repair by the unauthorized persons or by mishandling of the tool.
21. To ensure the designed operational integrity of power tools and charger, do not remove installed covers or screws.
22. Always use the charger at the voltage specified on the nameplate.

23. Do not touch movable parts or accessories unless the battery has been removed.

24. Always charge the battery before use.

25. Never use a battery other than that specified. Do not connect a usual dry cell, a rechargeable battery other than that specified or a car battery to the power tool.
26. Do not use any transformer that has a booster.
27. Do not charge the battery from an engine electric generator or DC power supply.
28. Always charge indoors. Because the charger and battery heat slightly during charging, charge the battery in a place not exposed to direct sunlight; where the humidity is low and the ventilation good.
29. When working in a high place, pay attention to the activities below to make sure there are no people below.

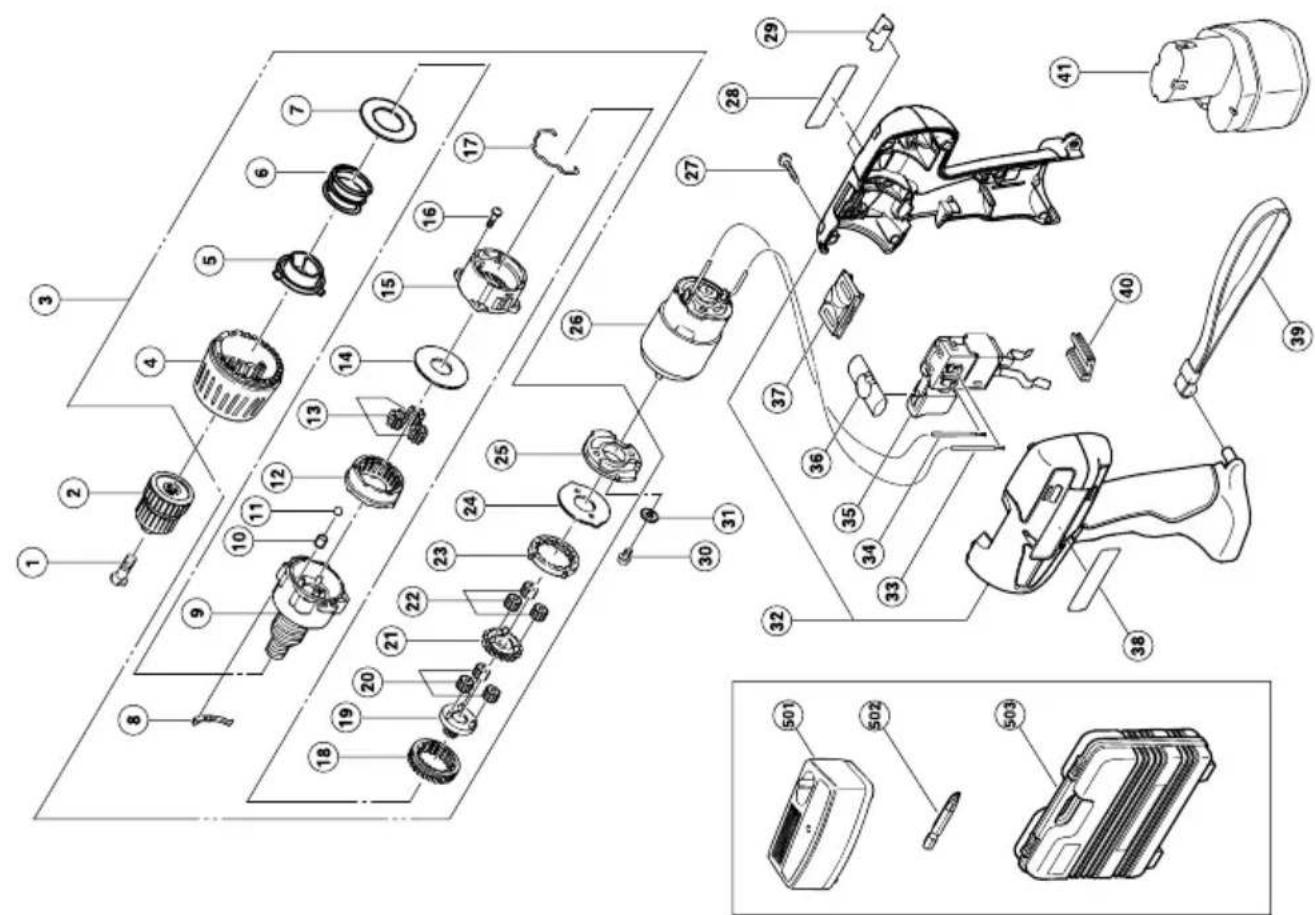

30. Use the exploded assembly drawing on this handling instructions only for authorized servicing.
31. If the supply cord is damaged, it must be replaced by the manufacture or its service agent or a similarly qualified person in order to avoid a hazard.

PRECAUTIONS FOR CORDLESS DRIVER DRILL

1. These chargers utilize a special charging control system due to the face that the high charging speed. Therefore always charge the battery at a temperature of 10 – 40°C for UC9SD, UC12SD, and UC14SD and 0 – 40°C for UC14YFA. A lower temperature than these specified ranges will result in overcharging which will shorten the battery life. The most suitable temperature for charging is that of 20 – 25°C.
2. When one charging is completed, leave the charger for about 15 minutes before the next charging of battery. Do not charge more than two batteries consecutively.
3. Do not charge the battery for more than 120 minutes. The battery will be fully charged in about 60 minutes and charging should be stopped when 60 minutes have elapsed from commencement. Disconnect the charger power cord from the receptacle.
4. Do not allow foreign matter to enter the hole for connecting the rechargeable battery.
5. Never disassemble the rechargeable battery and charger.
6. Never short-circuit the rechargeable battery. Short-circuiting the battery will cause a great electric current and overheat. It results in burn or damage to the battery.
7. Do not dispose of the battery in fire. If the battery is burnt, it may explode.
8. When drilling in wall, floor or ceiling, check for buried electric power cord, etc.
9. Bring the battery to the shop from which it was purchased as soon as the post-charging battery life becomes too short for practical use. Do not dispose of the exhausted battery.
10. Using an exhausted battery will damage the charger.
11. Do not insert object into the air ventilation slots of the charger. Inserting metal objects or inflammables into the charger air ventilation slots will result in electrical shock hazard or damaged charger.
12. When mounting a bit into the keyless chuck, tighten the sleeve adequately. If the sleeve is not tight, the bit may slip or fall out, causing injury.

SPECIFICATIONS

POWER TOOL

Model DS9DVF2 DS12DVF2 DS14DVF2			0-280 / 0-840 min ^-1	0-350 / 0-1050 min ^-1	0-400 / 0-1200 min ^-1
No-load speed (Low/High)
Capacity	Drilling	Wood(Thickness18mm)	18 mm 21 mm	25 mm
		Metal(Thickness1.6mm)	Steel: 10 mm, Steel: Aluminum: 12 mm Al	12 mm, Steel: 12 mm, aluminum: 15 mm Aluminum	15 mm
	Driving	Machine screw	6 mm 6 mm 6	mm
		Wood screw	5.5 mm (diameter) ×45 mm (length)(Requires a pilot hole)	5.5 mm (diameter) ×63 mm (length)(Requires a pilot hole)	5.5 mm (diameter) ×63 mm (length)(Requires a pilot hole)
Rechargeable battery			EB912S, EB914S, EB914: Ni-Cd 9.6 VEB9H: Ni-MH 9.6 V EB1222HL: Ni-MH 12 V	EB1212S, EB1214S, EB1214L: Ni-Cd 12 VEB1222HL: Ni-MH 12 V	EB1412S, EB1414S, EB1414: Ni-Cd 14.4 VEB14H: Ni-MH 14.4 V
Weight			1.5 kg	1.6 kg	1.7 kg

CHARGER

Model	UC9SD	UC12SD	UC14SD	UC14YFA
Charging voltage	9.6 V	12 V	14.4 V	7.2 – 14.4 V
Weight	1.2 kg	1.4 kg	1.6 kg	0.6 kg

STANDARD ACCESSORIES

DS9DVF2	1 Plus driver bit (No. 2×55L)...... 1
	2 Charger (UC9SD/UC14YFA)...... 1
	3 Plastic case...... 1
DS12DVF2	1 Plus driver bit (No. 2×55L)...... 1
	2 Charger (UC12SD/UC14YFA)...... 1
	3 Plastic case...... 1
DS14DVF2	1 Plus driver bit (No. 2×55L)...... 1
	2 Charger (UC14SD/UC14YFA)...... 1
	3 Plastic case...... 1

Standard accessories are subject to change without notice.

OPTIONAL ACCESSORIES (sold separately)

1. Battery (EB912S/EB914S/EB914) (For DS9DVF2)

Line drawing of a cylindrical electronic component with a base and mounting bracket (no text or symbols)

1. Battery (EB1212S/EB1214S/EB1214L/EB1222HL) (For DS12DVF2)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Optional accessories are subject to change without notice.

APPLICATIONS

○ Driving and removing of machine screws, wood screws, tapping screws, etc.
○ Drilling of various metals.
○ Drilling of various woods.

BATTERY REMOVAL/INSTALLATION

1. Battery removal

Hold the handle tightly and push the battery latch (1 pc or 2 pcs.) to remove the battery. (see Figs. 1 and 2)

CAUTION:

Never short-circuit the battery.

2. Battery installation

Insert the battery while observing its direction. (see Fig. 2)

CHARGING

Before using the driver drill, charge the battery as follows.

1. Insert the battery into the charger.

Insert the battery firmly while observing its direction, until it contacts the bottom of the charger. (See Figs. 1 and 3)

CAUTION:

The UC9SD, UC12SD and UC14SD models are the exclusively designed chargers. These cannot charge batteries except the specified batteries. It is possible to insert the batteries other than the specified into the chargers and some of them may light up the pilot lamps. However, you are requested to exercise utmost caution not to charge batteries other than specified ones because these can not only be charged but also such actions can result in the malfunction of chargers.

○If the batteries are inserted in the reverse direction, not only recharging will become impossible, but it may also cause problems in the charger such as a deformed recharging terminal.

1. Connect the charger power cord to the receptacle. Connecting the power cord will turn on the charger (the pilot lamp lights up).

CAUTION:

○If the pilot lamp does not light up, pull out the power cord from the AC outlet and check the battery mounting condition.

1. Charging

About 60 minutes are required to fully charge the battery at a temperature of about 20°C. The pilot

lamp goes off to indicate that the battery is fully charged.

The temperature for batteries (EB914, EB1214L, EB1414) is 10 – 40°C, and batteries that have become hot should be cooled for while before being recharged.

NOTE:

The battery charging time becomes longer when a temperature is low or the voltage of the power source is too low.

When the pilot lamp does not go off even if more than 120 minutes have elapsed after starting of the charging, stop the charging and contact your HITACHI authorized service center.

CAUTION:

If the battery is heated due to direct sunlight, etc., just after operation, the charger pilot lamp may not light up. At that time, cool the battery first, then start charging.

1. Disconnect the charger's power cord from the receptacle.

2. Hold the charger firmly and pull out the battery.

NOTE:

After operation, pull out batteries from the charger first, and then keep the batteries properly.

1. Connect the charger's power cord to a receptacle. When the power cord is connected, the charger's pilot lamp will blink in red. (At 1-second intervals.)

2. Insert the battery into the charger.

Position the battery so that the nameplate faces toward the caution plate of the charger and push in the battery until it contacts the bottom plate. (See Fig. 1 and 3)

CAUTION:

○If the battery is inserted in the reverse direction, not only recharging will become impossible, but it may also cause the fuse to blow, or problems in the charger such as deformed charging terminals.

1. Charging

When inserting a battery in the charger, charging will commence and the pilot lamp will light continuously in red.

When the battery is fully charged, the pilot lamp will blink in red. (At 1-second intervals.) (See Table 1)

(1) Pilot lamp indication

The indications of the pilot lamp will be as shown in Table 1, according to the condition of the charger or the rechargeable battery.

Table 1

Indications of the pilot lamp
Before Blinks charging (RED)	Lights for 0.5 seconds. Does not light for 0.5 seconds.
While Lights charging (RED)	Lights continuously
Charging Blinks completed (RED)	Lights for 0.5 seconds. Does not light for 0.5 seconds.
Charging Flickers	Lights for 0.1 seconds, Does not light Malfunction impossible (RED) for 0.1 seconds. (off for 0.1 seconds) the charger	in the battery or
Charging Lights	Lights continuously The battery temperature is high, impossible (GREEN) making recharging impossible.

(2) Regarding the temperatures of the rechargeable battery.

The temperatures for rechargeable batteries are as shown in Table 2, and batteries that have become hot should be cooled for a while before being recharged.

Table 2 Recharging ranges of batteries

Rechargeable batteries which	Temperatures at the battery can be recharged
EB912S, EB9S, EB914, EB914S, EB9B, EB9M, EB924, EB1212S, EB12S, EB1214L, EB1214S, EB12B, EB1220BL, EB12M, EB1224, EB1412S, EB14S, EB1414, EB1414S, EB14B, EB1424	-5°C - 55°C
EB12H, EB1222HL, EB1230H, EB1230HL, EB14H, EB1430H	0°C - 45°C

(3) Regarding recharging time Depending on the combination of the charger and batteries, the charging time will become as shown in Table 3.

Table 3 Charging time (At 20°C)

Battery\Charger	UC14YFA
EB912S, EB9S, EB1212S, EB12S, EB1412S, EB14S, EB914, EB1214L, EB1414, EB914S, EB1214S, EB1414S	Approx. 30 min.
EB9B, EB9M, EB12B, EB1220BL EB12M, EB14B	Approx. 50 min.
EB9H, EB12H, EB1222HL, EB14H Approx. 55 min.
EB924, EB1224, EB1424 Approx. 60 min.
EB930H, EB1230H, EB1230HL EB1430H	Approx. 70 min.

NOTE:

○The charging time may vary according to temperature and power source voltage.
4. Disconnect the charger's power cord from the rceptacle.
5. Hold the charger firmly and pull out the battery.

NOTE:

○After operation, pull out batteries from the charger first, and then keep the batteries properly.

CAUTION:

○If the battery has been heated right after operation (or due to sunlight, etc.), the charger's pilot lamp may not light in red. In such a case, first let the battery cool, then start charging.
When the pilot lamp flickers in red quickly (at 0.2-second intervals), check for and take out any foreign objects in the charger's battery installation hole. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take them to your HITACHI Authorized Service Center.

○Since the built-in micro computer takes about 3 seconds to confirm that the battery being charged with UC14YFA is taken out, wait for a minimum of 3 seconds before reinserting it to continue charging. If the battery is reinserted within 3 seconds, the battery may not be properly charged.

Regarding electric discharge in case of new batteries, etc.

As the internal chemical substance of new batteries and batteries that have not been used for an extended period is not activated, the electric discharge might be low when using them the first and second time. This is a temporary phenomenon, and normal time required for recharging will be restored by recharging batteries 2 – 3 times.

How to make the batteries perform longer

(1) Recharge the batteries before they become completely exhausted.

When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter.

(2) Avoid recharging at high temperatures.

A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while.

PRIOR TO OPERATION

1. Setting up and checking the work environment Check if the work environment is suitable by following the precautions.

HOW TO USE

1. Confirm the cap position (see Fig. 4)

The tightening torque of this unit can be adjusted according to the cap position, at which the cap is set.

(1) When using this unit as a screwdriver, line up the one of the numbers "1, 3, 5 ... 22" on the cap, or the black dots, with the triangle mark on the outer body.
(2) When using this unit as a drill, align the cap drill mark “◀◀◀” with the triangle mark on the outer body.

CAUTION:

○ The cap cannot be set between the numbers "1, 3, 5 ... 22" or the black dots.
○Do not use with the cap set at the black line between the number "22" and the drill mark "◀◀◀". Doing so may cause damage. (See Fig. 5)

2. Tightening torque adjustment

(1) Tightening torque

Tightening torque should correspond in its intensity to the screw diameter. When too strong torque is used, the screw head may be broken or be injured. Be sure to adjust the cap position according to the screw diameter.

(2) Tightening torque indication

The tightening torque differs depending on the type of screw and the material being tightened.

The unit indicates the tightening torque with the numbers "1, 3, 5 ... 22" on the cap, and the black dots. The tightening torque at position "1" is the weakest and the torque is strongest at the highest number. (See Fig. 4)

(3) Adjusting the tightening torque

Rotate the cap and line up the numbers "1, 3, 5, ... 22" on the cap, or the black dots, with the triangle mark on the outer body. Adjust the cap in the weak or the strong torque direction according to the torque you need.

CAUTION:

○The motor rotation may be locked to cease while the unit is used as drill. While operating the driver drill, take care not to lock the motor.
☐Too long hammering may cause the screw broken due to excessive tightening.

3. Change rotation speed

Operate the shift knob to change the rotational

speed. Move the shift knob in the direction of the arrow (see Figs. 6 and 7).

When the shift knob is set to "LOW", the drill rotates at a low speed. When set to "HIGH", the drill rotates at a high speed.

CAUTION:

When changing the rotational speed with the shift knob, confirm that the switch is off. Changing the speed while the motor is rotating will damage the gears.
When setting the shift knob to "HIGH" (high speed) and the position of the cap is "17" to "22", it may happen that the clutch does not engage and that the motor is locked. In such a case, please set the shift knob to "LOW" (low speed).
○If the motor is locked, immediately turn the power off. If the motor is locked for a while, the motor or battery may be burnt.

4. The scope and suggestions for uses

The usable scope for various types of work based on the mechanical structure of this unit is shown in Table 4.

Table 4

Work Suggestions
Drilling Steel	Wood
	Use for drilling purpose.
	Aluminum
Driving	Machine screw Use the bit or socket matching the screw diameter.
	Wood screw Use after drilling a pilot hole.

5. How to select tightening torque and rotational speed

Table 5

Use Cap Position			Rotating speed selection (Position of the shift knob)
			LOW (Low speed) HIGH	(High speed)
Driving	Machine screw 1	-22	For 4 mm or smaller diameter screws.	For 6 mm or smaller diameter screws.
	Wood screw 1 -		For 5.5 mm or smaller nominal diameter screws.	For 3.8 mm or smaller nominal diameter screws.
Drilling	Wood		For 18 mm or smaller diameters. (DS9DVF2) For 21 mm or smaller diameters. (DS12DVF2) For 25 mm or smaller diameters. (DS14DVF2)	For 12 mm or smaller diameters.
	Metal		For drilling with a metal working drill bit.	—

CAUTION:

The selection examples shown in Table 5 should be considered as general standard. As different types of tightening screws and different materials to be tightened are used in actual works proper adjustments are naturally necessary.
When using the driver drill with a machine screw at HIGH (high speed), a screw may damage or a bit may lose due to the tightening torque is too strong. Use the driver drill at LOW (low speed) when using a machine screw.

6. Mounting and dismounting of the bit

(1) After inserting a driver bit, etc. into the keyless drill chuck, firmly grasp the ring and tighten the sleeve by turning it toward the right (in the clockwise direction as viewed from the front). (See Fig. 8)
○If the sleeve becomes loose during operation, tighten it further. The tightening force becomes stronger when the sleeve is tightened additionally.

(2) Dismounting the bit

Firmly grasp the ring and loosen the sleeve by turning it toward the left (in the counter-clockwise direction as viewed from the front). (See Fig. 8)

CAUTION:

When it is no longer possible to loosen the sleeve, use a vise or similar instrument to secure the bit. Set the clutch mode between 1 and 11 and then turn the sleeve to the loose side (left side) while operating the clutch. It should be easy now to loosen the sleeve.

NOTE:

○There is a plus driver bit on side of the main unit. The bit can be removed by pulling it forward. After using the bit, make sure to firmly attach it to the main body again.

7. Confirm that the battery is mounted correctly.

8. Check the rotational direction

The bit rotates clockwise (viewed from the rear side) by pushing the R-side of the selector button. The L-side of the selector button is pushed to turn the bit counterclockwise. (See Fig. 9). (The L) and (R) marks are provided on the body.)

9. Switch operation

○When the trigger switch is depressed, the tool rotates. When the trigger is released, the tool stops.

The rotational speed of the drill can be controlled by varying the amount that the trigger switch is pulled. Speed is low when the trigger switch is pulled slightly and increases as the trigger switch is pulled more.

NOTE:

○A buzzing noise is produced when the motor is about to rotate; This is only a noise, not a machine failure.

MAINTENANCE AND INSPECTION

1. Inspecting the tool

Since use of as dull tool will degrade efficiency and cause possible motor malfunction, sharpen or replace the tool as soon as abrasion is noted.

2. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

3. Cleaning on the outside

When the driver drill is stained, wipe with a soft dry cloth or a cloth moistened with soapy water. Do not use chloric solvents, gasoline or paint thinner, for they melt plastics.

4. Storage

Store the driver drill in a place in which the temperature is less than 40^ C and out of reach of children.

5. Service parts list

A : Item No.

B : Code No.

C : No. Used

D : Remarks

CAUTION:

Repair, modification and inspection of Hitachi Power Tools must be carried out by an Hitachi Authorized Service Center.

This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance.

In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

MODIFICATIONS:

Hitachi Power Tools are constantly being improved and modified to incorporate the latest technological advancements.

Accordingly, some parts (i.e. code numbers and/or design) may be changed without prior notice.

NOTE

Due to HITACHI's continuing program of research and development, the specifications herein are subject to change without prior notice.

Information concerning airborne noise and vibration The measured values were determined according to EN50144.

The typical A-weighted sound pressure level: 73 dB (A). Wear ear protection.

The typical weighted root mean square acceleration value: 0.2 m/s ^4 (DS9DVF2)

0.5 m/s² (DS12DVF2)

1.1 m/s² (DS14DVF2)

DS9DVF2

A B C D	A B C D
1 318-228 1 M5×35	35 318-245 1
2 312-516 1 10TLRD-N	36 319-760 1
3 322-523 1 "4-25"	37 318-234 1
4 322-525 1	38_____1
5 318-232 1	39 306-952 1
6 312-709 1	40 315-141 1
7 312-714 1	41 320-604 1 EB914
8 312-713 1	501 UC9SD 1
9 318-230 1	502 318-236 1
10 319-744 6	503 319-967 1
11 306-936 6 D5
12 312-715 1
13 312-705 1
14 312-704 1
15 312-697 1
16 315-817 1 D3×12
17 311-962 1
18 315-137 1
19 315-805 1
20 315-816 1
21 315-804 1
22 315-815 1
23 315-136 1
24 312-716 1
25 318-231 1
26 322-527 1
27 991-672 7 D3×16
28_____1
29 318-237 1
30 949-203 2 M3×8
31 949-451 2 M3
32 322-526 1
33 306-041 1
34 306-040 1

DS12DVF2

A	B	C	D	A	B	C	D
1	318-228	1	M5×35	35	318-245	1
2	312-516	1	10TLRD-N	36	319-760	1
3	322-523	1	"4-25"	37	318-234	1
4	322-525	1		38	318-234	1
5	318-232	1		39	——	1
6	312-709	1		40	306-952	1
7	312-714	1		41	315-141	1
8	312-713	1		42	320-607	1	EB1214L
9	318-230	1		501	UC12SD	1
10	319-744	6		502	318-236	1
11	306-936	6	D5	503	319-967	1
12	312-715	1
13	312-705	1
14	312-704	1
15	312-697	1
16	315-817	1	D3×12
17	311-962	1
18	315-137	1
19	315-805	1
20	315-816	1
21	315-804	1
22	315-815	1
23	315-136	1
24	312-716	1
25	318-231	1
26	322-527	1
27	991-672	7	D3×16
28	——	1
29	318-237	1
30	949-203	2	M3×8
31	949-451	2	M3
32	322-526	1
33	306-041	1
34	306-040	1

DS14DVF2

A	B	C	D	A	B	C	D
1	318-228	1	M5×35	40	306-952	1
2	312-516	1	10TLRD-N	41	315-141	1
3	322-523	1	"4-25"	42	320-610	1	EB1414
4	322-525	1		501	UC14SD	1
5	318-232	1		502	320-653	1
6	312-709	1		503	319-967	1
7	312-714	1
8	312-713	1
9	318-230	1
10	319-744	6
11	306-936	6	D5
12	312-715	1
13	312-705	1
14	312-704	1
15	312-697	1
16	315-817	1	D3×12
17	311-962	1
18	315-137	1
19	315-805	1
20	315-816	1
21	315-804	1
22	315-815	1
23	315-136	1
24	312-716	1
25	318-231	1
26	322-524	1
27	991-672	8	D3×16
28	———	1
29	318-237	1
30	949-203	2	M3×8
31	949-451	2	M3
32	322-522	1
33	306-041	1
34	306-040	1
35	320-145	1
36	318-247	1
37	319-760	1
38	318-234	1
39	———	1

Line drawing of a quill pen with inkwell (no text or symbols)

Line drawing of a quill pen with inkwell, no text or symbols present

Line drawing of a quill pen with inkwell (no text or symbols)

Svenska		Suomi
EF-DEKLARATION BETRÄFFANDE LIKFORMIGHETVi tillkännagiver med eget ansvar att denna produkt överensstämmer med standard eller standardiserat dokument EN50144 och EN55014-2 i enlighet med räddirektiven 89/336/E∅S och 98/37/EF.Denna deklaration gäller för CE-märkningen på produkten.		EY-ILMOITUS YHDENMUKAISUUDESTAYksinomaisella vastuudella vakuutamme, että tämä tuote vastaa normeja tai normitettuja dokumentteja EN50144 ja EN55014-2 yhteisön ohjeiden 89/336/ETY ja 98/37/EY mukaisesti.Tämä ilmoitus sovelletaan tuotekohtaiseen CE-merkintään.
Dansk		English
EF-DEKLARATION OM ENSARTETHEDVi eklærer os fuldstændige ansvarlige for, at dette produkt modsvarer gældende standard eller de standardiserede dokumenter EN50144 og EN55014-2 i overensstemmelse med EF-direktiver 89/336/E∅F og 98/37/EF.Denne erklæring gælder produkter, der er mærket med CE.		EC DECLARATION OF CONFORMITYWe declare under our sole responsibility that this product is in conformity with standards or standardized documents EN50144 and EN55014-2 in accordance with Council Directives 89/336/EEC and 98/37/EC.This declaration is applicable to the product affixed CE marking.
Norsk
EF's ERKLÆRING OM OVERENSSTEMMELSEVierklærerherved at vi påtar oss e neansvaret for at dette produktet er i overensstermmelse med normer eller standardiserte dokumenter EN50144 og EN55014-2 i samsvar med Rådsdirektiver 89/336/E∅S og 98/37/EF.Denne erklæringen gjelder produktets påklistrede CE-merking.
Representative office in Europe Hitachi Power Tools Europe GmbH Siemensring 34, 47877 Willich1, F. R. Germany Head office in Japan Hitachi Koki Co., Ltd.Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo, Japan		CE31.12.2003H.KatoK. KatoBoard Director

Hitachi Koki Co., Ltd.
