Product type	Electric kettle
Brand	Graef
Model	WK 403
Capacity	1 liter
Body material	Stainless steel
Power supply	220-240 V ~ 50/60 Hz
Power	2000-2400 W
Dimensions (approx.)	22 x 18 x 25 cm
Weight (approx.)	0.8 kg
Automatic shut-off	Yes, after boiling
Dry boil protection	Yes, automatic shut-off
Overheat protection	Yes
Anti-scale filter	Yes, removable
Lid	With button opening
Base	With 360° rotation
Cable length	Approx. 0.7 m
Water level indicator	Yes, Min/Max markings
Operation indicator light	Yes, turns off when stopped
Cleaning	Exterior with damp cloth
Recommended descaling	With vinegar or descaling product
Manufacturer's warranty	24 months
Use	Domestic

Frequently Asked Questions - WK 403 GRAEF

How to use the kettle for the first time?

Before first use, fill the kettle with cold water up to the maximum level and boil it. Then discard this water to remove manufacturing residues.

What is the maximum capacity of the kettle?

The maximum capacity is 1 liter, indicated by the MAX mark inside. Do not exceed this level to avoid overflow.

How to clean the kettle?

Unplug it and let it cool down. Clean the exterior with a soft damp cloth. Do not use abrasive products. Never immerse the kettle or base in water.

How to descale the kettle?

Fill the kettle 3/4 full with water and boil. Add vinegar up to the MAX level (without boiling). Let it sit overnight, then rinse several times with clean water.

What to do if the kettle does not turn on?

Check that the outlet works and the base is properly plugged in. If the dry boil protection has been triggered, wait for the appliance to cool down before refilling with water and turning it on again.

Does the kettle turn off automatically?

Yes, it shuts off automatically as soon as the water boils. You can also lift it from the base during operation, which activates the safety shut-off.

Can I boil water again after it stops?

Yes, wait about 30 seconds after the automatic shut-off, then press the switch again to restart boiling.

How to change the anti-scale filter?

The filter is removable. Carefully remove it, clean it under running water, or replace it if necessary. Refer to the manual for spare parts.

Is the kettle suitable for children?

Children aged 8 years and above can use it under supervision. The appliance becomes very hot, keep it out of reach of children under 8 years.

Where to find spare parts or after-sales service?

Contact your specialist dealer or Graef's after-sales service. Only use original parts for safety and warranty.

USER MANUAL WK 403 GRAEF

Illustration of a modern gray water heater with a handle and label 'GRAEF' (no additional text or symbols)

DE Bedienungsanleitung
EN Instruction Manual
FR Mode d'emploi
NL Gebruiksaanwijzing
PL Instrukcja obsługi

Empty white rectangle with black border (no text or symbols)

Pure electrical circuit lines without any symbols

3D rendering of a mechanical device with a piping bag inserted (no text or symbols visible)

Illustration of a desk lamp with a curved lamp above a circular base, showing a downward arrow (no text or symbols)

3D diagram of a cylindrical object with a base and a protruding rod, showing an upward motion (no text or symbols)

Line drawing of a teapot pouring liquid into a cup (no text or symbols)

Illustration of a lamp with a base and a downward arrow indicating motion (no text or symbols)

Technical illustration of a speaker grille with concentric rings and mesh pattern (no text or symbols)

Illustration of a showerhead with a handle and circular base (no text or symbols)

Close-up of a mechanical component with a circular opening and internal mesh structure (no visible text or symbols)

You made the right decision with the purchase of the electric kettle. You have acquired an established quality product.

We thank you for your purchase and wish you lots of joy with your new electric kettle.

SAFETY INSTRUCTIONS

This unit complies with the statutory safety regulations. Improper use can, however, lead to personal injury and property damage.

To handle the unit safely, follow the instructions below:

• Check the unit for external, visible damage to the housing, the connector cable and the plug before using it. Do not put a damaged unit into operation.
• To prevent hazards, if the machine's connection cable is damaged, solely the manufacturer or its customer service department or a similarly qualified person is permitted to replace it.
• Repairs are only allowed to be performed by a specialist or by the Graef customer service department. Improper repairs can lead to extreme hazards for the user. Furthermore, the right to warranty claim expires.
• Defective components must be replaced solely with genuine spare parts. Fulfilment of the safety regulations is only guaranteed if these parts are used.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of the reach of children less than 8 years.
• The unit is not intended to be used with an external timer or a separate telecontrol system.
• This unit is intended to be used in household and similar applica-

tions such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service or similarly qualified persons in order to avoid a hazard.

- Do not use the unit if the connection cable or plug is damaged.

- To prevent hazards, before continuing to use the unit have a new connection cable installed solely by the manufacturer or its customer service department or a similarly qualified person

- Never open the unit housing under any circumstances. If live connections are touched and the electrical or mechanical structure changes, there is a danger of electric shock.

- Never touch any parts that are conducting electricity. They can cause an electric shock or even lead to death.

- Always pull the power supply line from the electric socket with the connection plug, not on the connection cable.

- Make sure the mains cable does not get caught anywhere, which could lead to the unit falling down.

- Do not use the packing material as a toy. Danger of suffocation.

- Do not fill the electric kettle with water past the highest mark. Water that bubbles over can lead to injuries.

- Do not touch the outer wall of the unit; it can get hot.

- Never immerse the unit or the base station into water or any other liquid.

- Touch the unit only on the handle.

- Make sure there is always sufficient water in the unit (the bottom should be covered) to prevent dry boiling.

- Never use the unit near a heat source.

- Never use the unit outdoors. Store in a dry place.

- Always pull the plug from the electric socket when filling with water, after each use and before cleaning.

- Make sure to use the unit only together with the supplied base station. Never use the base station for any other purpose.

- Switch the unit on only after you have filled it with water. Use cold

water only.

• The lid of the unit must always be firmly closed.
• Make sure the unit is switched off and is not connected to the mains.
• Do not use any aggressive or abrasive cleaning agents and do not use any solvents.
• Do not scratch off stubborn soiling with hard objects.
• Do not rinse the unit off in water or immerse it into water.

UNPACKING

To unpack the unit, proceed as below:

• Take the unit out of the carton.
- Remove all pieces of the packing.

- Remove any possibly extant labels on the unit (do not remove the rating label).

REQUIREMENTS FOR THE INSTALLATION LOCATION

For safe and flawless operation of the unit, the place of location must meet these prerequisites:

• The unit must be set up on a firm, flat, level and non-slip base that has sufficient load bearing capacity.
  • Make sure the unit cannot fall over.
• Select the location so that children cannot reach the hot surfaces of the unit and cannot touch the cable.

BEFORE THE FIRST USE

Read these operating instructions thoroughly and keep them handy for referral later on.

This unit brings water to boil in a few minutes.

- To clean the unit, first fill the unit with clear, cold water and then boil it. Subsequently pour away the water because of hygenical reasons.

OPERATION

Empty white rectangle with black border (no text or symbols)

• Take hold of the base station and unwind the cable as far as it goes.

Pure electrical circuit lines without any symbols

- Plug the plug into the electric socket.

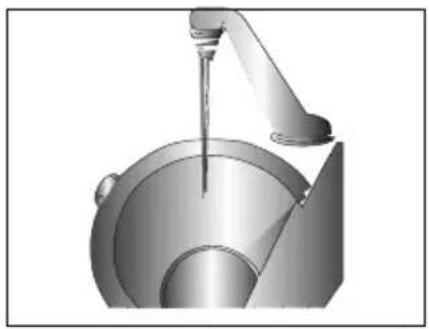

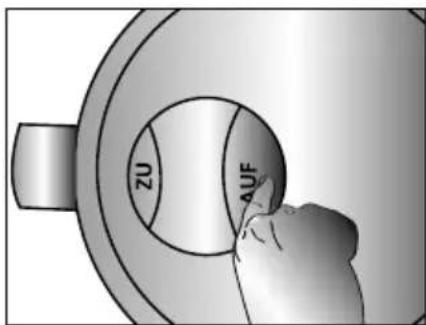

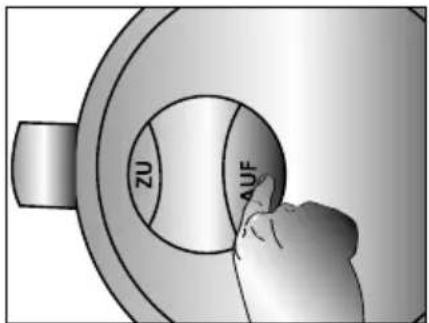

- Open the lid and fill the unit with water.

3D rendered mechanical component with a lever and cylindrical body (no text or symbols visible)

- Fill in 1 litre maximal.

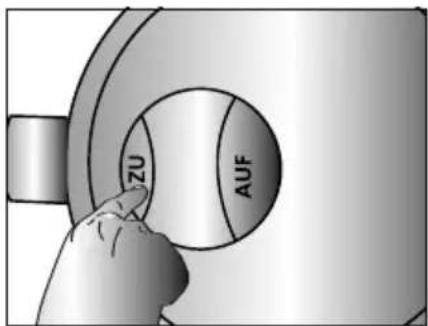

- Close the lid.

Diagram showing a lamp with a base and a curved screen above it, no text or symbols present

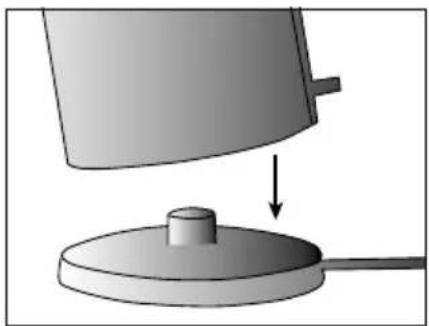

- Put the unit back onto the base station and push the ON-/OFF switch. The indicator lights blue and the unit is switched on.

Important: Do not open the lid during the boiling process.

Make sure you do not exceed the internal maximum filling level mark.

Fill the unit so that the water level is definitely between the minimum and maximum indicator line.

- As soon as boiling stops, the unit automatically shuts off.

• The indicator light extinguishes.

- If desired, you can press the on/off switch again to boil the water once more. However, before doing that, please wait about 30 sec. after the unit automatically shut itself off.

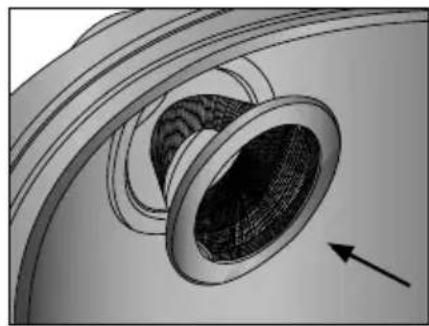

LIME FILTER

The removable lime filter prevents lime scale being poured out.

DRY RUNNING AND OVERHEATING PROTECTION

This unit is equipped with a dry running and overheating protection system. If you ever operate the unit without any water or with too little water, the unit shuts itself off. Wait a moment until the unit has cooled off. Fill the unit with water and

continue as usual.

LIFT-OFF SHUT-OFF

If you happen to lift the unit off the base station while boiling, the unit shuts itself off. This is the so-called lift-off shut-off.

CLEANING

First pull the plug out of the electric socket and let the unit cool off.

Clean the exterior of the unit with a soft, moist cloth. If heavily soiled, you can use a mild detergent.

DECALCIFYING

Depending on the hardness degree of the water, lime scale can build up over time on the bottom and on the interior wall of the stainless steel tank. The harder the water, the faster the lime scale builds up. That is harmless but it can impair the performance of the unit.

For that reason, we recommend regularly decalcifying the unit as follows

• Fill the unit three-quarters full with water.
• Boil it.

- After the unit has shut itself off, fill the unit additionally with distilled white vinegar up to the MAX mark.

Important: Never boil this mixture!

• Let the mixture stand overnight.
• Empty the unit and rinse it out several times with clear water.

TECHNICAL DATA

CUSTOMER SERVICE DEPARTMENT

If your Graef unit has a defect, please contact your dealer or the Graef customer service department.

DISPOSAL

At the end of its service life, this product must not be disposed through normal do-

mestic waste; rather it must be disposed at a collection point for recycling electronic domestic refuse. The symbol on the product and in the operating instructions points this out. The materials can be recycled in accordance with their markings. By recycling, making use of the materials or other forms of recycling old units you are making an important contribution to protecting our environment. Please ask your municipal administration about the responsible disposal sites.

WARRANTY

Starting with the date of purchase, we assume a 24 month manufacturer's warranty for defects that are attributable to manufacturing and material defects. Your legal warranty rights in accordance with § 439 ff. German Civil Code-E remain unaffected by this clause. Not included in the warranty are damages that have arisen due to improper handling and use as well as defects which have only a slight influence on the functioning or value of the unit. Furthermore, shipping damages, unless our responsibility, are excluded from warranty rights. Warranty claims are excluded for damages that arise due to repairs we or our representatives have not performed. In case of a justified complaint, we will repair or replace the defective product with a flawless product as we choose.

CONSIGNES DE SÉCURITÉ

Empty white rectangle with black border (no text or symbols)

Pure electrical circuit lines without any symbols

3D rendering of a mechanical device with a lever and internal components (no visible text or symbols)

Illustration of a lamp with a base and a curved top, showing an arrow indicating light or motion (no text or symbols present)

Empty white rectangle with black border (no text or symbols)

Pure electrical circuit lines without any symbols

3D rendering of a mechanical device with a lever and internal components (no visible text or symbols)

Illustration of a lamp with a base and a curved top, showing an arrow pointing to the lamp (no text or symbols present)

Empty white rectangle with black border (no text or symbols)

Diagram showing a power socket connected to an inductor with an arrow indicating direction (no text or symbols)

3D rendering of a mechanical device with a piping bag inserted (no text or symbols visible)

Illustration of a lamp with a base and a drop, showing no text or symbols

3D diagram of a cylindrical object with a base and a protruding rod, showing an upward motion (no text or symbols)

Line drawing of a teapot pouring liquid into a mug with a lid nearby (no text or symbols)

Illustration of a lamp with a base and a downward arrow indicating motion (no text or symbols)

Close-up of a mechanical component with concentric rings and a meshed inner area (no text or symbols visible)

Illustration of a showerhead with a handle and circular base (no text or symbols)

Close-up of a mechanical component with a circular opening and mesh pattern (no text or symbols visible)

Empty white rectangle with black border (no text or symbols)

Pure electrical circuit lines without any symbols

- Sæt stikkontakten ind i stikdåsen.

Illustration of a kitchen sink with a faucet and water level indicator (no text or symbols)

Illustration of a lampshade with a base and a drop, showing no text or symbols

Simple line drawing of a cylindrical container with a base and an upward arrow, no text or symbols present.

Illustration of a hand pouring liquid into a mug (no text or symbols visible)

Illustration of a lamp with a base and a downward arrow indicating motion (no text or symbols)

Technical illustration of a mechanical component with concentric rings and directional arrows (no text or symbols)

Illustration of a showerhead with a handle and circular base (no text or symbols)

- Rengør kalkfilteret under rindende vand.

Close-up of a car wheel rim with a mesh pattern and an arrow pointing to the center (no text or symbols)

AFKALKNING / INDVENDIG RENG∅RING

Empty white rectangle with black border (no text or symbols)

Pure electrical circuit lines without any symbols

Illustration of a faucet dispensing liquid into a cylindrical tank (no text or symbols visible)

Illustration of a lamp with a base and a curved top, showing an arrow indicating light or motion (no text or symbols present)

Simple line drawing of a cylindrical object with a base and a small protrusion, no text or symbols present.

Illustration of a teapot pouring liquid into a glass cup (no text or symbols visible)

- Hell vannet langsomt en kopp eller en lignende beholder.

Illustration of a lamp with a curved lamp and a base, showing an arrow pointing to it (no text or symbols present)

Technical illustration of a mechanical component with concentric rings and arrows indicating assembly or motion (no text or symbols)

Illustration of a showerhead with a handle and circular base (no text or symbols)

Close-up of a mechanical component with a circular opening and textured internal structure, no visible text or symbols.

Empty white rectangle with black border (no text or symbols)

Pure electrical circuit lines without any symbols

Illustration of a kitchen sink with a faucet and water level indicator (no text or symbols)

Illustration of a lamp illuminating a circular base with a handle, showing no text or symbols

Simple line drawing of a cylindrical object with a base and a small protrusion, no text or symbols present.

Illustration of a teapot pouring liquid into a mug (no text or symbols visible)

Illustration of a lamp with a base and a downward arrow indicating motion (no text or symbols)

Technical illustration of a mechanical component with concentric rings and directional arrows (no text or symbols)

Illustration of a showerhead with a circular base and handle, no text or symbols present

Close-up of a mechanical component with a circular opening and textured internal structure, no visible text or symbols.

Empty white rectangle with black border (no text or symbols)

Pure electrical circuit lines without any symbols

Diagram of a mechanical component with a lever and internal structure (no text or symbols)

Illustration of a lamp with a base and a downward arrow indicating motion (no text or symbols)

Simple 3D diagram of a cylindrical device with a base and handle, showing an upward arrow (no text or symbols)

Illustration of a pipette dispensing liquid into a glass cup (no text or symbols visible)

Illustration of a lamp with a base and a downward arrow indicating motion (no text or symbols)

Technical illustration of a mechanical component with concentric rings and arrows indicating direction (no text or symbols)

Illustration of a showerhead with a handle and two circular feet (no text or symbols)

Close-up of a mechanical component with a circular opening and internal mesh structure (no visible text or symbols)
