OPTIO W60 - Digital Camera PENTAX - Free user manual and instructions

Product type	Compact digital camera with zoom
Brand	PENTAX
Model	OPTIO W60
Sensor	1/2.3-inch CCD, 10 effective megapixels
Lens	Focal length 5.0-25.0 mm (equivalent 28-140 mm), aperture F3.5-5.5
Optical zoom	5x
Digital zoom	Up to 5.7x (combined with optical 28.5x max)
Screen	2.5-inch LCD, approx. 230,000 dots, AR coating
Sensitivity	Auto, ISO 50-6400 (depending on mode)
Storage media	Internal memory 36.4 MB + SD/SDHC card
Power supply	Rechargeable lithium-ion battery D-LI78, charger D-BC78
Battery life	Approx. 205 photos (CIPA standard) / 200 min playback
Dimensions (W x H x D)	98.0 x 55.5 x 24.5 mm
Weight	125 g (without battery or card) / 145 g (with)
Waterproof	IP58: JIS level 8 for water, level 5 for dust; underwater shooting up to 4 m for 2 h
Shooting modes	Auto, program, 20 scene modes (night, portrait, underwater, panorama, etc.), simplified green mode
Stabilization	Digital SR (high sensitivity) for still images; Movie SR for videos
Face function	Recognition of up to 32 faces, smile detection, blink detection
Video recording	HD 1280x720 at 15 fps, VGA 640x480 at 30/15 fps, AVI format (Motion JPEG)
Built-in flash	Range: Wide 0.3-3.9 m, Tele 0.4-2.5 m; modes: auto, forced, red-eye, soft
Maintenance and cleaning	Clean with a dry cloth; rinse with fresh water after use in the sea; replace the waterproof seal once a year
Safety	Do not disassemble, avoid shocks, use only the specified adapter, charge only the D-LI78 battery
Spare parts / Repairability	Battery D-LI78, charger D-BC78, optional AC adapter kit K-AC78; annual revision recommended; contact PENTAX center
General information	12-month warranty; compatible with PictBridge, PRINT Image Matching III; software included (CD-ROM)

Frequently Asked Questions - OPTIO W60 PENTAX

How to charge the battery of the Optio W60?

Use the supplied D-BC78 charger. Connect the power cord, insert the battery (PENTAX logo facing up) and wait about 150 minutes. The charging indicator turns off when charging is complete.

Is the device really waterproof? Up to what depth?

Yes, it is certified IP58 (JIS level 8 for water). You can use it underwater up to 4 meters for 2 hours continuously. Make sure to close the protective cover properly.

How to recover accidentally deleted images?

The Optio W60 has an Image recovery function. After deletion, the image is temporarily retained and can be restored via the playback menu. Use the 'Restore' option in the playback mode palette.

Can I record high-definition videos?

Yes, the device records in HD 1280x720 at 15 frames per second in AVI format (Motion JPEG). You can also choose 640x480 at 30 or 15 fps. The maximum file duration is 2 GB.

Which SD memory card to use?

The device accepts SD and SDHC cards. Format the card in the device before first use. Avoid low-speed cards for videos. The write-protect switch prevents accidental deletion.

How to set the date and time?

At first power-on, follow the setup wizard. To change later, go to the [Settings] > [Date setting] menu. You can choose the format (DD/MM/YY or MM/DD/YY) and 12h/24h display.

What to do if the screen displays 'Battery exhausted' even though the battery is charged?

The battery may be at the end of its life or the temperature is too low. Replace it with a new D-LI78 battery. If the problem persists, contact a PENTAX repair center.

How to use the device underwater?

Make sure the protective cover is properly locked. Select the Underwater mode (fish icon) in the scene modes. You can take photos and videos. After use, rinse the device with fresh water and dry it.

Is it possible to print directly from the device?

Yes, via PictBridge. Connect the device to a compatible printer with the supplied USB cable. Set the USB connection mode to [PictBridge] in the menu. You can print a single image, all images, or according to DPOF settings.

How to reset all device settings?

Go to the [Settings] > [Reset] menu. Confirm to restore default settings. Date, time, and language settings are not affected. The internal memory and card are not erased.

USER MANUAL OPTIO W60 PENTAX

Close-up of a silver Pentax 10MEGAPixels optical water heater (no visible text or symbols on body)

Illustration of a woman relaxing on a bed while another person takes a picture with a camera, both in water near a beach and boat (no text or symbols)

Illustration of a hand holding a camera with a heart-shaped logo, next to a cartoon dog (no text or symbols present)

Line drawing of a Pentax digital camera with no visible text or symbols on the body

Appareil Optio W60

Line drawing of a U-shaped object with a loop handle and clasp (no text or symbols)

Courroie O-ST20 (*)

Simple line drawing of a circular object with concentric rings (no text or symbols)

Line drawing of a coiled cable with connectors (no text or symbols)

Câble USB I-USB7 (*)

Line drawing of a coiled electrical cable with two connectors (no text or symbols)

Câble AV I-AVC7 (*)

Batterie lithium-ion rechargeable D-LI78 (*)

Line drawing of a rectangular electronic device labeled 'PENTAX' with ports and an internal slot (no text beyond label)

Coiled black cable with three terminal connectors (no text or symbols visible)

Line drawing of a Pentax digital camera with front panel and control buttons (no text or symbols on body)

Black-and-white beach scene with palm trees, a small island, and a camera interface (no readable text or symbols)

Black-and-white beach scene with palm trees and a distant hilltop, captured by a camera interface (no readable text or symbols)

Two grayscale images labeled 'MENU Annuler' and 'OK OK', showing abstract patterns with no readable text or symbols.

Black-and-white beach scene with palm trees, a small island, and a shoreline (no visible text or symbols)

Smile Capture

Black-and-white beach scene with palm trees, a distant hill, and a lake under cloudy sky (no text or symbols)

Black-and-white photo of a wooden pier with a gabled pavilion by the water, no visible text or symbols

Grid of grayscale landscape photos including heart-shaped, rectangular, and landscape views (no text or symbols)

Grayscale circular image showing a snowy landscape with a camera icon and status bar (no readable text or symbols)

Black-and-white portrait of a smiling woman outdoors, no visible text or symbols in the main image area

Black and white photo of a dog resting on a wooden structure, with no visible text or symbols in the image itself.

Black-and-white photo of a sleeping dog on a wooden ledge, no visible text or symbols

Black-and-white photo of two newborn babies with camera bounding boxes, no visible text or symbols in the main image area.

Black-and-white cityscape photo showing a waterfront promenade with distant buildings and a street lamp (no readable text or symbols)

Pure geometric shapes with no text, numbers, or symbols

Black-and-white beach scene with palm trees and distant buildings under a cloudy sky (no readable text or symbols)

Histogramme + Info

Black-and-white beach scene with palm trees and a castle on the shore, no visible text or symbols

Solid gray rectangle with no visible text, symbols, or features.

Black-and-white beach scene with palm trees, a lighthouse, and a small boat on the water (no visible text or symbols)

Aucun aff. d'info

Abstract grayscale shape resembling a mountain or peak against a gray background (no text or symbols)

Image correcte

Abstract white silhouette on a gray background, no text or symbols present

Image lumineuse

Abstract grayscale shape with a white wavy form against a gray background (no text or symbols)

Black-and-white photo of white flowers in a field, no visible text or symbols

Black-and-white photo of white flowers with a camera icon and date stamp (07/07/2008, 14:25) in the corner, no readable text or symbols on the flower image itself.

Écran de lecture

Exterior view of a modern building with a roof and landscaping, no visible text or symbols

Black-and-white portrait of a young girl with curly hair, no visible text or symbols

Black-and-white photo of a young girl with long hair, resting her chin on her hand (no text or symbols visible)

Black and white photo of a dolphin swimming in water with editing interface icons (no readable text or symbols)

Black-and-white photo collage showing beach scenes and a cityscape, with no visible text or symbols.

Black-and-white beach photo showing a person on a beach with directional arrows and UI controls (no readable text or symbols)

Black-and-white photo of a wooden pier at dusk with a gabled roof, no visible text or symbols

Grid of grayscale image thumbnails showing a dog, heart, and camera interface elements (no text or symbols)

Black and white photo of a fluffy white dog sitting on grass, with camera app icons in the corner (no text or symbols on the dog or background)

Black and white photo of a small dog sitting on grass, no text or symbols visible

Black-and-white photo of a wooden pier with a gabled structure, no visible text or symbols

Black-and-white photo of a wooden pier with a gabled pavilion and wooden deck, no visible text or symbols.

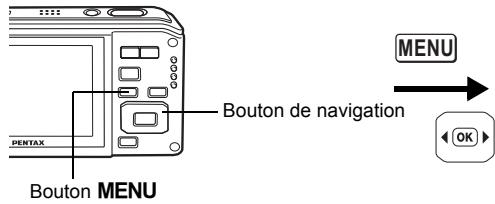

Comment afficher le menu [Régages]

Black-and-white beach scene with palm trees, a small island, and a stone bridge under cloudy sky (no text or symbols)

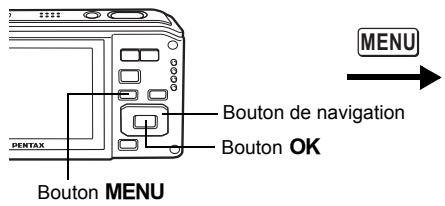

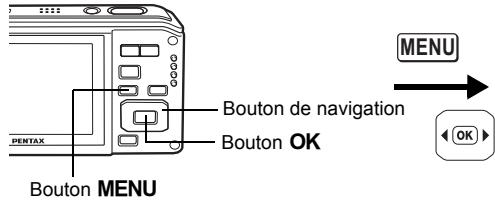

Comment afficher le menu [Régages]

Black-and-white beach scene with palm trees, distant buildings, and a phone call (no readable text or symbols)

Grayscale image of a sun with a clock face showing 2:25, no readable text or symbols in the main visual area.

Aide-mémoire

Batterie lithium-ion rechargeable D-LI78 (*)

O-ST30/O-ST81 Courroie hydrophobe

- Étui

O-CC48

O-CC79

O-CC81

For customers in USA

STATEMENT OF FCC COMPLIANCE

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

* Consult the dealer or an experienced radio/TV technician for help.

For customers in Canada

This Class B digital apparatus complies with Canadian ICES-003.

Perchlorate Material-special handling may apply. The lithium battery used in this camera contains perchlorate material, which may require special handling. See www.dtsc.ca.gov/hazardouswaste/perchlorate

Declaration of Conformity

According to 47CFR, Parts 2 and 15 for

Class B Personal Computers and Peripherals

We: PENTAX Imaging Company A Division of PENTAX of America, Inc.

Located at: 600 12 ^th Street, Suite 300 Golden, Colorado 80401 U.S.A. Phone: [phone] FAX: [phone]

Declare under sole responsibility that the product identified herein complies with 47CFR Parts 2 and 15 of the FCC rules as a Class B digital device. Each product marketed is identical to the representative unit tested and found to be compliant with the standards. Records maintained continue to reflect the equipment being produced can be expected to be within the variation accepted, due to quantity production and testing on the statistical basis as required by 47CFR §2.909.

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The above named party is responsible for ensuring that the equipment complies with the standards of 47CFR §15.101 to §15.109.

Product Name: PENTAX Digital Still Camera

Model Number: Optio W60

Contact person: Customer Service Manager

Date and Place: June, 2008, Colorado

(《♀》) Digital SR (anti-flou) ....57, 68

Digital SR (anti-bougé de l'appareil) ..... 149

Enfants 57

Gastronomie 58

Texte 81

Portrait nocturne 73

A

Digital SR (anti-flou) .....57, 68
